Bar Builder Slides Blueprint Algebra: Lesson 1
Bar Builder
Basics
Using tape diagrams to turn word problems into pictures before they become algebra.
Visual Math
Solving for X
The Candy Bar Mystery
Imagine you have a giant candy bar. You eat part of it, and your friend eats the rest.
"The whole bar is 20 inches long. I ate 12 inches. How much did my friend eat?"
12 in.
?
Total Length: 20 inches
How can we solve this with a simple drawing?
Upgrading to Algebra
Level 1: Arithmetic
In the past, we used a blank box or a question mark for the missing number.
12 + ? = 20
Level 2: Algebra
Now, we use a Variable (a letter) to represent that same missing space.
12 + x = 20
The "Bar" stays the same. Only the labels change!
How to Build a Bar Model
1
The Total Bar
Draw one long bar. The number on top is the Total (the answer after =).
20
2
Split into Parts
Slice the bar based on the pieces of the problem.
20
3
Label Everything
Write the numbers you know and the variable you're looking for.
20
12
x
Practice: The Total Bar
"Marcus has some trading cards. He buys 5 more cards. Now he has 18 cards in total."
What's the Total?
18
What do we know?
5
What is missing?
x
The Equation: x + 5 = 18
Blueprint Sketchpad Worksheet Blueprint Sketchpad
Lesson 1: Bar Builder Basics
Name:
Date:
Part 1: Sketch the Blueprint
Read the story, determine the Total , and draw the bar model. Use x for the unknown value.
1. Sofia had 15 books. She donated some of them to the library. Now she has 9 books left.
Workspace (Draw Bar Model Here)
What is the Total?
Write the Equation:
2. A group of friends ordered a pizza for $24. They used a coupon to take some money off. They ended up paying $18.
Workspace (Draw Bar Model Here)
What is the Total?
Write the Equation:
Part 2: Read the Blueprint
Look at the bar models and write the algebra equation they represent.
Model A
35
x
20
Equation:
Model B
100
x
75
Equation:
Part 3: Solving for X
Pick one of the problems above. Use your bar model to figure out what x equals.
I am solving Problem #:
Show your work / Thinking space
x =
Bar Builder Answer Key Answer Key & Teacher Guide
Lesson 1: Bar Builder Basics
Teacher Resource
Part 1: Sketch the Blueprint
1. Sofia's Books
x
9
Total: 15
Total: 15
Equation: x + 9 = 15 (or 15 - 9 = x)
2. Pizza Coupon
x
18
Total: 24
Total: 24
Equation: 24 - x = 18 (or x + 18 = 24)
Support Strategies for 9th Grade SpEd
Check for Understanding: Ask students, "Which part of the bar represents the 'end' of the story?" to help identify the total .
Scaffolding: For students struggling to draw, provide pre-cut paper bars that they can label and glue onto the sheet.
Language: Use the term "variable" and "unknown" interchangeably to build vocabulary while maintaining conceptual clarity.
Double Decker Slides Blueprint Algebra: Lesson 2
Double Decker
Equations
Solving two-step equations by seeing the parts and the groups.
The Mystery Bag Challenge
You have 3 identical bags and a 5-pound weight . Together, they weigh 17 pounds .
3 bags + 5 lbs = 17 lbs
How much does ONE mystery bag weigh?
?
?
?
5
Total: 17 lbs
Building the Two-Step Bar
Step 1: The Total remains the whole bar.
17
"The whole thing is 17."
Step 2: Add the parts we know and the unknown groups.
17
x
x
x
5
"3 groups of x plus a 5."
Why Subtract First?
Look at the bar. Before we can find one x, we need to get rid of the part that isn't an x.
1 Remove the Constant: Subtract the 5 from the total (17 - 5 = 12).
2 Divide the Groups: Split the remaining total by how many x's are left (12 ÷ 3 = 4).
12
5
↓
4
4
4
x = 4
Ready to build?
Always ask: "How many x's are there?" and "What is the extra amount?"
Problem
2x + 10 = 30
The Plan
1. Total bar = 30
2. Split into 10 and 2x
3. Subtract 10
4. Divide by 2

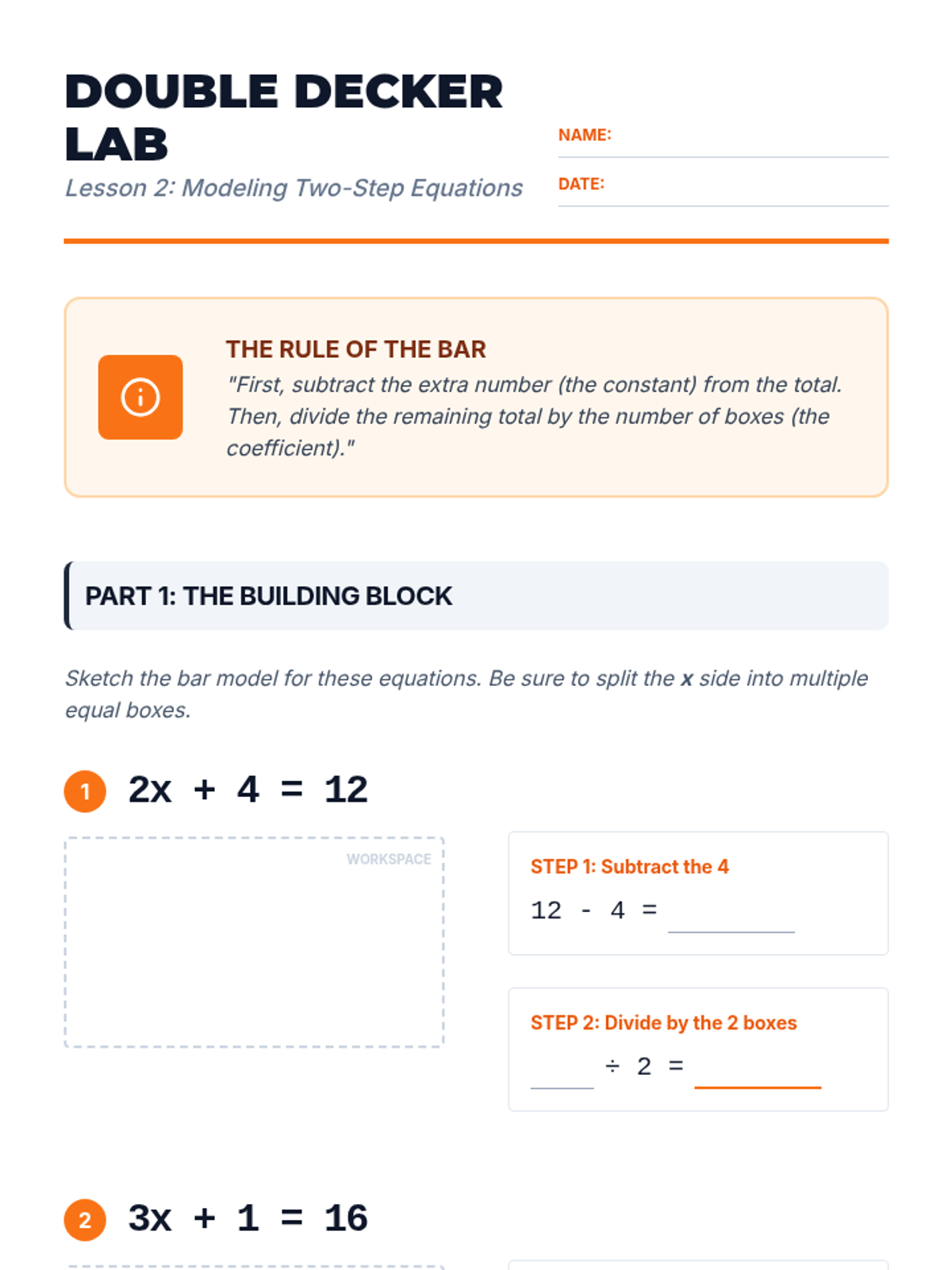

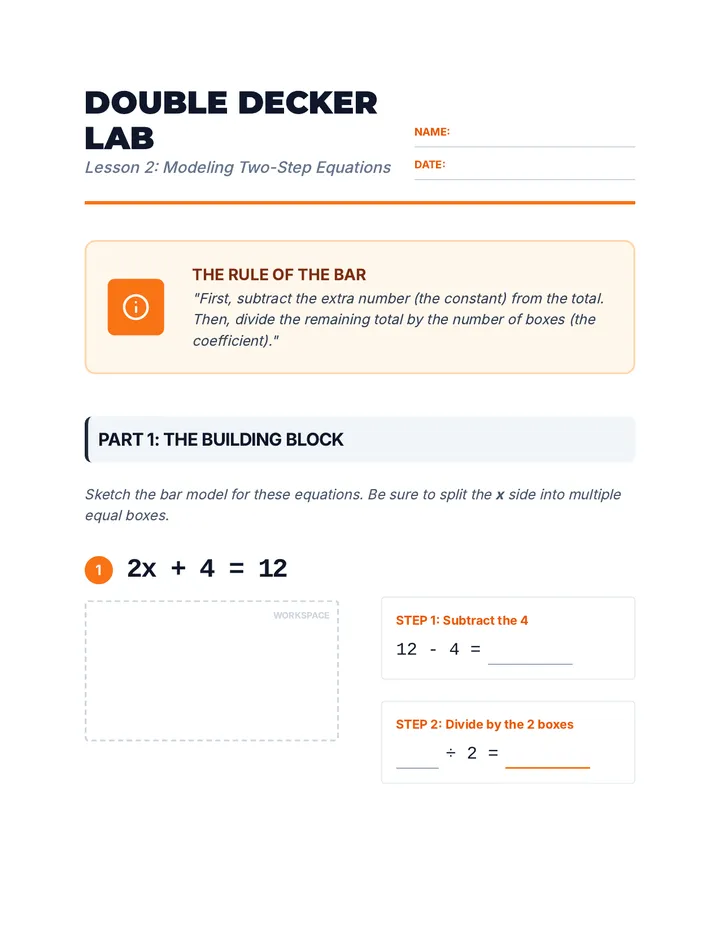

Double Decker Lab Worksheet Double Decker Lab
Lesson 2: Modeling Two-Step Equations
Name:
Date:
The Rule of the Bar
"First, subtract the extra number (the constant) from the total. Then, divide the remaining total by the number of boxes (the coefficient)."
Part 1: The Building Block
Sketch the bar model for these equations. Be sure to split the x side into multiple equal boxes.
1 2x + 4 = 12
Workspace
STEP 1: Subtract the 4
12 - 4 =
STEP 2: Divide by the 2 boxes
÷ 2 =
2 3x + 1 = 16
Workspace
STEP 1: Subtract the 1
16 - 1 =
STEP 2: Divide by the 3 boxes
÷ 3 =
Part 2: Real-World Blueprint
"A taxi ride costs a $5 flat fee plus $2 for every mile . The total cost of the ride was $15 . How many miles was the ride?"
Draft the Bar
15
Divide this bar into a '5' and two 'x' boxes
Total Cost: $15
Flat Fee (Subtract this): $5
Cost per Mile: $2
The Solution:
x =
miles
"Why is it easier to see the subtraction when we look at the bar?"
Variable Tug of War Slides Blueprint Algebra: Lesson 3
Variable
Tug of War
Handling x on both sides by comparing two equal bars.
The Battle of the Bars
Sometimes, we have x on both sides of the equal sign.
3x + 2 = 1x + 10
Wait... how can they be equal?
It means the length of both bars is the same, but the pieces inside are different.
Seeing the Equality
Side A
x
x
x
2
Side B
x
10
Both bars are the exact same length!
Canceling Out
To make it simple, we remove the same amount of x from both bars.
Think:
"If I take 1 block of x away from both sides, the bars are still equal length!"
x
x
x
2
x
10
↓
2x + 2 = 10
(Look! It's a normal two-step problem now!)
The Cost Challenge
Plan A:
$5 monthly fee + $3 per GB
Plan B:
$13 monthly fee + $1 per GB
When do they cost the exact same?
We can model this with two equal bars and "cancel out" the GBs and the Fees to find the balance point.
3x + 5 = 1x + 13

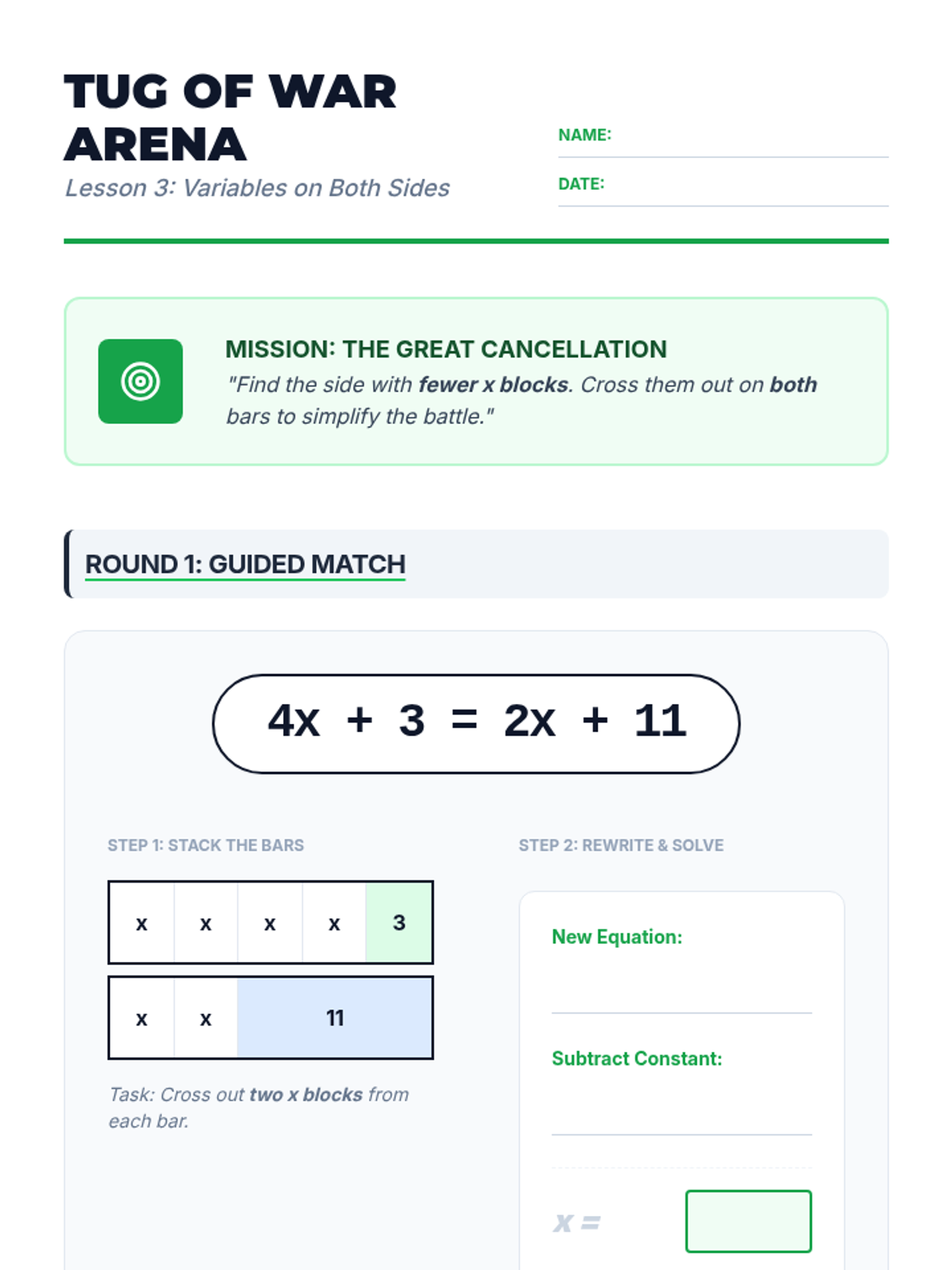

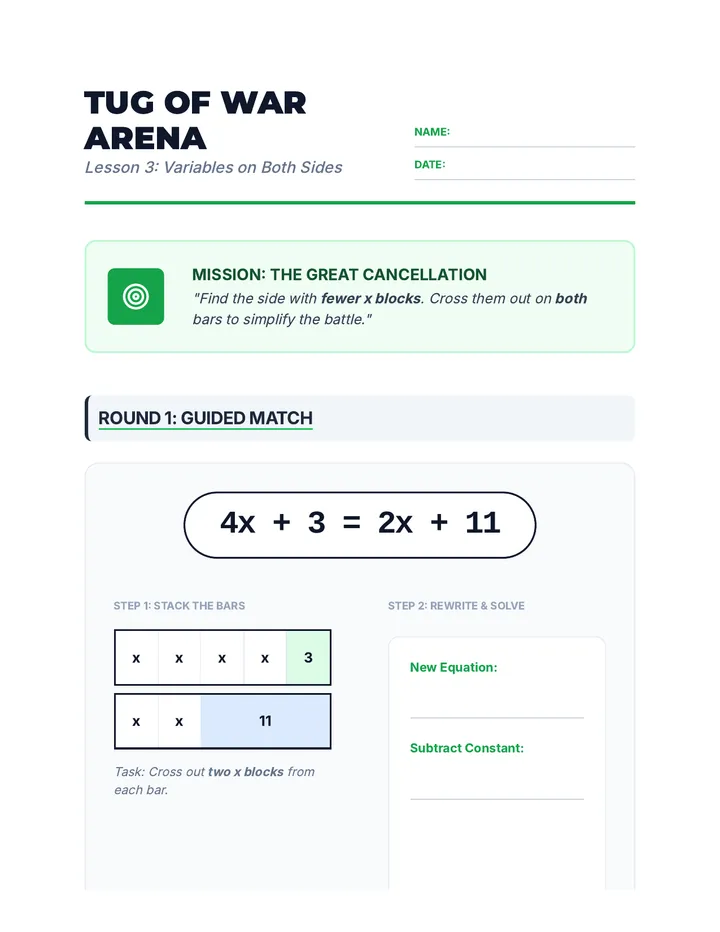

Tug of War Arena Worksheet Tug of War Arena
Lesson 3: Variables on Both Sides
Name:
Date:
Mission: The Great Cancellation
"Find the side with fewer x blocks . Cross them out on both bars to simplify the battle."
Round 1: Guided Match
4x + 3 = 2x + 11
Step 1: Stack the Bars
x
x
x
x
3
x
x
11
Task: Cross out two x blocks from each bar.
Step 2: Rewrite & Solve
New Equation:
Subtract Constant:
x =
Round 2: Your Turn
3x + 1 = 1x + 9
Draw Bars & Cancel Out Here
What is left after canceling x?
Final value of x:
x =
Strategy Review
If you had 5x + 10 = 5x + 10 , what would happen if you canceled all the x's? Draw it below and see if you can find the mystery.
Garden Plot Slides Blueprint Algebra: Lesson 4
Garden Plot
Math
Using area models to see the Distributive Property in action.
The Garden Expansion
You have a garden that is 3 feet tall . The width is 4 feet plus some unknown amount (x) .
3 * (x + 4)
How do we find the TOTAL area?
3x
12
x
4
3 ft
The "Inside-Outside" Rule
Outside the Box
The numbers outside are the factors we are multiplying.
3 and (x + 4)
Inside the Box
The areas inside are the results of that multiplication.
3x + 12
3(x + 4) = 3x + 12
Distribution is a Delivery
The number out front gets "delivered" to EVERYTHING inside the parenthesis.
5(x + 2)
→
5x + 10
x + 2
5
5x
10
Ready to Design?
Area models aren't just for gardens—they help us "un-group" algebra problems so we can solve them!
Draw Box
Multiply
Add Results

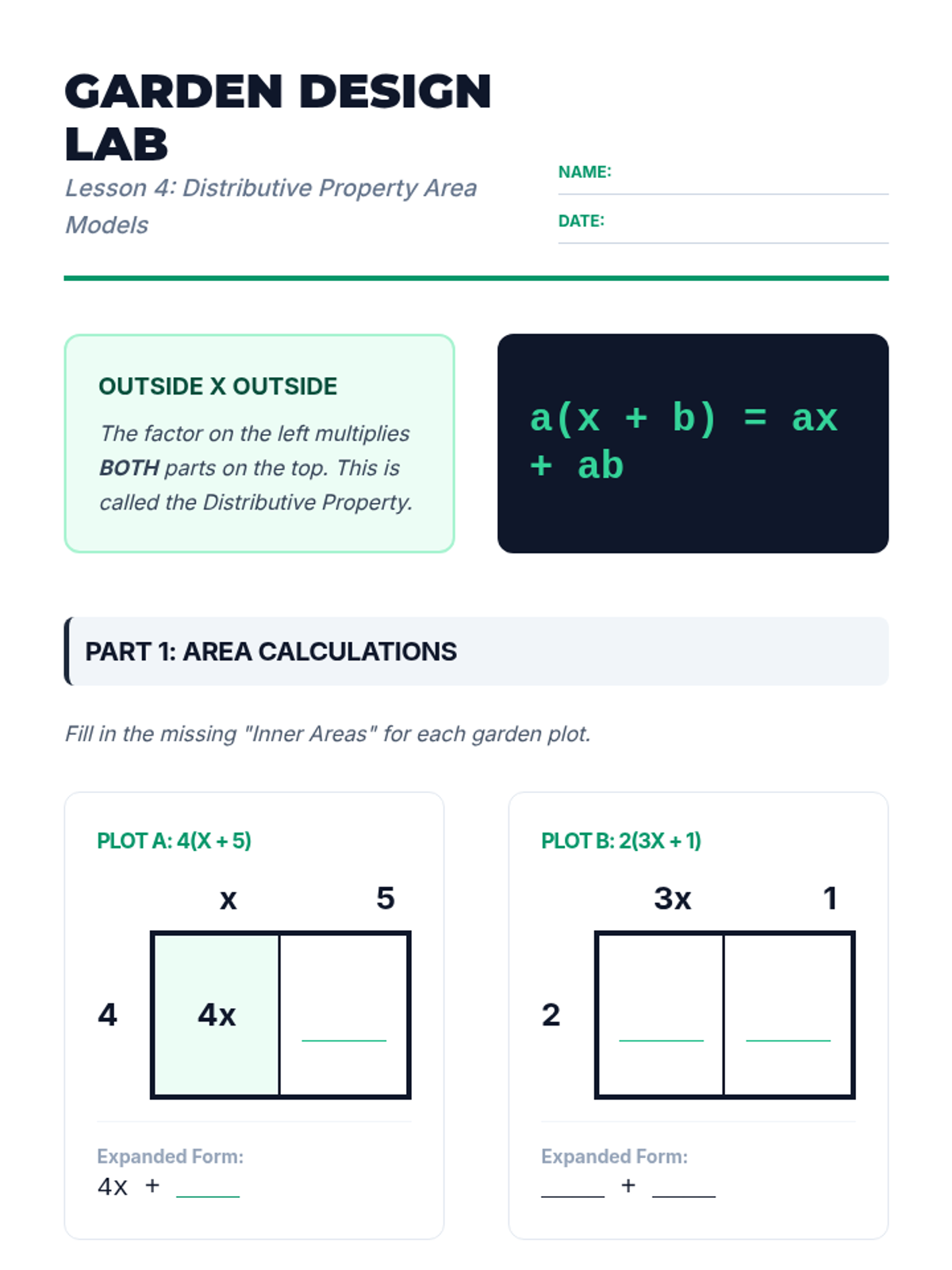

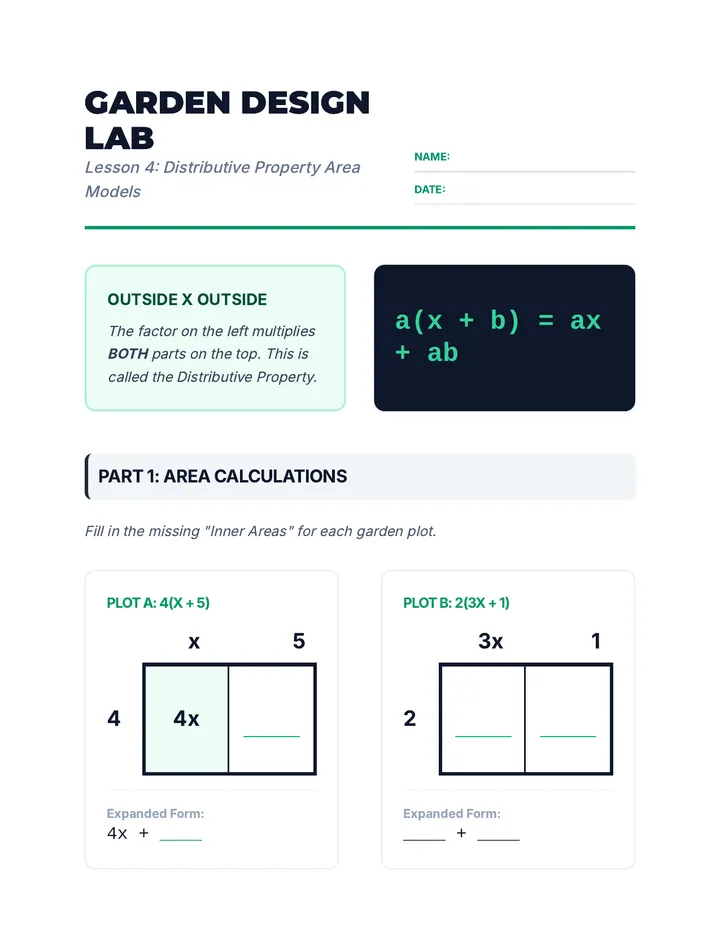

Garden Design Lab Worksheet Garden Design Lab
Lesson 4: Distributive Property Area Models
Name:
Date:
Outside x Outside
The factor on the left multiplies BOTH parts on the top. This is called the Distributive Property.
a(x + b) = ax + ab
Part 1: Area Calculations
Fill in the missing "Inner Areas" for each garden plot.
Plot A: 4(x + 5)
x
5
4
4x
Expanded Form:
4x + ____
Plot B: 2(3x + 1)
3x
1
2
Expanded Form:
____ + ____
Part 2: The Master Plan
Read the problem, draw the area model, and find the expanded equation.
"Farmer Joe is tripling the size of his corn field. The original field was x yards wide plus a 10 yard expansion . The height is 3 yards ."
Area Model Sketch
Algebraic Grouping:
3 ( x + 10 )
Total Expanded Area:
____ + ____
Mastery Check: Distribution Without Boxes
Can you do it without the drawing? Deliver the number to both parts!
5(x + 6) =
2(4x + 3) =
Final Blueprint Slides Blueprint Algebra: Lesson 5
Blueprint to
Reality
Fading the pictures and mastering the abstract world of Algebra.
The "Quick Sketch" Method
You don't always need a perfect blueprint. A 5-second sketch can unlock the toughest algebra problem.
Problem: 5x + 10 = 35
5x
10
= 35
Why do we do this?
It stops us from guessing.
It shows us the subtraction.
It shows us the division.
Speaking "Algebra"
Blueprint
x
x
Notation
2x + 5 = 15
"The notation is just a shortcut for your drawing!"
Translation Relay
1. See it
Look at the word problem or the diagram.
2. Draw it
Sketch a rough bar or area model.
3. Write it
Convert that drawing into a math equation.
The Goal:
Translate 5 problems in under 3 minutes.
Master Builder
You now have the tools to visualize ANY linear equation. The bars are in your brain!
Algebra = Pictures
Use them when you get stuck!

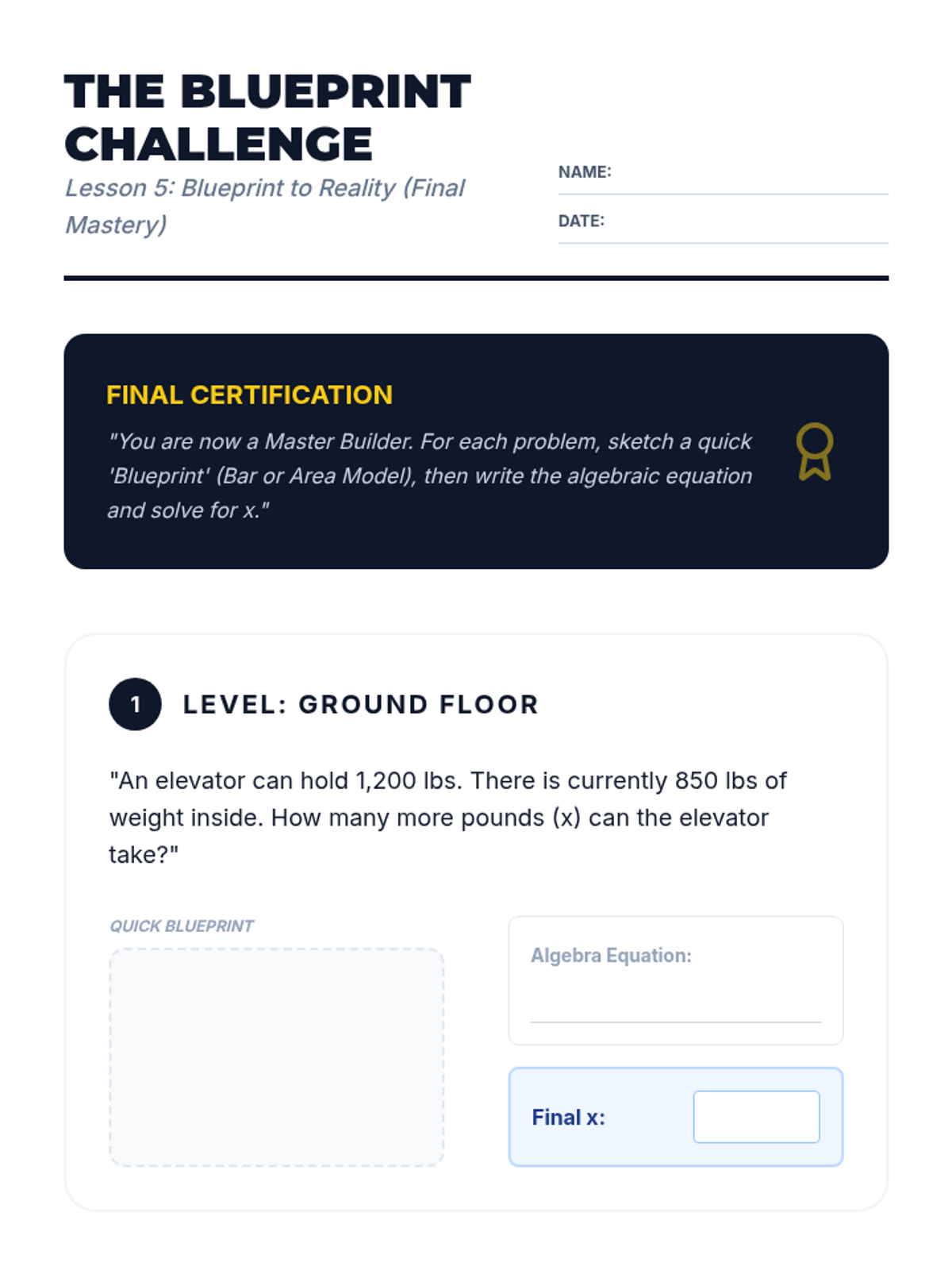

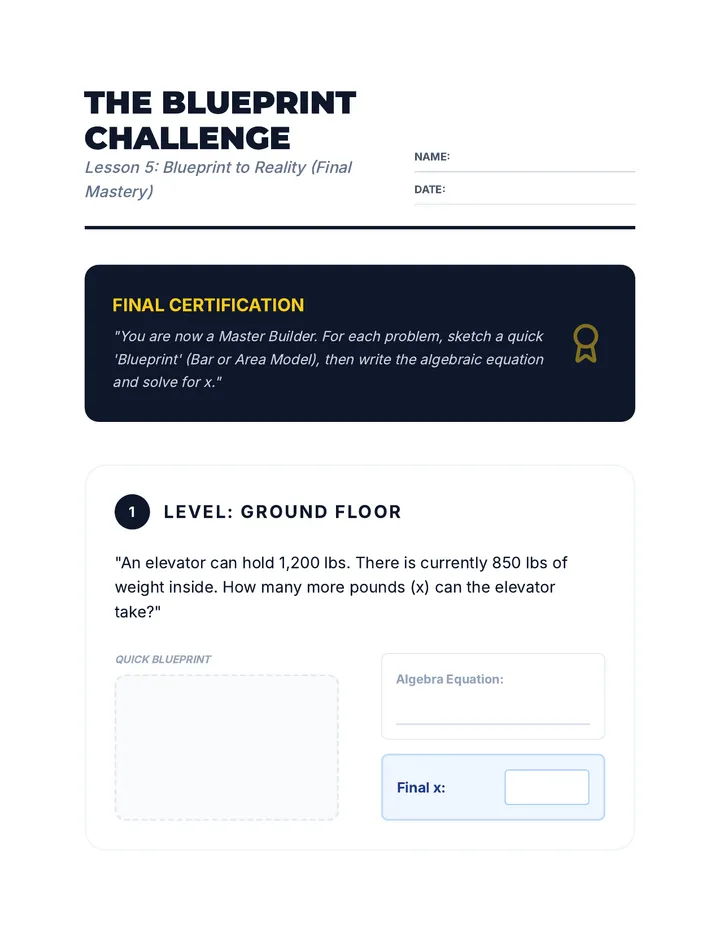

Blueprint Mastery Challenge Worksheet The Blueprint Challenge
Lesson 5: Blueprint to Reality (Final Mastery)
Name:
Date:
Final Certification
"You are now a Master Builder. For each problem, sketch a quick 'Blueprint' (Bar or Area Model), then write the algebraic equation and solve for x."
1
Level: Ground Floor
"An elevator can hold 1,200 lbs. There is currently 850 lbs of weight inside. How many more pounds (x) can the elevator take?"
Quick Blueprint
Algebra Equation:
Final x:
2
Level: Double Decker
"You want to buy a game console for $300. You already have $60 saved. If you save $40 every week (x), how many weeks will it take?"
Quick Blueprint
Algebra Equation:
Final x:
3
Level: Tug of War
"Movie Theater A charges $10 per ticket. Movie Theater B charges $7 per ticket plus a $15 membership fee. When do they cost the same amount?"
Quick Blueprint
Algebra Equation:
Final x:
4
Level: Sky High
"You are doubling the width of a 5-meter tall rectangle. The width is x meters plus another 4 meters. The total area is 40 square meters."
Quick Blueprint
Algebra Equation:
Final x:
Certified Master Builder

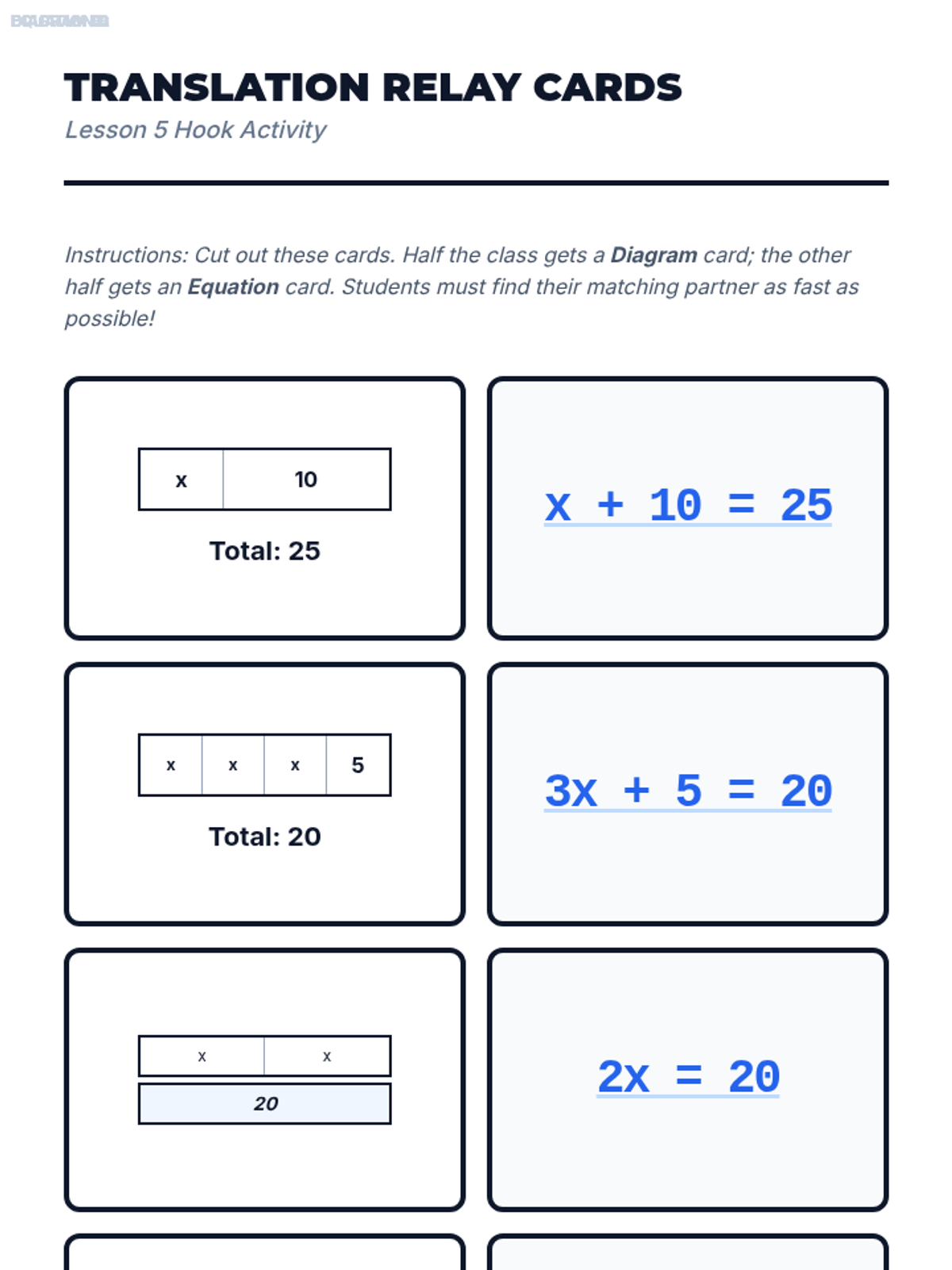

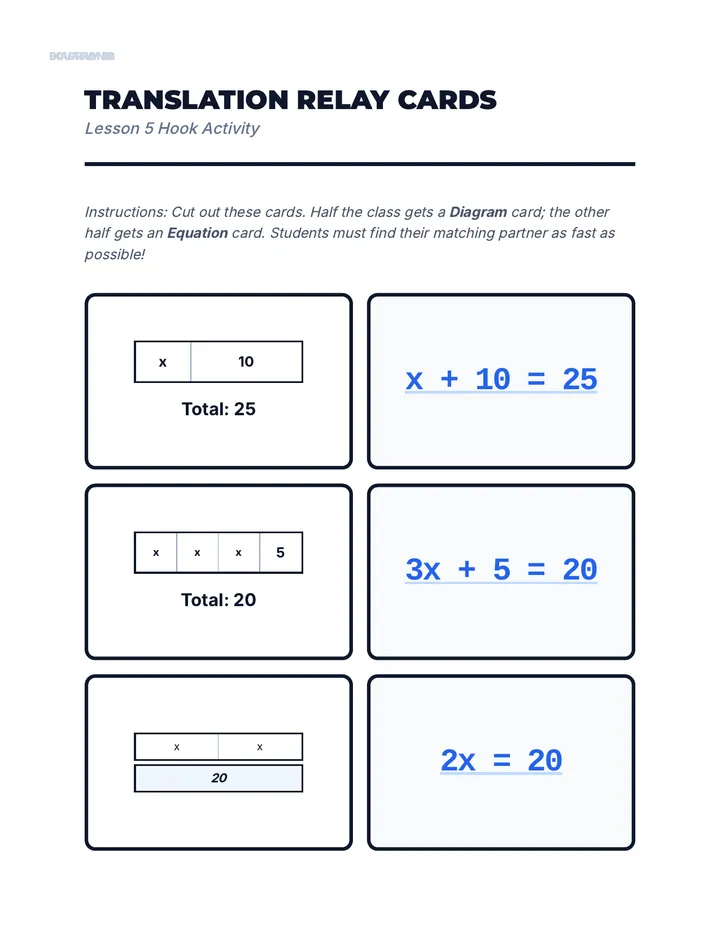

Relay Game Cards Translation Relay Cards
Lesson 5 Hook Activity
Instructions: Cut out these cards. Half the class gets a Diagram card; the other half gets an Equation card. Students must find their matching partner as fast as possible!
Diagram A
x
10
Total: 25
Equation A
x + 10 = 25
Diagram B
x
x
x
5
Total: 20
Equation B
3x + 5 = 20
Diagram C
x
x
20
Equation C
2x = 20
Diagram D
2x
4
2 ft
Equation D
2(x + 2)
