Cognitive Load Slides Instructional Architect Series
The Cognitive Blueprint
Understanding Cognitive Load and Mathematical Processing in Special Education
The Working Memory Bottleneck
What is Working Memory?
The "mental workspace" used to hold and manipulate information temporarily. In math, this includes holding numbers while performing operations.
The Barrier
Students with Math LD often have significantly reduced working memory capacity, leading to "overload" during multi-step abstract problems.
System Overload Imminent
Types of Cognitive Load
Intrinsic
The inherent difficulty of the task itself (e.g., adding vs. multiplying). We can't change this easily.
Extraneous
The way information is presented. Bad design increases this. Visual scaffolds reduce it.
Germane
The effort put into creating schemas and deep learning. This is the goal!
"Instruction should minimize extraneous load so students can focus on germane processing."
Visuals = External RAM
The Strategy
1
Offloading: Visual representations take the burden off working memory by holding values "on the page" instead of in the head.
2
Spatial Encoding: Turning abstract symbols into spatial relationships helps students "see" the math (e.g., bar models for fractions).
3
Dual Coding: Combining verbal explanations with visual models creates two paths for memory retrieval.
Organizational Scaffolds
Transforming "Invisible" Math into "Visible" Structures
The CRA Arc
Concrete
Doing
Physical objects, manipulatives, 3D models.
Representational
Seeing
Sketches, drawings, tallies, icons, bar models.
Abstract
Symbolizing
Numbers, variables, operational signs.

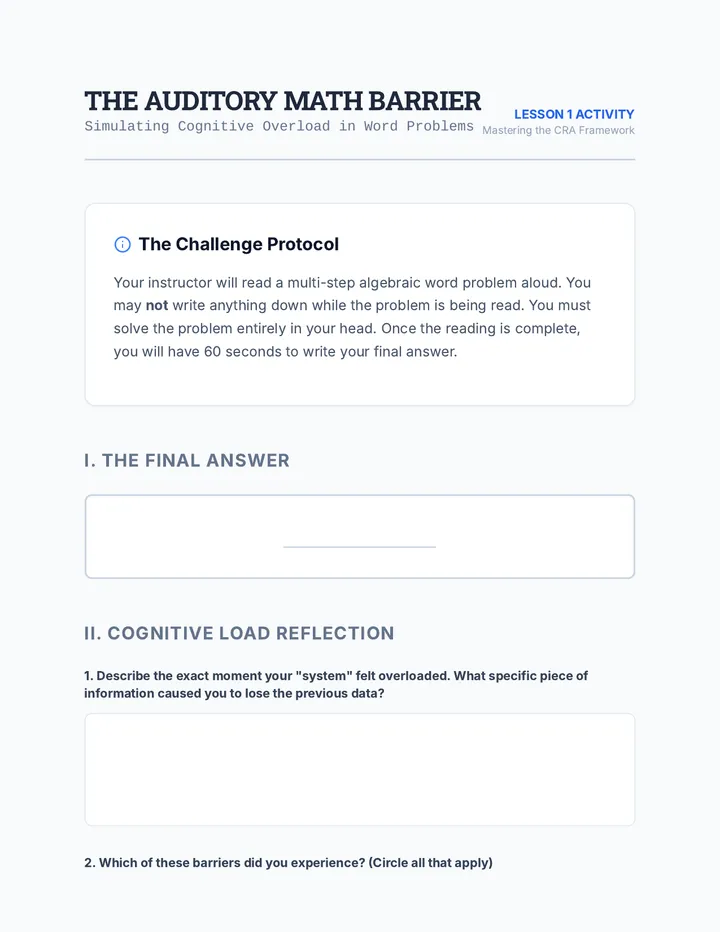

Auditory Math Activity The Auditory Math Barrier
Simulating Cognitive Overload in Word Problems
LESSON 1 ACTIVITY
Mastering the CRA Framework
The Challenge Protocol
Your instructor will read a multi-step algebraic word problem aloud. You may not write anything down while the problem is being read. You must solve the problem entirely in your head. Once the reading is complete, you will have 60 seconds to write your final answer.
I. The Final Answer
________
II. Cognitive Load Reflection
1. Describe the exact moment your "system" felt overloaded. What specific piece of information caused you to lose the previous data?
2. Which of these barriers did you experience? (Circle all that apply)
Lost track of the initial number
Focused on calculation, forgot the context
Auditory "looping" (repeating words in head)
Gave up before the problem ended
3. How would a simple sketch or manipulative have changed your experience of this specific problem?
Pedagogical Insight:
For students with Math SLD, the abstract symbols we present are often as fleeting as auditory speech. Without a visual scaffold, the "mental workspace" is quickly exhausted by low-level processing (decoding symbols, holding numbers), leaving no room for high-level problem-solving.

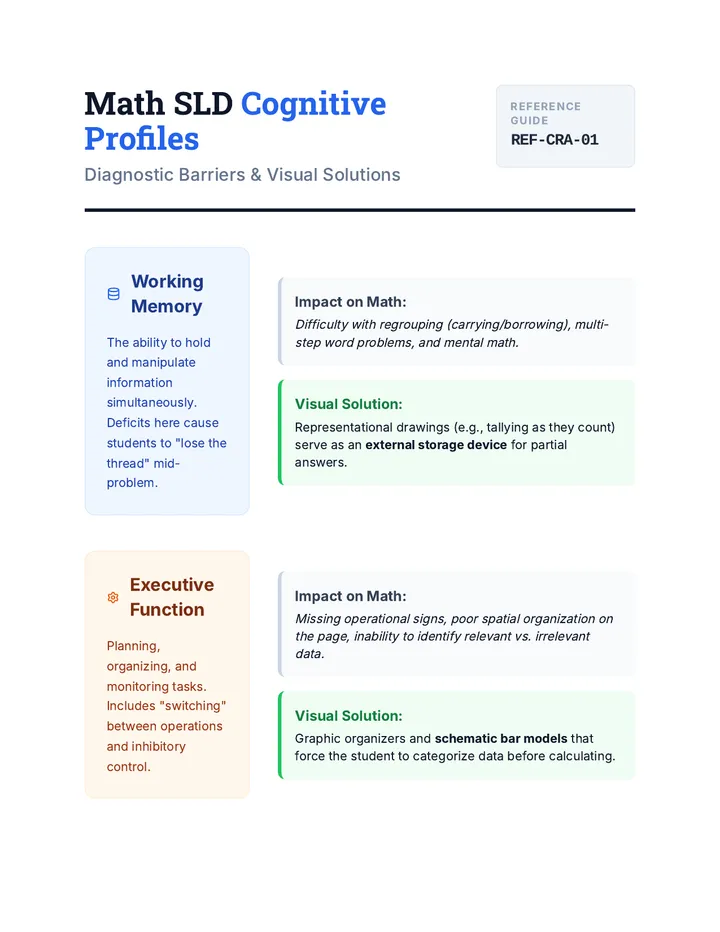

Math SLD Profiles Handout Math SLD Cognitive Profiles
Diagnostic Barriers & Visual Solutions
Reference Guide REF-CRA-01
Working Memory
The ability to hold and manipulate information simultaneously. Deficits here cause students to "lose the thread" mid-problem.
Impact on Math:
Difficulty with regrouping (carrying/borrowing), multi-step word problems, and mental math.
Visual Solution:
Representational drawings (e.g., tallying as they count) serve as an external storage device for partial answers.
Executive Function
Planning, organizing, and monitoring tasks. Includes "switching" between operations and inhibitory control.
Impact on Math:
Missing operational signs, poor spatial organization on the page, inability to identify relevant vs. irrelevant data.
Visual Solution:
Graphic organizers and schematic bar models that force the student to categorize data before calculating.
Processing Speed
The rate at which symbols are decoded and retrieved from long-term memory. Often linked to "dyscalculia."
Impact on Math:
Slow retrieval of basic facts (3+5), exhaustion during timed tests, and difficulty following fast-paced verbal instruction.
Visual Solution:
Manipulatives provide tactile anchors for quantity, moving from rote fact memorization to conceptual subitizing.
The Teacher's Rule of Thumb
"If the problem exists in the student's head, the solution must exist on the table (Concrete) or on the page (Representational). Never force a student with an SLD to rely on abstract notation until the mental bridge has been successfully built."
Concrete Foundation Slides The Concrete Foundation
Phase 1: Building Understanding Through Physical Reality
The Power of Tactile Proof
Concept over Procedure
Students often learn the "trick" (e.g., keep-change-flip) without the "why." Concrete tools force the student to prove the math physically.
Sensory Integration
Moving objects engages proprioception and touch, creating stronger neural pathways for quantity than abstract symbols alone.
"Concrete learning is not just for 'struggling' students; it is the developmental floor for all mathematical conceptualization."
JEROME BRUNER
The Toolbelt
🔢
Base-10 Blocks
Best for: Place value, regrouping, decimals, and area models.
📏
Cuisenaire Rods
Best for: Proportional reasoning, fractions, and early algebra.
🔴
Two-Color Counters
Best for: Integers (positive/negative), probability, and sets.
Hook Challenge:
Can you prove 3/4 > 2/3 using only Rods?
Common Pitfalls
Manipulatives as "Toys"
Lack of clear expectations leads to building towers instead of models. Set "Explore Time" before "Work Time."
No Connection to Abstract
Doing math with blocks but failing to write the symbols simultaneously. The physical and abstract must happen together.
Staying too long at "Concrete"
Manipulatives should be a scaffold, not a crutch. If a student can do it with blocks, move to drawings immediately.
Transition to Lab
Open your Manipulative Alignment Handout. We will now practice modeling three distinct math standards using physical tools.
SESSION_02_ACTION

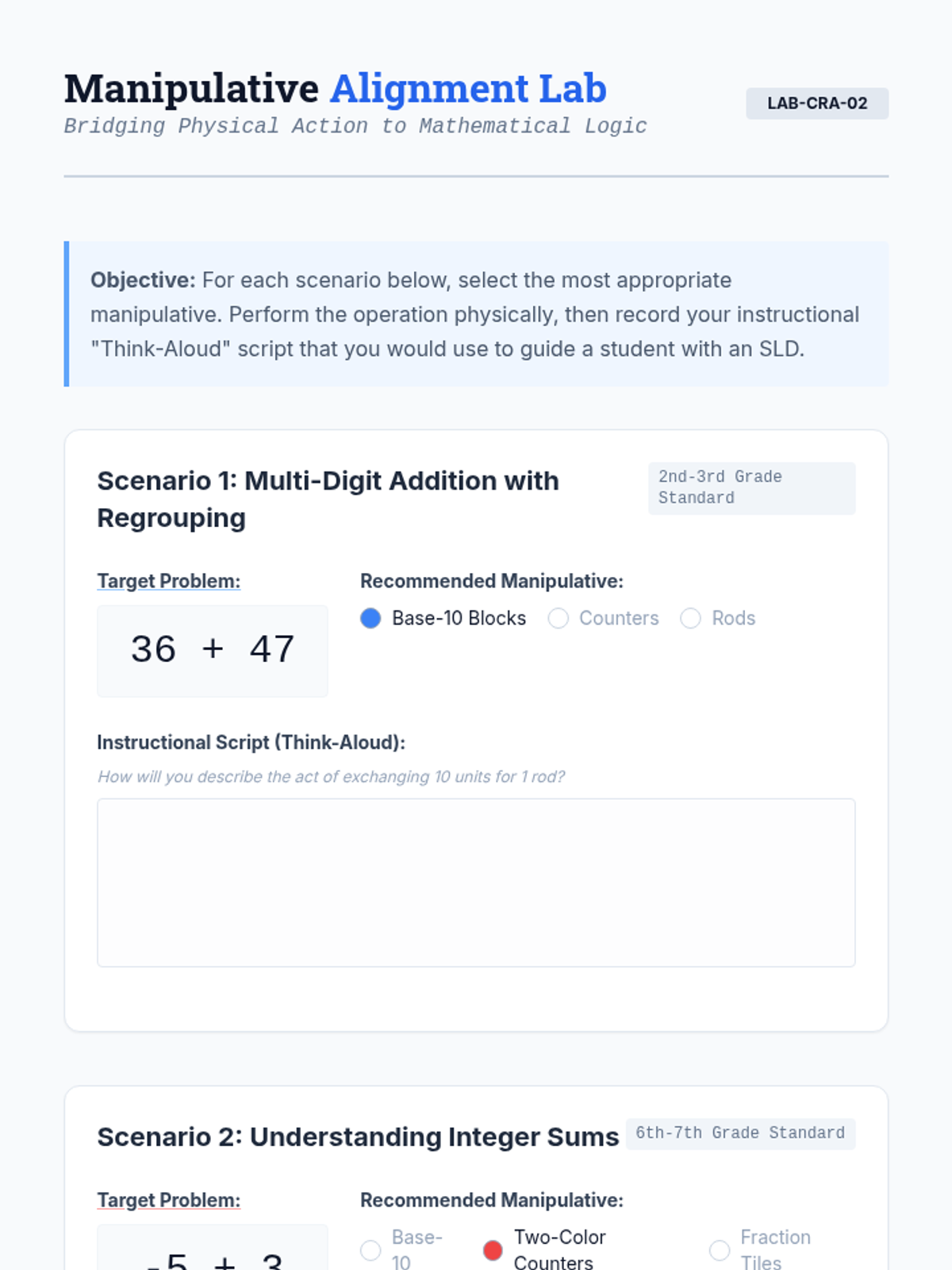

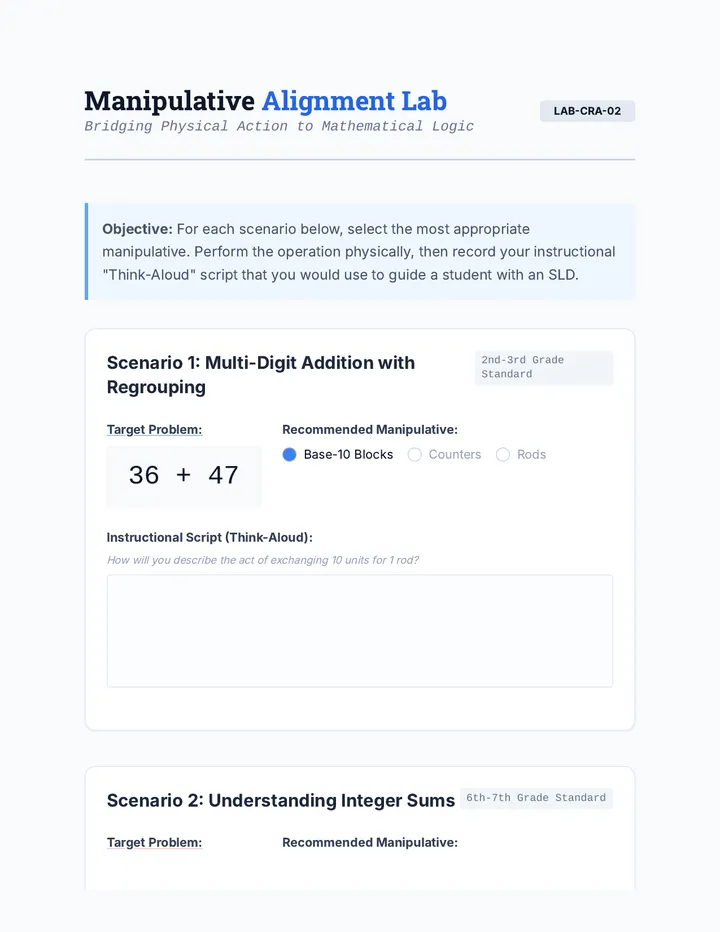

Manipulative Alignment Lab Manipulative Alignment Lab
Bridging Physical Action to Mathematical Logic
LAB-CRA-02
Objective: For each scenario below, select the most appropriate manipulative. Perform the operation physically, then record your instructional "Think-Aloud" script that you would use to guide a student with an SLD.
Scenario 1: Multi-Digit Addition with Regrouping
2nd-3rd Grade Standard
Target Problem:
36 + 47
Recommended Manipulative:
Base-10 Blocks
Counters
Rods
Instructional Script (Think-Aloud):
How will you describe the act of exchanging 10 units for 1 rod?
Scenario 2: Understanding Integer Sums
6th-7th Grade Standard
Target Problem:
-5 + 3
Recommended Manipulative:
Base-10
Two-Color Counters
Fraction Tiles
Instructional Script (Think-Aloud):
How do you physically represent a "zero pair"?
Scenario 3: Fraction Equivalency
4th-5th Grade Standard
Target Task:
1/2 = 4/8
Recommended Manipulative:
Counters
Base-10
Cuisenaire Rods
Instructional Script (Think-Aloud):
Describe the physical alignment of rods to show equality.
Representational Bridge Slides The Representational Bridge
Phase 2: From Objects to Semi-Concrete Sketches
The Critical Link
What is it?
The transition where physical manipulatives are replaced by 2D sketches that look like the objects.
Why it fails?
Teachers often jump from blocks straight to numbers. Students lose the conceptual "visual" and cognitive load spikes.
📦
✏️
Object → Drawing
The drawing must mimic the tool.
Think-Aloud Modeling
Step-by-Step Explicit Modeling:
Place the manipulative on the desk.
"I'm going to draw exactly what I see here on my paper."
Draw a simplified icon (a square for a block, a circle for a counter).
Remove the manipulative. "Now I can solve it using just my sketch!"
Example: Modeling the transition from Base-10 blocks to "Sticks and Stones" sketches.
Pictorial vs. Schematic
Pictorial (Iconic)
🍎
🍎
🍎
Easy to relate to real world
Mirrors the manipulative exactly
Can become slow with large numbers
Next Step
Schematic
Total: 15
Efficient for large numbers
Focuses on quantity relationships
Prepares for Algebra

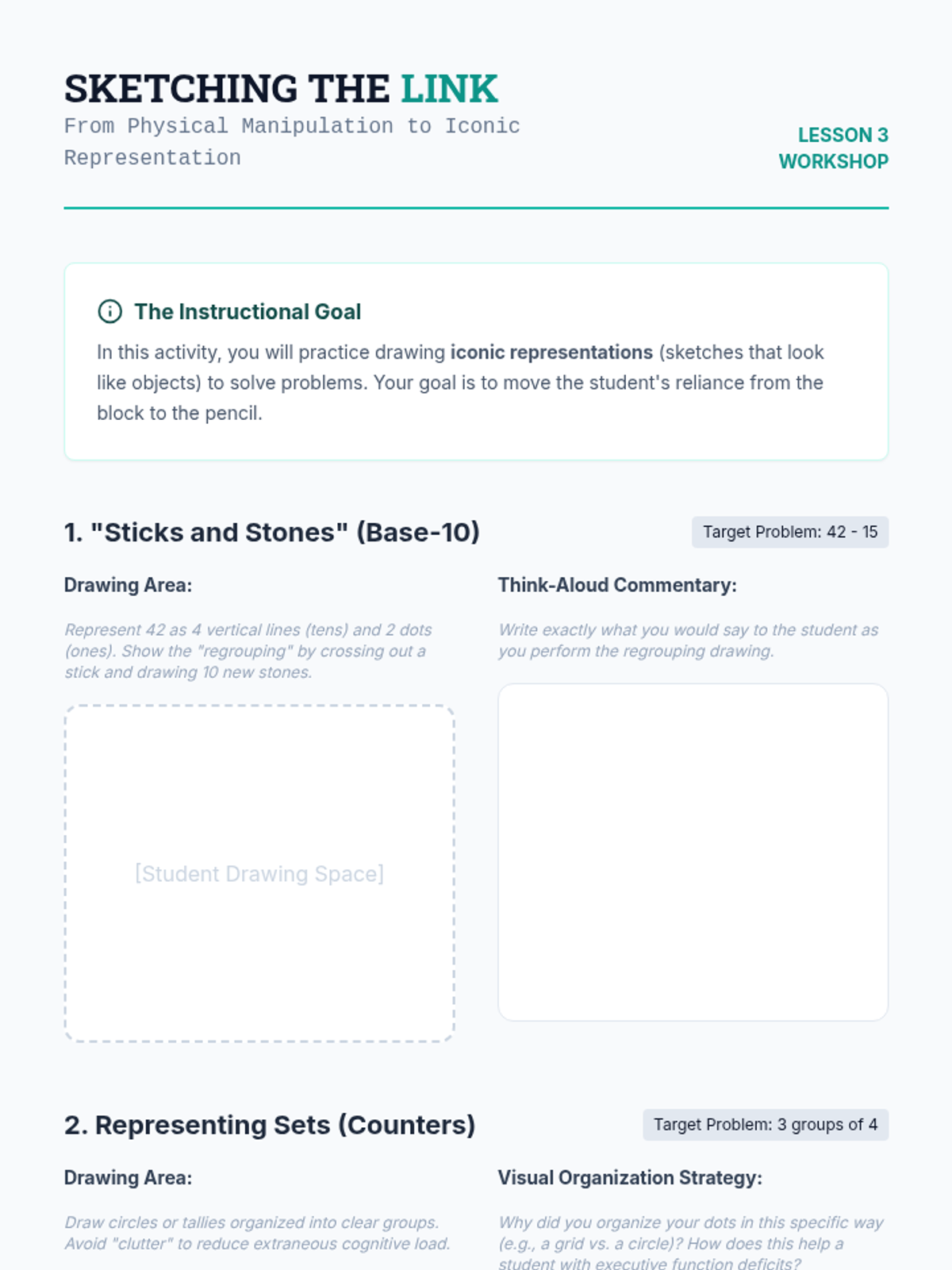

Sketching Link Practice Sketching the Link
From Physical Manipulation to Iconic Representation
LESSON 3 WORKSHOP
The Instructional Goal
In this activity, you will practice drawing iconic representations (sketches that look like objects) to solve problems. Your goal is to move the student's reliance from the block to the pencil.
1. "Sticks and Stones" (Base-10)
Target Problem: 42 - 15
Drawing Area:
Represent 42 as 4 vertical lines (tens) and 2 dots (ones). Show the "regrouping" by crossing out a stick and drawing 10 new stones.
[Student Drawing Space]
Think-Aloud Commentary:
Write exactly what you would say to the student as you perform the regrouping drawing.
2. Representing Sets (Counters)
Target Problem: 3 groups of 4
Drawing Area:
Draw circles or tallies organized into clear groups. Avoid "clutter" to reduce extraneous cognitive load.
[Student Drawing Space]
Visual Organization Strategy:
Why did you organize your dots in this specific way (e.g., a grid vs. a circle)? How does this help a student with executive function deficits?
Post-Activity Check
"Look at your sketches. If you were a student with a processing speed deficit, is your drawing simple enough to be fast, but detailed enough to retain mathematical meaning?"
Schematic Bar Models Slides The Schematic Standard
Mastering Bar Models for Relational Understanding
The Efficiency Upgrade
Pictorial (Early R)
"I have 5 blocks..."
Focuses on counting individual units. Cognitive load increases as numbers get larger.
Schematic (Advanced R)
Quantity: 154
Focuses on relationships and proportions. One bar can represent any number. Prepares students for algebra.
The Two Essential Architectures
Part-Part-Whole
Part A
Part B
WHOLE
Use for: Addition, Subtraction, Fractions, and simple word problems.
Comparison Model
Quantity 1
Quantity 2
?
Use for: "How many more than...", Ratio, and Multiplicative Comparison.
Step-by-Step Instruction
1
Read & Chunk: Read the problem and identify each unique value.
2
Draw the Bars: Represent the largest known quantity first.
3
Label the ? mark: Explicitly mark what we are trying to find.
4
Compute: Only now do we use numbers and operations.
The Goal
"The bar model is not for getting the answer; it's for understanding the structure of the problem so the student knows which operation to use."

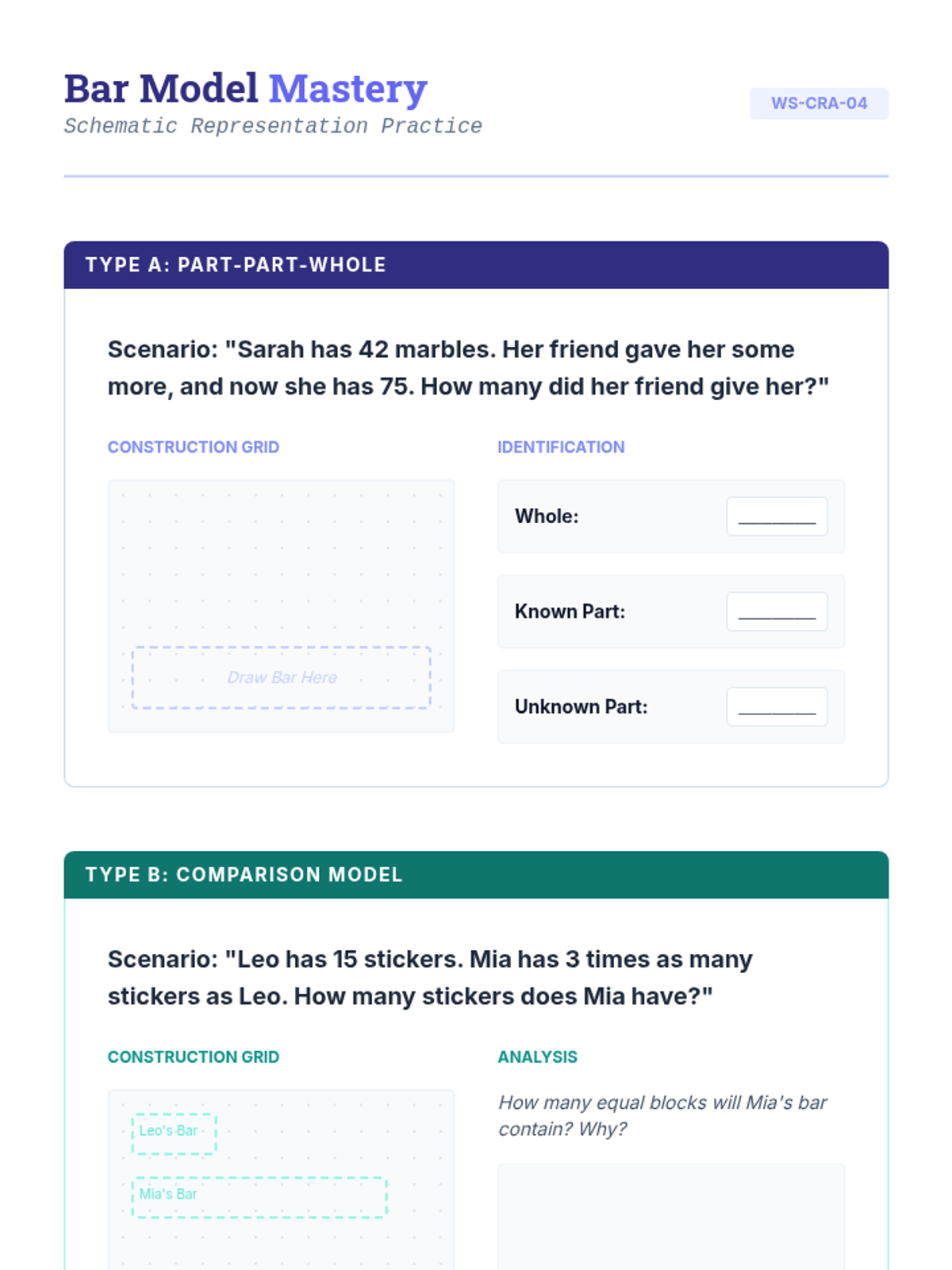

Bar Model Practice Set Bar Model Mastery
Schematic Representation Practice
WS-CRA-04
Type A: Part-Part-Whole
Scenario: "Sarah has 42 marbles. Her friend gave her some more, and now she has 75. How many did her friend give her?"
Construction Grid
Draw Bar Here
Identification
Whole: _______
Known Part: _______
Unknown Part: _______
Type B: Comparison Model
Scenario: "Leo has 15 stickers. Mia has 3 times as many stickers as Leo. How many stickers does Mia have?"
Construction Grid
Leo's Bar
Mia's Bar
Analysis
How many equal blocks will Mia's bar contain? Why?
Operation Selected:
ADD
SUB
MULT
DIV
PRO-TIP: Always label your bar models before performing any arithmetic.
Designing CRA Slides Orchestrating CRA
Synthesis & Instructional Design
The Art of Fading
The goal of CRA is not to use visuals forever, but to use them as a scaffold that eventually disappears.
Pacing Rule:
"Mastery at Stage N + 1 day = Move to Stage N+1."
If they can do it with blocks, don't let them do it with blocks tomorrow. Give them a pencil.
CONCRETE
REPRESENTATIONAL
ABSTRACT
Intentional Scaffolding
Designing the Arc
Day 1-2
Discovery
Focus: 100% Concrete. High-verbal modeling. Establishing the "Why."
Day 3-4
Bridging
Focus: Representative Sketches. Blocks are available but discouraged. Modeling 2D logic.
Day 5+
Fluency
Focus: Abstract symbols. Visuals are used only for "Error Correction" or difficult problems.
Always leave the door open to return to Concrete if a student gets stuck.
Checking for Fidelity
Does your lesson plan meet the CRA standard?
Explicit Modeling:
Did you script a Think-Aloud for each stage?
Simultaneous Representation:
Are the numbers written next to the blocks/sketches?
Individualized Pacing:
Is there a plan for students who need more Concrete time?

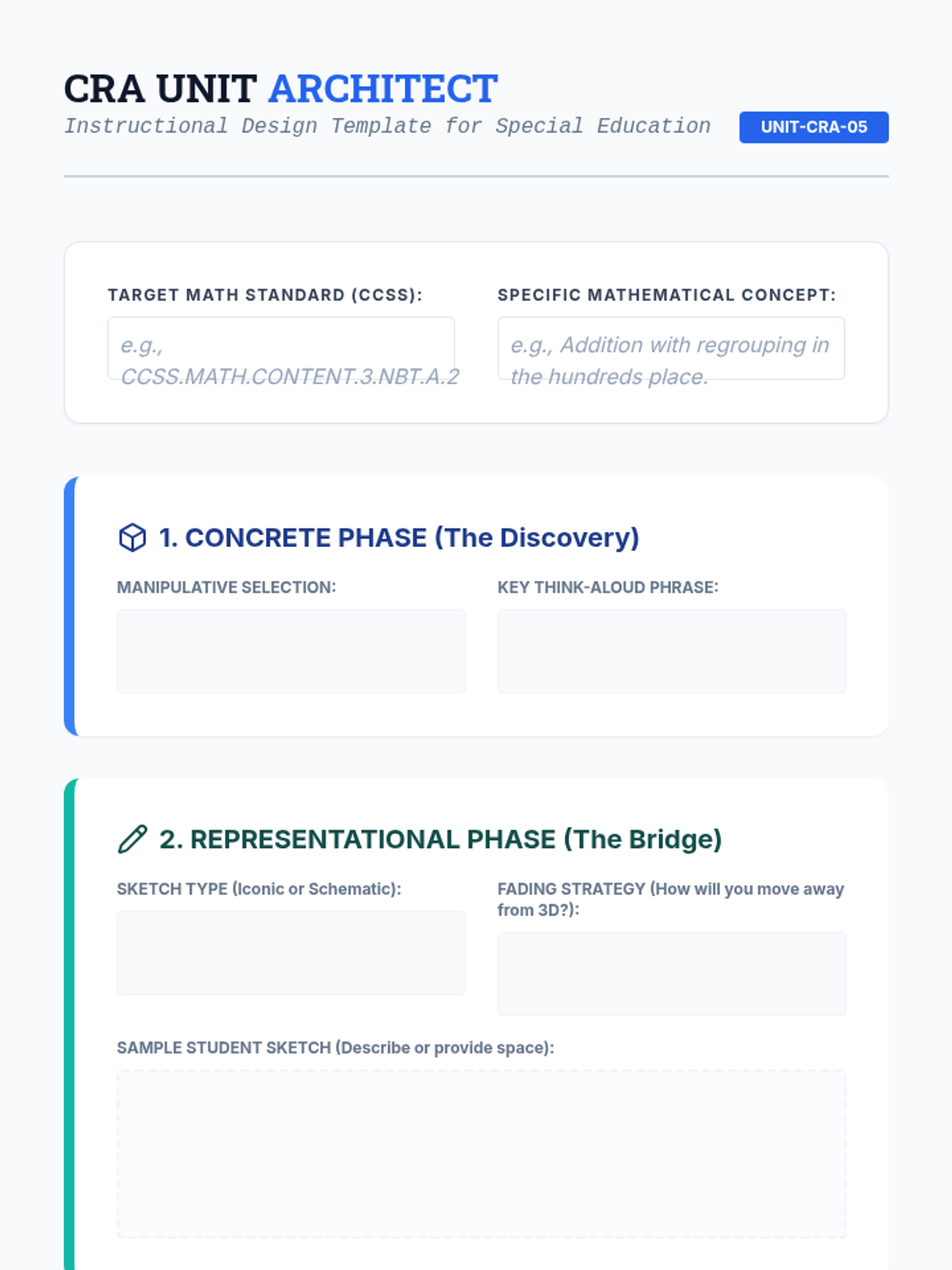

CRA Unit Planner Template CRA Unit Architect
Instructional Design Template for Special Education
UNIT-CRA-05
Target Math Standard (CCSS):
e.g., CCSS.MATH.CONTENT.3.NBT.A.2
Specific Mathematical Concept:
e.g., Addition with regrouping in the hundreds place.
1. CONCRETE PHASE (The Discovery)
MANIPULATIVE SELECTION:
KEY THINK-ALOUD PHRASE:
2. REPRESENTATIONAL PHASE (The Bridge)
SKETCH TYPE (Iconic or Schematic):
FADING STRATEGY (How will you move away from 3D?):
SAMPLE STUDENT SKETCH (Describe or provide space):
3. ABSTRACT PHASE (The Fluency)
ALGORITHMIC GOAL:
PERMANENT VISUAL SUPPORT (Anchor Chart):
Scaffolding Verification
"Review your plan: If a student fails to generalize the concept at the Representational stage, what is your specific 'Back-Step' intervention back to Concrete?"

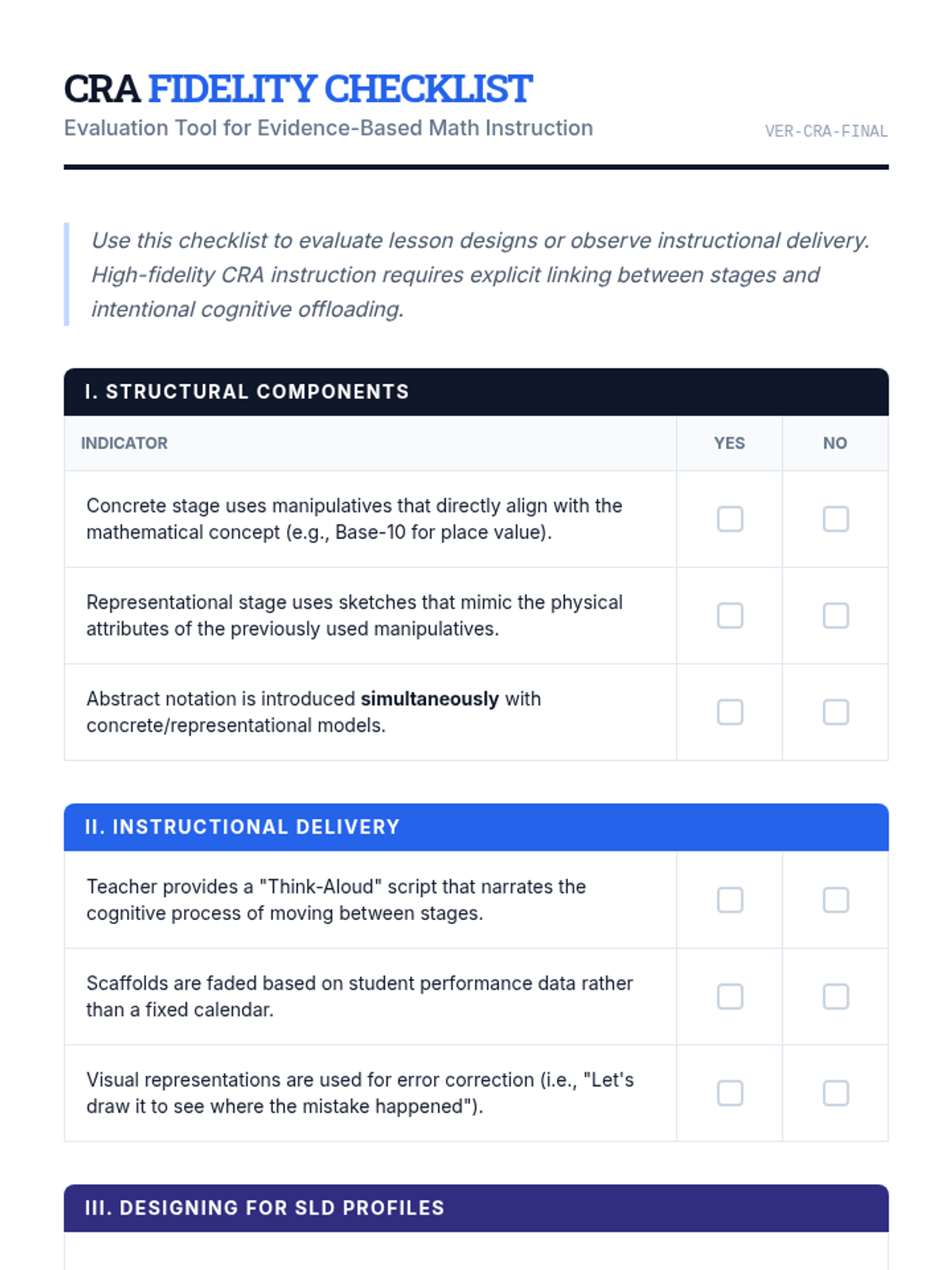

CRA Fidelity Checklist CRA Fidelity Checklist
Evaluation Tool for Evidence-Based Math Instruction
VER-CRA-FINAL
Use this checklist to evaluate lesson designs or observe instructional delivery. High-fidelity CRA instruction requires explicit linking between stages and intentional cognitive offloading.
I. Structural Components
Indicator Yes No Concrete stage uses manipulatives that directly align with the mathematical concept (e.g., Base-10 for place value).
|
| Representational stage uses sketches that mimic the physical attributes of the previously used manipulatives. |
|
|
| Abstract notation is introduced simultaneously with concrete/representational models. |
|
|
II. Instructional Delivery
<table class="w-full border-collapse border border-slate-200"><tbody><tr><td class="border border-slate-200 p-4 text-sm">Teacher provides a "Think-Aloud" script that narrates the cognitive process of moving between stages.</td><td class="border border-slate-200 p-4 text-center w-20"><div class="w-5 h-5 border-2 border-slate-300 rounded mx-auto"></div></td><td class="border border-slate-200 p-4 text-center w-20"><div class="w-5 h-5 border-2 border-slate-300 rounded mx-auto"></div></td></tr><tr><td class="border border-slate-200 p-4 text-sm">Scaffolds are faded based on student performance data rather than a fixed calendar.</td><td class="border border-slate-200 p-4 text-center"><div class="w-5 h-5 border-2 border-slate-300 rounded mx-auto"></div></td><td class="border border-slate-200 p-4 text-center"><div class="w-5 h-5 border-2 border-slate-300 rounded mx-auto"></div></td></tr><tr><td class="border border-slate-200 p-4 text-sm">Visual representations are used for error correction (i.e., "Let's draw it to see where the mistake happened").</td><td class="border border-slate-200 p-4 text-center"><div class="w-5 h-5 border-2 border-slate-300 rounded mx-auto"></div></td><td class="border border-slate-200 p-4 text-center"><div class="w-5 h-5 border-2 border-slate-300 rounded mx-auto"></div></td></tr></tbody></table>
III. Designing for SLD Profiles
Working Memory Support
Does the design allow the student to "store" partial information visually on the page?
Executive Function Support
Are the visual models clean and organized (schematic) to prevent visual clutter?
Sequence Culmination: Mastering the CRA Framework
