Memory Glitch Slides Memory Glitch
The Limits of Your Mental Hardware
System Analysis 1.0
The 30-Second Challenge
Rules of the Game
No paper. No pencil. No fingers.
You have 30 seconds to solve the problem shown on the next slide.
Wait for the signal to write your answer.
Ready to test your RAM?
Loading Test Sequence...
Input Sequence 01
(14 × 3) + (27 ÷ 3) - (12 + 5)
Holding... Holding... Don't speak!
Why was that hard?
Miller's Law
Your working memory can typically hold only 7 items at once (give or take 2).
Cognitive Load
The total amount of mental effort being used in the working memory.
1
2
3
4
5
6
7
8?
9?
The Solution: Offloading
When a task requires more than 7 steps, we stop trying to store the information in our Mental RAM and start using External Hard Drives.
Scratch Paper
Flowcharts
Reference Cards

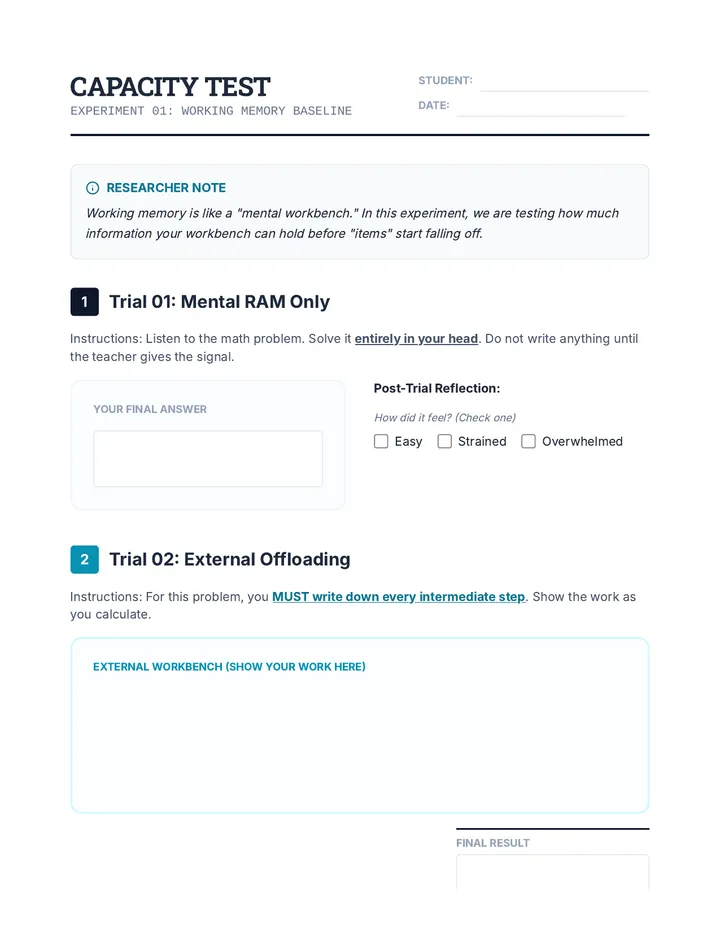

Capacity Test Worksheet Capacity Test
EXPERIMENT 01: WORKING MEMORY BASELINE
Student:
Date:
Researcher Note
Working memory is like a "mental workbench." In this experiment, we are testing how much information your workbench can hold before "items" start falling off.
1
Trial 01: Mental RAM Only
Instructions: Listen to the math problem. Solve it entirely in your head. Do not write anything until the teacher gives the signal.
Your Final Answer
Post-Trial Reflection:
How did it feel? (Check one)
Easy Strained Overwhelmed
2
Trial 02: External Offloading
Instructions: For this problem, you MUST write down every intermediate step. Show the work as you calculate.
External Workbench (Show your work here)
Final Result
Analysis & Findings
1. In Trial 1, what was the hardest part about keeping the information in your head?
2. How did Trial 2 change your "speed" vs. your "confidence" in the answer?
The Hypothesis
By "offloading" the numbers to the paper, my brain was free to focus on solving the logic rather than remembering the digits.

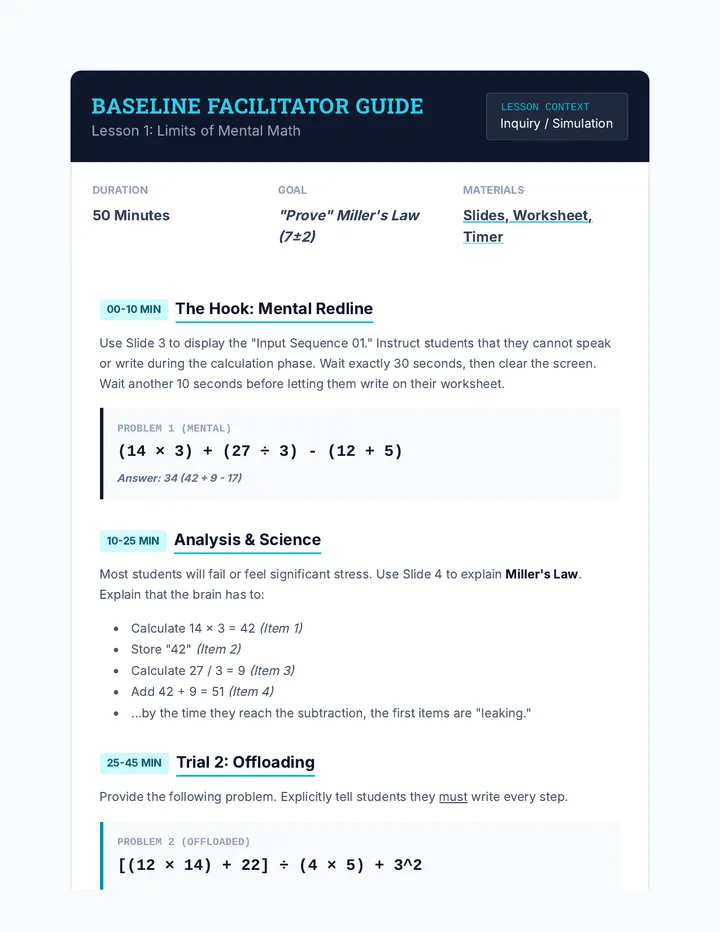

Baseline Facilitator Guide Baseline Facilitator Guide
Lesson 1: Limits of Mental Math
Lesson Context
Inquiry / Simulation
Duration
50 Minutes
Goal
"Prove" Miller's Law (7±2)
Materials
Slides, Worksheet, Timer
00-10 MIN
The Hook: Mental Redline
Use Slide 3 to display the "Input Sequence 01." Instruct students that they cannot speak or write during the calculation phase. Wait exactly 30 seconds, then clear the screen. Wait another 10 seconds before letting them write on their worksheet.
Problem 1 (Mental)
(14 × 3) + (27 ÷ 3) - (12 + 5)
Answer: 34 (42 + 9 - 17)
10-25 MIN
Analysis & Science
Most students will fail or feel significant stress. Use Slide 4 to explain Miller's Law. Explain that the brain has to:
Calculate 14 x 3 = 42 (Item 1)
Store "42" (Item 2)
Calculate 27 / 3 = 9 (Item 3)
Add 42 + 9 = 51 (Item 4)
...by the time they reach the subtraction, the first items are "leaking."
25-45 MIN
Trial 2: Offloading
Provide the following problem. Explicitly tell students they must write every step.
Problem 2 (Offloaded)
[(12 × 14) + 22] ÷ (4 × 5) + 3^2
Answer: 18.5 (190 / 20 + 9)
Note: This problem is technically harder, but students will find it easier to complete accurately because of the scratch paper (offloading).
Discussion Prompt
"If we know our brain only has 7 slots, why would we ever try to solve a 10-step problem without paper?"
Key Takeaway
Intelligence is NOT how many numbers you can hold. Intelligence is knowing how to use tools to free up your thinking.
Map Maker Slides Map Maker
Visualizing the Logic of STEM
Process Mapping 2.0
Text vs. Schematic
Linear Text
"First, check if the temperature is above 100 degrees. If it is, open the valve. If it isn't, check if the pressure is below 50 psi. If the pressure is below 50 psi, turn on the heater. Otherwise, wait for 5 minutes and restart the process from the beginning."
Flowchart Anchor
Start
Temp > 100?
YES
Open Valve
NO
Check Pressure...
Which one is easier to reference while your hands are busy in a lab?
The Offloading Shapes
Start/End
The Oval
Where the process begins and ends.
Action
The Rectangle
A physical or mental step you must take.
Yes/No
The Diamond
A decision point or "if-then" question.
Why use Flowcharts?
Visual Persistence
The chart doesn't disappear when you look away. Your short-term memory does.
The "You Are Here" Marker
It's easy to find exactly where you left off if you get interrupted.
[Complex Logic Diagram Placeholder]
Architecting the Algorithm
You are about to translate a complex Scientific Procedure into a Visual Map.
Open: Algorithm Architect Worksheet

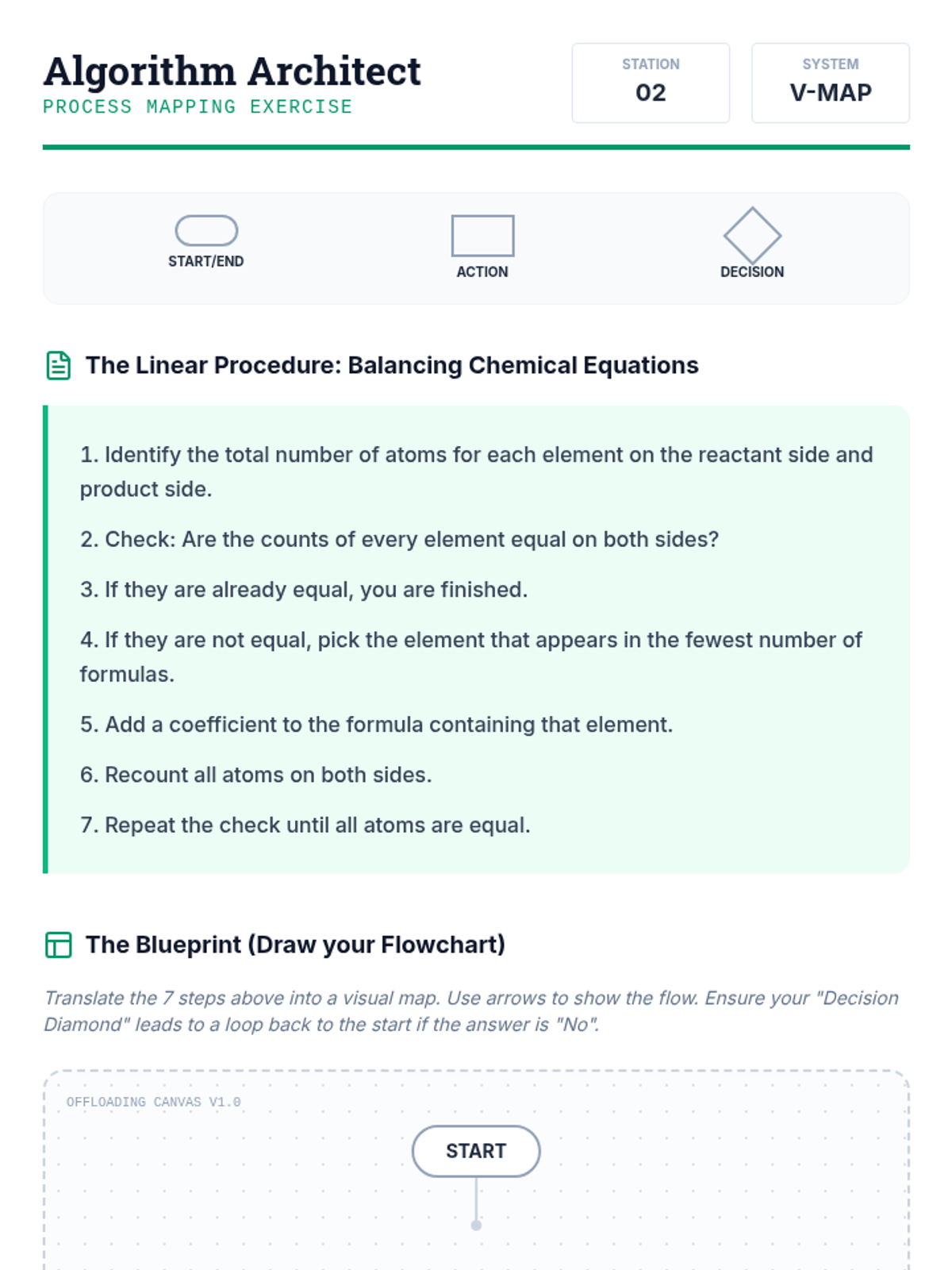

Algorithm Architect Worksheet Algorithm Architect
Process Mapping Exercise
Station
02
System
V-MAP
Start/End
Action
Decision
The Linear Procedure: Balancing Chemical Equations
Identify the total number of atoms for each element on the reactant side and product side.
Check: Are the counts of every element equal on both sides?
If they are already equal, you are finished.
If they are not equal, pick the element that appears in the fewest number of formulas.
Add a coefficient to the formula containing that element.
Recount all atoms on both sides.
Repeat the check until all atoms are equal.
The Blueprint (Draw your Flowchart)
Translate the 7 steps above into a visual map. Use arrows to show the flow. Ensure your "Decision Diamond" leads to a loop back to the start if the answer is "No".
Offloading Canvas v1.0
START
Offloading Evaluation:
How does this map help you if you lose your place halfway through balancing a complex equation like C6H12O6 + O2?
Data Dock Slides Data Dock
Designing Your External Brain
Cognitive Anchors 1.0
Recall vs. Recognition
Mental Recall
Pulling information from deep storage while trying to solve a problem.
High Memory Load
Visual Recognition
Quickly spotting information on a card so you can stay focused on the task.
Low Memory Load
The goal of a Reference Anchor is to skip "Recall" and go straight to "Solving."
Design for High Pressure
High Contrast
Large fonts for the most important formulas. Use bold lines to separate sections.
Logical Chunking
Group related items together (e.g., all gas laws in one box, all constants in another).
Example: Physics Unit 1
v = d / t
a = Δv / t
CONSTANTS
UNITS
Training Your Eyes
An anchor only works if you trust it.
During practice today, even if you think you remember the formula, look at your card anyway.
Build the habit of eye-movements from problem to anchor and back.
Textbook
Too much data. Hard to find specific rules.
Anchor Card
Curated, high-value info. Instant find.

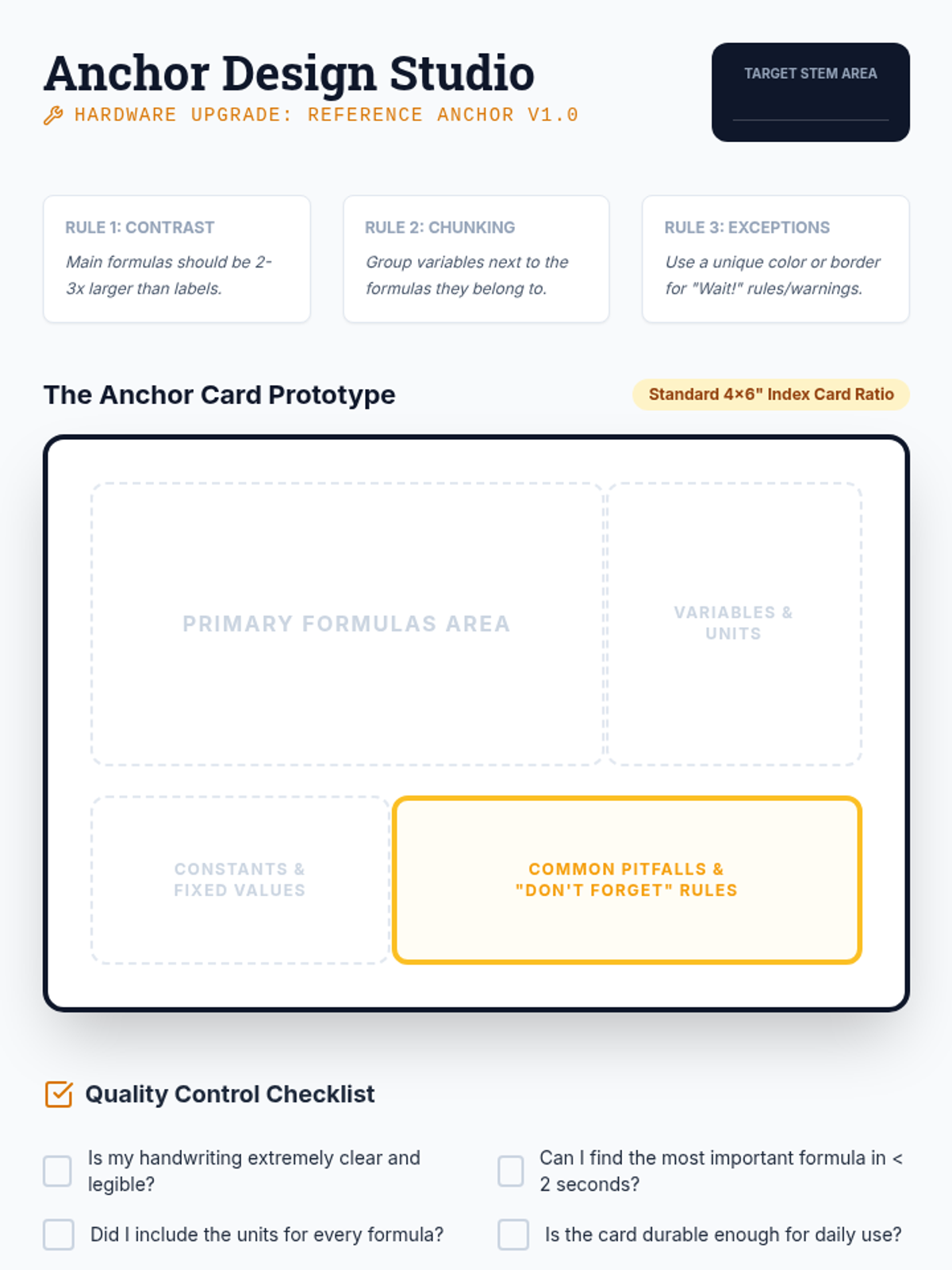

Anchor Design Worksheet Anchor Design Studio
Hardware Upgrade: Reference Anchor v1.0
Target STEM Area
Rule 1: Contrast
Main formulas should be 2-3x larger than labels.
Rule 2: Chunking
Group variables next to the formulas they belong to.
Rule 3: Exceptions
Use a unique color or border for "Wait!" rules/warnings.
The Anchor Card Prototype
Standard 4x6" Index Card Ratio
Primary Formulas Area
Constants &
Variables &
Common Pitfalls &
Quality Control Checklist
Is my handwriting extremely clear and legible?
Did I include the units for every formula?
Can I find the most important formula in < 2 seconds?
Is the card durable enough for daily use?
"The mind is for having ideas, not holding them." — David Allen (Applied to STEM)
Logic Leak Slides Logic Leak
Investigating Cognitive Failures
Error Analysis 1.0
Knowledge vs. Memory
Knowledge Error
You don't know the rule or the formula.
"I don't know how to start."
Memory Leak
You knew the rule, but you "dropped" it mid-calculation.
"I knew that... I just forgot to do it."
Common "Leaks"
The Jump-Cut
Skipping a small intermediate step (like a negative sign or a carry) because you tried to do it "on the fly."
The Transposition
Swapping digits (writing 52 instead of 25) because your brain was already thinking about the next step.
The Phantom Step
Thinking you completed a step because you imagined doing it, but never actually putting it on paper.
Detecting the Leak
Trial Work:
1. (3x + 4) = 10
2. 3x = 14 <-- LEAK DETECTED
3. x = 4.66
What happened here?
The student added 4 to 10 instead of subtracting it. They knew the rule (move to the other side), but their mental "sign flipper" glitched.
Fix: High-contrast Anchor for "Sign Flips"

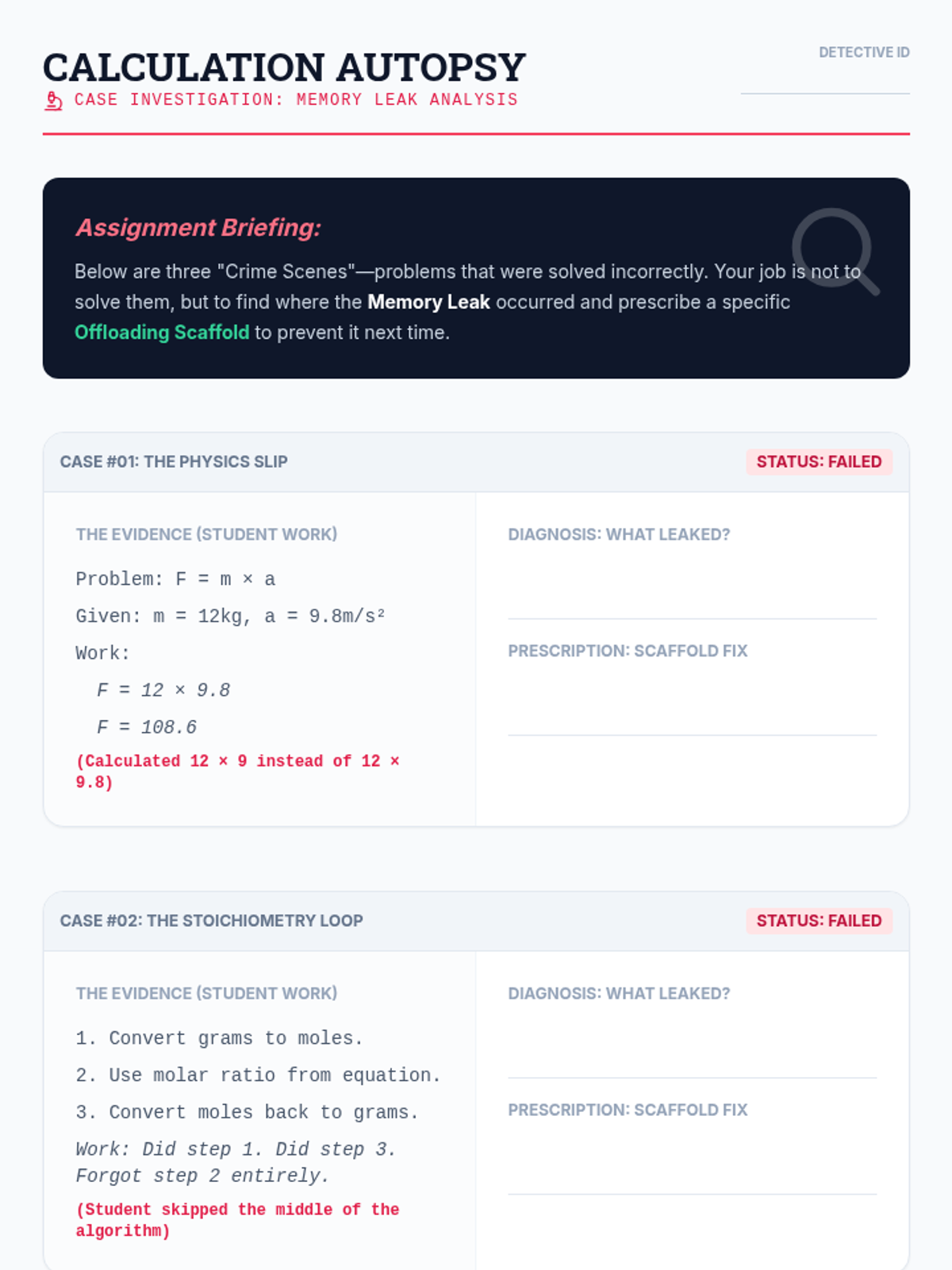

The Calculation Autopsy Worksheet Calculation Autopsy
Case Investigation: Memory Leak Analysis
Detective ID
Assignment Briefing:
Below are three "Crime Scenes"—problems that were solved incorrectly. Your job is not to solve them, but to find where the Memory Leak occurred and prescribe a specific Offloading Scaffold to prevent it next time.
Case #01: The Physics Slip STATUS: FAILED
The Evidence (Student Work)
Problem: F = m × a
Given: m = 12kg, a = 9.8m/s²
Work:
F = 12 × 9.8
F = 108.6
(Calculated 12 × 9 instead of 12 × 9.8)
Diagnosis: What leaked?
Prescription: Scaffold Fix
Case #02: The Stoichiometry Loop STATUS: FAILED
The Evidence (Student Work)
1. Convert grams to moles.
2. Use molar ratio from equation.
3. Convert moles back to grams.
Work: Did step 1. Did step 3. Forgot step 2 entirely.
(Student skipped the middle of the algorithm)
Diagnosis: What leaked?
Prescription: Scaffold Fix
Detective's Conclusion:
"We can't always stop our brain from glitching, but we can design systems (like ________ and ________) that catch the glitch before it becomes a wrong answer."
Final Protocol Slides Stress Test
Full System Implementation
Live Simulation 5.0
Reactor Protocol Alpha
A fictional research reactor is overheating. You have 15 minutes to perform a 12-step stabilization procedure.
The Condition
The instructions are text-heavy and full of technical "Memory Leaks." If you try to do it from memory, the reactor will fail.
Toolkit Required
Personalized Anchor Card
Stabilization Flowchart
Scratch Pad (Offload)
Mission: Accuracy
Efficiency Check
Speed is secondary. Accuracy is primary.
Use your systems to catch yourself before you make a "Leak" error. A 5-second check against your anchor is faster than restarting the whole process.
1
Trust the anchor, not the memory.
2
Check the flowchart at every diamond.
3
Document every calculation result.
Systems Go
Initialize Protocol Worksheet Now

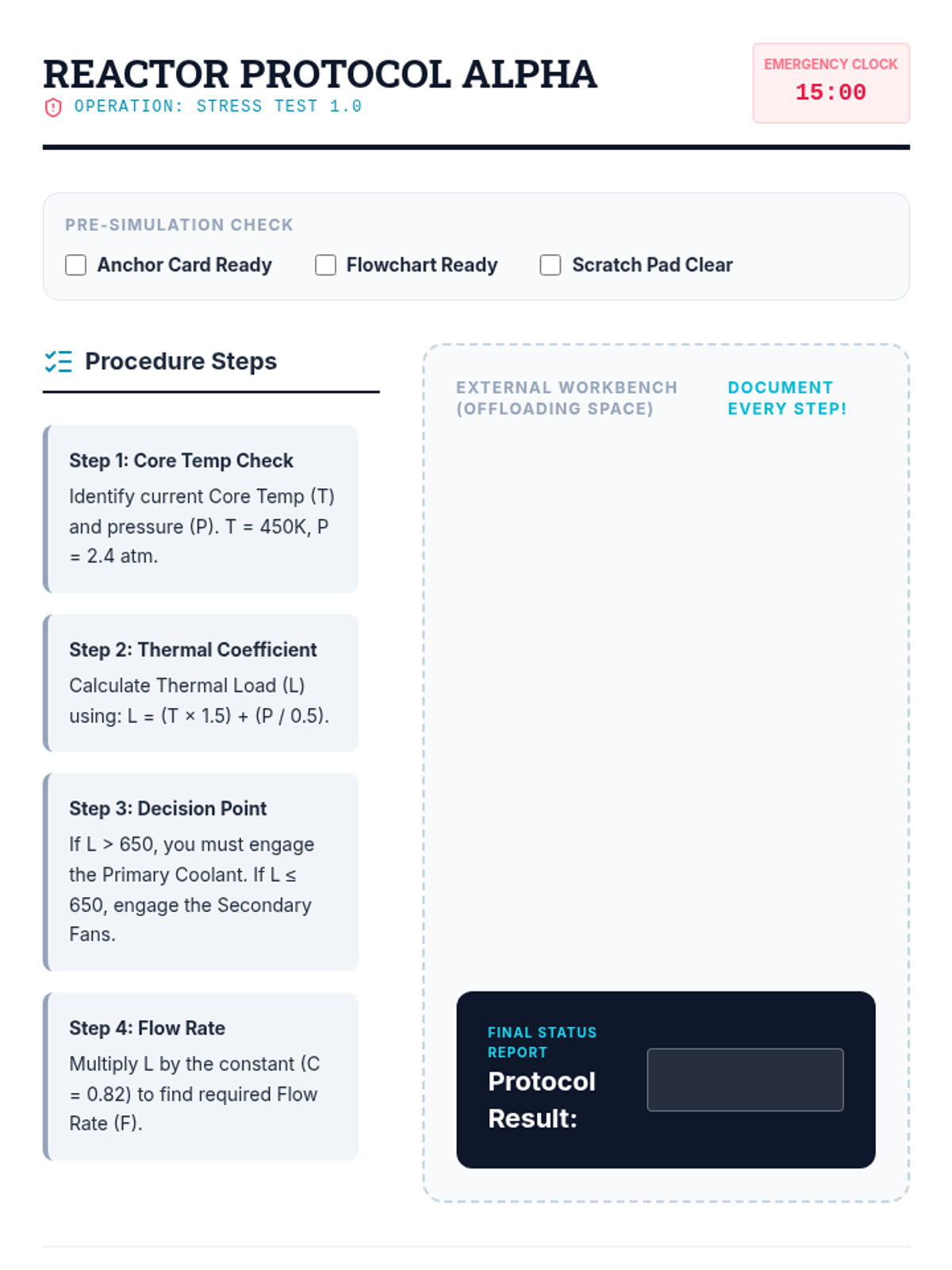

Stress Test Protocol Worksheet Reactor Protocol Alpha
Operation: Stress Test 1.0
Emergency Clock
15:00
Pre-Simulation Check
Anchor Card Ready Flowchart Ready Scratch Pad Clear
Procedure Steps
Step 1: Core Temp Check
Identify current Core Temp (T) and pressure (P). T = 450K, P = 2.4 atm.
Step 2: Thermal Coefficient
Calculate Thermal Load (L) using: L = (T × 1.5) + (P / 0.5).
Step 3: Decision Point
If L > 650, you must engage the Primary Coolant. If L ≤ 650, engage the Secondary Fans.
Step 4: Flow Rate
Multiply L by the constant (C = 0.82) to find required Flow Rate (F).
External Workbench (Offloading Space) Document every step!
Final Status Report
Protocol Result:
System debrief:
Which offloading tool saved you from a "Memory Leak" today?
How would your accuracy change without these anchors?
