Gateway of Sensation Slides Psychology // Unit 3.1
SENSATION VS. PERCEPTION
The first steps of the journey from the physical world to the human mind.
What Do You See?
PHASE_01 // THE_HOOK
Look at the image on the screen. Do you see a vase or two faces ?
Your eyes are receiving the same raw light waves (sensation). But your brain is organizing those waves into meaningful shapes (perception).
Defining the Process
Sensation
The process by which our sensory receptors and nervous system receive and represent stimulus energies from our environment.
Bottom-Up Processing
Perception
The process of organizing and interpreting sensory information, enabling us to recognize meaningful objects and events.
Top-Down Processing
Transduction
The Great Conversion
How does light, sound, or pressure become a thought?
Transduction is the conversion of one form of energy into another. In sensation, it's the transforming of stimulus energies into neural impulses our brain can interpret.
1. Receive
Sensory receptors detect energy.
2. Transform
Cells convert it into neural signals.
3. Deliver
Impulses travel to the thalamus/brain.
Class Discussion
01
Why is it useful for our brains to use "top-down" processing (perception) rather than just relying on raw sensation?
02
Can you think of a situation where your perception was incorrect even though your sensation was accurate?
03
Which of your five senses do you think has the most complex transduction process? Why?
Transduction Mapping Worksheet The Gateway of Sensation
Student Worksheet // Psychophysics Lab
NAME:
DATE:
Part 1: Defining the Divide
In your own words, describe the difference between sensation and perception using the "Bottom-Up" and "Top-Down" concepts.
SENSATION (Bottom-Up):
PERCEPTION (Top-Down):
Part 2: Transduction Mapping
Choose two senses (e.g., Vision, Hearing, Touch). For each, map the journey of information from the environment into the brain. Be specific about the Physical Energy and the Sensory Receptor .
SENSE 01:
Physical Energy
Sensory Receptor
Brain Region
SENSE 02:
Physical Energy
Sensory Receptor
Brain Region
Part 3: Critical Thinking
1. Why is "transduction" considered the gateway of all human experience?
2. If you lost the ability to transduce sound waves, but your brain's auditory cortex remained healthy, what would happen when music played?
Gateway of Sensation Teacher Guide Teacher Resource
Unit 3 // Lesson 1
The Gateway of Sensation
Instructional Guide for Sensation & Perception
Lesson Overview
This lesson introduces the foundation of psychophysics by separating raw biological data (sensation) from psychological interpretation (perception). Students will master the concept of transduction , the biological "translator" that turns the physical world into neural electricity.
Essential Questions
How does the brain build a world from energy?
What is the difference between a wave and a sound?
Key Vocabulary
Transduction Sensation Perception Bottom-Up Top-Down
The Hook: The Rubin Vase
Activity: Display the "Vase/Faces" illusion (Slide 2). Ask students to shout out what they see on the count of three.
"Your retinae are seeing the exact same light patterns. The sensation is identical for everyone in this room. But your brains are organizing that data into two different perceptions. Sensation is biological; perception is psychological."
Key Talking Points
1
The Thalamus: Remind students that almost all sensory info (except smell) passes through the Thalamus. It's the "Grand Central Station" of transduction.
2
Transduction: Use the analogy of a solar panel. Sunlight (physical energy) hits the panel (sensory receptor) and becomes electricity (neural impulse).
3
Bottom-Up vs Top-Down: Bottom-up is like learning to read phonetically. Top-down is reading a sentence where the vowels are missing—your brain fills in the gaps based on context.
Worksheet Quick-Reference
Sense Physical Energy Primary Receptor Destination Vision Light Waves (Photons) Rods & Cones (Retina) Occipital Lobe Hearing Sound Waves (Vibration) Hair Cells (Cochlea) Temporal Lobe Touch Pressure/Temp/Pain Mechanoreceptors/Nociceptors Parietal Lobe
Limits of Awareness Slides LIMITS OF AWARENESS
Absolute Thresholds and the 50% Rule
Can You Hear This?
PHASE_02 // THE_HOOK
The "Mosquito Ringtone" is a high-frequency sound (around 17.4 kHz) that most teenagers can hear, but most adults over 25 cannot.
Why does this happen?
As we age, our sensory receptors (hair cells) lose their sensitivity. Our Absolute Threshold for high frequencies physically shifts.
Frequency Sweep: 20Hz - 20,000Hz
Listen for the moment the sound "appears" for you.
Absolute Threshold
The minimum stimulation needed to detect a particular stimulus (light, sound, pressure, taste, or odor) 50% of the time.
Vision
A candle flame seen 30 miles away on a dark, clear night.
Hearing
A watch ticking 20 feet away in a quiet room.
Smell
One drop of perfume diffused throughout a three-room apartment.
Why "50% of the Time"?
Sensory sensitivity isn't a hard "on/off" switch. It's a curve.
There is "noise" in our nervous system and the environment.
Fatigue, motivation, and attention change our sensitivity from second to second.
50% marks the point where detection is better than random chance.
Psychometric Curve
X-Axis: Stimulus Intensity | Y-Axis: % Detected
Lab: Testing Your Limits
Today, you will partner up to determine your absolute thresholds for two different senses.
Test 1: Auditory Threshold
Detecting the quietest sound in a controlled environment.
Test 2: Tactile Threshold
Detecting the lightest touch using a standard stimulus.

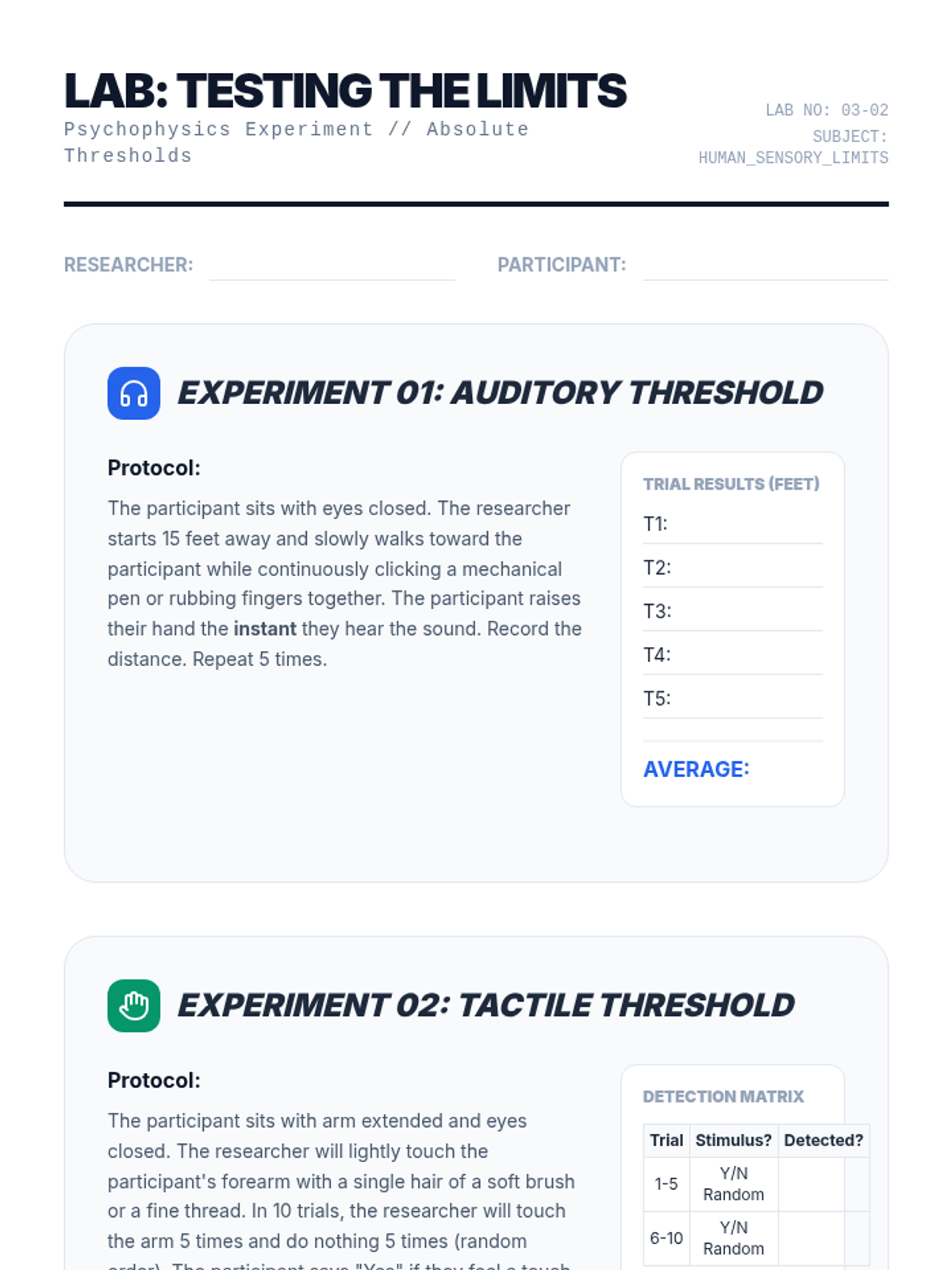

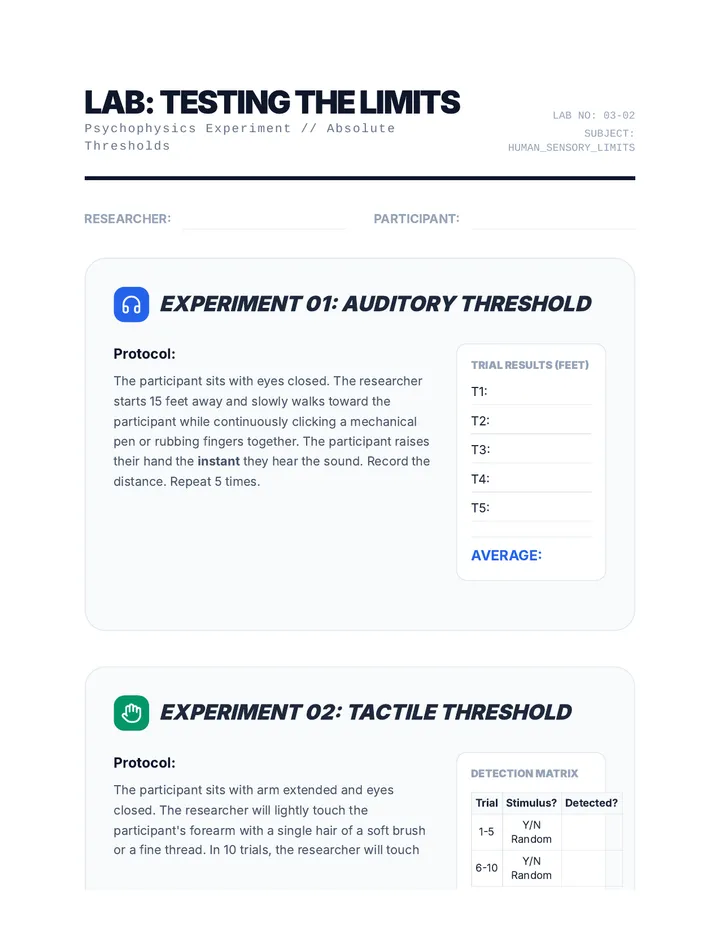

Absolute Threshold Lab Sheet Lab: Testing the Limits
Psychophysics Experiment // Absolute Thresholds
LAB NO: 03-02
SUBJECT: HUMAN_SENSORY_LIMITS
Researcher:
Participant:
Experiment 01: Auditory Threshold
Protocol:
The participant sits with eyes closed. The researcher starts 15 feet away and slowly walks toward the participant while continuously clicking a mechanical pen or rubbing fingers together. The participant raises their hand the instant they hear the sound. Record the distance. Repeat 5 times.
Trial Results (Feet)
T1:
T2:
T3:
T4:
T5:
AVERAGE:
Experiment 02: Tactile Threshold
Protocol:
The participant sits with arm extended and eyes closed. The researcher will lightly touch the participant's forearm with a single hair of a soft brush or a fine thread. In 10 trials, the researcher will touch the arm 5 times and do nothing 5 times (random order). The participant says "Yes" if they feel a touch.
Detection Matrix
Trial Stimulus? Detected? 1-5 Y/N Random 6-10 Y/N Random
% ACCURACY:
Analysis & Discussion
1. Why did we perform multiple trials for the auditory test rather than just one?
2. In the tactile test, what would a "False Alarm" look like, and why might it happen?
JND and Weber's Law Slides THE JND
Just Noticeable Difference & Weber's Law
Can You Feel the Change?
PHASE_03 // THE_HOOK
Imagine holding 10 coins in your hand. If I add 1 more, you'll probably feel the difference.
Now imagine holding a heavy backpack full of books. If I add that same 1 coin... will you notice?
10
+ 1 Coin = NOTICEABLE
100
+ 1 Coin = NOT NOTICEABLE
Difference Threshold
Also known as the Just Noticeable Difference (JND) .
"The minimum difference between two stimuli required for detection 50 percent of the time."
Key insight: The JND increases as the stimulus intensity increases.
Weber's Law
\[ \frac{\Delta I}{I} = k \]
To be perceived as different, two stimuli must differ by a constant minimum percentage (rather than a constant amount).
Named after Ernst Weber, who discovered that the proportion is what matters, not the raw number.
The Proportions (k)
Light Intensity 8%
Weight 2%
Sound Tone 0.3%
Calculated as the ratio of change to the original intensity.
Why does this matter?
Marketing
Companies "shrinkflate" products by tiny percentages so you don't notice the weight change.
Dimming Lights
Turning off one light in a bright stadium vs. turning off one candle in a dark room.
Volume Control
The difference between volume level 1 and 2 sounds much larger than 29 and 30.

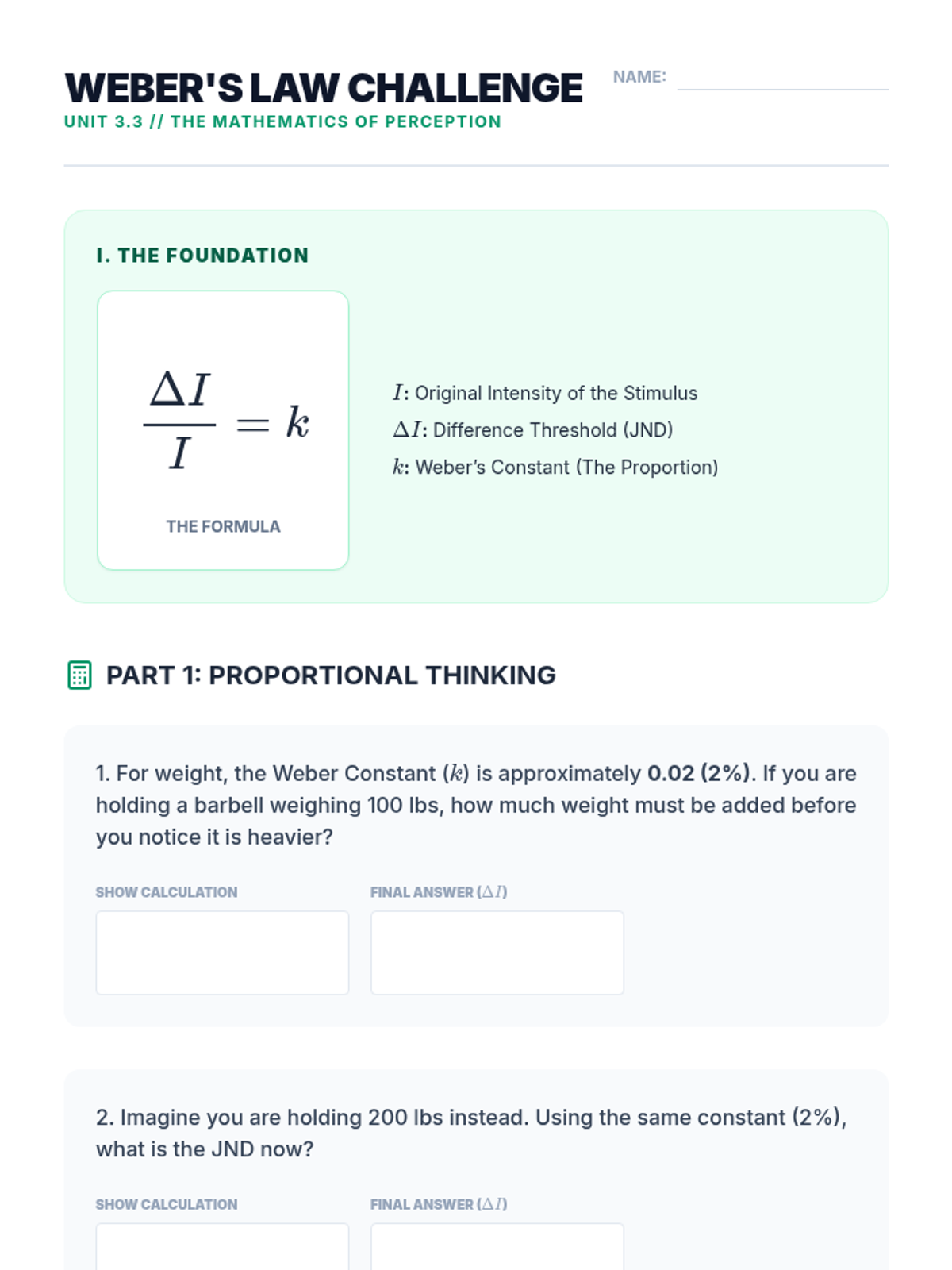

Weber's Law Worksheet Weber's Law Challenge
Unit 3.3 // The Mathematics of Perception
NAME:
I. The Foundation
\[ \frac{\Delta I}{I} = k \]
The Formula
\( I \): Original Intensity of the Stimulus
\( \Delta I \): Difference Threshold (JND)
\( k \): Weber’s Constant (The Proportion)
Part 1: Proportional Thinking
1. For weight, the Weber Constant (\( k \)) is approximately 0.02 (2%) . If you are holding a barbell weighing 100 lbs, how much weight must be added before you notice it is heavier?
Show Calculation
Final Answer (\( \Delta I \))
2. Imagine you are holding 200 lbs instead. Using the same constant (2%), what is the JND now?
Show Calculation
Final Answer (\( \Delta I \))
3. For light intensity, the Weber Constant (\( k \)) is 0.08 (8%) . If a room is lit by 50 candles, how many candles must be added to perceive a change in brightness?
Show Calculation
Final Answer (\( \Delta I \))
Part 2: Scenario Analysis
The "Shrinkflation" Effect
A potato chip company wants to reduce the amount of chips in their bag from 12oz to 11.5oz to save money, without lowering the price. Will consumers notice? (Assume weight JND is 2%).
The Noisy Cafeteria
Why is it easier to notice someone whispering your name in a library than someone shouting your name in a heavy metal concert? Explain using Weber's Law.

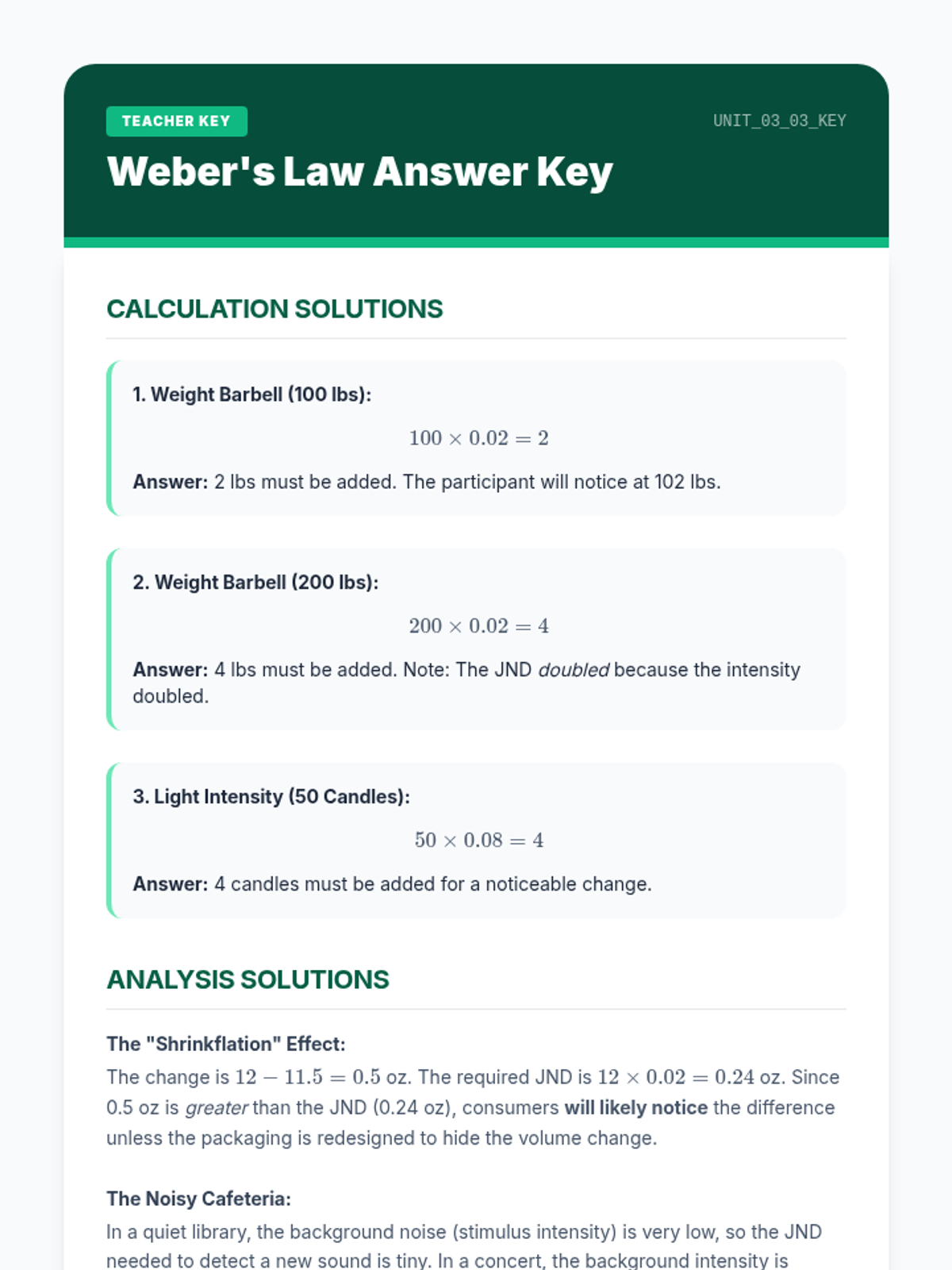

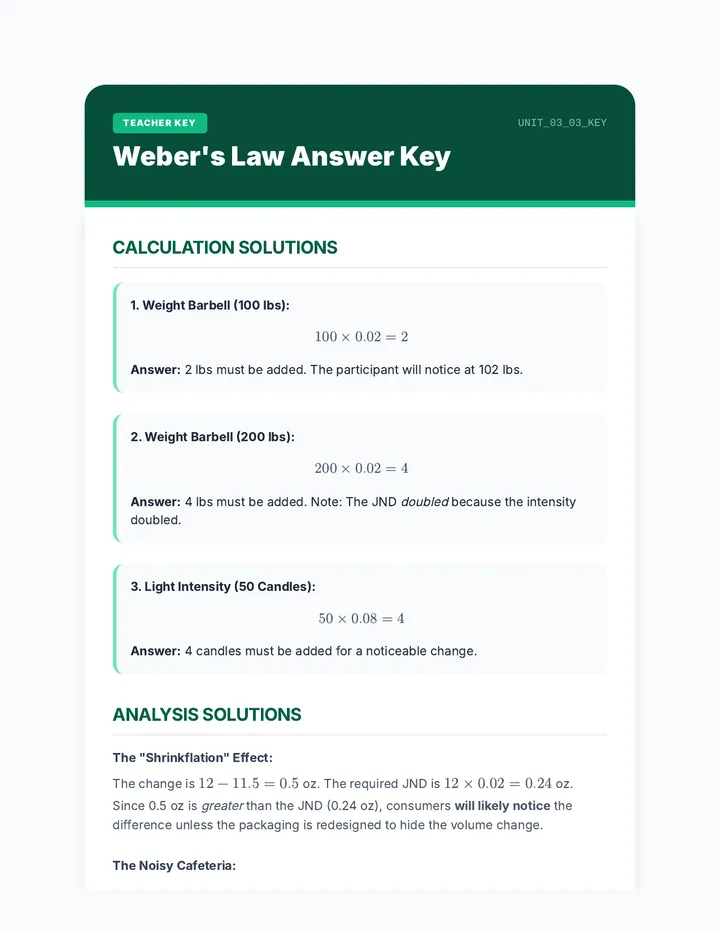

Weber's Law Answer Key Teacher Key UNIT_03_03_KEY
Weber's Law Answer Key
Calculation Solutions
1. Weight Barbell (100 lbs):
\[ 100 \times 0.02 = 2 \]
Answer: 2 lbs must be added. The participant will notice at 102 lbs.
2. Weight Barbell (200 lbs):
\[ 200 \times 0.02 = 4 \]
Answer: 4 lbs must be added. Note: The JND doubled because the intensity doubled.
3. Light Intensity (50 Candles):
\[ 50 \times 0.08 = 4 \]
Answer: 4 candles must be added for a noticeable change.
Analysis Solutions
The "Shrinkflation" Effect:
The change is \( 12 - 11.5 = 0.5 \) oz. The required JND is \( 12 \times 0.02 = 0.24 \) oz. Since 0.5 oz is greater than the JND (0.24 oz), consumers will likely notice the difference unless the packaging is redesigned to hide the volume change.
The Noisy Cafeteria:
In a quiet library, the background noise (stimulus intensity) is very low, so the JND needed to detect a new sound is tiny. In a concert, the background intensity is massive, so the JND required to stand out against that noise is also massive. A shout in a concert might be the same "decibel change" as a whisper in a library, but it doesn't meet the proportional requirement to be noticed.
Detecting the Signal Slides SYSTEM STATUS: ACTIVE
DETECTING THE SIGNAL
Signal Detection Theory (SDT)
Incoming Threat?
PHASE_04 // THE_HOOK
You are a radar operator. You see a blip. Is it an enemy plane or just background noise (a bird, a cloud)?
The Problem:
Detection isn't just about how loud the sound is. It's about your state of mind .
Beyond Thresholds
The Core Theory
SDT predicts when and how we detect a faint stimulus (signal) amid background noise.
It assumes there is no single absolute threshold. Instead, detection depends on...
Signal Strength
How loud or bright is it?
Fatigue
How tired are you?
Motivation
What are the rewards/costs?
Expectation
Do you expect to see it?
The Detection Matrix
Stimulus Present Stimulus Absent "Yes" Response HIT
Signal detected
|
FALSE ALARM
Mistook noise for signal
|
| "No" Response |
MISS
Signal ignored
|
CORRECT REJECTION
Noise correctly identified
|
Response Bias
Liberal Bias
"Saying YES to everything."
High HITS, but also high FALSE ALARMS.
Example: TSA Screening (Safe to assume threat)
Conservative Bias
"Only saying YES if 100% sure."
Low FALSE ALARMS, but high MISSES.
Example: Criminal Court (Innocent until proven guilty)

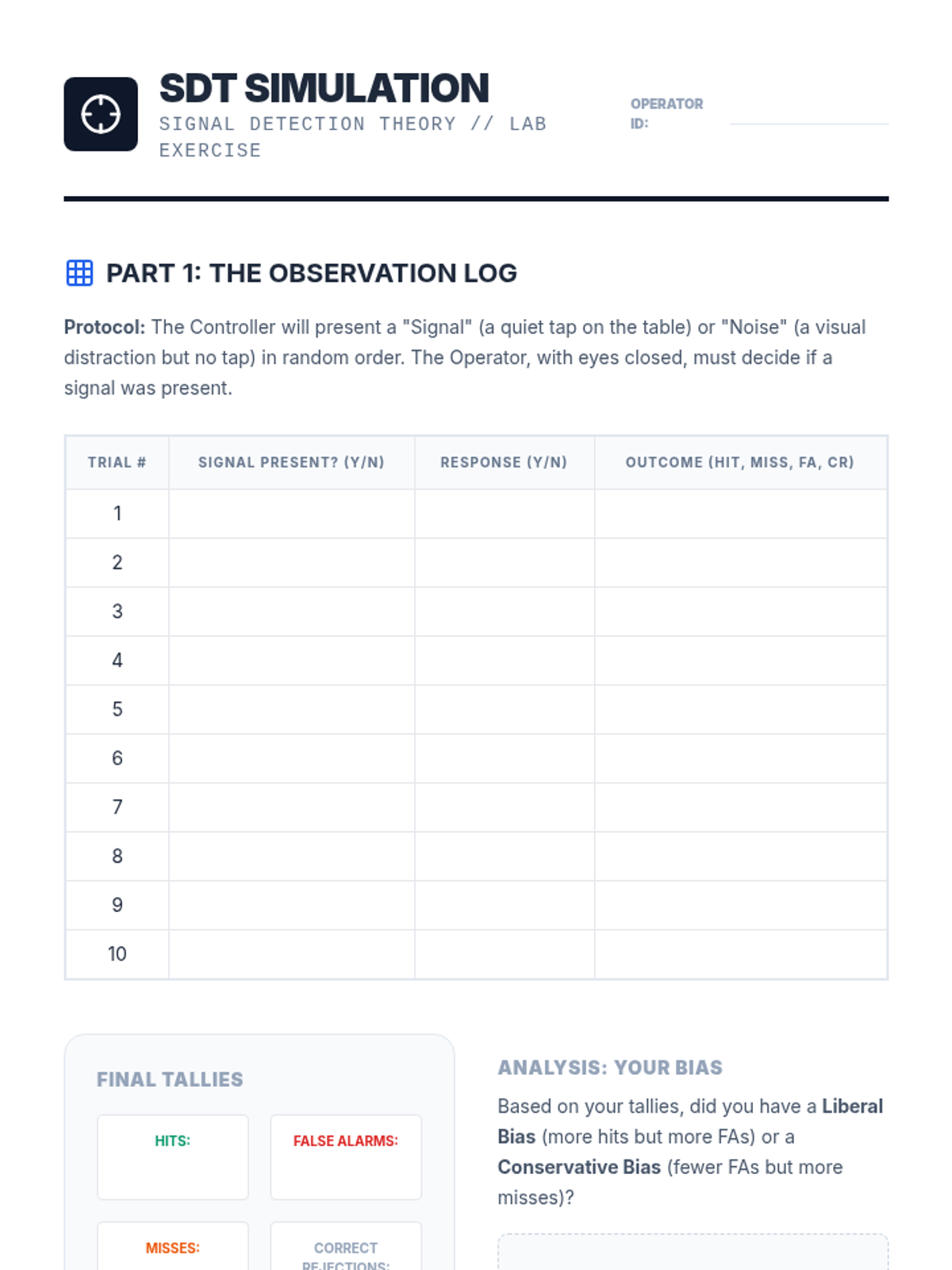

SDT Simulation Worksheet SDT Simulation
Signal Detection Theory // Lab Exercise
Operator ID:
Part 1: The Observation Log
Protocol: The Controller will present a "Signal" (a quiet tap on the table) or "Noise" (a visual distraction but no tap) in random order. The Operator, with eyes closed, must decide if a signal was present.
Trial # Signal Present? (Y/N) Response (Y/N) Outcome (Hit, Miss, FA, CR) 1 2 3 4 5 6 7 8 9 10
Final Tallies
HITS:
FALSE ALARMS:
MISSES:
CORRECT REJECTIONS:
Analysis: Your Bias
Based on your tallies, did you have a Liberal Bias (more hits but more FAs) or a Conservative Bias (fewer FAs but more misses)?
Part 2: Consequence Analysis
Scenario: Airport Security Screening
"If the screener has a Liberal Bias, they stop everyone who has even a small piece of metal. If they have a Conservative Bias, they only stop people who look very suspicious."
Which bias would you prefer the TSA to have? Why? Use SDT terminology (Hits/Misses/FA) in your answer.
Neural Fatigue Slides System Update // Sensory Reset
NEURAL FATIGUE
Sensory Adaptation & Habituation
Ghost in the Machine
PHASE_05 // THE_HOOK
Stare at the center of the colored image for 30 seconds. Do not blink.
What Happened?
When you look at a blank wall, you see a negative afterimage . Your receptors for that color "got tired" and stopped firing, letting the opposite color take over.
Sensory Adaptation
Diminished sensitivity as a consequence of constant stimulation .
Temperature
Jumping into a cold pool. After a few minutes, it feels "fine." The water didn't change—your receptors did.
Touch
You don't feel the shoes on your feet or the shirt on your back after wearing them for a few minutes.
The Crucial Distinction
Sensory Adaptation
Biological / Peripheral
The receptor cells themselves stop firing as much. You physically cannot sense the stimulus anymore.
Example: The "smell" of your own house.
Habituation
Cognitive / Central
Your brain decides to ignore a predictable stimulus. You are still sensing it, but you stop paying attention.
Example: Ignoring the sound of a ticking clock.
Why are we "blind" to constant stimuli?
Sensory adaptation allows us to focus on informative changes in our environment without being distracted by the "background noise" of our own bodies or stable surroundings.
"Evolutionary advantage: It's better to notice a new predator moving than to constantly feel the wind blowing."

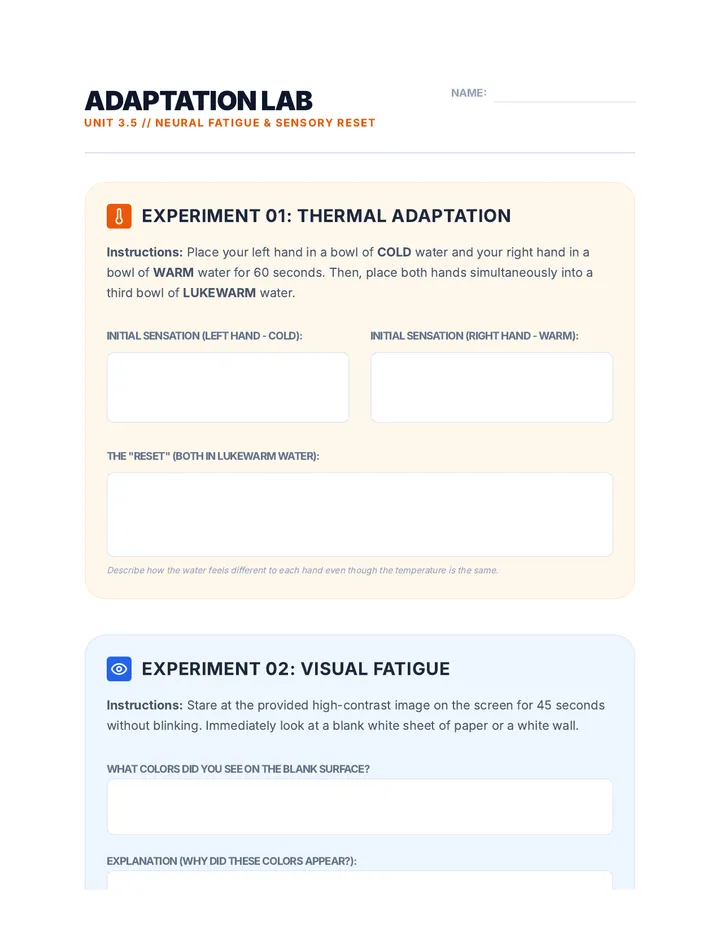

Adaptation Lab Sheet Adaptation Lab
Unit 3.5 // Neural Fatigue & Sensory Reset
NAME:
Experiment 01: Thermal Adaptation
Instructions: Place your left hand in a bowl of COLD water and your right hand in a bowl of WARM water for 60 seconds. Then, place both hands simultaneously into a third bowl of LUKEWARM water.
Initial Sensation (Left Hand - Cold):
Initial Sensation (Right Hand - Warm):
The "Reset" (Both in Lukewarm Water):
Describe how the water feels different to each hand even though the temperature is the same.
Experiment 02: Visual Fatigue
Instructions: Stare at the provided high-contrast image on the screen for 45 seconds without blinking. Immediately look at a blank white sheet of paper or a white wall.
What colors did you see on the blank surface?
Explanation (Why did these colors appear?):
Final Analysis
How do these experiments prove that our sensory systems are built to detect changes rather than states ?

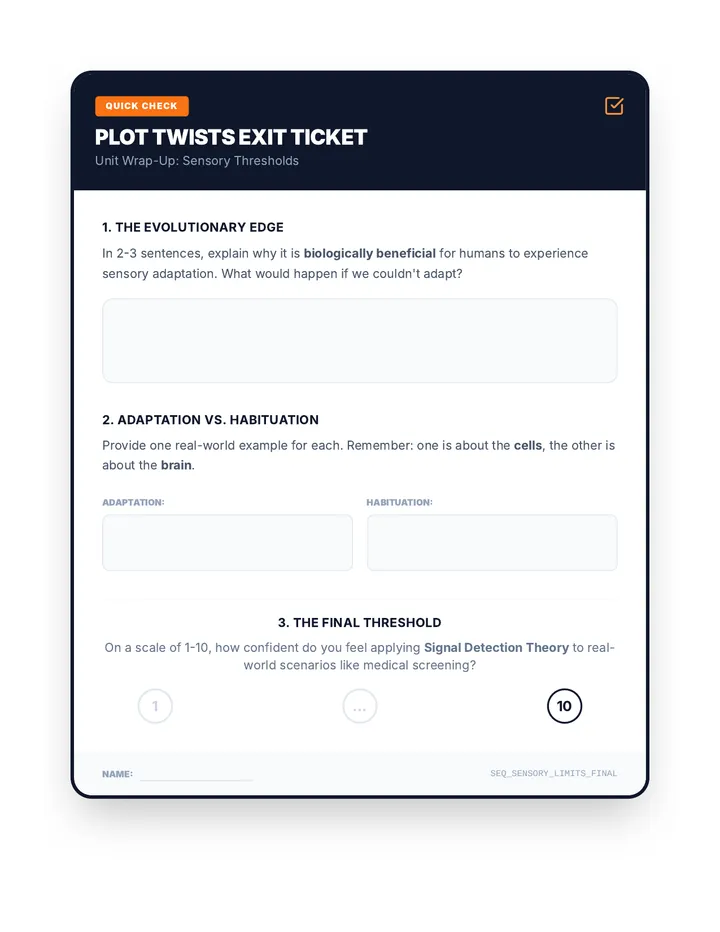

Plot Twists Exit Ticket Quick Check
Plot Twists Exit Ticket
Unit Wrap-Up: Sensory Thresholds
1. The Evolutionary Edge
In 2-3 sentences, explain why it is biologically beneficial for humans to experience sensory adaptation. What would happen if we couldn't adapt?
2. Adaptation vs. Habituation
Provide one real-world example for each. Remember: one is about the cells , the other is about the brain .
ADAPTATION:
HABITUATION:
3. The Final Threshold
On a scale of 1-10, how confident do you feel applying Signal Detection Theory to real-world scenarios like medical screening?
1
...
10
NAME:
SEQ_SENSORY_LIMITS_FINAL
