Siting Strategies Slides High Ground Advantage
Castle Selection and Siting
Defend
Locate
Survive
The Ultimate Fort
"If you had to build a fort that no one could enter, where would you put it?"
Top of a Peak?
Middle of a Lake?
Deep in a Forest?
Nature's Barriers
01
Verticality
Building on a hill or cliff makes it exhausting for enemies to climb while carrying heavy armor.
02
Visibility
High ground lets you see enemies coming from miles away. No surprises!
03
Water Supply
Rivers provide drinking water and act as a natural "moat" on at least one side.
Discussion Image:
Case Study: The Island Fortress
Mont Saint-Michel
Located in France, this castle is on an island. During low tide, you can walk to it. During high tide, the sea surrounds it completely.
Strategy Check
How would an invading army handle the changing tides?
Image: Mont Saint-Michel at High Tide
Your Turn, Architect!
You have been granted land by the King. You must choose the perfect location for your new stronghold.
1
Analyze the Map
2
Pick Your Peak
3
Defend Your Choice

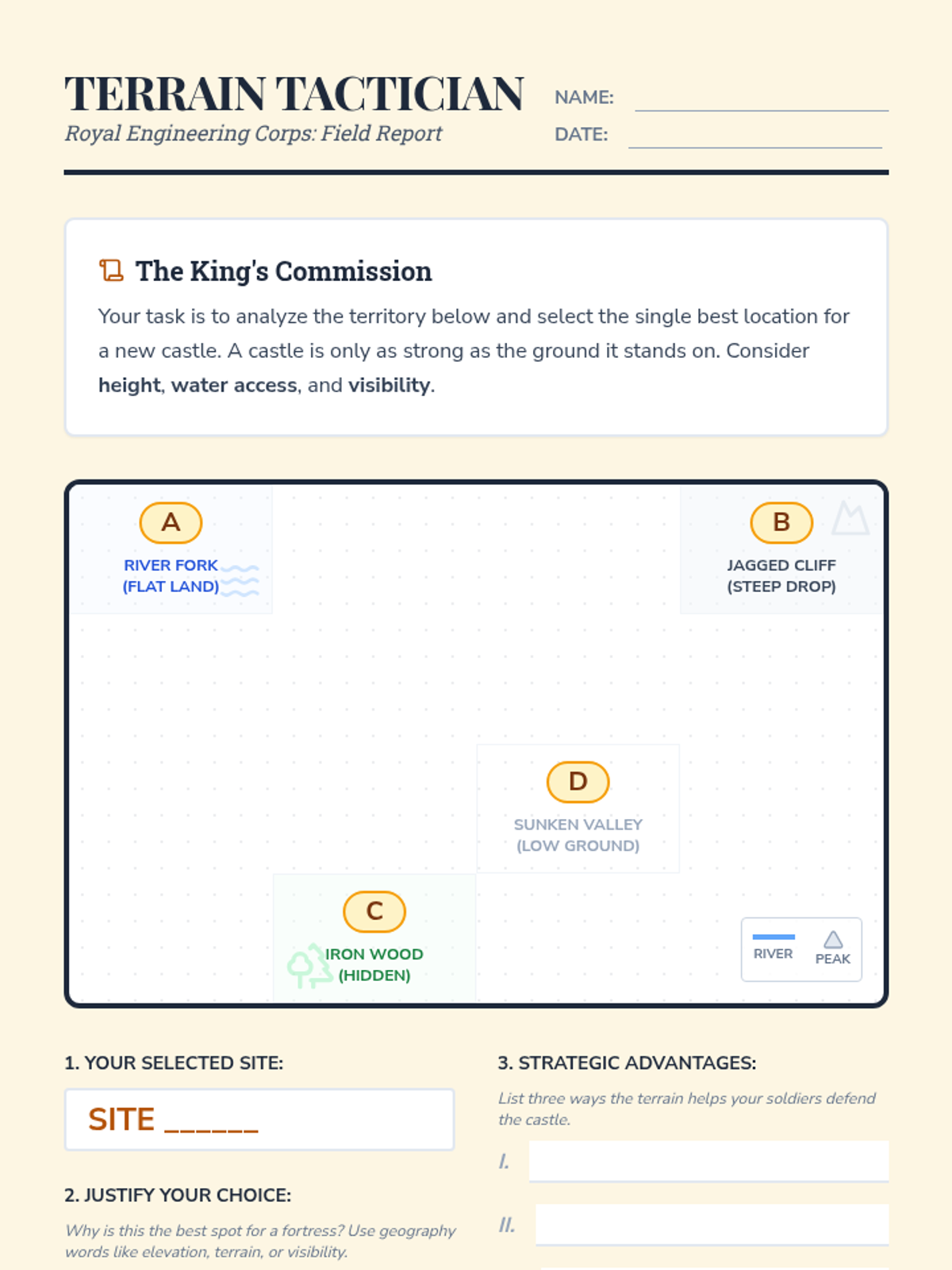

Terrain Tactician Worksheet Terrain Tactician
Royal Engineering Corps: Field Report
Name:
Date:
The King's Commission
Your task is to analyze the territory below and select the single best location for a new castle. A castle is only as strong as the ground it stands on. Consider height , water access , and visibility .
A
River Fork
B
Jagged Cliff
C
Iron Wood
D
Sunken Valley
River
Peak
1. Your Selected Site:
SITE ______
2. Justify Your Choice:
Why is this the best spot for a fortress? Use geography words like elevation, terrain, or visibility.
3. Strategic Advantages:
List three ways the terrain helps your soldiers defend the castle.
I.
II.
III.
Strategic Flaw
Every site has a weakness. What is the one danger your site faces?

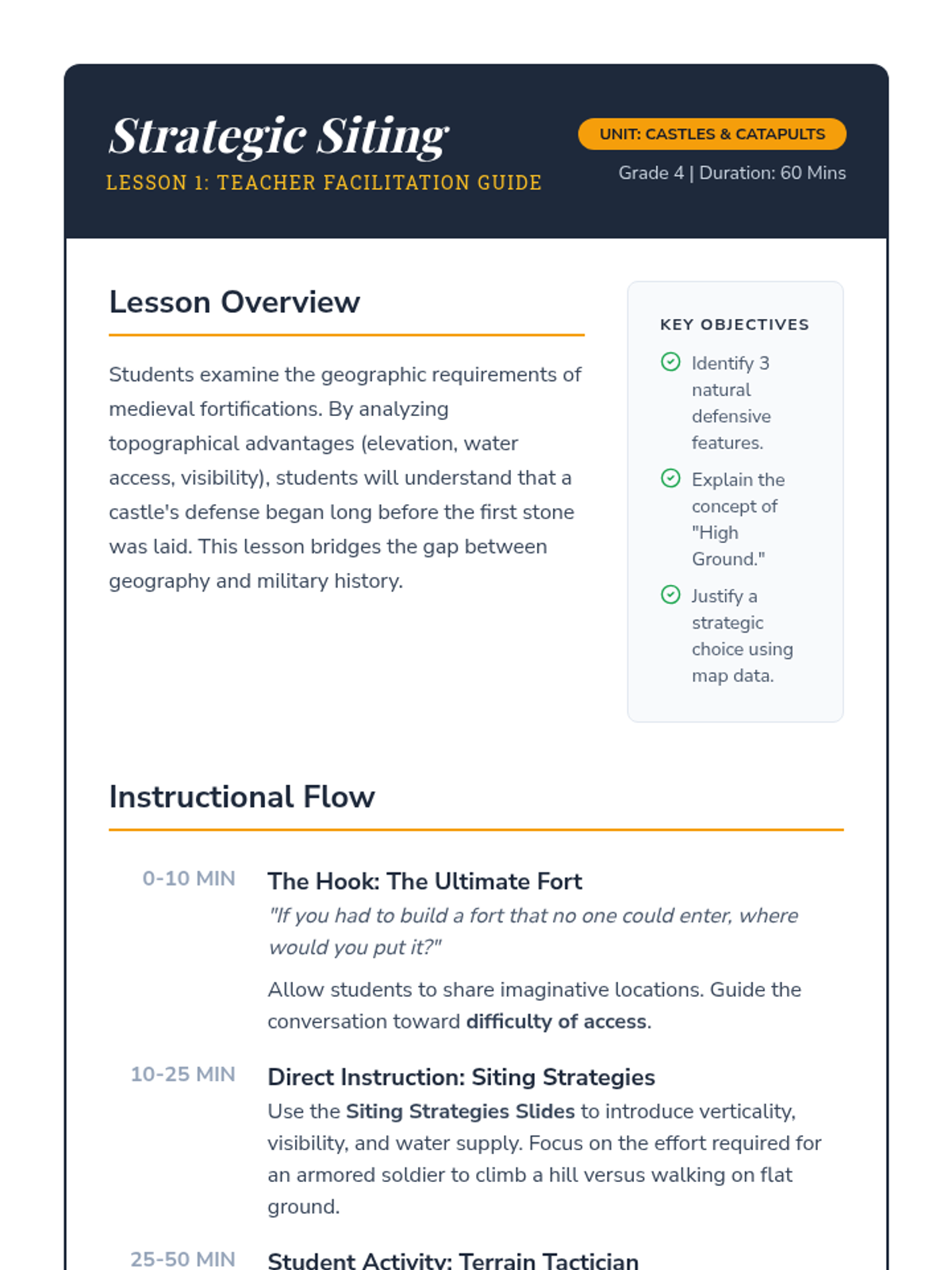

Strategic Siting Teacher Guide Strategic Siting
Lesson 1: Teacher Facilitation Guide
Unit: Castles & Catapults
Grade 4 | Duration: 60 Mins
Lesson Overview
Students examine the geographic requirements of medieval fortifications. By analyzing topographical advantages (elevation, water access, visibility), students will understand that a castle's defense began long before the first stone was laid. This lesson bridges the gap between geography and military history.
Key Objectives
Identify 3 natural defensive features.
Explain the concept of "High Ground."
Justify a strategic choice using map data.
Instructional Flow
0-10 MIN
The Hook: The Ultimate Fort
"If you had to build a fort that no one could enter, where would you put it?"
Allow students to share imaginative locations. Guide the conversation toward difficulty of access .
10-25 MIN
Direct Instruction: Siting Strategies
Use the Siting Strategies Slides to introduce verticality, visibility, and water supply. Focus on the effort required for an armored soldier to climb a hill versus walking on flat ground.
25-50 MIN
Student Activity: Terrain Tactician
Hand out the Terrain Tactician Worksheet . Students work in pairs or groups to analyze the four potential sites. Encourage them to "think like an attacker" to find the weaknesses of each site.
Discussion Prompts
"Why might a river be better than a thick forest for defense?"
Target Answer: Rivers provide visibility (the water is open space) and drinking water, whereas forests provide cover for enemies to sneak up.
"Is the highest peak always the best choice?"
Target Answer: Not necessarily. If it's too high, it might be impossible to get supplies or water to the castle during a long stay.
Terrain Tactician Key
Site Primary Strength Strategic Flaw Site A: River Fork Infinite water supply; natural barrier on two sides. Flat ground makes it easy for siege engines to approach. Site B: Jagged Cliff High Ground; excellent visibility; impossible to climb. Difficult to bring supplies up; potential lack of well water. Site C: Iron Wood Natural camouflage; easy access to timber.
Fortress Features Slides Anatomy of a Fortress
Building Walls That Talk
The Staircase Secret
"Why are castle staircases built in a spiral that goes clockwise?"
Hint: Most people are right-handed. If you are climbing UP to attack, your sword hand is trapped against the narrow center pillar!
Image: Spiral Staircase
Phase 1: Keeping Them Out
The Moat
A deep ditch, often filled with water. It stops ladders and battering rams from reaching the walls.
Drawbridge
A heavy wooden bridge that can be raised at a moment's notice to seal the castle.
Portcullis
A massive iron-tipped gate that slides down vertically like a heavy tooth.
Walls of Fire and Stone
1
Crenellations
The "teeth" at the top of the wall. Soldiers duck behind the stone and pop out to shoot arrows.
2
Murder Holes
Holes in the ceiling of the gatehouse for dropping oil, water, or rocks on intruders.
3
Arrow Slits
Narrow vertical windows that are wide on the inside but tiny on the outside.
Cross-Section Diagram:
The Great Keep
"The last line of defense. The strongest tower in the castle, where the royalty lived and where the final stand took place."
10 ft Wall Thickness
1st Floor No Windows
Underground Dungeons/Food

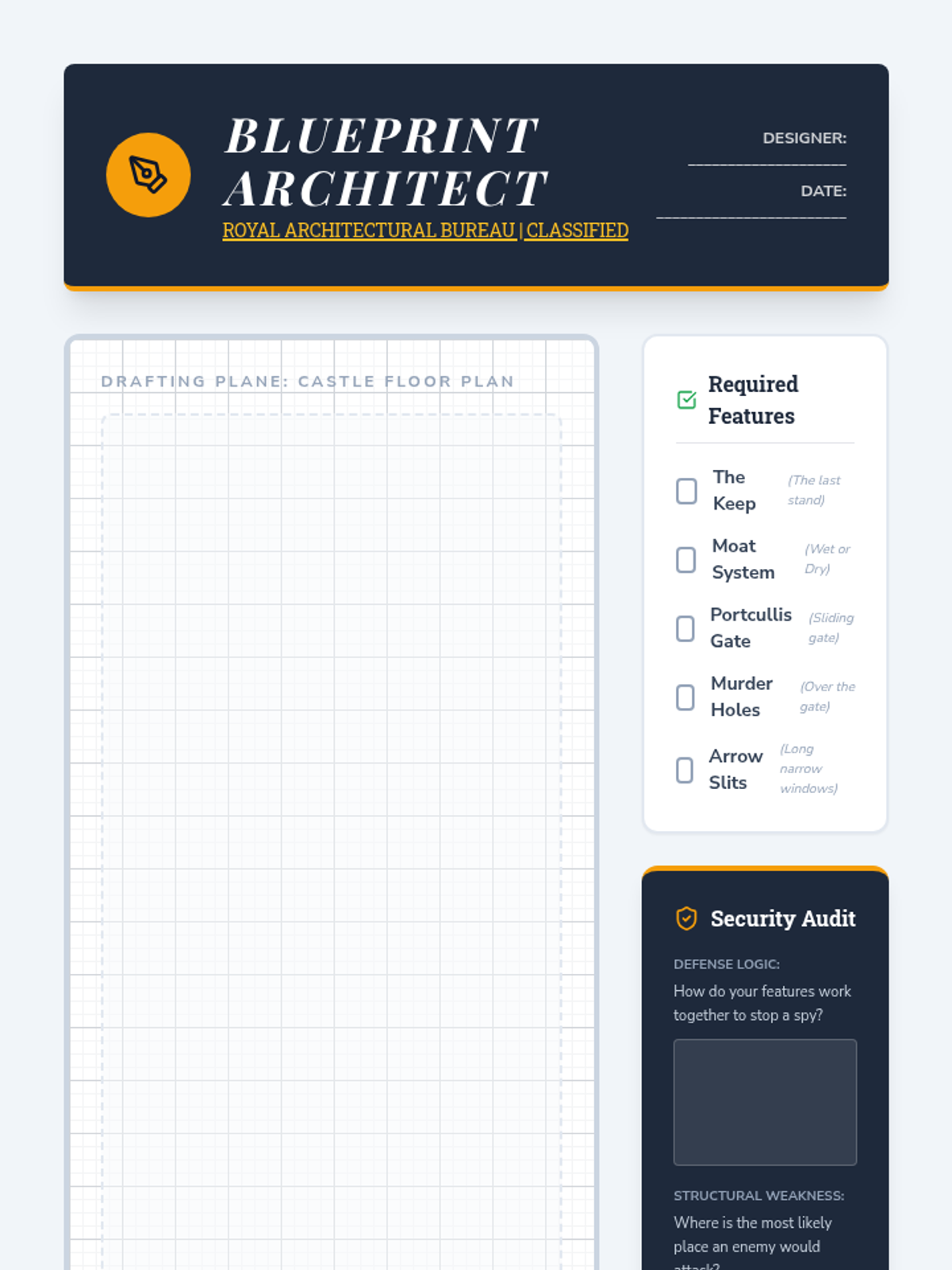

Blueprint Architect Worksheet Blueprint Architect
ROYAL ARCHITECTURAL BUREAU | CLASSIFIED
Designer: ____________________
Date: ________________________
Drafting Plane: Castle Floor Plan
10 FEET
Fig. 1.0 - Defensive Layering Strategy
Required Features
The Keep (The last stand)
Moat System (Wet or Dry)
Portcullis Gate (Sliding gate)
Murder Holes (Over the gate)
Arrow Slits (Long narrow windows)
Security Audit
Defense Logic:
How do your features work together to stop a spy?
Structural Weakness:
Where is the most likely place an enemy would attack?

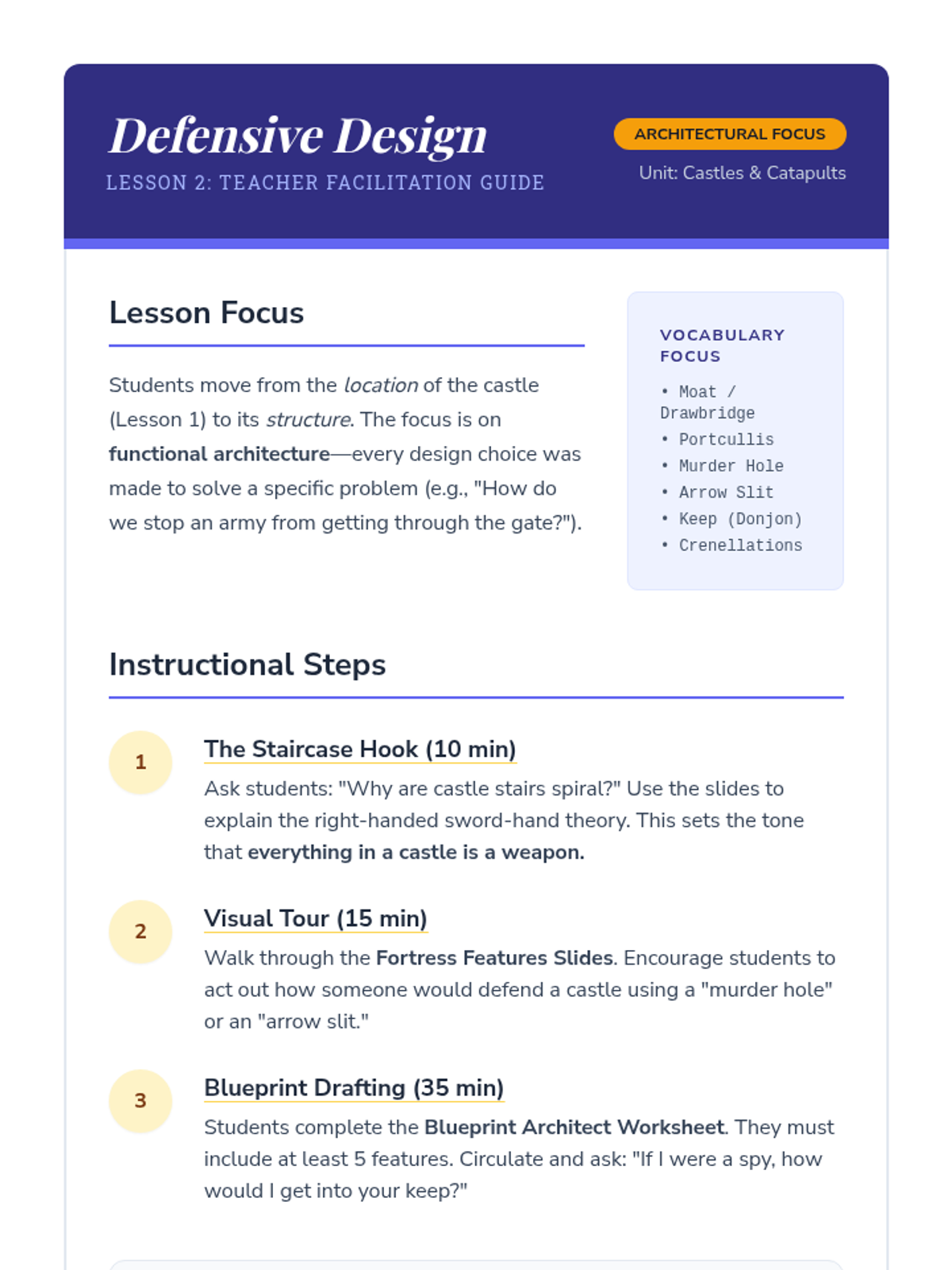

Defensive Design Teacher Guide Defensive Design
Lesson 2: Teacher Facilitation Guide
Architectural Focus
Unit: Castles & Catapults
Lesson Focus
Students move from the location of the castle (Lesson 1) to its structure . The focus is on functional architecture —every design choice was made to solve a specific problem (e.g., "How do we stop an army from getting through the gate?").
Vocabulary Focus
• Moat / Drawbridge
• Portcullis
• Murder Hole
• Arrow Slit
• Keep (Donjon)
• Crenellations
Instructional Steps
1
The Staircase Hook (10 min)
Ask students: "Why are castle stairs spiral?" Use the slides to explain the right-handed sword-hand theory. This sets the tone that everything in a castle is a weapon.
2
Visual Tour (15 min)
Walk through the Fortress Features Slides . Encourage students to act out how someone would defend a castle using a "murder hole" or an "arrow slit."
3
Blueprint Drafting (35 min)
Students complete the Blueprint Architect Worksheet . They must include at least 5 features. Circulate and ask: "If I were a spy, how would I get into your keep?"
Blueprint Evaluation Criteria
Vocabulary
Uses correct terms (Moat, Keep, etc.) for at least 5 features.
Functionality
Features are logically placed (e.g., murder holes are over the gate).
Reasoning
Security Audit demonstrates an understanding of defensive layered strategy.
Extension: "If you were the King, where would you hide your gold in this castle? Why?"
Siege Science Slides Siege Science
The Physics of Breaching Walls
Gravity
Leverage
Force
The Engineering Challenge
"How do you knock down a stone wall without touching it?"
The Problem:
Walls are 10 feet thick and defended by archers.
The Solution:
Use Physics to launch objects from a distance.
The King of Machines: Trebuchet
Counterweight Physics
It uses a heavy box (potential energy) to pull down one end of a long arm, swinging the other end (kinetic energy) at incredible speeds.
300 lbs Projectile Weight
1,000 ft Launch Distance
Interactive Diagram:
Brute Force: The Battering Ram
Mass × Velocity
The heavier the ram and the faster you swing it, the more force it hits the door with.
The "Penthouse": A wooden roof to protect the soldiers from murder holes.
The Iron Head: Prevents the wood from splintering.
"Momentum is hard to stop once it gets moving!"
Engineering Time!
Today, you will build your own small-scale siege engine. Can you hit the castle walls from 10 feet away?
STABILITY
DISTANCE
ACCURACY

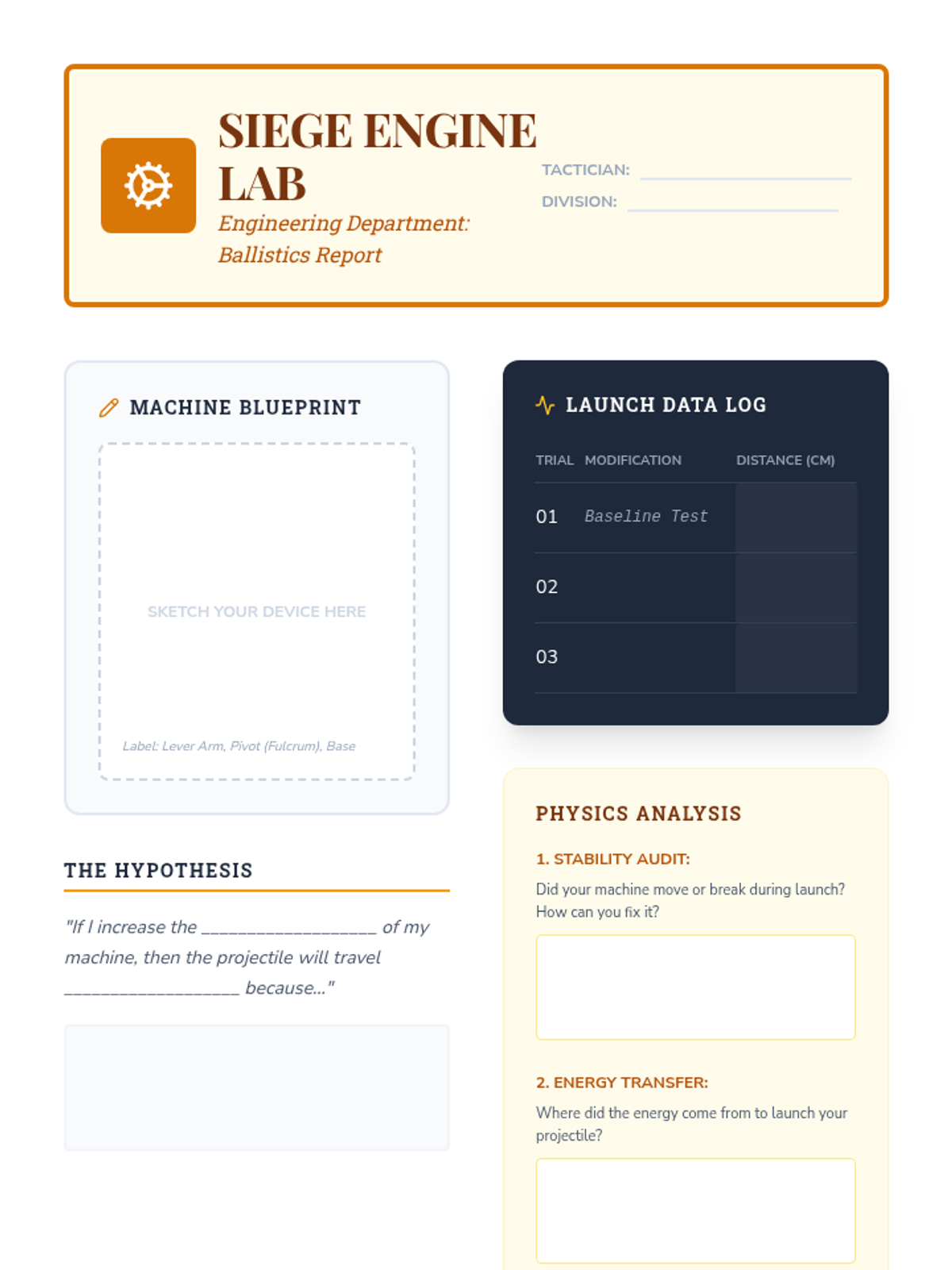

Siege Engine Lab Worksheet Siege Engine Lab
Engineering Department: Ballistics Report
Tactician:
Division:
Machine Blueprint
Sketch your device here
Label: Lever Arm, Pivot (Fulcrum), Base
The Hypothesis
"If I increase the ___________________ of my machine, then the projectile will travel ___________________ because..."
Launch Data Log
Trial Modification Distance (cm) 01 Baseline Test 02 03
Physics Analysis
1. Stability Audit:
Did your machine move or break during launch? How can you fix it?
2. Energy Transfer:
Where did the energy come from to launch your projectile?
Property of the Royal Siege Engineers

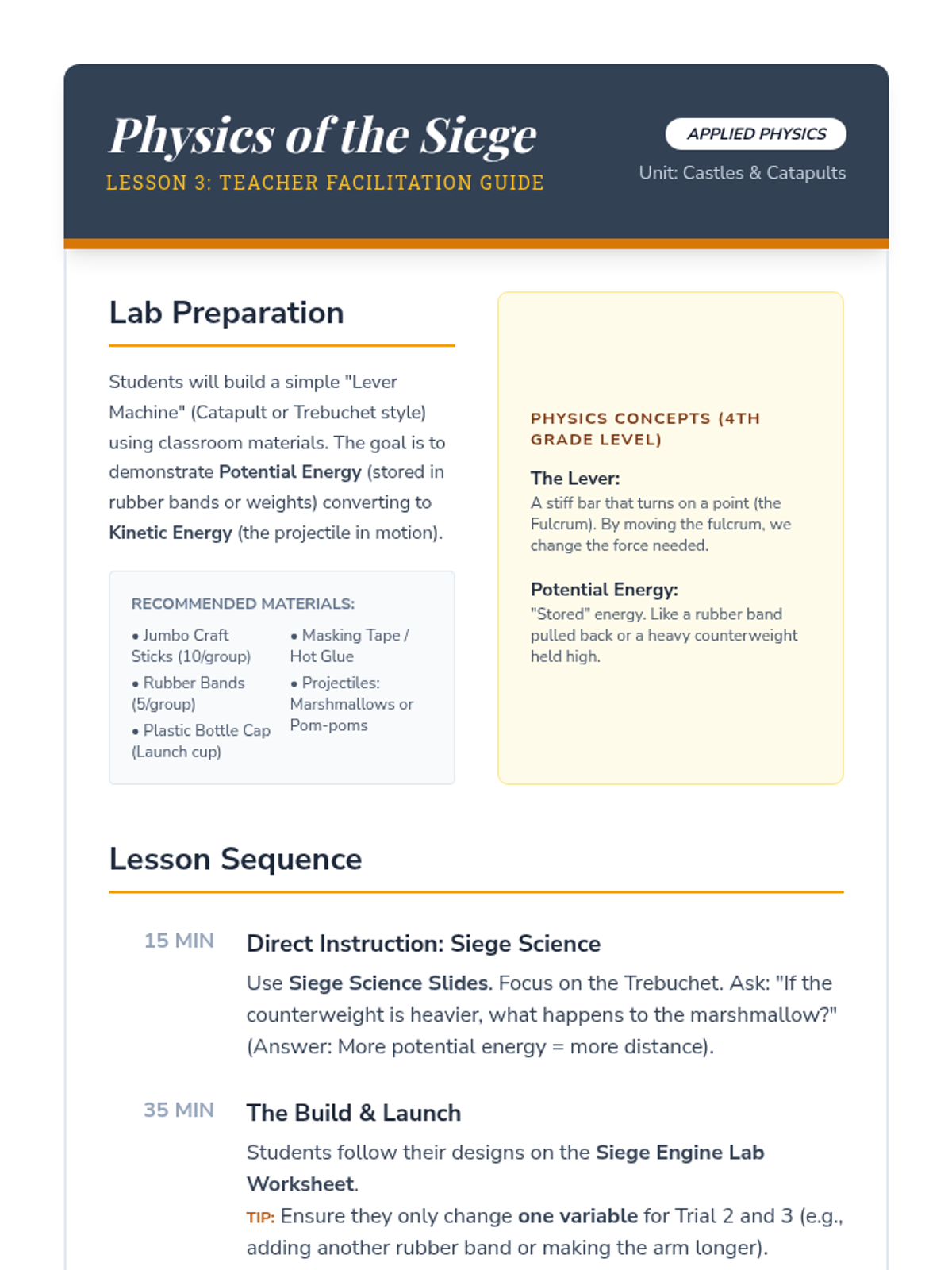

Physics of Siege Teacher Guide Physics of the Siege
Lesson 3: Teacher Facilitation Guide
Applied Physics
Unit: Castles & Catapults
Lab Preparation
Students will build a simple "Lever Machine" (Catapult or Trebuchet style) using classroom materials. The goal is to demonstrate Potential Energy (stored in rubber bands or weights) converting to Kinetic Energy (the projectile in motion).
Recommended Materials:
• Jumbo Craft Sticks (10/group)
• Rubber Bands (5/group)
• Plastic Bottle Cap (Launch cup)
• Masking Tape / Hot Glue
• Projectiles: Marshmallows or Pom-poms
Physics Concepts (4th Grade Level)
The Lever:
A stiff bar that turns on a point (the Fulcrum). By moving the fulcrum, we change the force needed.
Potential Energy:
"Stored" energy. Like a rubber band pulled back or a heavy counterweight held high.
Lesson Sequence
15 MIN
Direct Instruction: Siege Science
Use Siege Science Slides . Focus on the Trebuchet. Ask: "If the counterweight is heavier, what happens to the marshmallow?" (Answer: More potential energy = more distance).
35 MIN
The Build & Launch
Students follow their designs on the Siege Engine Lab Worksheet .one variable for Trial 2 and 3 (e.g., adding another rubber band or making the arm longer).
10 MIN
Wrap Up: Ballistics Briefing
Compare results. Which machines were the most stable? Which launched the furthest? Relate stability back to the base design.
Troubleshooting the Build
Problem: Projectile goes straight up
Solution: The launch cup (bottle cap) is angled too far back. Shift the pivot point forward or tilt the cup.
Problem: Machine flips over
Solution: The base is too narrow. Add "outriggers" (craft sticks glued horizontally to the bottom) to increase the base area.
Siege Survival Slides Siege Survival
Life Inside the Walls
The Waiting Game
"The enemy is outside and you can't leave.
1 Week?
The wells are full, but the heat is rising.
1 Month?
Rations are cut in half. Animals are eaten.
1 Year?
Hope fades. Survival becomes a miracle.
The Logistics of Survival
Clean Water
A castle needs a deep well. If the enemy poisons the stream outside, you rely only on what's inside.
Food Storage
Grain, salted meat, and dried beans. One rat in the storeroom can end the siege early!
Sanitation
In crowded castles, disease was often more deadly than arrows. Keeping the castle clean was vital.
Interactive Infographic:
Breaking the Spirit
A siege wasn't just about walls. It was a battle of patience and morale .
Attacker Tactics:
• Launching diseased animals over walls
• Playing loud drums all night
• Cutting off messenger birds
Siege Manager
Today, you are the Lord of the Castle.
Calculations
Hard Choices
Survival

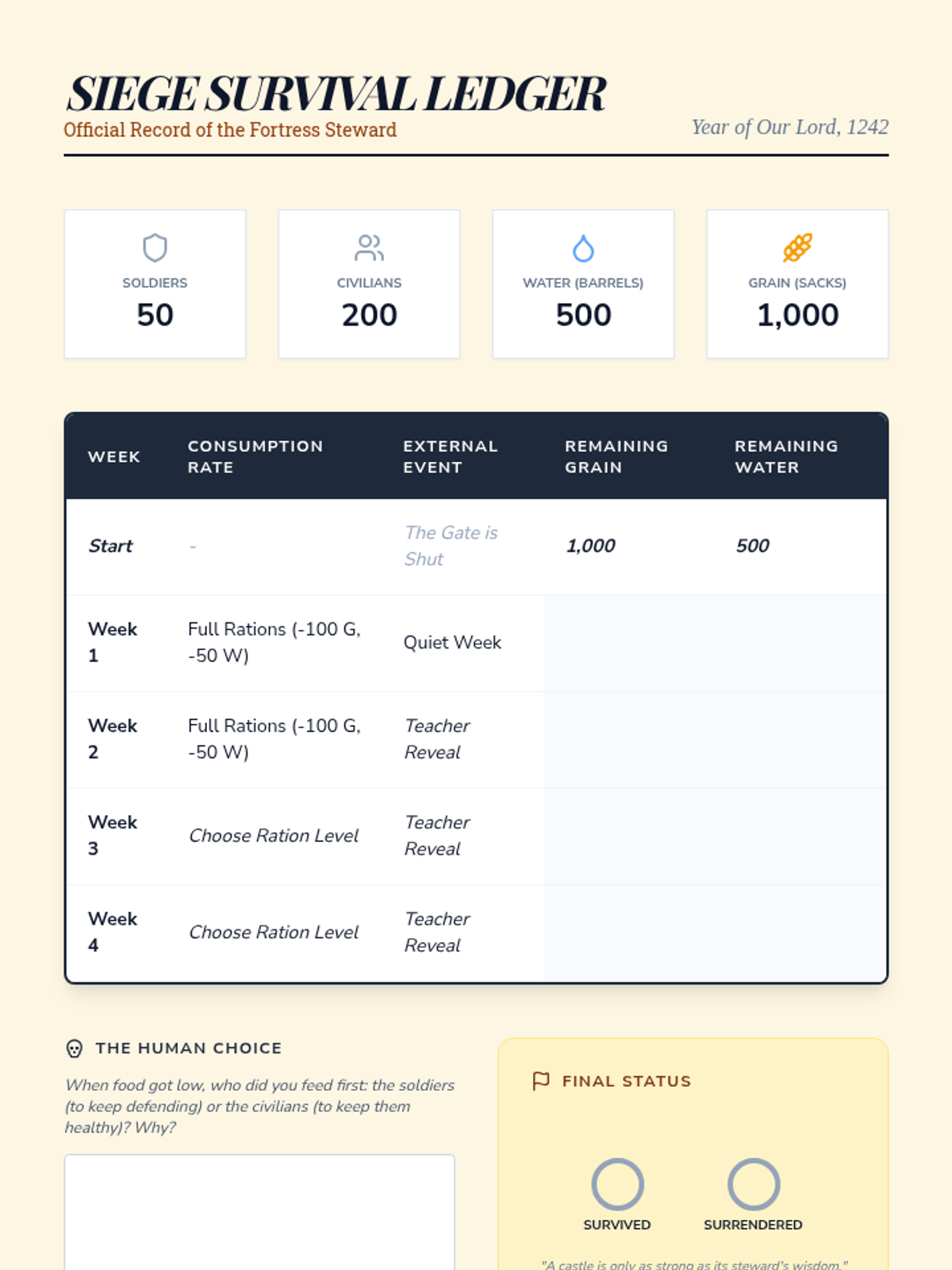

Survival Log Worksheet Siege Survival Ledger
Official Record of the Fortress Steward
Year of Our Lord, 1242
Soldiers 50
Civilians 200
Water (Barrels) 500
Grain (Sacks) 1,000
Week Consumption Rate External Event Remaining Grain Remaining Water Start - The Gate is Shut 1,000 500 Week 1 Full Rations (-100 G, -50 W) Quiet Week Week 2 Full Rations (-100 G, -50 W) Teacher Reveal Week 3 Choose Ration Level Teacher Reveal Week 4 Choose Ration Level Teacher Reveal
The Human Choice
When food got low, who did you feed first: the soldiers (to keep defending) or the civilians (to keep them healthy)? Why?
Final Status
Survived
Surrendered
"A castle is only as strong as its steward's wisdom."

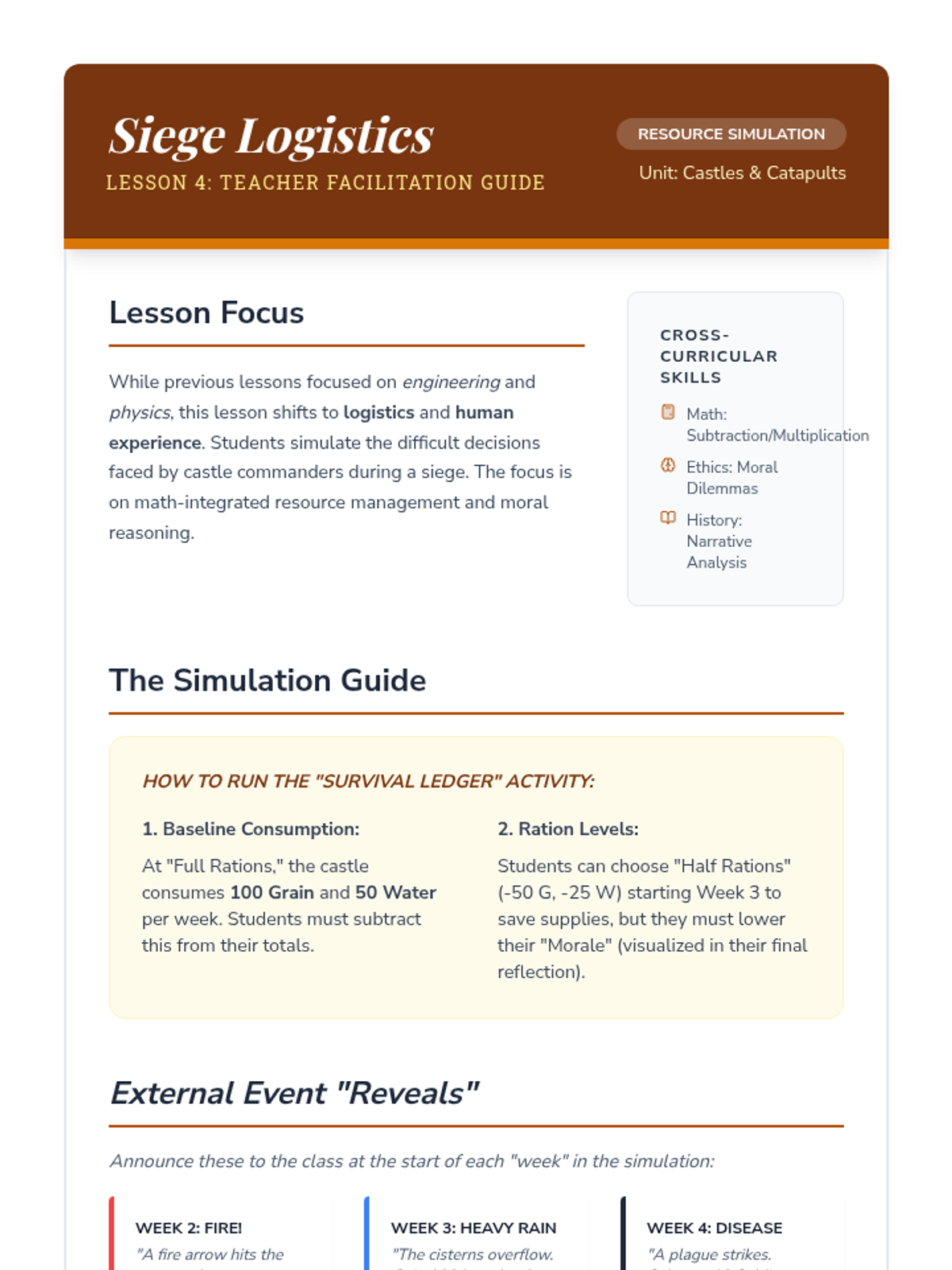

Siege Logistics Teacher Guide Siege Logistics
Lesson 4: Teacher Facilitation Guide
Resource Simulation
Unit: Castles & Catapults
Lesson Focus
While previous lessons focused on engineering and physics , this lesson shifts to logistics and human experience . Students simulate the difficult decisions faced by castle commanders during a siege. The focus is on math-integrated resource management and moral reasoning.
Cross-Curricular Skills
Math: Subtraction/Multiplication
Ethics: Moral Dilemmas
History: Narrative Analysis
The Simulation Guide
How to Run the "Survival Ledger" Activity:
1. Baseline Consumption:
At "Full Rations," the castle consumes 100 Grain and 50 Water per week. Students must subtract this from their totals.
2. Ration Levels:
Students can choose "Half Rations" (-50 G, -25 W) starting Week 3 to save supplies, but they must lower their "Morale" (visualized in their final reflection).
External Event "Reveals"
Announce these to the class at the start of each "week" in the simulation:
Week 2: Fire!
"A fire arrow hits the granary. Lose an extra 50 sacks of Grain."
Week 3: Heavy Rain
"The cisterns overflow. Gain 100 barrels of Water."
Week 4: Disease
"A plague strikes. Subtract 10 Soldiers from your population."
Critical Thinking Prompts
• "Is it better to surrender and save lives, or hold out for a rescue that might never come?"
• "How do you think it feels to be a civilian in a castle during a siege vs. a soldier?"
• "Why was the well the most important part of a castle's architecture?"
Boom and Bust Slides Boom and Bust
The Invention that Ended the Castle Era
The Game Changer
"What invention made the mightiest castles in the world useless overnight?"
The Wall
GUNPOWDER
The Arrival of the Cannon
Chemical Power
Unlike trebuchets that used gravity , cannons used explosive chemicals to launch metal balls at massive speeds.
The Result:
"High stone walls were no longer a defense—they were a target."
Image: 15th Century
The Evolution: Star Forts
Old Castles:
High, thin stone walls that shattered into dangerous splinters.
New Forts:
Low, thick, angled earth walls that deflected or absorbed cannonballs.
Blueprint:
Technology vs. Conflict
"How does technology change the way people protect themselves and resolve conflict?"
1
Analyze Change
2
Connect Eras
3
Predict Future

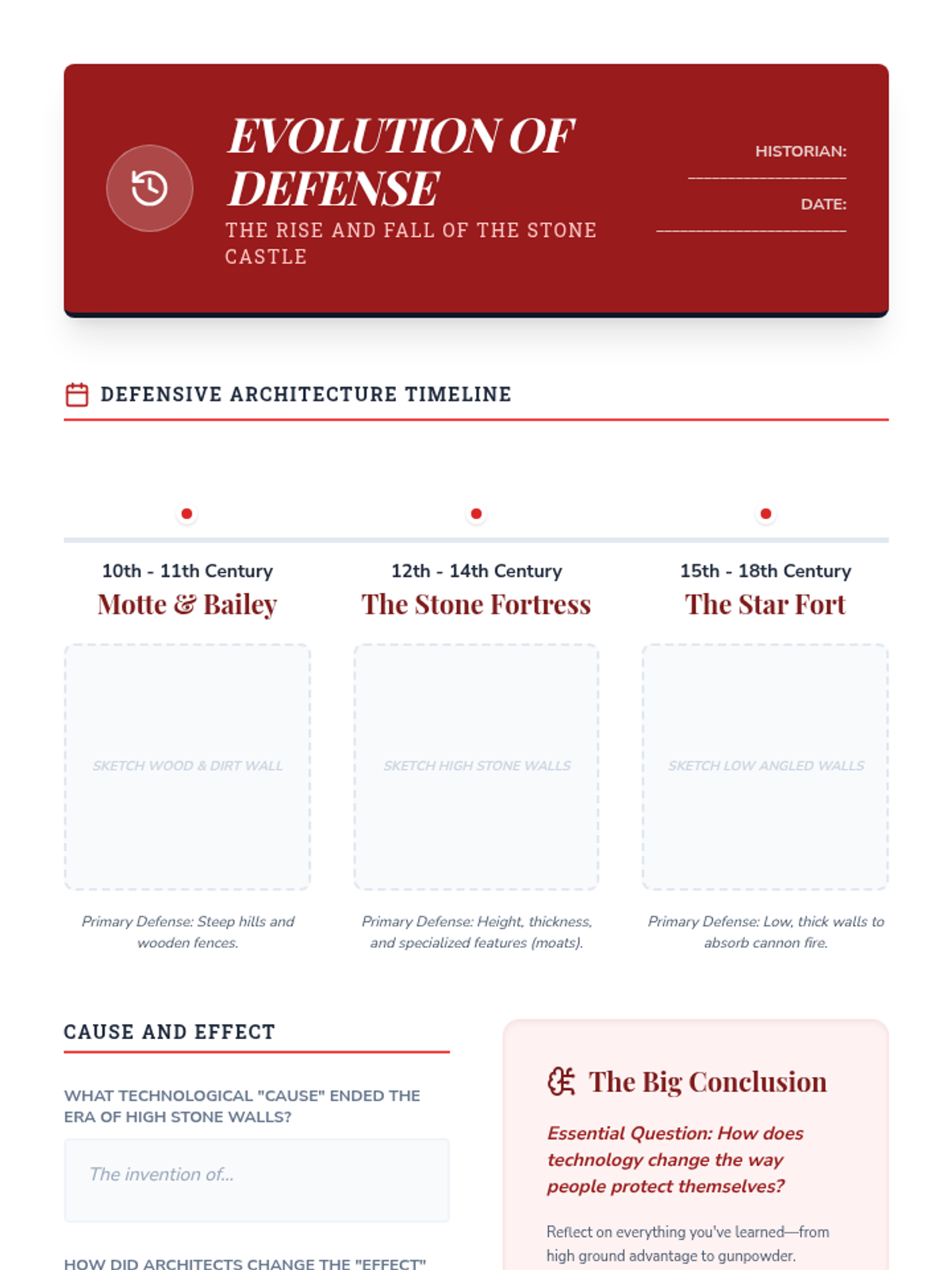

Technology Timeline Worksheet Evolution of Defense
THE RISE AND FALL OF THE STONE CASTLE
Historian: ____________________
Date: ________________________
Defensive Architecture Timeline
10th - 11th Century
Motte & Bailey
Sketch Wood & Dirt Wall
Primary Defense: Steep hills and wooden fences.
12th - 14th Century
The Stone Fortress
Sketch High Stone Walls
Primary Defense: Height, thickness, and specialized features (moats).
15th - 18th Century
The Star Fort
Sketch Low Angled Walls
Primary Defense: Low, thick walls to absorb cannon fire.
Cause and Effect
What technological "cause" ended the era of high stone walls?
The invention of...
How did architects change the "effect" (the shape of the walls)?
The Big Conclusion
Essential Question: How does technology change the way people protect themselves?
Reflect on everything you've learned—from high ground advantage to gunpowder. Explain why humans must always change their "forts" when technology changes.

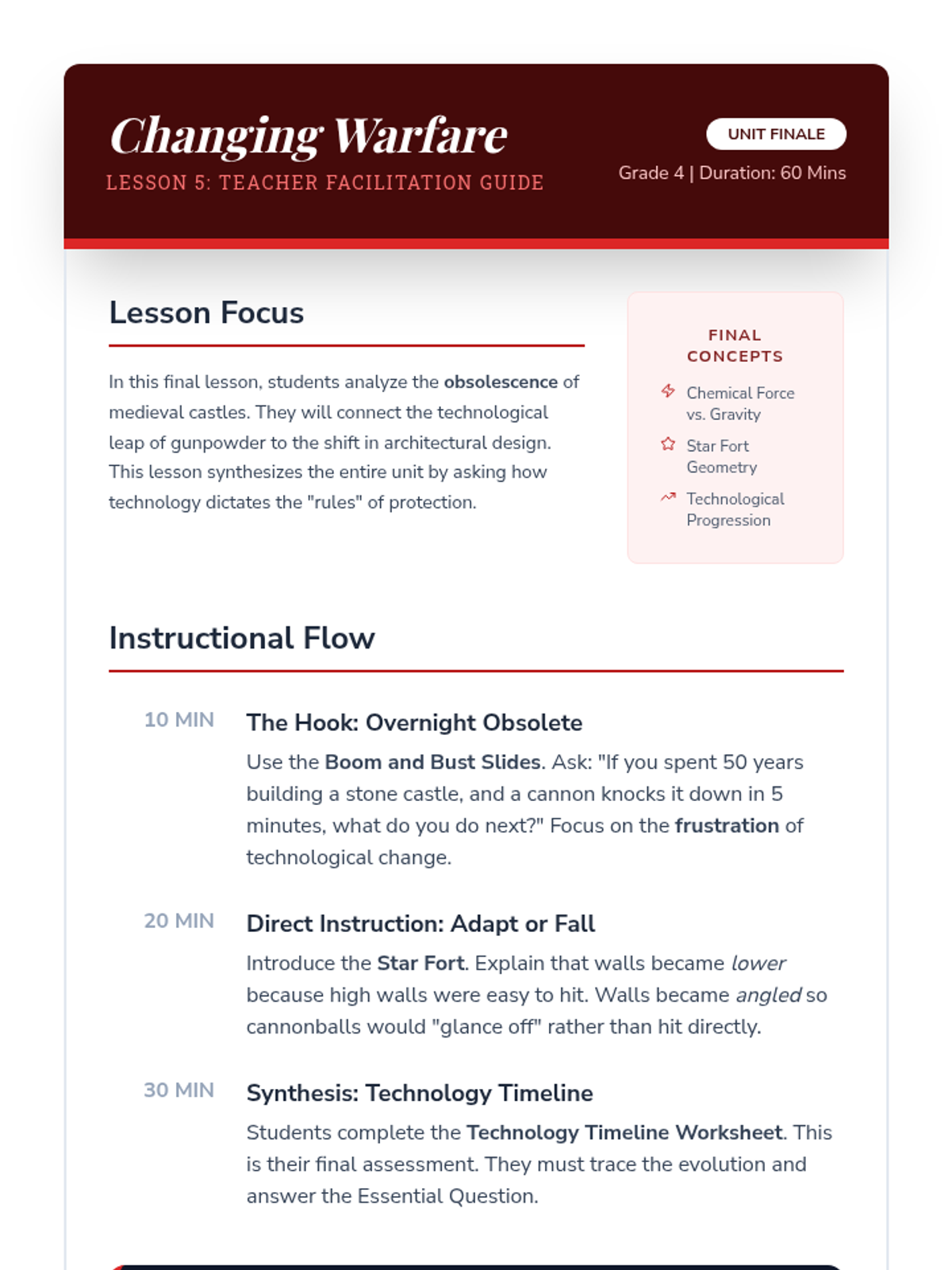

Changing Warfare Teacher Guide Changing Warfare
Lesson 5: Teacher Facilitation Guide
Unit Finale
Grade 4 | Duration: 60 Mins
Lesson Focus
In this final lesson, students analyze the obsolescence of medieval castles. They will connect the technological leap of gunpowder to the shift in architectural design. This lesson synthesizes the entire unit by asking how technology dictates the "rules" of protection.
Final Concepts
Chemical Force vs. Gravity
Star Fort Geometry
Technological Progression
Instructional Flow
10 MIN
The Hook: Overnight Obsolete
Use the Boom and Bust Slides . Ask: "If you spent 50 years building a stone castle, and a cannon knocks it down in 5 minutes, what do you do next?" Focus on the frustration of technological change.
20 MIN
Direct Instruction: Adapt or Fall
Introduce the Star Fort . Explain that walls became lower because high walls were easy to hit. Walls became angled so cannonballs would "glance off" rather than hit directly.
30 MIN
Synthesis: Technology Timeline
Students complete the Technology Timeline Worksheet . This is their final assessment. They must trace the evolution and answer the Essential Question.
Critical Technical Insight
"It wasn't just that cannons broke the walls—it was the splinters . When a cannonball hit a stone wall, it turned the stone into flying shrapnel. A high stone wall became a weapon against the people inside. This is why they moved to earth-packed walls (Star Forts) which swallowed the energy of the ball."
Timeline Key
Motte & Bailey
Cheap, fast, but flammable and rots over time.
Stone Fortress
Extremely strong against ladders/arrows. Weak against heavy metal projectiles.
Star Fort
Engineered for the age of gunpowder. Focused on deflecting energy.
