World Unknown Slides Lesson 01: Cartography
Edge of the World
Mapping what we know, what we fear, and what we have yet to discover.
The Great Mystery
Imagine it is the year 1450 . You are standing on the coast of Portugal, looking out at the Atlantic Ocean.
"Beyond these waters, the world simply... ends. Or so the stories say."
🐙
Terra Incognita
"Here be monsters..."
The 1450 Perspective
Center of the World
Most European maps placed Jerusalem or the Mediterranean at the very center.
The Unknown
The Americas and most of the Pacific Ocean were completely missing.
Map Myths
Cartographers filled empty spaces with sea monsters and legendary islands.
Visualize: A circular map where the ocean surrounds the known lands like a moat.
Mapping Reality
Ptolemy's Errors
• Underestimated the Earth's size.
• Asia was stretched too far east.
• Africa was connected to Antarctica.
The Sailor's Need
• Portolan charts for coastal sailing.
• Wind roses and compass lines (rhumb lines).
• Accuracy over decoration.
The Navigator's Dilemma
"If your map says there is a giant whirlpool ahead, but your eyes see a calm sea, which one do you trust?"
Risk vs. Reward
Tradition vs. Observation
Fear vs. Curiosity
Monster Map Worksheet Monster Map Analysis
Navigator Training Program
Lesson 01: Cartography
NAME:
DATE:
Part 1: The 1450 Worldview
In 1450, maps were not just about geography—they were stories. Many maps were circular, with Asia at the top, Europe on the bottom left, and Africa on the bottom right. The Atlantic Ocean was often called the "Sea of Darkness."
Sketch: The Circular World
Observation Questions:
Part 2: Mapping Fear
Cartographers often drew sea monsters to warn sailors of unknown dangers. Look at the descriptions below and match them to why a sailor might actually be afraid.
🐉
The Great Serpent:
"A beast that can swallow a whole ship and creates whirlpools with its tail."
Real Danger?
🌋
The Boiling Sea:
"As you move South, the sun grows so hot it boils the ocean and burns the sails."
Real Danger?
Part 3: Comparative Geography
Task: Compare a 1450 map with a modern world map.
Historical Map (1450)
Shape: Circular / Three Parts
What is the most detailed area?
Modern Map (Today)
Shape: Rectangular / Accurate Coastlines
What is missing from the 1450 map?
The Explorer's Mindset
If you were a navigator in 1450, would you be more excited by what is on the map, or what is NOT on the map? Explain your answer below.
Mapping the Unknown Guide Teacher Guide: Mapping the Unknown
Lesson 01: Cartography and the Known World
Duration 50-60m
Lesson Overview
Students explore the concept of "geographic imagination" by analyzing historical maps from the mid-15th century. They will identify key differences between historical worldviews and modern reality, focusing on why Europeans were hesitant to sail into the "unknown."
Key Objective
Analyze 15th-century maps to explain how the European worldview influenced maritime exploration and the perception of risk.
Materials Needed
World Unknown Slides
Monster Map Worksheets
Modern World Map (for comparison)
Pacing & Procedure
05m
The Hook: The Monster in the Room
Show a 1450 map slide with sea monsters. Ask: "If this map was your only guide, how far would you sail before turning back?" Discuss the concept of fear of the unknown.
15m
Instruction: Three-Part World
Use slides to explain T-O maps (circular) and the Ptolemaic influence. Highlight that map-makers prioritized religion and tradition over geographic accuracy in this era.
25m
Guided Activity: Monster Map Worksheet
Students work in pairs to analyze the "Sea of Darkness." They should identify Asia, Africa, and Europe and note the total absence of the Americas.
10m
Wrap Up: The Navigator's Dilemma
Discussion: "How does a map change your willingness to explore?" Transition to the next lesson on stars as a way to map the unknown without land in sight.
Common Misconception
Students often believe people in 1450 thought the world was flat. In reality, most educated Europeans (and sailors) knew the Earth was spherical; the "mystery" was about the distance across the ocean and what lived in it.
Facilitation Tip
Encourage students to think about modern "unknowns" (like deep ocean or space). How do we fill in those blanks today when we don't have a map?
Celestial Guide Slides Lesson 02: Celestial Navigation
Celestial Guide
When land disappears, look to the heavens.
Polaris
The North Star is the most important tool for a northern navigator. Why? Because while the other stars move across the sky, Polaris stays fixed.
The Key Concept
"Your angle to the North Star is the same as your latitude on Earth."
Fixed Point
The Star-Taker
"Astrolabe" comes from the Greek words meaning "to take the stars."
Aim
Sighting a star through the tube or along the edge.
Angle
The weighted string drops to show the degree.
Latitude
Calculating your distance North or South.
The Challenge
1
Waves make the ship rock, making it hard to aim.
2
Clouds can hide your guide for days at a time.
3
The Astrolabe only works for Latitude (North/South).
Finding "East and West" remained the greatest mystery of the sea for centuries.
Apprentice Workshop
Today, you become a Master Navigator. We will construct our own astrolabes to measure the altitude of objects in our classroom.
Grab Your Supplies!

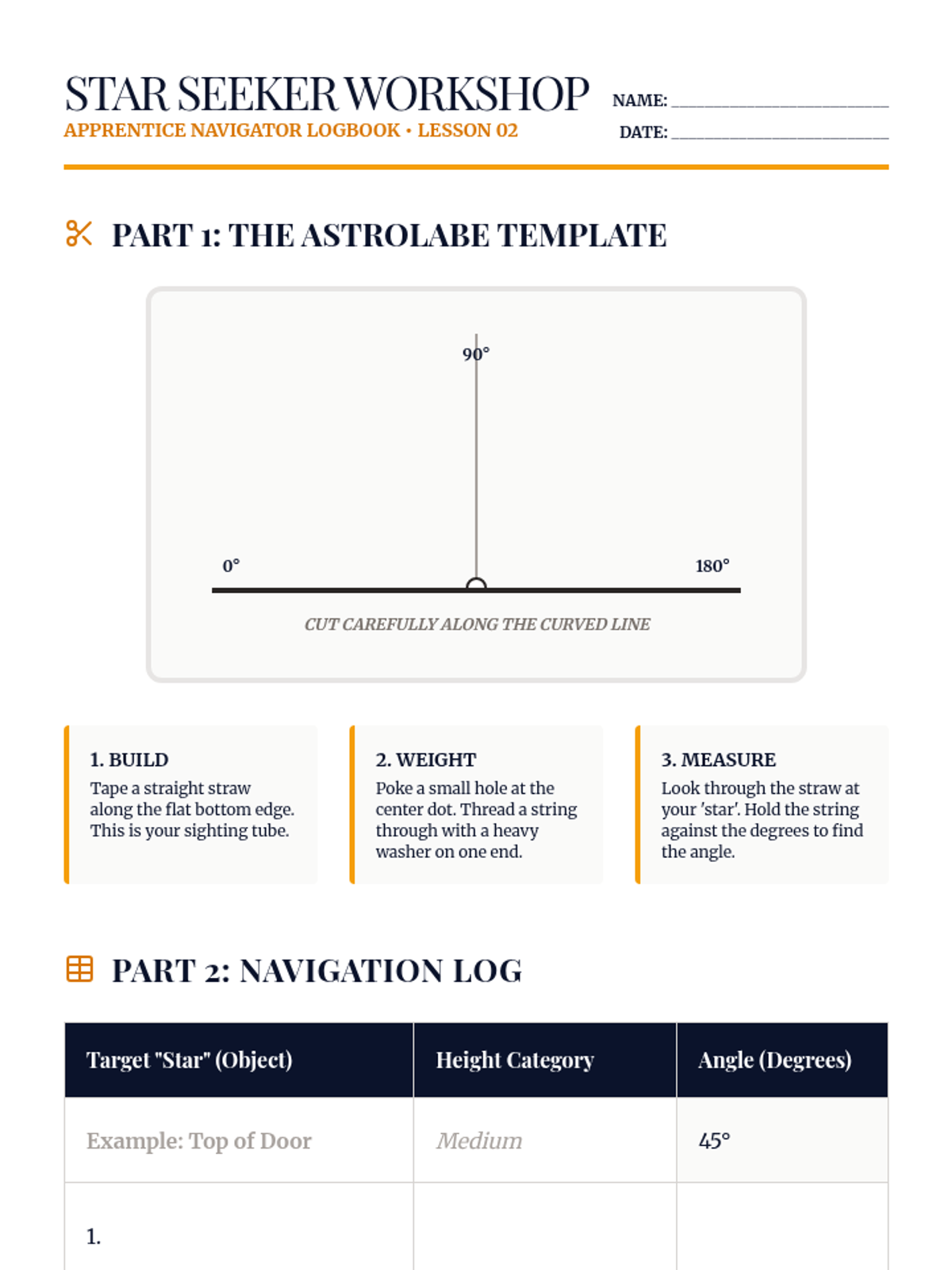

Star Seeker Worksheet Star Seeker Workshop
APPRENTICE NAVIGATOR LOGBOOK • LESSON 02
Name: __________________________
Date: __________________________
Part 1: The Astrolabe Template
90° 0° 180°
Cut carefully along the curved line
1. Build
Tape a straight straw along the flat bottom edge. This is your sighting tube.
2. Weight
Poke a small hole at the center dot. Thread a string through with a heavy washer on one end.
3. Measure
Look through the straw at your 'star'. Hold the string against the degrees to find the angle.
Part 2: Navigation Log
Target "Star" (Object) Height Category Angle (Degrees) Example: Top of Door Medium 45° 1. 2. 3.
Navigator's Conclusion
How does the angle change as you move closer to or further away from your "star"?
Historical Fact
If your angle to the North Star is 40°, you are at 40° North Latitude (roughly New York City). If you sail South and the star drops to 10°, you are nearing the Equator. If the star disappears entirely, you have crossed into the Southern Hemisphere!

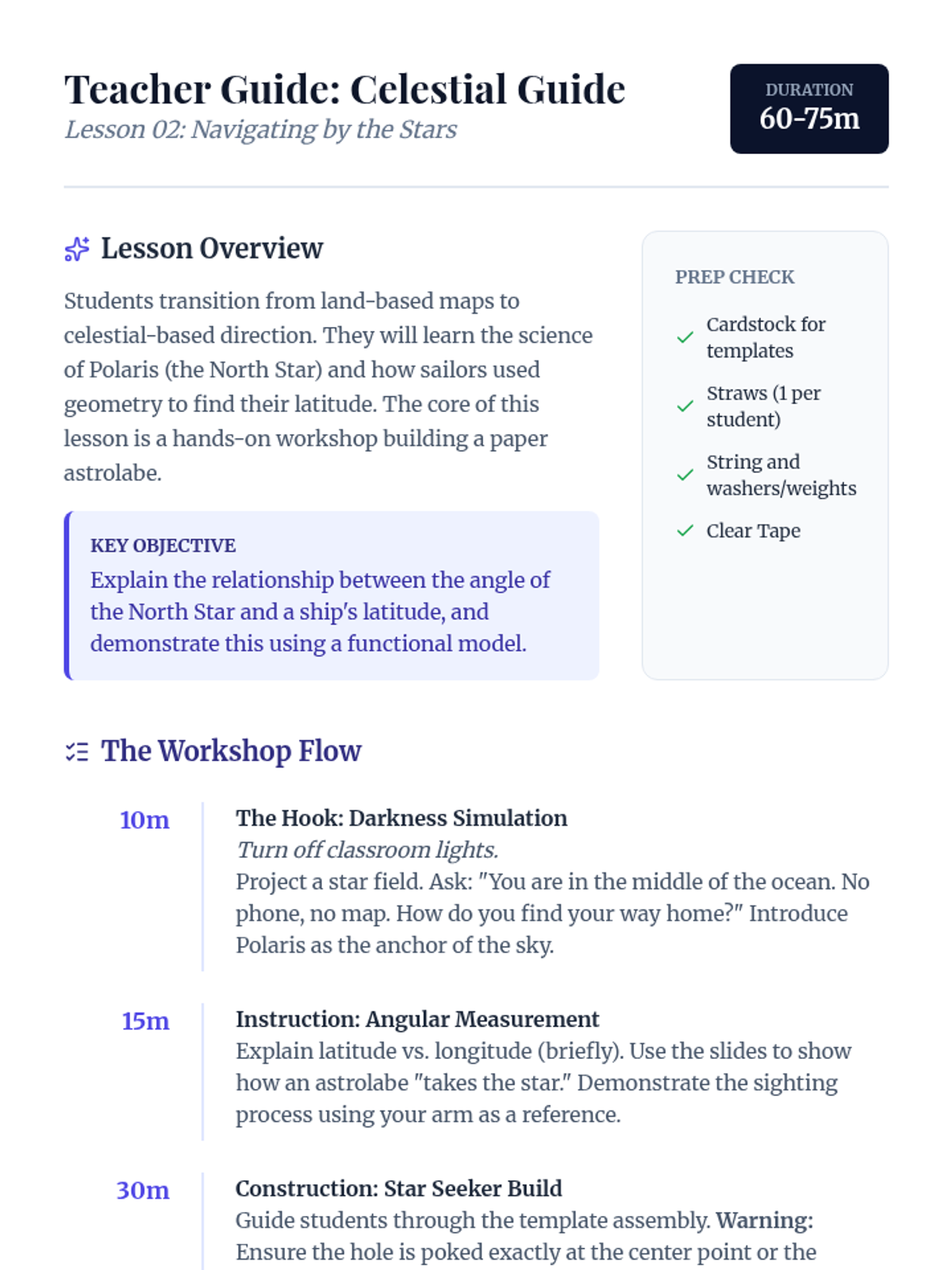

Celestial Navigation Guide Teacher Guide: Celestial Guide
Lesson 02: Navigating by the Stars
Duration 60-75m
Lesson Overview
Students transition from land-based maps to celestial-based direction. They will learn the science of Polaris (the North Star) and how sailors used geometry to find their latitude. The core of this lesson is a hands-on workshop building a paper astrolabe.
Key Objective
Explain the relationship between the angle of the North Star and a ship's latitude, and demonstrate this using a functional model.
Prep Check
Cardstock for templates
Straws (1 per student)
String and washers/weights
Clear Tape
The Workshop Flow
10m
The Hook: Darkness Simulation
Turn off classroom lights.
Project a star field. Ask: "You are in the middle of the ocean. No phone, no map. How do you find your way home?" Introduce Polaris as the anchor of the sky.
15m
Instruction: Angular Measurement
Explain latitude vs. longitude (briefly). Use the slides to show how an astrolabe "takes the star." Demonstrate the sighting process using your arm as a reference.
30m
Construction: Star Seeker Build
Guide students through the template assembly. Warning: Ensure the hole is poked exactly at the center point or the measurement will be inaccurate.
10m
Testing: Latitude Lab
Have "stars" (yellow dots) taped at different heights around the room. Students record the angle for each. Discuss why higher stars mean "further North" (conceptually).
Troubleshooting
If the string catches on the paper, the reading will be wrong. Encourage students to hold the astrolabe slightly tilted or use a smoother string (like fishing line or thin twine).
Advanced Challenge
Explain that the sun can also be used, but sailors had to use a Back Staff so they didn't go blind looking at the sun. Safety first!
Magnetic North Slides Lesson 03: The Magnetic Compass
Magnetic North
The invisible force that changed the course of history.
Science
Navigation
Impact
The Lodestone
Nature's Magnet
Before modern magnets, sailors used Lodestones —naturally magnetized pieces of the mineral magnetite.
1
First used by Chinese navigators as early as the 11th century.
2
They found that a "floating" needle rubbed with a lodestone always pointed North.
The Innovation
Navigation "Blind"
Before the compass, sailors could only navigate when they could see the Sun or Stars.
Clouds = Lost At Sea
Navigation "Constant"
With the compass, sailors could navigate in fog, storms, and total darkness.
Anytime = Exploration
The Science of North
The Earth itself is a giant magnet! The Magnetic North Pole attracts the magnetized end of your compass needle.
Warning: Compass Variation
"Magnetic North" is not exactly the same as "True North" (The North Pole on a map). Early sailors had to learn how to correct for this gap!
Needle Lab
Can we create a working compass using only a needle, a magnet, and a bowl of water?
Step 1: Magnetize
Step 2: Float
Step 3: Orient

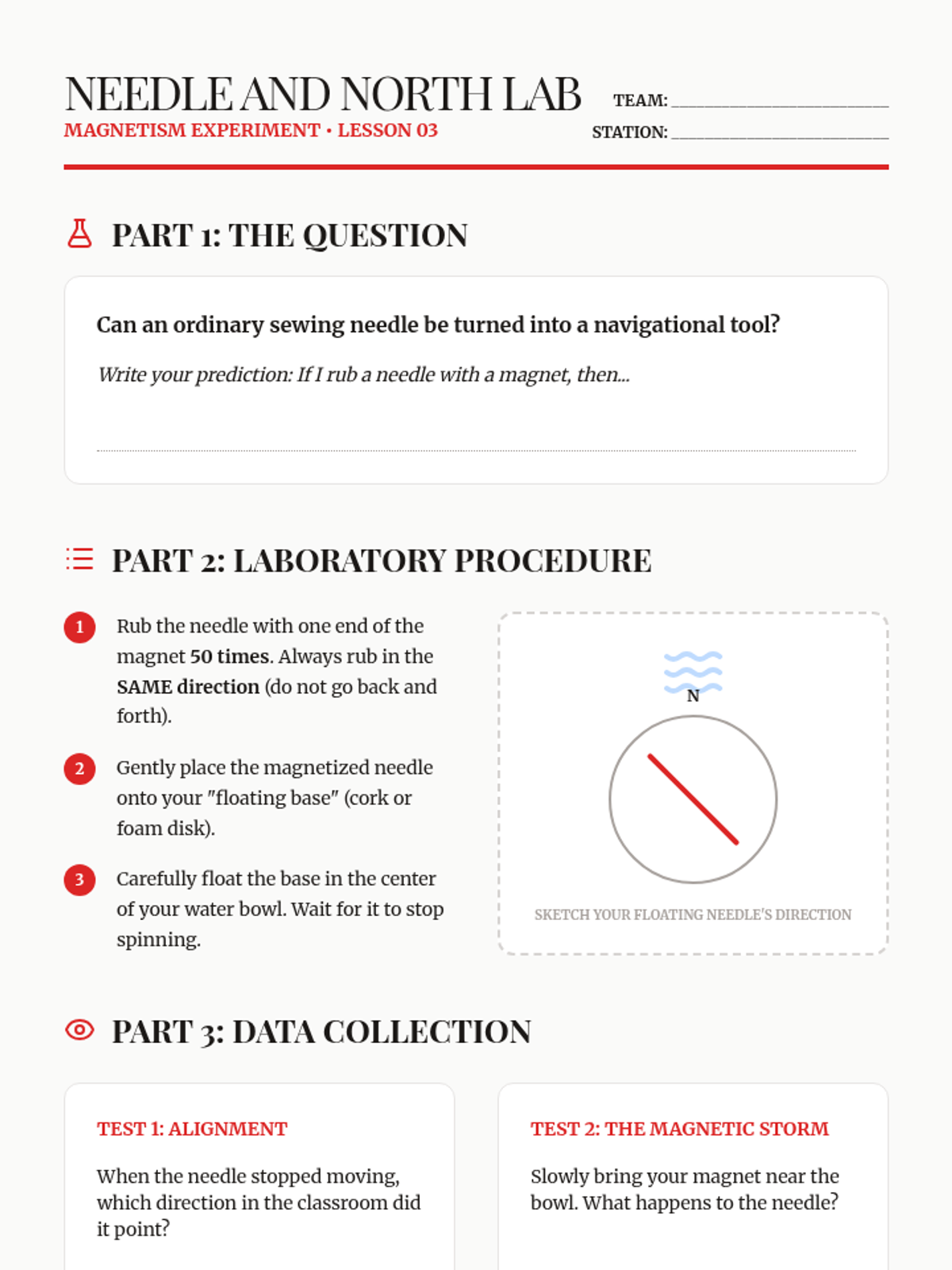

Needle and North Lab Needle and North Lab
MAGNETISM EXPERIMENT • LESSON 03
Team: __________________________
Station: __________________________
Part 1: The Question
Can an ordinary sewing needle be turned into a navigational tool?
Write your prediction: If I rub a needle with a magnet, then...
Part 2: Laboratory Procedure
1
Rub the needle with one end of the magnet 50 times . Always rub in the SAME direction (do not go back and forth).
2
Gently place the magnetized needle onto your "floating base" (cork or foam disk).
3
Carefully float the base in the center of your water bowl. Wait for it to stop spinning.
N
Sketch your floating needle's direction
Part 3: Data Collection
Test 1: Alignment
When the needle stopped moving, which direction in the classroom did it point?
Compare this to the classroom's known "North" (Teacher will indicate).
Test 2: The Magnetic Storm
Slowly bring your magnet near the bowl. What happens to the needle?
Why would a sailor be worried if there was a large piece of iron near the compass?
The Navigator's Reflection
The magnetic compass allows you to find North even in a thick fog. However, if the ship's cook brings a heavy iron pot too close to the compass, the needle might "lie."
How would your journey change if you couldn't trust your compass for 24 hours?

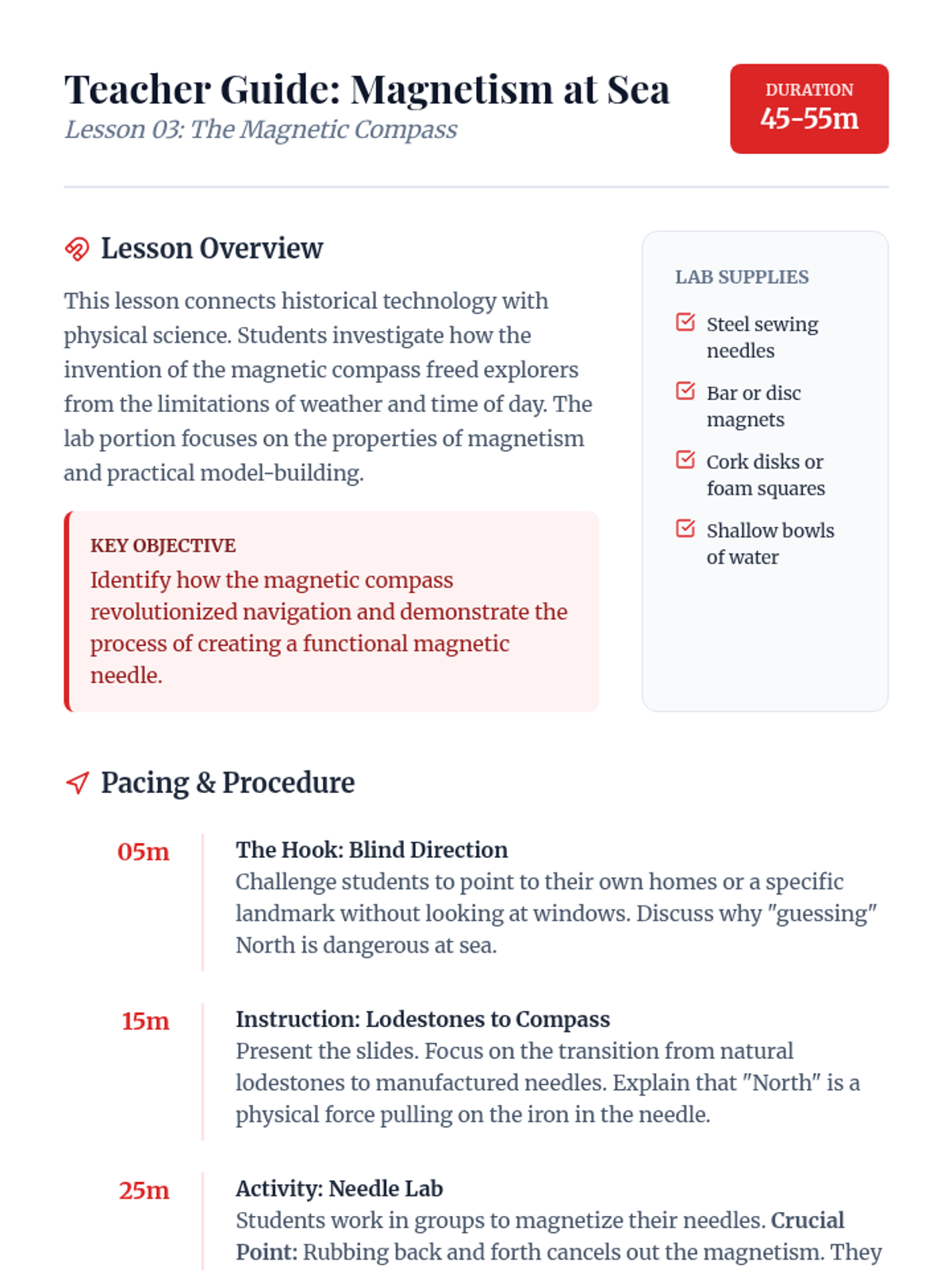

Magnetism at Sea Guide Teacher Guide: Magnetism at Sea
Lesson 03: The Magnetic Compass
Duration 45-55m
Lesson Overview
This lesson connects historical technology with physical science. Students investigate how the invention of the magnetic compass freed explorers from the limitations of weather and time of day. The lab portion focuses on the properties of magnetism and practical model-building.
Key Objective
Identify how the magnetic compass revolutionized navigation and demonstrate the process of creating a functional magnetic needle.
Lab Supplies
Steel sewing needles
Bar or disc magnets
Cork disks or foam squares
Shallow bowls of water
Pacing & Procedure
05m
The Hook: Blind Direction
Challenge students to point to their own homes or a specific landmark without looking at windows. Discuss why "guessing" North is dangerous at sea.
15m
Instruction: Lodestones to Compass
Present the slides. Focus on the transition from natural lodestones to manufactured needles. Explain that "North" is a physical force pulling on the iron in the needle.
25m
Activity: Needle Lab
Students work in groups to magnetize their needles. Crucial Point: Rubbing back and forth cancels out the magnetism. They must rub in one direction only, lifting the magnet after each stroke.
10m
Conclusion: Variation & Error
Discuss "Magnetic Storms" (Test 2). Explain that iron on a ship (like nails or cannons) could distract the compass—a major historical problem.
Historical Context
The dry-box compass (the familiar needle on a pin) wasn't widely used in Europe until about 1300. Before that, the floating needle was common. The "Compass Rose" was added later to make reading directions easier for sailors who couldn't read.
Safety Tip
Ensure students are careful with the sharp sewing needles. Use thimbles if necessary, or pre-mount the needles onto the corks for younger or less dexterous students.
Swift Sails Slides Lesson 04: Ship Design
Swift Sails
The engineering that conquered the Atlantic.
Traditional Sails
For centuries, ships used large Square Sails . They were great for speed when the wind was behind you.
The Weakness
A square-rigged ship cannot sail against the wind. If the wind blows the wrong way, you are stuck!
⛵
Wind Direction
The Caravel
Lateen Sails
Triangular sails that can be angled to catch the wind from the side.
Stern Rudder
A sturdy rudder attached to the back for precise steering in rough seas.
Shallow Hull
Allowed the ship to explore rivers and coastal areas without getting stuck.
Sailing "Into" the Wind
By "tacking"—sailing in a zigzag pattern—a Caravel could move forward even if the wind was blowing directly at them!
The Zig-Zag Maneuver
Lateen sails made this possible
A Floating World
"A Caravel usually carried about 20 to 30 men. It was cramped, smelly, and full of barrels of salty food."
The vessel of the Nina and Pinta
Small Crew = Less Food Needed
Fast = Less Time for Disease
Nimble = Safer Near Coastlines

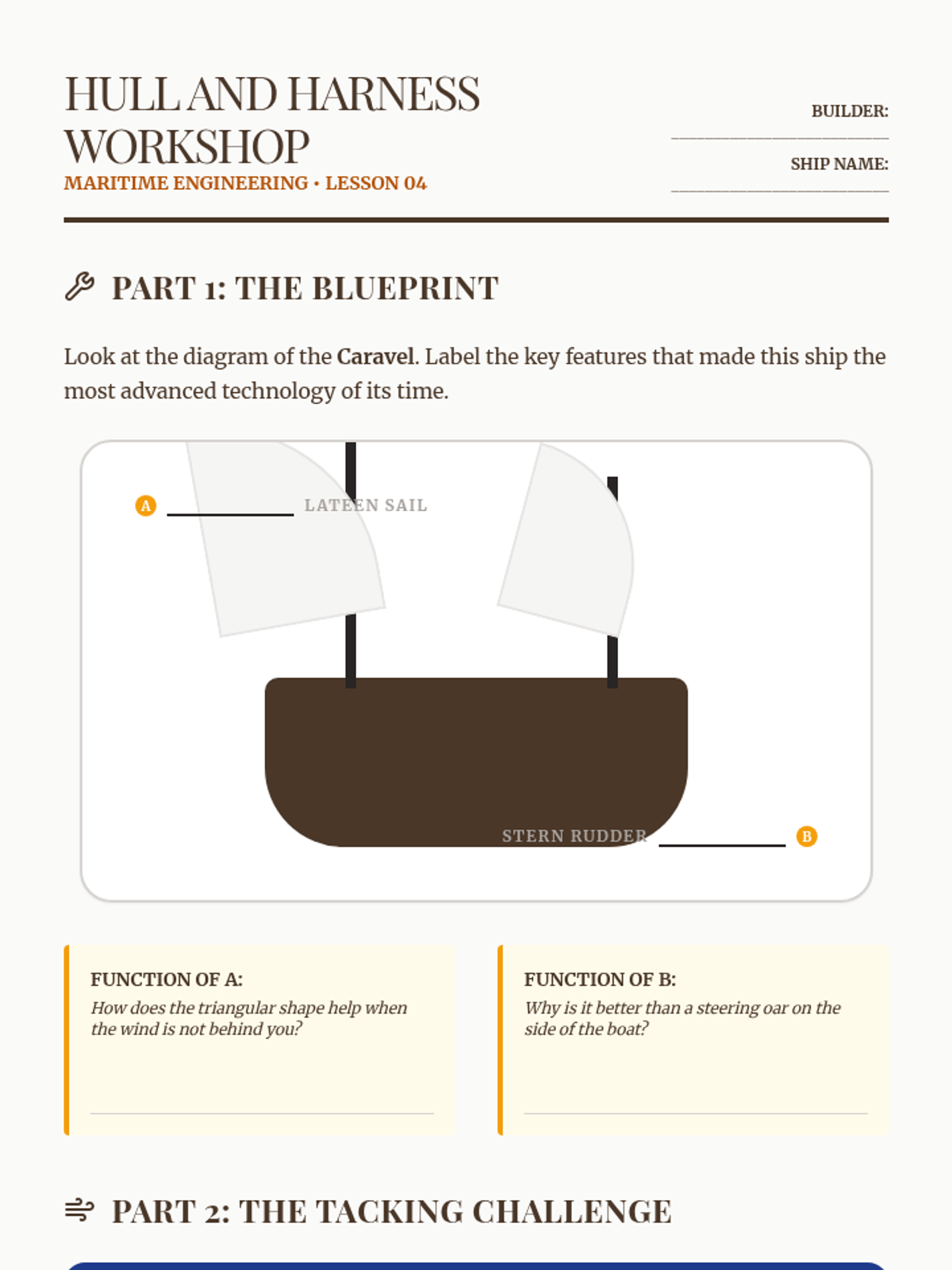

Hull and Harness Workshop Worksheet Hull and Harness Workshop
MARITIME ENGINEERING • LESSON 04
Builder: __________________________
Ship Name: __________________________
Part 1: The Blueprint
Look at the diagram of the Caravel . Label the key features that made this ship the most advanced technology of its time.
A
Lateen Sail
Stern Rudder
B
Function of A:
How does the triangular shape help when the wind is not behind you?
Function of B:
Why is it better than a steering oar on the side of the boat?
Part 2: The Tacking Challenge
🌬️
Scenario: Wind Head-On
The wind is blowing directly from the North. Your destination is also directly North. A traditional square-rigged ship would be pushed backward.
Task: Draw your path to the destination using "Tacking" (Zig-Zags).
Destination (North)
Your Ship
The Engineer's Choice
If you were given 1,000 gold coins, would you build one massive Treasure Ship (slow, huge capacity) or three small Caravels (fast, nimble)? Explain your strategy.

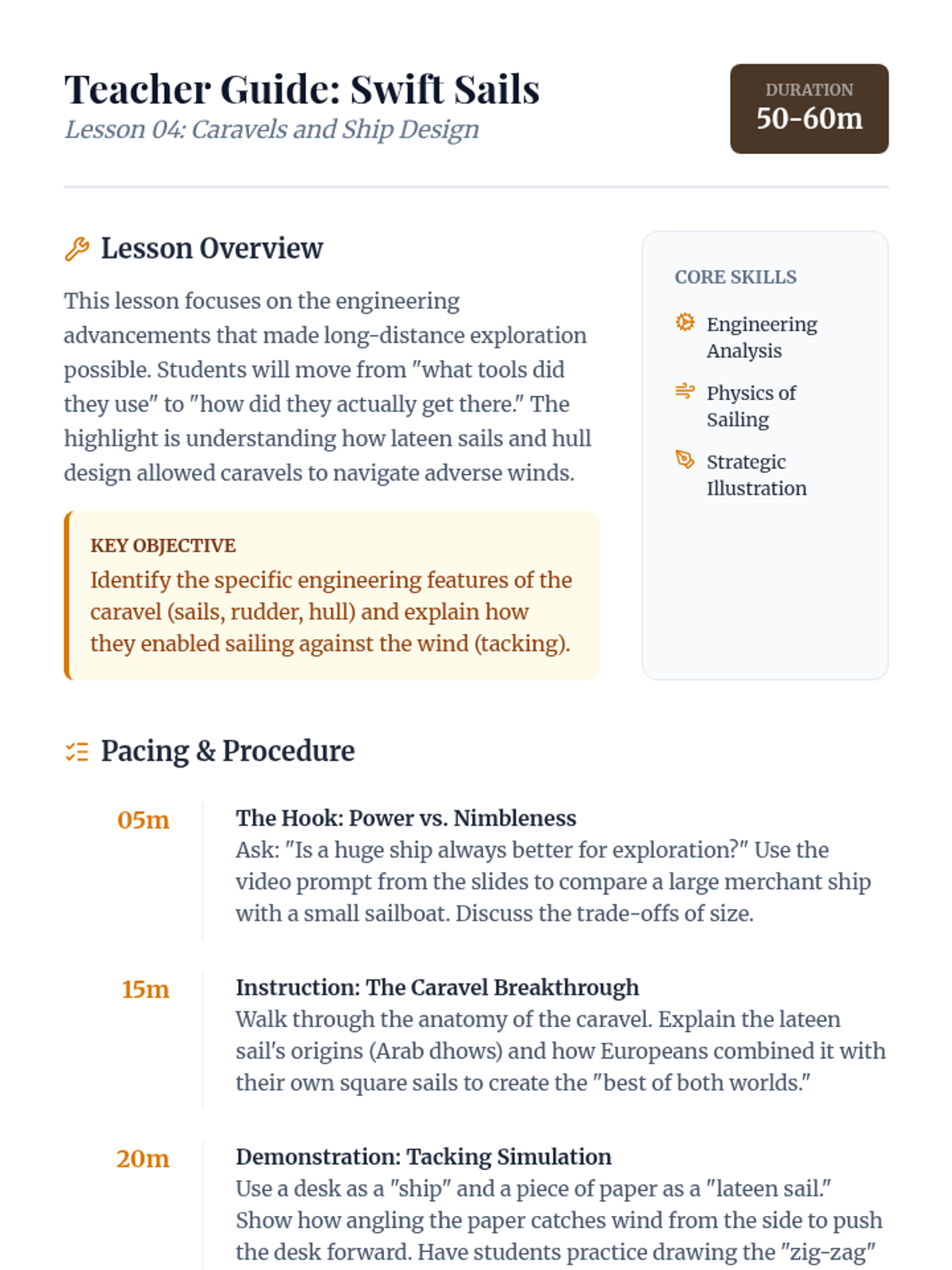

Swift Sails Guide Teacher Guide: Swift Sails
Lesson 04: Caravels and Ship Design
Duration 50-60m
Lesson Overview
This lesson focuses on the engineering advancements that made long-distance exploration possible. Students will move from "what tools did they use" to "how did they actually get there." The highlight is understanding how lateen sails and hull design allowed caravels to navigate adverse winds.
Key Objective
Identify the specific engineering features of the caravel (sails, rudder, hull) and explain how they enabled sailing against the wind (tacking).
Core Skills
Engineering Analysis
Physics of Sailing
Strategic Illustration
Pacing & Procedure
05m
The Hook: Power vs. Nimbleness
Ask: "Is a huge ship always better for exploration?" Use the video prompt from the slides to compare a large merchant ship with a small sailboat. Discuss the trade-offs of size.
15m
Instruction: The Caravel Breakthrough
Walk through the anatomy of the caravel. Explain the lateen sail's origins (Arab dhows) and how Europeans combined it with their own square sails to create the "best of both worlds."
20m
Demonstration: Tacking Simulation
Use a desk as a "ship" and a piece of paper as a "lateen sail." Show how angling the paper catches wind from the side to push the desk forward. Have students practice drawing the "zig-zag" on their worksheets.
10m
Analysis: The Crew's Life
Discuss the living conditions. Why would anyone volunteer for this? Transition to the final lesson on planning an actual voyage.
Common Misconception
Students often assume "lateen" sails were for speed. While they could be fast, their primary advantage was maneuverability and the ability to sail "close to the wind." A square sail is actually faster with a direct tailwind.
Engagement Tip
If you have a small fan, set up a simple station with a paper boat and two sail types (square and triangular). Let students see for themselves which one can move at an angle to the wind.
High Seas Strategy Slides Culminating Simulation
High Seas Strategy
Tools. Ships. Supplies. Courage.
The Mission
You have been hired by the Portuguese Crown to lead a 3-month expedition into the unknown Atlantic.
Goal:
"Find a new trade route, survive the journey, and return with a map of your discoveries."
Budget: 500 Gold Coins
Crew: 25 Men
Time: 90 Days
Provisioning
Rations
• Salted Beef & Pork (Stays fresh longer)
• Ship's Biscuit (Hard bread that lasts months)
• Wine & Water (Barrels for drinking)
Repairs
• Extra Canvas (For torn sails)
• Tar & Pitch (For plugging leaks)
• Spare Ropes & Wood
The Navigator's Kit
Compass
Directional certainty in any weather.
Astrolabe
Essential for finding latitude!
Sandglass
Measuring time for speed calculations.
Chart
Portolan maps for recording the coast.
Ready to Sail?
Open your Expedition Outfitter packets. Your budget is tight, and the ocean is vast. Good luck, Captain.
Plan
Pack
Explore

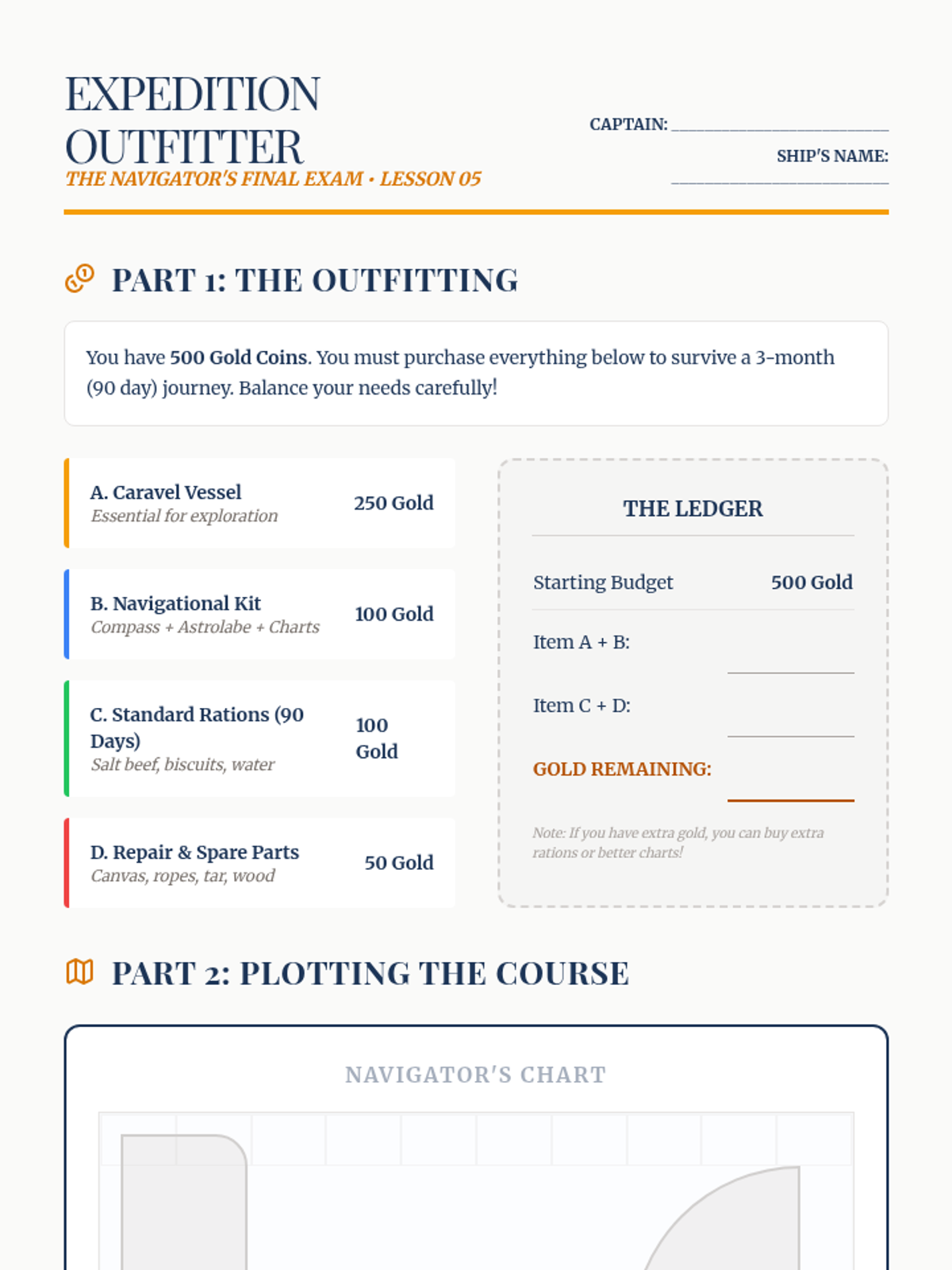

Expedition Outfitter Worksheet Expedition Outfitter
THE NAVIGATOR'S FINAL EXAM • LESSON 05
Captain: __________________________
Ship's Name: __________________________
Part 1: The Outfitting
You have 500 Gold Coins . You must purchase everything below to survive a 3-month (90 day) journey. Balance your needs carefully!
A. Caravel Vessel
Essential for exploration
250 Gold
B. Navigational Kit
Compass + Astrolabe + Charts
100 Gold
C. Standard Rations (90 Days)
Salt beef, biscuits, water
100 Gold
D. Repair & Spare Parts
Canvas, ropes, tar, wood
50 Gold
The Ledger
<table class="w-full text-sm"><tbody><tr class="h-10 border-b border-stone-200"><td>Starting Budget</td><td class="text-right font-bold">500 Gold</td></tr><tr class="h-12"><td>Item A + B:</td><td class="border-b border-stone-400 w-24"></td></tr><tr class="h-12"><td>Item C + D:</td><td class="border-b border-stone-400 w-24"></td></tr><tr class="h-12 font-bold text-amber-700"><td>GOLD REMAINING:</td><td class="border-b-2 border-amber-700 w-24"></td></tr></tbody></table>
Note: If you have extra gold, you can buy extra rations or better charts!
Part 2: Plotting the Course
Navigator's Chart
EUROPE
ISLANDS
UNKNOWN LAND
Instructions: Draw your path starting from Europe. Indicate where you will stop for water and which navigational tool you will use at each point.
Captain's Log: Final Orders
Why did you choose this route?
What is the biggest risk your crew faces?

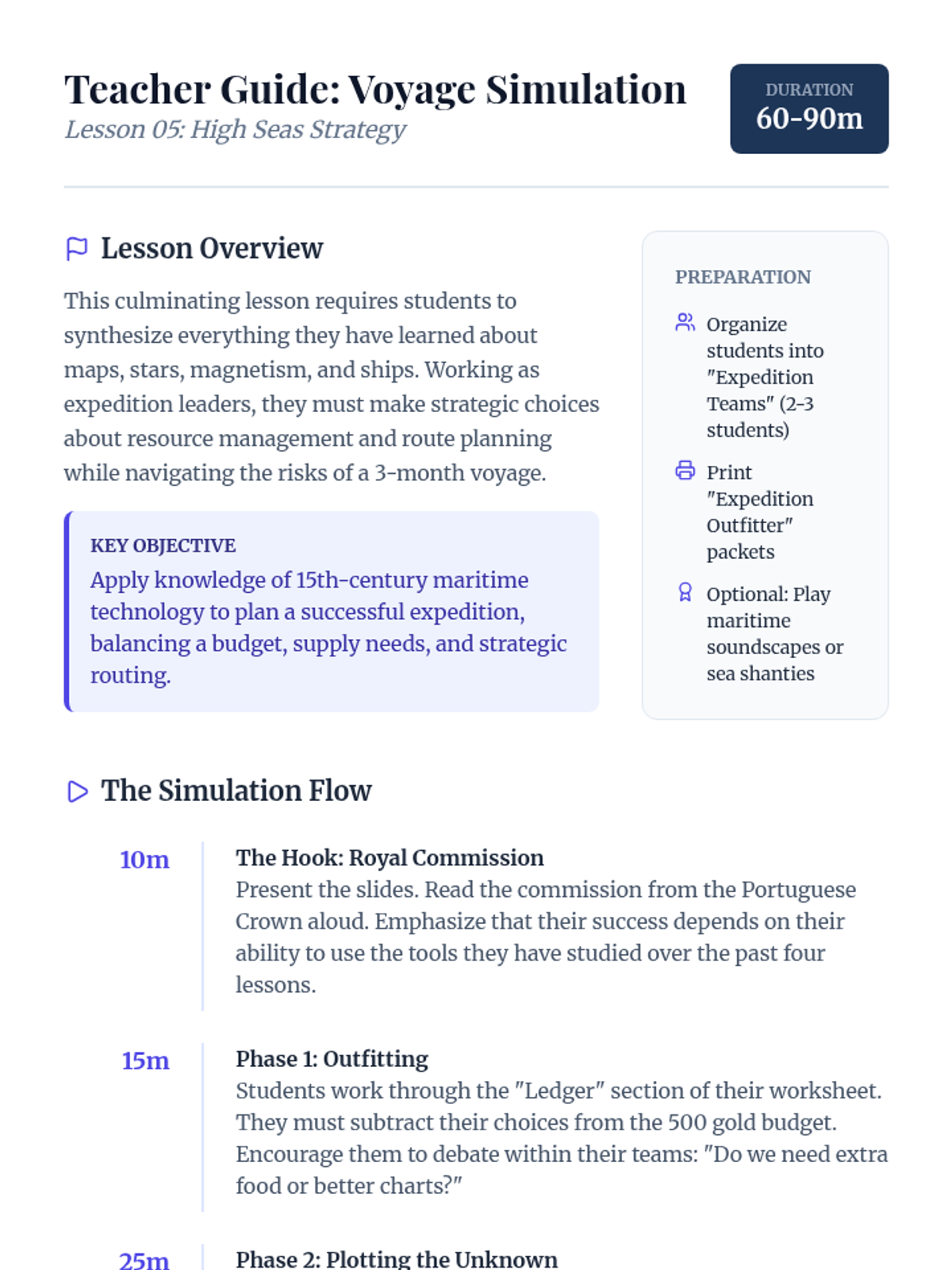

Voyage Simulation Guide Teacher Guide: Voyage Simulation
Lesson 05: High Seas Strategy
Duration 60-90m
Lesson Overview
This culminating lesson requires students to synthesize everything they have learned about maps, stars, magnetism, and ships. Working as expedition leaders, they must make strategic choices about resource management and route planning while navigating the risks of a 3-month voyage.
Key Objective
Apply knowledge of 15th-century maritime technology to plan a successful expedition, balancing a budget, supply needs, and strategic routing.
Preparation
Organize students into "Expedition Teams" (2-3 students)
Print "Expedition Outfitter" packets
Optional: Play maritime soundscapes or sea shanties
The Simulation Flow
10m
The Hook: Royal Commission
Present the slides. Read the commission from the Portuguese Crown aloud. Emphasize that their success depends on their ability to use the tools they have studied over the past four lessons.
15m
Phase 1: Outfitting
Students work through the "Ledger" section of their worksheet. They must subtract their choices from the 500 gold budget. Encourage them to debate within their teams: "Do we need extra food or better charts?"
25m
Phase 2: Plotting the Unknown
Using the grid map, students draw their route. They should indicate where they use the Compass (foggy areas), the Astrolabe (finding latitude), and where they must Tack (if wind is adverse).
20m
Debrief: Royal Court Presentation
Teams present their route and budget choices to the "Court" (the class). Use the "Captain's Log" reflections to grade their understanding of the risks and trade-offs of historical exploration.
Assessment Focus
Look for specific mentions of the tools. A student who says "We used the astrolabe to make sure we were staying at 40 degrees North" has mastered the concept. A student who just draws a straight line through the "unknown" may need more coaching on the risks discussed in Lesson 1.
Sequence Wrap-Up
Conclude by revisiting the Essential Question: "How does technology change our understanding of the world?" Remind students that today's "caravels" might be rocket ships, and today's "astrolabes" are GPS satellites.
