Levitation SlidesEngineering Lab 04 LEVITATION STATION Applying the power of magnetic repulsion to modern engineering. The Wheelless Wonder "How can a train move without wheels?" Brainstorm with your neighbor. Think about: Reducing Friction Lifting Heavy Loads Air Pressure Magnetic Forces Observation Mode Focus Question: How does the train eliminate friction? Watch closely between 5:45 and 6:12! Embedded media Forces: Magnetism — What Makes Things Magnetic? The Friction Factor Why does friction matter? Every time wheels touch a track, energy is lost as heat. Friction slows objects down and wears out parts. The Maglev Secret: Using the repulsive force of magnets to "hover," air becomes the only thing the train has to push through. Track Train REPULSION Phase 1: Floating Tower 1 Place one ring magnet on the pencil. Let it slide to the bottom. 2 Slide a second magnet onto the pencil. If they snap together, flip the second magnet over. 3 Challenge: Stack as many magnets as possible so they are all hovering without touching. Levitation Stack Phase 2: Transport Design Your Mission: Design a transport system that uses magnetic repulsion to move a heavy cargo load across a city. The Track How do magnets keep it from falling off? The Vehicle Where are the magnets placed on the cargo? The Motion What pushes it forward? The Verdict Benefits Extreme Speeds (No friction) Smooth, Quiet Ride Less Mechanical Wear Challenges High Energy Usage Massive Construction Costs Complex Technology

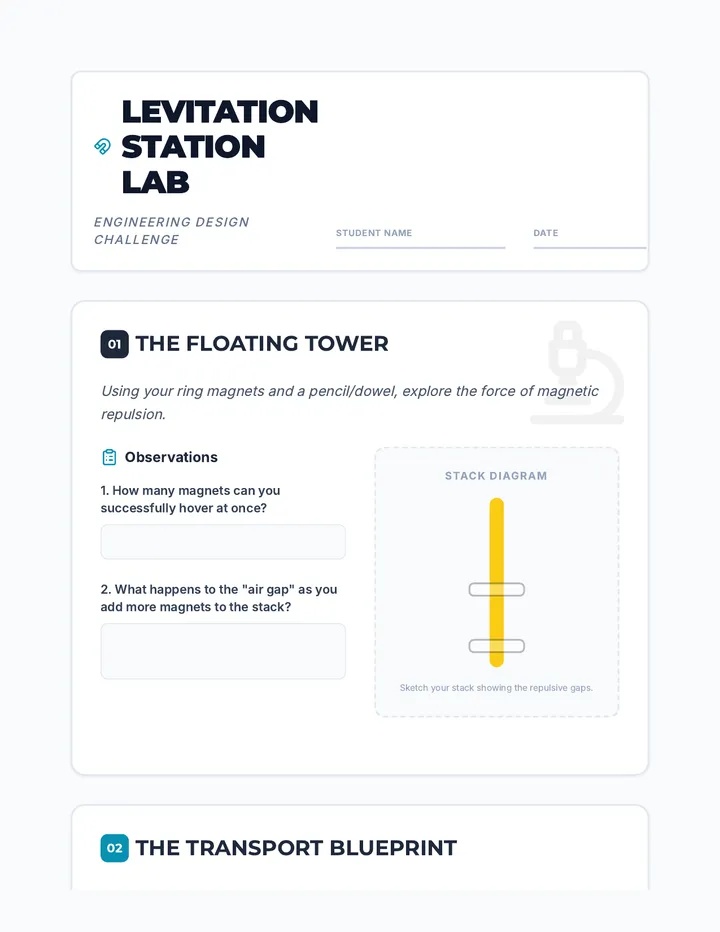

Levitation Lab SheetLEVITATION STATION LAB Engineering Design Challenge Student Name Date 01 THE FLOATING TOWER Using your ring magnets and a pencil/dowel, explore the force of magnetic repulsion. Observations 1. How many magnets can you successfully hover at once? 2. What happens to the "air gap" as you add more magnets to the stack? Stack Diagram Sketch your stack showing the repulsive gaps. 02 THE TRANSPORT BLUEPRINT Challenge: Create a transport system for moving heavy cargo. It must use repulsion to eliminate friction with the track. Consider how to keep the vehicle stable so it doesn't fly off or tip over. Engineering Schematic Sketch Your Design Here Stability Mechanism How do you prevent the cargo from sliding off the magnetic field? Propulsion Source What force will move your cargo forward once it is levitating? 03 POST-DESIGN ANALYSIS Compare your transport system to a traditional truck with rubber tires. What are two major advantages of your design? Energy & Infrastructure Challenge Building a Maglev track costs significantly more than building a standard highway. Why might a government choose to build one despite the high cost? Thinking Ahead: If we could make superconductors work at room temperature, Maglev trains could use almost zero energy to hover. How would that change our modern transport world?

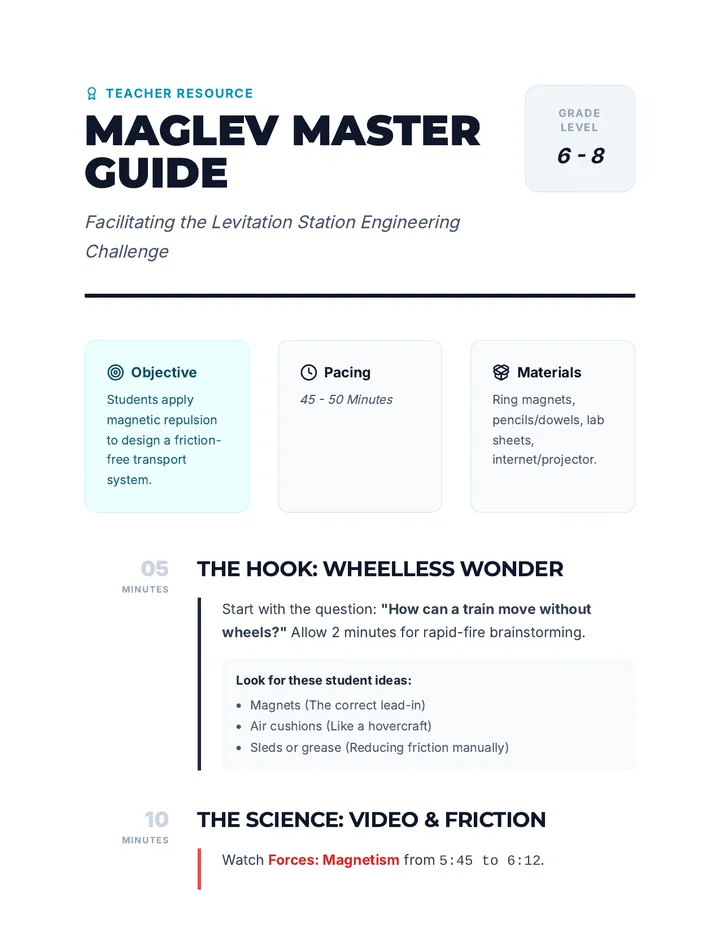

Maglev Master Teacher GuideTeacher Resource MAGLEV MASTER GUIDE Facilitating the Levitation Station Engineering Challenge Grade Level 6 - 8 Objective Students apply magnetic repulsion to design a friction-free transport system. Pacing 45 - 50 Minutes Materials Ring magnets, pencils/dowels, lab sheets, internet/projector. 05 Minutes The Hook: Wheelless Wonder Start with the question: "How can a train move without wheels?" Allow 2 minutes for rapid-fire brainstorming. Look for these student ideas: Magnets (The correct lead-in) Air cushions (Like a hovercraft) Sleds or grease (Reducing friction manually) 10 Minutes The Science: Video & Friction Watch Forces: Magnetism from 5:45 to 6:12. Discuss: "What force is missing?" (Friction). Explain that in standard trains, friction between steel wheels and tracks generates heat and limits speed. In Maglev, magnetic repulsion lifts the train 1-10cm off the track. 25 Minutes The Challenge: Levitation Station Phase 1: Exploration (10 min) Students stack ring magnets on a pencil. They must orient them so like-poles face each other, causing the magnets to "hover." Key Prompt: "As you add more weight (magnets), what happens to the gap?" (The magnetic field is compressed). Phase 2: Design Blueprint (15 min) Students sketch a cargo transport. They must solve the Stability Problem: A hovering train will naturally want to "slip" off the side of the magnetic field. Stability Solutions • "U-Shaped" tracks that wrap around magnets. • Side-magnets to push the train back to center. Propulsion Solutions • Front-facing magnets to pull. • Linear motors or air fans. 05 Minutes The Debrief: Real-World Trade-offs Discuss: Why aren't all trains Maglev? Cost: Track costs billions per mile. Infrastructure: You can't run a regular train on Maglev tracks. Energy: Massive electromagnets require high power. Teacher Cheat Sheet: Magnetic Fields In this lesson, we are specifically focused on repulsion. When magnets hover, the downward force of gravity is perfectly balanced by the upward force of magnetic repulsion. Remind students that magnetic fields are three-dimensional; the force pushes in all directions around the pole, not just straight up.
