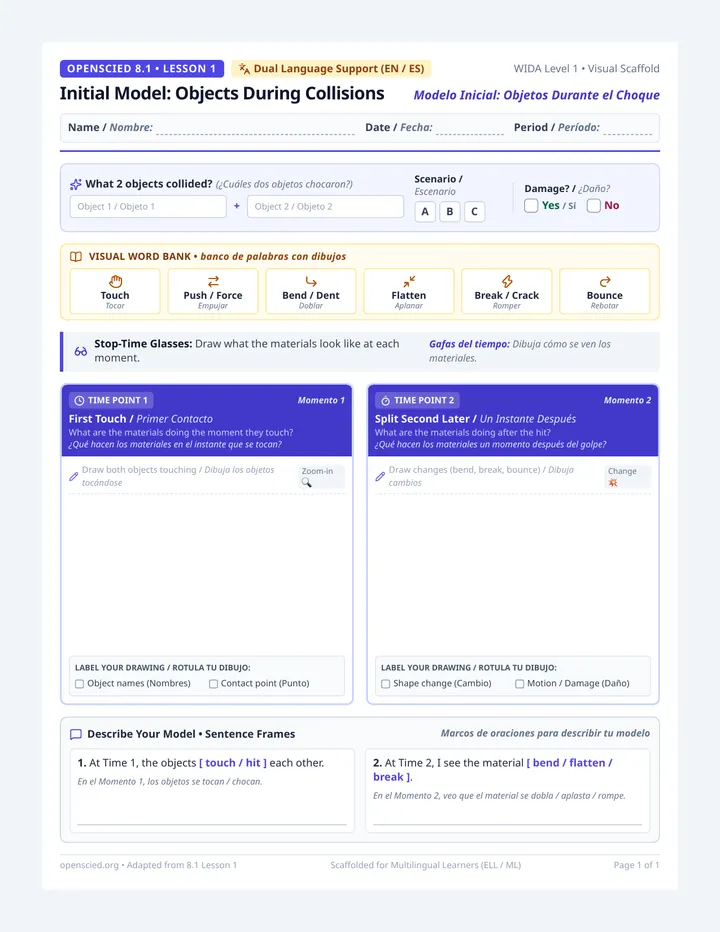

Collision Model Bilingual Worksheet OpenSciEd 8.1 • Lesson 1 Dual Language Support (EN / ES)
WIDA Level 1 • Visual Scaffold
Initial Model: Objects During Collisions
Modelo Inicial: Objetos Durante el Choque
Name / Nombre:
Date / Fecha:
Period / Período:
What 2 objects collided? (¿Cuáles dos objetos chocaron?)
Object 1 / Objeto 1
Object 2 / Objeto 2
Scenario / Escenario
A B C
Damage? / ¿Daño?
Yes / Sí No
Visual Word Bank • Banco de palabras con dibujos
Touch Tocar
Push / Force Empujar
Bend / Dent Doblar
Flatten Aplanar
Break / Crack Romper
Bounce Rebotar
Stop-Time Glasses: Draw what the materials look like at each moment.
Gafas del tiempo: Dibuja cómo se ven los materiales.
Time Point 1 Momento 1
First Touch / Primer Contacto
What are the materials doing the moment they touch? ¿Qué hacen los materiales en el instante que se tocan?
Draw both objects touching / Dibuja los objetos tocándose Zoom-in 🔍
Label your drawing / Rotula tu dibujo:
Object names (Nombres) Contact point (Punto)
Time Point 2 Momento 2
Split Second Later / Un Instante Después
What are the materials doing after the hit? ¿Qué hacen los materiales un momento después del golpe?
Draw changes (bend, break, bounce) / Dibuja cambios Change 💥
Label your drawing / Rotula tu dibujo:
Shape change (Cambio) Motion / Damage (Daño)
Describe Your Model • Sentence Frames
Marcos de oraciones para describir tu modelo
1. At Time 1, the objects [ touch / hit ] each other.
En el Momento 1, los objetos se tocan / chocan.
2. At Time 2, I see the material [ bend / flatten / break ].
En el Momento 2, veo que el material se dobla / aplasta / rompe.
openscied.org • Adapted from 8.1 Lesson 1 Scaffolded for Multilingual Learners (ELL / ML) Page 1 of 1

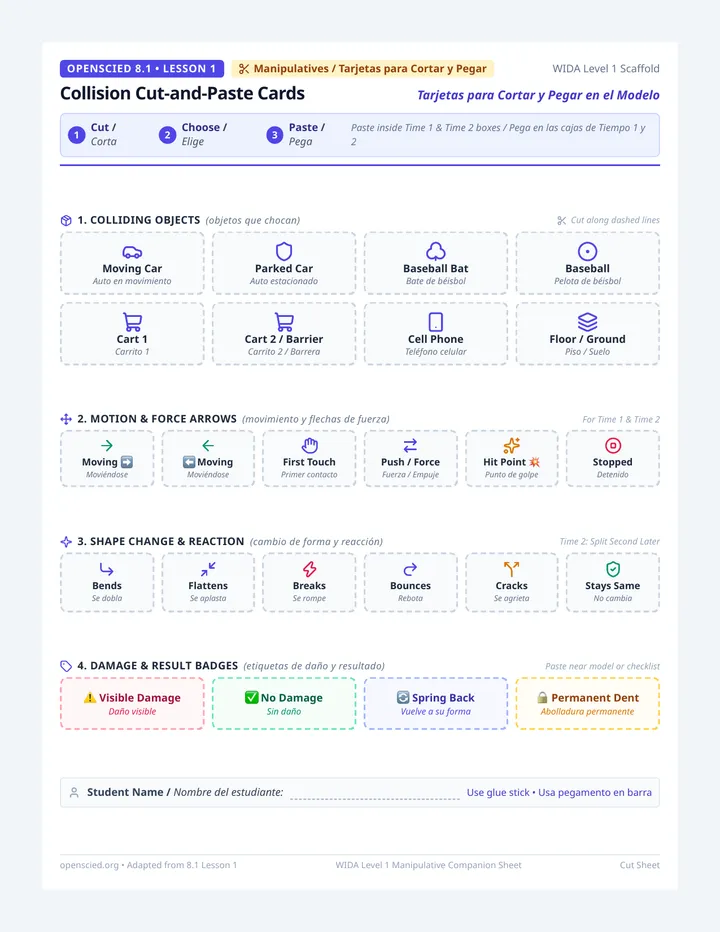

Collision Cards Cut Paste Sheet OpenSciEd 8.1 • Lesson 1 Manipulatives / Tarjetas para Cortar y Pegar
WIDA Level 1 Scaffold
Collision Cut-and-Paste Cards
Tarjetas para Cortar y Pegar en el Modelo
1 Cut / Corta 2 Choose / Elige 3 Paste / Pega
Paste inside Time 1 & Time 2 boxes / Pega en las cajas de Tiempo 1 y 2
1. Colliding Objects (objetos que chocan)
Cut along dashed lines
Moving Car Auto en movimiento
Parked Car Auto estacionado
Baseball Bat Bate de béisbol
Baseball Pelota de béisbol
Cart 1 Carrito 1
Cart 2 / Barrier Carrito 2 / Barrera
Cell Phone Teléfono celular
Floor / Ground Piso / Suelo
2. Motion & Force Arrows (movimiento y flechas de fuerza)
For Time 1 & Time 2
Moving ➡️ Moviéndose
⬅️ Moving Moviéndose
First Touch Primer contacto
Push / Force Fuerza / Empuje
Hit Point 💥 Punto de golpe
Stopped Detenido
3. Shape Change & Reaction (cambio de forma y reacción)
Time 2: Split Second Later
Bends Se dobla
Flattens Se aplasta
Breaks Se rompe
Bounces Rebota
Cracks Se agrieta
Stays Same No cambia
4. Damage & Result Badges (etiquetas de daño y resultado)
Paste near model or checklist
⚠️ Visible Damage Daño visible
✅ No Damage Sin daño
🔄 Spring Back Vuelve a su forma
🔒 Permanent Dent Abolladura permanente
Student Name / Nombre del estudiante:
Use glue stick • Usa pegamento en barra
openscied.org • Adapted from 8.1 Lesson 1 WIDA Level 1 Manipulative Companion Sheet Cut Sheet

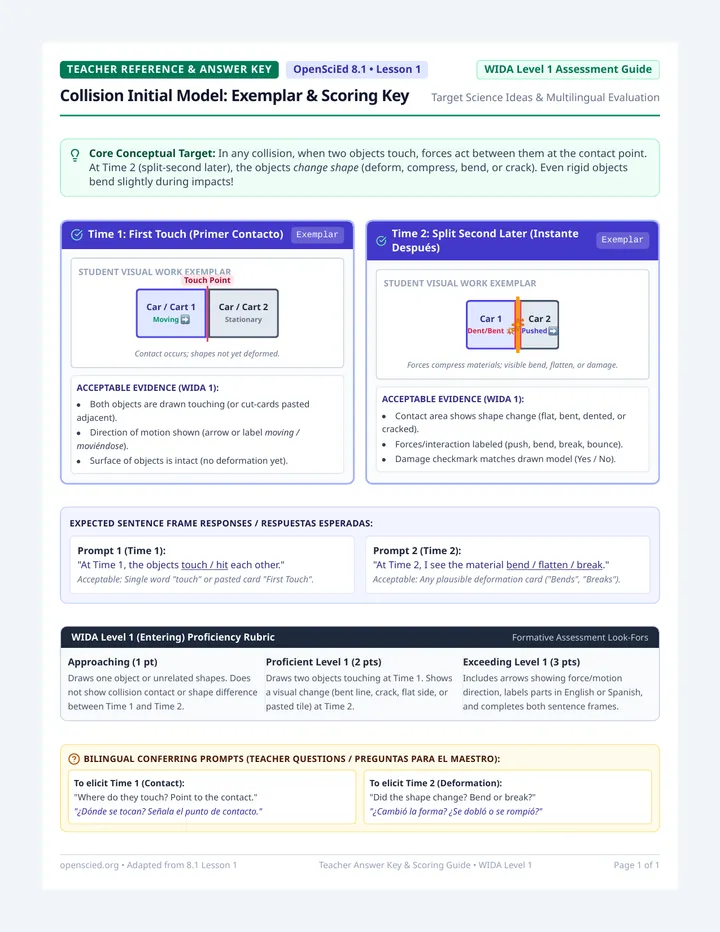

Collision Model Teacher Key Teacher Reference & Answer Key OpenSciEd 8.1 • Lesson 1
WIDA Level 1 Assessment Guide
Collision Initial Model: Exemplar & Scoring Key
Target Science Ideas & Multilingual Evaluation
Core Conceptual Target: In any collision, when two objects touch, forces act between them at the contact point. At Time 2 (split-second later), the objects change shape (deform, compress, bend, or crack). Even rigid objects bend slightly during impacts!
Time 1: First Touch (Primer Contacto) Exemplar
Student Visual Work Exemplar
Car / Cart 1 Moving ➡️
Touch Point
Car / Cart 2 Stationary
Contact occurs; shapes not yet deformed.
Acceptable Evidence (WIDA 1):
Both objects are drawn touching (or cut-cards pasted adjacent).
Direction of motion shown (arrow or label moving / moviéndose ).
Surface of objects is intact (no deformation yet).
Time 2: Split Second Later (Instante Después) Exemplar
Student Visual Work Exemplar
Car 1 Dent/Bent 💥
Car 2 Pushed ➡️
Forces compress materials; visible bend, flatten, or damage.
Acceptable Evidence (WIDA 1):
Contact area shows shape change (flat, bent, dented, or cracked).
Forces/interaction labeled (push, bend, break, bounce).
Damage checkmark matches drawn model (Yes / No).
Expected Sentence Frame Responses / Respuestas Esperadas:
Prompt 1 (Time 1):
"At Time 1, the objects touch / hit each other."
Acceptable: Single word "touch" or pasted card "First Touch".
Prompt 2 (Time 2):
"At Time 2, I see the material bend / flatten / break."
Acceptable: Any plausible deformation card ("Bends", "Breaks").
WIDA Level 1 (Entering) Proficiency Rubric Formative Assessment Look-Fors
Approaching (1 pt)
Draws one object or unrelated shapes. Does not show collision contact or shape difference between Time 1 and Time 2.
Proficient Level 1 (2 pts)
Draws two objects touching at Time 1. Shows a visual change (bent line, crack, flat side, or pasted tile) at Time 2.
Exceeding Level 1 (3 pts)
Includes arrows showing force/motion direction, labels parts in English or Spanish, and completes both sentence frames.
Bilingual Conferring Prompts (Teacher Questions / Preguntas para el maestro):
To elicit Time 1 (Contact):
"Where do they touch? Point to the contact."
