Wave Mechanics Slides Wave Mechanics
The Physics of Light & Visual Input
The Visible Spectrum
Humans only see a tiny sliver of the electromagnetic spectrum. What we call "light" is just energy traveling in waves.
Gamma
X-Ray
UV
Visible Light
Infrared
Micro
Radio
Short Wavelength
High frequency, high energy. Perceived as Bluish colors.
Long Wavelength
Low frequency, low energy. Perceived as Reddish colors.
Anatomy of a Wave
1. Wavelength
Distance from peak to peak.
Determines HUE (Color)
2. Amplitude
The height of the wave.
Determines INTENSITY (Brightness)
AMPLITUDE
Wavelength
Perceptual Correlates
Great Amplitude
Small Amplitude
Brightness
Dull vs. Bright Colors
Short
Medium
Long
Hue
The Color We Experience
"Light is a physical stimulus that produces a psychological experience."
Wave Mechanics Worksheet Wave Mechanics
Vision Lab // Lesson 1: Wave Physics
Name
Date
01
The Transduction Bridge
Match the physical property of the light wave to its psychological (perceptual) experience.
Wavelength ــــــــــــــــــــــــــــ
A. Intensity (Brightness)
Amplitude ــــــــــــــــــــــــــــ
B. Hue (Color)
02
Wave Drafting
In the boxes below, draw a visual representation of the waves described. Ensure your drawings clearly show the difference in wavelength or amplitude.
A. High Amplitude / Long Wavelength
Expected Perception: Bright Red
B. Low Amplitude / Short Wavelength
Expected Perception: Dull Blue
C. Low Intensity (Dull Red)
D. High Intensity (Bright Blue)
03
Spectral Analysis
1. Why are humans unable to see X-rays or Radio Waves despite them being the same physical energy as visible light?
2. If an object is "absorbing" all short wavelengths of light and "reflecting" only long wavelengths, what color will our brain perceive?
Vision Lab: Exploring the Human Senses // Psychology 10
Prism Lab Teacher Guide Teacher Resource
Prism Lab Guide
Demonstrating the Physical Properties of Light // Lesson 1 Hook
Objective
Students will observe white light being separated into its component wavelengths. This serves as the "hook" to demonstrate that "white" light is actually a composite of multiple energy frequencies (colors).
Materials
Glass or Acrylic Prism
High-intensity Flashlight
White Cardstock/Screen
Blackout Curtains (Dark Room)
Pacing Tip
Spend 10-15 minutes on the demonstration and initial inquiry before moving to the slides.
Safety Note
Avoid pointing high-intensity beams directly into student eyes.
Instructional Procedure
1
Set the Stage
Darken the room as much as possible. Position the white cardstock on a desk or tape it to the wall to act as a projection screen.
2
Refract the Light
Shine the light source through the prism. Rotate the prism slowly until a clear rainbow (spectrum) appears on the cardstock. Note the order of colors (Red to Violet).
3
The Pivot Question
Ask: "If this rainbow was here the whole time, why couldn't we see it until the light passed through the glass?"
Inquiry Questions
"What determines the 'bend' of the light?"
Explain that shorter wavelengths (blue/violet) refract more than longer ones (red). This is why the colors always appear in the same order.
"Why can't we see UV or Infrared?"
Connect this to the biological limitations of the human eye. We only have receptors tuned to this specific range of 'Visible Light'.
Key Lesson Concept
Sensory receptors are biological 'translators' that turn physical energy into mental experiences.
Eye Anatomy Slides The Inner Eye
Structures & Functions of Vision
The Gateway: Cornea & Pupil
The Cornea
The clear, protective outer layer. It performs the initial focus of light.
Pupil & Iris
The pupil is the opening; the iris is the muscle that adjusts its size to control light intake.
Simulated Iris Structure
The Projector: Lens & Retina
Accommodation
The process where the eye's Lens changes shape to focus near or far objects on the retina.
The Retina
The light-sensitive inner surface containing receptor rods and cones plus layers of neurons.
The Fovea
The central focal point in the retina, around which the eye's cones cluster. High-definition vision happens here!
The Visual Sequence
From Stimulus to Nerve
1
Cornea
2
Pupil
3
Lens
4
Retina (Photoreceptors)

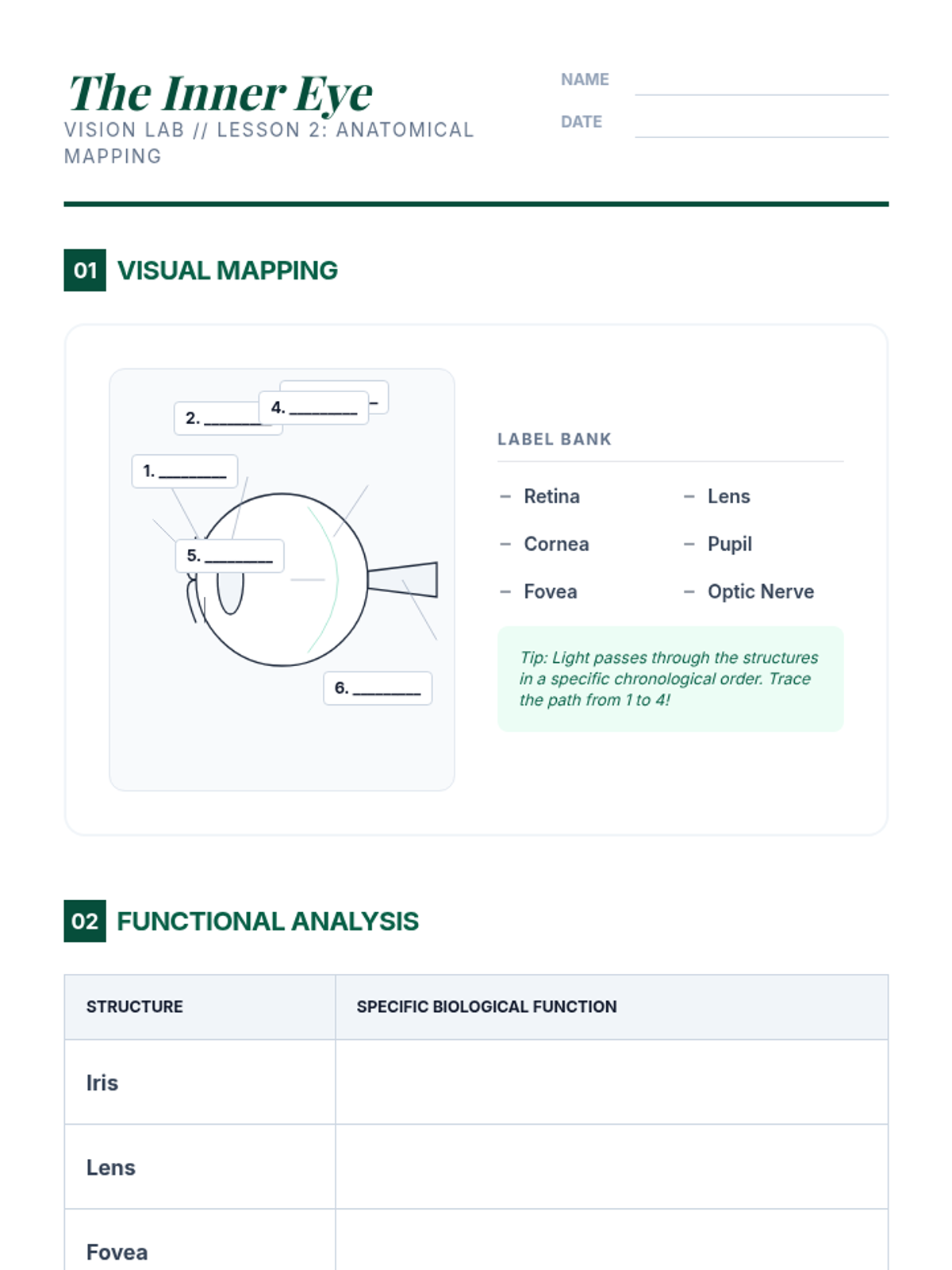

Inner Eye Diagram Worksheet The Inner Eye
Vision Lab // Lesson 2: Anatomical Mapping
Name
Date
01
Visual Mapping
1. _________
2. _________
3. _________
4. _________
5. _________
6. _________
Label Bank
Retina
Lens
Cornea
Pupil
Fovea
Optic Nerve
Tip: Light passes through the structures in a specific chronological order. Trace the path from 1 to 4!
02
Functional Analysis
Structure Specific Biological Function Iris Lens Fovea Blind Spot
03
Physiological Process
Define the process of "Accommodation" and explain why it is essential for clear vision at different distances. Blind Spot Lab Guide The Blind Spot Protocol

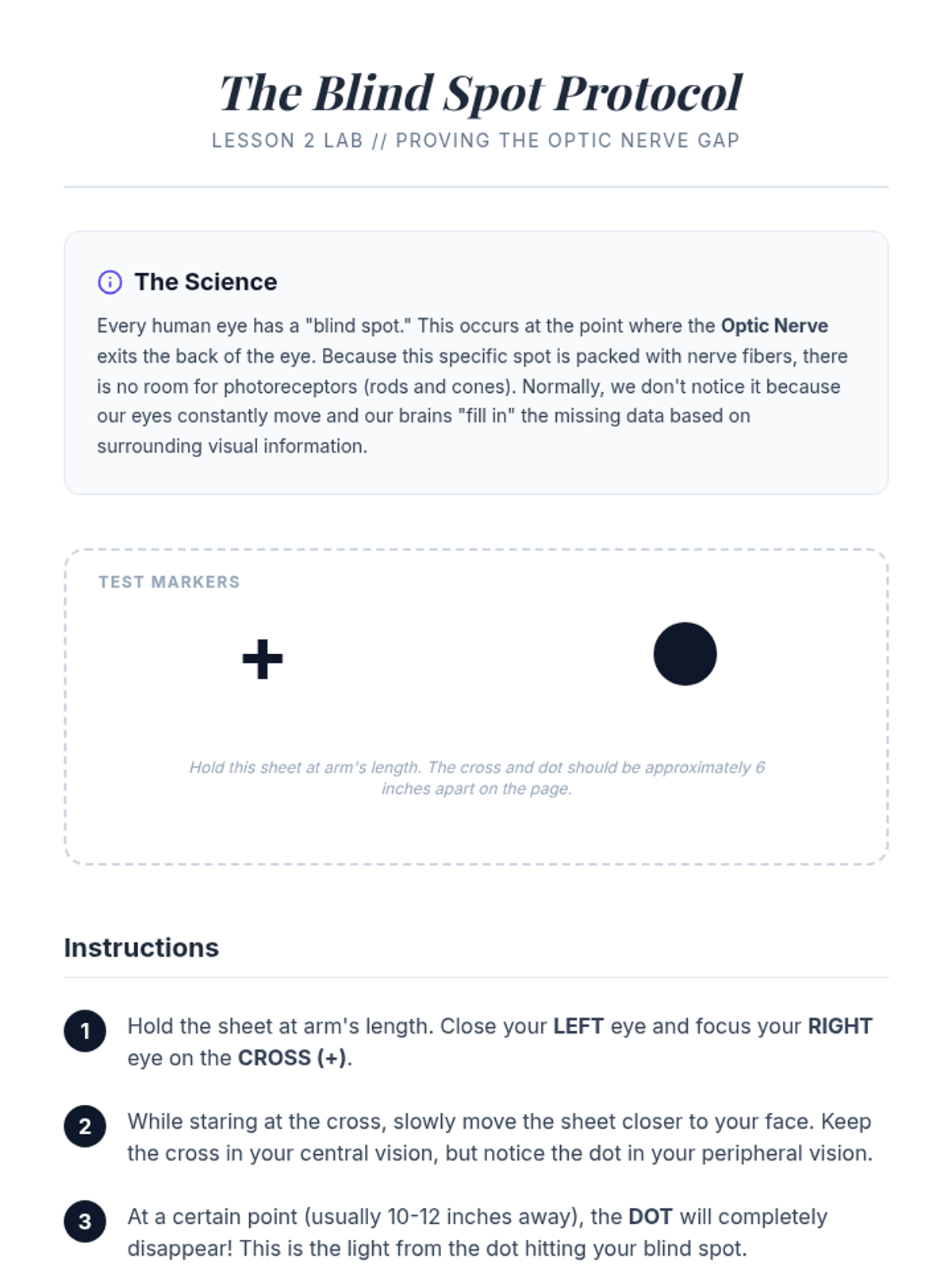

Lesson 2 Lab // Proving the Optic Nerve Gap
The Science
Every human eye has a "blind spot." This occurs at the point where the Optic Nerve exits the back of the eye. Because this specific spot is packed with nerve fibers, there is no room for photoreceptors (rods and cones). Normally, we don't notice it because our eyes constantly move and our brains "fill in" the missing data based on surrounding visual information.
Test Markers
Hold this sheet at arm's length. The cross and dot should be approximately 6 inches apart on the page.
Instructions
1
Hold the sheet at arm's length. Close your LEFT eye and focus your RIGHT eye on the CROSS (+) .
2
While staring at the cross, slowly move the sheet closer to your face. Keep the cross in your central vision, but notice the dot in your peripheral vision.
3
At a certain point (usually 10-12 inches away), the DOT will completely disappear! This is the light from the dot hitting your blind spot.
Lab Observations
1. Describe what happened to the dot. Did the space where the dot was appear "empty," "black," or "filled in" with the white of the paper?
2. Why does your brain "fill in" the blind spot instead of just leaving a hole in your vision? (Think about evolutionary advantages).
Psychology 10 // Sensory Processes Vision Lab Protocol 2-B
The Retinal Duo Slides The Retinal Duo
Photoreceptors: Rods & Cones
One Retina, Two Systems
R
Rods
Detect black, white, and gray
Necessary for peripheral and twilight vision
Highly sensitive to faint light
C
Cones
Detect fine detail and color
Concentrated in the fovea (center)
Function best in well-lit conditions
Retinal Distribution
Periphery
Periphery
MOSTLY RODS
Side Vision
Cones Only (Fovea)
Central Vision
MOSTLY RODS
Side Vision
"This is why you can see a faint star better if you look slightly to the side of it!"
The Neural Hierarchy
Step 1
Photoreceptors
Rods & Cones
Step 2
Bipolar Cells
"Interneuron Bridge"
Step 3
Ganglion Cells
Forms the Optic Nerve
Data Compression
Many rods often share a single bipolar cell (low resolution), while cones often have a "private line" to the brain (high resolution).

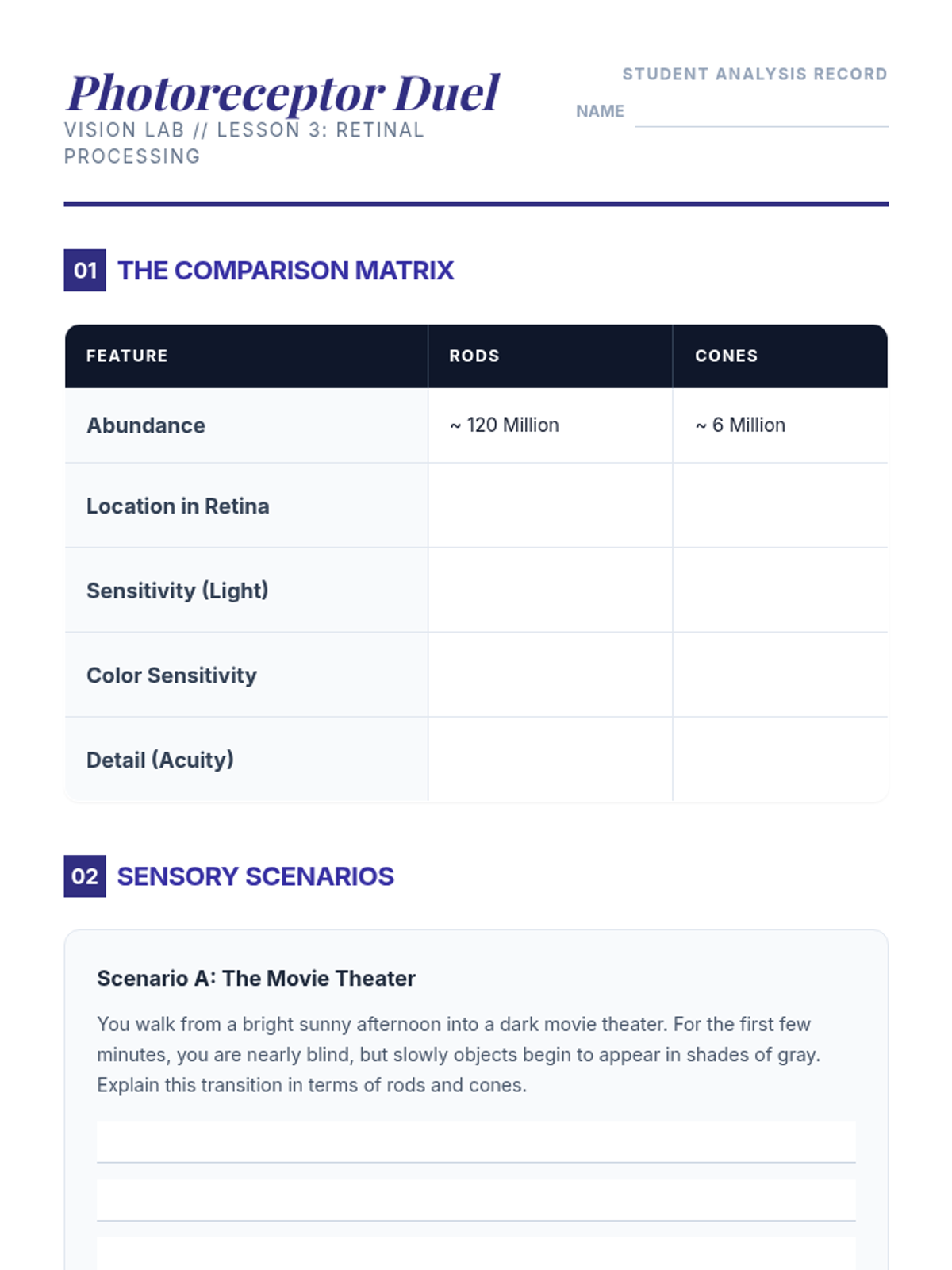

Rods vs Cones Comparison Worksheet Photoreceptor Duel
Vision Lab // Lesson 3: Retinal Processing
Student Analysis Record
Name
01
The Comparison Matrix
Feature Rods Cones Abundance ~ 120 Million ~ 6 Million Location in Retina Sensitivity (Light) Color Sensitivity Detail (Acuity)
02
Sensory Scenarios
Scenario A: The Movie Theater
You walk from a bright sunny afternoon into a dark movie theater. For the first few minutes, you are nearly blind, but slowly objects begin to appear in shades of gray. Explain this transition in terms of rods and cones.
Scenario B: The Night Sky
Astronomers often look slightly "off-center" when trying to view a very faint star. Based on the distribution of photoreceptors, why does this technique work?
03
Neural Wiring
"Cones typically have their own 'hotline' to the bipolar cells, whereas many rods may share a single connection."
How does this difference in "wiring" explain why our central vision is sharp and detailed, while our peripheral vision is blurry and sensitive to light?

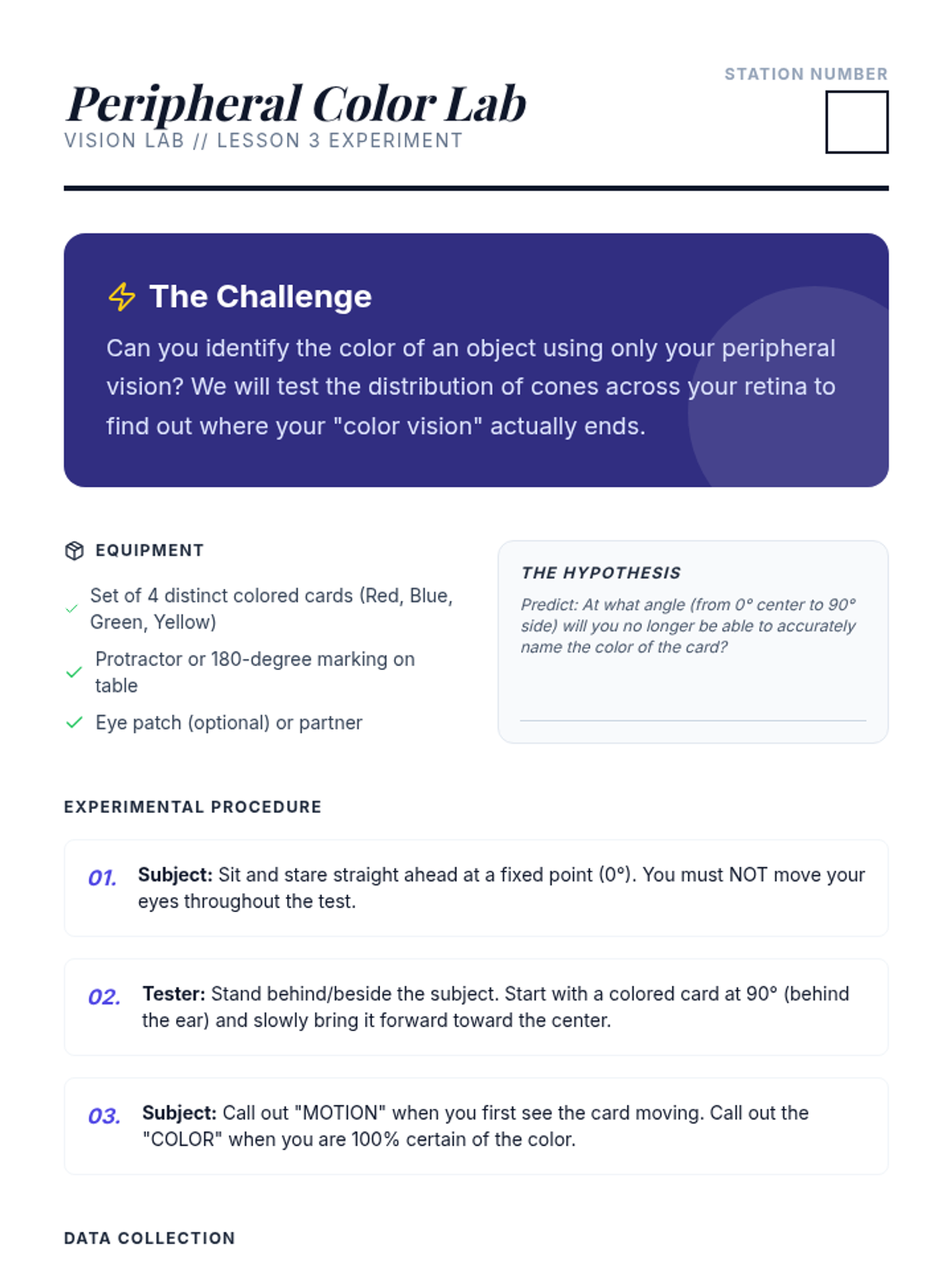

Peripheral Vision Lab Sheet Peripheral Color Lab
Vision Lab // Lesson 3 Experiment
Station Number
The Challenge
Can you identify the color of an object using only your peripheral vision? We will test the distribution of cones across your retina to find out where your "color vision" actually ends.
Equipment
Set of 4 distinct colored cards (Red, Blue, Green, Yellow)
Protractor or 180-degree marking on table
Eye patch (optional) or partner
The Hypothesis
Predict: At what angle (from 0° center to 90° side) will you no longer be able to accurately name the color of the card?
Experimental Procedure
Subject: Sit and stare straight ahead at a fixed point (0°). You must NOT move your eyes throughout the test.
Tester: Stand behind/beside the subject. Start with a colored card at 90° (behind the ear) and slowly bring it forward toward the center.
Subject: Call out "MOTION" when you first see the card moving. Call out the "COLOR" when you are 100% certain of the color.
Data Collection
Card Color Angle of Detection (Motion) Angle of Identification (Color) Red Blue Green Yellow
Post-Lab Analysis
1. Was there a difference between when you saw 'motion' and when you saw 'color'? Why does this happen biologically? (Reference rods and cones).
2. Did the specific colors matter? Were some colors easier to identify earlier in your periphery than others?
Color Theory Slides Color Theory Lab
How the Brain Paints the World
1. Trichromatic Theory
Proposed by Young & Helmholtz , this theory suggests the retina contains three types of color receptors (cones):
Long Wavelength (Red)
Medium Wavelength (Green)
Short Wavelength (Blue)
Every other color is a mixture of these three signals.
Biological Level
This theory explains what happens at the level of the Retina (Cones).
"The Eye as a Painter's Palette"
2. Opponent-Process Theory
Proposed by Ewald Hering , this theory suggests that color processing occurs in "opponent pairs." When one color is 'on', its partner is 'off'.
RED / GREEN
BLUE / YELLOW
BLACK / WHITE
Neural Level
This explains what happens in the Ganglion Cells and Visual Cortex .
The Afterimage Proof
If you stare at a Green square for 60 seconds and then look at a white wall, you will see a Red afterimage.
Why?
Your "Green" receptors get fatigued. When you look at white (which has all colors), the "Red" partner fires without opposition!
Stare at the center dot

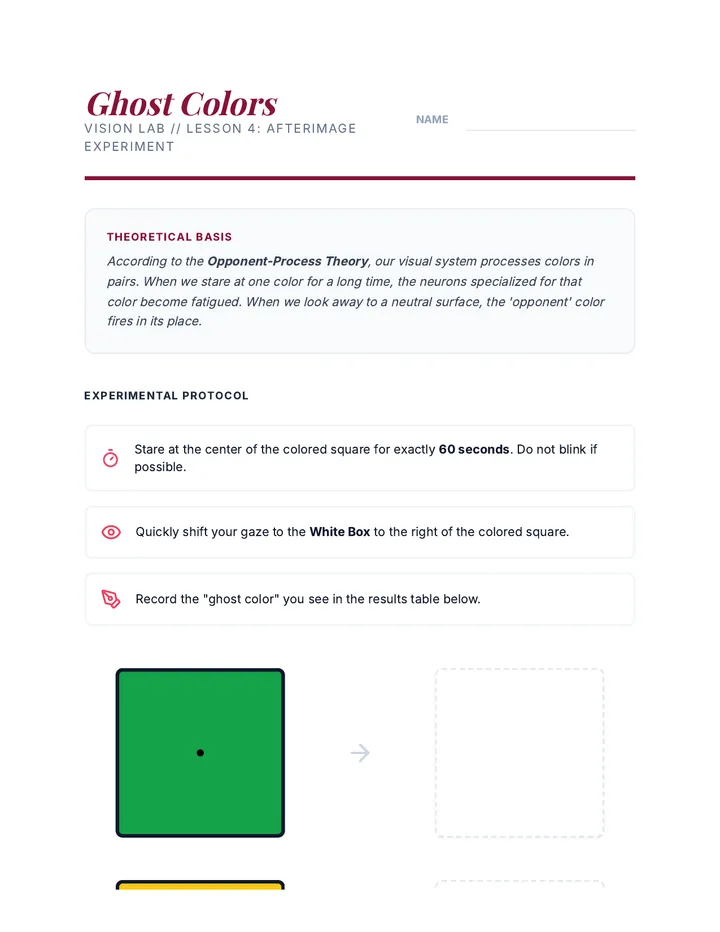

Afterimage Experiment Sheet Ghost Colors
Vision Lab // Lesson 4: Afterimage Experiment
Name
Theoretical Basis
According to the Opponent-Process Theory , our visual system processes colors in pairs. When we stare at one color for a long time, the neurons specialized for that color become fatigued. When we look away to a neutral surface, the 'opponent' color fires in its place.
Experimental Protocol
Stare at the center of the colored square for exactly 60 seconds . Do not blink if possible.
Quickly shift your gaze to the White Box to the right of the colored square.
Record the "ghost color" you see in the results table below.
Results & Analysis
Stimulus Color Perceived Afterimage Color Vibrant Green Bright Yellow Deep Blue Solid Black
1. The Fatigued Neuron
When you stare at the green square, which "opponent" is being fatigued? When you look at the white paper, why does the red signal take over?
2. Comparison
Could the Trichromatic Theory explain afterimages? Why or why not?
Visual Pathologies Slides Vision Pathologies
Biology, Deficiency & Correction
Focus Issues: Myopia & Hyperopia
Myopia (Nearsightedness)
Light rays focus in front of the retina because the eyeball is too long or the lens is too curved.
CANNOT SEE: Distance
Hyperopia (Farsightedness)
Light rays focus behind the retina because the eyeball is too short or the lens is too flat.
CANNOT SEE: Near
Color Deficiency
Genetic Basis
Most commonly a sex-linked trait affecting males more than females.
Cause
Lack of functioning Red or Green sensitive cones (Dichromatism).
Simulated Ishihara Color Test Plate
Corrective Science
Lenses
Convex or concave glass bends the light before it hits the eye to ensure it hits the Fovea perfectly.
LASIK
A laser reshapes the Cornea permanently, changing how it initiallly refracts light.
Gene Therapy
Emerging research aims to "regrow" missing cone pigments in the retina for color deficiency.
Vision Correction Case Studies Patient Files
Vision Lab // Lesson 5: Diagnostic Practicum
Clinic Station
Practitioner Instructions
Review the patient intake notes below. For each case, identify the likely visual pathology based on their symptoms, explain the biological cause (what is happening physically in their eye), and suggest a corrective measure.
Patient 104-A
Intake Notes
"Patient reports significant difficulty reading traffic signs while driving. However, they can read fine print in books and on their phone without any issues. Objects beyond 10 feet appear as blurry masses."
Diagnosis
Biological Cause (Shape of Eye/Lens focus point)
Correction Strategy
Patient 104-B
Intake Notes
"Patient (Male, age 16) reports struggling in school, particularly in geography class. He states that he often confuses certain maps and can't tell the difference between the red symbols and green symbols on the school's digital scoreboard."
Diagnosis
Biological Cause (Photoreceptor deficiency)
Correction Strategy (Modern or emerging)
Patient 104-C
Intake Notes
"Patient reports constant headaches when reading or working on a computer. They state that while they can see the mountains in the distance clearly, they find it impossible to focus on anything within arm's reach."
Diagnosis
Biological Cause (Shape of Eye/Lens focus point)
Correction Strategy
Visual System Mastery Quiz Vision Mastery
Summative Assessment // Psychology 10
Name
Score
/ 50
01
Wave Mechanics
1. Which property of a light wave determines the hue (color) we experience?
Amplitude
Wavelength
Saturation
Transduction
2. A "bright" color differs from a "dull" color of the same hue primarily because of:
Greater Wavelength
Shorter Wavelength
Greater Amplitude
Smaller Amplitude
02
The Visual Path
Order the following structures from 1 (entry) to 5 (transduction) as light passes through the eye.
Retina
Pupil
Cornea
Lens
Iris
03
Rods vs Cones
A. Which photoreceptors are concentrated in the FOVEA?
B. Which photoreceptors allow for peripheral motion detection?
Explain why our central vision is sharp and colorful, while our side vision is blurry and primarily black/white.
04
Competing Theories
The theory that explains color processing at the neural/ganglion level via opponent pairs:
ــــــــــــــــــــــــــــــــــــــــ
The theory that explains color processing at the retinal/cone level via Red, Green, and Blue cones:
ــــــــــــــــــــــــــــــــــــــــ
05
Visual Correction
A student has an eyeball that is slightly too long, causing light to focus in front of the retina. Name the condition and describe what the student can and cannot see clearly.
