Double Vision Slides TWO EYES ONE WORLD
The Biology of Binocular Depth Cues
Psychology Unit: Perception
The Finger Sausage Experiment
Hold your index fingers tip-to-tip about 6 inches in front of your eyes. Look past them at a distant wall.
Do you see a floating 'sausage' between your fingers?
Class Simulation In Progress
The Biology of Depth
Retinal Disparity
Your eyes are about 2.5 inches apart. Each eye sees a slightly different image. The brain compares these two images to calculate distance.
Greater Difference = Closer Object
Convergence
A neuromuscular cue. When looking at close objects, your eyes turn inward. The brain senses the tension in your eye muscles to judge depth.
More Tension = Closer Object
"Depth is a Calculation"
Without these binocular cues, your brain struggles to navigate 3D space with high precision—especially for objects within 20 feet.
ONE EYE
Flat/Approximate
TWO EYES
3D / Precise
Two Eyes Lab Worksheet TWO EYES LAB
Binocular Depth Cues Simulation
Name:
Date:
Mission Objective
To measure the difference in accuracy for depth perception tasks using one eye (monocular) versus two eyes (binocular). You will investigate how retinal disparity and convergence assist the brain in calculating 3D space.
1
Experiment: The Pen Cap Challenge
Procedure
Sit across from your partner (approx. 3 feet apart).
Partner A holds a pen horizontally at chest height.
Partner B holds the pen cap vertically.
Partner B attempts to place the cap on the pen in one fluid motion.
Repeat 5 times for each condition (Binocular vs. Monocular).
Data Table: Success Rate
Condition Trial 1-5 Successes Binocular (Both Eyes) / 5 Monocular (Left Eye Only) / 5 Monocular (Right Eye Only) / 5
2
Experiment: Retinal Disparity Mapping
Extend your arm and hold a pencil vertically. Look at it with your left eye only, then switch to your right eye only. Notice how the pencil "jumps."
1. Distance Trial: ARM'S LENGTH
Estimate how many inches the pencil appeared to "jump" across the background.
2. Distance Trial: 6 INCHES FROM NOSE
Estimate the jump distance for the closer object.
Data Analysis
1. Based on your results from the Pen Cap Challenge, why is it harder to perceive depth with one eye? Reference the concept of retinal disparity.
2. Look at your Retinal Disparity Mapping. Did the pencil "jump" more when it was closer or farther from your face? Why does the brain use this difference to calculate depth?
3. Reflection: In what real-world scenarios (besides this lab) might someone rely heavily on binocular cues? In what scenarios might they be less effective?
Binocular Bootcamp Guide TEACHER GUIDE
Lesson 1: Binocular Vision Lab
VISIONARY VAULT SERIES
Lesson Summary
This lesson introduces students to the biological mechanisms that allow us to perceive depth using two eyes. Students will perform hands-on simulations to isolate retinal disparity and convergence, demonstrating why having two forward-facing eyes provides a survival advantage in 3D environments.
Key Vocabulary
• Binocular Cues
• Retinal Disparity
• Convergence
• Depth Perception
Instructional Pacing (50 min)
0-10m
The Hook: Finger Sausage
Follow the slide instructions. Ask: "Why does the sausage float?" Connect to the idea that each eye sends a different image to the brain.
10-25m
Direct Instruction: Depth Logic
Use the Double Vision Slides to define Retinal Disparity (distance difference) and Convergence (muscular tension). Emphasize that depth is a calculation , not a direct sensation.
25-45m
Simulation: Two Eyes Lab
Distribute the Two Eyes Lab Worksheet . Students need pens/pencils. Monitor the "Pen Cap Challenge" for honesty—students should not "cheat" by using slow movements or touching the pen before capping.
45-50m
Debrief: Survival Advantage
Question: "If binocular vision is so good, why do some animals have eyes on the sides of their heads?" (Prey animals need field of view over depth; predators need depth over field of view).
Misconception Alert
Students often think we "see" depth directly. Stress that the retina is a 2D surface . Depth is entirely a psychological construct built from physiological cues. One eye provides some depth (monocular cues), but two eyes provide stereo depth.
Discussion Starters
• How does 3D cinema use retinal disparity to fool your brain?
• Why do we lose depth perception as objects get much further away (over 100 feet)?
Flat World Slides Flat World Cues
The Psychology of Monocular Static Depth
Visionary Vault: Module 02
The Forced Perspective Trick
Imagine a tourist holding their hand up to "catch" the Leaning Tower of Pisa.
Why does your brain accept this impossible image? Because on a 2D surface (photo), depth is an assumption based on cues.
Image Analysis Activity
Static Cues (One Eye Only)
1. Relative Size
If two objects are similar in size, the one that casts the smaller retinal image is perceived as farther away.
2. Interposition (Overlap)
If one object partially blocks our view of another, we perceive it as closer.
3. Relative Height
Objects higher in our field of vision are perceived as farther away (until they cross the horizon).
4. Texture Gradient
Distinct textures become less clear and more densely packed as distance increases.
Artists are Psychologists
For centuries, painters have exploited these monocular cues to create the illusion of three-dimensional space on flat canvases. Without these cues, art would look like a 2D map.
Question for Class:
"When you close one eye and look at a painting, does the depth disappear? Why or why not?"

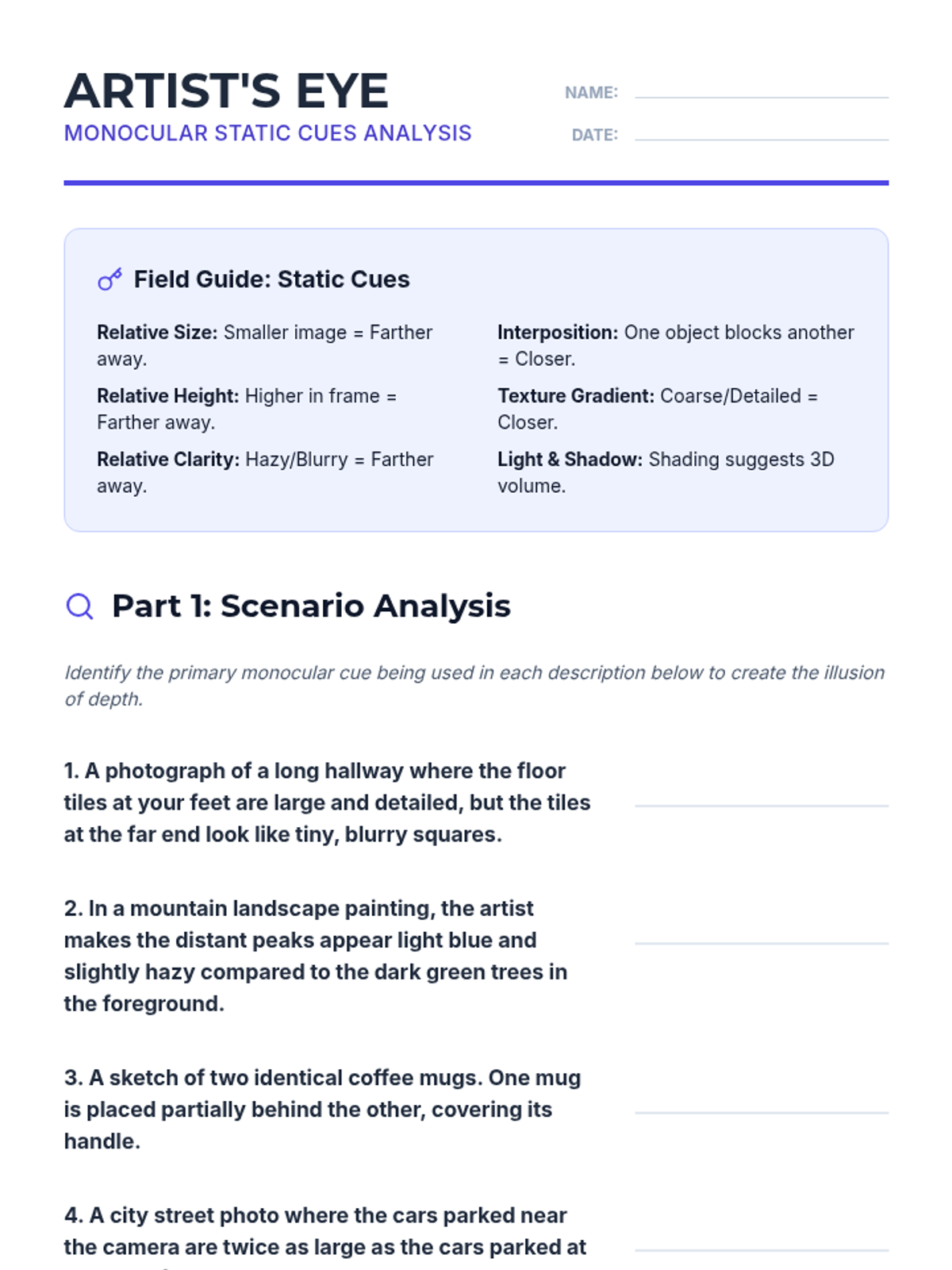

Artist Eye Worksheet ARTIST'S EYE
Monocular Static Cues Analysis
Name:
Date:
Field Guide: Static Cues
Relative Size: Smaller image = Farther away.
Interposition: One object blocks another = Closer.
Relative Height: Higher in frame = Farther away.
Texture Gradient: Coarse/Detailed = Closer.
Relative Clarity: Hazy/Blurry = Farther away.
Light & Shadow: Shading suggests 3D volume.
Part 1: Scenario Analysis
Identify the primary monocular cue being used in each description below to create the illusion of depth.
1. A photograph of a long hallway where the floor tiles at your feet are large and detailed, but the tiles at the far end look like tiny, blurry squares.
2. In a mountain landscape painting, the artist makes the distant peaks appear light blue and slightly hazy compared to the dark green trees in the foreground.
3. A sketch of two identical coffee mugs. One mug is placed partially behind the other, covering its handle.
4. A city street photo where the cars parked near the camera are twice as large as the cars parked at the end of the block.
Part 2: The Artist's Draft
Using the boxes below, create two simple sketches that demonstrate the specific cue assigned. You don't need to be a great artist—use simple shapes (circles, squares, triangles) to prove you understand the concept.
Sketch A: Relative Height
Explain how your sketch uses height to signal depth:
Sketch B: Texture Gradient
Explain how your sketch uses texture to signal depth:
Critical Thinking
If you were born with only one eye, would you still be able to play sports like basketball or soccer? Use your knowledge of monocular cues to explain why or why not.

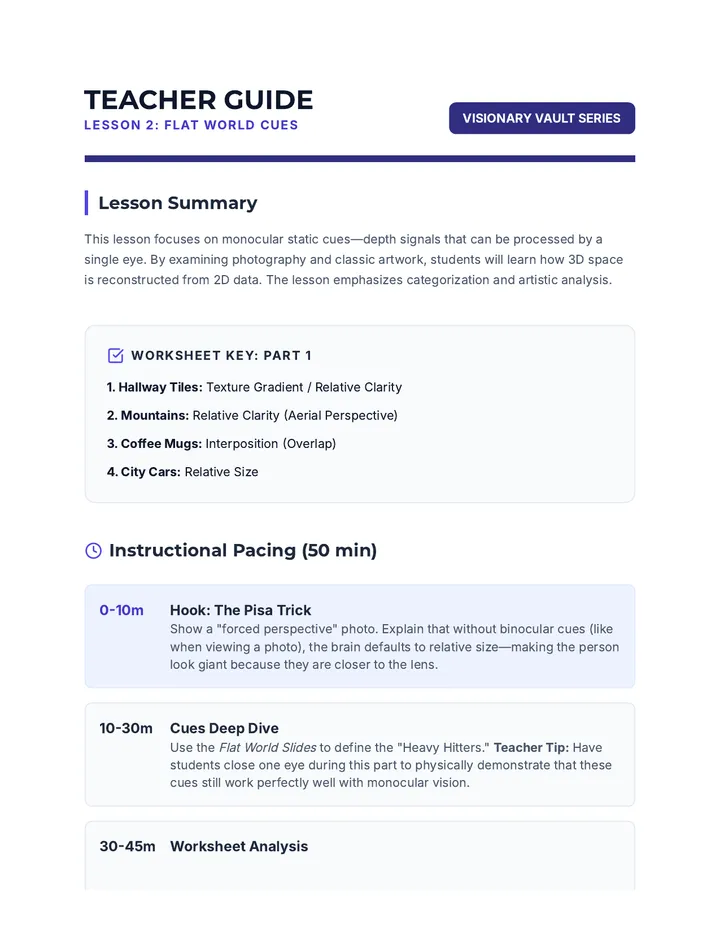

Cues and Canvas Guide TEACHER GUIDE
Lesson 2: Flat World Cues
VISIONARY VAULT SERIES
Lesson Summary
This lesson focuses on monocular static cues—depth signals that can be processed by a single eye. By examining photography and classic artwork, students will learn how 3D space is reconstructed from 2D data. The lesson emphasizes categorization and artistic analysis.
Worksheet Key: Part 1
1. Hallway Tiles: Texture Gradient / Relative Clarity
2. Mountains: Relative Clarity (Aerial Perspective)
3. Coffee Mugs: Interposition (Overlap)
4. City Cars: Relative Size
Instructional Pacing (50 min)
0-10m
Hook: The Pisa Trick
Show a "forced perspective" photo. Explain that without binocular cues (like when viewing a photo), the brain defaults to relative size—making the person look giant because they are closer to the lens.
10-30m
Cues Deep Dive
Use the Flat World Slides to define the "Heavy Hitters." Teacher Tip: Have students close one eye during this part to physically demonstrate that these cues still work perfectly well with monocular vision.
30-45m
Worksheet Analysis
Students complete the Artist Eye Worksheet . Encourage them to use simple geometric shapes for Part 2 (Synthesis Sketching). It's about psychology, not fine art.
45-50m
Closing Discussion
Ask: "How do 2D video games (like original Mario) create depth compared to modern 3D games?"
Gallery Walk Extension
If time allows, print 5-6 famous paintings (e.g., The School of Athens by Raphael or The Last Supper by Da Vinci) and post them around the room. Have students walk around with sticky notes to label the specific monocular cues the artists used.
Motion Master Slides Motion & Space
The Physics of Moving Cues
Visionary Vault: Module 03
The Railway Illusion
Linear Perspective
Parallel lines, such as railroad tracks or a long hallway, appear to converge with distance.
The more the lines converge, the greater their perceived distance.
VANISHING POINT
Motion Parallax (Relative Motion)
The Foreground
Objects that are closer to you appear to move faster across your field of vision.
The Background
Objects that are farther away appear to move slower (or even stay still).
"Think of looking out a car window: the grass is a blur, but the mountains are stationary."
Why does it matter?
Motion parallax is the brain's most reliable way to judge depth when we are in motion—it’s how pilots land planes and how you avoid obstacles while running.
DYNAMISM = DEPTH

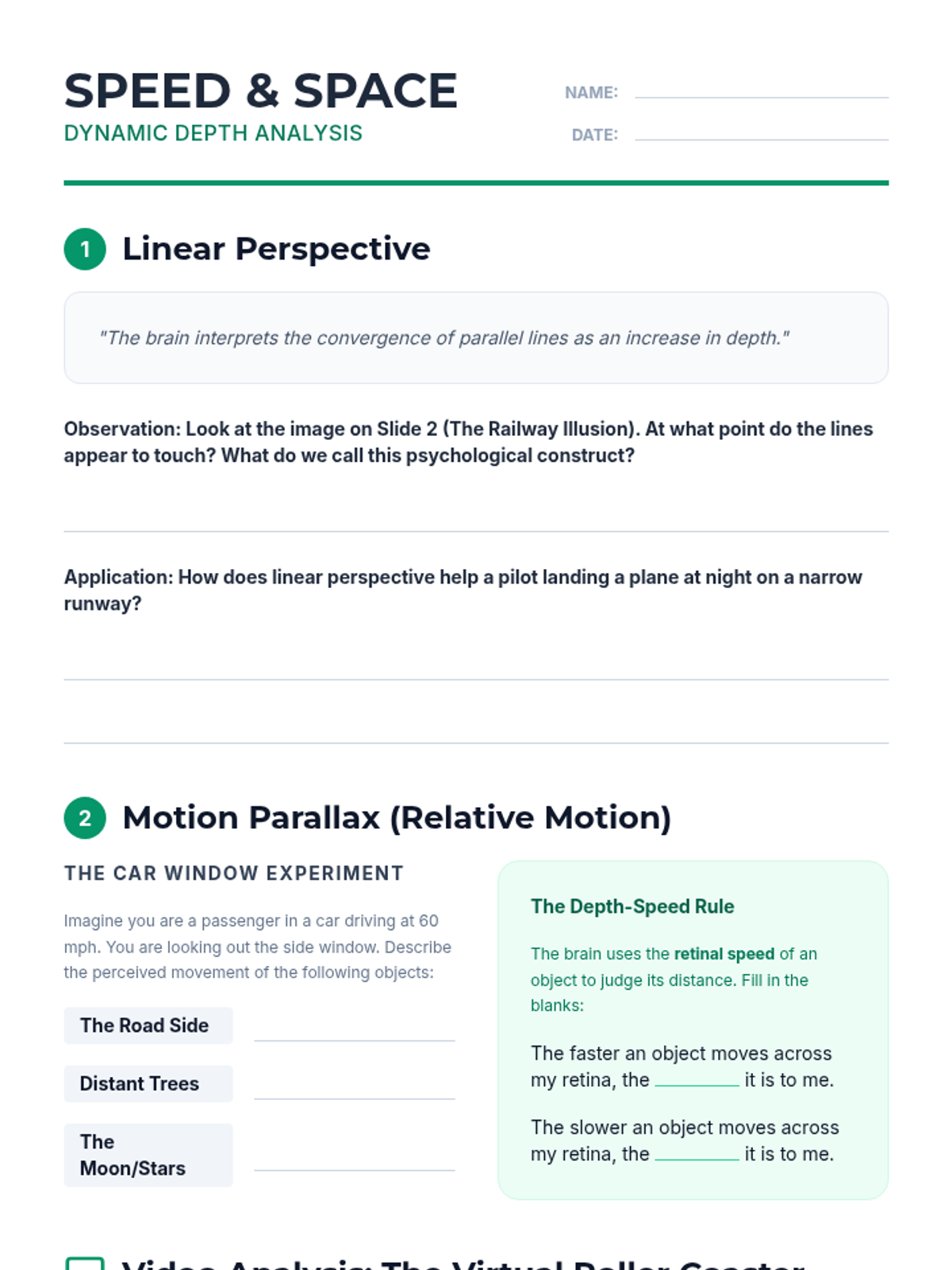

Speed and Space Notes SPEED & SPACE
Dynamic Depth Analysis
Name:
Date:
1
Linear Perspective
"The brain interprets the convergence of parallel lines as an increase in depth."
Observation: Look at the image on Slide 2 (The Railway Illusion). At what point do the lines appear to touch? What do we call this psychological construct?
Application: How does linear perspective help a pilot landing a plane at night on a narrow runway?
2
Motion Parallax (Relative Motion)
The Car Window Experiment
Imagine you are a passenger in a car driving at 60 mph. You are looking out the side window. Describe the perceived movement of the following objects:
The Road Side
Distant Trees
The Moon/Stars
The Depth-Speed Rule
The brain uses the retinal speed of an object to judge its distance. Fill in the blanks:
The faster an object moves across my retina, the it is to me.
The slower an object moves across my retina, the it is to me.
Video Analysis: The Virtual Roller Coaster
1. While watching the video, identify a moment where you felt a strong sense of speed. What specific visual cues were present? (Check all that apply)
Linear Perspective
Motion Parallax
Texture Gradient
Relative Size
2. Why does your body sometimes "feel" the motion of the roller coaster (stomach drop, leaning) even though you are sitting still in a chair? Explain using the concept of depth perception.
Final Synthesis
How do "dynamic" cues (cues that require movement) differ from the "static" cues we studied in Lesson 2? Why are dynamic cues often more reliable for navigation?
Dynamic Depth Guide TEACHER GUIDE
Lesson 3: Motion and Space
VISIONARY VAULT SERIES
Lesson Summary
This lesson transitions from static images to dynamic environments. Students investigate how motion provides unique depth data through Motion Parallax and Linear Perspective . This is a critical lesson for connecting psychology to physics and real-world spatial reasoning.
Video Requirements
To effectively teach this lesson, you will need to find two short videos on YouTube.
1. Motion Parallax Example: Search for "Train window scenery" or "Driving POV motion parallax." Look for a video showing fence posts moving fast and distant mountains moving slowly.2. Perspective/Motion Hook: Search for "First person roller coaster POV" or "Virtual Reality flight simulation."
Instructional Pacing (50 min)
0-10m
Hook: The Coaster Effect
Show the Roller Coaster POV. Ask students why their hearts might be racing. Connect the "sense of movement" to the dynamic cues of linear perspective and texture gradient.
10-25m
Direct Instruction: Linear & Parallax
Use Motion Master Slides . Explain the math of motion parallax: retinal speed is inversely proportional to distance. Higher speed = closer proximity.
25-45m
Analysis: Speed and Space Notes
Students work through the worksheet. For Part 2, they may need to visualize the car ride if you haven't shown a specific video yet. The "Depth-Speed Rule" is the core takeaway.
45-50m
Synthesis Discussion
Discuss "Visual Capture." When our eyes tell us we are moving (roller coaster video), our brain ignores the fact that our legs are sitting still. Vision is the "dominant" sense.
Key: Part 2 Simulation
• Road Side: Moves backward very quickly / blurry.
• Distant Trees: Moves backward slowly / clear.
• The Moon: Appears to "follow" the car / moves with you.
• Depth-Speed Rule: Closer / Farther.
Steady Brain Slides Steady Brain
The Science of Perceptual Constancies
Visionary Vault: Module 04
The Ponzo (Monster) Illusion
Look at the two monsters on a set of railroad tracks. The one in the "back" looks much larger, doesn't it?
Fact: They are exactly the same size.
Your brain "corrects" for the distance suggested by the tracks.
A
B
Image Simulation Placeholder
The Brain's Stability Logic
Size
We perceive objects as having a constant size, even while our distance from them varies.
Shape
We perceive the form of familiar objects as constant even when our retinal image changes (like an opening door).
Color
We perceive familiar objects as having consistent color, even if changing light alters the wavelengths reaching our eyes.
Efficiency Over Accuracy
Your brain doesn't want to re-learn what a "door" is every time you move an inch. Constancy allows us to focus on identity rather than raw sensation .
STABILITY = SURVIVAL

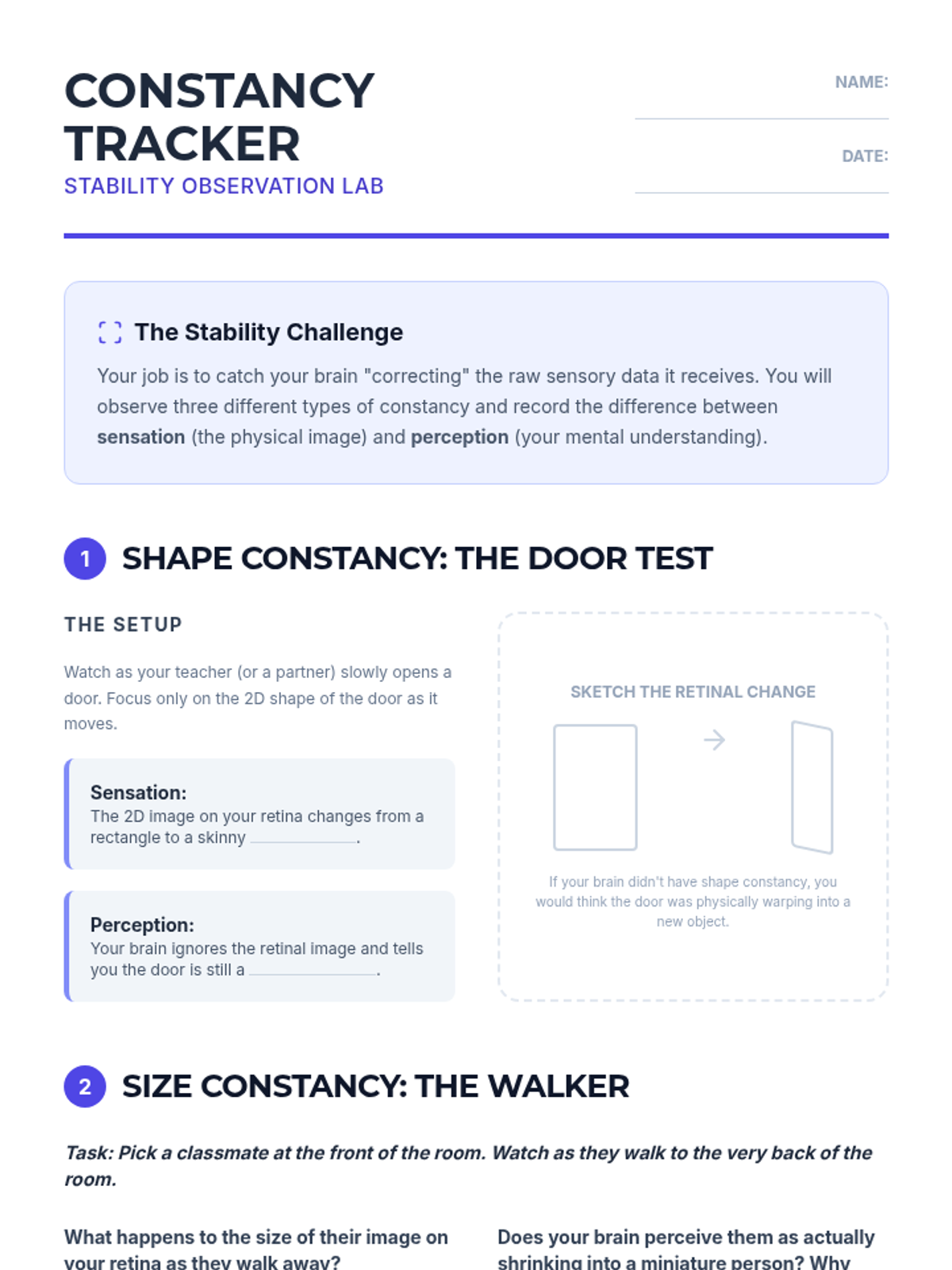

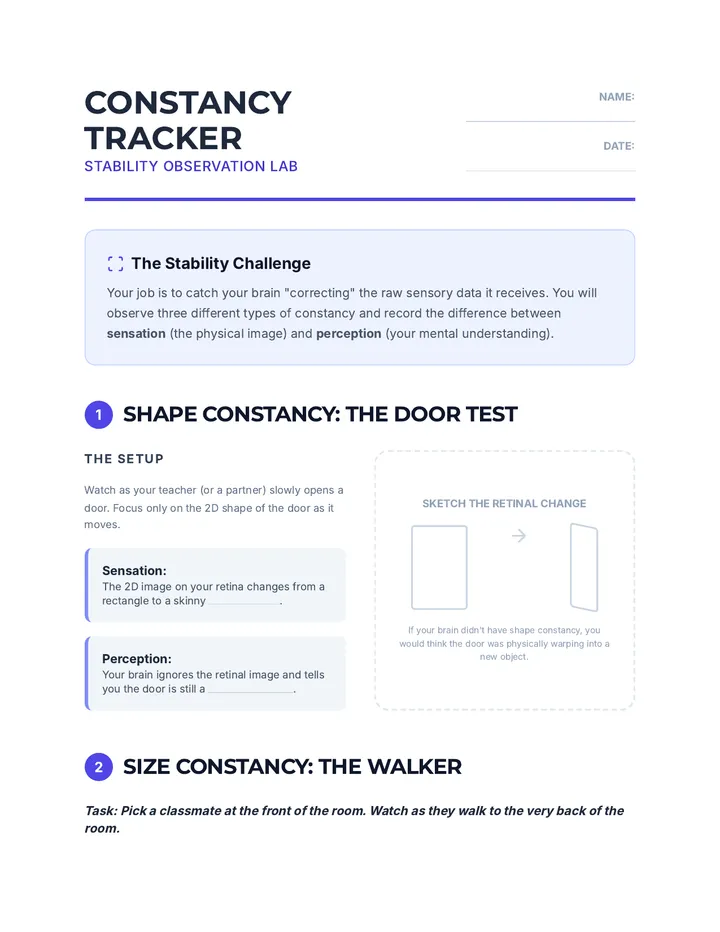

Constancy Tracker Worksheet CONSTANCY TRACKER
Stability Observation Lab
Name:
Date:
The Stability Challenge
Your job is to catch your brain "correcting" the raw sensory data it receives. You will observe three different types of constancy and record the difference between sensation (the physical image) and perception (your mental understanding).
1
Shape Constancy: The Door Test
The Setup
Watch as your teacher (or a partner) slowly opens a door. Focus only on the 2D shape of the door as it moves.
Sensation:
The 2D image on your retina changes from a rectangle to a skinny .
Perception:
Your brain ignores the retinal image and tells you the door is still a .
Sketch the Retinal Change
If your brain didn't have shape constancy, you would think the door was physically warping into a new object.
2
Size Constancy: The Walker
Task: Pick a classmate at the front of the room. Watch as they walk to the very back of the room.
What happens to the size of their image on your retina as they walk away?
Does your brain perceive them as actually shrinking into a miniature person? Why not?
The Neural Correction
1. Color Constancy: If you take a red apple from a bright sunny room into a dark, blue-lit room, the apple still looks red to you even though the light hitting it is different. How does the brain use "context" to maintain this color?
Critical Synthesis
Look back at the Ponzo (Monster) Illusion from today's slides. How is that illusion a "failure" of size constancy? What did the brain get "wrong" about the context of the monsters?

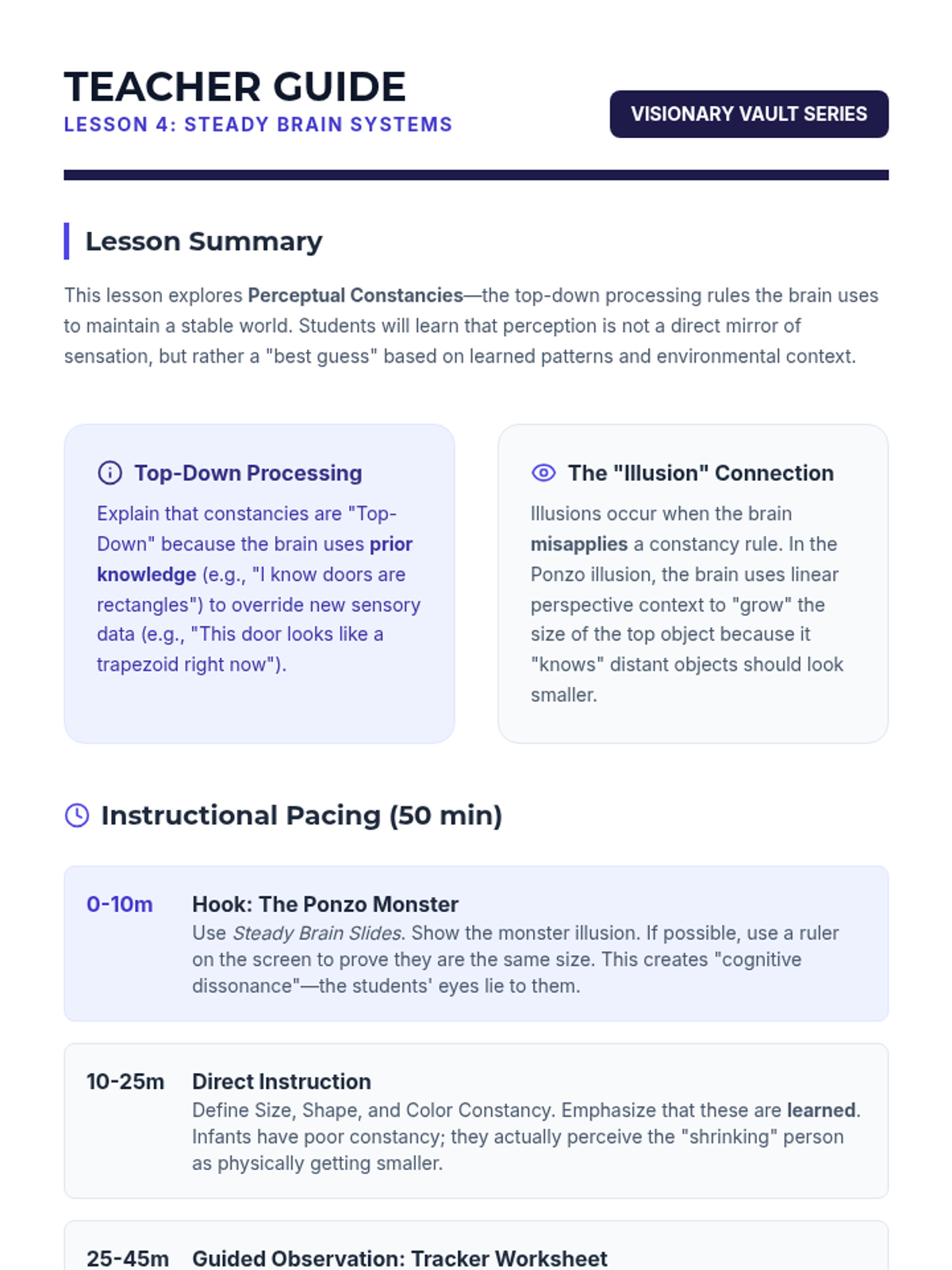

Perceptual Patterns Guide TEACHER GUIDE
Lesson 4: Steady Brain Systems
VISIONARY VAULT SERIES
Lesson Summary
This lesson explores Perceptual Constancies —the top-down processing rules the brain uses to maintain a stable world. Students will learn that perception is not a direct mirror of sensation, but rather a "best guess" based on learned patterns and environmental context.
Top-Down Processing
Explain that constancies are "Top-Down" because the brain uses prior knowledge (e.g., "I know doors are rectangles") to override new sensory data (e.g., "This door looks like a trapezoid right now").
The "Illusion" Connection
Illusions occur when the brain misapplies a constancy rule. In the Ponzo illusion, the brain uses linear perspective context to "grow" the size of the top object because it "knows" distant objects should look smaller.
Instructional Pacing (50 min)
0-10m
Hook: The Ponzo Monster
Use Steady Brain Slides . Show the monster illusion. If possible, use a ruler on the screen to prove they are the same size. This creates "cognitive dissonance"—the students' eyes lie to them.
10-25m
Direct Instruction
Define Size, Shape, and Color Constancy. Emphasize that these are learned . Infants have poor constancy; they actually perceive the "shrinking" person as physically getting smaller.
25-45m
Guided Observation: Tracker Worksheet
Lead the "Door Test" and "Walker Challenge." Have students describe the retinal image vs. the perceived object . This distinction is the goal of the lesson.
45-50m
Exit Ticket Discussion
Ask: "If we didn't have constancy, how would your life change?" (Answer: The world would feel chaotic, unstable, and overwhelming—like a kaleidoscope of shifting shapes).
Key: The Door Test
• Sensation: Trapezoid / Thin Line.
• Perception: Rectangle.
• Size Constancy: Retinal image gets smaller; perception stays constant.
Illusion Expo Slides BRAIN GLITCH
Deconstructing Optical Illusions
Visionary Vault: Module 05
The Ames Room
Why does a person "grow" as they walk?
The room is actually trapezoidal, but the brain insists it is a normal rectangular room.
Because the brain prioritizes Shape Constancy (the room) over Size Constancy (the person).
Simulation Placeholder
The Muller-Lyer Glitch
The Cultural Context
People in "carpenter cultures" (rectangular buildings) are more susceptible to this illusion.
We interpret the inward arrows as the exterior corner of a building (closer) and outward arrows as the interior corner of a room (farther).
Your Mission: Design a Glitch
Use what you know about Depth Cues & Constancies to create your own original optical illusion.
Pick a Cue
Flip the Logic
Test the Brain

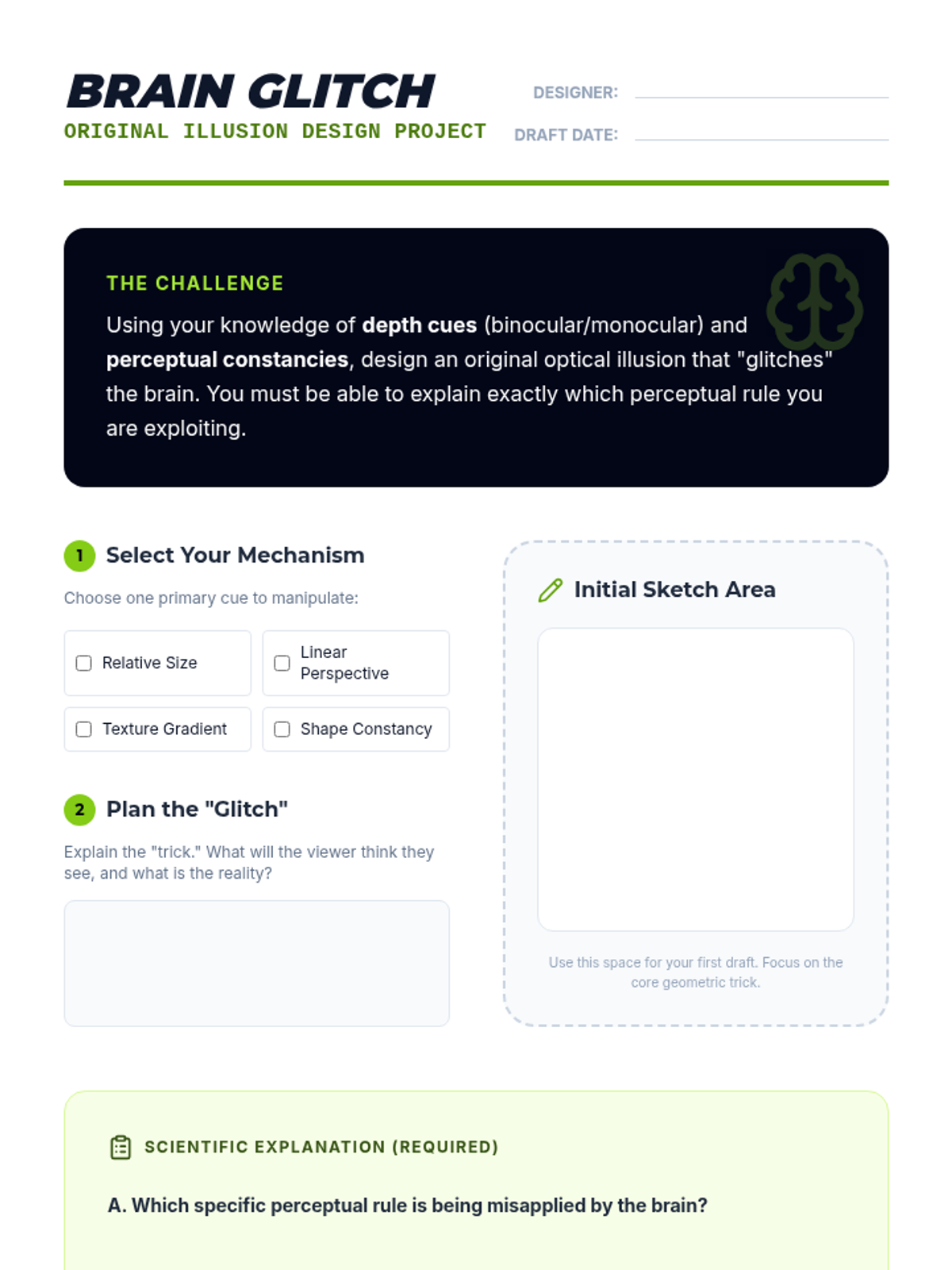

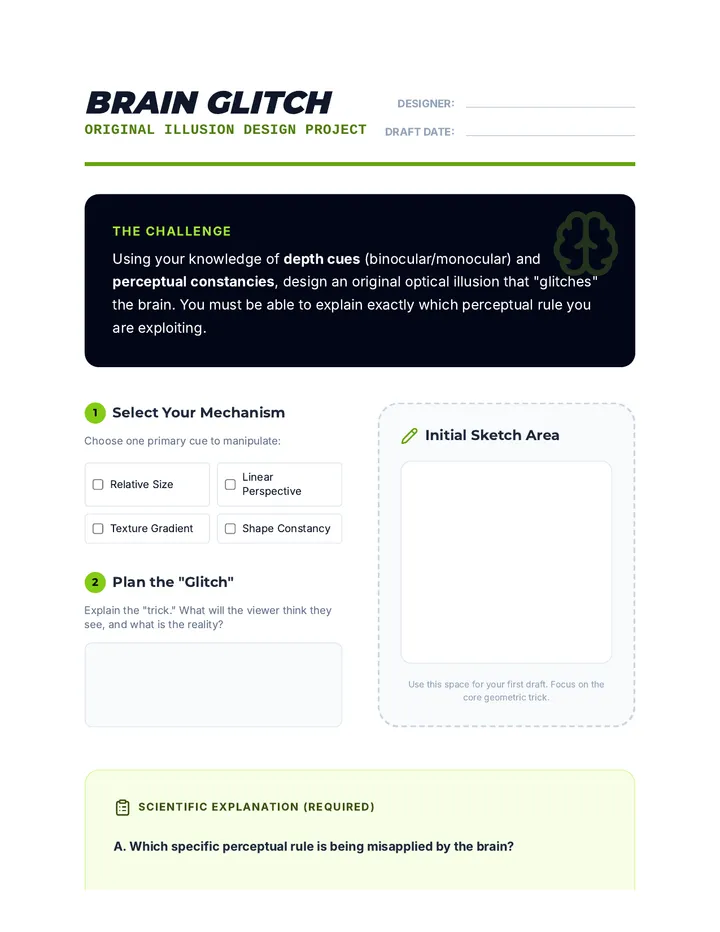

Brain Glitch Project Worksheet BRAIN GLITCH
Original Illusion Design Project
Designer:
Draft Date:
The Challenge
Using your knowledge of depth cues (binocular/monocular) and perceptual constancies , design an original optical illusion that "glitches" the brain. You must be able to explain exactly which perceptual rule you are exploiting.
1 Select Your Mechanism
Choose one primary cue to manipulate:
Relative Size
Linear Perspective
Texture Gradient
Shape Constancy
2 Plan the "Glitch"
Explain the "trick." What will the viewer think they see, and what is the reality?
Initial Sketch Area
Use this space for your first draft. Focus on the core geometric trick.
Scientific Explanation (Required)
A. Which specific perceptual rule is being misapplied by the brain?
B. Explain the difference between the sensation and the perception in your illusion.
Original Design
Clear Psychology Link
Visual Impact
SYSTEM STATUS: OPTIMAL

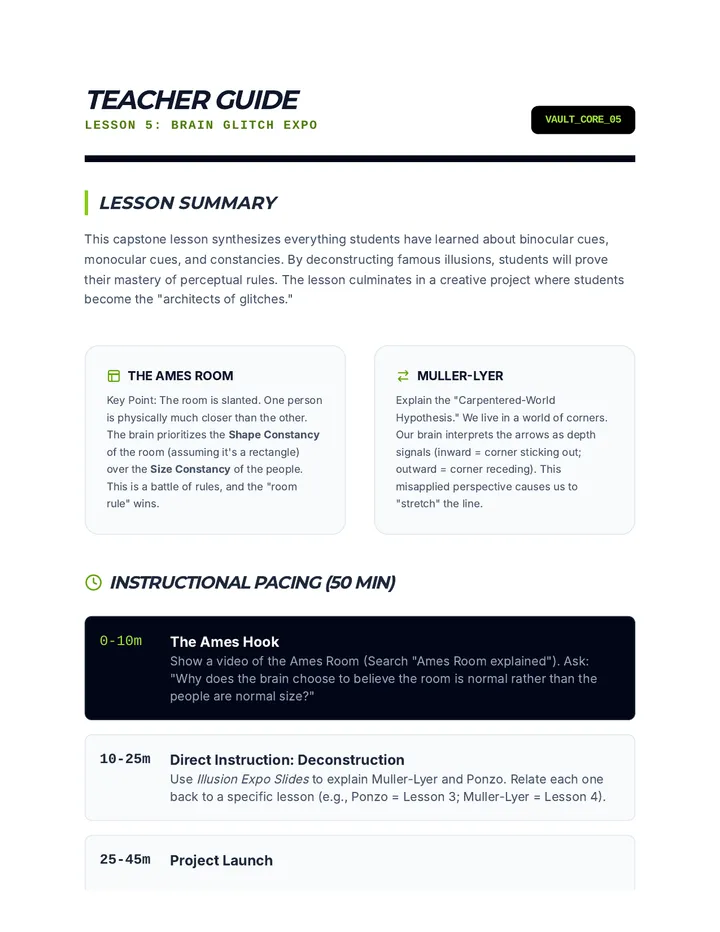

Illusion Deconstruction Guide TEACHER GUIDE
Lesson 5: Brain Glitch Expo
VAULT_CORE_05
Lesson Summary
This capstone lesson synthesizes everything students have learned about binocular cues, monocular cues, and constancies. By deconstructing famous illusions, students will prove their mastery of perceptual rules. The lesson culminates in a creative project where students become the "architects of glitches."
The Ames Room
Key Point: The room is slanted. One person is physically much closer than the other. The brain prioritizes the Shape Constancy of the room (assuming it's a rectangle) over the Size Constancy of the people. This is a battle of rules, and the "room rule" wins.
Muller-Lyer
Explain the "Carpentered-World Hypothesis." We live in a world of corners. Our brain interprets the arrows as depth signals (inward = corner sticking out; outward = corner receding). This misapplied perspective causes us to "stretch" the line.
Instructional Pacing (50 min)
0-10m
The Ames Hook
Show a video of the Ames Room (Search "Ames Room explained"). Ask: "Why does the brain choose to believe the room is normal rather than the people are normal size?"
10-25m
Direct Instruction: Deconstruction
Use Illusion Expo Slides to explain Muller-Lyer and Ponzo. Relate each one back to a specific lesson (e.g., Ponzo = Lesson 3; Muller-Lyer = Lesson 4).
25-45m
Project Launch
Distribute Brain Glitch Project Worksheet . Students draft their ideas. They should focus on the Explanation —it's not enough to draw a cool picture; they must explain the psychology behind it.
45-50m
Expo Pitch
Students share their concept with a neighbor. Neighbor acts as the "Beta Tester" to see if the illusion works as intended.
Grading Success Criteria
Psychology Link (40%)
Mechanism Clarity (30%)
Visual Execution (30%)
