Electron Sea Slides The Electron Sea
Unlocking the unique chemistry of metallic bonding
Think about it...
The Conductivity Mystery
Why does a copper wire allow electricity to flow instantly, while a piece of salt (NaCl) or plastic blocks it entirely?
Observation:
In ionic compounds, charges are locked in place. In metals, they move.
The "Sea of Electrons" Model
1
Metal atoms release their outer (valence) electrons into a common "pool."
2
The remaining **positive cations** are held in a rigid 3D lattice.
3
The electrons are **delocalized**, meaning they move freely throughout the whole structure.
Delocalized Valence Electrons (e⁻)
Bonding Battle: Ionic vs. Metallic
Feature Ionic Bonding Metallic Bonding Electron State Transferred (Fixed) Delocalized (Fluid) Structure Rigid Crystal Lattice Cation Lattice in e⁻ sea Conductivity Only when molten/dissolved Excellent as Solids Mechanical Brittle (Shivers) Malleable (Bends)
The Secret to Modern Power
Because electrons are not attached to any single atom, they can flow toward a positive potential. This is exactly what happens when you plug in your phone: A literal sea of electrons begins to drift through the wires.
Bonding Battle Worksheet Bonding Battle
Metallic vs. Ionic Structural Analysis
Name: __________________________
Date: ___________________________
1. Visualization Challenge
In the space below, sketch a small section of an **Ionic Lattice** and a **Metallic Lattice**. Use '+' and '-' to indicate charges.
Ionic Lattice (e.g., NaCl)
Metallic Lattice (e.g., Cu)
2. Analyzing the "Sea"
A. Define "Delocalization" in your own words. How does it apply to metals?
B. If you hit an ionic crystal with a hammer, it shatters. If you hit a piece of gold with a hammer, it flattens. Explain why using the concept of bonding.
3. Material Analysis
Based on the bonding models discussed, predict which materials will conduct electricity in the states listed.
Substance Bonding Type Conducts (Solid)? Conducts (Liquid)? Sodium Chloride (Salt) Aluminum Foil Distilled Water Covalent No No Iron Nail
Electron Flow Teacher Guide Teacher Guide: The Human Circuit
Lesson 1: The Electron Sea Model | Hook Activity
Objective
To provide a kinesthetic demonstration of the difference between localized (ionic) and delocalized (metallic) charges, illustrating why metals conduct electricity while ionic solids do not.
Procedure
1
The "Ionic" Grid (The Rigid Line)
Have 6-8 students stand in two parallel lines, shoulder-to-shoulder. Give every other student a ball (representing an electron). Ask them to try and pass the ball to the person across from them without moving their feet or changing their position. If the grid is "locked," nothing moves.
2
The "Metallic" Sea (The Fluid Crowd)
Have the same students stand in a loose group (the "cations"). They must stay in their relative positions but can move their arms freely. Throw 3-4 balls (the "delocalized electrons") into the group. Encourage students to keep the balls moving rapidly from person to person as long as they stay within the "sea."
Discussion Questions
In the first scenario, why was it hard to move the "charge"? (Answer: Charges are localized/fixed to specific ions).
In the second scenario, what allowed the balls to travel from one end of the room to the other? (Answer: Free movement of electrons throughout the entire structure).
How does this explain why metal wires are used for power lines?
Preparation
4-5 Tennis balls (Electrons)
Open floor space
10-15 Minutes
Teaching Tip
Remind students that while the "electrons" (balls) are moving, the "cations" (students) must stay in their spots. This reinforces the idea of a fixed lattice in a fluid sea.
Metal Deformation Slides Bending & Breaking
Malleability vs. Ductility
Malleability
The ability of a material to be hammered or rolled into **thin sheets** without breaking.
Ductility
The ability of a material to be drawn out into **thin wires**.
[Visual: Copper Sheet vs. Copper Wire]
Both are possible because of the same bonding secret...
Why don't they snap?
In a metal, the **sea of electrons** acts like a flexible glue or lubricant.
When force is applied, the metal cations can **slide past one another** into new positions without breaking the bond.
The Sliding Plane Effect
Ionic Brittleness
In ionic crystals, + and - charges are perfectly aligned.
The Problem:
When force moves the atoms, like charges (+ with +) align. They **repel each other**, causing the crystal to shatter.
-
-
REPULSION!
Engineering with Ductility
Steel Rebar
Allows buildings to sway
Copper Wiring
Bent through walls to
Gold Foil
The most malleable metal

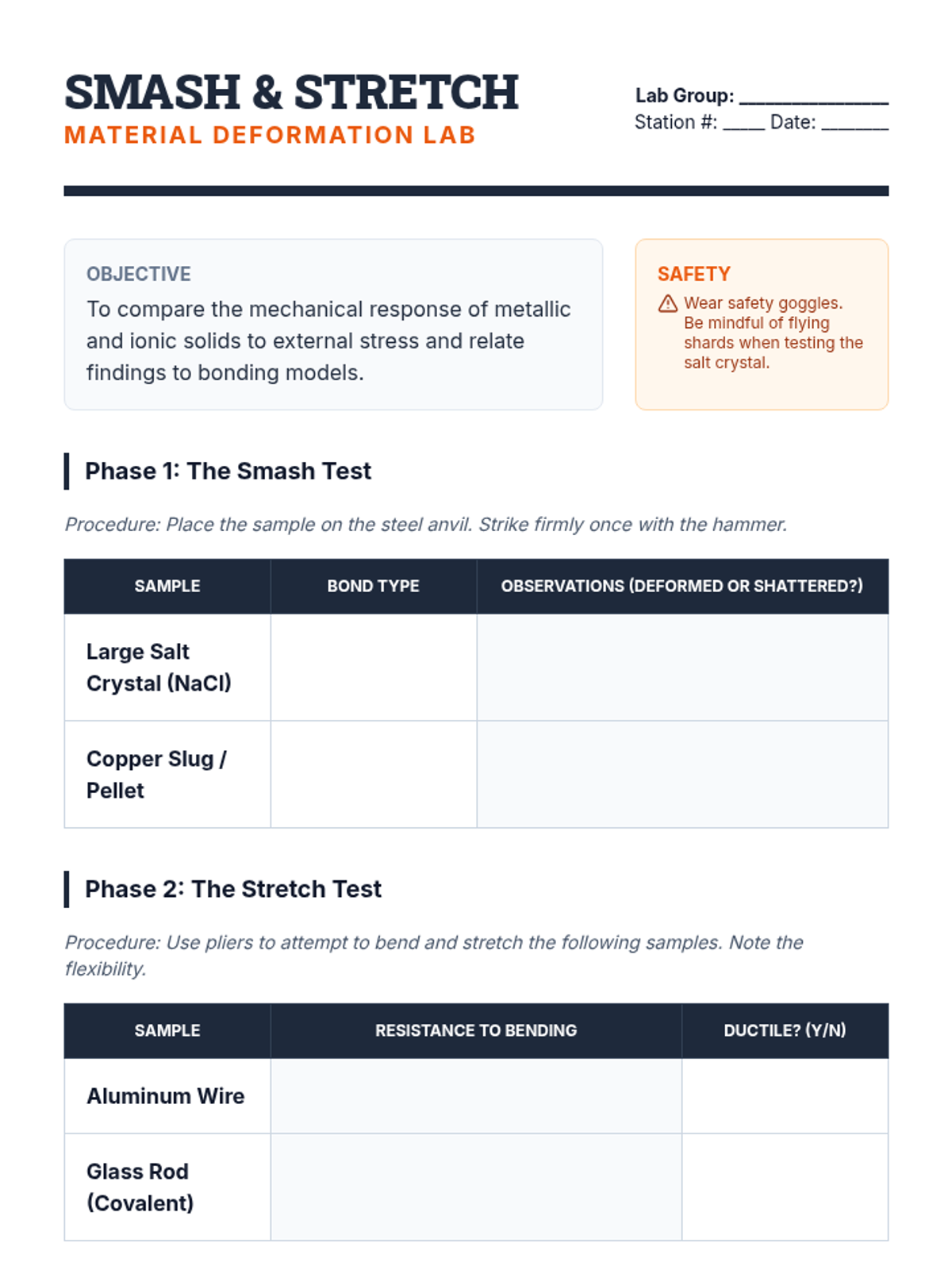

Smash and Stretch Lab SMASH & STRETCH
Material Deformation Lab
Lab Group: _________________ Station #: _____ Date: ________
Objective
To compare the mechanical response of metallic and ionic solids to external stress and relate findings to bonding models.
Safety
Wear safety goggles. Be mindful of flying shards when testing the salt crystal.
Phase 1: The Smash Test
Procedure: Place the sample on the steel anvil. Strike firmly once with the hammer.
Sample Bond Type Observations (Deformed or Shattered?) Large Salt Crystal (NaCl) Copper Slug / Pellet
Phase 2: The Stretch Test
Procedure: Use pliers to attempt to bend and stretch the following samples. Note the flexibility.
Sample Resistance to Bending Ductile? (Y/N) Aluminum Wire Glass Rod (Covalent)
Structural Analysis
1. Why did the Copper sample change shape while the Salt sample turned into powder? Refer to "sliding planes" in your answer.
2. Based on your "Stretch Test," define why ductility is a useful property for building a home's electrical grid.
Engineering Challenge
If you were designing a car's bumper, would you want a material that is brittle or malleable? Explain your choice briefly.
Alloy Architecture Slides L3: ALLOY ARCHITECTURE
Alloy Architecture
Why do we rarely use pure metals in engineering? The chemistry of mixing elements.
What is an Alloy?
"A mixture of two or more elements, where at least one is a metal."
Goal: Enhanced Properties
Stronger, harder, more corrosion-resistant, or cheaper than the pure metal.
Cu + Zn
Brass
Cu + Sn
Bronze
Fe + C
Steel
Structural Categories
1. Substitutional
Atoms of the solute take the place of solvent atoms in the lattice. (Atoms are similar in size).
Example: Brass (Cu/Zn)
2. Interstitial
Smaller atoms fit into the spaces (interstices) between larger atoms.
Example: Steel (Fe/C)
The Geometry of Strength
In a pure metal, planes of atoms slide easily (Malleable).
In an alloy, different-sized atoms **disrupt the regular lattice**, making it much harder for planes to slide past each other.
Result: The metal becomes significantly **harder** and **less malleable**.
The Gold Standard
Pure gold (24k) is too soft for everyday jewelry. It would scratch and warp immediately.
18k Gold Alloy:
75% Gold + 25% Silver/Copper.
Alloying for Durability

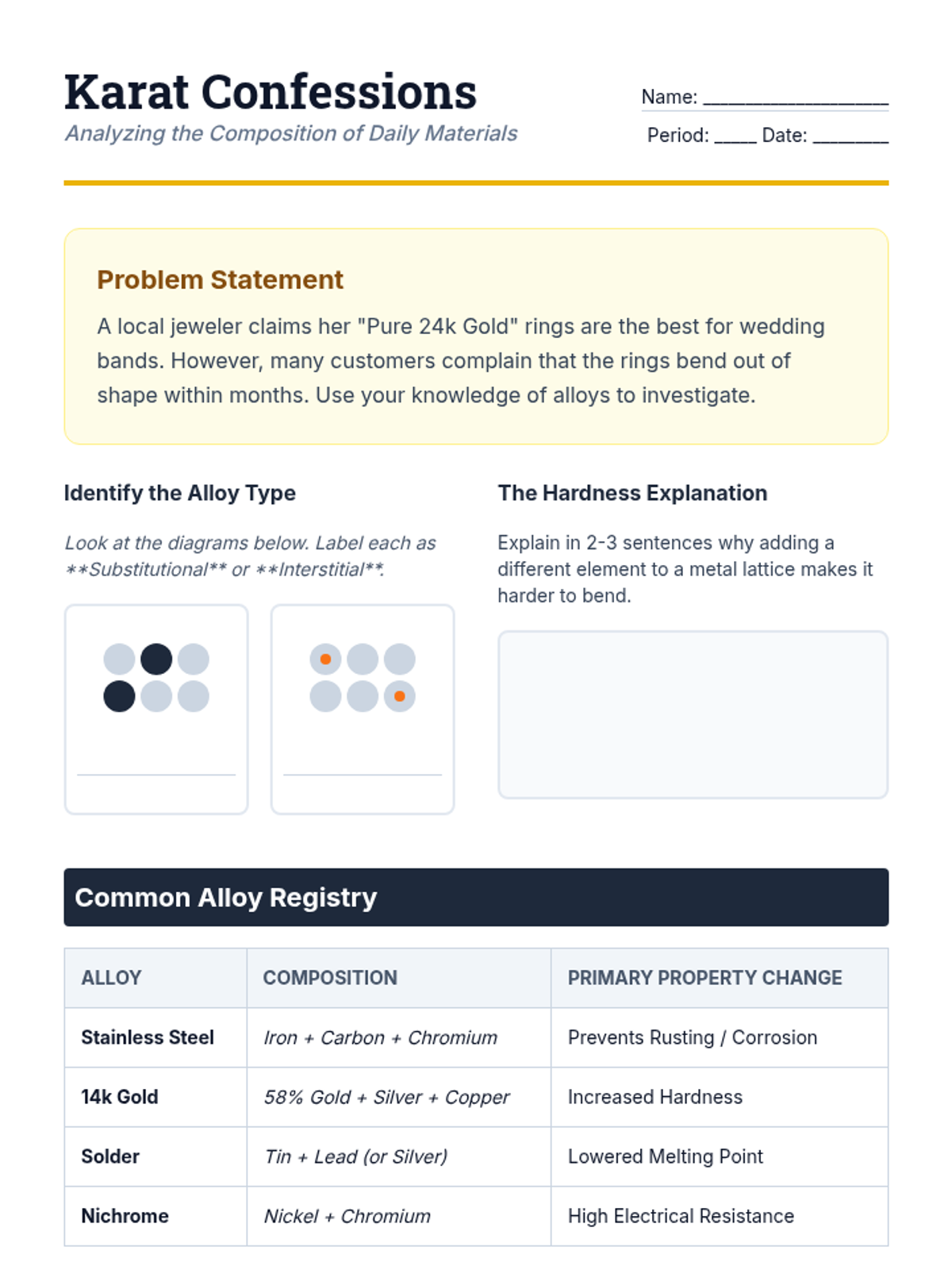

Karat Confessions Worksheet Karat Confessions
Analyzing the Composition of Daily Materials
Name: ______________________
Period: _____ Date: _________
Problem Statement
A local jeweler claims her "Pure 24k Gold" rings are the best for wedding bands. However, many customers complain that the rings bend out of shape within months. Use your knowledge of alloys to investigate.
Identify the Alloy Type
Look at the diagrams below. Label each as **Substitutional** or **Interstitial**.
The Hardness Explanation
Explain in 2-3 sentences why adding a different element to a metal lattice makes it harder to bend.
Common Alloy Registry
Alloy Composition Primary Property Change Stainless Steel Iron + Carbon + Chromium Prevents Rusting / Corrosion 14k Gold 58% Gold + Silver + Copper Increased Hardness Solder Tin + Lead (or Silver) Lowered Melting Point Nichrome Nickel + Chromium High Electrical Resistance
Scenario: Aerospace Engineering
You need a metal for a spacecraft that is very light but also very strong. Pure Aluminum is light but soft. Which alloying strategy would you use, and why?
© Materials Chemistry Institute | Lesson 3 | Unit: Metallic Bonding
Forging History Slides THE IRON AGE 2.0
Steel Production & Carbon Modification
The Carbon Connection
Pure Iron (Fe):
Soft, ductile, and easily rusts. Not strong enough for skyscrapers or swords.
Steel (Alloy):
Iron + a tiny amount of **Carbon (0.1% to 2%)**. Carbon atoms fit in the interstitial spaces of iron.
Interstitial Steel Lattice
Finding the Balance
Low Carbon
High Carbon
Mild Steel
Bridges, Cars
Cast Iron
Cookware, Brittle
More Carbon = Increased Hardness & Strength
More Carbon = Decreased Ductility (Brittle)
Heat Treatment & Tempering
Quenching
Rapid cooling in water/oil. Freezes carbon in place. Makes steel **extremely hard but brittle**.
Annealing
Slow cooling. Allows crystal lattice to reorganize perfectly. Makes steel **softer and more ductile**.
Tempering
Reheating quenched steel to a lower temp. Finds the **sweet spot** between hardness and toughness.
Case Study Hook
The Sword in the Stone
Ancient blacksmiths didn't know about atoms, but they knew that steel "remembered" its history. By folding iron in a charcoal fire, they were accidentally injecting carbon into the lattice.
Chemistry vs. Folklore

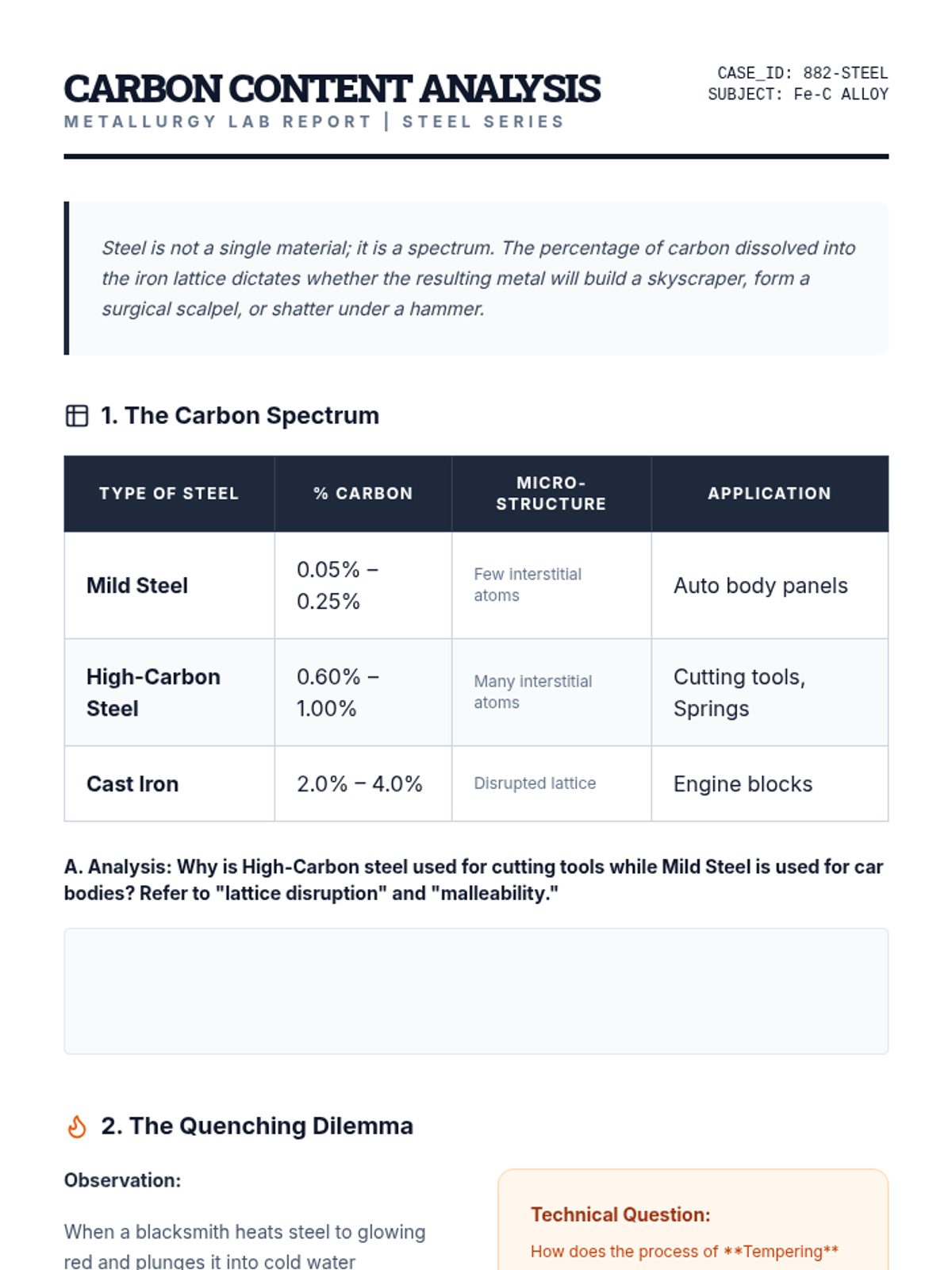

Carbon Content Case Study Carbon Content Analysis
Metallurgy Lab Report | Steel Series
CASE_ID: 882-STEEL
SUBJECT: Fe-C ALLOY
Steel is not a single material; it is a spectrum. The percentage of carbon dissolved into the iron lattice dictates whether the resulting metal will build a skyscraper, form a surgical scalpel, or shatter under a hammer.
1. The Carbon Spectrum
Type of Steel % Carbon Micro-Structure Application Mild Steel 0.05% – 0.25% Few interstitial atoms Auto body panels High-Carbon Steel 0.60% – 1.00% Many interstitial atoms Cutting tools, Springs Cast Iron 2.0% – 4.0% Disrupted lattice Engine blocks
A. Analysis: Why is High-Carbon steel used for cutting tools while Mild Steel is used for car bodies? Refer to "lattice disruption" and "malleability."
2. The Quenching Dilemma
Observation:
When a blacksmith heats steel to glowing red and plunges it into cold water (Quenching), the carbon atoms are "trapped" in the lattice. This prevents the iron planes from sliding entirely.
Result: The steel is now hard enough to cut glass, but it will shatter if dropped on a concrete floor.
Technical Question:
How does the process of **Tempering** (reheating to a lower temperature) fix the brittleness caused by quenching?
3. Modification Selection
Select the best modification for the following engineering needs:
Need: High-Strength Bridge Cable
14k Gold Alloy
Mild Steel (Low Carbon)
High-Carbon Steel (Tempered)
Need: Rust-Resistant Sink
Pure Iron
Stainless Steel (+Chromium)
Cast Iron
Aerospace RFP Slides MISSION BRIEFING
Project Alloy
Designing the next generation of industrial materials.
Request for Proposal (RFP)
To: Advanced Materials Engineering Team
"We need a new alloy for the landing struts of the **Mars Rover 2028**. The material must survive extreme cold (-125°C), high-impact landings, and avoid rusting in the presence of perchlorate salts."
Material Requirements
Hardness
Must withstand high-pressure impact without warping.
Density
Every gram costs fuel. Needs a high strength-to-weight ratio.
Corrosion
Must be chemically inert to Martian oxidants.
Engineering Toolbox
1
Substitutional Alloying
Replacing atoms with similar-sized elements (e.g., Titanium + Aluminum).
2
Interstitial Alloying
Adding small atoms (Carbon, Nitrogen) to block sliding planes.
"Success isn't just picking the elements. It's explaining **why** the bonding architecture solves the problem."
Go Forth & Forge
Complete the **Alloy Blueprint Proposal** in your lab groups. Your proposal will be evaluated based on chemical accuracy and engineering logic.
Begin Design Phase

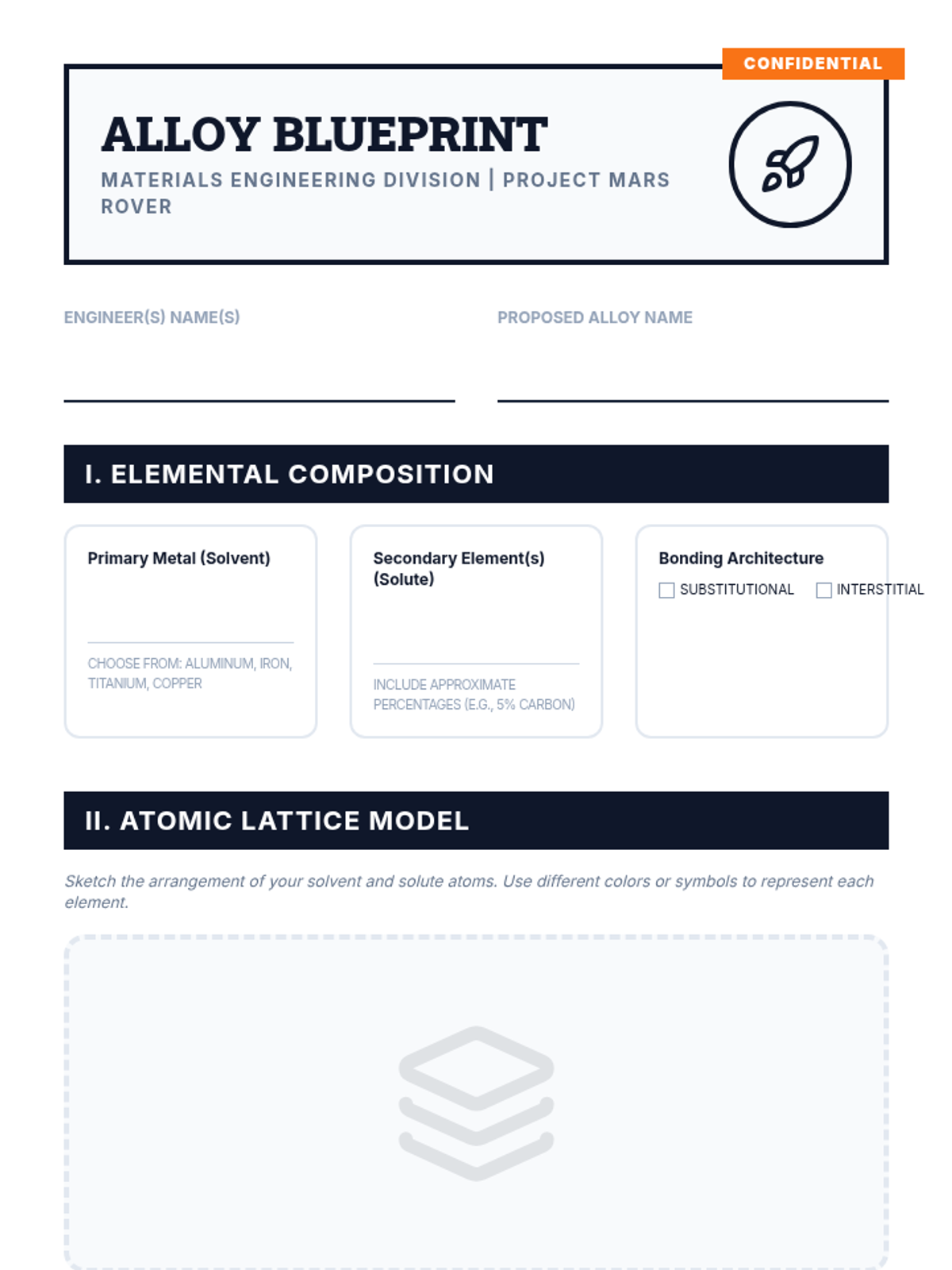

Alloy Blueprint Proposal Confidential
Alloy Blueprint
Materials Engineering Division | Project Mars Rover
Engineer(s) Name(s)
Proposed Alloy Name
I. Elemental Composition
Primary Metal (Solvent)
Choose from: Aluminum, Iron, Titanium, Copper
Secondary Element(s) (Solute)
Include approximate percentages (e.g., 5% Carbon)
Bonding Architecture
Substitutional
Interstitial
II. Atomic Lattice Model
Sketch the arrangement of your solvent and solute atoms. Use different colors or symbols to represent each element.
III. Justification
1. How does your selected composition solve the Mars Rover's problem with high-impact landings (Hardness)?
2. Explain why your alloy is resistant to the corrosive Martian environment.
Approved by Chief Scientist

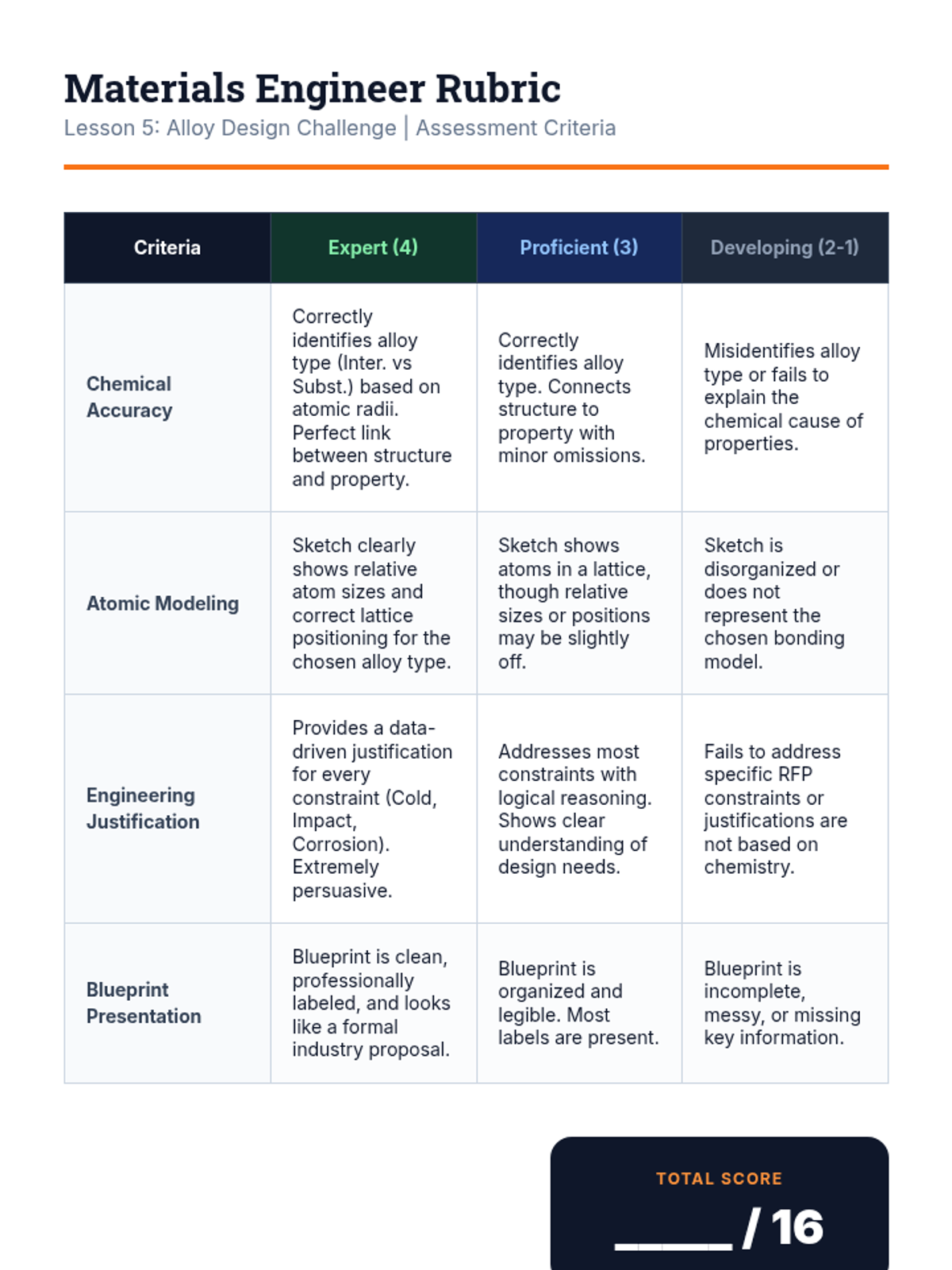

Materials Engineer Rubric Materials Engineer Rubric
Lesson 5: Alloy Design Challenge | Assessment Criteria
Criteria Expert (4) Proficient (3) Developing (2-1) Chemical Accuracy Correctly identifies alloy type (Inter. vs Subst.) based on atomic radii. Perfect link between structure and property. Correctly identifies alloy type. Connects structure to property with minor omissions. Misidentifies alloy type or fails to explain the chemical cause of properties. Atomic Modeling Sketch clearly shows relative atom sizes and correct lattice positioning for the chosen alloy type. Sketch shows atoms in a lattice, though relative sizes or positions may be slightly off. Sketch is disorganized or does not represent the chosen bonding model. Engineering Justification Provides a data-driven justification for every constraint (Cold, Impact, Corrosion). Extremely persuasive. Addresses most constraints with logical reasoning. Shows clear understanding of design needs. Fails to address specific RFP constraints or justifications are not based on chemistry. Blueprint Presentation Blueprint is clean, professionally labeled, and looks like a formal industry proposal. Blueprint is organized and legible. Most labels are present. Blueprint is incomplete, messy, or missing key information.
Total Score
_____ / 16
Chief Engineer's Notes
16-14: Lead Engineer
13-11: Senior Scientist
10-8: Associate Designer
7-0: Junior Intern
