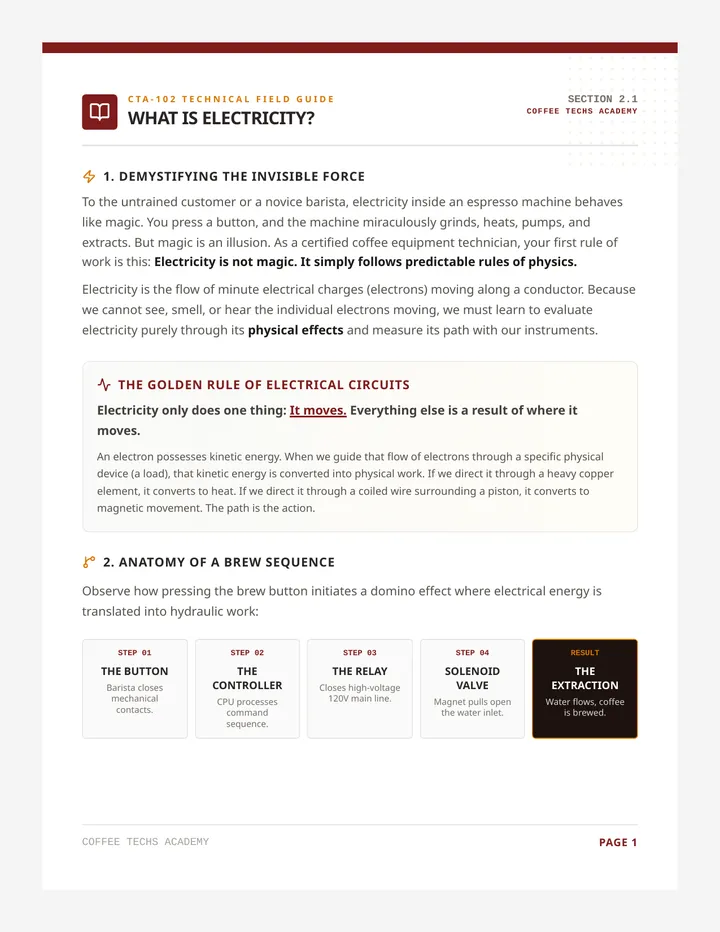

A comprehensive technical certification sequence designed to teach commercial coffee equipment technicians how to demystify electricity, safely troubleshoot components, and master electrical systems.
Listen for a distinct physical "click" when the electromagnetic coil energizes.
Visual (Light)
LED Displays, Control Indicators
Look for illuminating diagnostic lights on main board panels.

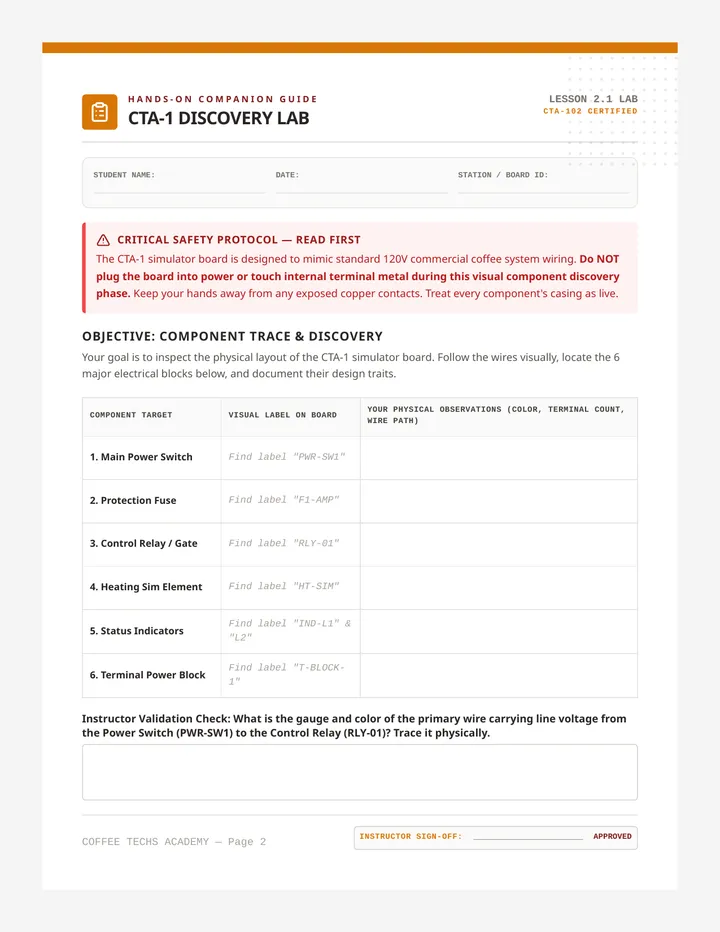

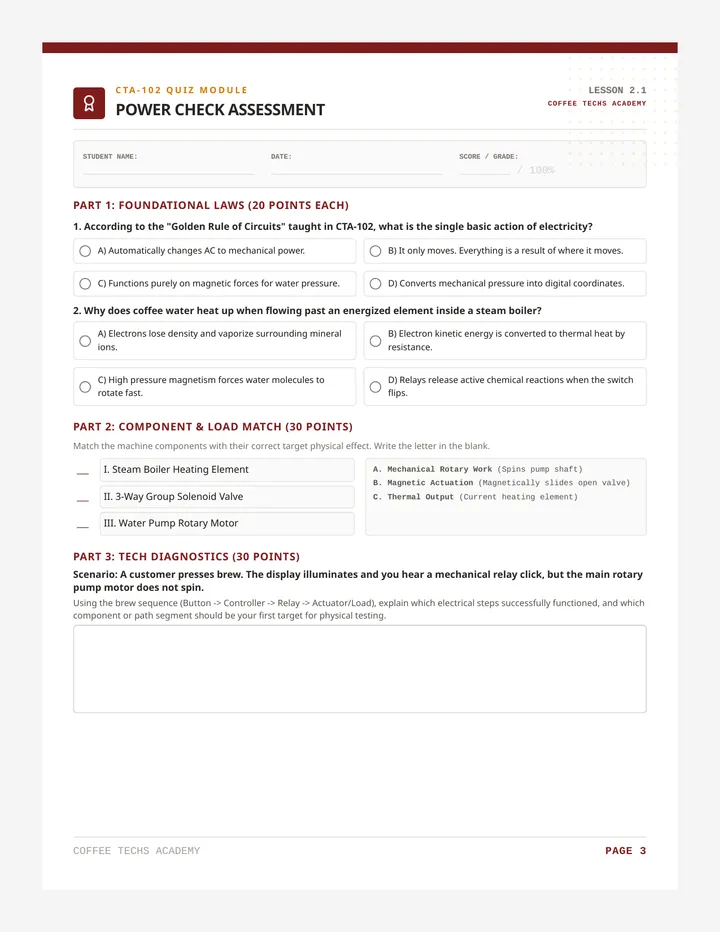

Independent Study Review
Complete the following questions as part of your training validation.
Q1: Explain the statement: "Electricity only does one thing." What defines its different outcomes?
Q2: Imagine a brew solenoid click is NOT heard when the brew button is pressed, but the pump motor turns on. What does this tell you about the signal path?
Q3: Why is it critical for coffee machine technicians to study electricity as physical effects?

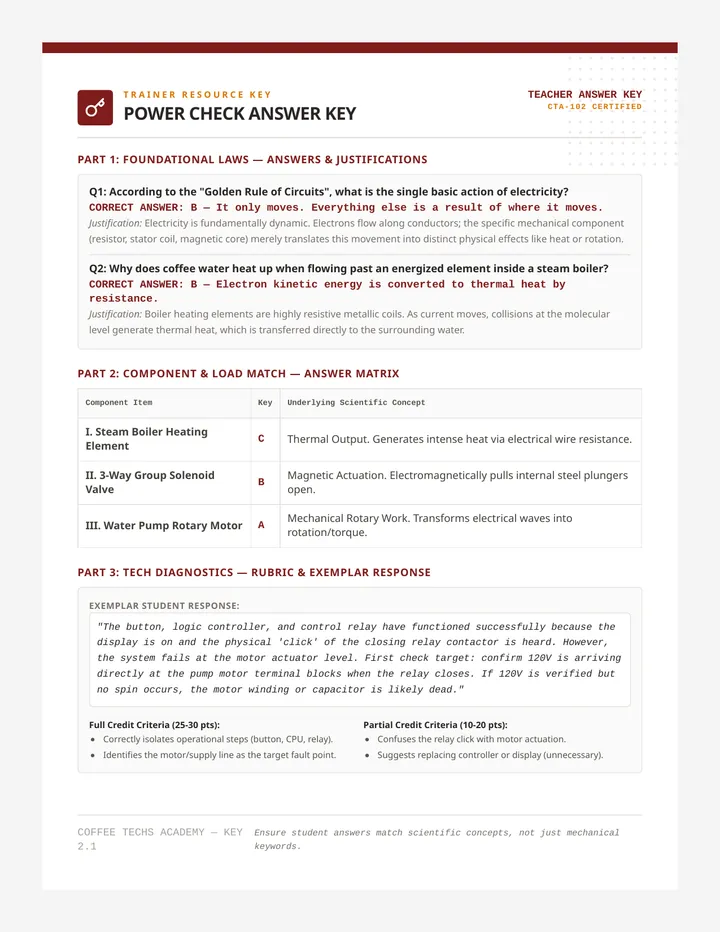

COFFEE TECHS ACADEMY Page 2
Solenoid & Relays
120V
Medium Load
Office drip brewers, commercial grinders, and logic power.
Standard Plug
208V
Heavy Power
Commercial multi-group espresso machines & large boilers.
Commercial Power
Warning: Plugs are physically different to prevent plugging a 120V brewer into a 208V high-voltage socket!
SLIDE 4 OF 6

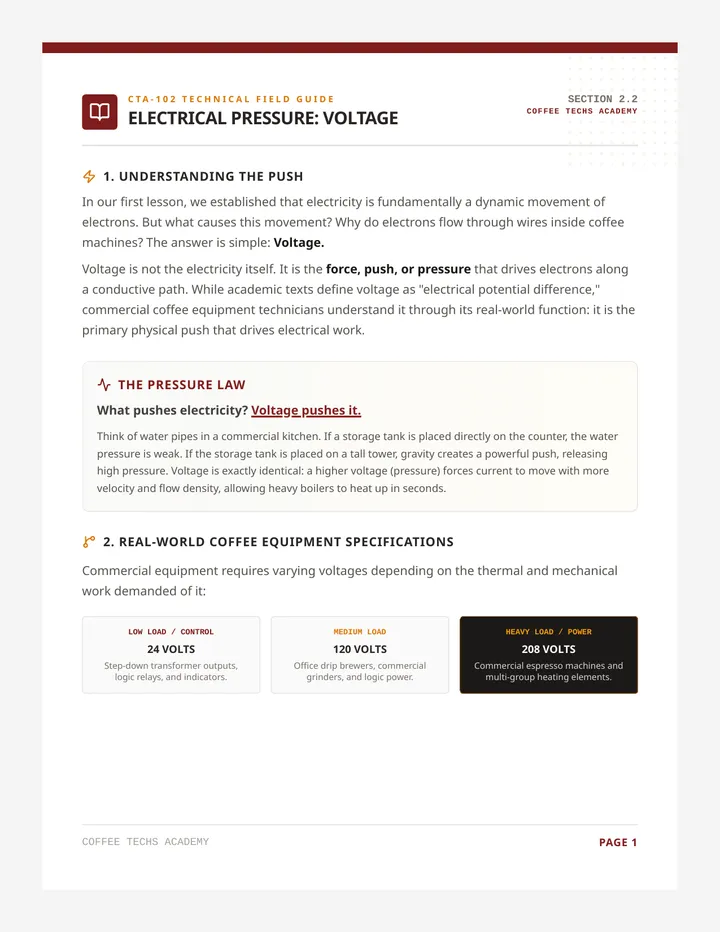

04 / The Pressure Gauge CTA-102 // COFFEE TECHS ACADEMY
Field Tool
Measuring
The Push
How do we verify electrical push? With a Multimeter.
Just like tapping a mechanical water pressure gauge into a hydraulic copper tube, we tap our multimeter probes onto terminals to verify the push across components.
How to Probe
Unlike current meters, we measure voltage in parallel. This means we touch probes to both sides of the load, without breaking the wires.
MEASUREMENT STEP CRITICAL DETAIL
Black Probe Connect to Common (COM) socket
Red Probe Connect to Volts (V) socket
Safety Check Never cross live probe tips
Never allow a probe tip to bridge a live hot terminal to ground. That results in direct short-circuit explosions!
SLIDE 4 OF 6
05 / Lab Briefing CTA-102 // COFFEE TECHS ACADEMY

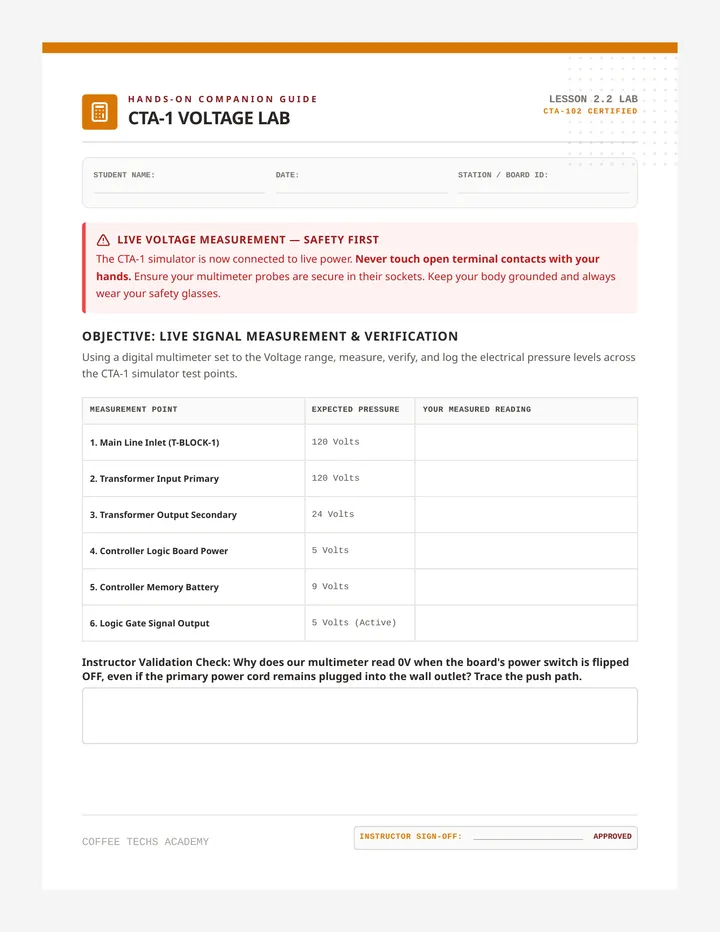

CTA-1 Live Measurement
Voltage Measuring
Practice
It is time to energize the board. Grab your digital multimeter and prepare your physical CTA-1 Voltage Lab sheet.
CRITICAL LAB SAFETY:
Never cross your probes. Never let probe tips touch each other or touch grounding metal simultaneously. Always secure your workspace and wear insulation safety glasses.
Measurements to Log on CTA-1:
120 Volts Main Line
24 Volts Transformer
9 Volts Backup Battery
5 Volts logic Output
Transformer Input
Controller logic Gate
Once logged, present your multimeter readings to your instructor for active validation and signature sign-off.
Power on your CTA-1 test station. Tune your multimeter dial to Volts and begin with Step 1!
SLIDE 5 OF 5
120 Volts (Full pressure pushes against the open gap)
Transformer Secondary
Across secondary output lines
24 Volts (Low-voltage logic pressure)

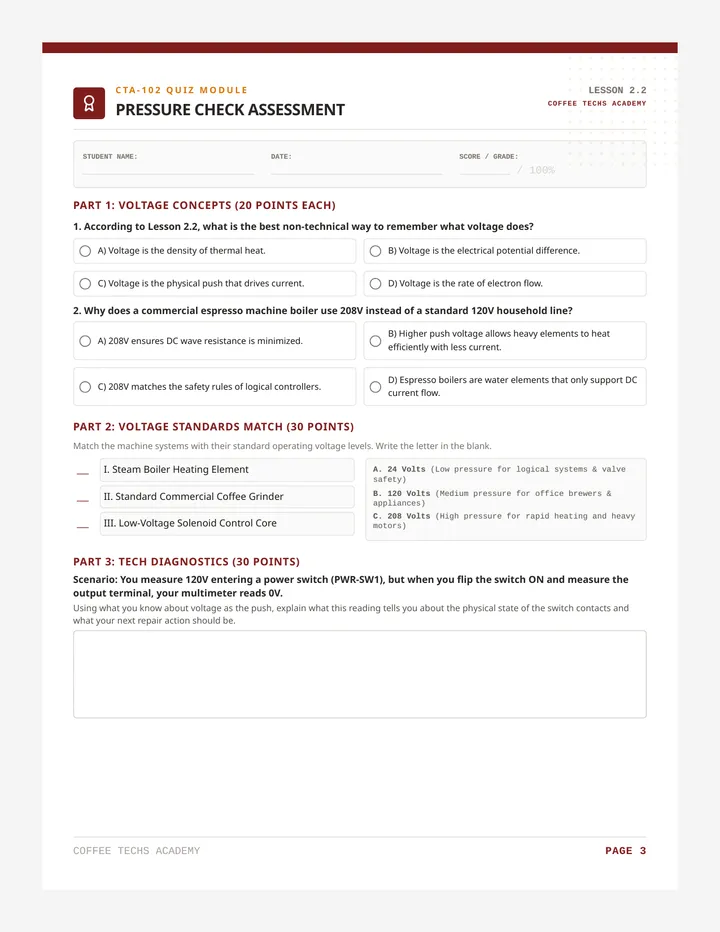

Independent Study Review
Complete the following questions to solidify your mastery of voltage.
Q1: How does the "Water Tower" height analogy translate to a commercial boiler? Why does a 208V element heat water faster than a 120V element?
Q2: When measuring voltage across a closed power switch, why does a healthy switch display 0V on your multimeter? Trace the path of the push.
Q3: Explain the safety rule of probing live terminals. Why must a technician never allow their probe tips to touch each other while testing an energized terminal?
COFFEE TECHS ACADEMY Page 2

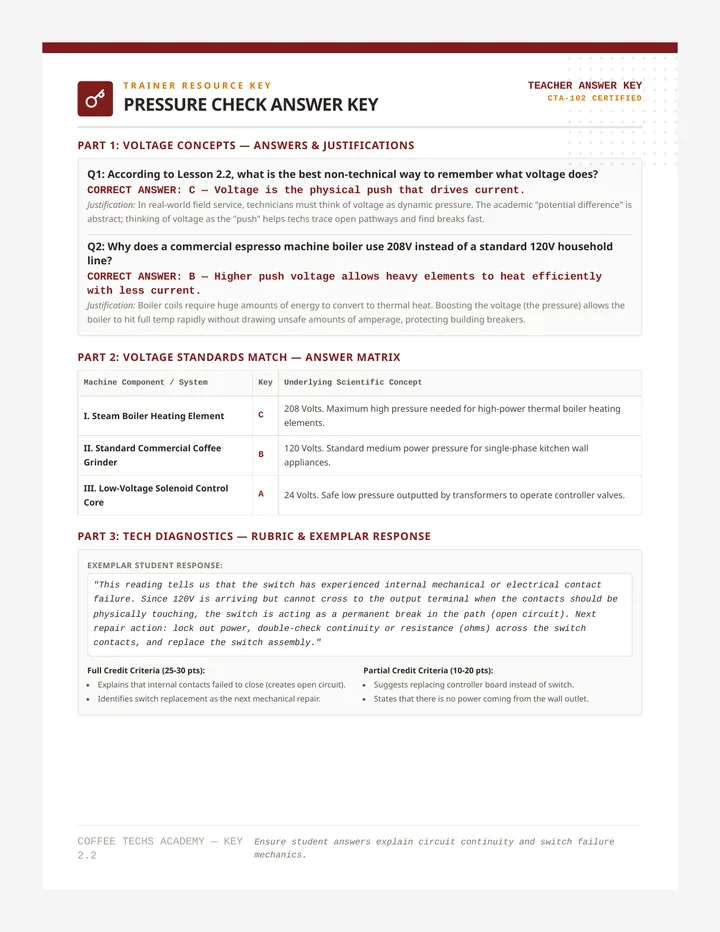

COFFEE TECHS ACADEMY — KEY 2.2
Ensure student answers explain circuit continuity and switch failure mechanics.
DC Flow
How do the electrons travel inside the circuit? Depending on the system's needs, electricity can either alternate back and forth or flow in a steady, single flat line.
AC
Alternating Current
Electrons reverse direction rapidly (60 times a second / 60 Hz). Standard utility building power. Ideal for powering heavy loads like heating coils and rotary pump motors.
DC
Direct Current
Electrons flow continuously in one single direction. Generated by backup batteries or microprocessor transformers. Powers logic boards, controller displays, and sensors.
Boilers and pumps require raw AC volume power; digital temperature brains need steady DC logic paths.
SLIDE 4 OF 6
04 / Measuring Current CTA-102 // COFFEE TECHS ACADEMY

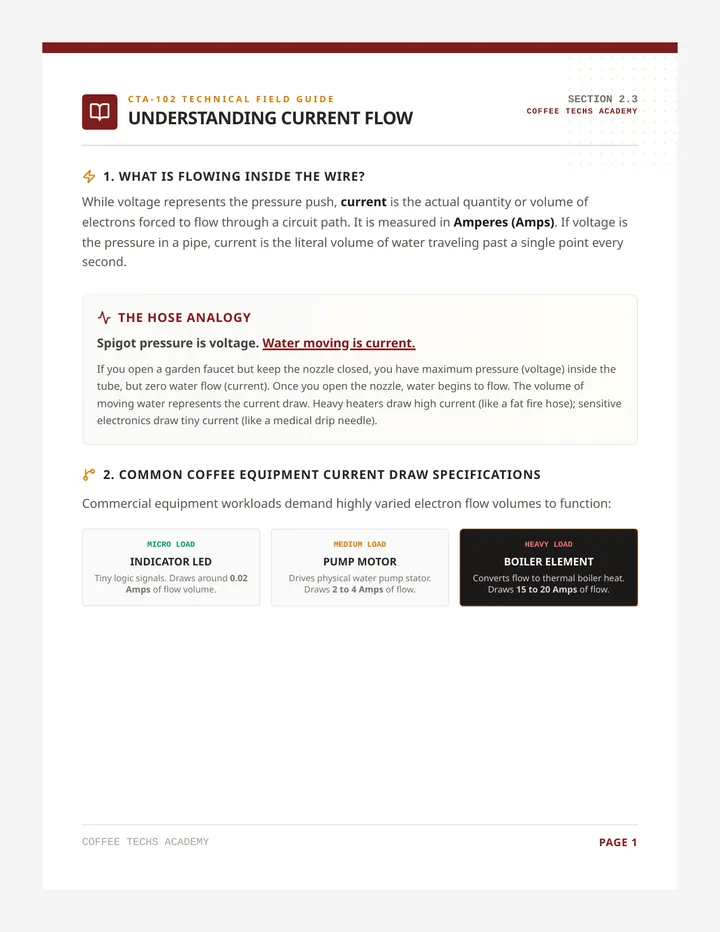

Measuring Flow
How We Measure
Electron Flow
Unlike voltage, which is measured parallel (across) components, current represents actual flow volume inside the pipe. This changes our measurement method entirely.
Method A: Inline Series. We must break the wire path open and place the multimeter directly in-line so current flows through the meter.
Method B: Clamp-On Meter (Easiest). We clamp our meter jaw around a single hot wire, measuring the electromagnetic field created by the moving flow.
Ammeter Connections
When connecting inline:
Red probe moves to the 10A (Amps) jack.
Black probe stays in the COM (Common) jack.
We select A~ (for AC loads) on the dial.
Caution: Probing in parallel while set to Amp mode causes short-circuits and blows the internal meter fuse instantly!
Always isolate the circuit first, verify correct meter connections, and then safely test current draw.
SLIDE 5 OF 6
05 / Lab Briefing CTA-102 // COFFEE TECHS ACADEMY

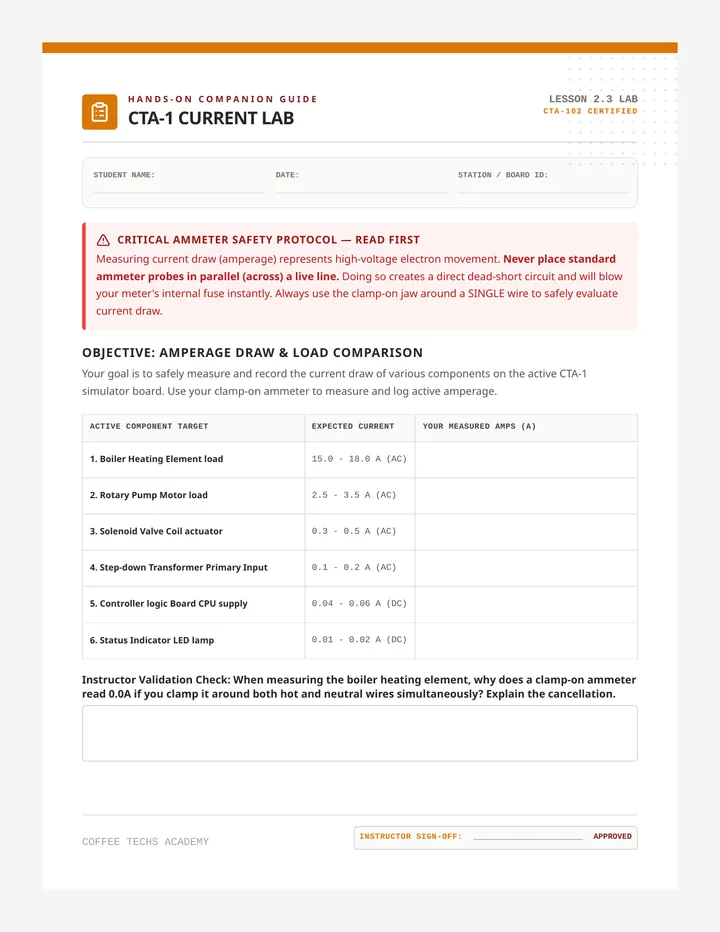

CTA-1 Current Draw Lab
Current Measuring
Practice
It is time to measure active electron flow. Grab your clamp-on ammeter and prepare your physical CTA-1 Current Lab sheet.
CRITICAL LAB SAFETY:
Never clamp around multiple wires simultaneously (neutral and hot cancel each other out, reading 0A). Clamp around a SINGLE hot line wire only.
Measurements to Log on CTA-1:
Heating element load
Rotary Pump motor
Solenoid Valve coil
Status Indicator LED
Transformer Primary
Logic Board supply
Once logged, present your ammeter flow calculations to your instructor for active validation and sign-off.
Power on your CTA-1 test station. Open your ammeter clamp and isolate your first wire line!
SLIDE 6 OF 6

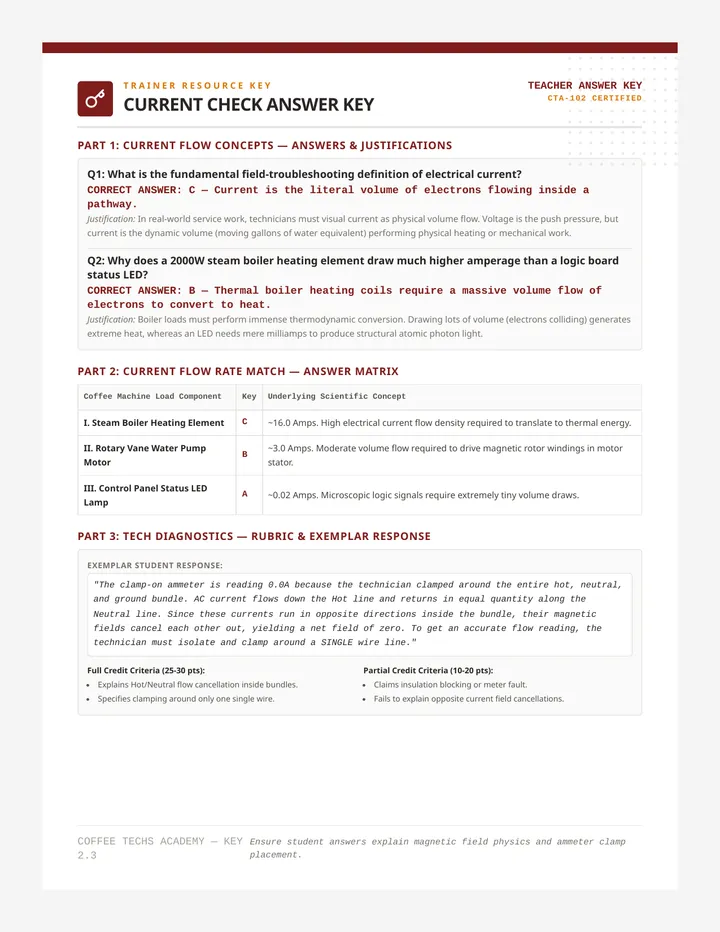

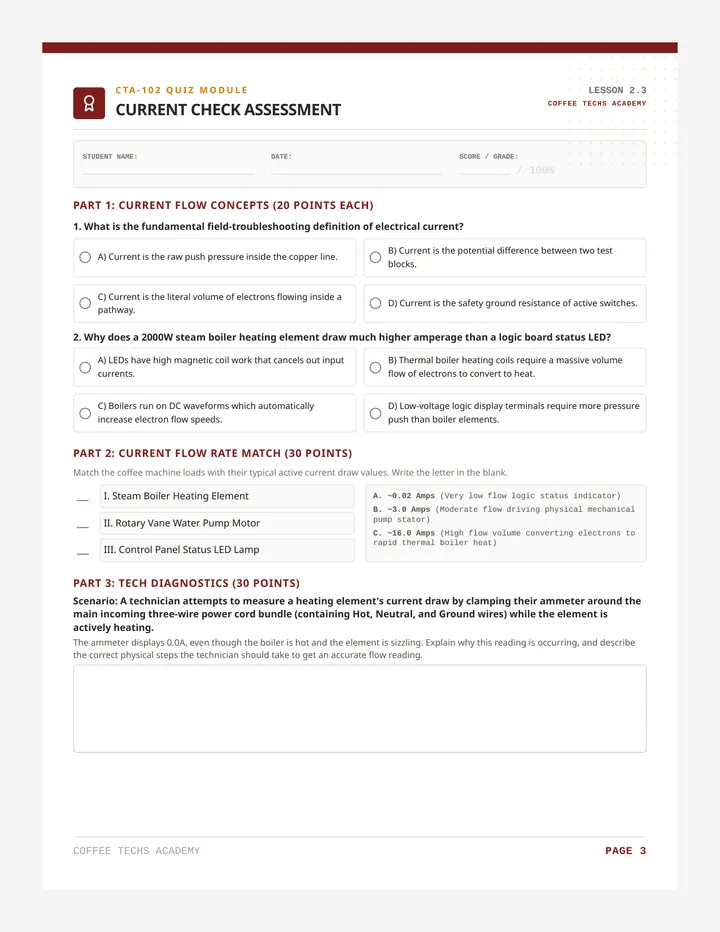

Q3: When using a clamp-on ammeter to test a machine, why will clamping your meter jaws around both hot and neutral wires simultaneously result in a 0A reading?
COFFEE TECHS ACADEMY Page 2
COFFEE TECHS ACADEMY — KEY 2.3
Ensure student answers explain magnetic field physics and ammeter clamp placement.
Pathway State
Standard Reading
Field Diagnostic Meaning
Continuity
0.0 Ω (or beep)
Healthy, unbroken path. Electrons flow freely. Switch is closed or fuse is good.
Open Circuit
O.L (Infinity)
Broken path, blown safety fuse, or open switch. Current flow volume is completely blocked.

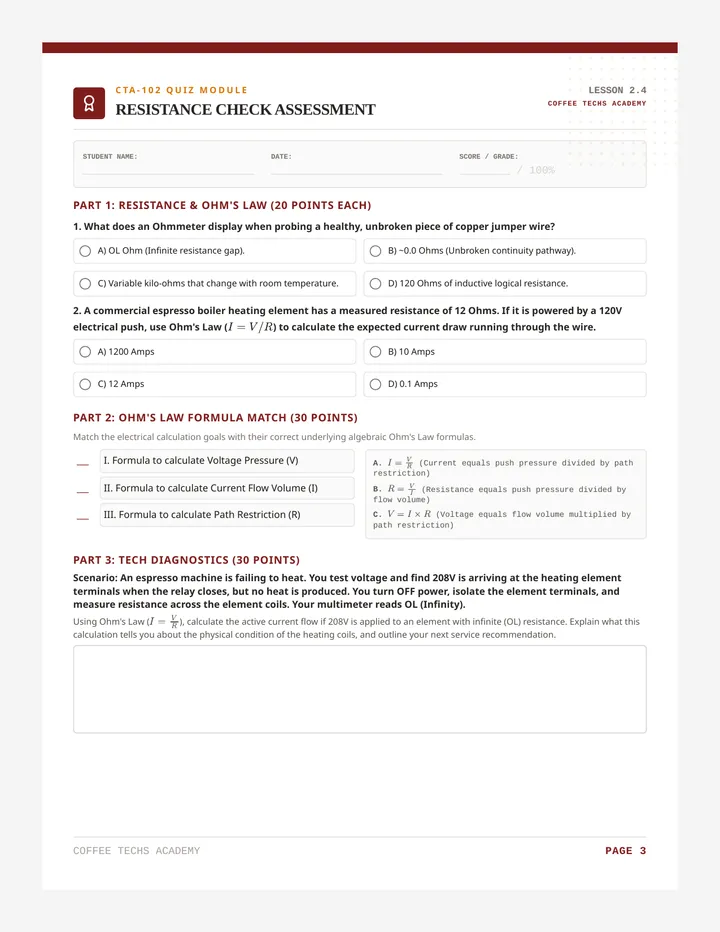

Independent Study Review
Complete the following questions to validate your troubleshooting skills.
Q1: Using the "River and Twin Pipes" analogy, explain why current travels through both a low-resistance element and a high-resistance thermistor simultaneously when both are connected in parallel, rather than ignoring the thermistor.
Q2: A glass cartridge fuse is designed to protect electrical paths. What resistance reading (in Ohms) indicates a healthy fuse, and what reading indicates a blown fuse? Explain the physical difference.
Q3: A solenoid coil is powered by a 120V line and logs an active flow of 0.4 Amps. Using Ohm's Law (\(R = V / I\)), calculate the expected resistance of the coil. Show your work.
COFFEE TECHS ACADEMY Page 2
Fails to utilize Ohm's Law algebraic division inside response.

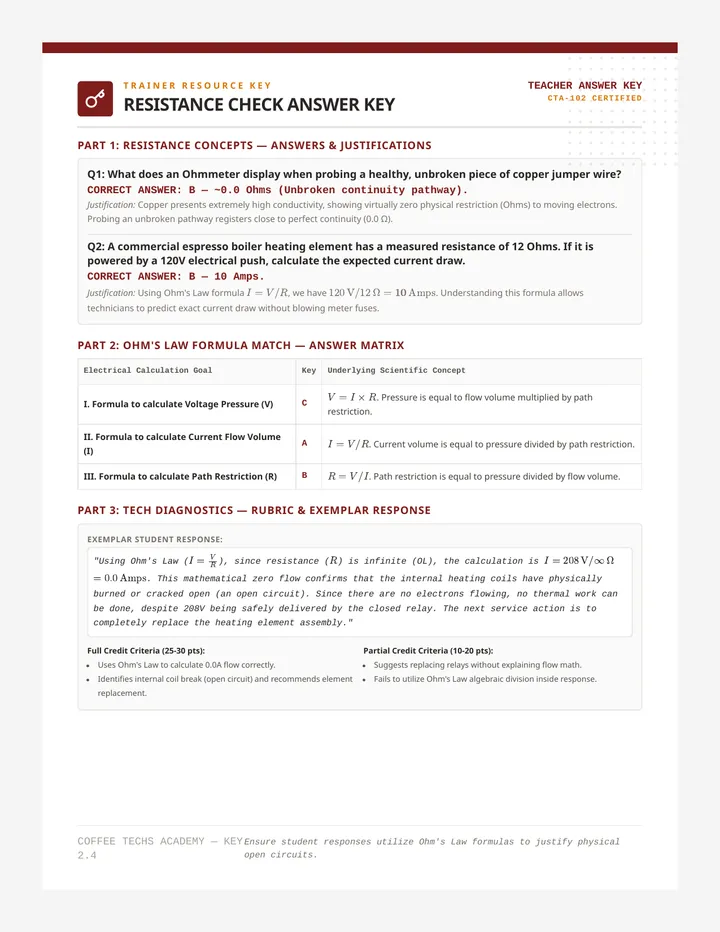

COFFEE TECHS ACADEMY — KEY 2.4
Ensure student responses utilize Ohm's Law formulas to justify physical open circuits.

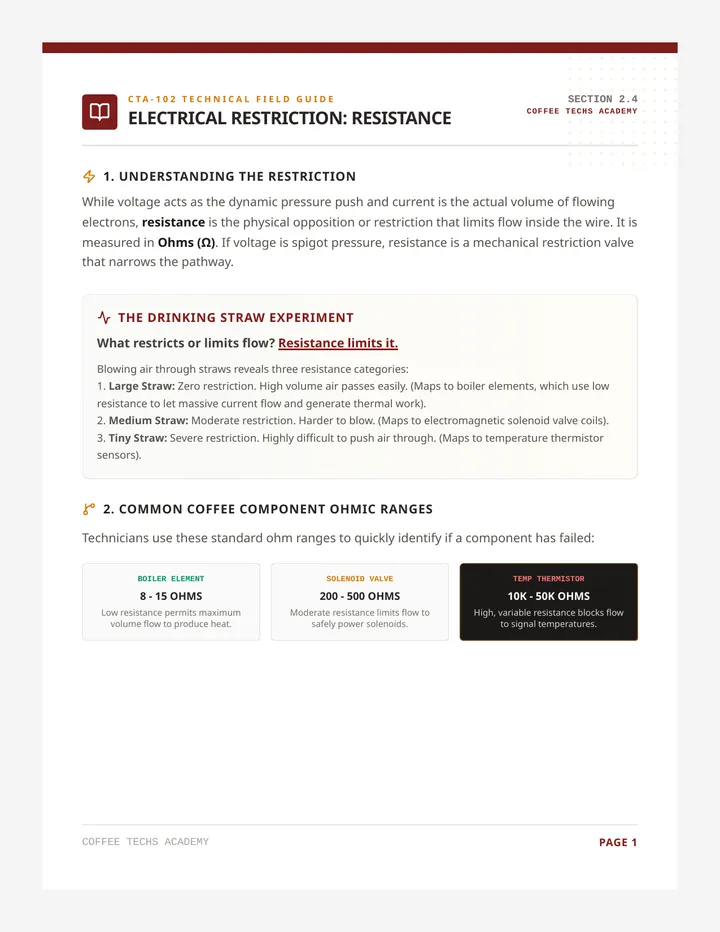

Heaters are designed with low resistance for heat; thermistors act as variable logic gates; corrosions are accidental restrictors!
SLIDE 3 OF 7
03 / The Mathematical Balance CTA-102 // COFFEE TECHS ACADEMY
Ohm's Law Formula
The Ohm's Law
Equation
\[V = I \times R\]
Voltage (\(V\)) pushes current. Current (\(I\)) is the electron flow. Resistance (\(R\)) restricts that flow. If voltage is constant, increasing resistance limits flow.
Mathematical Balance
Let's evaluate a 120V boiler element versus a 120V group solenoid valve:
COMPONENT RESISTANCE CALCULATED FLOW (I = V / R)
Boiler Heating Element 12 Ω \(120\,\text{V} / 12\,\Omega = \mathbf{10\,\text{Amps}}\)
Group Solenoid Valve 300 Ω \(120\,\text{V} / 300\,\Omega = \mathbf{0.4\,\text{Amps}}\)
Higher resistance means less electron flow. Use this formula on every service ticket to predict flow values!
SLIDE 4 OF 7
04 / Path Continuity CTA-102 // COFFEE TECHS ACADEMY
Binary Paths
Understanding
Continuity
When checking fuses, switches, or wire pathways, we evaluate the circuit using two primary states: Continuity (0 Ohms) and Open Circuit (Infinite/OL).
0 Ω
Continuity (Closed Path)
A solid, unbroken wire path. Resistance is virtually 0 Ohms. Moving electrons travel seamlessly from terminal to terminal.
OL Ω
Open Path (Infinite Resistance)
A broken path, open switch, or blown safety fuse. Resistance is infinite. Open gaps act as a brick wall that blocks electron flow completely.
A healthy switch toggles between 0 Ohms and OL. A healthy fuse must ALWAYS read 0 Ohms!
SLIDE 5 OF 7
05 / Measuring Resistance CTA-102 // COFFEE TECHS ACADEMY
Ohm Rules
How to Measure
Resistance Safely
Because your multimeter injects a tiny battery current to compute ohms, testing must follow very strict field procedures to prevent tool damage and false readings:
RULE #1: UNPLUG THE MACHINE!
Checking resistance on an active, live circuit will fry your multimeter's internal logical board or blow its micro-protection fuses instantly.
RULE #2: ISOLATE THE LOAD!
Disconnect at least one wire terminal from the load before probing. This prevents your meter from measuring alternate back-feed paths inside the cabinet.
Ohmmeter Setup
Red probe goes to the V/Ω socket.
Black probe stays in the COM socket.
Set dial to the Ω (Ohms) range setting.
Test probes together: must read 0.0 Ω (verifies healthy probes).
Probes apart: must read OL Ω (infinite air gap).
Unplug, isolate, check probes, then safely measure. Follow this sequence on every service ticket!
SLIDE 6 OF 7
05 / Lab Briefing CTA-102 // COFFEE TECHS ACADEMY

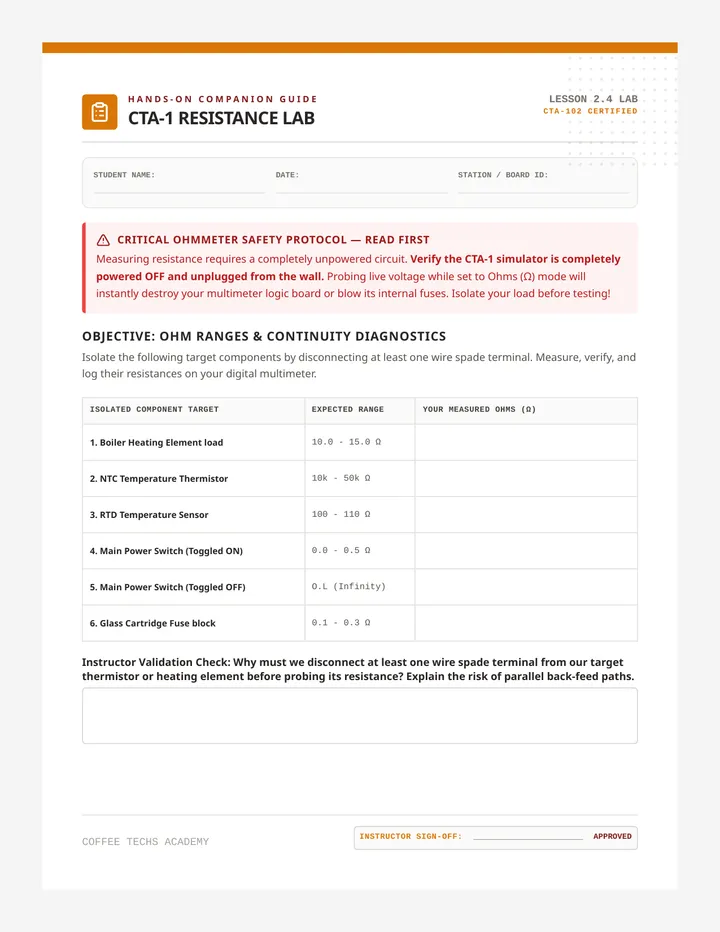

CTA-1 Ohm measurement
Resistance & Continuity
Practice
Secure the trainer power board. Turn the power switch OFF and unplug the board from the wall. Prepare your physical CTA-1 Resistance Lab sheet.
CRITICAL LAB SAFETY:
Never attempt to measure resistance on a live terminal. Verify 0V on your voltmeter first before switching your dial to Ohms mode.
Measurements to Log on CTA-1:
Heating element coil
Temperature thermistor
RTD temperature sensor
Toggled switch contacts
Glass cartridge fuse
Isolate & measure
Once logged, present your measured resistances and continuity logs to your instructor for active validation.
Lock out power station. Disconnect load terminals and begin measuring from Step 1!
SLIDE 7 OF 7
Heaters are designed with low resistance for heat; thermistors act as variable logic gates; corrosions are accidental restrictors!
SLIDE 3 OF 7
03 / The Mathematical Balance CTA-102 // COFFEE TECHS ACADEMY
Ohm's Law Formula
The Ohm's Law
Equation
\[V = I \times R\]
Voltage (\(V\)) pushes current. Current (\(I\)) is the electron flow. Resistance (\(R\)) restricts that flow. If voltage is constant, increasing resistance limits flow.
Mathematical Balance
Let's evaluate a 120V boiler element versus a 120V group solenoid valve:
COMPONENT RESISTANCE CALCULATED FLOW (I = V / R)
Boiler Heating Element 12 Ω \(120\,\text{V} / 12\,\Omega = \mathbf{10\,\text{Amps}}\)
Group Solenoid Valve 300 Ω \(120\,\text{V} / 300\,\Omega = \mathbf{0.4\,\text{Amps}}\)
Higher resistance means less electron flow. Use this formula on every service ticket to predict flow values!
SLIDE 4 OF 7
04 / Path Continuity CTA-102 // COFFEE TECHS ACADEMY
Binary Paths
Understanding
Continuity
When checking fuses, switches, or wire pathways, we evaluate the circuit using two primary states: Continuity (0 Ohms) and Open Circuit (Infinite/OL).
0 Ω
Continuity (Closed Path)
A solid, unbroken wire path. Resistance is virtually 0 Ohms. Moving electrons travel seamlessly from terminal to terminal.
OL Ω
Open Path (Infinite Resistance)
A broken path, open switch, or blown safety fuse. Resistance is infinite. Open gaps act as a brick wall that blocks electron flow completely.
A healthy switch toggles between 0 Ohms and OL. A healthy fuse must ALWAYS read 0 Ohms!
SLIDE 5 OF 7
05 / Measuring Resistance CTA-102 // COFFEE TECHS ACADEMY
Ohm Rules
How to Measure
Resistance Safely
Because your multimeter injects a tiny battery current to compute ohms, testing must follow very strict field procedures to prevent tool damage and false readings:
RULE #1: UNPLUG THE MACHINE!
Checking resistance on an active, live circuit will fry your multimeter's internal logical board or blow its micro-protection fuses instantly.
RULE #2: ISOLATE THE LOAD!
Disconnect at least one wire terminal from the load before probing. This prevents your meter from measuring alternate back-feed paths inside the cabinet.
Ohmmeter Setup
Red probe goes to the V/Ω socket.
Black probe stays in the COM socket.
Set dial to the Ω (Ohms) range setting.
Test probes together: must read 0.0 Ω (verifies healthy probes).
Probes apart: must read OL Ω (infinite air gap).
Unplug, isolate, check probes, then safely measure. Follow this sequence on every service ticket!
SLIDE 6 OF 7
05 / Lab Briefing CTA-102 // COFFEE TECHS ACADEMY
CTA-1 Ohm measurement
Resistance & Continuity
Practice
Secure the trainer power board. Turn the power switch OFF and unplug the board from the wall. Prepare your physical CTA-1 Resistance Lab sheet.
CRITICAL LAB SAFETY:
Never attempt to measure resistance on a live terminal. Verify 0V on your voltmeter first before switching your dial to Ohms mode.
Measurements to Log on CTA-1:
Heating element coil
Temperature thermistor
RTD temperature sensor
Toggled switch contacts
Glass cartridge fuse
Isolate & measure
Once logged, present your measured resistances and continuity logs to your instructor for active validation.
Lock out power station. Disconnect load terminals and begin measuring from Step 1!
SLIDE 7 OF 7
Heaters are designed with low resistance for heat; thermistors act as variable logic gates; corrosions are accidental restrictors!
SLIDE 3 OF 6
03 / Path Continuity CTA-102 // COFFEE TECHS ACADEMY
Binary Paths
Understanding
Continuity
When checking fuses, switches, or wire pathways, we evaluate the circuit using two primary states: Continuity (0 Ohms) and Open Circuit (Infinite/OL).
0 Ω
Continuity (Closed Path)
A solid, unbroken wire path. Resistance is virtually 0 Ohms. Moving electrons travel seamlessly from terminal to terminal.
OL Ω
Open Path (Infinite Resistance)
A broken path, open switch, or blown safety fuse. Resistance is infinite. Open gaps act as a brick wall that blocks electron flow completely.
A healthy switch toggles between 0 Ohms and OL. A healthy fuse must ALWAYS read 0 Ohms!
SLIDE 4 OF 6
04 / Measuring Resistance CTA-102 // COFFEE TECHS ACADEMY
Ohm Rules
How to Measure
Resistance Safely
Because your multimeter injects a tiny battery current to compute ohms, testing must follow very strict field procedures to prevent tool damage and false readings:
RULE #1: UNPLUG THE MACHINE!
Checking resistance on an active, live circuit will fry your multimeter's internal logical board or blow its micro-protection fuses instantly.
RULE #2: ISOLATE THE LOAD!
Disconnect at least one wire terminal from the load before probing. This prevents your meter from measuring alternate back-feed paths inside the cabinet.
Ohmmeter Setup
Red probe goes to the V/Ω socket.
Black probe stays in the COM socket.
Set dial to the Ω (Ohms) range setting.
Test probes together: must read 0.0 Ω (verifies healthy probes).
Probes apart: must read OL Ω (infinite air gap).
Unplug, isolate, check probes, then safely measure. Follow this sequence on every service ticket!
SLIDE 5 OF 6
05 / Lab Briefing CTA-102 // COFFEE TECHS ACADEMY
CTA-1 Ohm measurement
Resistance & Continuity
Practice
Secure the trainer power board. Turn the power switch OFF and unplug the board from the wall. Prepare your physical CTA-1 Resistance Lab sheet.
CRITICAL LAB SAFETY:
Never attempt to measure resistance on a live terminal. Verify 0V on your voltmeter first before switching your dial to Ohms mode.
Measurements to Log on CTA-1:
Heating element coil
Temperature thermistor
RTD temperature sensor
Toggled switch contacts
Glass cartridge fuse
Isolate & measure
Once logged, present your measured resistances and continuity logs to your instructor for active validation.
Lock out power station. Disconnect load terminals and begin measuring from Step 1!
SLIDE 6 OF 6

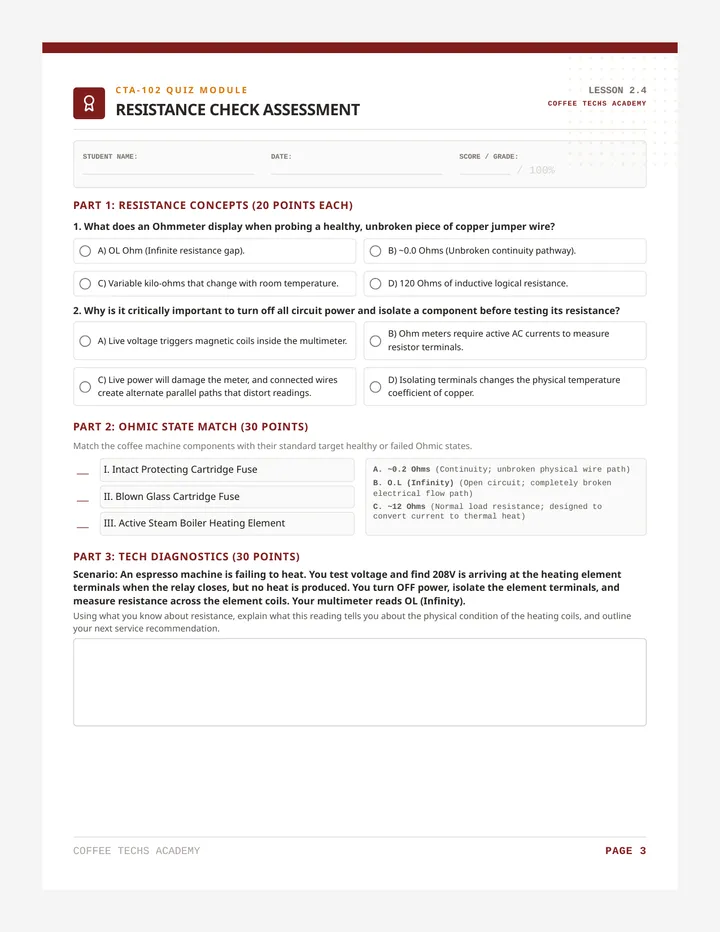

Q2: A glass cartridge fuse is designed to protect electrical paths. What resistance reading (in Ohms) indicates a healthy fuse, and what reading indicates a blown fuse? Explain the physical difference.
Q3: If you measure resistance across a temperature thermistor at room temp and get 10k Ohms, then pour hot water over it and get 2k Ohms, explain what is physically happening to its electrical "gate" restriction.
COFFEE TECHS ACADEMY Page 2
Claims the meter fuses are blown, causing a false OL.
COFFEE TECHS ACADEMY — KEY 2.4
Ensure student answers isolate the open heater coil as the root physical cause.
Work vs. Heat Conversion
How electrical energy transforms into physical outputs inside a commercial cafe.
THERMAL WORK
Boiler elements
100% conversion of electrical flow volume directly into thermal heat. Moves water from room temp to boiling in seconds.
Heat Generation
MECHANICAL WORK
Pump Motors
Converts flow volume into rotary shaft motion. Spins copper vanes to create 9 bars of physical hydraulic extraction force.
Mechanical Motion
OPTICAL & LOGIC
LED displays
Transforms micro-current signals into visible light waves. Feeds temperature numbers (PIDs) and menus to baristas.
Logical Status
Understanding these conversions helps technicians trace down which energy state is failing inside the machine.
SLIDE 4 OF 6
04 / Field Case Study CTA-102 // COFFEE TECHS ACADEMY
Heater Comparison
Boiling Speed
& Wattage
A customer complains that their office drip brewer takes 8 minutes to heat a single pot of water, while the coffee shop espresso machine across the street can steam milk continuously without losing temperature.
Why the extreme difference? It is purely a function of physical heating wattage.
Small Drip Brewer Element
120V @ 10A = 1200 Watts
Slower heat transfer. Takes minutes to reach boiling temperatures.
Commercial Boiler Element
208V @ 20A = 4160 Watts
Instant, powerful heat transfer. Able to flash-steam boiling water in seconds.
By increasing the voltage push and flow volume, we multiply active heat work by over 300 percent!
SLIDE 5 OF 6
05 / Lab Briefing CTA-102 // COFFEE TECHS ACADEMY
CTA-1 Wattage Lab
Wattage calculation &
Boiler Comparison
Unplug the board and prepare your digital multimeter. Grab your physical CTA-1 Power Lab sheet to measure element resistances and compute thermal capacities.
CRITICAL LAB SAFETY:
Never attempt to measure resistance on live pathways. Turn off simulators and verify 0V before testing coil resistances!
Calculations to Log on CTA-1:
Boiler Wattage (P = I x V)
Heater element comparisons
Pump Motor mechanical watts
Solenoid Valve coil draw
Status Indicator LED watts
Isolate and calculate
Once calculated, present your wattage comparison table and math formulas to your instructor for active signature sign-off.
Open your ammeters and voltmeters. Follow the step-by-step math layout on Page 1 of the lab guide!
SLIDE 6 OF 6
208 V @ 15 A
\(15\text{A} \times 208\text{V} = \mathbf{3120\,\text{Watts}}\). Normal thermodynamic operation.
Failed / Broken Element
208 V @ 0 A
\(0\text{A} \times 208\text{V} = \mathbf{0\,\text{Watts}}\). Zero work. Element is open (OL).
Solenoid Valve Coil
120 V @ 0.4 A
\(0.4\text{A} \times 120\text{V} = \mathbf{48\,\text{Watts}}\). Normal magnetic hold work.
Logic Status LED
5 V @ 0.02 A
\(0.02\text{A} \times 5\text{V} = \mathbf{0.1\,\text{Watts}}\). Normal optical indicator work.
Independent Study Review
Complete the following questions to validate your troubleshooting skills.
Q1: Explain why a customer's business depends entirely on electrical power (wattage) rather than voltage alone.
Q2: A professional commercial espresso machine boiler draws 16A of current when connected to a 208V circuit. Use Watt's Law (\(P = I \times V\)) to calculate the heating element's power draw in Watts.
Q3: If a 1200 Watt drip brewer heater takes 10 minutes to boil water, explain why replacing it with a 3600 Watt commercial heater cuts that boil time by exactly 300 percent.
COFFEE TECHS ACADEMY Page 2
States that mismatching elements causes weak heat.
Fails to utilize Ohm's Law and Watt's Law calculations.
COFFEE TECHS ACADEMY — KEY 2.5
Ensure student answers calculate the 3600W overload hazard using Watt's Law.
SLIDE 3 OF 6
03 / Tracing Broken Loops CTA-102 // COFFEE TECHS ACADEMY
Diagnostic Steps
How to Pinpoint
The Open
To find where the loop is broken, follow this strict diagnostic path:
Step 1: Voltmeter check (Live). Measure voltage across the suspected break. If full line voltage reads across an open contact (switch, fuse), the contacts are failed open.
Step 2: Ohmmeter check (Dead). Turn off power, isolate target wire, check resistance. If wire reads OL instead of 0.0 Ohms, the pathway is broken inside.
Ammeter Clue
"The 0A Clue:"
When a load (heater, motor) fails to activate but has power connected, immediately check current draw with your clamp meter.
If Amps read 0.0 A, there is a physical break somewhere in the loop. The push is present, but there is no path to flow!
A closed path has 0V across it and draws full current. An open path has full voltage across it and draws 0.0A.
SLIDE 4 OF 6
05 / Lab Briefing CTA-102 // COFFEE TECHS ACADEMY
CTA-1 Lab Challenge
Find The
Broken Path
The simulator is dead. The power switch is flipped ON, but the boiler element and pump motor draw 0A and remain completely cold. Your instructor has secretly disconnected one terminal wire.
Your challenge: Use your multimeter voltage and ohm tracing skills to locate the open path and restore the complete circuit.
Your Troubleshooting Map:
STEP 1 Verify 120V main input arrives at the main power block (T-BLOCK-1).
STEP 2 Verify closed-switch continuity or measure 0V drop across switch terminals.
STEP 3 Measure 208V directly across element terminals while element is switched on.
STEP 4 Trace return neutral wires back to the power block terminal screws.
Once isolated, point to the exact break and present your continuity diagnosis to your instructor for active validation.
Begin tracing. Work logically from source inlet to load to return. Do not guess!
SLIDE 6 OF 6
In standard 120V appliance circuits (office drip brewers, grinders), you tap into just **one active hot leg** coming from the main building utility transformer.
The Neutral Requirement:
Because you only use one source of pressure (120V Hot), you must connect a second wire—the **Neutral (0V)**—to serve as a zero-pressure return drain to the utility center tap.
Hose and Drain
Think of the hot wire as a high-pressure faucet pipe and the neutral wire as an open drain pipe sitting at ground level.
Current flows from high pressure directly to zero pressure, completing the circular loop back to the utility transformer.
The neutral wire is safe because it is grounded at 0V, but it carries active return current flow!
SLIDE 4 OF 7
04 / 208V Loops CTA-102 // COFFEE TECHS ACADEMY
208V Heavy Circuit
The Out-of-Phase
Push-Pull Loop
In commercial 208V espresso heating elements, you connect to **two different active hot legs** simultaneously from a commercial 3-phase supply.
Why No Neutral/Common is Needed:
Both wires carry active pressure, but their waves are out of phase. When Hot Leg A pushes, Hot Leg B pulls, serving as each other's return path. **They need no neutral or common wires!**
Two-Pump Closed Loop
Instead of a high-pressure spigot dumping into an open drain, imagine a closed loop with two synchronized push-pull pumps.
One pump pushes while the other pulls, circulating water around the loop without needing any external drain pipe at all.
The heating element sits right in the middle of this out-of-phase push-pull tug-of-war!
SLIDE 5 OF 7
05 / Diagnostic Physics CTA-102 // COFFEE TECHS ACADEMY
Diagnostic Rules
The Closed Switch
and Least Resistance
Why do we measure **0.0 Volts** across a healthy closed switch?
Because current takes the path of least resistance!
Since the closed contacts represent zero opposition (0 Ω), current easily routes through the switch instead of through your high-resistance meter, resulting in no potential pressure difference (0V).
Measuring Across Contacts
If you probe directly across contacts in parallel:
SWITCH STATE MEASURED VOLTAGE DIAGNOSTIC MEANING
Contacts Closed (ON) 0.0 Volts Current takes the zero-ohm path
Contacts Open (OFF) 120 Volts (or 208V) Full push stops right against the gap
If a closed switch reads 120V, the contacts are burned open (OL), forcing pressure across them!
SLIDE 6 OF 7
05 / Lab Briefing CTA-102 // COFFEE TECHS ACADEMY
CTA-1 Troubleshooting Lab
Wire-Break Challenge
& Loop Recovery
The instructor has simulated a silent open-circuit fault on your CTA-1 board by disconnecting or breaking a single wire segment inside the loop.
Your mission: Use your multimeter and trace the complete cycle path to find the exact broken segment.
Keep simulator power OFF during resistance isolation tracing. Verify 0V before measuring continuity.
Diagnostic Workflow:
1. Observe failed loads
2. Verify inlet voltage
3. Trace hot push path
4. Trace return pathways
5. Check ohms continuity
6. Recover wire path
Once isolated, present your diagnostic tracking log and point out the exact wire break point to your trainer to receive complete credit.
Power on your DMM. Begin systematically tracing from the terminal input blocks now!
SLIDE 7 OF 7
Full voltage pushes across the open gap. This proves the break is here.
Independent Study Review
Complete the following questions to validate your troubleshooting skills.
Q1: Explain why a 24V control circuit needs a Common wire, while a 120V circuit needs a Neutral wire, and a 208V heating element can run without either wire.
Q2: Using the "path of least resistance" concept, explain why measuring voltage across a healthy, closed power switch reads 0.0V, whereas measuring across an open switch reads 120V.
Q3: A technician opens a commercial espresso machine cabinet and notices the 208V heating element has only two wires connected (Line 1 and Line 2) plus a ground wire, but no white neutral wire. Using what you learned about differences in pressure, explain why this heating element is fully operational.
COFFEE TECHS ACADEMY Page 2
Partial Credit Criteria (10-20 pts):
Recommends replacing the solenoid coil without tracing Hot Leg B.
Fails to explain why voltage appears on Hot Leg A but results in no flow.
