Ocular Anatomy Slides The Optical Intake
Anatomy of the Eye & Photoreception
VISION_V1.0
NEURAL_TRANS
Light as Input
INPUT_MECHANICS
Wavelength (Hue)
The distance from one peak to the next determines the color we perceive. Short wavelengths look blue; long wavelengths look red.
Amplitude (Intensity)
The height of the wave determines the brightness or intensity of the light. Higher peaks mean more energy and brighter colors.
SPECTRUM ANALYSIS
The Eye's Infrastructure
ANATOMY_MODULE
The Gatekeepers
Cornea: Clear outer covering; protects the eye and bends light to provide focus.Iris: Colored muscle that controls the size of the pupil.Pupil: Adjustable opening in the center of the eye.
The Focusers
Lens: Transparent structure behind the pupil; changes shape (accommodation) to focus images on the retina.Fovea: The central focal point in the retina, where the eye's cones cluster.
The Sensor
Retina: Light-sensitive inner surface containing rods, cones, and layers of neurons.Optic Nerve: The "information highway" that carries neural impulses from the eye to the brain.
The Photoreceptors
Rods
Detect black, white, and gray.
Necessary for peripheral and twilight vision.
High sensitivity to faint light.
Low detail/acuity.
Cones
Function in daylight or well-lit conditions.
Detect fine detail and give rise to color sensations.
Concentrated at the fovea.
Ineffective in dim light.
The Neural Bridge
From physical energy to neural signal
Step 01
Photoreceptors
Rods and Cones trigger chemical changes.
Step 02
Bipolar Cells
Activates the next layer of specialized neurons.
Step 03
Ganglion Cells
Axons twine together to form the optic nerve.
Step 04
Visual Cortex
The Thalamus relays signal to the Occipital Lobe.
The Anatomical Gap
Because there are no photoreceptors where the optic nerve leaves the eye, everyone has a blind spot . Your brain simply "guesses" what belongs there and fills it in.
L
R
DEMO INSTRUCTIONS ON WORKSHEET
Eye Map Worksheet Ocular Map
Subject: Psychology | Unit: Sensory Systems
Name:
Date:
Part I: The Infrastructure
Identify the structure based on its function described below:
(Protects eye; bends light)
(Controls light entry via muscle)
(Changes shape to focus light)
(Central point of highest acuity)
(Bundle carrying neural signals)
Part II: The Sensor Comparison
Feature Rods Cones Quantity (Estimate) 120 Million 6 Million Location in Retina Sensitivity (Light) Primary Function
Part III: Signal Flow
Trace the path of a light wave from the moment it hits your cornea until it is processed as an image in your brain. Use arrows and keywords.
Part IV: The Blind Spot Lab
Instructions
Hold this paper about 12 inches (30cm) from your face.
Close your LEFT eye and stare at the (+) cross on the left with your right eye.
Slowly move the paper toward your face while keeping your focus fixed on the (+) .
Note what happens to the black (●) dot on the right.
Observations:
What happened to the dot? Did it leave a "hole" in your vision, or did something else happen?
Analysis:
Why does this occur anatomically? (Reference the optic nerve and photoreceptors)
Blind Spot Teacher Guide Facilitator Protocol
Lesson 1: The Optical Intake
Teacher Resource
Instructional Objective
Students will trace light energy from its environmental source through the anatomical structures of the eye to the point of transduction. They must distinguish between the specialized roles of rods and cones and articulate why the "blind spot" exists as a biological byproduct of the optic nerve's exit point.
Pacing Breakdown
00-10m Hook: Blind Spot Demonstration & Initial Inquiry
10-25m Guided Lecture: Anatomy & Photoreception (Slides 1-4)
25-40m Workshop: Ocular Map Worksheet Completion
40-50m Discussion: Neural Pathway & Exit Ticket
Materials Needed
Eye Map Worksheets
Ocular Anatomy Slides
Optional: Cow Eye for Dissection
Flashlights (for pupil response)
Hook: The Blind Spot Magic
The Set-Up: Distribute the Eye Map Worksheet. Have students locate Part IV (the Lab section).
Crucial Tip: If students can't find it, they are likely holding it too close or too far, or their head is tilted. The paper must be level with the eyes.
The "Aha!" Moment: Once the dot "disappears," ask: "Did it leave a black hole? Or did the white background of the paper seem to stretch across it?" Use this to introduce the concept of Top-Down Processing —the brain fills the gap with its best guess based on the surrounding environment.
Misconception Alert: Rods & Cones
Students often think we use rods and cones at the same time for everything. Clarify that in dim light, cones essentially "turn off," which is why you can't see color at night—only shades of gray (rods).
Key Term: Accommodation
Emphasize that the lens isn't static. Use the analogy of a camera lens shifting focus. If the lens loses flexibility (due to age), we get presbyopia.
Quick Check: Anatomy Labeling
1. Cornea
2. Iris/Pupil
3. Lens
4. Fovea
5. Optic Nerve
Visual Pathway Slides Chromic Circuits
Neural Processing & Color Theory
COLOR_ENG
CORTEX_PROC
The Retinal Processing Chain
NEURAL_HIERARCHY
1. The Sensors
Rods & Cones receive light energy and trigger a chemical reaction.
2. The Bridges
Bipolar Cells are activated by the chemical changes in the receptors.
3. The Cables
Ganglion Cells collect signals; their axons form the Optic Nerve .
Feature Detection
In the Visual Cortex , specialized neurons called Feature Detectors respond to specific features of the stimulus:
Horizontal lines
Vertical edges
Movement & Angles
PARALLEL_PROCESSING
The brain doesn't see "an apple" all at once. It processes color, motion, form, and depth simultaneously in different areas, then integrates them into a single perception.
Color
Motion
Form
Depth
01
Trichromatic Theory
The retina contains three types of color receptors (cones), each especially sensitive to one of three colors:
RED
GREEN
BLUE
When we stimulate combinations of these cones, we see other colors.
The Deficit Proof:
Most color-blind people lack functioning red or green sensitive cones. They see the world in "two-color" terms.
02
Opponent-Process Theory
Visual information is analyzed in terms of opposing retinal processes. Some neurons are excited by one color and inhibited by another:
Red Green
Blue Yellow
White Black
The Afterimage Effect
When you stare at a green square and look away, you see red. Why? The "green" part of the pair gets tired, leaving only the "red" signal to fire when you look at white light.
PREPARE FOR LAB EXPERIMENT

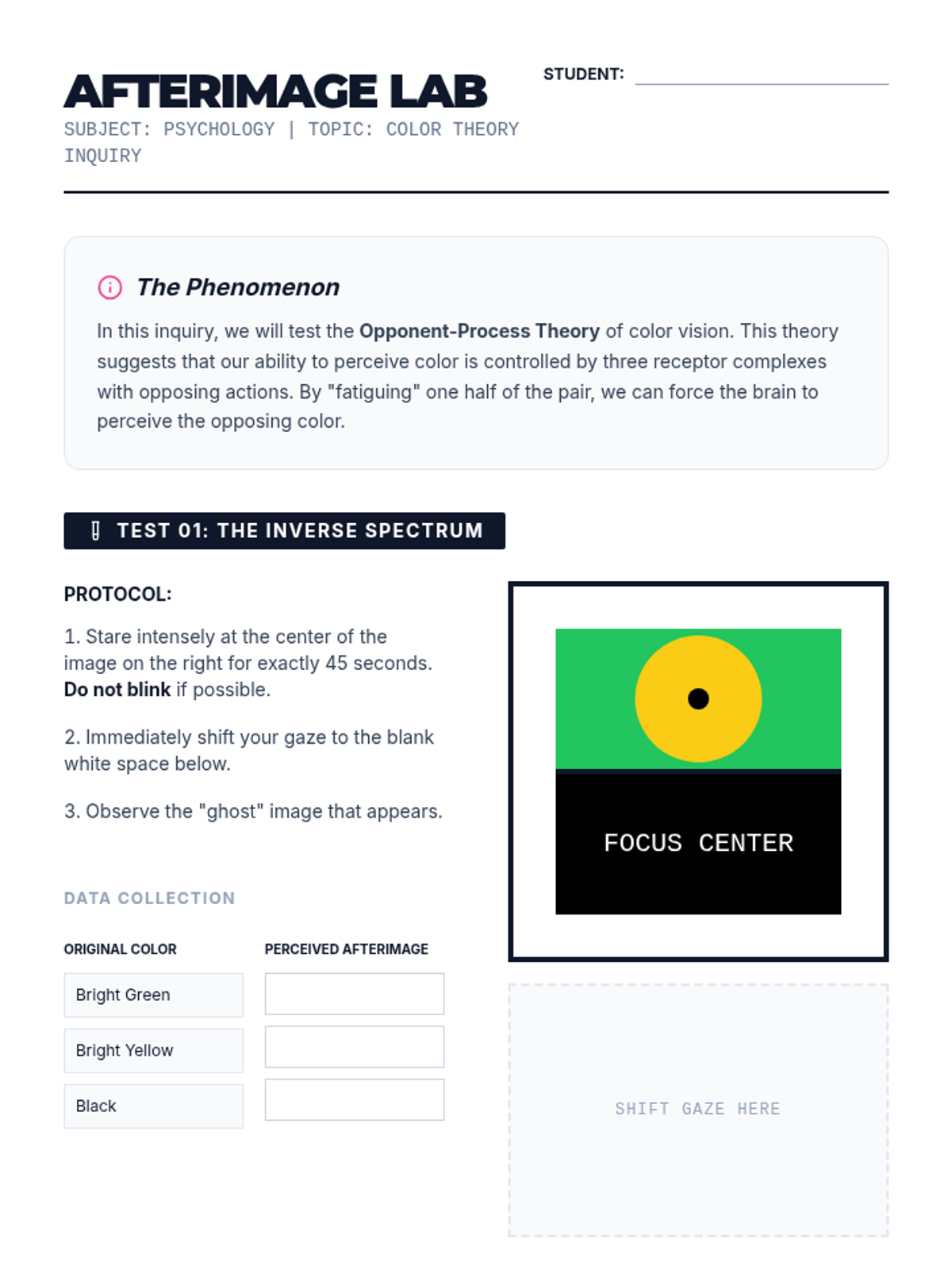

Afterimage Inquiry Lab Afterimage Lab
Subject: Psychology | Topic: Color Theory Inquiry
Student:
The Phenomenon
In this inquiry, we will test the Opponent-Process Theory of color vision. This theory suggests that our ability to perceive color is controlled by three receptor complexes with opposing actions. By "fatiguing" one half of the pair, we can force the brain to perceive the opposing color.
Test 01: The Inverse Spectrum
Protocol:
Stare intensely at the center of the image on the right for exactly 45 seconds. Do not blink if possible.
Immediately shift your gaze to the blank white space below.
Observe the "ghost" image that appears.
Data Collection
Original Color
Bright Green
Bright Yellow
Black
Perceived Afterimage
FOCUS CENTER
Shift Gaze Here
Synthesis & Analysis
1. The Biological "Why":
Explain how the firing rates of ganglion cells change during the 45-second staring period vs. when you look at the white space.
2. Theory Integration:
Why does Trichromatic Theory (Red/Green/Blue cones) fail to explain why we see yellow afterimages when staring at blue? How does Opponent-Process solve this?
NEURAL_FATIGUE_CONSTANT: [REDACTED]
Psychology Department Lab 2.0

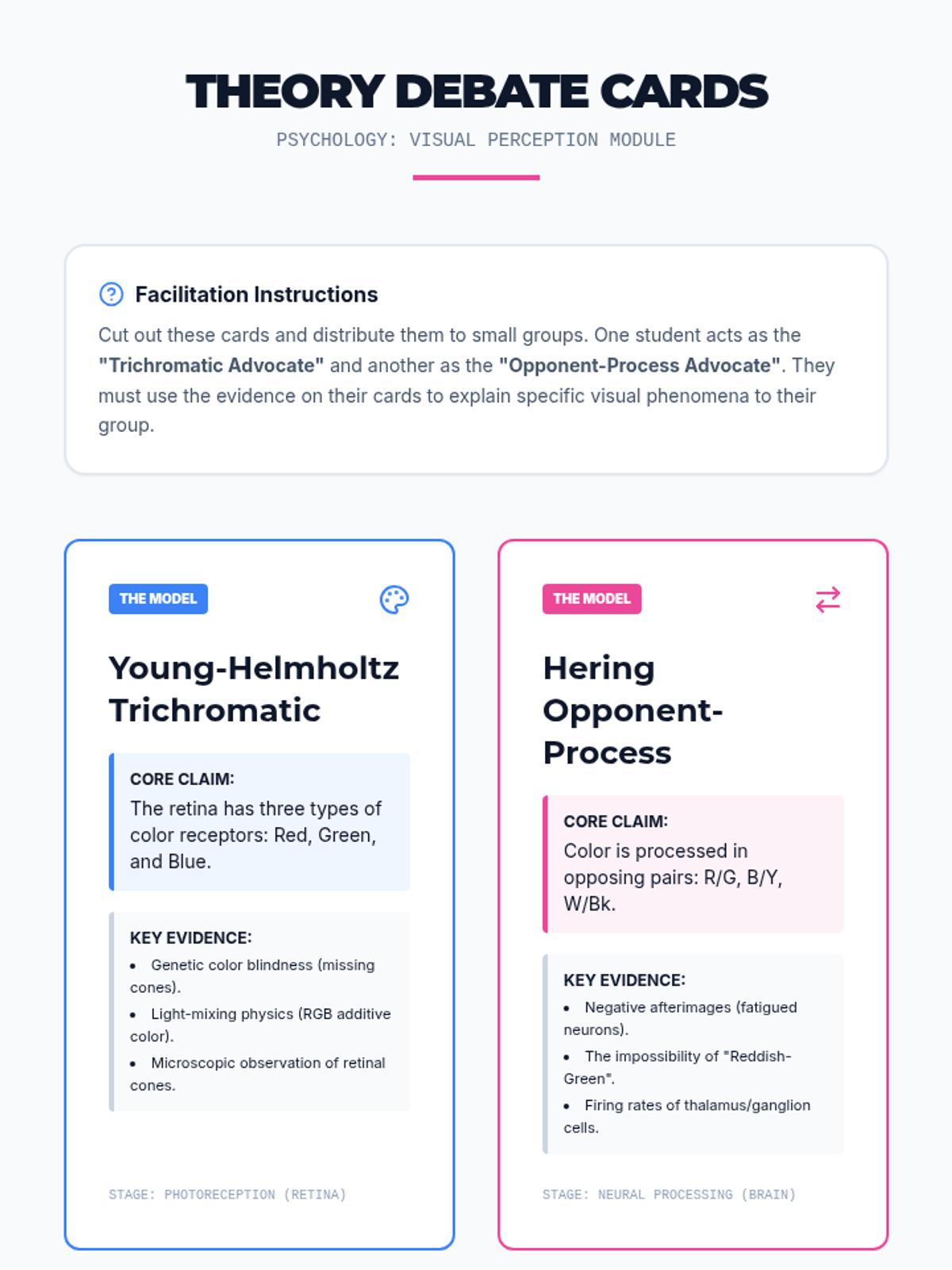

Theory Debate Cards Theory Debate Cards
Psychology: Visual Perception Module
Facilitation Instructions
Cut out these cards and distribute them to small groups. One student acts as the "Trichromatic Advocate" and another as the "Opponent-Process Advocate" . They must use the evidence on their cards to explain specific visual phenomena to their group.
The Model
Young-Helmholtz Trichromatic
Core Claim:
The retina has three types of color receptors: Red, Green, and Blue.
Key Evidence:
Genetic color blindness (missing cones).
Light-mixing physics (RGB additive color).
Microscopic observation of retinal cones.
STAGE: PHOTORECEPTION (RETINA)
The Model
Hering Opponent-Process
Core Claim:
Color is processed in opposing pairs: R/G, B/Y, W/Bk.
Key Evidence:
Negative afterimages (fatigued neurons).
The impossibility of "Reddish-Green".
Firing rates of thalamus/ganglion cells.
STAGE: NEURAL PROCESSING (BRAIN)
The Two-Stage Solution
Contemporary psychology views these theories not as competitors, but as sequential stages .
Stage 1: Retina
The Trichromatic theory explains how cones respond to light waves.
Stage 2: Brain
The Opponent-Process theory explains how neurons process those signals on the way to the cortex.
Sound Science Slides The Sonic Transducer
Auditory Anatomy & Wave Physics
WAVE_INPUT
MECH_TRANS
Physical Waves & Psychological Experience
ACOUSTIC_DATA
Frequency
The number of complete wavelengths that pass a point in a given time.
Psychological Match: Pitch
Amplitude
The height of the wave, representing the amount of energy in the sound.
Psychological Match: Loudness
The Path of the Pulse
OUTER
Collection
Sound waves are funneled through the Pinna into the Auditory Canal .
MIDDLE
Amplification
The Eardrum vibrates, moving the Ossicles (Hammer, Anvil, Stirrup).
INNER
Transduction
Vibrations hit the Cochlea , causing hair cells to fire neural signals.
The Snail of Sightless Sound
Inside the Cochlea , the Basilar Membrane is lined with thousands of tiny Hair Cells .
"Transduction" occurs when these hairs bend, triggering neural impulses in the Auditory Nerve .
REPRESENTATION: COCHLEA (INNER EAR)
Frequency Test
As we age, the hair cells responsible for high-frequency sounds are often damaged or lost. How "old" are your ears?
8,000 Hz
Everyone
12,000 Hz
Under 50
15,000 Hz
Under 40
17,400 Hz
Teenagers
Warning: Use Tone Generator with Caution

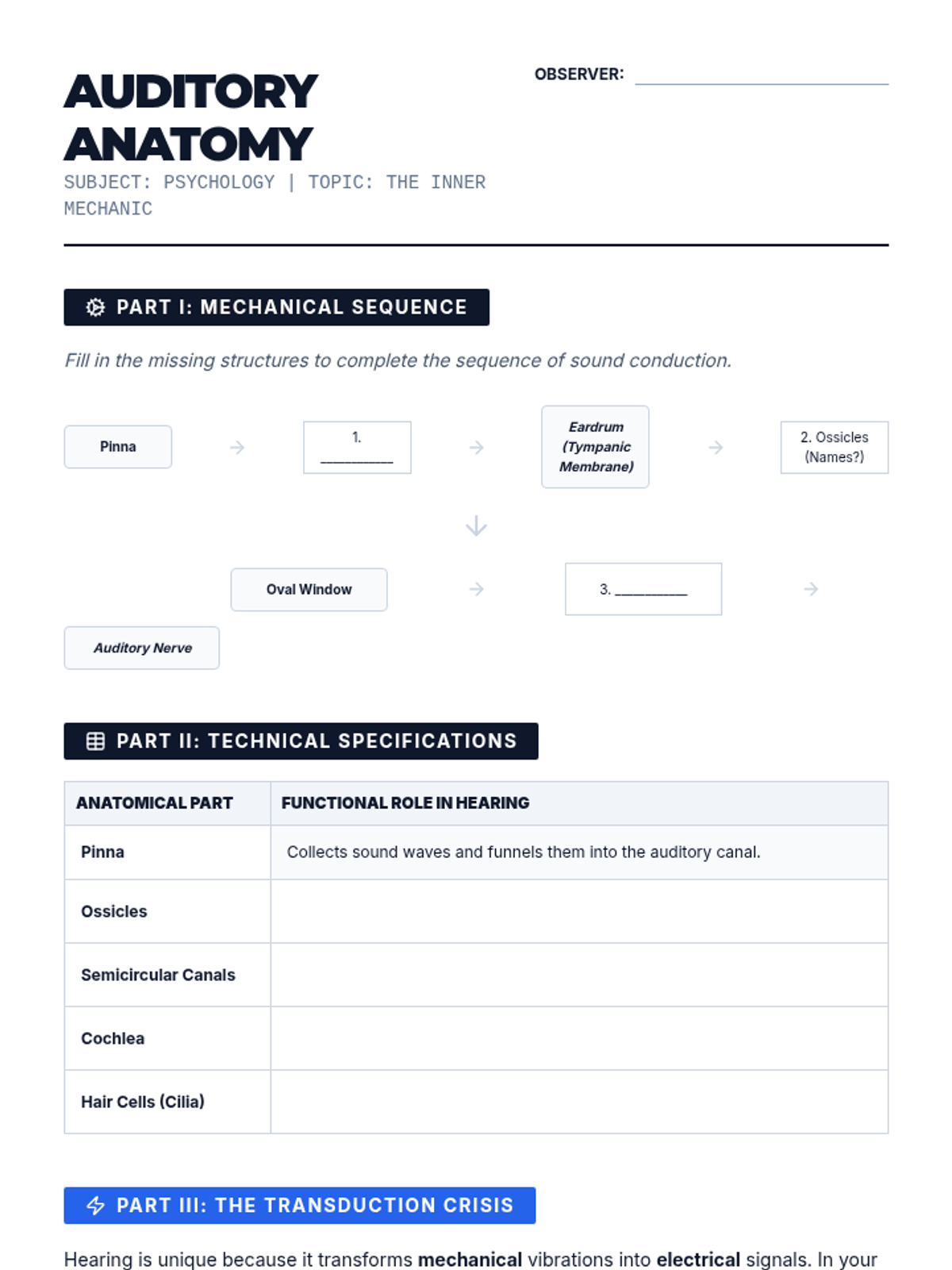

Auditory Anatomy Worksheet Auditory Anatomy
Subject: Psychology | Topic: The Inner Mechanic
Observer:
Part I: Mechanical Sequence
Fill in the missing structures to complete the sequence of sound conduction.
Pinna
1. ____________
Eardrum (Tympanic Membrane)
2. Ossicles (Names?)
Oval Window
3. ____________
Auditory Nerve
Part II: Technical Specifications
Anatomical Part Functional Role in Hearing Pinna Collects sound waves and funnels them into the auditory canal. Ossicles Semicircular Canals Cochlea Hair Cells (Cilia)
Part III: The Transduction Crisis
Hearing is unique because it transforms mechanical vibrations into electrical signals. In your own words, explain the exact moment transduction happens in the ear. Where is it, and what physically moves to trigger the nerve?
Safety Protocol: Do not insert objects into the auditory canal during observation.

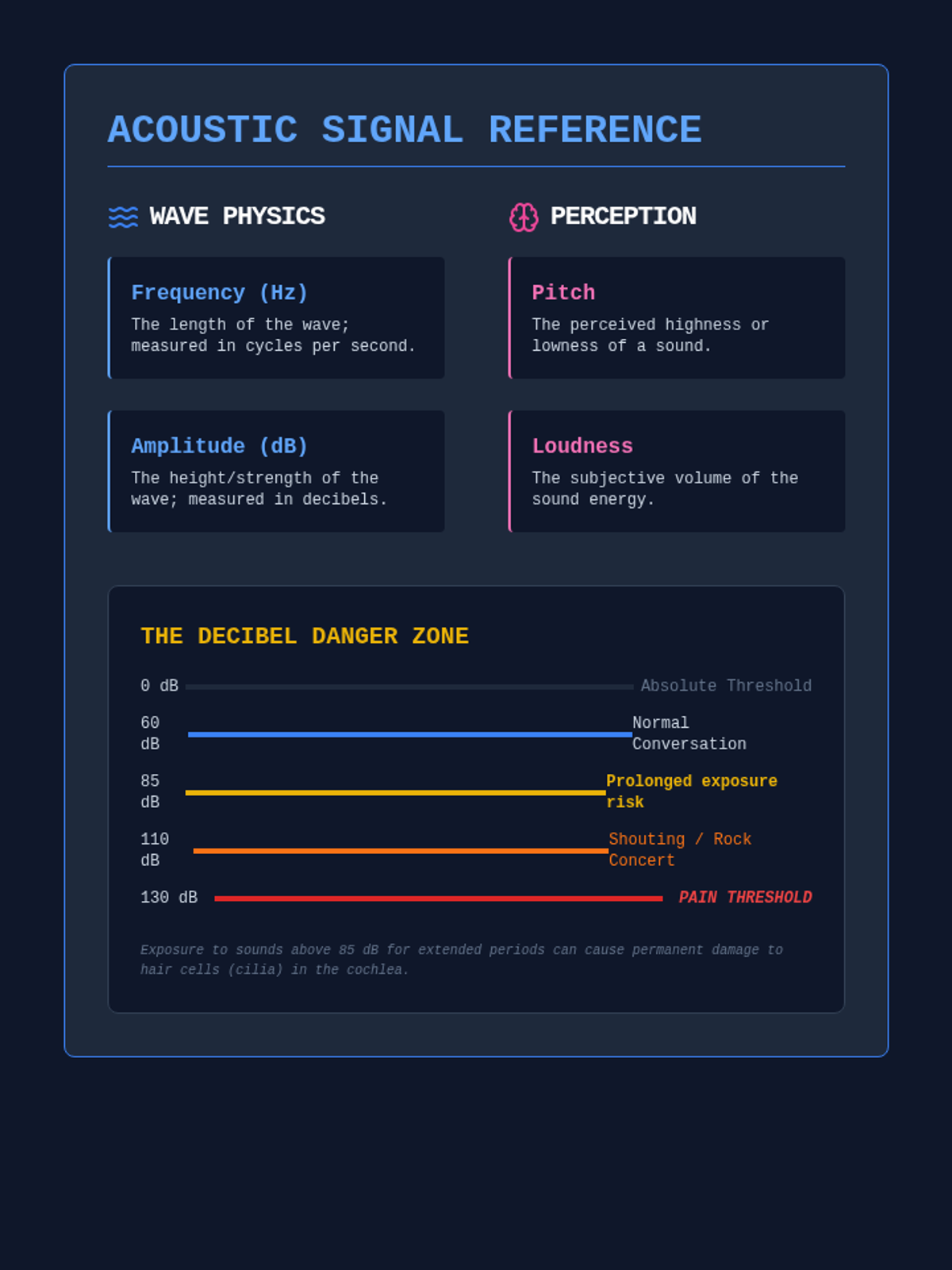

Wave Physics Reference Sheet Acoustic Signal Reference
Wave Physics
Frequency (Hz)
The length of the wave; measured in cycles per second.
Amplitude (dB)
The height/strength of the wave; measured in decibels.
Perception
Pitch
The perceived highness or lowness of a sound.
Loudness
The subjective volume of the sound energy.
The Decibel Danger Zone
0 dB Absolute Threshold
60 dB Normal Conversation
85 dB Prolonged exposure risk
110 dB Shouting / Rock Concert
130 dB Pain Threshold
Exposure to sounds above 85 dB for extended periods can cause permanent damage to hair cells (cilia) in the cochlea.
Pitch and Place Slides Pitch and Position
Perception & Localization
PITCH_MOD
COORD_PROC
Theory 1: Place Theory
HIGH_FREQ_MODEL
The brain determines pitch by noting the place on the basilar membrane that is stimulated.
High frequencies produce large vibrations at the beginning of the cochlea.
Problem: It doesn't explain how we hear low-pitched sounds (they aren't localized well).
Best for High Pitches
Theory 2: Frequency Theory
LOW_FREQ_MODEL
Best for Low Pitches
The whole basilar membrane vibrates with the incoming sound wave, triggering neural impulses at the same rate as the wave.
If the sound wave has 100 cycles per second, the auditory nerve fires 100 pulses per second.
The Volley Principle:
Neural cells alternate firing in rapid succession to achieve frequencies over 1,000 Hz.
Stereophonic Hearing
How do we locate sound?
Because our ears are 6 inches apart, sound reaches one ear slightly before the other.
1. Time Difference: A sound from the right hits the right ear about 0.000027 seconds earlier.2. Intensity Difference: The head shadows the sound, making it slightly quieter for the farther ear.
HEAD
INTERAURAL DIFFERENCE DATA
The Localization Gap
Why is it hard to locate a sound that is directly above, below, behind, or in front of you?
DISTANCE EQUALITY
The sound hits both ears at the exact same time and intensity.

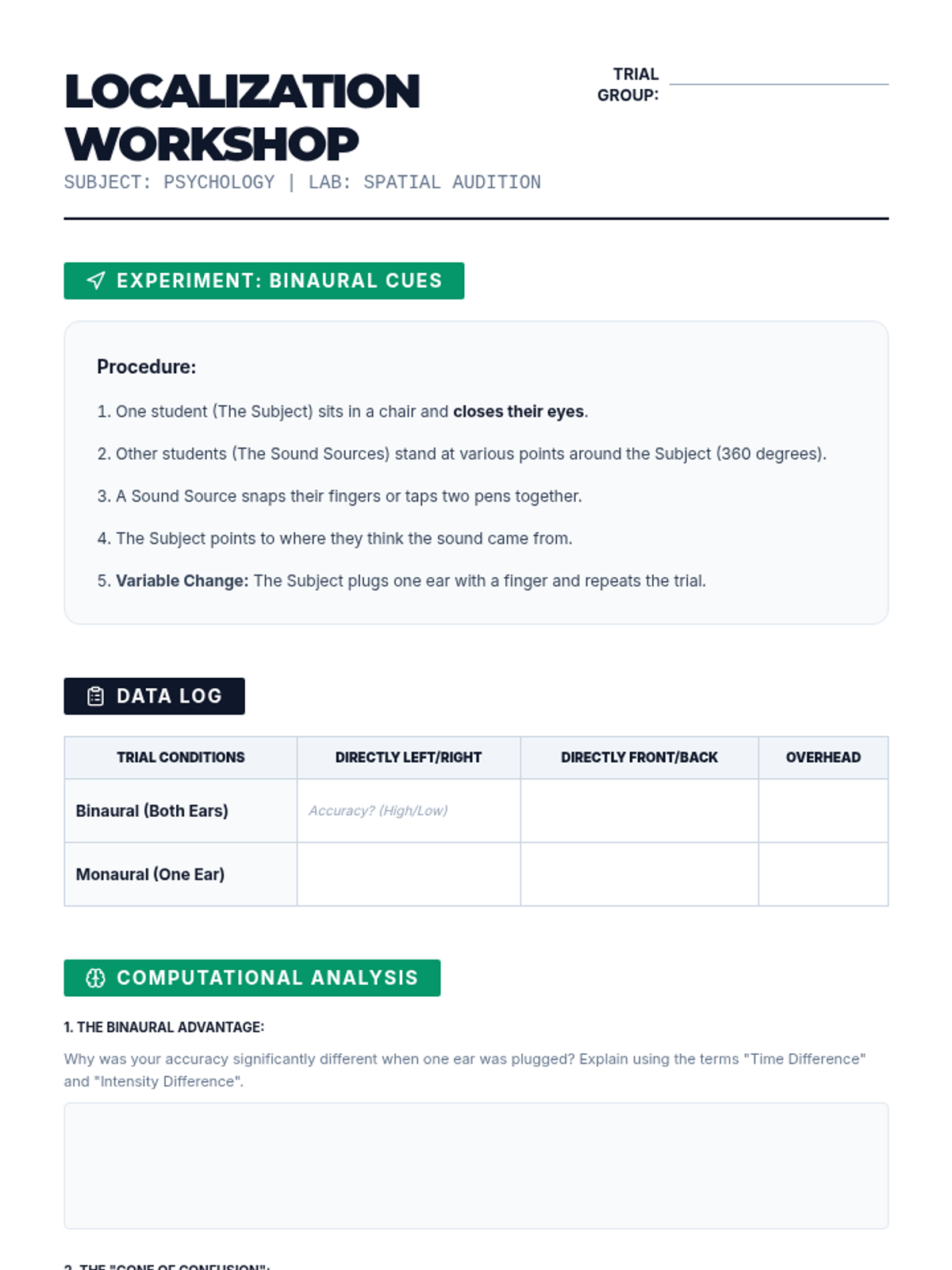

Localization Workshop Activity Localization Workshop
Subject: Psychology | Lab: Spatial Audition
Trial Group:
Experiment: Binaural Cues
Procedure:
One student (The Subject) sits in a chair and closes their eyes .
Other students (The Sound Sources) stand at various points around the Subject (360 degrees).
A Sound Source snaps their fingers or taps two pens together.
The Subject points to where they think the sound came from.
Variable Change: The Subject plugs one ear with a finger and repeats the trial.
Data Log
Trial Conditions Directly Left/Right Directly Front/Back Overhead Binaural (Both Ears) Accuracy? (High/Low) Monaural (One Ear)
Computational Analysis
1. The Binaural Advantage:
Why was your accuracy significantly different when one ear was plugged? Explain using the terms "Time Difference" and "Intensity Difference".
2. The "Cone of Confusion":
Why do humans often tilt their heads when trying to pinpoint the source of a distant sound? How does this change the data input to the brain?

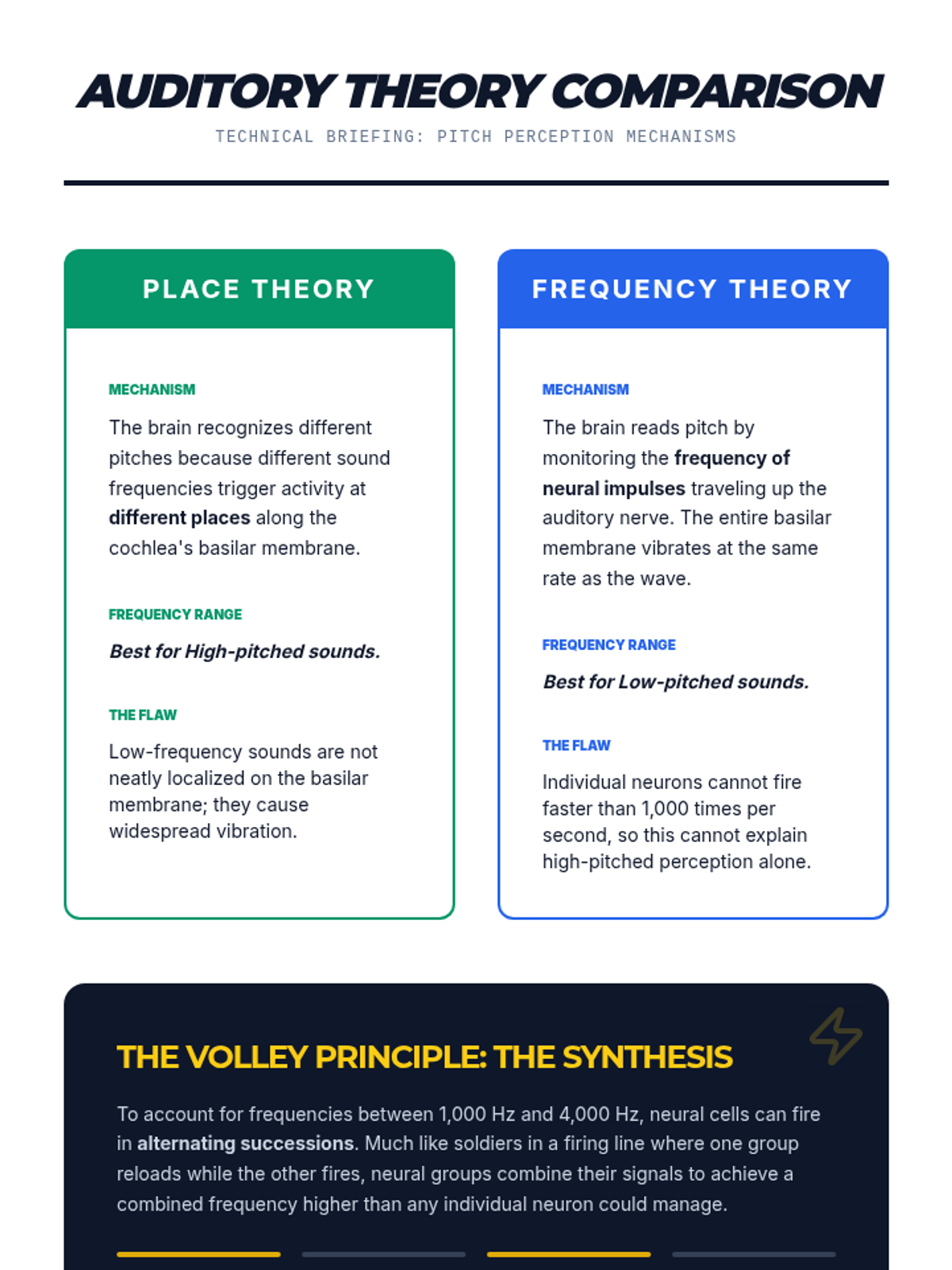

Auditory Theory Comparison Chart Auditory Theory Comparison
Technical Briefing: Pitch Perception Mechanisms
Place Theory
Mechanism
The brain recognizes different pitches because different sound frequencies trigger activity at different places along the cochlea's basilar membrane.
Frequency Range
Best for High-pitched sounds.
The Flaw
Low-frequency sounds are not neatly localized on the basilar membrane; they cause widespread vibration.
Frequency Theory
Mechanism
The brain reads pitch by monitoring the frequency of neural impulses traveling up the auditory nerve. The entire basilar membrane vibrates at the same rate as the wave.
Frequency Range
Best for Low-pitched sounds.
The Flaw
Individual neurons cannot fire faster than 1,000 times per second, so this cannot explain high-pitched perception alone.
The Volley Principle: The Synthesis
To account for frequencies between 1,000 Hz and 4,000 Hz, neural cells can fire in alternating successions . Much like soldiers in a firing line where one group reloads while the other fires, neural groups combine their signals to achieve a combined frequency higher than any individual neuron could manage.
Final Perception Synthesis:
"Place theory explains how we hear _________ pitches, Frequency theory explains how we hear _________ pitches, and for the middle ground, the brain uses the _________ principle."
Sensory Solutions Slides Restoring the Senses
Sensory Deficits & Prosthetics
DEFICIT_ANALYSIS
BIO_ENG
Auditory Impairment
DIAGNOSTIC_MOD
Conduction Hearing Loss
Damage to the mechanical system that conducts sound waves to the cochlea.
• Punctured eardrum
• Stiffness in ossicles (hammer/anvil/stirrup)
• Often treatable with hearing aids (amplification)
Sensorineural Hearing Loss
Damage to the cochlea's hair cell receptors or the auditory nerves.
• "Nerve Deafness"
• Caused by aging, heredity, or loud noise exposure
• Requires bypassing the damage (Cochlear Implant)
Bypassing Biology
A Cochlear Implant is an electronic device that converts sounds into electrical signals and conveys them to electrodes threaded into the cochlea.
"It doesn't make sound louder; it replaces the work of the damaged hair cells by stimulating the auditory nerve directly."
Bionic Hearing
ELECTRODE_ARRAY: ACTIVE
The Future of Vision
Macular Degeneration
Loss of central vision due to retinal damage. Affects the fovea (cones).
Retinitis Pigmentosa
A genetic disorder causing loss of peripheral and night vision (rods).
Retinal Prosthetics
Similar to cochlear implants, these "bionic eyes" use a camera on glasses to send signals to a chip on the retina, stimulating the remaining ganglion cells.
The Ethics of Restoring
"Is deafness a disability to be cured, or a cultural identity to be preserved?"
Medical Perspective
Technology provides access to the spoken world and safety through environmental sounds.
Cultural Perspective
Deaf communities argue that their language (ASL) and culture are complete and don't need "fixing."

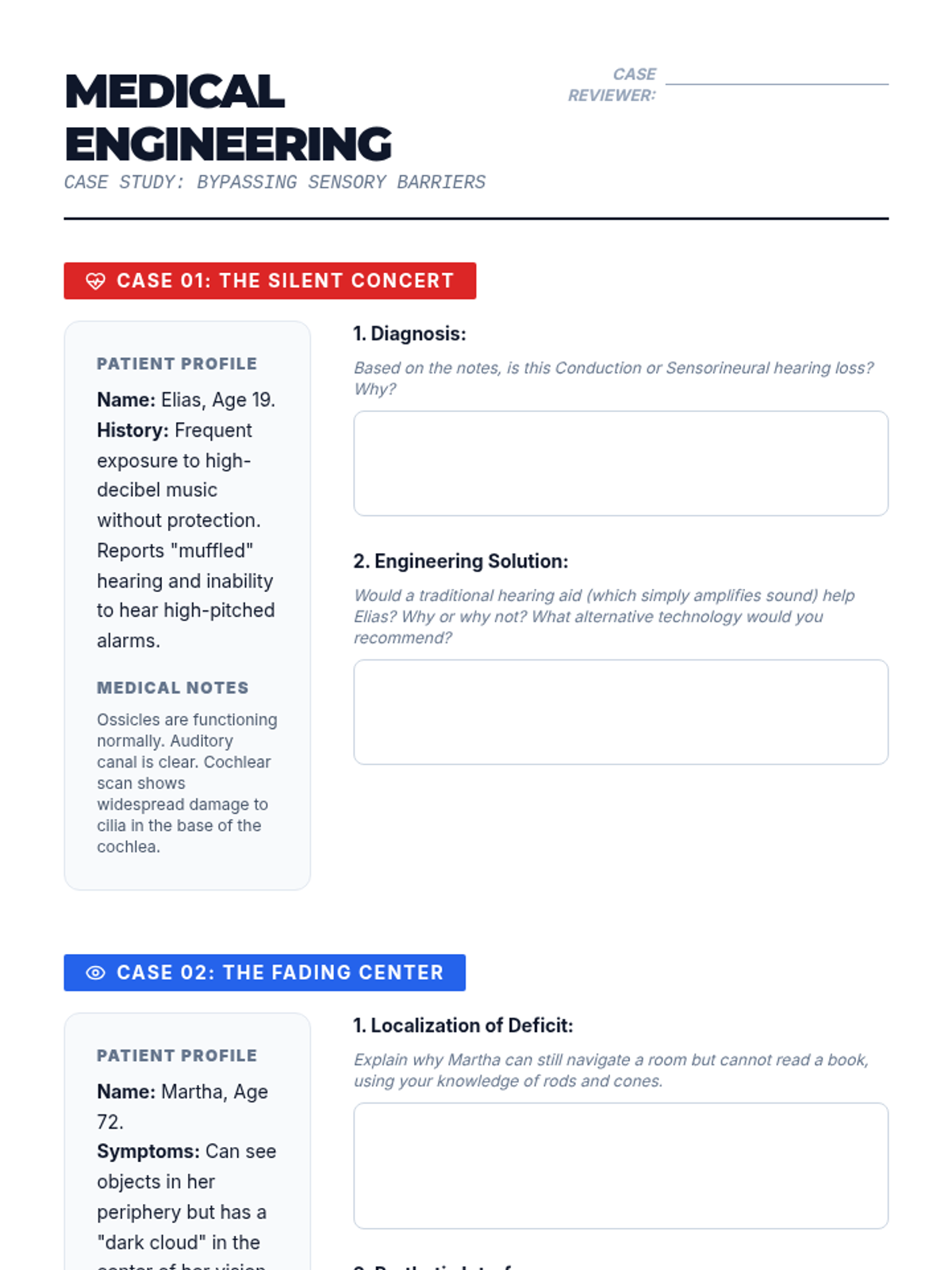

Medical Engineering Case Studies Medical Engineering
Case Study: Bypassing Sensory Barriers
Case Reviewer:
Case 01: The Silent Concert
Patient Profile
Name: Elias, Age 19.History: Frequent exposure to high-decibel music without protection. Reports "muffled" hearing and inability to hear high-pitched alarms.
Medical Notes
Ossicles are functioning normally. Auditory canal is clear. Cochlear scan shows widespread damage to cilia in the base of the cochlea.
1. Diagnosis:
Based on the notes, is this Conduction or Sensorineural hearing loss? Why?
2. Engineering Solution:
Would a traditional hearing aid (which simply amplifies sound) help Elias? Why or why not? What alternative technology would you recommend?
Case 02: The Fading Center
Patient Profile
Name: Martha, Age 72.Symptoms: Can see objects in her periphery but has a "dark cloud" in the center of her vision. Difficulty reading and recognizing faces.
Biological Context
The fovea is experiencing cell death. Peripheral rods remain healthy.
1. Localization of Deficit:
Explain why Martha can still navigate a room but cannot read a book, using your knowledge of rods and cones.
2. Prothetic Interface:
A "bionic eye" (retinal prosthetic) sends signals to the ganglion cells. Why is it important that the ganglion cells are still healthy for this to work?
BIO_ENGINEERING_DEPT_V4 CONFIDENTIAL PATIENT DATA

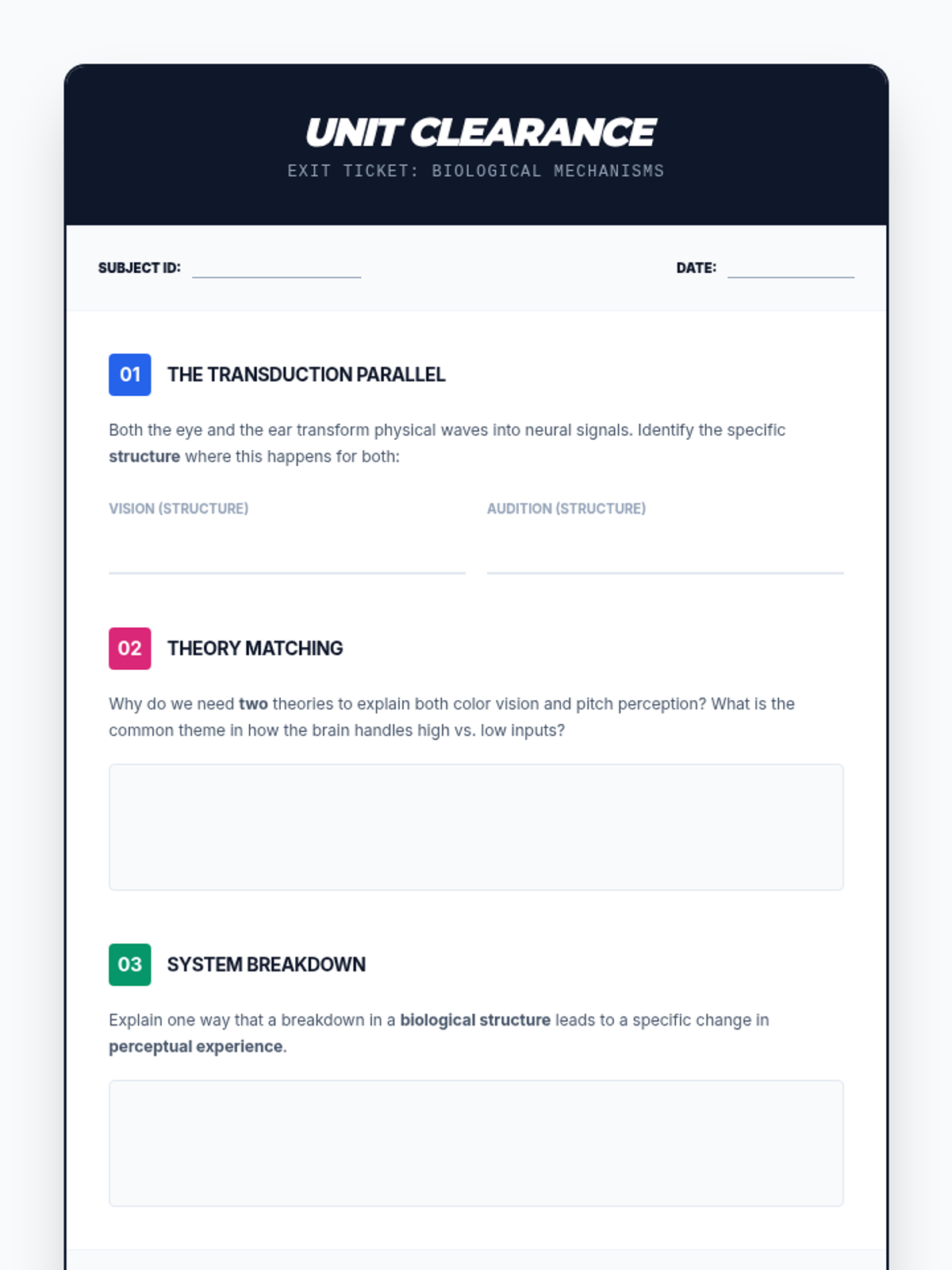

Unit Review Exit Ticket Unit Clearance
Exit Ticket: Biological Mechanisms
Subject ID:
Date:
01
The Transduction Parallel
Both the eye and the ear transform physical waves into neural signals. Identify the specific structure where this happens for both:
Vision (Structure)
Audition (Structure)
02
Theory Matching
Why do we need two theories to explain both color vision and pitch perception? What is the common theme in how the brain handles high vs. low inputs?
03
System Breakdown
Explain one way that a breakdown in a biological structure leads to a specific change in perceptual experience .
"The world as we see it is a construct of the machinery we use to view it."
