Sky Eyes Worksheet
Sky Eyes Observatory Journal
MISSION 1: ANATOMY
Observer Name
Date
How Do We Capture Star Light?
Telescopes act like "light buckets." The larger the bucket, the more light it collects from distant stars. Let's explore the essential components that hold, guide, and focus this cosmic light to your eye.
Telescope Schematic
B
C
A
D
E
Word Bank
Eyepiece Objective Lens Optical Tube Mount Tripod
Component Definitions
Read each description, write the correct term in the blank line, and identify its letter on the schematic above.
- The structural housing (___________________________) that keeps internal optics safe and perfectly aligned.
Letter:
- The curved main glass (___________________________) at the front that collects starlight and bends it inside.
Letter:
- The secondary magnifier (___________________________) that enlarges the tiny collected image so your eye can see details.
Letter:
- The critical hinge or platform (___________________________) that allows astronomers to pan and point the system smoothly.
Letter:
- The three-legged platform (___________________________) providing stability and preventing earth vibrations from blurring the view.
Letter:
Sky Eyes Astronomy Unit • Student Copy Page 1 of 5
Sky Eyes Observatory Journal
MISSION 2: LIGHT CLASH
Observer Name
Date
Type 1: Refracting Telescope
Uses Lenses
Light enters straight and passes through an objective glass lens. This glass curved shape bends (refracts) the light rays inward, bringing them together at a specific focal point.
Lens (Bends)
Type 2: Reflecting Telescope
Uses Mirrors
Light travels all the way down the tube and bounces (reflects) off a large, curved primary mirror at the back. It bounces forward to a smaller mirror, which directs it to the eyepiece.
Mirror (Bounces)
Guided Quick-Check
Complete the foundational rule: Refracting systems use a glass ___________ to bend light, while reflecting systems use a polished curved ___________ to bounce light.
Optics Showcase (Multiple Choice)
1. Why does a magnifying glass make things look bigger?
It reflects light like a flat mirror.
It bends (refracts) light rays together.
It blocks light rays entirely.
2. Which optical element is the heart of a Reflecting telescope?
A large glass prism
A double-curved glass lens
A large curved primary mirror
3. What is a key disadvantage of very large glass lenses?
They make images upside down.
They get heavy and sag under their own weight.
They can only observe our solar system.
4. Why does a reflector have a tiny secondary mirror inside?
To block unwanted background radiation.
To bounce light sideways out of the tube path.
To flip the light beams back forward.
Sky Eyes Astronomy Unit • Student Copy Page 2 of 5
Sky Eyes Observatory Journal
MISSION 3: ATMOSPHERE
Observer Name
Date
Atmospheric Scintillation (Twinkle effect)
Hubble Space Telescope Orbiting above atmosphere
Turbulent Atmosphere Layer (Bends light erratically)
Mountain Peak Dry, high altitude
Earth Observatory Subject to blur & weather
The Twinkle Trap: As starlight passes through moving, temperature-changing air in our atmosphere, it gets repeatedly bent in different directions. By the time it reaches an Earth telescope, the image is blurred. Space telescopes avoid this entirely!
Observation Analysis (Short Answer)
1. Why do stars appear to "twinkle" when viewed from Earth's surface, and how does this affect our images of the universe?
2. Explain the fundamental advantage of placing the Hubble Space Telescope in orbit, despite the enormous expense of building rocket boosters to launch it.
3. Imagine you are building a new observatory. If you MUST build it on Earth's surface, what characteristics of a location (altitude, weather, light pollution) would you search for to minimize atmospheric distortion?
Sky Eyes Astronomy Unit • Student Copy Page 3 of 5
Sky Eyes Observatory Journal
MISSION 4: SHOWDOWN
Observer Name
Date
The Keck Observatory
Mauna Kea, Hawaii
Earth Observatory
- Optical System: Dual Reflecting telescopes utilizing 10-meter massive primary mirrors.
- Mirror Style: Made of 36 hexagonal mirror segments working together as one mirror.
- Wavelengths: Studies optical light (visible) and near-infrared light.
- Challenge: Still subject to atmospheric blur; astronomers use lasers to adjust mirrors (adaptive optics).
Mauna Kea Peak (13,796 ft)
James Webb (JWST)
L2 Orbit (Deep Space)
Space Observatory
- Optical System: 6.5-meter primary mirror coated in real gold to reflect infrared light.
- Mirror Style: Segmented honeycomb mirror designed to fold up inside a rocket for launch.
- Wavelengths: Specialized infrared telescope looking through cosmic dust.
- Challenge: Located 1 million miles away. If a mirror breaks, astronauts cannot travel there to repair it!
Second Lagrange Point (L2)
Tech Spec Comparison Grid
Based on the profiles above, fill in the comparison specifications below.
| Feature Details | Keck Observatory | James Webb (JWST) |
|---|
| Primary Mirror Size | ______________________ | ______________________ |
| Location Category | ______________________ | ______________________ |
| Primary Light Observed | ______________________ | ______________________ |
| Major Technical Challenge | ______________________ | ______________________ |
Why was the mirror of the JWST coated in a thin layer of gold instead of silver? (Hint: Think about which wavelength of light it is specialized to observe!)
Sky Eyes Astronomy Unit • Student Copy Page 4 of 5
Sky Eyes Observatory Journal
MISSION 5: SELECTOR
Observer Name
Date
The Cosmic Target Selector
Astronomers must select the perfect tool for each space mission. Using your knowledge of how light behaves, read the observation objectives below and check the checkbox of the telescope that is best suited for the job!
Scenario 1 • Moon Gazing
"You want to sketch sharp, high-contrast craters on the Moon from your backyard. You need a simple, durable system that requires absolutely zero mirror alignments and will not gather dust inside the tube."
Refracting Telescope (Lens-based)
Reflecting Telescope (Mirror-based)
Space-based Telescope
Scenario 2 • Deep Space Hunt
"You are setting up an amateur club to find extremely faint, deep-space star clusters and nebulas. Because the objects are faint, you need a massive 'light bucket' opening, but your club is on a tight budget."
Refracting Telescope (Lens-based)
Reflecting Telescope (Mirror-based)
Space-based Telescope
Scenario 3 • Atmosphere Escape
"You are part of a NASA research group attempting to discover earth-sized exoplanets revolving around distant stars. You must capture high-resolution images that are completely free of air distortion, wind, or weather."
Refracting Telescope (Lens-based)
Reflecting Telescope (Mirror-based)
Space-based Telescope
Sky Eyes Astronomy Unit • Student Copy Page 5 of 5

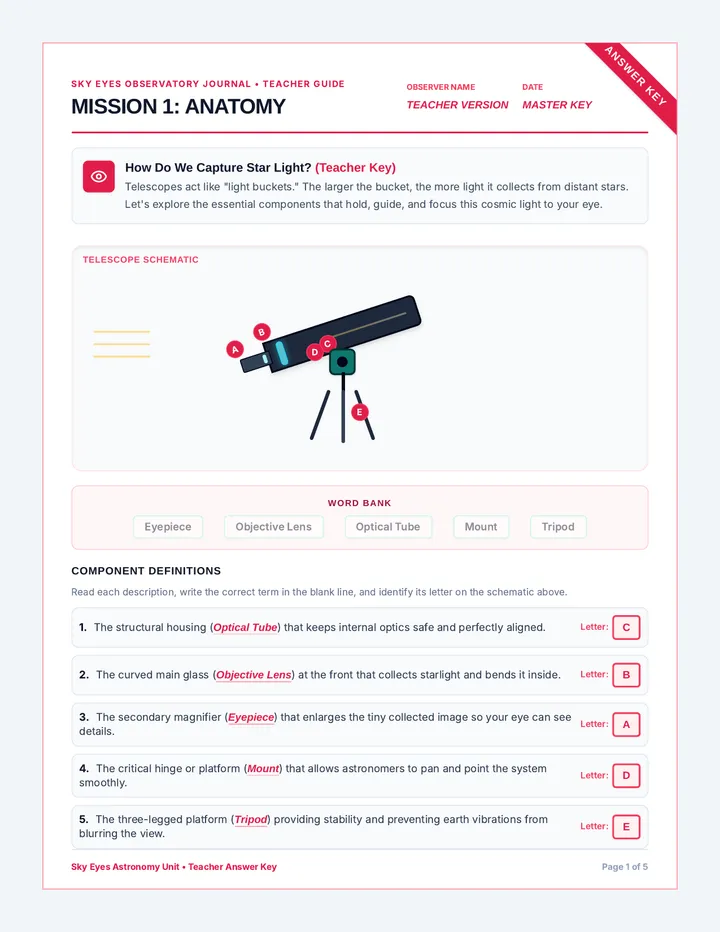

Sky Eyes Answer Key
ANSWER KEY
Sky Eyes Observatory Journal • Teacher Guide
MISSION 1: ANATOMY
Observer Name
TEACHER VERSION
Date
MASTER KEY
How Do We Capture Star Light? (Teacher Key)
Telescopes act like "light buckets." The larger the bucket, the more light it collects from distant stars. Let's explore the essential components that hold, guide, and focus this cosmic light to your eye.
Telescope Schematic
B
C
A
D
E
Word Bank
Eyepiece Objective Lens Optical Tube Mount Tripod
Component Definitions
Read each description, write the correct term in the blank line, and identify its letter on the schematic above.
- The structural housing (Optical Tube) that keeps internal optics safe and perfectly aligned.
Letter:
C
- The curved main glass (Objective Lens) at the front that collects starlight and bends it inside.
Letter:
B
- The secondary magnifier (Eyepiece) that enlarges the tiny collected image so your eye can see details.
Letter:
A
- The critical hinge or platform (Mount) that allows astronomers to pan and point the system smoothly.
Letter:
D
- The three-legged platform (Tripod) providing stability and preventing earth vibrations from blurring the view.
Letter:
E
Sky Eyes Astronomy Unit • Teacher Answer Key Page 1 of 5
ANSWER KEY
Sky Eyes Observatory Journal • Teacher Guide
MISSION 2: LIGHT CLASH
Observer Name
TEACHER VERSION
Date
MASTER KEY
Type 1: Refracting Telescope
Uses Lenses
Light enters straight and passes through an objective glass lens. This glass curved shape bends (refracts) the light rays inward, bringing them together at a specific focal point.
Lens (Bends)
Type 2: Reflecting Telescope
Uses Mirrors
Light travels all the way down the tube and bounces (reflects) off a large, curved primary mirror at the back. It bounces forward to a smaller mirror, which directs it to the eyepiece.
Mirror (Bounces)
Sky Eyes Slides
Sky Eyes Observatory
Lenses, Mirrors, and the Deep Universe
How astronomers use light buckets to peel back the layers of the cosmos.
Introductory Astronomy Lecture Slide 1 of 5
Telescope Anatomy
Mission 1
The Essential Assembly
- 1. Objective Lens: The main curved optic that gathers massive amounts of starlight.
- 2. Eyepiece: A magnifying lens that enlarges the focused image.
- 3. Mount & Tripod: Allows smooth panning and absorbs ground vibrations.
Telescope Blueprint
Sky Eyes Observatory Journal • Class Companion Slide 2 of 5
Refractors vs. Reflectors
Mission 2
Refracting (Lenses)
Uses a curved glass Objective Lens at the front of the tube. Glass naturally bends (refracts) incoming light rays, bringing them together at the focal point.
Light Path: Refraction / Bending
Reflecting (Mirrors)
Uses a curved Primary Mirror at the back of the tube. Polished metal/glass bounces (reflects) the light rays forward to a secondary diagonal mirror, then out to the eye.
Light Path: Reflection / Bouncing
Sky Eyes Observatory Journal • Class Companion Slide 3 of 5
The Atmospheric Twinkle Trap
Mission 3
Why Do Stars Twinkle?
Earth's atmosphere is like a turbulent, wavy swimming pool of gas. As starlight travels through this gas, it gets bent in shifting directions rapidly.
This rapid shifting is called "atmospheric scintillation." To our eyes, the star appears to "twinkle." To Earth telescopes, it blurs the image.
The Space Solution
No Atmosphere: Perfectly steady light paths.
No Clouds: Can observe 24 hours a day.
Zero Light Pollution: Clear views of faint stars.
Sky Eyes Observatory Journal • Class Companion Slide 4 of 5
Great Observatories Showdown
Mission 4 & 5
Keck (Earth)
Mauna Kea, HI
Two massive 10-meter reflecting telescopes. They use advanced lasers to continuously warp the primary segmented mirrors and correct atmospheric twinkling.
🔑 Key Feature: Huge mirror surface area collects lots of starlight!
Webb (Space)
L2 Orbit
A 6.5-meter gold-plated beryllium mirror. Placed 1 million miles in deep space, it captures incredible, razor-sharp infrared light from ancient, distant galaxies.
