Microscope Mission Lab Sheet
Mastering the Carolina Compound Light Microscope
Name:
Date: Period:
Key Vocabulary & Dual-Language Cognates
Magnify / Aumentar Make larger in appearance
Invert / Invertir Upside down & backwards
Field / Campo Visual The circle of light seen
Focus / Enfocar Make image clear & sharp
Part 1: Carolina 3-Rule Safety Contract
✋
1. Two Hands Always One hand holds arm ; one hand supports base .
📄
2. Lens Paper Only Never use shirts, tissues, or paper towels.
📏
3. Bench Safe Zone Keep scope 10 cm from desk edge; tuck cord flat.
Part 2: Carolina Microscope Parts & Roles
Match number to function
1. Ocular (Eyepiece) Lens you look into (10×)
6. Stage & Clips Flat shelf holding slide
2. Revolving Nosepiece Turns to switch lenses
7. Iris Diaphragm Wheel controlling light beam
3. Scanning (4×) Red band • start here
8. Coarse Focus Large knob: big stage moves
4. Low Power (10×) Yellow band • medium view
9. Fine Focus Small knob: sharp focus only
5. High Power (40×) Blue band • zoom details
10. Light Illuminator Bottom lamp & on/off switch
⚠️ Critical Rule Checkpoint: Fill in the blank:
When using the blue 40× High-Power lens, I must NEVER turn the COARSE focus knob because it could .
Part 3: Magnification Math & Field of View
Total = Ocular (10×) × Objective Lens
Objective Color Band Eyepiece Objective Total Calculation View Area (Circle Size) Scanning (Red Band) 10× 4× 10 × 4 = 40× Widest Area (Largest) Low Power (Yellow Band) 10× 10× 10 × 10 = ______ × Medium Area High Power (Blue Band) 10× 40× 10 × 40 = ______ × Narrowest Area (Smallest)
Sentence Starter Check:
When I increase magnification from 40× to 400×, the area I can see gets [ smaller / larger ], and the image becomes [ darker / brighter ].
Carolina Biological Guided Lab Series Page 1 of 2 • Continue to Focusing Steps on Page 2 →
Microscope Mission Lab Sheet
Part 4: Guided Focusing Steps & Letter “e” Observations
Hands-On Phase
Part 4: 5-Step Self-Monitoring Checklist (Check off each step as you do it!)
Step 1: 4×
Click red 4× lens into place. Lower stage.
Step 2: Slide
Clip slide. Center letter “e” over light beam.
Step 3: Coarse
Look from side: raise stage. Look in lens: lower slowly.
Step 4: Center
Center the “e” in crosshairs before turning nosepiece.
Step 5: 40× Fine
Fine knob ONLY! Do not touch coarse knob.
Part 5: Specimen Investigation — The Letter “e”
Dashed lines help align orientation
1. Naked Eye (On Desk)
1× (Actual Orientation)
Draw "e" as it sits on glass
2. Scanning View (40×)
Total Mag: 40×
Draw "e" through eyepiece
3. Low Power View (100×)
Total Mag: 100×
Zoomed in ink & paper fibers
Movement Experiment: Look through the eyepiece while moving the slide:
When I push slide RIGHT → , image moves: [ ] LEFT [ ] RIGHT
When I push slide UP ↑ , image moves: [ ] DOWN [ ] UP
Part 6: Lab Conclusions (Complete the Sentence Frames)
1. Image Inversion (How the lenses flip the image):
Under the microscope, the letter “e” is flipped (vertically) and backwards (horizontally).
2. Troubleshooting High Power:
If the image looks too dark , I will adjust the .blurry , I will turn only the focus knob.
Carolina Protocol: Finish by wrapping cords and lowering the stage completely. Page 2 of 2 • Carolina Microscope Mastery
Microscope Mastery Teacher Guide Teacher Facilitation & Lab Prep

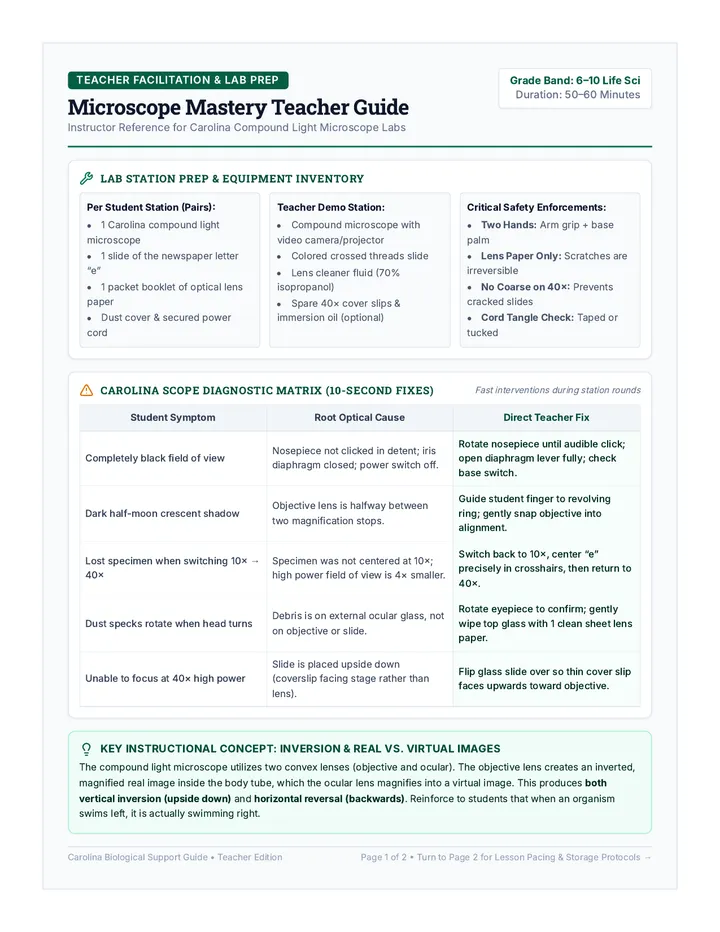

Microscope Mastery Teacher Guide
Instructor Reference for Carolina Compound Light Microscope Labs
Grade Band: 6–10 Life Sci
Duration: 50–60 Minutes
Lab Station Prep & Equipment Inventory
Per Student Station (Pairs):
1 Carolina compound light microscope
1 slide of the newspaper letter “e”
1 packet booklet of optical lens paper
Dust cover & secured power cord
Teacher Demo Station:
Compound microscope with video camera/projector
Colored crossed threads slide
Lens cleaner fluid (70% isopropanol)
Spare 40× cover slips & immersion oil (optional)
Critical Safety Enforcements:
Two Hands: Arm grip + base palmLens Paper Only: Scratches are irreversibleNo Coarse on 40×: Prevents cracked slidesCord Tangle Check: Taped or tucked
Carolina Scope Diagnostic Matrix (10-Second Fixes)
Fast interventions during station rounds
Student Symptom Root Optical Cause Direct Teacher Fix Completely black field of view Nosepiece not clicked in detent; iris diaphragm closed; power switch off. Rotate nosepiece until audible click; open diaphragm lever fully; check base switch. Dark half-moon crescent shadow Objective lens is halfway between two magnification stops. Guide student finger to revolving ring; gently snap objective into alignment. Lost specimen when switching 10× → 40× Specimen was not centered at 10×; high power field of view is 4× smaller. Switch back to 10×, center “e” precisely in crosshairs, then return to 40×. Dust specks rotate when head turns Debris is on external ocular glass, not on objective or slide. Rotate eyepiece to confirm; gently wipe top glass with 1 clean sheet lens paper. Unable to focus at 40× high power Slide is placed upside down (coverslip facing stage rather than lens). Flip glass slide over so thin cover slip faces upwards toward objective.
Key Instructional Concept: Inversion & Real vs. Virtual Images
The compound light microscope utilizes two convex lenses (objective and ocular). The objective lens creates an inverted, magnified real image inside the body tube, which the ocular lens magnifies into a virtual image. This produces both vertical inversion (upside down) and horizontal reversal (backwards) . Reinforce to students that when an organism swims left, it is actually swimming right.
Carolina Biological Support Guide • Teacher Edition Page 1 of 2 • Turn to Page 2 for Lesson Pacing & Storage Protocols →
Microscope Mastery Teacher Guide
Lesson Pacing, Instructional Script, & Storage Certification
Lesson Execution
55-Minute Lesson Pacing Guide
00–10 min
Hook & Safe Transport Drill: Demonstrate two-handed carry. Call pairs forward by lab bench to retrieve their microscope and place it 10 cm from desk edge. Have students complete Part 1 & Part 2 Anatomy matching on their lab sheet.
10–20 min
Teacher Side-Profile Demonstration: Model the critical step: "Look from the side while raising the stage to maximum height with coarse focus. Then look in the eyepiece and lower the stage down to focus." Emphasize the 40× High Power safety rule.
20–42 min
Student Investigation (Letter “e” Lab): Students calculate total magnifications, draw observations at 40× and 100×, test directional slide motion, and explain inversion. Teacher conducts diagnostic circulation using the troubleshooting matrix.
42–55 min
Whole-Group Synthesis & T.E.A.M. Storage Audit: Debrief inversion, field of view, and light reduction. Execute the 5-point microscope return checklist before dismissal.
Differentiated Instruction Strategies
Scaffolding & English Learners
Color-code objective rings (Red = 4× Start, Yellow = 10×, Blue = 40×).
Provide a pre-drawn circle with dashed grid lines to help align the inverted “e”.
Allow partner verification before moving knobs.
Extension & Honors Challenge
Provide a 3-color crossed thread slide (red, blue, yellow fibers).
Challenge students to determine depth of field: Which thread lies on top, in the middle, and on the bottom?
Calculate actual field diameter using a clear plastic millimeter ruler.
The Carolina T.E.A.M. Storage Checklist (Mandatory Sign-off)
Require students to freeze at their station until the teacher verifies these five mandatory storage conditions:
T Turn Off
Switch power off; unplug cord
E Eyepiece In
Rotate ocular forward/neutral
A Arm Facing
Arm points out into room
M Min Power
4× red ring clicked in
S Stage Down
Lowered fully; cover on
Carolina Biological Educational Series • Microscope Mastery Page 2 of 2 • Teacher Resource Document
Microscope Mission Answer Key Teacher Answer Key & Scoring Guide UDL / Scaffolded Edition

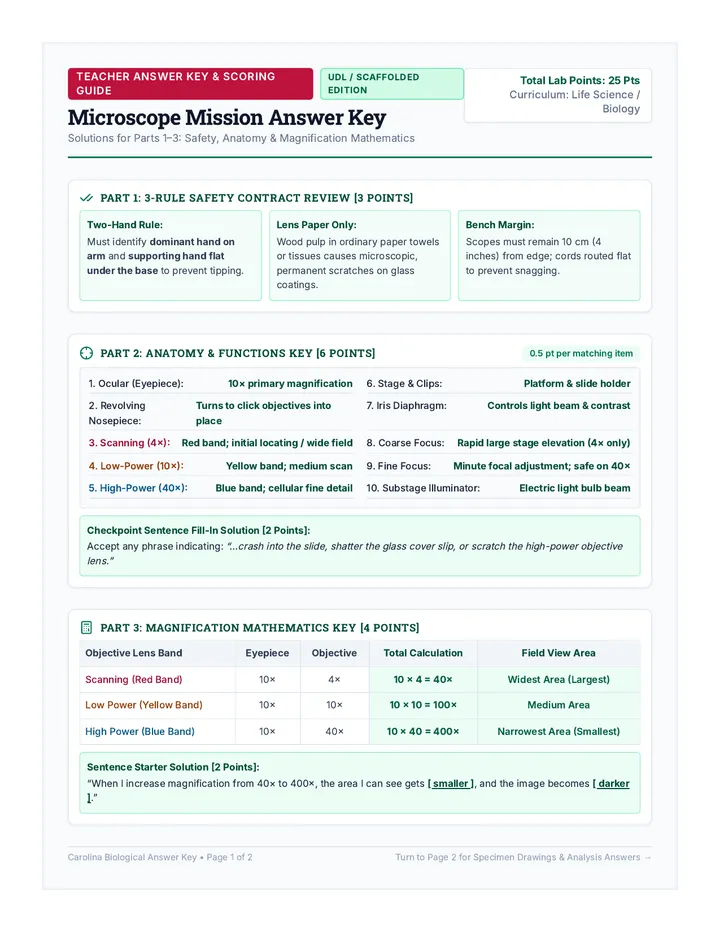

Microscope Mission Answer Key
Solutions for Parts 1–3: Safety, Anatomy & Magnification Mathematics
Total Lab Points: 25 Pts
Curriculum: Life Science / Biology
Part 1: 3-Rule Safety Contract Review [3 Points]
Two-Hand Rule: Must identify dominant hand on arm and supporting hand flat under the base to prevent tipping.
Lens Paper Only: Wood pulp in ordinary paper towels or tissues causes microscopic, permanent scratches on glass coatings.
Bench Margin: Scopes must remain 10 cm (4 inches) from edge; cords routed flat to prevent snagging.
Part 2: Anatomy & Functions Key [6 Points]
0.5 pt per matching item
1. Ocular (Eyepiece): 10× primary magnification
6. Stage & Clips: Platform & slide holder
2. Revolving Nosepiece: Turns to click objectives into place
7. Iris Diaphragm: Controls light beam & contrast
3. Scanning (4×): Red band; initial locating / wide field
8. Coarse Focus: Rapid large stage elevation (4× only)
4. Low-Power (10×): Yellow band; medium scan
9. Fine Focus: Minute focal adjustment; safe on 40×
5. High-Power (40×): Blue band; cellular fine detail
10. Substage Illuminator: Electric light bulb beam
Checkpoint Sentence Fill-In Solution [2 Points]:
Accept any phrase indicating: “...crash into the slide, shatter the glass cover slip, or scratch the high-power objective lens.”
Part 3: Magnification Mathematics Key [4 Points]
Objective Lens Band Eyepiece Objective Total Calculation Field View Area Scanning (Red Band) 10× 4× 10 × 4 = 40× Widest Area (Largest) Low Power (Yellow Band) 10× 10× 10 × 10 = 100× Medium Area High Power (Blue Band) 10× 40× 10 × 40 = 400× Narrowest Area (Smallest)
Sentence Starter Solution [2 Points]:
“When I increase magnification from 40× to 400×, the area I can see gets [ smaller ] , and the image becomes [ darker ] .”
Carolina Biological Answer Key • Page 1 of 2 Turn to Page 2 for Specimen Drawings & Analysis Answers →
Microscope Mission Answer Key
Solutions for Parts 4–6: Drawings, Motion Tests & Analysis
Grading Rubric Included
Part 5: Letter “e” Exemplar Drawings [4 Points]
Verify orientation & magnification scale
1. Naked Eye (1×)
e
Right-side up, standard orientation
2. Scanning View (40×)
e
Inverted (Upside down & backwards)
3. Low Power View (100×)
e Fibers visible
Cropped view, rough ink dots
Movement Experiment Answers [2 Points]:
• Slide moved RIGHT → image appears to move [ X ] LEFT .UP (away) → image appears to move [ X ] DOWN .
Part 6: Conclusion Sentence Frame Solutions [4 Points]
1. Image Inversion Sentence Frame [2 Pts]:
“Under the microscope, the letter 'e' is flipped upside down (vertically) and backwards left-to-right / reversed (horizontally).”
2. High-Power Troubleshooting Sentence Frame [2 Pts]:
“If the image looks too dark, I will adjust the iris diaphragm / light illuminator .only the fine focus knob.”
25-Point Comprehensive Grading Rubric
Parts 1 & 2 (9 pts) Safety rules (3 pts), anatomy terms (5 pts), coarse focus rule (1 pt).
Part 3 (4 pts) Total magnification table (3 pts), sentence frame (1 pt).
Part 5 (6 pts) Drawings accuracy (4 pts), directional motion checks (2 pts).
Part 6 (6 pts) Inversion frame (2 pts), troubleshooting frame (2 pts), lab conduct (2 pts).
Carolina Biological Series • Teacher Evaluation Document Page 2 of 2 • Complete Key & Rubric
Microscope Mastery Slides Biology Laboratory Training
Carolina Microscope
Mastery
Essential lab protocols: Anatomy, safe transport, magnification calculations, and the 5-step precision focusing sequence.
Carolina Biological Science Series Standard Lab Operating Procedure
Microscope Handling & Safety
Rule #1: Zero Drops
Two-Hand Rule
One hand firmly grips the arm ; the other hand supports the flat base .
Lens Paper Only
Paper towels scratch coated optical glass. Use only specialized lint-free lens paper.
Cord Safety Zone
Keep scope 10 cm from bench edge . Never let cords drape over aisles or trip pathways.
Carry microscopes upright at all times to prevent ocular lenses from sliding out.
Calculating Total Magnification
Total = Ocular (10×) × Objective
Scanning Power
4× Lens
Red Band
10× × 4× = 40×
Widest Field of View
Low Power
10× Lens
Yellow Band
10× × 10× = 100×
Medium Field of View
High Power
40× Lens
Blue Band
10× × 40× = 400×
Narrowest • Needs Light
Optical Rule: Higher magnification = Smaller view area + Darker image. Adjust Iris Diaphragm for Light
The 5-Step Focusing Sequence
Critical Safety Protocol
1
Start on 4× Scanning:
Rotate nosepiece until the red 4× objective clicks in.
2
Raise Stage from Side:
Look from side; turn coarse knob to raise stage near the top.
3
Look & Slowly Lower:
Look in eyepiece; slowly lower stage until specimen resolves.
4
Center Target & 10×:
Center target in crosshairs before switching to 10× lens.
5
Switch to 40× — Fine ONLY:
NEVER touch coarse focus on 40×! Fine knob only.
If lost on 40×, return to 10×, re-center the target, then return to 40×. Carolina Protocol
Optical Inversion & Motion Paradox
Letter “e” Investigation
1. Complete Image Inversion
Convex lenses bend light rays, flipping the specimen in two ways:
On Slide (Naked Eye) e
In Eyepiece (40×) e
• Vertically upside down & Horizontally reversed .
2. Opposite Movement
Every movement on the stage appears mirrored in the field of view:
Push Slide RIGHT → Moves LEFT
Push Slide AWAY → Moves TOWARD YOU
Keep this in mind when following live swimming protozoa.
Record biological drawings with clear, solid lines inside your lab circles. Carolina Lab Skills Standard
T.E.A.M. Return & Storage Protocol
Mandatory Sign-Off
T
Turn Off
Power off; wrap cord.
E
Eyepiece In
Rotate ocular forward.
A
Arm Out
Handle facing out.
M
Min Power
Red 4× clicked in.
S
Stage Down
Lower stage; cover on.
Raise your hand for station inspection before placing scope into the cabinet. Station Ready ✓
