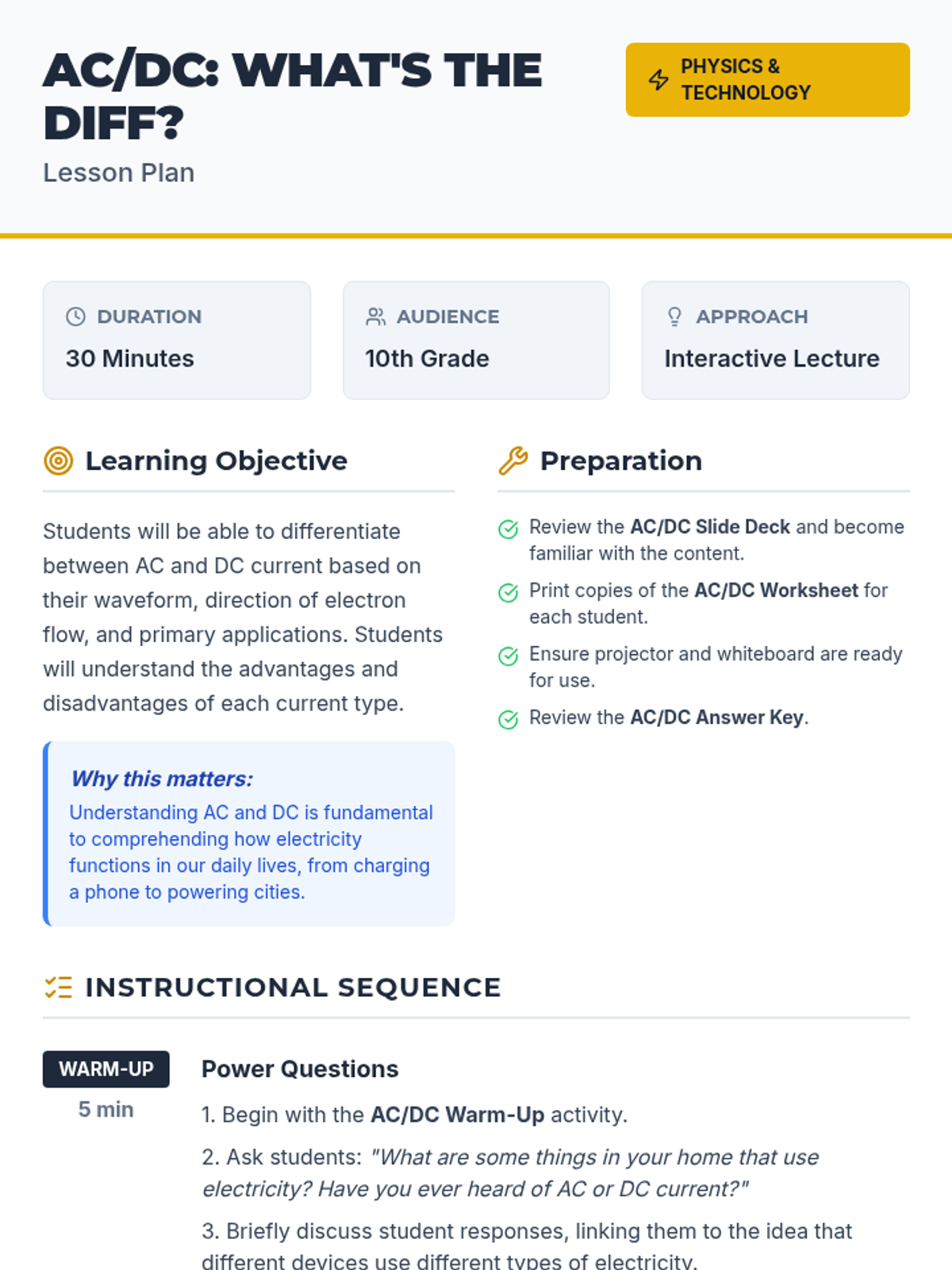

AC DC Lesson Plan AC/DC: What's the Diff?
Lesson Plan
PHYSICS & TECHNOLOGY
Duration
30 Minutes
Audience
10th Grade
Approach
Interactive Lecture
Learning Objective
Students will be able to differentiate between AC and DC current based on their waveform, direction of electron flow, and primary applications. Students will understand the advantages and disadvantages of each current type.
Why this matters:
Understanding AC and DC is fundamental to comprehending how electricity functions in our daily lives, from charging a phone to powering cities.
Preparation
Review the AC/DC Slide Deck and become familiar with the content.
Print copies of the AC/DC Worksheet for each student.
Ensure projector and whiteboard are ready for use.
Review the AC/DC Answer Key .
Instructional Sequence
Warm-Up
5 min
Power Questions
1. Begin with the AC/DC Warm-Up activity.
2. Ask students: "What are some things in your home that use electricity? Have you ever heard of AC or DC current?"
3. Briefly discuss student responses, linking them to the idea that different devices use different types of electricity.
Intro
10 min
Introduction to AC/DC
1. Use the AC/DC Slide Deck to introduce AC and DC current.
2. Explain basic definitions: direction of electron flow (constant vs. alternating).
3. Use analogies: One-way street (DC) vs. Busy two-way street (AC) .
4. Show waveform diagrams from the slide deck illustrating the visual difference.
Core
10 min
Key Differences & Applications
Voltage Level: DC typically constant, AC easily stepped up/down via transformers.Transmission: AC is significantly more efficient for long-distance transport.Applications: DC for electronics (batteries, chips); AC for household and industrial power.
Facilitate class discussion identifying everyday encounters with AC vs. DC.
Practice
3 min
Worksheet Activity
1. Distribute the AC/DC Worksheet .
2. Instruct students to complete it individually or in pairs as a quick check for understanding.
3. Circulate and provide support.
Cool
2 min
Cool-Down: One Big Difference
1. Conduct the AC/DC Cool-Down activity.
2. Have students summarize one key difference learned.
3. Collect materials for review.

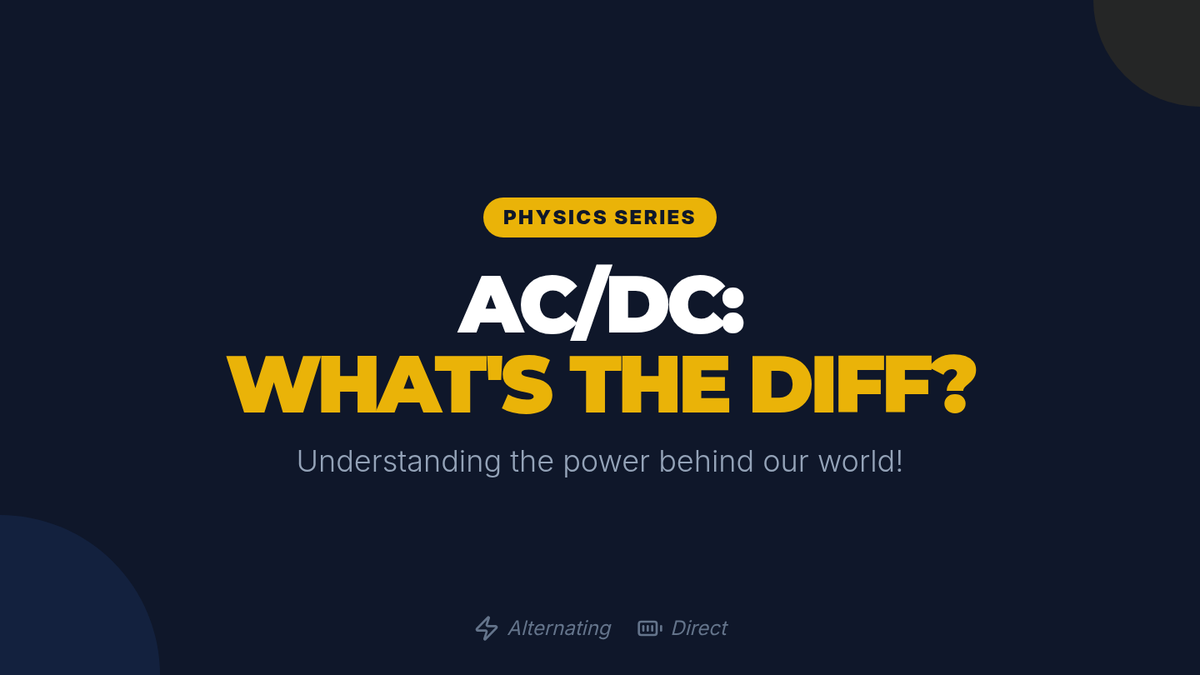

AC DC Slide Deck Physics Series
AC/DC:
What's the Diff?
Understanding the power behind our world!
Alternating
Direct
Teacher Notes: Greet students and introduce the topic by asking about their experiences with electricity.
Warm-Up: Power Questions
1. What are some things in your home that use electricity?
2. Have you ever heard of AC or DC current?
Teacher Notes: Ask students what they know about electricity. Prompt them with examples of devices they use.
Direct Current (DC)
Electrons flow in one direction only .
Think of it like a one-way street for electricity.
Examples
Batteries, Solar Panels, Phones, Laptops
TIME →
VOLTAGE
Steady Flow
Teacher Notes: Introduce Direct Current (DC). Emphasize the constant, one-way flow.
Alternating Current (AC)
Electrons periodically reverse direction .
Think of it like a two-way street where traffic switches.
Examples
Household Outlets, Power Grids, Large Appliances
TIME →
Oscillating Flow
Teacher Notes: Introduce Alternating Current (AC). Emphasize the changing direction.
Visualizing AC vs. DC
DC Waveform
Steady, constant voltage and direction.
AC Waveform
Oscillating voltage and direction.
Teacher Notes: Visually compare the waveforms. Explain that DC is a straight line, AC is a sine wave.
Key Difference: Transmission
The AC Advantage
Can be easily converted to higher or lower voltages using transformers .
Ideal for long-distance power transmission with minimal energy loss.
DC Limitation
Voltage conversion is more complex and less efficient for large scale.
This is why power grids use AC!
Teacher Notes: Discuss the advantages and disadvantages of each. Focus on transmission and transformation.
Applications
AC Powers
Homes, offices, & factories
Most large motors
Wall outlets
Refrigerators & Washers
DC Powers

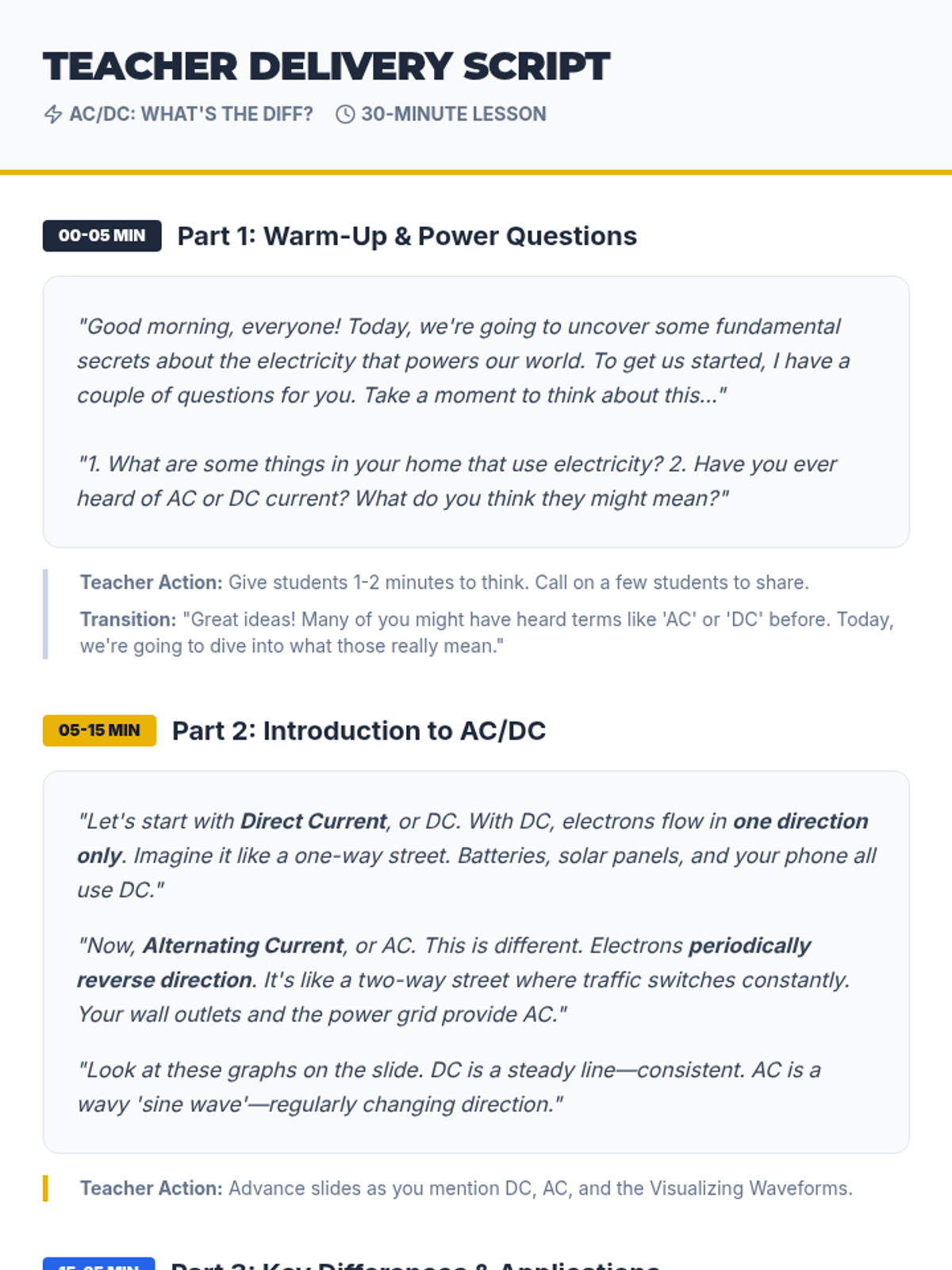

AC DC Script Teacher Delivery Script
AC/DC: What's the Diff? 30-Minute Lesson
00-05 min
Part 1: Warm-Up & Power Questions
"Good morning, everyone! Today, we're going to uncover some fundamental secrets about the electricity that powers our world. To get us started, I have a couple of questions for you. Take a moment to think about this..."
"1. What are some things in your home that use electricity? 2. Have you ever heard of AC or DC current? What do you think they might mean?"
Teacher Action: Give students 1-2 minutes to think. Call on a few students to share.
Transition: "Great ideas! Many of you might have heard terms like 'AC' or 'DC' before. Today, we're going to dive into what those really mean."
05-15 min
Part 2: Introduction to AC/DC
"Let's start with Direct Current , or DC. With DC, electrons flow in one direction only . Imagine it like a one-way street. Batteries, solar panels, and your phone all use DC."
"Now, Alternating Current , or AC. This is different. Electrons periodically reverse direction . It's like a two-way street where traffic switches constantly. Your wall outlets and the power grid provide AC."
"Look at these graphs on the slide. DC is a steady line—consistent. AC is a wavy 'sine wave'—regularly changing direction."
Teacher Action: Advance slides as you mention DC, AC, and the Visualizing Waveforms.
15-25 min
Part 3: Key Differences & Applications
"Why two types? Efficiency. AC can be 'stepped up' to massive voltages for long-distance travel using transformers . This prevents energy loss as heat. This is why our power grid is AC."
"DC is harder to transform but it's perfect for sensitive electronics. Your phone charger actually takes the AC from the wall and converts it into the DC your battery needs."
Discussion Point: Ask: "What is ONE big difference you can remember between AC and DC?" Listen for direction of flow, transmission, or common uses.
25-28 min
Part 4: Worksheet Activity
"Excellent! To solidify your understanding, I'm handing out a short worksheet. Work on this individually or with a partner quickly."
Teacher Action: Distribute the worksheet and circulate the room to provide support.
28-30 min
Part 5: Cool-Down
"Alright everyone, let's bring it back. For our cool-down, please share one key difference you learned today. This is your exit ticket out!"

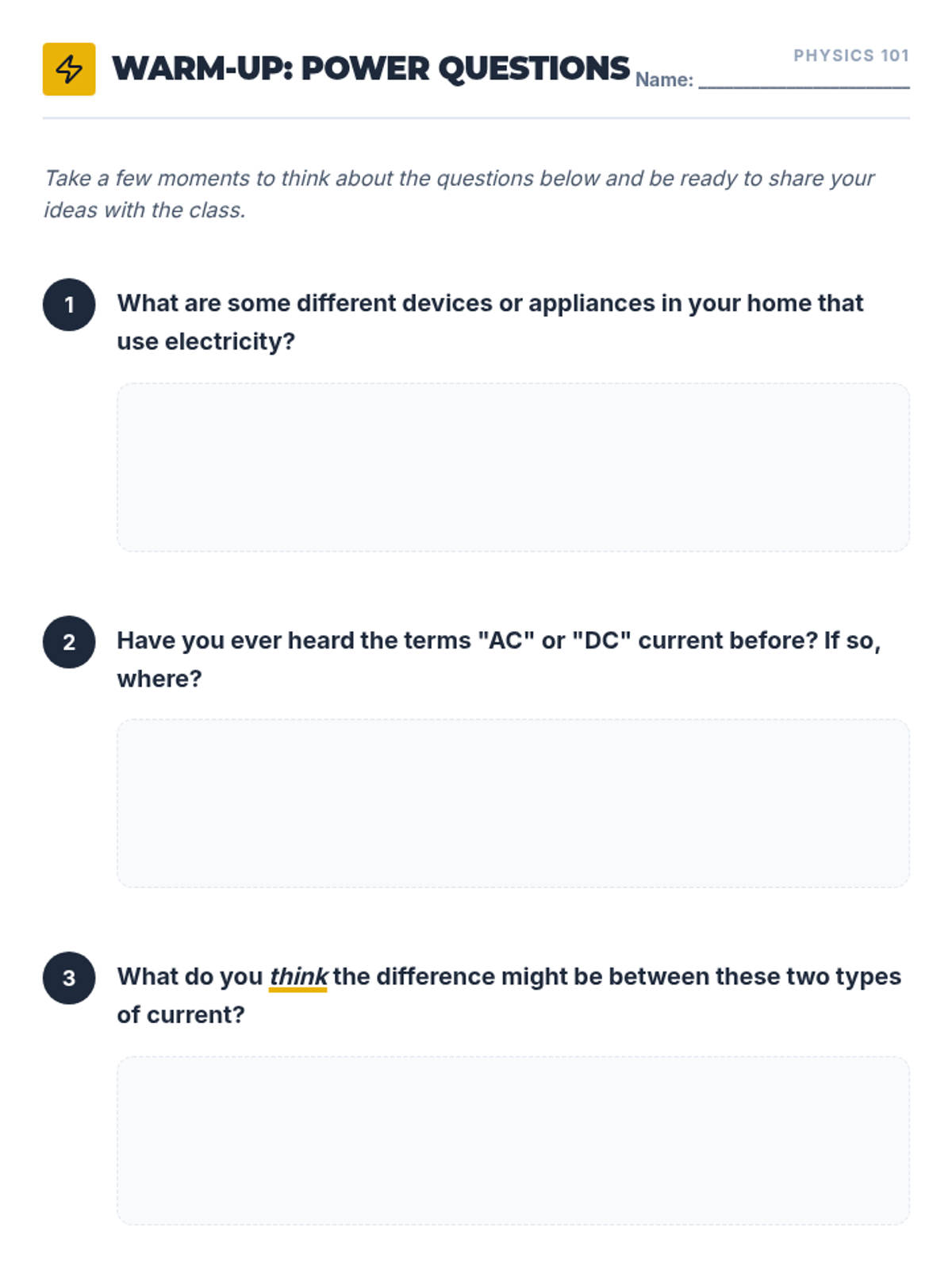

AC DC Warm Up Warm-Up: Power Questions
PHYSICS 101
Name: ________________________
Take a few moments to think about the questions below and be ready to share your ideas with the class.
1
What are some different devices or appliances in your home that use electricity?
2
Have you ever heard the terms "AC" or "DC" current before? If so, where?
3
What do you think the difference might be between these two types of current?
Direct Current
Alternating Current

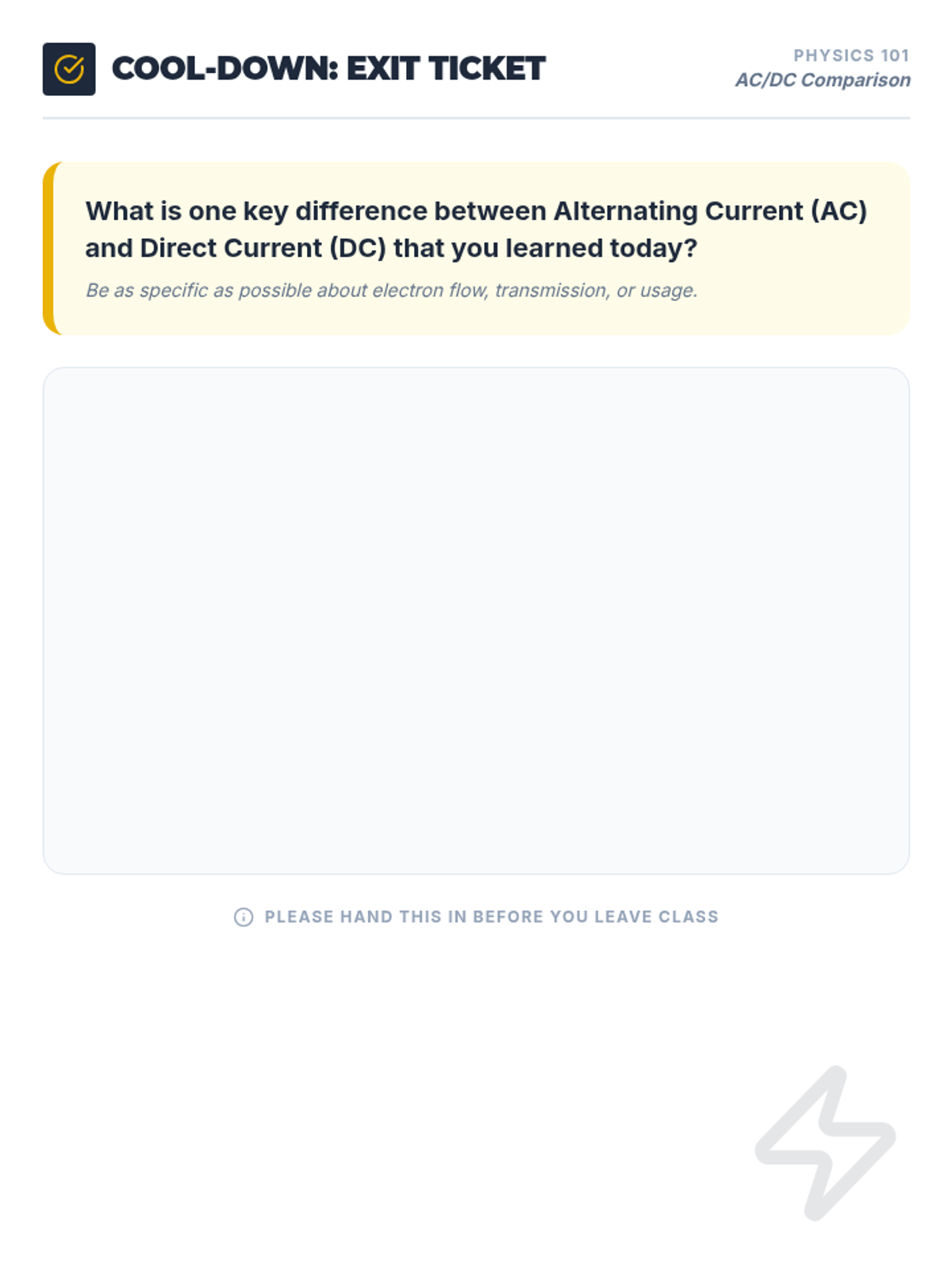

AC DC Cool Down Cool-Down: Exit Ticket
PHYSICS 101
AC/DC Comparison
What is one key difference between Alternating Current (AC) and Direct Current (DC) that you learned today?
Be as specific as possible about electron flow, transmission, or usage.
Please hand this in before you leave class

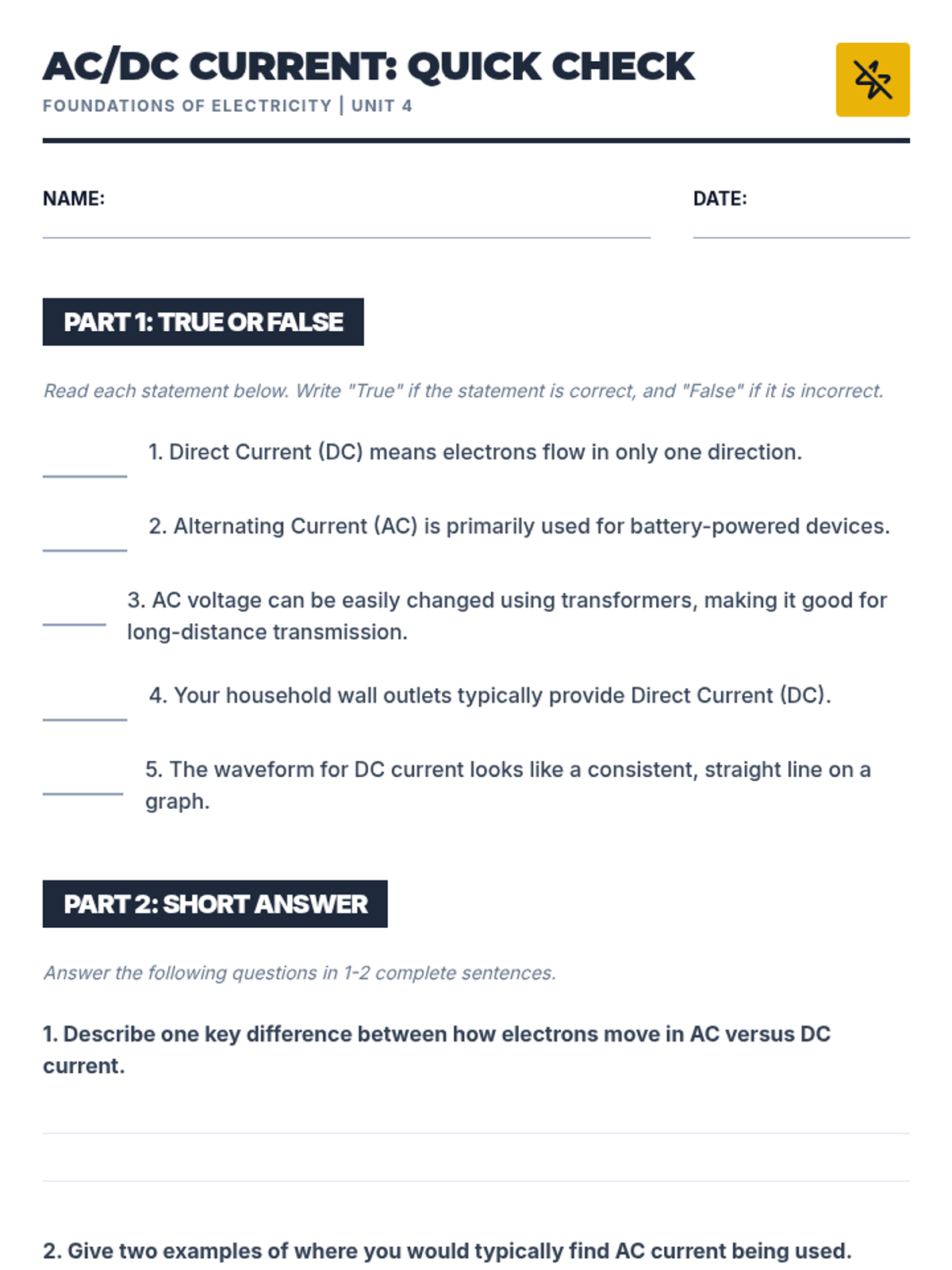

AC DC Worksheet AC/DC Current: Quick Check
Foundations of Electricity | Unit 4
NAME:
DATE:
Part 1: True or False
Read each statement below. Write "True" if the statement is correct, and "False" if it is incorrect.
1. Direct Current (DC) means electrons flow in only one direction.
2. Alternating Current (AC) is primarily used for battery-powered devices.
3. AC voltage can be easily changed using transformers, making it good for long-distance transmission.
4. Your household wall outlets typically provide Direct Current (DC).
5. The waveform for DC current looks like a consistent, straight line on a graph.
Part 2: Short Answer
Answer the following questions in 1-2 complete sentences.
1. Describe one key difference between how electrons move in AC versus DC current.
2. Give two examples of where you would typically find AC current being used.
3. Give two examples of where you would typically find DC current being used.
ENGINEERING REF: ELEC-042

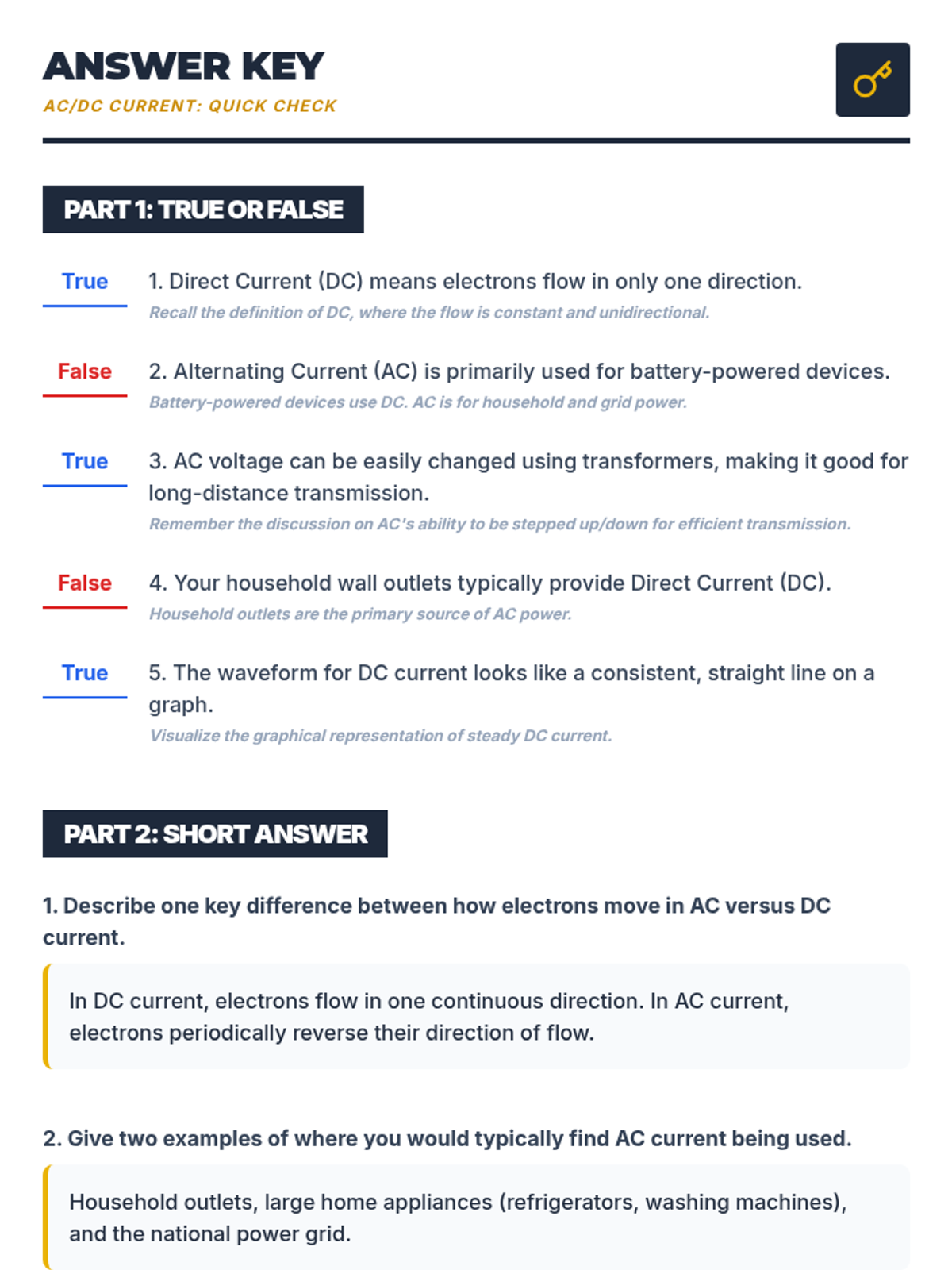

AC DC Answer Key Answer Key
AC/DC Current: Quick Check
Part 1: True or False
True
1. Direct Current (DC) means electrons flow in only one direction.
Recall the definition of DC, where the flow is constant and unidirectional.
False
2. Alternating Current (AC) is primarily used for battery-powered devices.
Battery-powered devices use DC. AC is for household and grid power.
True
3. AC voltage can be easily changed using transformers, making it good for long-distance transmission.
Remember the discussion on AC's ability to be stepped up/down for efficient transmission.
False
4. Your household wall outlets typically provide Direct Current (DC).
Household outlets are the primary source of AC power.
True
5. The waveform for DC current looks like a consistent, straight line on a graph.
Visualize the graphical representation of steady DC current.
Part 2: Short Answer
1. Describe one key difference between how electrons move in AC versus DC current.
In DC current, electrons flow in one continuous direction. In AC current, electrons periodically reverse their direction of flow.
2. Give two examples of where you would typically find AC current being used.
Household outlets, large home appliances (refrigerators, washing machines), and the national power grid.
3. Give two examples of where you would typically find DC current being used.
Batteries (in phones, flashlights, cars), solar panels, and most electronic devices (computers, laptops).
