Industrial Hygiene Slides The Science of
Industrial Hygiene
Recognizing, evaluating, and controlling environmental factors or stresses arising in or from the workplace which may cause sickness, impaired health, or significant discomfort.
Part 1: Recognition
Part 2: Evaluation
The Anticipation Framework
01 Recognition
Identifying potential hazards before they occur. Qualitative assessment of chemical, physical, biological, and ergonomic stressors.
02 Evaluation
Quantitative measuring of exposure levels. Comparing data against established standards like PELs and TLVs.
03 Control
Implementing strategies to reduce exposure. The systematic application of the Hierarchy of Controls.
Toxicology Basics
Dose-Response Relationship
"The dose makes the poison." Industrial hygienists must determine the concentration and duration of exposure.
Routes of Entry
Inhalation (Primary industrial route)
Absorption (Skin/Eyes)
Ingestion
Injection
Acute vs. Chronic
ACUTE
Immediate effect after short-term high exposure (e.g., chemical burn).
CHRONIC
Delayed effect after long-term low-level exposure (e.g., silicosis, lead poisoning).
Understanding Limits (PEL vs. TLV)
PEL (Permissible Exposure Limit)
Regulatory Standard (OSHA)
The legal limit in the United States. Often lags behind current scientific research due to the slow rulemaking process.
TLV (Threshold Limit Value)
Scientific Recommendation (ACGIH)
Based purely on health factors. Typically more stringent than PELs and updated annually.
TWA (8-hour Time Weighted Average) is the standard metric for both.
Case Challenge: Air Quality
You have received monitoring data from a local plastic manufacturing facility. Benzene levels were recorded over an 8-hour shift. Your task is to calculate the TWA and determine if the site is in compliance or if immediate respiratory protection is required.
Start Analysis
Toxicology and Exposure Teacher Guide Toxicology and Exposure Guide
Teacher Resource | Lesson 1
Strategic Hazard Assessment
Lesson Context
This lesson serves as the technical foundation for the sequence. Graduate students must move beyond "knowing" hazards exist to "quantifying" them using established toxicological principles. The focus is on the transition from qualitative recognition to quantitative evaluation.
Key Learning Objectives
Differentiate between acute and chronic toxicity.
Calculate Time-Weighted Averages (TWA) for chemical exposures.
Critique the difference between PEL (Regulatory) and TLV (Scientific) standards.
Prerequisite Knowledge
Basic chemistry (concentration, ppm, mg/m³).
General workplace safety terminology.
Content Deep Dive
The TWA Calculation
Industrial hygienists use the TWA to represent a worker's exposure over a standard 8-hour shift. The formula is:
\[TWA = \frac{(C_1 \times T_1) + (C_2 \times T_2) + \dots + (C_n \times T_n)}{8}\]
Where C is concentration and T is the time duration of that specific concentration.
Standard Thresholds to Know
Term Full Name Definition STEL Short-Term Exposure Limit 15-minute TWA that should not be exceeded at any time during a workday. Ceiling (C) Ceiling Limit Concentration that should not be exceeded during any part of the working exposure. IDLH Immediately Dangerous to Life/Health Level that poses an immediate threat to life or would cause irreversible health effects.
Facilitation Prompts
Prompt 1: The Regulatory Lag
"Why do you think OSHA PELs haven't been updated for many substances since 1971? What are the ethical implications for a safety professional following only the legal minimum?"
Prompt 2: Cumulative Effects
"How does a worker's lifestyle (e.g., smoking, secondary jobs) affect their physiological 'dose' of a workplace chemical like Benzene?"
Worksheet Answer Key (Part 1 Preview)
Scenario Analysis: Benzene TWA
Sample Data: 2 hrs @ 2ppm, 4 hrs @ 0.5ppm, 2 hrs @ 1ppm.
Calculation: \(((2 \times 2) + (4 \times 0.5) + (2 \times 1)) / 8 = (4 + 2 + 2) / 8 = 1.0 \text{ ppm}\)
Result: Compliance with OSHA PEL (1.0 ppm) is met exactly, but exceeds NIOSH REL (0.1 ppm).
PEL Analysis Worksheet Hazard Assessment Lab
Student Worksheet | Lesson 1
Name:
Date:
I. Recognition & Fundamentals
Briefly define the following toxicological terms and their significance in Industrial Hygiene:
1. Acute vs. Chronic Exposure
2. Route of Entry (Inhalation significance)
3. PEL vs. TLV (The "Regulatory Gap")
II. Quantitative Evaluation (TWA Calculation)
Scenario: Benzene Monitoring
An employee at a chemical processing plant is monitored for an 8-hour shift. The following levels were recorded via personal monitoring pump:
08:00 - 10:30 (2.5 hrs): 2.4 ppm (Tank Cleaning)
10:30 - 14:00 (3.5 hrs): 0.4 ppm (Administrative/Desk Work)
14:00 - 16:00 (2.0 hrs): 1.8 ppm (Loading Area)
1. Calculate the 8-hour Time Weighted Average (TWA) for this employee. Show all steps of your calculation below.
2. Resulting TWA:
3. Units (ppm or mg/m³):
III. Synthesis & Action
Using the data from Section II, refer to the following standards:
Organization Standard Type Limit for Benzene OSHA PEL (TWA) 1.0 ppm ACGIH TLV (TWA) 0.5 ppm NIOSH REL (TWA) 0.1 ppm
Is the facility in regulatory compliance (OSHA)? Justify your answer.
As a Safety Architect, what control measures would you recommend based on the gap between OSHA PEL and the NIOSH REL? Why is relying solely on the PEL potentially dangerous in this specific scenario?
JHA Blueprint Slides Technical Module 02
Breaking It
Down.
The Methodology of Job Hazard Analysis (JHA): Systematic deconstruction for predictive safety.
Defining the JHA
A technique that focuses on job tasks as the way to identify hazards before they occur.
Integration of safety principles
Standardized workflow
Training documentation
The Goal
To identify hazards in each discrete step of a job and find the most effective control measures.
The Four-Step Methodology
01
Select the Job
Prioritize based on injury frequency, severity, or new processes.
02
Break into Steps
"What is done," not "how to do it." Keep it to 10-15 steps max.
03
Identify Hazards
Analyze each step for potential injury, health risk, or environment impact.
04
Determine Controls
Develop specific preventive measures to eliminate or reduce the hazard.
Hazard vs. Risk
HAZARD
"The Shark in the water."
A potential source of harm or an adverse health effect on a person or persons.
RISK
"Swimming with the shark."
The likelihood that a person may be harmed or suffer adverse health effects if exposed to a hazard.
JHA targets the HAZARD to minimize the RISK.
Process Analysis Workshop
We are about to watch a 2-minute clip of a Forklift High-Shelf Stacking operation.
Your Mission:
Identify the first 5 steps of the job.
Note every potential point of failure.
Map one hazard to one specific control.
[ Video Placeholder: Industrial Task ]

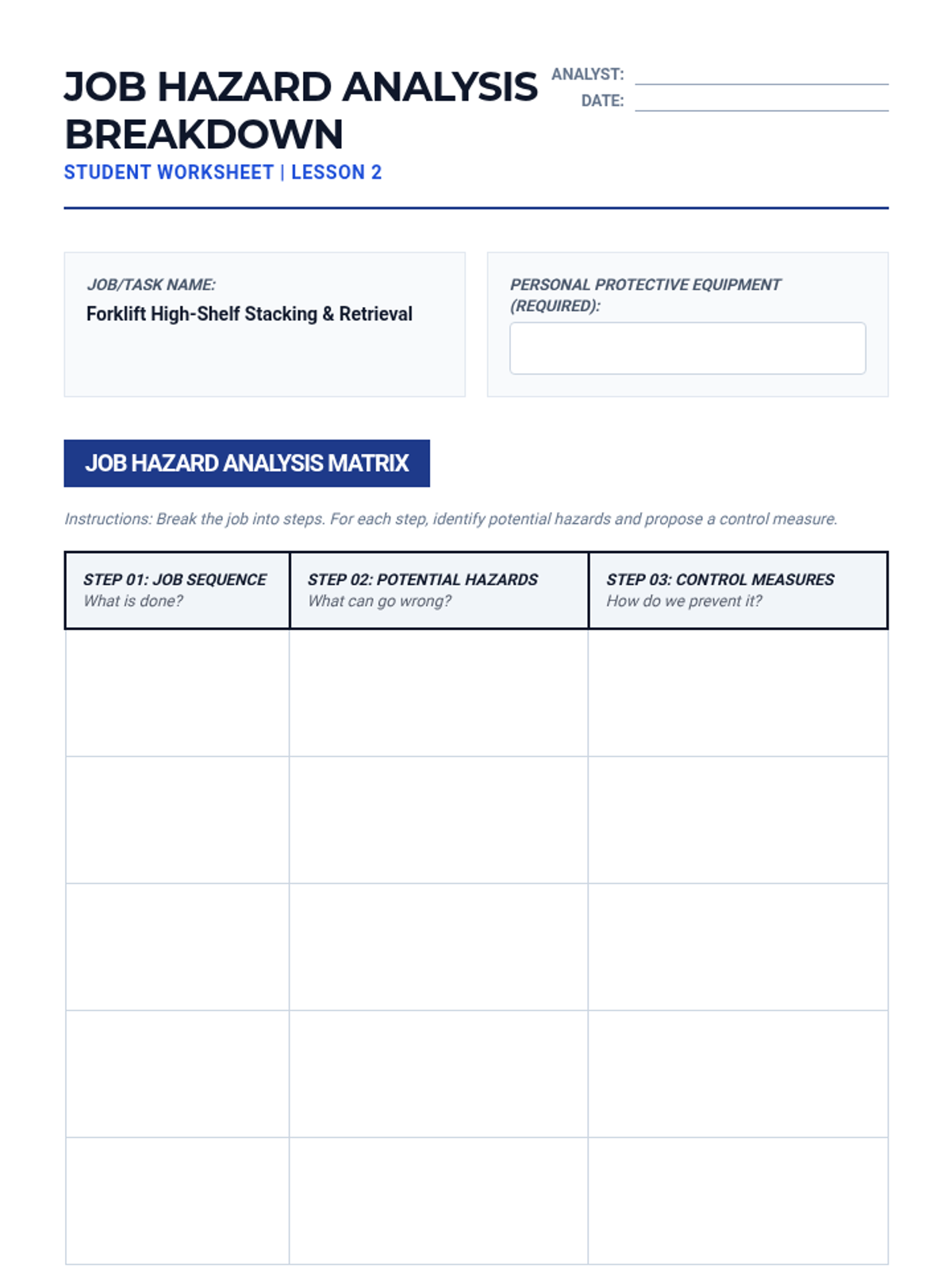

JHA Breakdown Worksheet Job Hazard Analysis Breakdown
Student Worksheet | Lesson 2
Analyst:
Date:
Job/Task Name:
Forklift High-Shelf Stacking & Retrieval
Personal Protective Equipment (Required):
Job Hazard Analysis Matrix
Instructions: Break the job into steps. For each step, identify potential hazards and propose a control measure.
| Step 01: Job Sequence
Analysis & Justification
1. Priority Ranking: Why was this specific job selected for a JHA? (Use frequency, severity, or novelty as your framework).
2. The Human Factor: How would you involve the actual forklift operator in this analysis? Why is their input critical for a successful JHA?
3. Continuous Improvement: Once this JHA is complete, how should it be used beyond just a "check-the-box" requirement? (e.g., Training, Accident Investigation, SOP Design).
Reviewer Signature (Instructor)
Approval Status
Draft
Review Needed
Approved

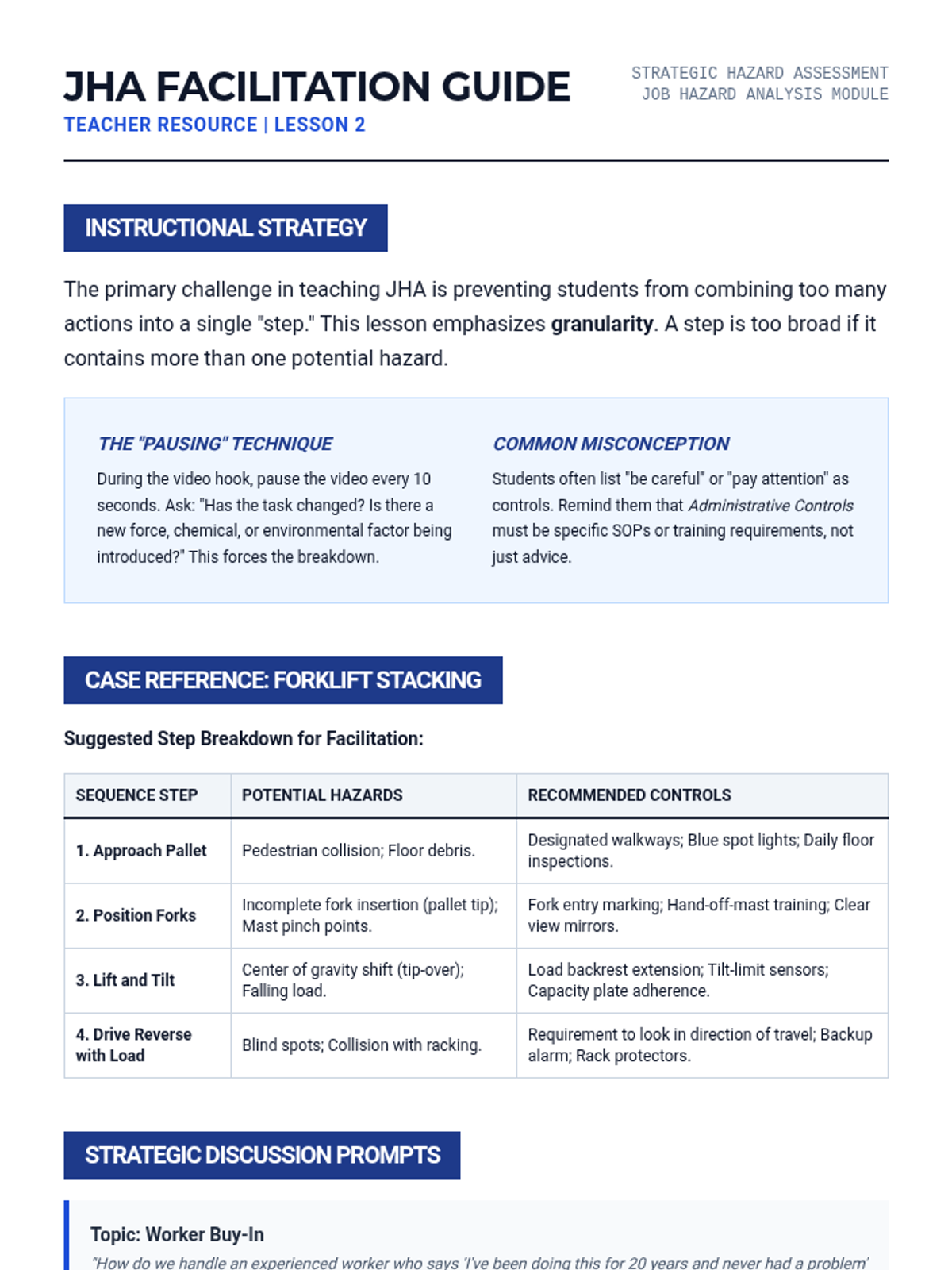

JHA Facilitation Guide JHA Facilitation Guide
Teacher Resource | Lesson 2
Strategic Hazard Assessment
Instructional Strategy
The primary challenge in teaching JHA is preventing students from combining too many actions into a single "step." This lesson emphasizes granularity . A step is too broad if it contains more than one potential hazard.
The "Pausing" Technique
During the video hook, pause the video every 10 seconds. Ask: "Has the task changed? Is there a new force, chemical, or environmental factor being introduced?" This forces the breakdown.
Common Misconception
Students often list "be careful" or "pay attention" as controls. Remind them that Administrative Controls must be specific SOPs or training requirements, not just advice.
Case Reference: Forklift Stacking
Suggested Step Breakdown for Facilitation:
Sequence Step Potential Hazards Recommended Controls 1. Approach Pallet Pedestrian collision; Floor debris. Designated walkways; Blue spot lights; Daily floor inspections. 2. Position Forks Incomplete fork insertion (pallet tip); Mast pinch points. Fork entry marking; Hand-off-mast training; Clear view mirrors. 3. Lift and Tilt Center of gravity shift (tip-over); Falling load. Load backrest extension; Tilt-limit sensors; Capacity plate adherence. 4. Drive Reverse with Load Blind spots; Collision with racking. Requirement to look in direction of travel; Backup alarm; Rack protectors.
Strategic Discussion Prompts
Topic: Worker Buy-In
"How do we handle an experienced worker who says 'I've been doing this for 20 years and never had a problem' when we find hazards in their process?"
Topic: The JHA vs. SOP
"A JHA is a study. An SOP is a rule. How do we ensure that the results of the JHA are effectively translated into the daily Standard Operating Procedures?"
Control Strategy Slides Hierarchy of
Controls
Moving from reactive containment to inherent safety design. The architect's approach to risk mitigation.
Effectiveness Ranking
ELIMINATION
SUBSTITUTION
ENGINEERING CONTROLS
ADMINISTRATIVE CONTROLS
PPE
Most Effective Least Effective
Intrinsic Safety
Elimination and Substitution address the SOURCE of the hazard.
Isolation
Engineering controls place a barrier between the worker and the hazard.
The Human Error Gap
Administrative controls and PPE rely entirely on human behavior and consistent enforcement.
Designing Out Risk
Isolation
Enclosing a loud compressor in a soundproof box. Physical separation from the energy source.
Ventilation
Local exhaust systems that capture fumes at the point of generation before they enter the breathing zone.
Guarding
Machine guards, light curtains, and interlocks that physically prevent contact with moving parts.
"Engineering controls do not depend on the worker's decision to be safe."
The Failures of PPE
Why is PPE at the bottom of the hierarchy?
Improper Fit (Sizing issues)
Improper Use (Human error)
Maintenance failure (Degradation)
False sense of security
The Danger Zone
If PPE fails, the worker is immediately and directly exposed to the full force of the hazard.
Redesign Challenge: The Manual Solvent Wash
Workers are currently hand-dipping metal parts into open buckets of Trichloroethylene (TCE). The current "control" is rubber gloves and a fan.
Level 1
How do we eliminate the bucket entirely?
Level 2
What chemical can substitute TCE?
Level 3
How do we engineer an enclosure?

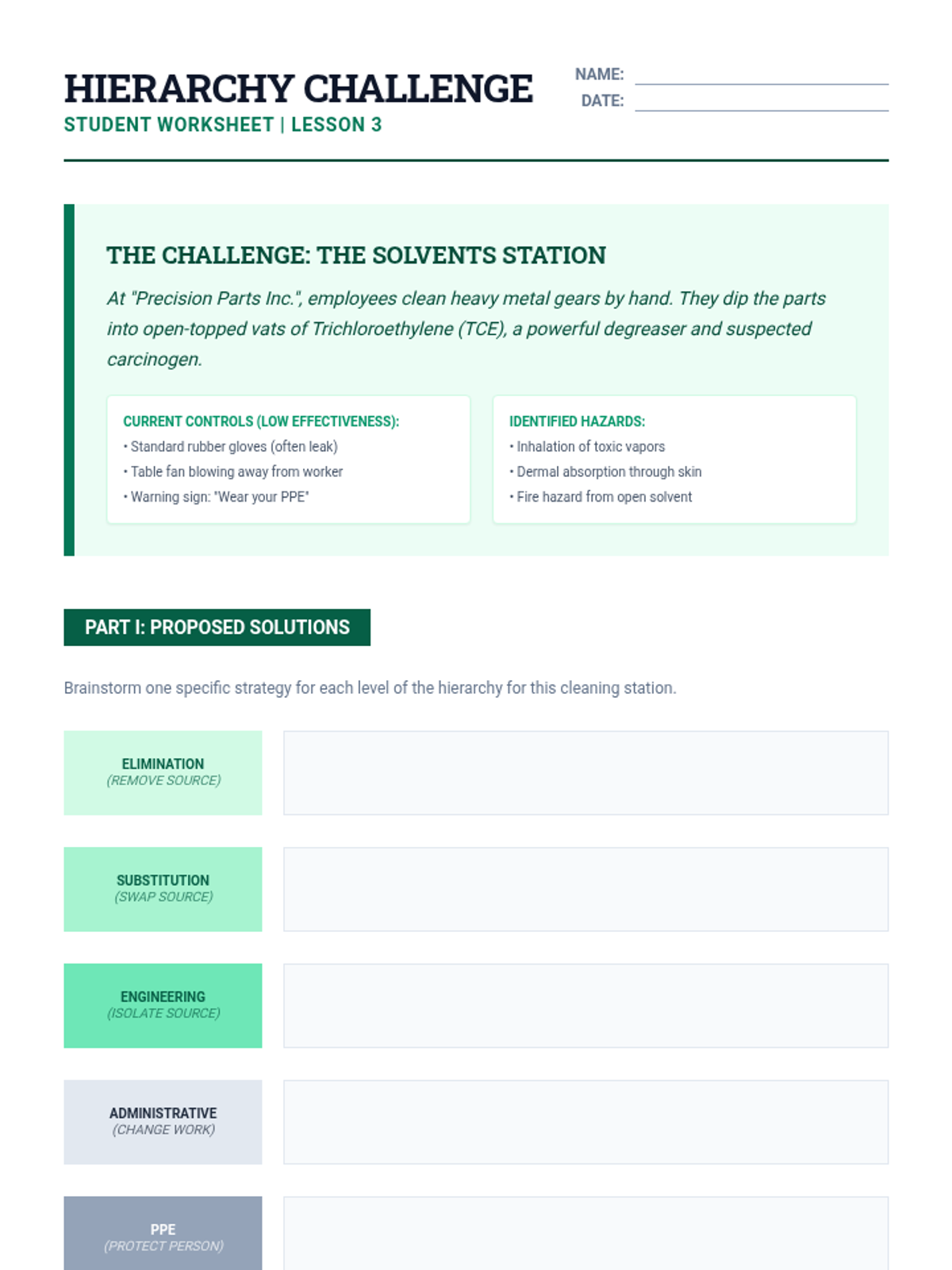

Hierarchy Challenge Worksheet Hierarchy Challenge
Student Worksheet | Lesson 3
Name:
Date:
The Challenge: The Solvents Station
At "Precision Parts Inc.", employees clean heavy metal gears by hand. They dip the parts into open-topped vats of Trichloroethylene (TCE), a powerful degreaser and suspected carcinogen.
Current Controls (Low Effectiveness):
• Standard rubber gloves (often leak)
• Table fan blowing away from worker
• Warning sign: "Wear your PPE"
Identified Hazards:
• Inhalation of toxic vapors
• Dermal absorption through skin
• Fire hazard from open solvent
Part I: Proposed Solutions
Brainstorm one specific strategy for each level of the hierarchy for this cleaning station.
Elimination
Substitution
Engineering
Administrative
PPE
Part II: Strategic Justification
1. The Cost of Failure: If the company relies solely on PPE (rubber gloves), what are three specific ways this control could fail?
2. Inherent Safety Design: Why is elimination/substitution considered "inherent safety" while engineering controls are considered "active safety"?
3. The Business Case: Managers often argue that Engineering Controls are "too expensive." How would you argue for an automated cleaning enclosure over the current manual dip station from a long-term risk and liability perspective?

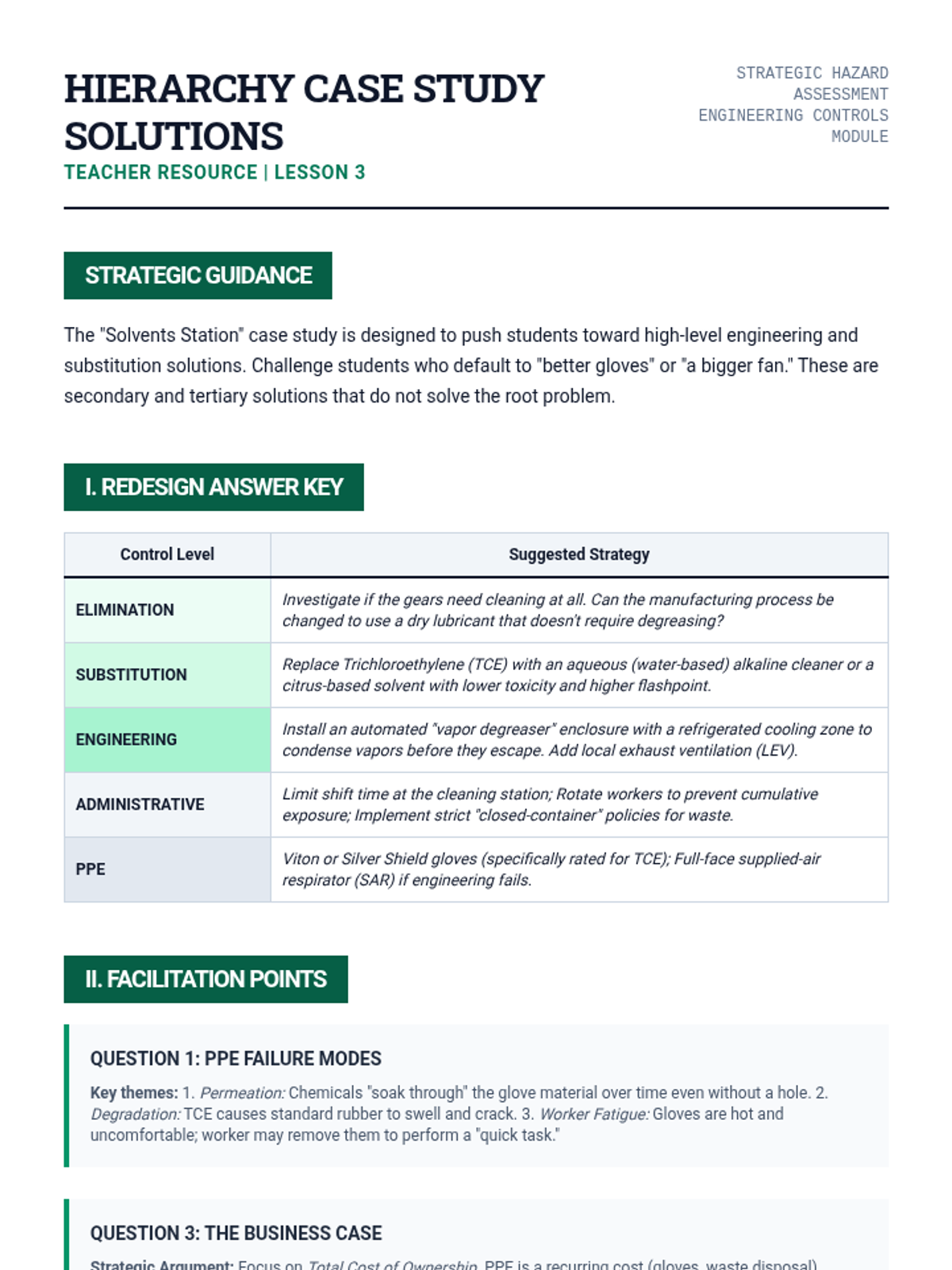

Case Study Solutions Hierarchy Case Study Solutions
Teacher Resource | Lesson 3
Strategic Hazard Assessment
Strategic Guidance
The "Solvents Station" case study is designed to push students toward high-level engineering and substitution solutions. Challenge students who default to "better gloves" or "a bigger fan." These are secondary and tertiary solutions that do not solve the root problem.
I. Redesign Answer Key
Control Level Suggested Strategy Elimination Investigate if the gears need cleaning at all. Can the manufacturing process be changed to use a dry lubricant that doesn't require degreasing? Substitution Replace Trichloroethylene (TCE) with an aqueous (water-based) alkaline cleaner or a citrus-based solvent with lower toxicity and higher flashpoint. Engineering Install an automated "vapor degreaser" enclosure with a refrigerated cooling zone to condense vapors before they escape. Add local exhaust ventilation (LEV). Administrative Limit shift time at the cleaning station; Rotate workers to prevent cumulative exposure; Implement strict "closed-container" policies for waste. PPE Viton or Silver Shield gloves (specifically rated for TCE); Full-face supplied-air respirator (SAR) if engineering fails.
II. Facilitation Points
Question 1: PPE Failure Modes
Key themes: 1. Permeation: Chemicals "soak through" the glove material over time even without a hole. 2. Degradation: TCE causes standard rubber to swell and crack. 3. Worker Fatigue: Gloves are hot and uncomfortable; worker may remove them to perform a "quick task."
Question 3: The Business Case
Strategic Argument: Focus on Total Cost of Ownership . PPE is a recurring cost (gloves, waste disposal). Administrative controls require constant supervision (salary cost). Engineering controls have a high initial CapEx but lower OpEx and significantly reduce the "fatality risk" which carries a multi-million dollar liability.
GHS Standards Slides Hazard Communication
The Universal
Language of Safety.
Globally Harmonized System (GHS) and the strategic design of Hazard Communication (HazCom) programs.
GHS: A Global Framework
The "Globally Harmonized System" provides a standardized approach to:
Defining chemical hazards
Creating classification criteria
Standardizing label elements
Formatting Safety Data Sheets (SDS)
The SDS Architecture
Sections 1-3
ID, Hazards, Ingredients
Sections 4-6
First Aid, Fire, Accidental Release
Sections 7-8
Handling, Storage, Exposure Controls/PPE
Section 9
Phys/Chem Properties
"The Safety Professional must be able to extract actionable data from these 16 sections in seconds during an emergency."
The Six Label Elements
1 Product Identifier
2 Signal Word (Danger/Warning)
3 Hazard Statements
4 Precautionary Statements
5 Pictograms
6 Supplier Info
[ Image: GHS Sample Label ]
Comms Design Workshop
The Mission:
You are provided with a technical SDS for Methylene Chloride. Your task is to design a "Safety Minute" briefing card for a diverse crew of workers, including non-native English speakers.
Identify Symbols
Simplify Language
Define Action
SDS Translation Activity SDS Translation Activity
Student Activity | Lesson 4
Student:
Chemical Profile: Methylene Chloride (DCM)
You are reviewing Section 2 (Hazards) and Section 8 (Exposure Controls/PPE) of a Safety Data Sheet for Methylene Chloride. Key findings include:
• Hazard: Carcinogenicity Cat 1B; Acute Toxicity Inhalation Cat 4.
• Hazard Statement: "Causes skin irritation. Suspected of causing cancer. May cause drowsiness or dizziness."
• PEL (OSHA): 25 ppm (8-hr TWA); 125 ppm (STEL).
• Exposure Control: Local exhaust ventilation required. Respiratory protection if PEL exceeded.
1. Technical Identification:
Which two GHS pictograms MUST appear on the DCM label based on the hazards above? Describe them.
2. Critical Value:
Explain the significance of the STEL (125 ppm) compared to the TWA (25 ppm) in an emergency spill situation.
The "Safety Minute" Briefing
Task: Your crew consists of highly skilled workers, but English is a second language for many, and technical jargon like "Cat 1B Carcinogen" is not helpful during a shift change.Design a "Safety Minute" card below using simplified language, iconography, and clear action steps.
Safety Briefing Card v1.0
Briefing Subject:
Methylene Chloride Safety
Icon 1
Icon 2
Icon 3
The Danger (Keep it simple):
The Rule (What MUST we do?):
Emergency (If you smell it or feel dizzy):
HazCom Program Rubric HazCom Assessment Rubric
Teacher Resource | Lesson 4
Strategic Hazard Assessment
Evaluation Framework
This rubric evaluates the student's ability to synthesize technical SDS data into actionable workplace communication. High-scoring responses prioritize clarity, urgency, and inclusivity .
Criteria Exemplary (4) Proficient (3) Developing (1-2) Technical Accuracy Correctly identifies DCM as a carcinogen and irritant. Selects Health Hazard and Exclamation Mark pictograms. Identifies main hazards. Selects one correct pictogram. Minor technical omissions. Misinterprets hazard categories or pictograms. Misses cancer warning. Language Simplification Translates "Cat 1B Carcinogen" to "Long-term health risk" or "Cancer hazard." Avoids jargon entirely. Simplifies most terms but retains some technical jargon (e.g., "PEL," "STEL"). Copies SDS text verbatim. Language remains inaccessible to lay workers. Visual Strategy Uses clear icons for "No Smoking," "Ventilation," or "Gloves." High contrast layout. Uses basic icons. Layout is organized but lacks visual impact for quick reading. Text-heavy. No icons or visuals provided. Cluttered design. Actionable Steps Emergency actions are command-based: "Stop work," "Move to fresh air," "Notify Supervisor." Includes safety steps but phrasing is passive (e.g., "One should inform someone"). Vague or missing action steps. No clear direction for emergency.
Strategic Discussion Prompts
"The Illusion of Safety"
Ask: "Does putting a sticker on a vat make the workplace safer? What happens if the workers can't read the sticker or it gets covered in grime?"
"Digital vs. Physical SDS"
Ask: "Is a digital SDS binder adequate if the Wi-Fi goes down during a chemical fire? How do you balance accessibility with information management?"
Human Factors Slides Expanding the Hazard Definition
The Human
Component.
Ergonomics, musculoskeletal disorders (MSDs), and the invisible risks of psychosocial stress.
Fitting the Job to the Worker
Ergonomics is the science of designing the workplace to fit the capabilities and limitations of the human body.
Goal 1: Prevent Injury
Reducing Musculoskeletal Disorders (MSDs) like Carpal Tunnel or Chronic Back Pain.
Goal 2: Increase Efficiency
Optimizing movements to reduce fatigue and errors.
The Three Pillars
1. Force
2. Posture
3. Repetition
The Neutral Position
Neutral Posture
The position in which the body is most efficient and the least amount of stress is placed on the muscles and joints.
Awkward Posture
Any position that moves away from neutral (e.g., reaching, twisting, bending) increasing the risk of MSDs.
[ Visual: Skeleton showing Neutral vs. Awkward Postures ]
Psychosocial Risk Factors
Job Demand
High workload, tight deadlines, and lack of control over the pace of work.
Organizational Culture
Low social support from supervisors, isolation, and lack of role clarity.
Work-Life Impact
Shift work, long hours, and the physiological effects of chronic cortisol levels.
Simulation:
The Restriction Challenge
You will be assigned "Restriction Gear" (tape on finger joints or stiff gloves) to simulate early-stage arthritis or RSI.
Task List:
1. Open a sealed jar.
2. Type a 50-word email.
3. Assemble 10 small screws into a plate.
Observe. Record. Redesign.

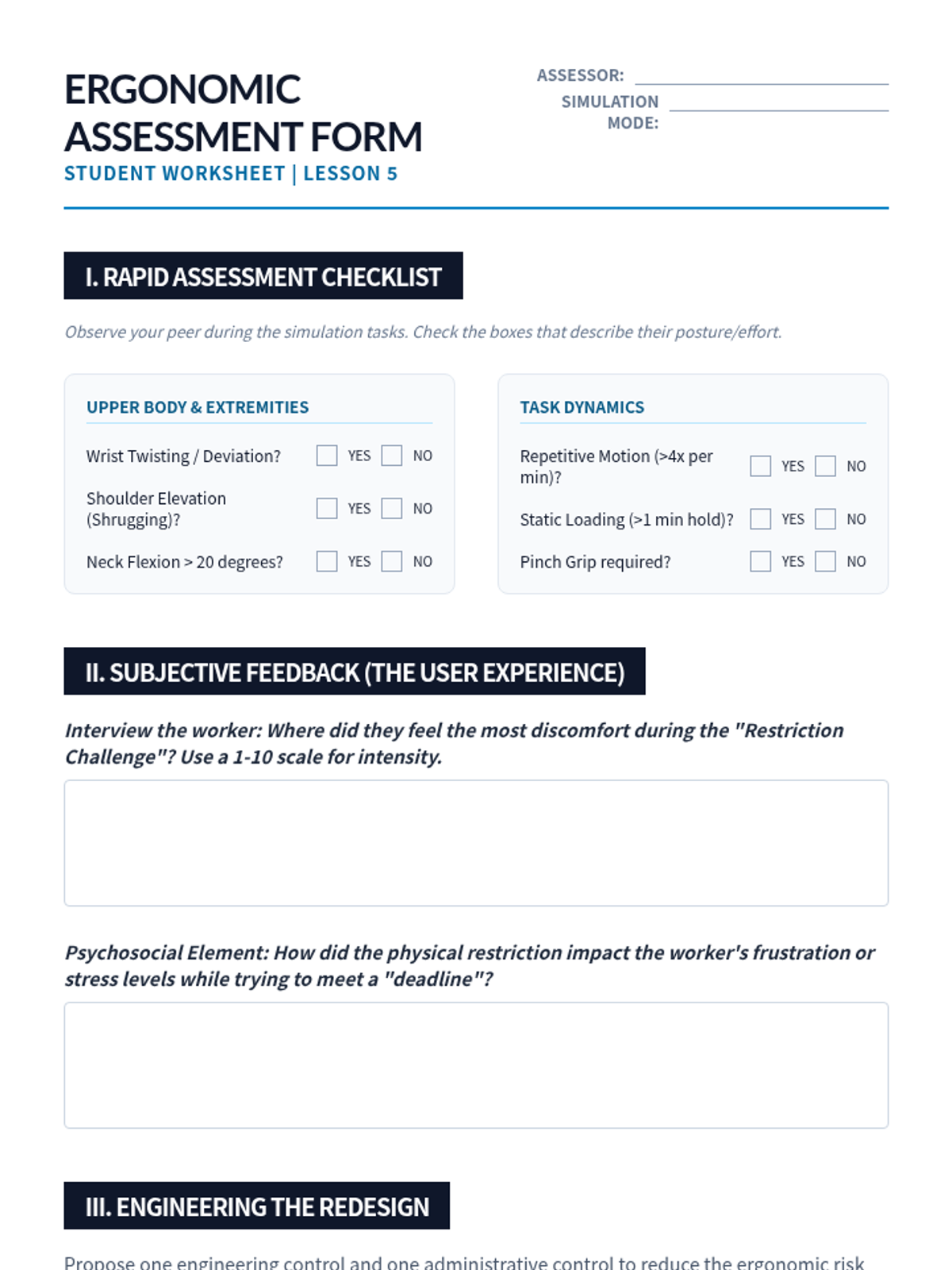

Ergonomic Assessment Form Ergonomic Assessment Form
Student Worksheet | Lesson 5
Assessor:
Simulation Mode:
I. Rapid Assessment Checklist
Observe your peer during the simulation tasks. Check the boxes that describe their posture/effort.
Upper Body & Extremities
Wrist Twisting / Deviation?
Yes
No
Shoulder Elevation (Shrugging)?
Yes
No
Neck Flexion > 20 degrees?
Yes
No
Task Dynamics
Repetitive Motion (>4x per min)?
Yes
No
Static Loading (>1 min hold)?
Yes
No
Pinch Grip required?
Yes
No
II. Subjective Feedback (The User Experience)
Interview the worker: Where did they feel the most discomfort during the "Restriction Challenge"? Use a 1-10 scale for intensity.
Psychosocial Element: How did the physical restriction impact the worker's frustration or stress levels while trying to meet a "deadline"?
III. Engineering the Redesign
Propose one engineering control and one administrative control to reduce the ergonomic risk identified above.
Engineering Control
(e.g., Adjustable desk, jig/fixture, tool weight balancer)
Administrative Control
(e.g., Stretching breaks, job rotation, training)
Synthesis: Why is it often harder to get management approval for ergonomic interventions compared to "hard" safety (like machine guards)?

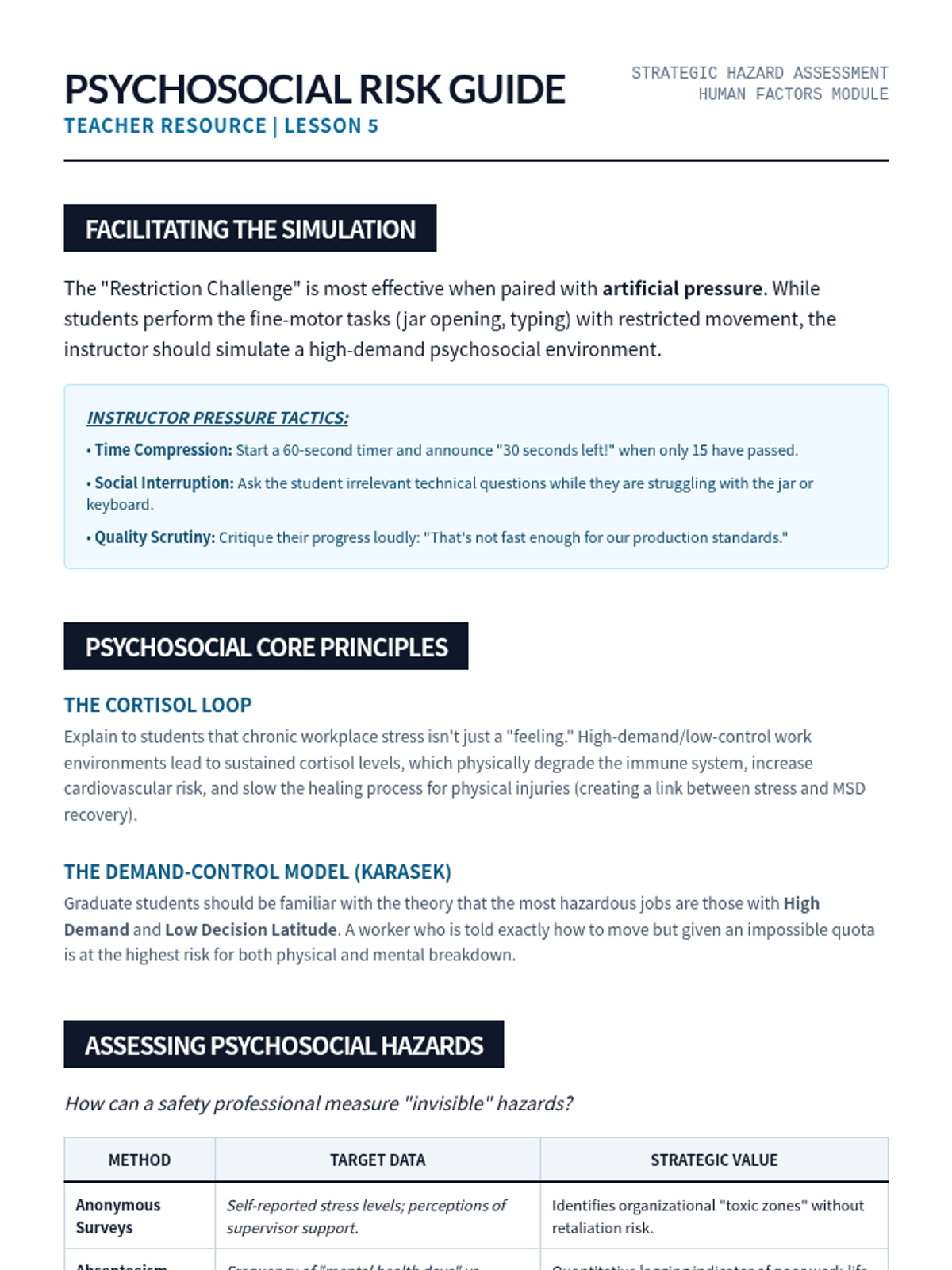

Psychosocial Risk Guide Psychosocial Risk Guide
Teacher Resource | Lesson 5
Strategic Hazard Assessment
Facilitating the Simulation
The "Restriction Challenge" is most effective when paired with artificial pressure . While students perform the fine-motor tasks (jar opening, typing) with restricted movement, the instructor should simulate a high-demand psychosocial environment.
Instructor Pressure Tactics:
• Time Compression: Start a 60-second timer and announce "30 seconds left!" when only 15 have passed.
• Social Interruption: Ask the student irrelevant technical questions while they are struggling with the jar or keyboard.
• Quality Scrutiny: Critique their progress loudly: "That's not fast enough for our production standards."
Psychosocial Core Principles
The Cortisol Loop
Explain to students that chronic workplace stress isn't just a "feeling." High-demand/low-control work environments lead to sustained cortisol levels, which physically degrade the immune system, increase cardiovascular risk, and slow the healing process for physical injuries (creating a link between stress and MSD recovery).
The Demand-Control Model (Karasek)
Graduate students should be familiar with the theory that the most hazardous jobs are those with High Demand and Low Decision Latitude . A worker who is told exactly how to move but given an impossible quota is at the highest risk for both physical and mental breakdown.
Assessing Psychosocial Hazards
How can a safety professional measure "invisible" hazards?
Method Target Data Strategic Value Anonymous Surveys Self-reported stress levels; perceptions of supervisor support. Identifies organizational "toxic zones" without retaliation risk. Absenteeism Rates Frequency of "mental health days" vs. physical injury. Quantitative lagging indicator of poor work-life balance. Job Design Review Complexity of tasks vs. authority to make decisions. Allows for engineering of the workflow (e.g., self-directed teams).
