Friction Frenzy Slides Force Explorers • Lesson 1
Physics in Action
Friction Frenzy
The invisible resistance that heats up tires, stops runaway sleds, and keeps your sneakers planted on the ground.
Core Concept: Contact Forces
Hands-On Surface Lab
What Really Causes Friction?
Microscopic Interlocking
Every Surface Has Peaks & Valleys
Even objects that look mirror-smooth have microscopic jagged ridges. When two surfaces touch, these ridges collide and resist sliding.
Opposing Force
Friction always acts in the direction opposite to the direction of motion.
Thermal Energy Transfer
Rub your palms together fast. That kinetic energy transforms instantly into friction-generated thermal heat.
Key Rule: Rougher surface + greater pressing force = higher friction force!
Three Types in Action
How Objects Interact
Static
Keeps stationary objects locked in place. You must overcome static friction just to start moving!
Example: Pushing a heavy couch
Sliding (Kinetic)
Resists two solid surfaces continuously grinding across each other once motion has begun.
Example: Sled dragging over gravel
Rolling
Drastically reduces contact area. Wheels and ball bearings turn grinding resistance into smooth rolling.
Example: Skateboard wheels on concrete
Static friction is always stronger than sliding friction for the same two materials.
Friction: Friend or Foe?
Real-World Engineering
When We Want MORE Friction
• Shoe Treads: Rubber waffle patterns prevent slipping on slick tile.
• Brake Pads: Clamping rotors clamp down to halt speeding vehicles.
• Grip Tape: Gives gymnasts and skateboarders secure traction.
When We Want LESS Friction
• Engine Oil: Lubricates metal pistons to prevent heat seizure.
• Ski Wax: Melts a microscopic water cushion over packed snow.
• Air Hockey: Jets of air float the puck with near-zero contact.
Engineers spend millions balancing traction against energy loss every day!
Today's Investigation Challenge
Surface Friction Lab
01
Set Ramp Angle
Prop your ramp at a constant 25° incline. Keep release height identical across all trials.
02
Test 4 Surfaces
Release the test block across Smooth Wood, Wax Paper, Felt Cloth, and Rough Sandpaper.
03
Measure Slide Run
Record stopping distance in centimeters. Calculate averages on your Friction Lab Worksheet.
Hypothesis Check: Which surface will produce the highest opposing friction force?

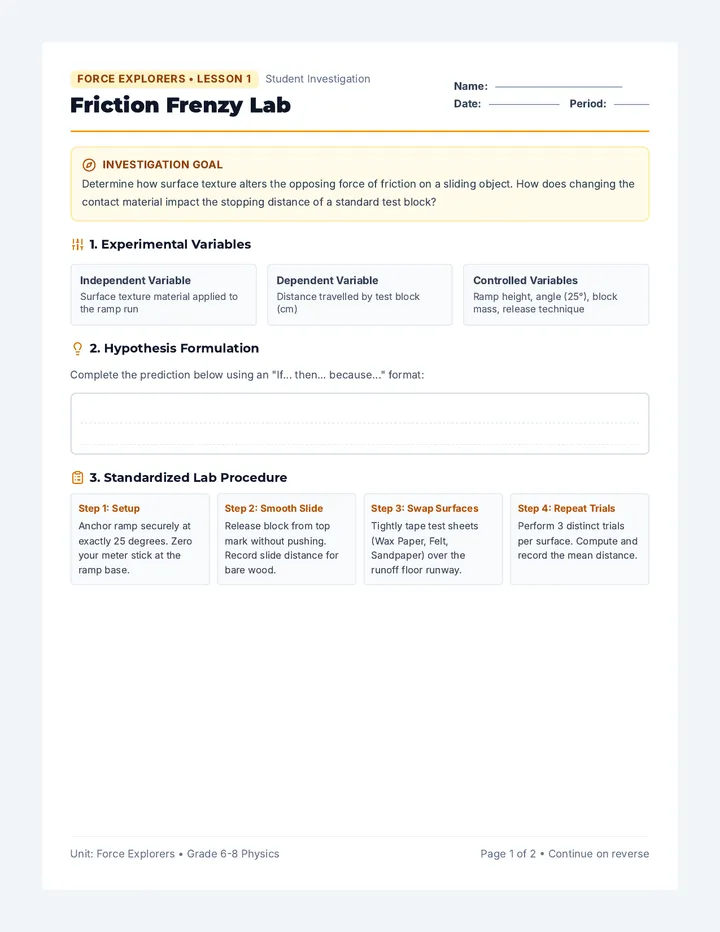

Friction Lab Worksheet Force Explorers • Lesson 1 Student Investigation
Friction Frenzy Lab
Name:
Date:
Period:
Investigation Goal
Determine how surface texture alters the opposing force of friction on a sliding object. How does changing the contact material impact the stopping distance of a standard test block?
1. Experimental Variables
Independent Variable Surface texture material applied to the ramp run
Dependent Variable Distance travelled by test block (cm)
Controlled Variables Ramp height, angle (25°), block mass, release technique
2. Hypothesis Formulation
Complete the prediction below using an "If... then... because..." format:
3. Standardized Lab Procedure
Step 1: Setup Anchor ramp securely at exactly 25 degrees. Zero your meter stick at the ramp base.
Step 2: Smooth Slide Release block from top mark without pushing. Record slide distance for bare wood.
Step 3: Swap Surfaces Tightly tape test sheets (Wax Paper, Felt, Sandpaper) over the runoff floor runway.
Step 4: Repeat Trials Perform 3 distinct trials per surface. Compute and record the mean distance.
Unit: Force Explorers • Grade 6-8 Physics Page 1 of 2 • Continue on reverse
Lab Data & Force Analysis
Page 2 of 2
4. Quantitative Observations Table
Surface Runway Material Trial 1 (cm) Trial 2 (cm) Trial 3 (cm) Average Distance (cm) A. Bare Smooth Wood B. Wax Paper C. Felt Fabric Cloth D. Rough 80-Grit Sandpaper
Question 1: Ranking Resistance
Rank the four materials from LOWEST friction force (greatest distance) to HIGHEST friction force (least distance):
1 (Lowest): _________________ 2: _________________ 3: _________________ 4 (Highest): _________________
Question 2: Microscopic Explanation
Why did sandpaper stop the wooden block significantly faster than wax paper? Explain what occurred at the microscopic contact boundary between the two surfaces.
Question 3: Energy Transformation
As the block slowed down and came to rest, where did its kinetic energy go? Into what forms of energy was it transformed?
Gravity Drop Slides Force Explorers • Lesson 2
Physics in Action
Gravity Drop
Why do all objects accelerate toward Earth at the exact same rate—unless the air gets in the way?
Gravitational Acceleration: \( 9.8\text{ m/s}^2 \)
Air Resistance & Terminal Velocity
The Force of Gravity
Non-Contact Attraction
Mass Attracts Mass
Gravity is a universal attractive force that pulls any two objects toward one another. Earth's immense mass pulls every object down toward its center.
Mass vs. Weight
Mass is the total matter in an object (kg). Weight is the gravitational pull acting on that mass (Newtons).
Constant Acceleration
Near Earth's surface, all falling objects gain speed at \( 9.8\text{ m/s} \) every second in the absence of air!
Big takeaway: Your mass is identical on the Moon, but your weight is 1/6th as much!
Busting the Heavy vs. Light Myth
The Vacuum Experiment
Common Misconception
"A heavy bowling ball falls faster than a feather because Earth pulls heavier objects with more total force."
Flawed! Greater mass also requires more force to accelerate (Inertia).
The Scientific Truth
In 1971, Astronaut David Scott dropped a 1.3 kg hammer and a 0.03 kg falcon feather on the Moon's airless surface.
Both struck the lunar ground at the exact same instant!
When air is removed, all objects fall side-by-side with identical acceleration!
Air Resistance & Terminal Velocity
Opposing Forces
Aerodynamic Drag
As an object falls through Earth's atmosphere, it must shove billions of air molecules out of its path.
Force acts UPWARD against gravity
Balanced Forces
The faster you fall, the greater the drag force becomes—until upward drag perfectly equals downward gravity.
Net Force = 0 Newtons
Terminal Velocity
Once forces balance, acceleration stops completely! The object coasts at a steady, maximum top speed.
Skydiver: ~120 mph (200 km/h)
Increasing surface area increases drag force, lowering terminal velocity to a safe speed!
Today's Engineering Mission
Canopy Drop Challenge
01
Build 3 Canopies
Construct small (\(10\times 10\text{ cm}\)), medium (\(20\times 20\text{ cm}\)), and large (\(30\times 30\text{ cm}\)) square parachute canopies.

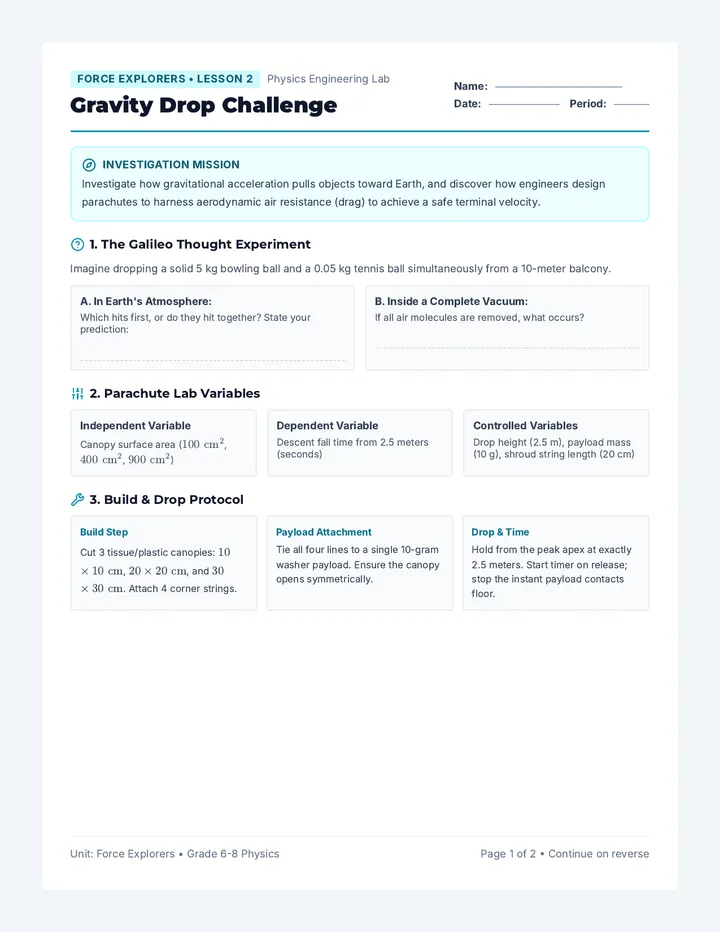

Gravity Drop Challenge Worksheet Force Explorers • Lesson 2 Physics Engineering Lab
Gravity Drop Challenge
Name:
Date:
Period:
Investigation Mission
Investigate how gravitational acceleration pulls objects toward Earth, and discover how engineers design parachutes to harness aerodynamic air resistance (drag) to achieve a safe terminal velocity.
1. The Galileo Thought Experiment
Imagine dropping a solid 5 kg bowling ball and a 0.05 kg tennis ball simultaneously from a 10-meter balcony.
A. In Earth's Atmosphere: Which hits first, or do they hit together? State your prediction:
B. Inside a Complete Vacuum: If all air molecules are removed, what occurs?
2. Parachute Lab Variables
Independent Variable Canopy surface area (\(100\text{ cm}^2\), \(400\text{ cm}^2\), \(900\text{ cm}^2\))
Dependent Variable Descent fall time from 2.5 meters (seconds)
Controlled Variables Drop height (2.5 m), payload mass (10 g), shroud string length (20 cm)
3. Build & Drop Protocol
Build Step Cut 3 tissue/plastic canopies: \(10\times 10\text{ cm}\), \(20\times 20\text{ cm}\), and \(30\times 30\text{ cm}\). Attach 4 corner strings.
Payload Attachment Tie all four lines to a single 10-gram washer payload. Ensure the canopy opens symmetrically.
Drop & Time Hold from the peak apex at exactly 2.5 meters. Start timer on release; stop the instant payload contacts floor.
Unit: Force Explorers • Grade 6-8 Physics Page 1 of 2 • Continue on reverse
Descent Data & Terminal Velocity Analysis
Page 2 of 2
4. Quantitative Drop Trials (Drop Height: 2.50 meters)
Canopy Configuration Surface Area (\(\text{cm}^2\)) Trial 1 (s) Trial 2 (s) Trial 3 (s) Mean Time (s) Control: Bare Payload (No Canopy) \(0\text{ cm}^2\) Canopy A: \(10\times 10\text{ cm}\) \(100\text{ cm}^2\) Canopy B: \(20\times 20\text{ cm}\) \(400\text{ cm}^2\) Canopy C: \(30\times 30\text{ cm}\) \(900\text{ cm}^2\)
Question 1: Speed Calculation
Calculate the average descent velocity (\(v = \text{distance} / \text{time}\)) for Canopy C vs. the bare control payload. Show your arithmetic.
