Atom Counting Student Packet
HOMEWORK NOTICE: Any unfinished exit ticket question during this class is due for homework at our next class meeting.
Due Next Class
NYS Science MS-PS1-5 Matter & Chemical Reactions
Counting Atoms in Chemical Reactions
Name:
Date: Period:
LESSON OBJECTIVE: "I can count the number of different input and output atoms in a chemical reaction to confirm the conservation of matter."
1
Chemical Recipe Vocabulary
(Master the 3 Key Rules Before Counting)
Atoms & Subscripts
An atom is a single building block of matter. A subscript is the small lower-right number showing how many atoms of that element are in one molecule.
Glucose: C6H12O6
• 6 Carbon • 12 Hydrogen • 6 Oxygen
The Yield Sign (→)
The arrow (→) is the yield sign. It means "reacts to produce" and divides the reaction into two sides:
INPUTS (Reactants) → LEFT
↓ creates ↓
OUTPUTS (Products) → RIGHT
Coefficients
A coefficient is the big number placed to the left of a formula. It tells how many molecules react. Multiply it by each subscript!
Example: 6CO2
6 molecules of CO2:
• Carbon: \(6 \times 1 = \) 6 • Oxygen: \(6 \times 2 = \) 12
2
How to Build an Atom Tally Table & Test Conservation
Step 1: Set Up Columns Place INPUTS and OUTPUTS in header. List each element symbol in the left column.
Step 2: Multiply & Tally Multiply coefficients by subscripts in each formula. Sum all atoms for each element on each side.
Step 3: Compare & Conclude If INPUTS equal OUTPUTS for each element, no atoms were lost in the chemical reaction!
3
Teacher Model: Aerobic Respiration
Worked Walkthrough
Inputs (Reactants) C6H12O6 + 6O2
→ yields
Outputs (Products) 6CO2 + 6H2O
| Element | INPUTS (Reactants Side) | OUTPUTS (Products Side) | Conserved? |
|---|
| C Carbon | From C6H12O6 = 6 atoms | From 6CO2: \(6 \times 1 =\) 6 atoms | 6 = 6 ✓ |
| H Hydrogen | From C6H12O6 = 12 atoms | From 6H2O: \(6 \times 2 =\) 12 atoms | 12 = 12 ✓ |
| O Oxygen | 6 (glucose) + 12 (6O2) = 18 atoms | 12 (6CO2) + 6 (6H2O) = 18 atoms | 18 = 18 ✓ |
Scientific Conclusion (Conservation of Matter): Total Carbon (6), Hydrogen (12), and Oxygen (18) atoms are identical before and after the reaction. No atoms were lost! They were only rearranged into new molecules.
Page 1 of 4 • English (Sheet 1 Front) Reverse: Versión en Español (Página 2 de 4)
AVISO DE TAREA: Cualquier pregunta del boleto de salida sin terminar en clase debe entregarse en la próxima clase.
Próxima Clase
Ciencias NYS MS-PS1-5 Materia y Reacciones Químicas
Conteo de Átomos en Reacciones Químicas
Nombre:
Fecha: Período:
OBJETIVO: "Puedo contar la cantidad de átomos diferentes de entrada y salida en una reacción química para confirmar la conservación de la materia."
1
Vocabulario de Fórmulas Químicas
(3 Reglas Clave para Contar Átomos)
Átomos y Subíndices
Un átomo es la unidad básica de la materia. Un subíndice es el número pequeño inferior que indica cuántos átomos de ese elemento hay en una molécula.
Glucosa: C6H12O6
• 6 Carbono • 12 Hidrógeno • 6 Oxígeno
Flecha de Reacción (→)
La flecha (→) significa "produce" o "rinde". Divide la reacción en dos lados opuestos:
ENTRADAS (Reactivos) → IZQ.
↓ produce ↓
SALIDAS (Productos) → DER.
Coeficientes
Un coeficiente es el número grande a la izquierda de una fórmula. Indica cuántas moléculas enteras reaccionan. ¡Multiplícalo por cada subíndice!
Ejemplo: 6CO2
6 moléculas de CO2:
• Carbono: \(6 \times 1 = \) 6 • Oxígeno: \(6 \times 2 = \) 12
2
Cómo Construir la Tabla de Conteo y Comprobar Conservación
Paso 1: Columnas Coloca ENTRADAS y SALIDAS en el encabezado. Lista cada elemento en la columna izquierda.
Paso 2: Multiplica y Cuenta Multiplica coeficientes por subíndices. Suma todos los átomos de cada elemento en cada lado.
Paso 3: Compara y Concluye Si ENTRADAS y SALIDAS son iguales para cada elemento, ¡no se perdió ningún átomo!
3
Ejemplo Modelo: Respiración Aeróbica
Ejemplo Resuelto
Entradas (Reactivos) C6H12O6 + 6O2
→ produce
Salidas (Productos) 6CO2 + 6H2O
| Elemento | ENTRADAS (Reactivos) | SALIDAS (Productos) | ¿Se Conserva? |
|---|
| C Carbono | En C6H12O6 = 6 átomos | En 6CO2: \(6 \times 1 =\) 6 átomos | 6 = 6 ✓ |
| H Hidrógeno | En C6H12O6 = 12 átomos | En 6H2O: \(6 \times 2 =\) 12 átomos | 12 = 12 ✓ |
| O Oxígeno | 6 (glucosa) + 12 (6O2) = 18 átomos | 12 (6CO2) + 6 (6H2O) = 18 átomos | 18 = 18 ✓ |
Conclusión Científica (Conservación de la Materia): La cantidad total de Carbono (6), Hidrógeno (12) y Oxígeno (18) es idéntica antes y después. ¡No se perdió ningún átomo! Solo se reorganizaron en nuevas moléculas.
Página 2 de 4 • Español (Reverso Hoja 1) Hoja 2 contiene Práctica y Boleto de Salida
Part 4 & 5 • Student Application
Practice Check & Exit Ticket
Student: Period:
4
Quick Warm-Up Check: Methane Combustion
Guided Try
Natural gas burns: CH4 + 2O2 → CO2 + 2H2O. Count the atoms below:
| Element | INPUTS (CH4 + 2O2) | OUTPUTS (CO2 + 2H2O) | Conserved? |
|---|
| Carbon (C) | Total C = _____ | Total C = _____ | [ ] Yes [ ] No |
| Hydrogen (H) | Total H = _____ | Total H: \(2 \times 2 =\) _____ | [ ] Yes [ ] No |
| Oxygen (O) | Total O: \(2 \times 2 =\) _____ | Total O: 2 + 2 = _____ | [ ] Yes [ ] No |
5
OFFICIAL EXIT TICKET: Photosynthesis
Demonstrate your mastery of counting atoms and confirming conservation of matter.
Due next class if unfinished!
Photosynthesis Chemical Reaction
6CO2 + 6H2O → C6H12O6 + 6O2
Inputs (Carbon Dioxide + Water) Light Energy Outputs (Glucose + Oxygen)
Task A: Build and complete the Atom Tally Table for Photosynthesis. List each element in the left column. Show your formula tallies in the INPUTS and OUTPUTS columns.
| Element Symbol & Name | INPUTS (Reactants)
Formula breakdown & total tally | OUTPUTS (Products)
Formula breakdown & total tally | Total Match?
Yes / No |
| --- | --- | --- | --- |
| C - Carbon | | | |
| H - Hydrogen | | | |
| O - Oxygen | | | |
Task B: Scientific Conclusion & Evidence (Conservation of Matter)
Were any atoms lost or destroyed in photosynthesis? State your claim and cite your specific atom counts for Carbon, Hydrogen, and Oxygen as evidence:
Rate your confidence counting atoms:
1 - Need Help 2 - Getting There 3 - Confident 4 - Mastered!
Page 3 of 4 • English (Sheet 2 Front) Reverse: Versión en Español (Página 4 de 4)
Partes 4 y 5 • Aplicación Estudiantil
Práctica y Boleto de Salida
Estudiante: Período:
4
Calentamiento Guiado: Combustión de Metano
Práctica Guiada
El gas natural arde: CH4 + 2O2 → CO2 + 2H2O. Cuenta los átomos abajo:
| Elemento | ENTRADAS (CH4 + 2O2) | SALIDAS (CO2 + 2H2O) | ¿Se Conserva? |
|---|
| Carbono (C) | Total C = _____ | Total C = _____ | [ ] Sí [ ] No |
| Hidrógeno (H) | Total H = _____ | Total H: \(2 \times 2 =\) _____ | [ ] Sí [ ] No |
| Oxígeno (O) | Total O: \(2 \times 2 =\) _____ | Total O: 2 + 2 = _____ | [ ] Sí [ ] No |
5
BOLETO DE SALIDA: Fotosíntesis
Demuestra tu dominio al contar átomos y confirmar la conservación de la materia.
¡Tarea si no terminas!
Reacción Química de la Fotosíntesis
6CO2 + 6H2O → C6H12O6 + 6O2
Entradas (Dióxido de Carbono + Agua) Energía Solar Salidas (Glucosa + Oxígeno)
Tarea A: Construye y completa la Tabla de Conteo para la Fotosíntesis. Escribe cada elemento a la izquierda. Muestra tu conteo en las columnas de ENTRADAS y SALIDAS.
| Símbolo y Elemento | ENTRADAS (Reactivos)
Desglose de fórmula y conteo total | SALIDAS (Productos)
Desglose de fórmula y conteo total | ¿Son Iguales?
Sí / No |
| --- | --- | --- | --- |
| C - Carbono | | | |
| H - Hidrógeno | | | |
| O - Oxígeno | | | |
Tarea B: Conclusión Científica y Evidencia (Conservación de la Materia)
¿Se destruyó o perdió algún átomo durante la fotosíntesis? Escribe tu afirmación y cita los números de Carbono, Hidrógeno y Oxígeno como evidencia:
Califica tu confianza contando átomos:
1 - Necesito Ayuda 2 - Casi Listo 3 - Seguro 4 - ¡Dominado!
Página 4 de 4 • Español (Reverso Hoja 2) Ciencias de Nivel Intermedio de NYS • Núcleo de Ciencias Físicas

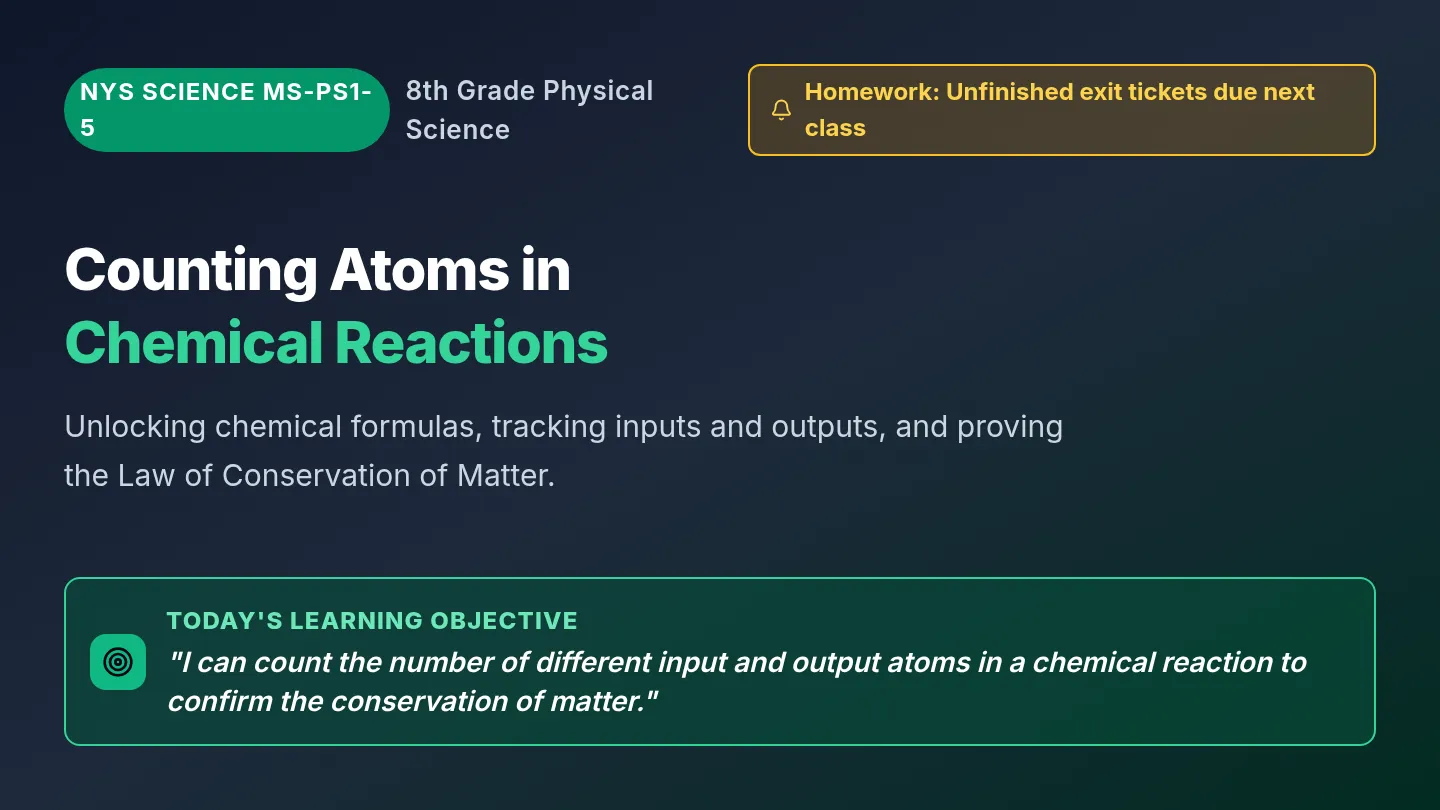

Atom Counting Teaching Slides
NYS Science MS-PS1-5 8th Grade Physical Science
Homework: Unfinished exit tickets due next class
Counting Atoms in
Chemical Reactions
Unlocking chemical formulas, tracking inputs and outputs, and proving the Law of Conservation of Matter.
Today's Learning Objective
"I can count the number of different input and output atoms in a chemical reaction to confirm the conservation of matter."
!
Do Now: The Mystery of the Campfire
3-Minute Think & Pair
Real-World Observation
You place a heavy 10-pound log of wood into a fireplace. After burning overnight, all that remains in the grate is 0.5 pounds of ash.
Common Misconception: "9.5 pounds of atoms were destroyed and vanished into nothing!"
Scientist Discussion Prompt
Did those atoms actually disappear? If not, where did the missing mass go?
Science Law Preview:
Atoms cannot be created or destroyed. They only escape as gases (CO2 and H2O vapor)!
Turn to Page 1 of your Student Packet to explore the 3 vocabulary rules!
1
Rule 1: Atoms & Subscripts
Vocabulary
What is an Atom?
The fundamental building block of all matter. Each unique chemical element has its own capital letter symbol (e.g., C, H, O).
What is a Subscript?
The small number written at the lower right of an element. It tells how many atoms of only that specific element are in one molecule.
Molecule Breakdown: Glucose Sugar
C6H12O6
Carbon (C) 6 atoms
Hydrogen (H) 12 atoms
Oxygen (O) 6 atoms
Rule of Thumb: If an element has no subscript written (like in H2O), the number of atoms is always 1!
2
Rule 2: The Yield Sign (→)
Equation Structure
LEFT of the Arrow
INPUTS
(Reactants)
The starting ingredients that go into the reaction
→ Yields ("reacts to produce")
RIGHT of the Arrow
OUTPUTS
(Products)
The new substances created when atoms rearrange
✓
Key Law of Conservation Principle
The yield sign is like a balance beam scale:

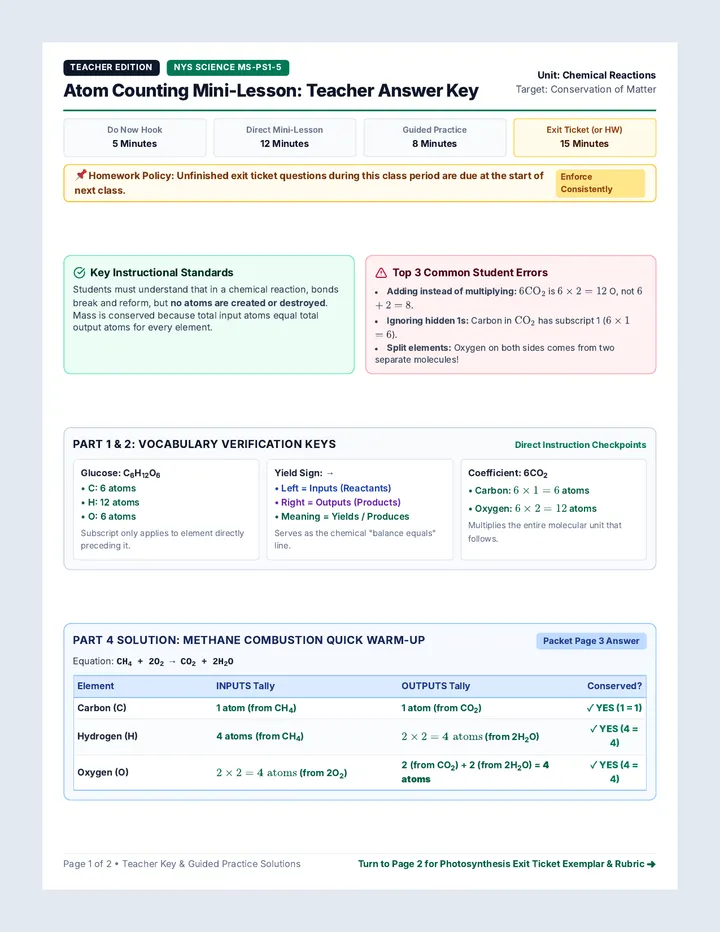

Atom Counting Teacher Key
Teacher Edition NYS Science MS-PS1-5
Atom Counting Mini-Lesson: Teacher Answer Key
Unit: Chemical Reactions Target: Conservation of Matter
Do Now Hook 5 Minutes
Direct Mini-Lesson 12 Minutes
Guided Practice 8 Minutes
Exit Ticket (or HW) 15 Minutes
📌 Homework Policy: Unfinished exit ticket questions during this class period are due at the start of next class. Enforce Consistently
Key Instructional Standards
Students must understand that in a chemical reaction, bonds break and reform, but no atoms are created or destroyed. Mass is conserved because total input atoms equal total output atoms for every element.
Top 3 Common Student Errors
- Adding instead of multiplying: \(6 \text{CO}_2\) is \(6 \times 2 = 12\) O, not \(6 + 2 = 8\).
- Ignoring hidden 1s: Carbon in \(\text{CO}_2\) has subscript 1 (\(6 \times 1 = 6\)).
- Split elements: Oxygen on both sides comes from two separate molecules!
Part 1 & 2: Vocabulary Verification Keys
Direct Instruction Checkpoints
Glucose: C6H12O6 • C: 6 atoms • H: 12 atoms • O: 6 atoms Subscript only applies to element directly preceding it.
Yield Sign: → • Left = Inputs (Reactants) • Right = Outputs (Products) • Meaning = Yields / Produces Serves as the chemical "balance equals" line.
Coefficient: 6CO2 • Carbon: \(6 \times 1 = 6\) atoms • Oxygen: \(6 \times 2 = 12\) atoms Multiplies the entire molecular unit that follows.
Part 4 Solution: Methane Combustion Quick Warm-Up
Packet Page 3 Answer
Equation: CH4 + 2O2 → CO2 + 2H2O
| Element | INPUTS Tally | OUTPUTS Tally | Conserved? |
|---|
| Carbon (C) | 1 atom (from CH4) | 1 atom (from CO2) | ✓ YES (1 = 1) |
| Hydrogen (H) | 4 atoms (from CH4) | \(2 \times 2 = \mathbf{4\text{ atoms}}\) (from 2H2O) | ✓ YES (4 = 4) |
| Oxygen (O) | \(2 \times 2 = \mathbf{4\text{ atoms}}\) (from 2O2) | 2 (from CO2) + 2 (from 2H2O) = 4 atoms | ✓ YES (4 = 4) |
Page 1 of 2 • Teacher Key & Guided Practice Solutions Turn to Page 2 for Photosynthesis Exit Ticket Exemplar & Rubric ➜
