A comprehensive middle school weather science sequence aligned with NGSS MS-ESS2-4, MS-ESS2-5, and MS-ESS2-6. Integrates sensory-friendly visual design, calm color palettes, movement breaks, and flexible multimodal participation.
Reduced answer choices (2–3 options), paired with clear icons, high-contrast borders, and simple language.

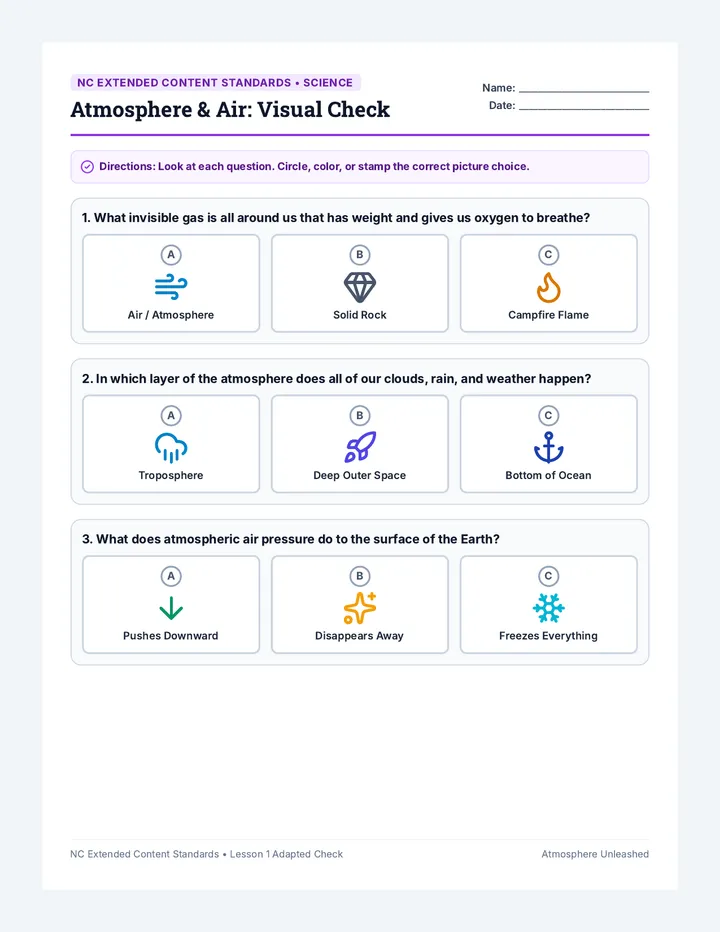

Facilitating NC Extended Content Worksheets
1. Picture-to-Concept Anchoring: Before presenting a question, point to the visual icons (e.g., ☀️ Sun, 💧 Water Drop, ☁️ Cloud). Have the student name or point to each icon.
2. Concrete Realia First: Hand the student the actual physical item (e.g., hold the suction cup, feel the chilled ice can) before asking them to circle the matching picture card.
3. Varied Response Options: Students may circle with a jumbo crayon, stamp with a bingo dauber, point with a laser pointer, or eye-gaze between two cut-out cards.
End-of-Day 3-Minute Sensory Debrief Routine
Conclude each lesson with a quiet, predictable check-in to reduce anxiety and measure engagement:
🟢 Green: "I felt calm and learned the concept."
🟡 Yellow: "I needed a stretch or extra writing space."
🔵 Blue: "I preferred quiet observer mode today."

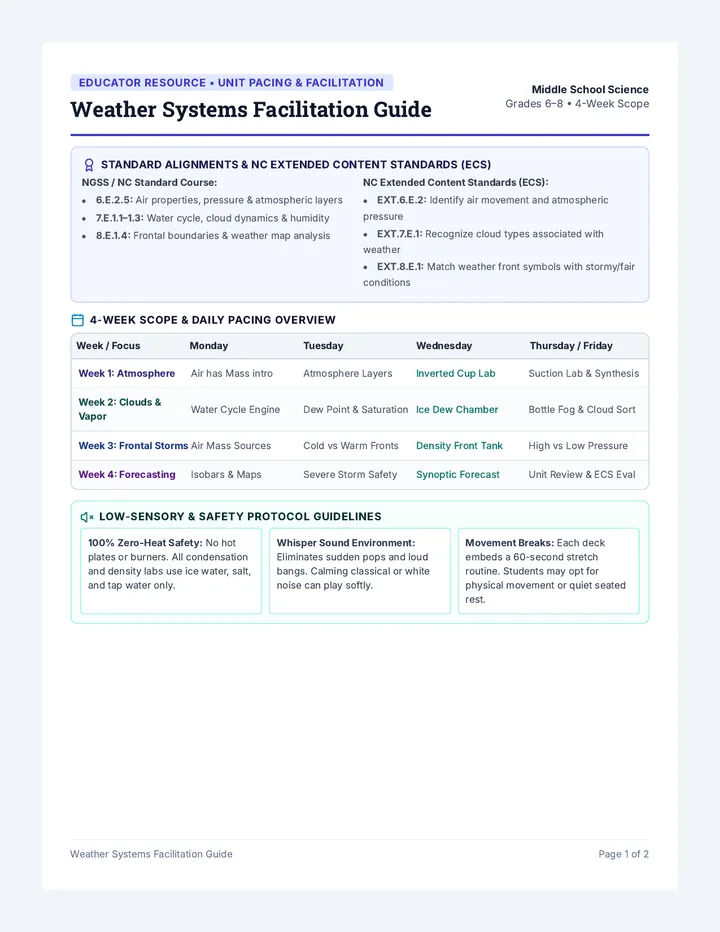

Weather Systems Facilitation Guide Page 2 of 2
Arrow or label:

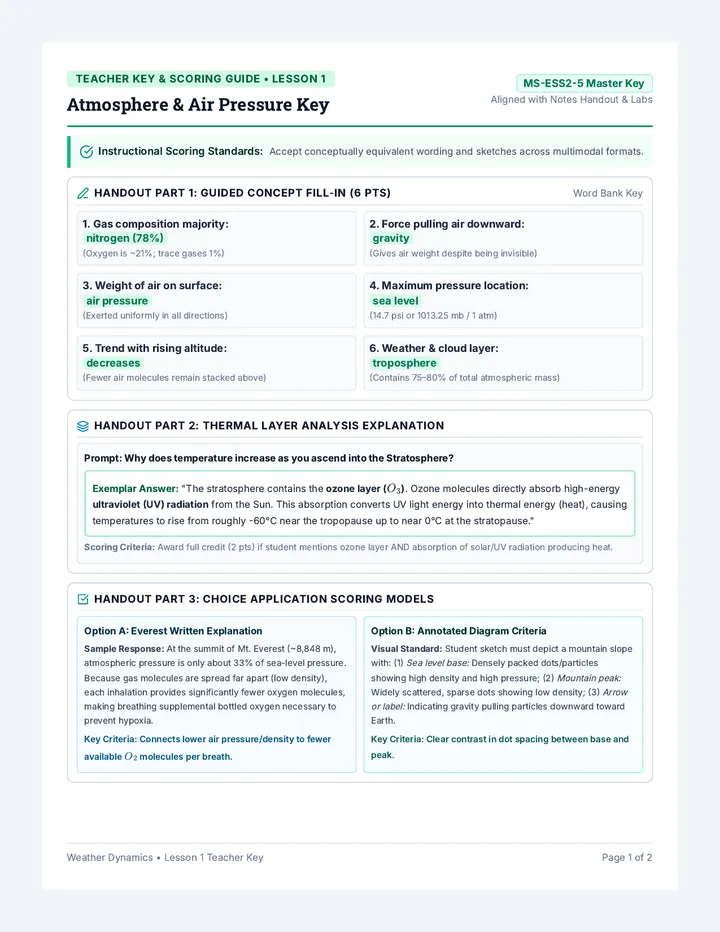

Key Criteria: Clear contrast in dot spacing between base and peak.
The card stays locked against the cup rim; zero water leaks out. The upward force exerted by surrounding atmospheric pressure (~14.7 psi) on the underside of the card is far greater than the downward gravitational force (weight) of the water column in the cup.
Force Diagram Standards:
Student sketch should show: (1) Large bold upward arrows pushing onto the bottom of the card labeled "Atmospheric Pressure (14.7 psi)"; (2) Smaller downward arrow inside the cup labeled "Water Weight / Gravity".

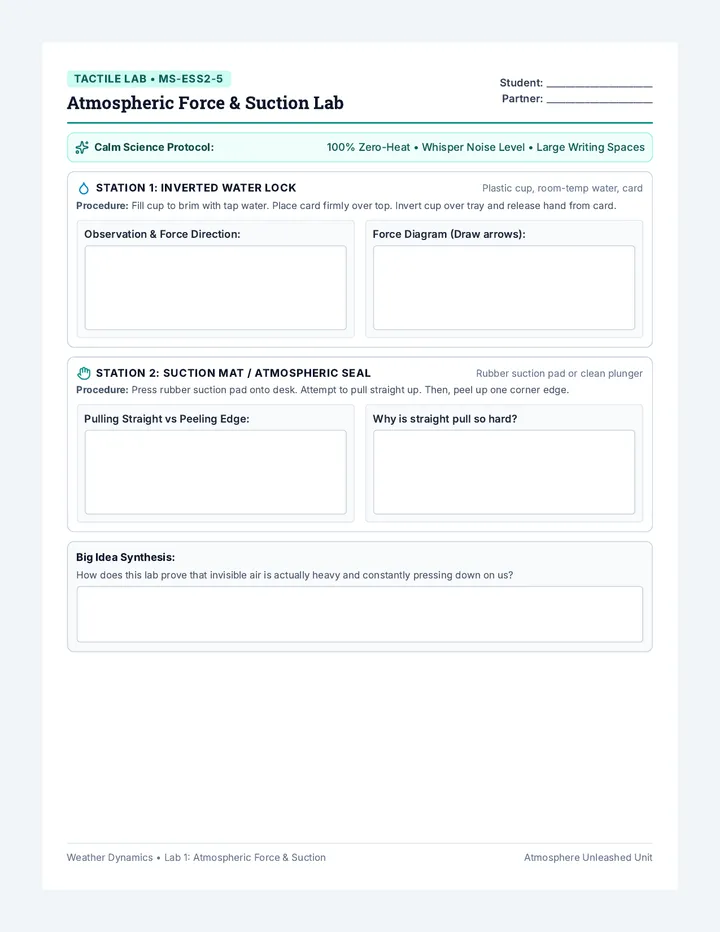

Lab Station 2: Suction Mat / Seal Key
Unbalanced Force Mechanics
Pulling Straight vs Peeling Edge:
Pulling straight requires immense force because air is completely evacuated beneath the pad, creating an unbalanced downward atmospheric load. Peeling the edge is easy because air instantly leaks under, equalizing pressure on top and bottom.
Physical Force Calculation:
For a 4" × 4" suction pad (16 sq in), atmospheric pressure presses with \(16 \times 14.7\text{ psi} \approx 235\text{ lbs}\) of total force! Lifting straight up requires overcoming this entire downward atmospheric weight.
Lab Synthesis Master Response:
Big Idea: Air is not "nothing"—it is matter composed of gas molecules with mass. Gravity pulls this massive ocean of air downward, creating continuous pressure (14.7 psi at sea level) in every direction. When a seal removes air molecules from one side of an object, the relentless force of the surrounding atmosphere becomes immediately visible and tangible.
• Room Temp: Typically 20°C–22°C (68°F–72°F)
• Dew Point Reading: Typically 10°C–14°C (50°F–57°F) depending on school HVAC humidity. Accept any recorded temperature below ambient room temperature when moisture appeared on the metal exterior.
Where did the outside water come from?
Master Answer: The water did NOT leak through the solid metal wall. Invisible water vapor gas in the classroom air touched the chilled metal wall. The wall cooled the gas molecules to their dew point, causing them to condense into liquid water drops.

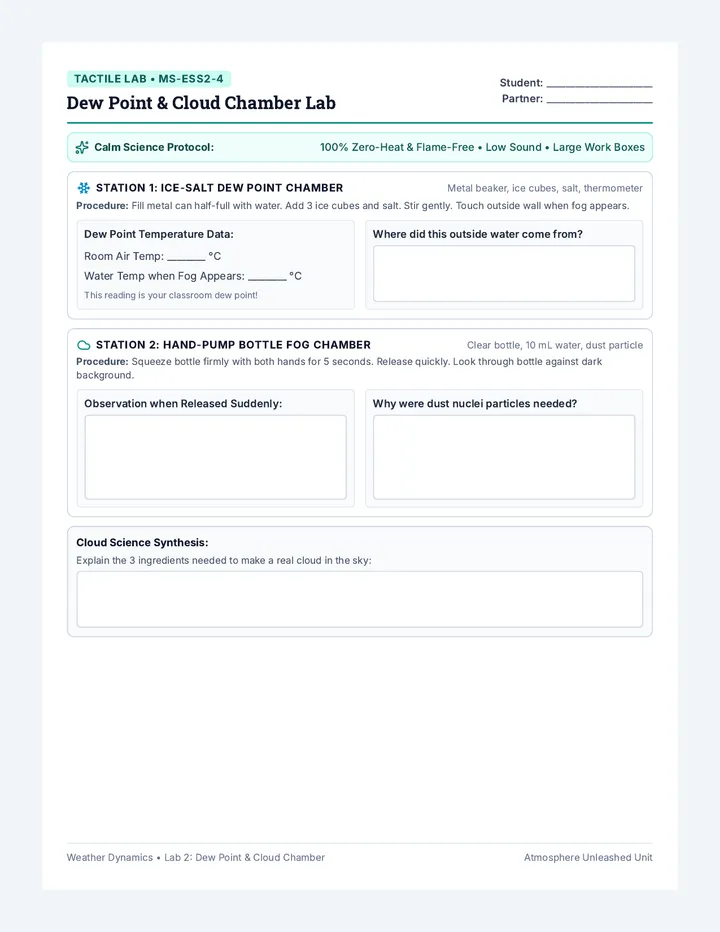

Lab Station 2: Hand-Pump Bottle Fog Chamber Key
Adiabatic Cloud Mechanics
Observation when Released Suddenly:
When the squeezed bottle is suddenly released, the air expands instantly, dropping internal pressure and temperature. A thick, smoky white fog cloud appears instantly suspended in the bottle chamber.
Why are condensation nuclei particles required?
Water vapor molecules cannot easily bind together in pure gas without an initial surface. Microscopic dust or smoke particles provide physical anchor sites for water droplets to condense onto.

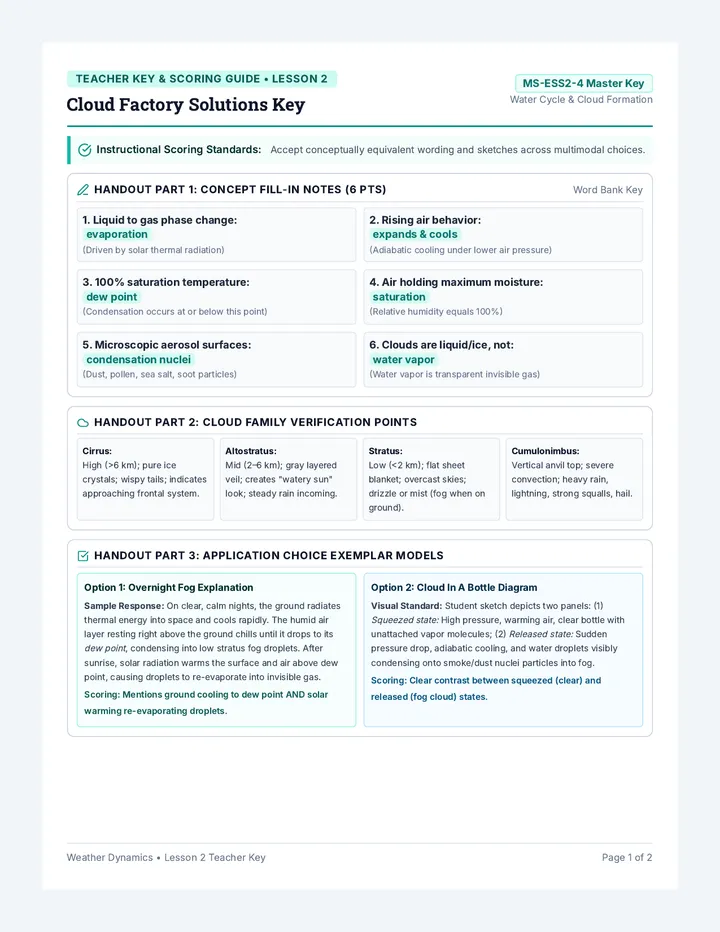

Lab Synthesis Master Response (The 3 Cloud Ingredients):
To create a cloud in nature or in the lab, you must have: (1) Water vapor (moisture in the air); (2) Cooling temperature (air rising/expanding until it reaches dew point); and (3) Condensation nuclei (airborne particles like dust, pollen, or salt for droplets to form around).
Air rotates counter-clockwise and inward. Rising air cools and condenses into storm clouds and rain.
🌧️ Memory Trick: "L = Lousy, Stormy Weather"
💨 Winds always blow naturally from High pressure toward Low pressure!
Sensory Reset
Frontal Boundary Cross-Stretch
60 Seconds
1. Cross-Body Reach
Reach right arm across your chest to the left like a cold front advancing. Hold gently for 5 seconds, then switch.
2. Torso Rotation
Gently twist your torso clockwise (High pressure) then slowly counter-clockwise (Low pressure) to release spine tension.
3. Quiet Rest Option
If movement isn't comfortable, rest your hands on your desk, close your eyes, and take 3 calm breaths.
Always choose the comfort level that best supports your focus and body today.

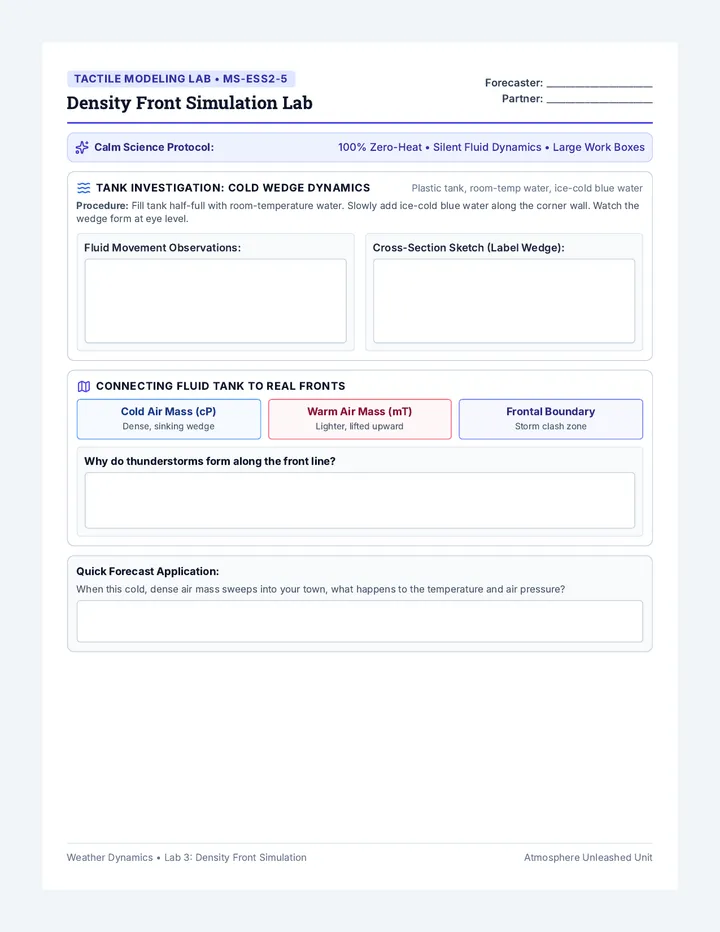

Investigation: Density Front Tank
100% Zero-Heat & Silent Fluid Modeling
Hands-On Tank Exploration:
Pour ice-cold blue water gently into a tank of room-temperature clear water.
Watch the dense cold fluid slice underneath, creating a visible miniature cold front!
Completely silent, zero-heat, mesmerizing fluid mechanics without any flame or loud noise.
Connect your fluid boundary observations directly to synoptic weather map forecasting.
Get your Density Front Lab guide and head to your tank station Hands-on fluid modeling in action!
Warm Front ●●● Red
Gentle slope riding over colder air pocket.
Weather: Layered overcast, steady light drizzle
Stationary Front ▲●▲● Purple
Equally matched boundaries locked in standoff.
Weather: Days of continuous clouds and rain

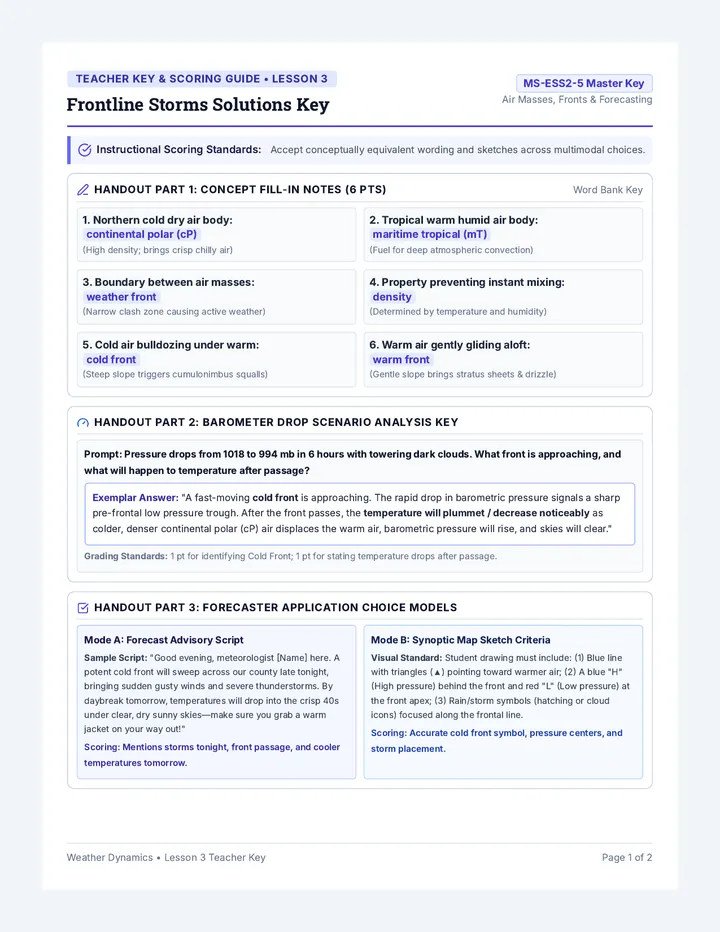

Barometer Scenario: A town's barometer drops sharply from 1018 mb to 994 mb in 6 hours as dark towering cumulonimbus clouds appear. Which front is approaching, and what will happen to temperature after it passes?
Part 3: Forecaster Application Choice
Choose Mode A OR Mode B
Mode A: Forecast Advisory Script
Write a 3-sentence evening news advisory informing citizens of a cold front crossing your county tonight.
Mode B: Synoptic Radar Sketch
Draw a map with a high-pressure 'H', low-pressure 'L', a cold front line with triangles, and wind arrows.
When introduced, the ice-cold blue water sinks directly to the tank floor because colder fluid is significantly denser. It spreads horizontally across the bottom as a wedge, smoothly lifting the clearer, warmer ambient water upward without immediate blending.
Cross-Section Sketch Standards:
Student sketch shows: (1) Dark/shaded blue wedge on the bottom sloping upward at its leading nose; (2) Clear warm water above; (3) Upward arrow showing warm water being forced aloft over the cold wedge.
Connecting Fluid Dynamics to Atmospheric Storms
Why thunderstorms form along front line:
Just like the tank model, dense cold air bulldozes beneath warm, humid air. This forces rapid, violent updrafts. As warm moist air shoots upward, it rapidly cools to dew point, condensing into massive vertical cumulonimbus storm clouds.
Forecast Application (Temp & Pressure):
Temperature: Drops sharply (often by 10°F–25°F). Pressure: Rises sharply after the front passes, signaling incoming heavy, dense cold air.
