The Secret Forces Holding Up Recess • How engineers balance invisible pushes and pulls to keep play equipment standing
Every school day, hundreds of students sprint onto swing sets, hang upside down from monkey bars, and slide down swirling chutes. While it looks like pure energy and chaos, the playground is actually a masterclass in structural engineering. Every single bar, chain, beam, and bolt is constantly fighting against a web of invisible pushes, pulls, twists, and cuts. When engineers design playground equipment, they must predict how these structural forces behave under load so structures stay safe and intact.
Force 01 STRETCH
Tension: The Pulling Force
Tension happens when opposing forces pull an object outward from both ends, stretching it tight like a guitar string or rubber band.
TENSION (Chain) Gravity Load Swing chains only handle tension; push them, and they go limp!
On the Playground: Swing chains, rope climbing pyramids, and zipline cables rely entirely on high tensile strength materials like braided steel.
Force 02 SQUEEZE
Compression: The Squeezing Force
Compression occurs when forces push inward on a material from opposite directions, compacting or squashing it down toward the ground.
COMPRESSION Deck Weight Concrete Footing Pillars push back against gravity to support the slide platform.
On the Playground: The thick vertical steel posts holding up tower decks, the angled legs of an A-frame swing set, and concrete footings in the ground.
Force 03 TENSION + COMPRESSION COMBO
Bending (Flexure): Two Forces in One
When you hang from the middle of a horizontal monkey bar, you subject the bar to bending. Bending is not a single force—it is a combination! The top side of the bar is squeezed together under compression, while the underside is stretched outward under tension.
Failure Risk: If a beam bends too far past its elastic limit, the bottom surface cracks first because most materials rupture in tension before they buckle in compression.
Student Weight Top: COMPRESSION → ← Bottom: TENSION ← → Crossbar flexes under load
Recess Physics Field Guide • Structural Dynamics Page 1 of 2
Part II
Dynamic & Cutting Forces: Shear, Torsion & Geometry
ENGINEERING SPECS
Force 04 SCISSOR CUT
Shear: The Cutting Force
Shear happens when two parallel forces act in opposite directions across different planes, trying to slide or slice one part of a material past another.
BOLT Shear Planes Bolts on see-saw pivots face intense shear stress every bounce.
On the Playground: The pivot pin in a see-saw, the bolts clamping monkey bars to their uprights, and chain shackle cotter pins.
Force 05 TWIST
Torsion: The Twisting Force
Torsion is a rotational force that twists an object along its longitudinal axis when one end is held stationary while the other turns.
Twisting Torque Spiral slides and tire swing swivels constantly absorb torsion.
On the Playground: Corkscrew spiral slides, tire swings wind-up cords, and spinning merry-go-round center shafts.
Engineering Secret
Geometry to the Rescue: Why Triangles and Hollow Tubes Rule
The Inflexible Triangle (Trusses)
Squares and rectangles can easily tilt and deform into parallelograms when pushed from the side. A triangle, however, is mathematically rigid; its angles cannot change unless the lengths of its sides change. That is why swing set end-supports form sharp A-frames and climbing geodesic domes are made entirely of interconnected triangles.
Hollow Pipes vs. Solid Rods
Nearly all playground bars are hollow steel pipes rather than solid metal rods. In bending, the highest stress is concentrated at the very outer edges, while the center carries almost zero stress. By removing the dead metal in the middle, engineers keep 95% of the bar's strength while cutting its weight and cost in half!
Field Inspector Challenge: Diagnose the Primary Force
Quick Assessment Check
Scenario A: The Swivel
A student twists a tire swing 10 times in a circle before letting go to spin wildly.
Primary Force: Torsion
Scenario B: Center Drop
Two students sit in the middle of a long balance bridge beam, causing it to sag.
Primary Force: Bending
Scenario C: The Big Push
A heavy seesaw slams down, forcing the steel hinge bolt between two brackets.
Primary Force: Shear
Playground Physics • Structural Engineering Series Page 2 of 2

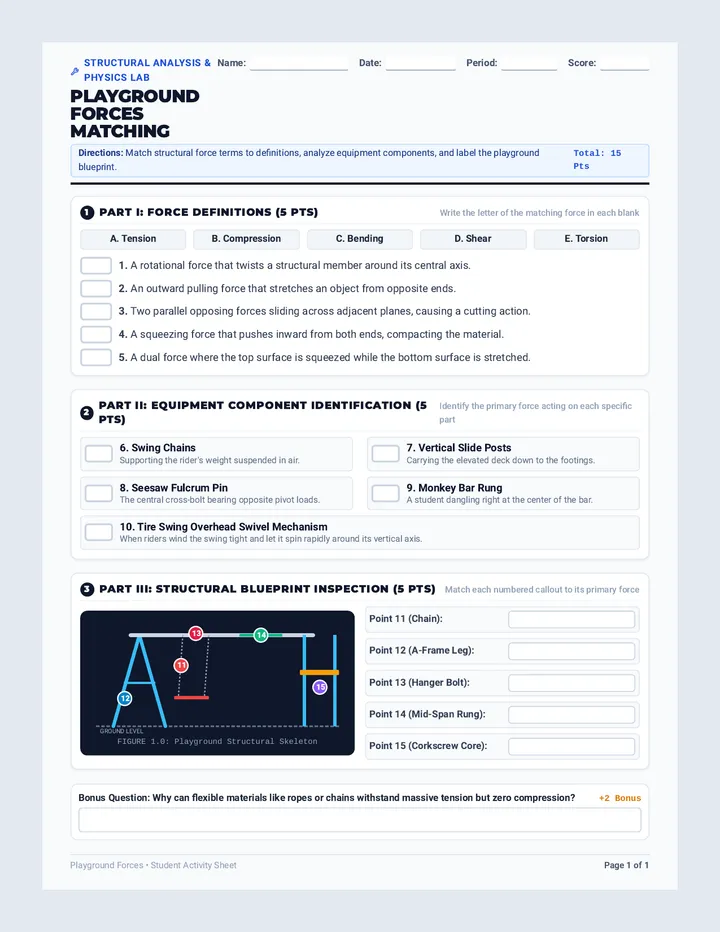

Playground Forces Matching Worksheet
Structural Analysis & Physics Lab
Playground Forces Matching
Name:
Date:
Period:
Score:
Directions: Match structural force terms to definitions, analyze equipment components, and label the playground blueprint. Total: 15 Pts
1 Part I: Force Definitions (5 Pts)
Write the letter of the matching force in each blank
A. Tension
B. Compression
C. Bending
D. Shear
E. Torsion
1. A rotational force that twists a structural member around its central axis.
2. An outward pulling force that stretches an object from opposite ends.
3. Two parallel opposing forces sliding across adjacent planes, causing a cutting action.
4. A squeezing force that pushes inward from both ends, compacting the material.
5. A dual force where the top surface is squeezed while the bottom surface is stretched.
2 Part II: Equipment Component Identification (5 Pts)
Identify the primary force acting on each specific part
6. Swing Chains
Supporting the rider's weight suspended in air.
7. Vertical Slide Posts
Carrying the elevated deck down to the footings.
8. Seesaw Fulcrum Pin
The central cross-bolt bearing opposite pivot loads.
9. Monkey Bar Rung
A student dangling right at the center of the bar.
10. Tire Swing Overhead Swivel Mechanism
When riders wind the swing tight and let it spin rapidly around its vertical axis.
3 Part III: Structural Blueprint Inspection (5 Pts)
Match each numbered callout to its primary force
GROUND LEVEL 11 12 13 14 15 FIGURE 1.0: Playground Structural Skeleton
Point 11 (Chain):
Point 12 (A-Frame Leg):
Point 13 (Hanger Bolt):
Point 14 (Mid-Span Rung):
Point 15 (Corkscrew Core):
Bonus Question: Why can flexible materials like ropes or chains withstand massive tension but zero compression? +2 Bonus
Playground Forces • Student Activity Sheet Page 1 of 1

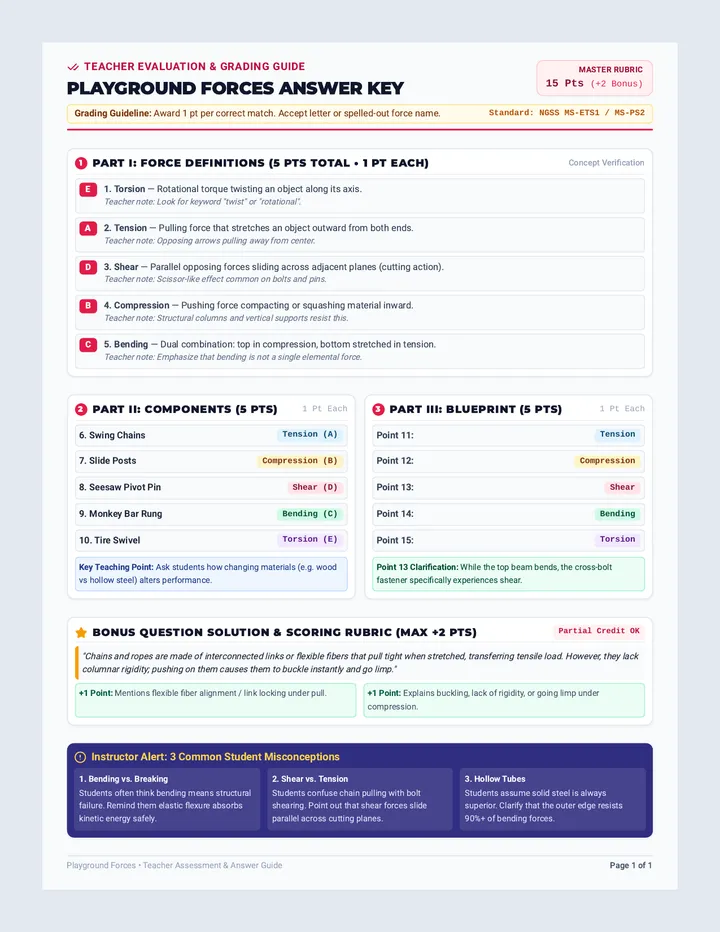

Playground Forces Answer Key
Teacher Evaluation & Grading Guide
Playground Forces Answer Key
Master Rubric
15 Pts (+2 Bonus)
Grading Guideline: Award 1 pt per correct match. Accept letter or spelled-out force name. Standard: NGSS MS-ETS1 / MS-PS2
1 Part I: Force Definitions (5 Pts Total • 1 Pt Each)
Concept Verification
E
1. Torsion — Rotational torque twisting an object along its axis. Teacher note: Look for keyword "twist" or "rotational".
A
2. Tension — Pulling force that stretches an object outward from both ends. Teacher note: Opposing arrows pulling away from center.
D
3. Shear — Parallel opposing forces sliding across adjacent planes (cutting action). Teacher note: Scissor-like effect common on bolts and pins.
B
4. Compression — Pushing force compacting or squashing material inward. Teacher note: Structural columns and vertical supports resist this.
C
5. Bending — Dual combination: top in compression, bottom stretched in tension. Teacher note: Emphasize that bending is not a single elemental force.
2 Part II: Components (5 Pts)
1 Pt Each
6. Swing Chains Tension (A)
7. Slide Posts Compression (B)
8. Seesaw Pivot Pin Shear (D)
9. Monkey Bar Rung Bending (C)
10. Tire Swivel Torsion (E)
Key Teaching Point: Ask students how changing materials (e.g. wood vs hollow steel) alters performance.
3 Part III: Blueprint (5 Pts)
1 Pt Each
Point 11: Tension
Point 12: Compression
Point 13: Shear
Point 14: Bending
Point 15: Torsion
Point 13 Clarification: While the top beam bends, the cross-bolt fastener specifically experiences shear.
Bonus Question Solution & Scoring Rubric (Max +2 Pts) Partial Credit OK
"Chains and ropes are made of interconnected links or flexible fibers that pull tight when stretched, transferring tensile load. However, they lack columnar rigidity; pushing on them causes them to buckle instantly and go limp."
+1 Point: Mentions flexible fiber alignment / link locking under pull.
+1 Point: Explains buckling, lack of rigidity, or going limp under compression.
Instructor Alert: 3 Common Student Misconceptions
