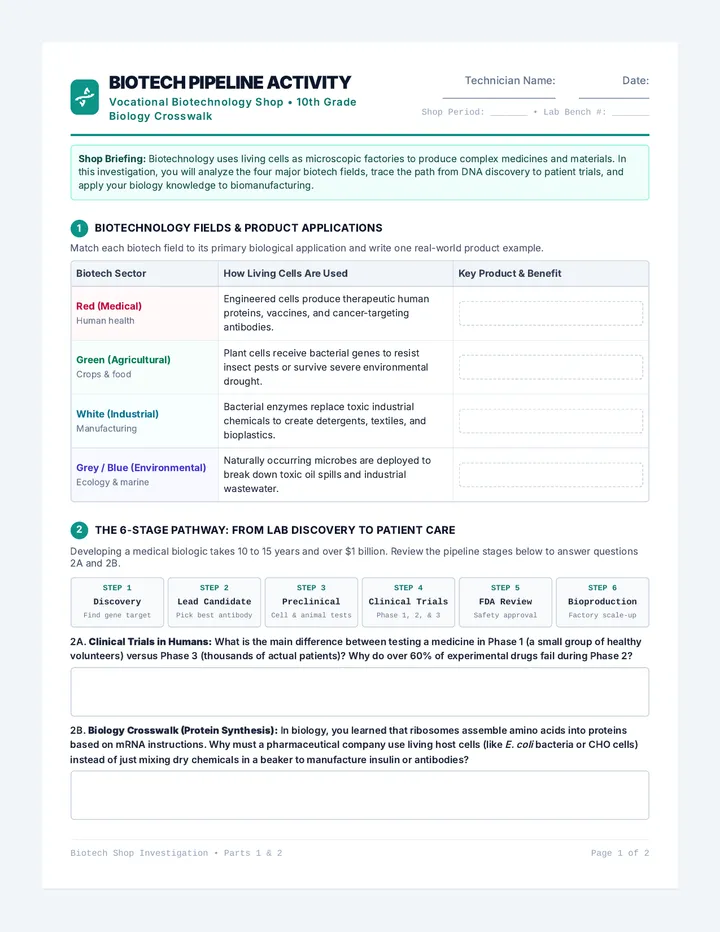

Biotech Shop Investigation • Parts 1 & 2 Page 1 of 2
Shop Floor Case Study: Upstream & Downstream Operations
Page 2 of 2
3
Shift Scenario: Monitoring Monoclonal Antibody Bioproduction Host: CHO Cells
You are working as a junior biomanufacturing technician at a biotechnology facility. Your shop team is running a 500-liter bioreactor filled with genetically modified Chinese Hamster Ovary (CHO) cells producing cancer-fighting antibodies. The automated control system monitors temperature (37.0°C), pH (7.2), and dissolved oxygen (DO) 24 hours a day.
3A. Upstream Alarm & Cellular Respiration: At 2:00 AM, the dissolved oxygen (DO) sensor drops from 40% down to 12%, and the culture pH drops sharply from 7.2 to 6.3.
• Based on cell biology, why did a lack of oxygen cause the cells to produce acid?
• What two immediate actions should you take on the bioreactor control panel to restore homeostasis?
3B. Downstream Harvesting & Chromatography: After the cells finish growing, technicians spin down the culture in a centrifuge to remove whole cells. Why can’t technicians simply use a fine filter to separate the antibody medicine from other dissolved cellular waste? How does affinity chromatography use a "lock-and-key" mechanism to catch only the target antibody?
4
4A. Aseptic Technique & Contamination Prevention: In your vocational shop, you practice strict aseptic technique, clean biosafety cabinets with 70% ethanol, and wear sterile PPE (gloves, gown, goggles). If a single wild bacterium or fungal spore accidentally enters the 500L bioreactor, explain what happens to the batch and why the company cannot simply "boil" the liquid to kill the germ.
4B. Biosimilars vs. Generic Pills: When simple chemical drugs like ibuprofen lose patent protection, competitor factories can quickly stamp out identical generic copies. Why is it impossible for a competitor to create an "exact 100% clone" of a biologic medicine made inside living host cells, requiring regulators to test them as "biosimilars"?
Quality Assurance Check: Shop Protocol Completed & Peer Reviewed
QC Inspector (Partner) Signature:
Biotech Shop Investigation • Parts 3 & 4 Page 2 of 2
Part 1 Products: Red: Recombinant Insulin (controls diabetes); Green: Bt Corn (pest resistance); White: Laundry protease enzymes (cold wash); Grey/Blue: Alcanivorax (oil spill cleanup).
2A Trials & 2B Synthesis: Phase 1 tests safety in small healthy groups; Phase 3 tests efficacy in thousands. Over 60% fail in Phase 2 due to lack of human efficacy. Biologics require living cells because ribosomes and ER fold complex 3D polypeptides that chemical synthesis cannot assemble.
3A Bioreactor & 3B Harvest: Low DO causes anaerobic glycolysis producing lactic acid (dropping pH). Technician increases O2 sparging/impeller speed and adds sterile buffer. Affinity chromatography uses Protein A beads that bind the antibody shape specifically like a lock-and-key.
4A Aseptic & 4B Biosimilars: Bacteria outgrow cells and produce endotoxins; boiling denatures proteins. Living cells have natural variation in sugar chains, preventing exact chemical cloning.
1. Mechanism of Affinity: The resin beads have surface ligands designed to bind specifically to target protein functional groups or antibody Fc regions. Cellular waste lacks this binding shape and passes through into F1.
2. Dry Resin Troubleshooting: If the bed runs dry, air pockets create channels ("channeling"). Liquid bypasses the beads through cracks instead of filtering through the resin, causing target protein to leak prematurely into wash fractions and ruining purity.
3. cGMP Quality Release: Federal regulations mandate 99.9%+ purity and known concentration. Testing F3 verifies that zero toxic host cell proteins or DNA contaminated the batch prior to sterile bottling.
| Proficiency | Biology Concepts (LS1-1, LS1-7) | R&D Pipeline & Trials | Shop Floor Bioprocessing & Wet-Lab |
|---|---|---|---|
| Level 4 (Mastery) | Accurately connects protein synthesis and lactic acid fermentation to biomanufacturing. | Thoroughly explains Phase 1 vs 3 and identifies why biologics require living cell hosts. | Performs column chromatography correctly, balances centrifuges, and explains channeling. |
| Level 3 (Proficient) | Correctly links cells to protein synthesis; understands that low oxygen makes acid. | Differentiates safety testing from efficacy testing in clinical trials. | Executes wash/elution steps and records clear QC fraction observations in the log. |
| Level 2 (Developing) | Confuses cellular respiration with digestion; vague on protein synthesis. | Lists clinical trial stages without understanding patient populations. | Allows resin to dry out or confuses flow-through with target eluate product. |

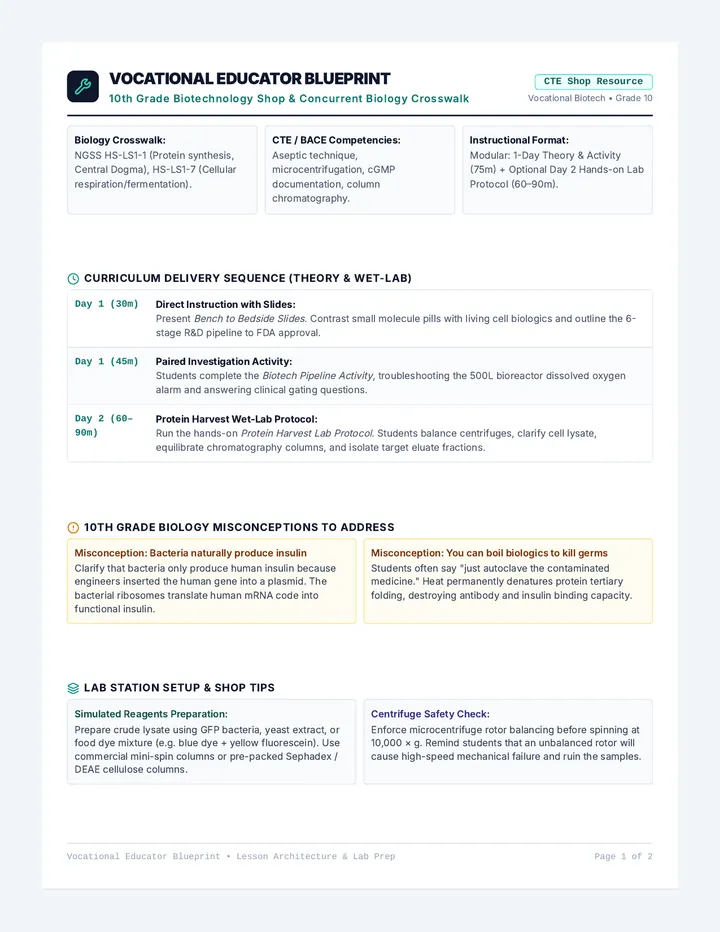

Vocational Educator Blueprint • Master Answer Key & Rubric Page 2 of 2
B. Wash Matrix: Move tube F2 (Wash) under the tip. Add 500 µL of Wash Buffer (WB). Collect to rinse away weakly bound contaminants without stripping the medicine.
C. Elute Pure Product: Move tube F3 (Eluate) under the tip. Add 500 µL of Elution Buffer (EB). The changed pH/salt releases the target protein into the collection vial.
Record visual color / clarity
| Fraction Tube | Buffer Applied | Visual Color & Turbidity | Target Protein Present? (Yes / No / Trace) |
|---|---|---|---|
| F1: Flow-Through | Clarified Feedstock | ||
| F2: Wash Fraction | Wash Buffer (WB) | ||
| F3: Eluate Product | Elution Buffer (EB) |
1. Mechanism of Affinity: Why did the target medicine stick to the column resin during the loading phase while all other cellular waste proteins dripped into tube F1?
2. Shop Troubleshooting: In Step 2, the SOP emphasizes: "Never allow the resin bed to run dry." What physical damage happens to the packed resin beads if air bubbles enter the column bed, and how would this ruin the purity of the medicine?
3. Connecting to Industry cGMP: In a commercial biomanufacturing plant producing 50,000 vials of insulin, why must downstream technicians test the final Eluate (F3) with a spectrophotometer or gel electrophoresis before it can be packaged for patients?
Batch Disposition: Quality Control Log Audited & Approved
Lead Tech Sign: Yield Acceptable? [ ] Yes [ ] Fail

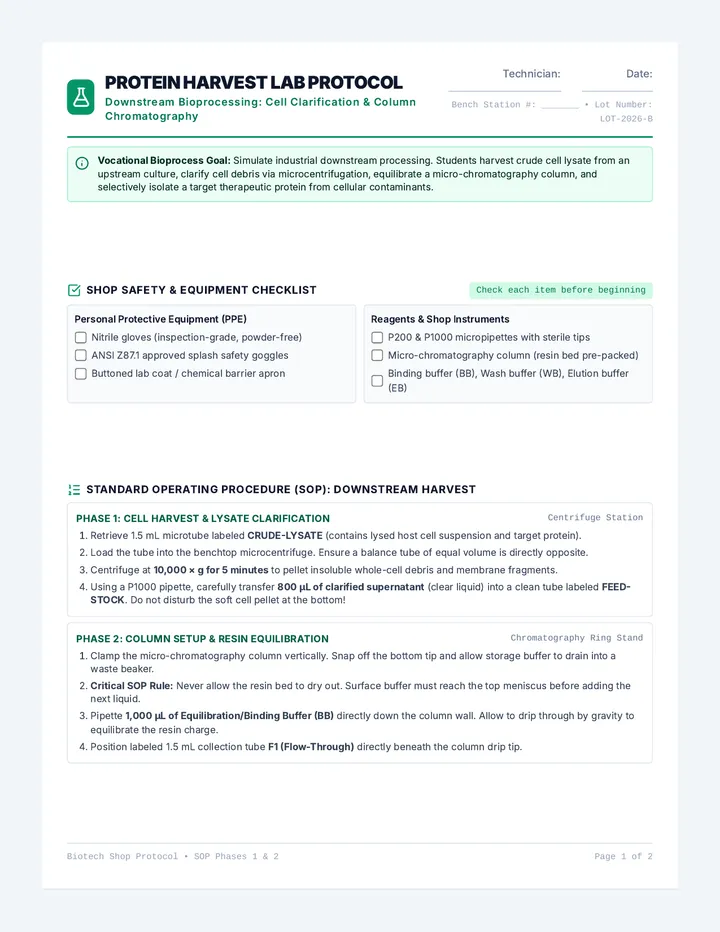

Biotech Shop Protocol • QC Log & Analysis Page 2 of 2
