Atomic Blueprint Slides Atomic Blueprint
Cracking the Code of the Periodic Table
Metals
Metalloids
Non-Metals
10-Minute Mini-Lesson & Guided Walkthrough
10-Minute Mission Roadmap
Mastering the architecture of matter
Pacing Guide
Stage 01 • Min 2-4
Element ID Card
Decode the atomic number, symbol, and why protons define an atom's true identity.
Tile Anatomy
Stage 02 • Min 4-7
Rows vs. Columns
Understand horizontal Periods (energy shells) versus vertical Groups (chemical families).
Grid Patterns
Stage 03 • Min 7-10
The 3 Territories
Explore metals, metalloids, and non-metals in real-world everyday items.
Lab Applications
Have your Element Explorer Notes ready for Part 1! Target: 100% Mastery
01. Anatomy of an Element Tile
Every square on the periodic table tells a complete story
7 Atomic #
N
Nitrogen
14.007 amu
Atomic Number = Protons
The atomic number counts how many protons sit inside the atom's nucleus. It is the atom's unique identity!
The Golden Rule of Elements
"Change the number of protons, and you change the element itself. 7 protons is always Nitrogen—never anything else!"
02A. Periods: Horizontal Rows
Reading Left to Right across the Table
7 Total Periods
Every element in the same period has the same number of electron energy levels (shells).
Left-to-Right Progression
As you move across a period, the atomic number increases by +1 proton with each consecutive element.
Period 11 Energy Shell (H, He)
Period 22 Energy Shells (Li to Ne)
Period 33 Energy Shells (Na to Ar)
Periods 4–74 to 7 Energy Shells
02B. Groups: Vertical Columns
Reading Top to Bottom (18 Total Groups)
GROUP 1
Li
Na
K
Alkali Metals
GROUP 18
He
Ne
Ar
Noble Gases
Element Families
Elements in the same column belong to the same Family. They share similar chemical properties and behaviors!
Why the Similarity?
Members of a group have the same number of outer electrons (valence electrons), making them react in matching ways.
Checkpoint: Row or Column?
45-Second Partner Discussion
Turn & Talk
Challenge A
Chemical Reactivity
Sodium (Na) and Potassium (K) both react violently when dropped in water. Are they in the same PERIOD or GROUP?
Clue: Look for shared family behaviors!
Challenge B
Energy Levels
Magnesium (Mg) and Sulfur (S) both have exactly 3 electron shells. Are they in the same PERIOD or GROUP?
Clue: Think about horizontal shells!
Answer Reveal: A = Group (Chemical Family) • B = Period (Same Shell Count)
03. The Three Element Territories
The periodic table map divides into three distinct zones
METALS
~75%
Left & Center of the table
Shiny luster
Great conductors
Malleable (bends)
Examples: Iron, Copper, Gold
METALLOIDS
Staircase
Along the dividing line
Hybrid properties
Semiconductors
Can be shiny or dull
Examples: Silicon, Germanium
NON-METALS
Far Right
Right side + Hydrogen
Dull appearance
Poor conductors
Brittle (crumbles)
Examples: Carbon, Oxygen, Neon
Elements in the Wild
Why properties determine how humans use each element
Metal Territory
Aluminum (Al)
Lightweight, corrosion-resistant, and easily bent into cans and aircraft frames without shattering.
In your notes: Soda Can
Metalloid Staircase
Silicon (Si)
Acts as a semiconductor—turning electricity on and off. Powers every microchip in your phone and computer.
In your notes: Phone Chip
Non-Metal Far Right
Neon & Helium
Completely non-reactive gases. Neon glows brightly under electrical current, while helium lifts balloons safely.
In your notes: Signs & Balloons
Video Focus: Organizing Matter
Observe how scientists cracked the recurring patterns of elements
Embedded media
LOOK-FOR #1
The Periodic Pattern
Notice how repeating properties occur periodically as you advance through atomic numbers.
LOOK-FOR #2
Group Behaviors
Watch why elements in the same column explode or stay inert based on their electron structures.
Mission Complete: Put It to Work
Transitioning into guided practice and scientific synthesis
Student Checklist
Element Explorer Notes
Part 1: Periods & Groups definitions
Part 2: Complete the 3 Types chart
Part 3: Complete Real-World Lab table
Work independently or with your partner
Think Like a Scientist
The Synthesis Challenge
"If you discover a new element that is shiny, but shatters instantly like brittle glass when tapped, which category is it hardest to classify into? Why?"
Write your hypothesis at the bottom of your worksheet!
Ready to investigate? Grab your pencil and periodic table! Time for Practice

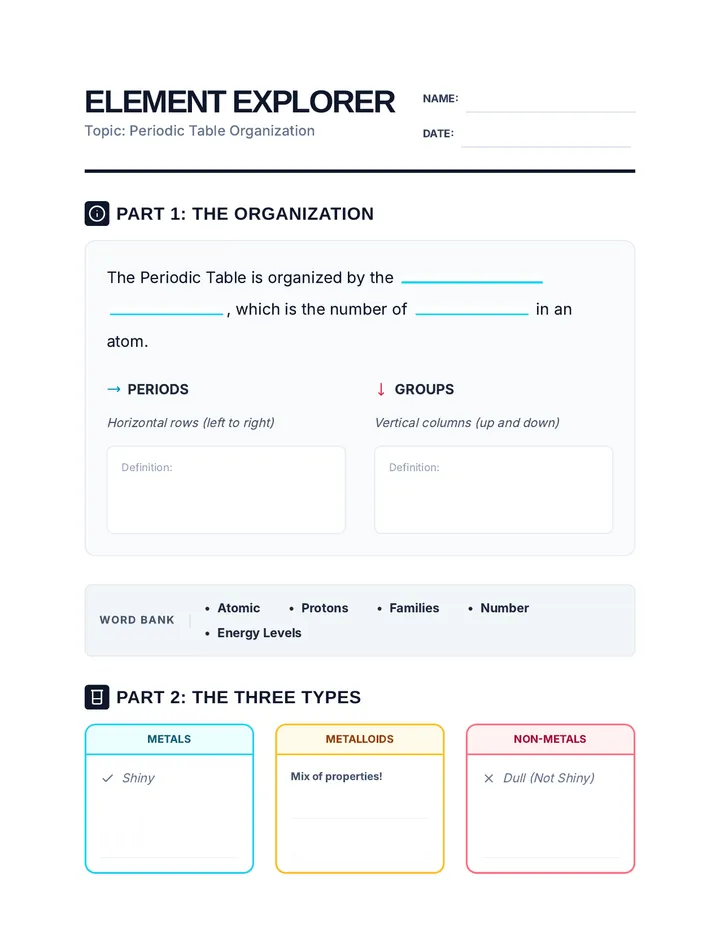

Element Explorer Notes Element Explorer
Topic: Periodic Table Organization
Name:
Date:
Part 1: The Organization
The Periodic Table is organized by the , which is the number of in an atom.
PERIODS
Horizontal rows (left to right)
Definition:
GROUPS
Vertical columns (up and down)
Definition:
Word Bank
• Atomic
• Protons
• Families
• Number
• Energy Levels
Part 2: The Three Types
METALS
Shiny
METALLOIDS
Mix of properties!
NON-METALS
Dull (Not Shiny)
Part 3: Lab Analysis
Item Element Type Why is it used for this item? Soda Can Aluminum (Al) Metal Phone Chip Silicon (Si) Metalloid Balloons Helium (He) Non-Metal Pencil Lead Carbon (C) Non-Metal
Thinking Like a Scientist
If you discovered a new element that was shiny, but shattered instantly when you touched it (brittle), which category would it be the most difficult to classify into? Why?

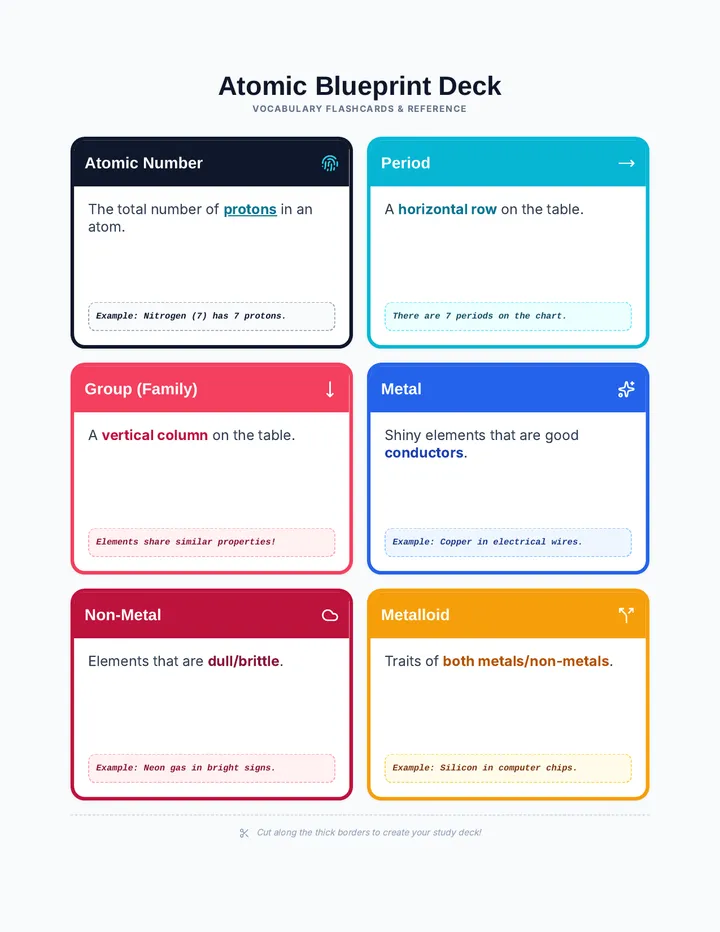

Atomic Vocab Cards Atomic Blueprint Deck
Vocabulary Flashcards & Reference
Atomic Number
The total number of protons in an atom.
Example: Nitrogen (7) has 7 protons.
Period
A horizontal row on the table.
There are 7 periods on the chart.
Group (Family)
A vertical column on the table.
Elements share similar properties!
Metal
Shiny elements that are good conductors.
Example: Copper in electrical wires.
Non-Metal
Elements that are dull/brittle.
Example: Neon gas in bright signs.
Metalloid
Traits of both metals/non-metals.
Example: Silicon in computer chips.
Cut along the thick borders to create your study deck!

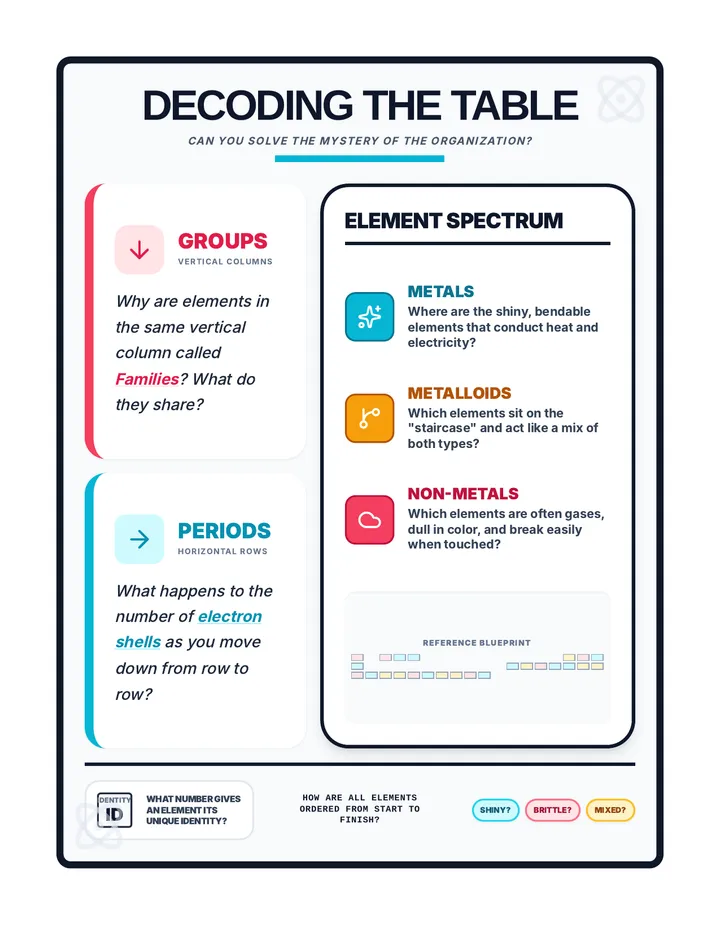

Periodic Table Anchor Chart Challenge Decoding the Table
Can you solve the mystery of the organization?
GROUPS
Vertical Columns
Why are elements in the same vertical column called Families? What do they share?
PERIODS
Horizontal Rows
What happens to the number of electron shells as you move down from row to row?
The Element Spectrum
METALS
Where can you find the shiny, bendable elements that conduct heat and electricity?
METALLOIDS
Which elements sit on the "staircase" and act like a mix of both types?
NON-METALS
Which elements are often gases, dull in color, and break easily when touched?
?? ID
What number gives an element its unique identity?
How are all elements ordered from start to finish?
Shiny?
Brittle?
Mixed?

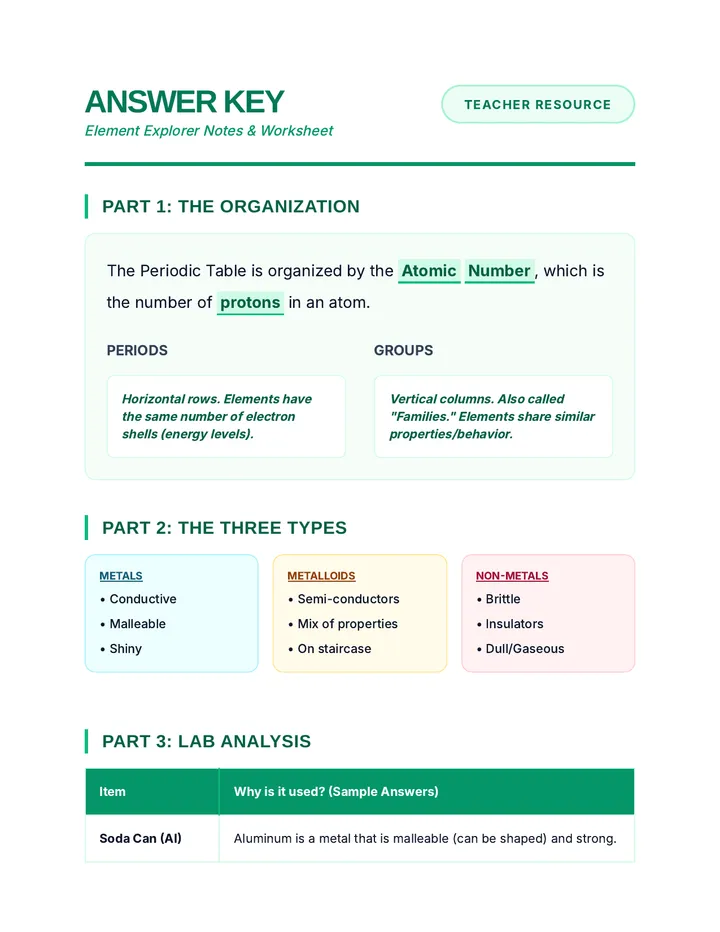

Atomic Blueprint Key Answer Key
Element Explorer Notes & Worksheet
Teacher Resource
Part 1: The Organization
The Periodic Table is organized by the Atomic Number, which is the number of protons in an atom.
PERIODS
Horizontal rows. Elements have the same number of electron shells (energy levels).
GROUPS
Vertical columns. Also called "Families." Elements share similar properties/behavior.
Part 2: The Three Types
METALS
• Conductive
• Malleable
• Shiny
METALLOIDS
• Semi-conductors
• Mix of properties
• On staircase
NON-METALS
• Brittle
• Insulators
• Dull/Gaseous
Part 3: Lab Analysis
Item Why is it used? (Sample Answers) Soda Can (Al) Aluminum is a metal that is malleable (can be shaped) and strong. Phone Chip (Si) Silicon is a metalloid/semiconductor, useful for controlling electricity. Party Balloon (He) Helium is a non-metal gas that is lighter than air and non-reactive. Pencil Lead (C) Carbon (graphite) is a brittle non-metal that rubs off easily on paper.
Scientific Thinking Answer:
Metalloids would be the hardest to classify because they have traits of both (shiny like a metal but brittle like a non-metal).

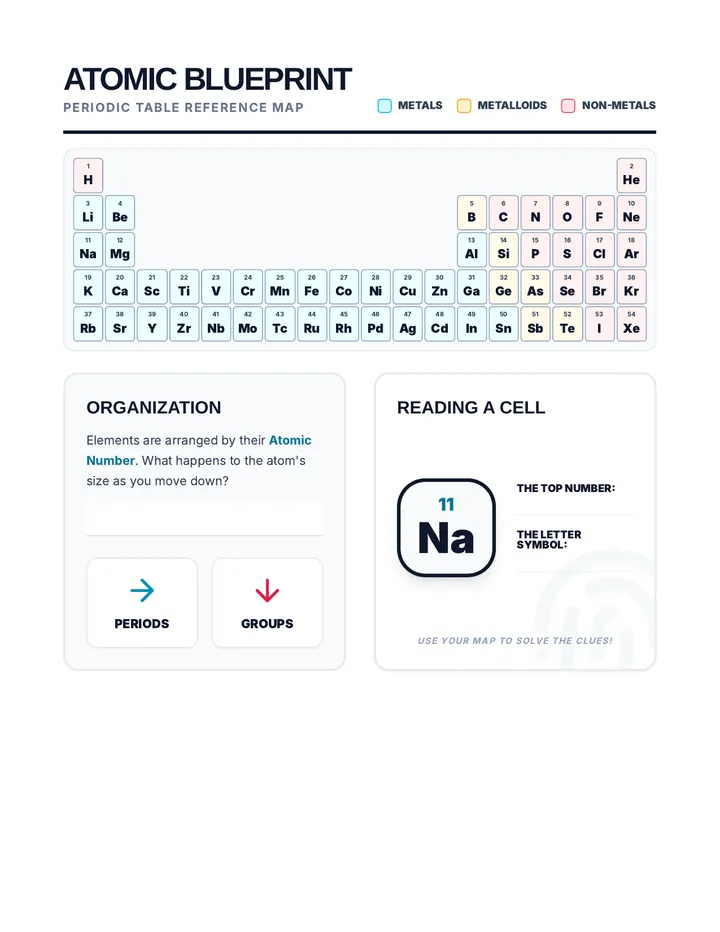

Periodic Table Reference Sheet Atomic Blueprint
Periodic Table Reference Map
METALS
METALLOIDS
NON-METALS
<table class="w-full border-separate border-spacing-0.5"><tbody><tr><td class="w-8 h-10 border border-slate-400 bg-rose-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">1</div><div class="text-sm font-black">H</div></td><td colspan="16"></td><td class="w-8 h-10 border border-slate-400 bg-rose-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">2</div><div class="text-sm font-black">He</div></td></tr><tr><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">3</div><div class="text-sm font-black">Li</div></td><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">4</div><div class="text-sm font-black">Be</div></td><td colspan="10"></td><td class="w-8 h-10 border border-slate-400 bg-amber-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">5</div><div class="text-sm font-black">B</div></td><td class="w-8 h-10 border border-slate-400 bg-rose-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">6</div><div class="text-sm font-black">C</div></td><td class="w-8 h-10 border border-slate-400 bg-rose-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">7</div><div class="text-sm font-black">N</div></td><td class="w-8 h-10 border border-slate-400 bg-rose-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">8</div><div class="text-sm font-black">O</div></td><td class="w-8 h-10 border border-slate-400 bg-rose-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">9</div><div class="text-sm font-black">F</div></td><td class="w-8 h-10 border border-slate-400 bg-rose-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">10</div><div class="text-sm font-black">Ne</div></td></tr><tr><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">11</div><div class="text-sm font-black">Na</div></td><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">12</div><div class="text-sm font-black">Mg</div></td><td colspan="10"></td><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">13</div><div class="text-sm font-black">Al</div></td><td class="w-8 h-10 border border-slate-400 bg-amber-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">14</div><div class="text-sm font-black">Si</div></td><td class="w-8 h-10 border border-slate-400 bg-rose-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">15</div><div class="text-sm font-black">P</div></td><td class="w-8 h-10 border border-slate-400 bg-rose-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">16</div><div class="text-sm font-black">S</div></td><td class="w-8 h-10 border border-slate-400 bg-rose-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">17</div><div class="text-sm font-black">Cl</div></td><td class="w-8 h-10 border border-slate-400 bg-rose-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">18</div><div class="text-sm font-black">Ar</div></td></tr><tr><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">19</div><div class="text-sm font-black">K</div></td><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">20</div><div class="text-sm font-black">Ca</div></td><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">21</div><div class="text-sm font-black">Sc</div></td><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">22</div><div class="text-sm font-black">Ti</div></td><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">23</div><div class="text-sm font-black">V</div></td><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">24</div><div class="text-sm font-black">Cr</div></td><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">25</div><div class="text-sm font-black">Mn</div></td><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">26</div><div class="text-sm font-black">Fe</div></td><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">27</div><div class="text-sm font-black">Co</div></td><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">28</div><div class="text-sm font-black">Ni</div></td><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">29</div><div class="text-sm font-black">Cu</div></td><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">30</div><div class="text-sm font-black">Zn</div></td><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">31</div><div class="text-sm font-black">Ga</div></td><td class="w-8 h-10 border border-slate-400 bg-amber-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">32</div><div class="text-sm font-black">Ge</div></td><td class="w-8 h-10 border border-slate-400 bg-amber-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">33</div><div class="text-sm font-black">As</div></td><td class="w-8 h-10 border border-slate-400 bg-rose-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">34</div><div class="text-sm font-black">Se</div></td><td class="w-8 h-10 border border-slate-400 bg-rose-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">35</div><div class="text-sm font-black">Br</div></td><td class="w-8 h-10 border border-slate-400 bg-rose-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">36</div><div class="text-sm font-black">Kr</div></td></tr><tr><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">37</div><div class="text-sm font-black">Rb</div></td><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">38</div><div class="text-sm font-black">Sr</div></td><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">39</div><div class="text-sm font-black">Y</div></td><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">40</div><div class="text-sm font-black">Zr</div></td><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">41</div><div class="text-sm font-black">Nb</div></td><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">42</div><div class="text-sm font-black">Mo</div></td><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">43</div><div class="text-sm font-black">Tc</div></td><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">44</div><div class="text-sm font-black">Ru</div></td><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">45</div><div class="text-sm font-black">Rh</div></td><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">46</div><div class="text-sm font-black">Pd</div></td><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">47</div><div class="text-sm font-black">Ag</div></td><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">48</div><div class="text-sm font-black">Cd</div></td><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">49</div><div class="text-sm font-black">In</div></td><td class="w-8 h-10 border border-slate-400 bg-cyan-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">50</div><div class="text-sm font-black">Sn</div></td><td class="w-8 h-10 border border-slate-400 bg-amber-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">51</div><div class="text-sm font-black">Sb</div></td><td class="w-8 h-10 border border-slate-400 bg-amber-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">52</div><div class="text-sm font-black">Te</div></td><td class="w-8 h-10 border border-slate-400 bg-rose-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">53</div><div class="text-sm font-black">I</div></td><td class="w-8 h-10 border border-slate-400 bg-rose-50 rounded text-center"><div class="text-[7px] font-bold text-slate-700">54</div><div class="text-sm font-black">Xe</div></td></tr></tbody></table>

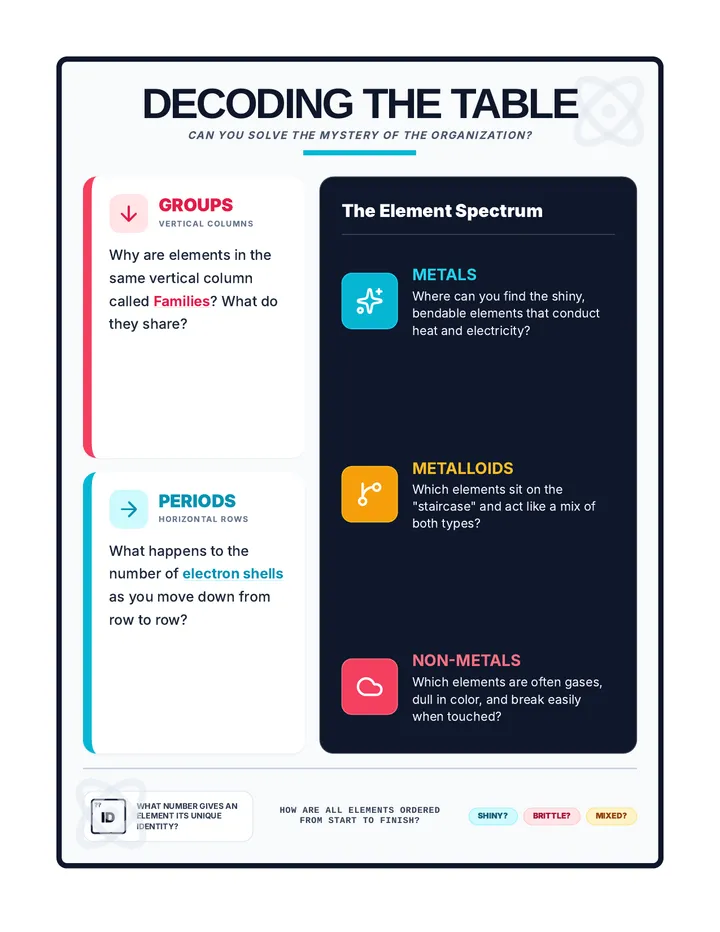

Periodic Table Anchor Chart Challenge Decoding the Table
Can you solve the mystery of the organization?
Groups
Vertical Columns
Why are elements in the same vertical column called Families? What do they share?
Periods
Horizontal Rows
What happens to the number of electron shells as you move down from row to row?
Element Spectrum
METALS
Where are the shiny, bendable elements that conduct heat and electricity?
METALLOIDS
Which elements sit on the "staircase" and act like a mix of both types?
NON-METALS
Which elements are often gases, dull in color, and break easily when touched?
Reference Blueprint
Identity ID
What number gives an element its unique identity?
How are all elements ordered from start to finish?
Shiny?
Brittle?
Mixed?

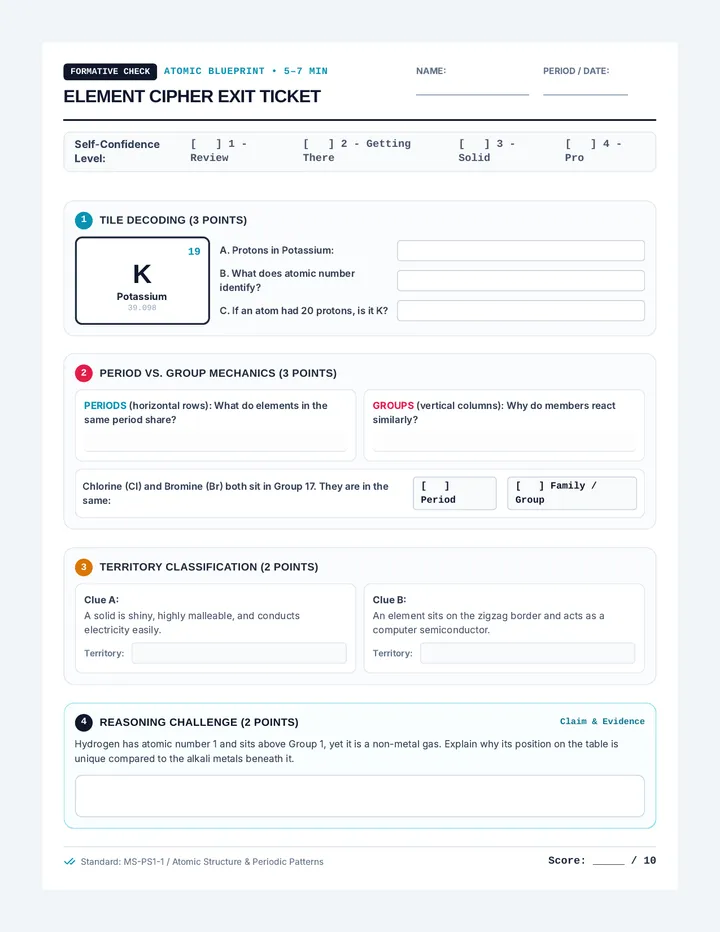

Element Cipher Exit Ticket Formative Check Atomic Blueprint • 5–7 Min
Element Cipher Exit Ticket
Name:
Period / Date:
Self-Confidence Level:
[ ] 1 - Review [ ] 2 - Getting There [ ] 3 - Solid [ ] 4 - Pro
1
Tile Decoding (3 Points)
19
K
Potassium
39.098
A. Protons in Potassium:
B. What does atomic number identify?
C. If an atom had 20 protons, is it K?
2
Period vs. Group Mechanics (3 Points)
PERIODS (horizontal rows): What do elements in the same period share?
GROUPS (vertical columns): Why do members react similarly?
Chlorine (Cl) and Bromine (Br) both sit in Group 17. They are in the same:
[ ] Period [ ] Family / Group
3
Territory Classification (2 Points)
Clue A:
A solid is shiny, highly malleable, and conducts electricity easily.
Territory:
Clue B:
An element sits on the zigzag border and acts as a computer semiconductor.
Territory:
4
Reasoning Challenge (2 Points)
Claim & Evidence
Hydrogen has atomic number 1 and sits above Group 1, yet it is a non-metal gas. Explain why its position on the table is unique compared to the alkali metals beneath it.
Standard: MS-PS1-1 / Atomic Structure & Periodic Patterns
Score: _____ / 10

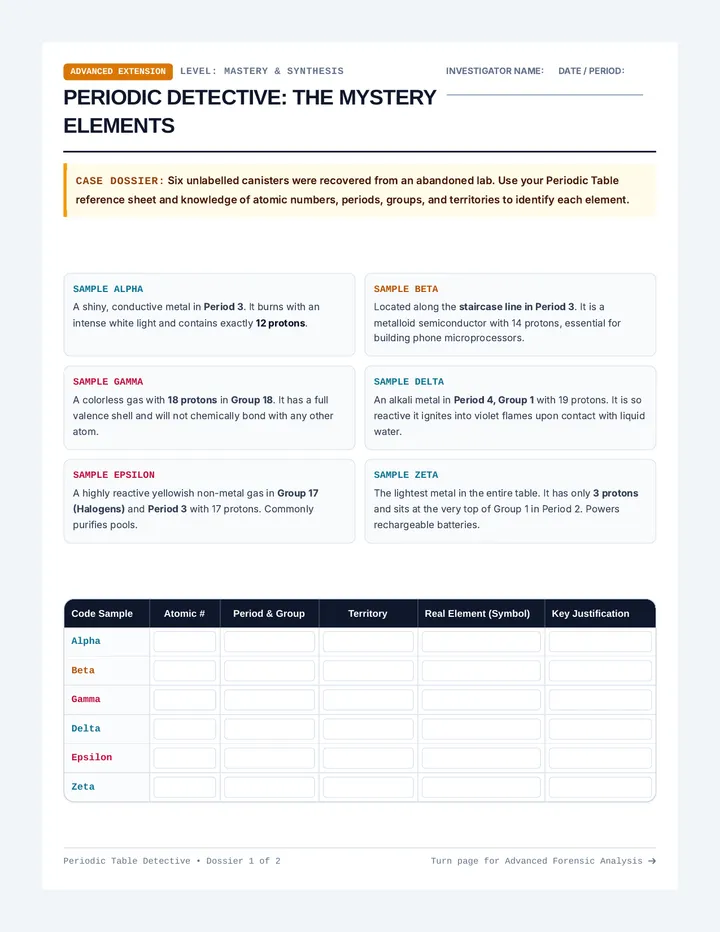

Periodic Detective Worksheet Advanced Extension Level: Mastery & Synthesis
Periodic Detective: The Mystery Elements
Investigator Name:
Date / Period:
Case Dossier: Six unlabelled canisters were recovered from an abandoned lab. Use your Periodic Table reference sheet and knowledge of atomic numbers, periods, groups, and territories to identify each element.
SAMPLE ALPHA
A shiny, conductive metal in Period 3. It burns with an intense white light and contains exactly 12 protons.
SAMPLE BETA
Located along the staircase line in Period 3. It is a metalloid semiconductor with 14 protons, essential for building phone microprocessors.
SAMPLE GAMMA
A colorless gas with 18 protons in Group 18. It has a full valence shell and will not chemically bond with any other atom.
SAMPLE DELTA
An alkali metal in Period 4, Group 1 with 19 protons. It is so reactive it ignites into violet flames upon contact with liquid water.
SAMPLE EPSILON
A highly reactive yellowish non-metal gas in Group 17 (Halogens) and Period 3 with 17 protons. Commonly purifies pools.
SAMPLE ZETA
The lightest metal in the entire table. It has only 3 protons and sits at the very top of Group 1 in Period 2. Powers rechargeable batteries.
Code Sample Atomic # Period & Group Territory Real Element (Symbol) Key Justification Alpha
|
|
|
|
| Beta |
|
|
|
|
|
| Gamma |
|
|
|
|
|
| Delta |
|
|
|
|
|
| Epsilon |
|
|
|
|
|
| Zeta |
|
|
|
|
|
Periodic Table Detective • Dossier 1 of 2 Turn page for Advanced Forensic Analysis ➔
Part 2: Advanced Forensic Analysis
Engineering & Trends
A Investigation 1: The Group 1 Explosion Mystery
Trend Analysis
Both Lithium (Period 2) and Potassium (Period 4) have exactly 1 valence electron in Group 1. However, Potassium reacts much more explosively with water than Lithium does.
