Bionic Blueprints Slides Unit: Bionic Pioneers
Days 1 - 2
Bionic Blueprints
How biological bones and mechanical levers work together to move the human body—and how bionic engineers mimic nature to restore movement.
Core Concept Biomechanics & Physics Levers
Press spacebar or arrow keys to advance
The Living Machine
Biomechanics Definition
Biomechanics
The study of how mechanical principles (forces, levers, torque) apply to living organisms. Your body is a machine!
Every skeletal muscle in your body can only pull—it can never push! To push, muscles must work in opposite pairs.
The Skeleton
The Rigid Frame
Provides mechanical structure and acts as the rigid rods (levers) for muscle pull forces.
The Muscles
The Engine
Contract (shorten) to generate the pull forces necessary to rotate joints and move rods.
Lesson 1: Bionic Blueprints Slide 2 of 10
The Mechanical Lever
Lever Anatomy
F
The Fulcrum
The fixed pivot point around which the lever rotates.
In the human body, your joints (like elbow, knee, ankle) act as the fulcrums.
Greek: Pivot point
E
The Effort
The force applied to move the lever.
Generated by contracting muscles pulling on bones via tendons.
Force Generator
L
The Load
The resistance force that must be overcome (weight).
The weight of the limb itself plus any object you are lifting or pushing against.
Resistance
Lesson 1: Bionic Blueprints Slide 3 of 10
The Three Lever Classes
Class Comparison
1st Class (L - F - E)
The Seesaw
Fulcrum sits in the middle between the load and the effort.
Body Example:
The neck joint! Neck muscles pull down (Effort) to keep head weight (Load) upright on the atlas bone pivot (Fulcrum).
Load ← FULCRUM → Effort
2nd Class (F - L - E)
The Wheelbarrow
Load sits in the middle between the pivot and the effort.
Body Example:
Standing on tiptoes! Calf muscle pulls up (Effort) on heel, lifting body weight (Load) pivoted at toes (Fulcrum).
Fulcrum ← LOAD → Effort
3rd Class (F - E - L)
The Tweezers
Effort is applied in the middle between pivot and load.
Body Example:
The elbow bend! Bicep tendon attaches (Effort) in front of elbow joint (Fulcrum) to lift forearm object (Load).
Fulcrum ← EFFORT → Load
Lesson 1: Bionic Blueprints Slide 4 of 10
Part 2 (Day 2)
Torque & Distance
The Bionic Leverage Trade-off:
Mechanical Advantage vs. Distance
Why are 90% of our biological muscles wired as third-class levers? It seems inefficient! Today, we discover the math trade-off behind distance and power.
Today's Focus Mechanical Advantage Formula
Slide 5 of 10
Mechanical Advantage (MA)
The Lever Math
Lever Leverage Ratio
The mechanical ratio determines if a lever increases your force, or increases your movement speed.
The Formula:
\(MA = \frac{\text{Effort Arm Length}}{\text{Load Arm Length}}\)
Effort Arm: Distance from Fulcrum to point of Effort application.Load Arm: Distance from Fulcrum to point of the Load.
Lesson 1: Bionic Blueprints Slide 6 of 10
The Great Lever Trade-off
Power vs Speed
High Mechanical Advantage (MA > 1)
Effort Arm is longer than Load Arm. You apply LESS force than the weight of the load, but you must move your effort over a longer distance.
Advantage Multiplies Physical Force (Heavy Lifting)
Low Mechanical Advantage (MA < 1)
Effort Arm is shorter than Load Arm. You must apply MORE force than the load, but the load moves a massive distance at incredible speed.
Advantage Multiplies Speed & Distance (Throws, Kicks)
Lesson 1: Bionic Blueprints Slide 7 of 10
Engineering Bionics
Mimicking Nature
Prosthetic Fit
If a bionic hand's cable attaches too close to the mechanical joint (fulcrum), what happens?
1
Motor Strain
It requires a huge effort force to rotate. The prosthetic motor might burn out trying to lift basic items!
2
Sloppy Range
If attached too far down, the fingers would close at slow speeds, failing to mimic natural human movement.
Lesson 1: Bionic Blueprints Slide 8 of 10
Antagonistic Muscle Pairs
Push-Pull Control
The Antagonistic Team
Since muscles can only pull, joints require two muscles situated on opposite sides of the bone to control forward and backward movement:
The Flexor: Contracts to bend the joint (e.g. Bicep pulls forearm up).The Extensor: Contracts to straighten the joint (e.g. Tricep pulls forearm down).
Bionic Actuators
Bionic engineers use dual motor cables (acting as flexors and extensors) to mimic this antagonistic motion in mechanical prosthetics.
Lesson 1: Bionic Blueprints Slide 9 of 10
Lab Deployment
Next Steps
Lab Session Checklist
Grab your Leverage Lab worksheets and begin modeling skeletal forces:
Calculate mechanical advantage for bone dimensions.
Map flexor and extensor placements on forearm joints.
Contrast body levers using physics-diagram variables.
Think Ahead
If bionic joints operate on the exact same leverage rules as biology, what materials will we need to construct a sturdy physical prototype?
Hint: What represents the rigid rods? What acts as the contracting muscles and cables?
Tomorrow: Assistive Milestones
Lesson 1: Bionic Blueprints Slide 10 of 10

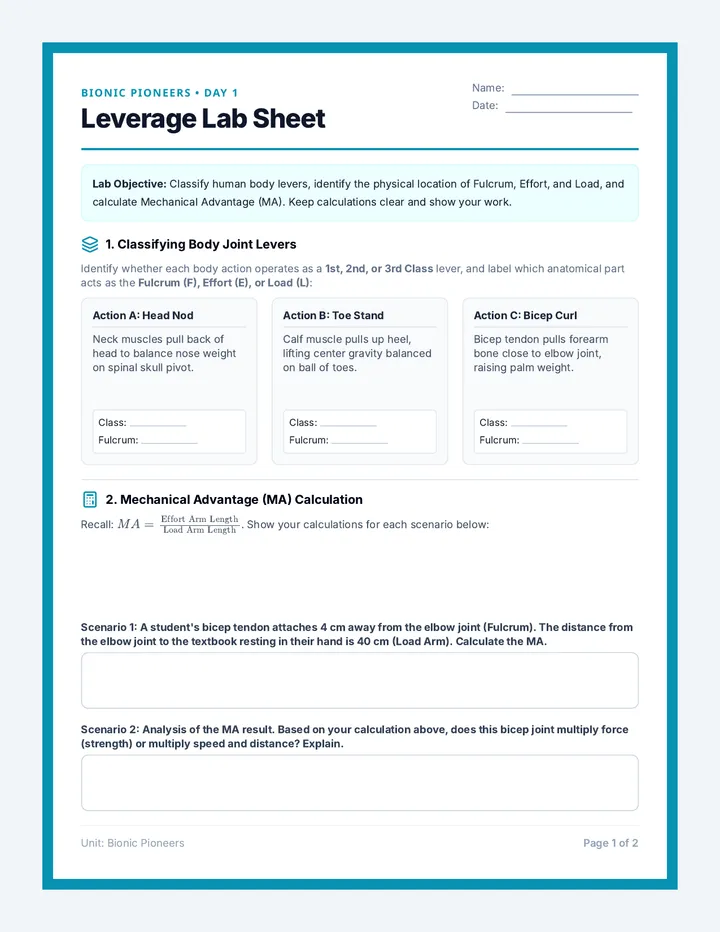

Leverage Lab Worksheet Bionic Pioneers • Day 1
Leverage Lab Sheet
Name:
Date:
Lab Objective: Classify human body levers, identify the physical location of Fulcrum, Effort, and Load, and calculate Mechanical Advantage (MA). Keep calculations clear and show your work.
1. Classifying Body Joint Levers
Identify whether each body action operates as a 1st, 2nd, or 3rd Class lever, and label which anatomical part acts as the Fulcrum (F), Effort (E), or Load (L) :
Action A: Head Nod
Neck muscles pull back of head to balance nose weight on spinal skull pivot.
Class:
Fulcrum:
Action B: Toe Stand
Calf muscle pulls up heel, lifting center gravity balanced on ball of toes.
Class:
Fulcrum:
Action C: Bicep Curl
Bicep tendon pulls forearm bone close to elbow joint, raising palm weight.
Class:
Fulcrum:
2. Mechanical Advantage (MA) Calculation
Recall: \(MA = \frac{\text{Effort Arm Length}}{\text{Load Arm Length}}\). Show your calculations for each scenario below:
Scenario 1: A student's bicep tendon attaches 4 cm away from the elbow joint (Fulcrum). The distance from the elbow joint to the textbook resting in their hand is 40 cm (Load Arm). Calculate the MA.
Scenario 2: Analysis of the MA result. Based on your calculation above, does this bicep joint multiply force (strength) or multiply speed and distance? Explain.
Unit: Bionic Pioneers Page 1 of 2
Bionic Pioneers • Day 2
Muscle Control Matrix
Name:
Date:
Muscle Mechanism Principle: Muscles can only pull (contract) and cannot push. Learn how antagonistic muscle pairs manage joint rotation, and design a bionic motor counterpart.
Joint Action Anatomical Muscle Team Mechanical Mechanics & Role Joint Flexion (Bending elbow) Flexor Muscle: Bicep Extensor Muscle: Tricep The bicep contracts (shortens) while the tricep relaxes (stretches).
How does this move the forearm?
|
| Joint Extension
The tricep contracts (shortens) while the bicep relaxes (stretches).

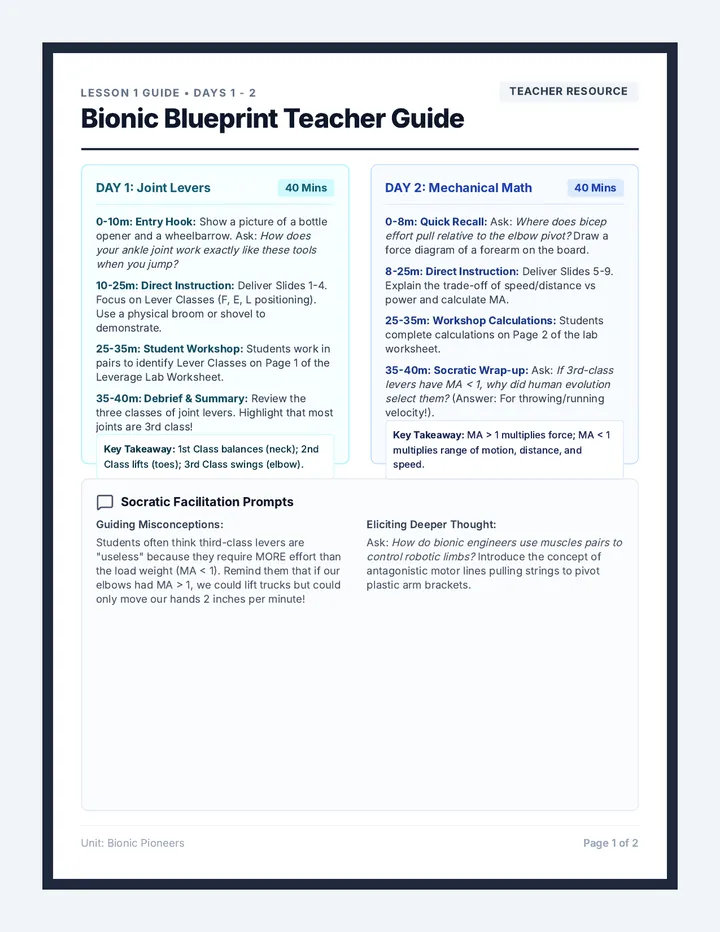

Blueprint Builder Teacher Guide Lesson 1 Guide • Days 1 - 2
Bionic Blueprint Teacher Guide
Teacher Resource
DAY 1: Joint Levers 40 Mins
0-10m: Entry Hook: Show a picture of a bottle opener and a wheelbarrow. Ask: How does your ankle joint work exactly like these tools when you jump? 10-25m: Direct Instruction: Deliver Slides 1-4. Focus on Lever Classes (F, E, L positioning). Use a physical broom or shovel to demonstrate.25-35m: Student Workshop: Students work in pairs to identify Lever Classes on Page 1 of the Leverage Lab Worksheet.35-40m: Debrief & Summary: Review the three classes of joint levers. Highlight that most joints are 3rd class!
Key Takeaway: 1st Class balances (neck); 2nd Class lifts (toes); 3rd Class swings (elbow).
DAY 2: Mechanical Math 40 Mins
0-8m: Quick Recall: Ask: Where does bicep effort pull relative to the elbow pivot? Draw a force diagram of a forearm on the board.8-25m: Direct Instruction: Deliver Slides 5-9. Explain the trade-off of speed/distance vs power and calculate MA.25-35m: Workshop Calculations: Students complete calculations on Page 2 of the lab worksheet.35-40m: Socratic Wrap-up: Ask: If 3rd-class levers have MA < 1, why did human evolution select them? (Answer: For throwing/running velocity!).
Key Takeaway: MA > 1 multiplies force; MA < 1 multiplies range of motion, distance, and speed.
Socratic Facilitation Prompts
Guiding Misconceptions:
Students often think third-class levers are "useless" because they require MORE effort than the load weight (MA < 1). Remind them that if our elbows had MA > 1, we could lift trucks but could only move our hands 2 inches per minute!
Eliciting Deeper Thought:
Ask: How do bionic engineers use muscles pairs to control robotic limbs? Introduce the concept of antagonistic motor lines pulling strings to pivot plastic arm brackets.
Unit: Bionic Pioneers Page 1 of 2
Lesson 1 Guide • Answers & Scaffolding
Answer Key & Scaffolding Guide
Teacher Resource
Answers: Joint Classification & Math (Page 1)
Joint Classifications:
Head Nod (Action A): 1st Class. Fulcrum is the atlas vertebrae; Load is facial bone weight; Effort is neck muscle pulling base skull.
Assistive Titans Passage Bionic Pioneers • Day 3
Assistive Titans
Name:
Date:
"Throughout history, accidents, disease, and biology left millions of humans struggling to navigate, hear, or move safely. But early design pioneers refused to accept these limitations, building physical mechanical bridges to restore human independence."
1. Tactile Code Pioneers (Louis Braille, 1824)
At age three, French child Louis Braille was accidentally blinded in his father's leather workshop. Determined to read, 12-year-old Louis encountered "night writing"—a tactile code invented by French army captain Charles Barbier for soldiers to communicate silently in the dark. Barbier's military code used complex 12-dot grids that represented phonetic sounds. It was far too slow to read. Louis spent years stripping down and refining the system, inventing a clean, simple 6-dot cell. This grid perfectly fit the human fingertip. By turning spelling into physical, raise-dot leverage symbols, Braille opened the literary world to millions of visually impaired humans.
2. Sound Funnels (The Ear Trumpet to the Cochlear Electrode)
In the 18th century, people with hearing loss relied on "ear trumpets"—large conical horn devices made of metal or wood. Mechanically, the trumpet acted as a physical Sound Collector. Its wide mouth gathered low-energy pressure sound waves, funneling and compressing them down into a tiny, high-pressure tip inserted into the ear canal, increasing sound intensity by up to 20 decibels. Today, bionic engineers have bypassed physical acoustics entirely, designing cochlear implants . These high-tech devices convert acoustic pressure into electrical signals, stimulating the cochlear auditory nerve directly via wire electrodes, restoring sound to the deaf.
3. The Self-Propelled Machine (Wheelchair Mechanical Design)
Early wheelchairs required assistants to push patients. This changed in 1655 when Stephen Farfler, a paralyzed 22-year-old German watchmaker, designed his own mechanical vehicle. He attached hand cranks to a three-wheeled frame, connecting them to front-wheel gears. Farfler utilized watchmaking gears to create a mechanical leverage system. In the 20th century, engineers optimized the design by adding manual "hand-rim" wheels. These large hand-rims act as a high-lever wheel (large effort arm) situated around the axle center (fulcrum), multiplying forearm push forces to self-propel up steep ramps independently.
Unit: Bionic Pioneers Page 1 of 2
Bionic Pioneers • Day 3
Breakthrough Analysis
Name:
Date:
PART A: Assistive Mechanics Matrix
Invention / Innovation Core Physical / Sound Force

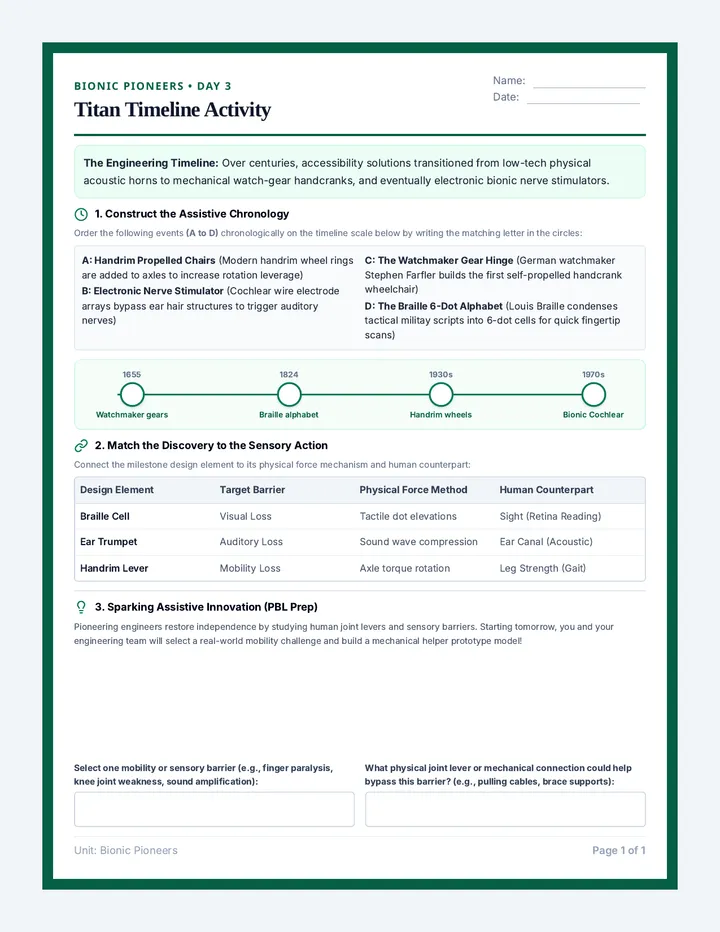

Titan Timeline Activity Bionic Pioneers • Day 3
Titan Timeline Activity
Name:
Date:
The Engineering Timeline: Over centuries, accessibility solutions transitioned from low-tech physical acoustic horns to mechanical watch-gear handcranks, and eventually electronic bionic nerve stimulators.
1. Construct the Assistive Chronology
Order the following events (A to D) chronologically on the timeline scale below by writing the matching letter in the circles:
A: Handrim Propelled Chairs (Modern handrim wheel rings are added to axles to increase rotation leverage)
B: Electronic Nerve Stimulator (Cochlear wire electrode arrays bypass ear hair structures to trigger auditory nerves)
C: The Watchmaker Gear Hinge (German watchmaker Stephen Farfler builds the first self-propelled handcrank wheelchair)
D: The Braille 6-Dot Alphabet (Louis Braille condenses tactical militay scripts into 6-dot cells for quick fingertip scans)
1655
Watchmaker gears
1824
Braille alphabet
1930s
Handrim wheels
1970s
Bionic Cochlear
2. Match the Discovery to the Sensory Action
Connect the milestone design element to its physical force mechanism and human counterpart:
Design Element
Target Barrier
Physical Force Method
Human Counterpart
Braille Cell
Visual Loss
Tactile dot elevations
Sight (Retina Reading)
Ear Trumpet
Auditory Loss
Sound wave compression
Ear Canal (Acoustic)
Handrim Lever
Mobility Loss
Axle torque rotation
Leg Strength (Gait)
3. Sparking Assistive Innovation (PBL Prep)
Pioneering engineers restore independence by studying human joint levers and sensory barriers. Starting tomorrow, you and your engineering team will select a real-world mobility challenge and build a mechanical helper prototype model!
Select one mobility or sensory barrier (e.g., finger paralysis, knee joint weakness, sound amplification):
What physical joint lever or mechanical connection could help bypass this barrier? (e.g., pulling cables, brace supports):
Unit: Bionic Pioneers Page 1 of 1

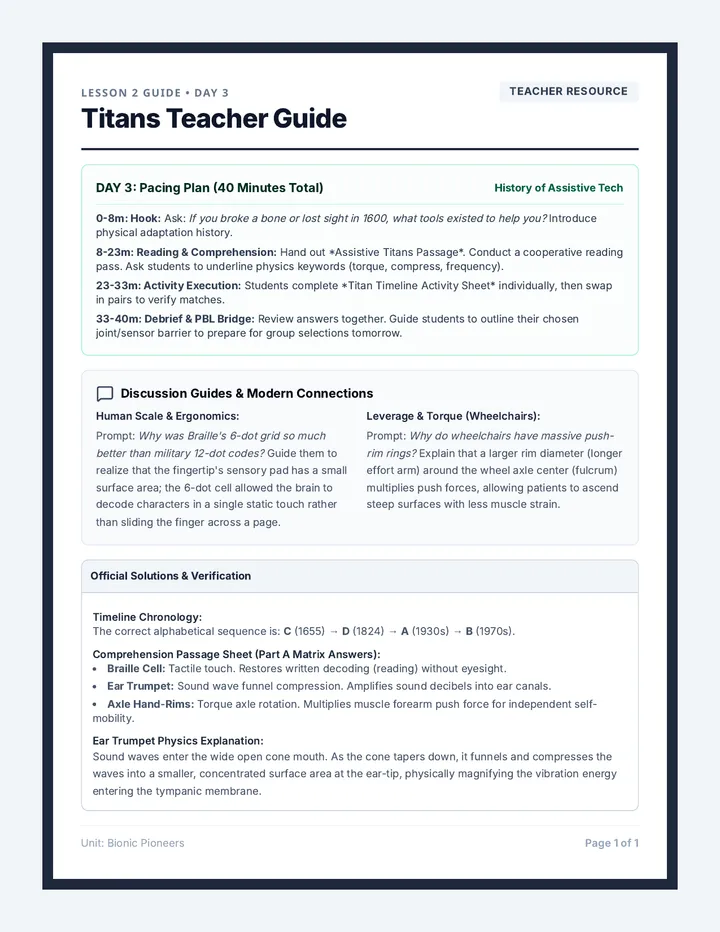

Titans Master Teacher Guide Lesson 2 Guide • Day 3
Titans Teacher Guide
Teacher Resource
DAY 3: Pacing Plan (40 Minutes Total)
History of Assistive Tech
0-8m: Hook: Ask: If you broke a bone or lost sight in 1600, what tools existed to help you? Introduce physical adaptation history.8-23m: Reading & Comprehension: Hand out *Assistive Titans Passage*. Conduct a cooperative reading pass. Ask students to underline physics keywords (torque, compress, frequency).23-33m: Activity Execution: Students complete *Titan Timeline Activity Sheet* individually, then swap in pairs to verify matches.33-40m: Debrief & PBL Bridge: Review answers together. Guide students to outline their chosen joint/sensor barrier to prepare for group selections tomorrow.
Discussion Guides & Modern Connections
Human Scale & Ergonomics:
Prompt: Why was Braille's 6-dot grid so much better than military 12-dot codes? Guide them to realize that the fingertip's sensory pad has a small surface area; the 6-dot cell allowed the brain to decode characters in a single static touch rather than sliding the finger across a page.
Leverage & Torque (Wheelchairs):
Prompt: Why do wheelchairs have massive push-rim rings? Explain that a larger rim diameter (longer effort arm) around the wheel axle center (fulcrum) multiplies push forces, allowing patients to ascend steep surfaces with less muscle strain.
Official Solutions & Verification
Timeline Chronology:
The correct alphabetical sequence is: C (1655) → D (1824) → A (1930s) → B (1970s).
Comprehension Passage Sheet (Part A Matrix Answers):
Braille Cell: Tactile touch. Restores written decoding (reading) without eyesight.Ear Trumpet: Sound wave funnel compression. Amplifies sound decibels into ear canals.Axle Hand-Rims: Torque axle rotation. Multiplies muscle forearm push force for independent self-mobility.
Ear Trumpet Physics Explanation:
Sound waves enter the wide open cone mouth. As the cone tapers down, it funnels and compresses the waves into a smaller, concentrated surface area at the ear-tip, physically magnifying the vibration energy entering the tympanic membrane.
Unit: Bionic Pioneers Page 1 of 1
Bionic Sandbox Guide Bionic Pioneers Unit • PBL Launch
Bionic Sandbox Guide
Group Name:
Members:
The Bionic Challenge: You and your biomedical engineering team have been hired by the Center for Assistive Innovations. Your mission is to identify a physical or sensory limitation (e.g., hand paralysis, joint weakness, acoustic amplification) and **build a working physical mechanical prototype model** using classroom maker materials. On Day 7, you will present a 3-minute pitch and live demo of your model.
Your 4-Day Development Path
DAY 4 Form teams. Select accessibility barrier. Map body mechanics.
DAY 5 Brainstorm solution mechanics & plan physical model.
DAY 6 STEM BUILD DAY! Assemble prototype & practice live demo.
DAY 7 THE PITCH EXPO! Present model to the engineering board.
Day 4 Action: Select Your Target Barrier
Discuss with your team and fill out these research specs to define your target:
1. Selected Human Barrier: What limb, joint, or sense is restricted? What is the cause?
2. Mechanical Limitations: What muscle contraction or joint rotation cannot currently occur?
3. The Problem Statement: Why is this restriction currently causing loss of independent action?
4. Potential Mechanical Counters: What external support (levers, braces, cords, funnels) can bypass this?
Unit: Bionic Pioneers Page 1 of 2
Bionic Pioneers Unit • PBL Development
Bionic Blueprint
Group Name:
Date:
Day 5 Action: Design Your Mechanical Prototype
Plan a physical device (e.g., custom cardstock grabbing hand, leg joint brace, hearing amplifier cone) to help.
Innovation Name (make it memorable and catchy!):
Materials Needed (Cardboard, straws, cords, craft sticks, tape, etc.):
Visual Blueprint of Physical Model (Draw a labeled diagram of your prototype, showing your fulcrums and effort pull cords):
Sketch Your Design & Labeled Parts Here
Day 6 Action: Structure Your 3-Minute Live Demo Pitch
You will demonstrate your physical model on Day 7. Plan your speaking parts:
THE HOOK (0-45s) Identify the sensory/mobility barrier.
THE BIONIC DEMO (45s-2m) Demonstrate your model's fulcrum & joints.
IMPACT PITCH (2-3m) Explain how it restores human autonomy.
Unit: Bionic Pioneers Page 2 of 2

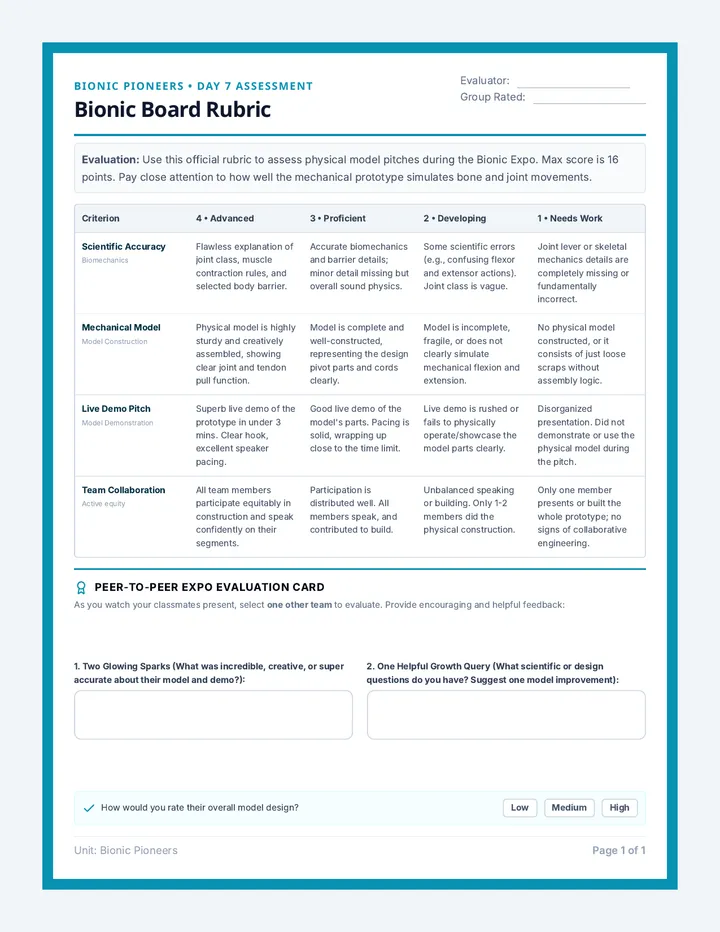

Bionic Board Rubric Bionic Pioneers • Day 7 Assessment
Bionic Board Rubric
Evaluator:
Group Rated:
Evaluation: Use this official rubric to assess physical model pitches during the Bionic Expo. Max score is 16 points. Pay close attention to how well the mechanical prototype simulates bone and joint movements.
Criterion 4 • Advanced 3 • Proficient 2 • Developing 1 • Needs Work Scientific Accuracy Biomechanics Flawless explanation of joint class, muscle contraction rules, and selected body barrier. Accurate biomechanics and barrier details; minor detail missing but overall sound physics. Some scientific errors (e.g., confusing flexor and extensor actions). Joint class is vague. Joint lever or skeletal mechanics details are completely missing or fundamentally incorrect. Mechanical Model Model Construction Physical model is highly sturdy and creatively assembled, showing clear joint and tendon pull function. Model is complete and well-constructed, representing the design pivot parts and cords clearly. Model is incomplete, fragile, or does not clearly simulate mechanical flexion and extension. No physical model constructed, or it consists of just loose scraps without assembly logic. Live Demo Pitch Model Demonstration Superb live demo of the prototype in under 3 mins. Clear hook, excellent speaker pacing. Good live demo of the model's parts. Pacing is solid, wrapping up close to the time limit. Live demo is rushed or fails to physically operate/showcase the model parts clearly. Disorganized presentation. Did not demonstrate or use the physical model during the pitch. Team Collaboration Active equity All team members participate equitably in construction and speak confidently on their segments. Participation is distributed well. All members speak, and contributed to build. Unbalanced speaking or building. Only 1-2 members did the physical construction. Only one member presents or built the whole prototype; no signs of collaborative engineering.
Peer-to-Peer Expo Evaluation Card
As you watch your classmates present, select

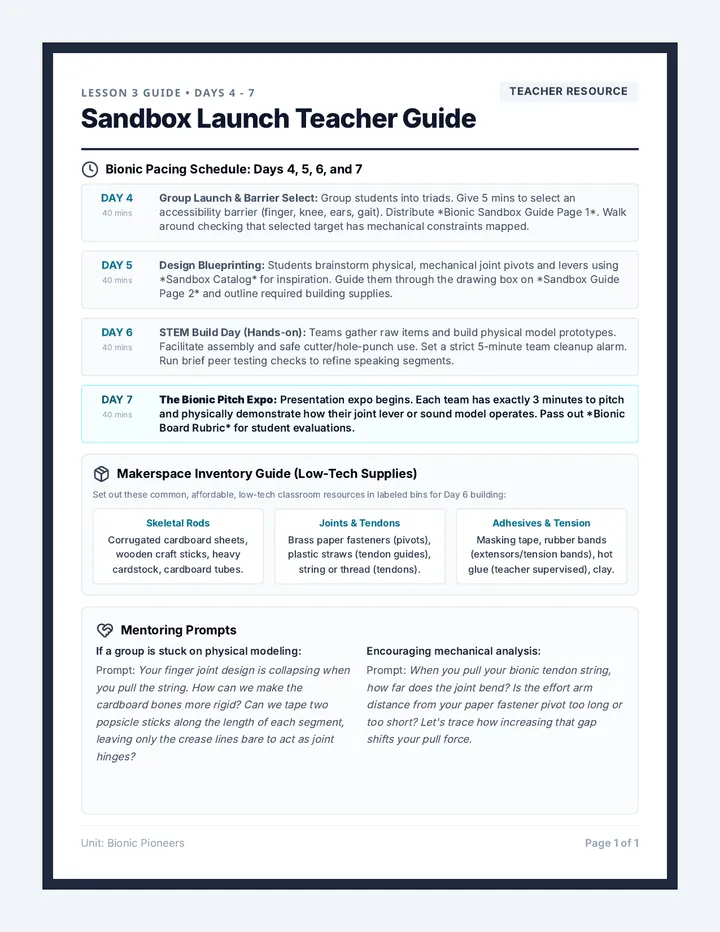

Sandbox Launch Teacher Guide Lesson 3 Guide • Days 4 - 7
Sandbox Launch Teacher Guide
Teacher Resource
Bionic Pacing Schedule: Days 4, 5, 6, and 7
DAY 4
Group Launch & Barrier Select: Group students into triads. Give 5 mins to select an accessibility barrier (finger, knee, ears, gait). Distribute *Bionic Sandbox Guide Page 1*. Walk around checking that selected target has mechanical constraints mapped.
DAY 5
Design Blueprinting: Students brainstorm physical, mechanical joint pivots and levers using *Sandbox Catalog* for inspiration. Guide them through the drawing box on *Sandbox Guide Page 2* and outline required building supplies.
DAY 6
STEM Build Day (Hands-on): Teams gather raw items and build physical model prototypes. Facilitate assembly and safe cutter/hole-punch use. Set a strict 5-minute team cleanup alarm. Run brief peer testing checks to refine speaking segments.
DAY 7
The Bionic Pitch Expo: Presentation expo begins. Each team has exactly 3 minutes to pitch and physically demonstrate how their joint lever or sound model operates. Pass out *Bionic Board Rubric* for student evaluations.
Makerspace Inventory Guide (Low-Tech Supplies)
Set out these common, affordable, low-tech classroom resources in labeled bins for Day 6 building:
Skeletal Rods Corrugated cardboard sheets, wooden craft sticks, heavy cardstock, cardboard tubes.
Joints & Tendons Brass paper fasteners (pivots), plastic straws (tendon guides), string or thread (tendons).
Adhesives & Tension Masking tape, rubber bands (extensors/tension bands), hot glue (teacher supervised), clay.
Mentoring Prompts
If a group is stuck on physical modeling:
Prompt: Your finger joint design is collapsing when you pull the string. How can we make the cardboard bones more rigid? Can we tape two popsicle sticks along the length of each segment, leaving only the crease lines bare to act as joint hinges?
Encouraging mechanical analysis:
Prompt: When you pull your bionic tendon string, how far does the joint bend? Is the effort arm distance from your paper fastener pivot too long or too short? Let's trace how increasing that gap shifts your pull force.
Unit: Bionic Pioneers Page 1 of 1

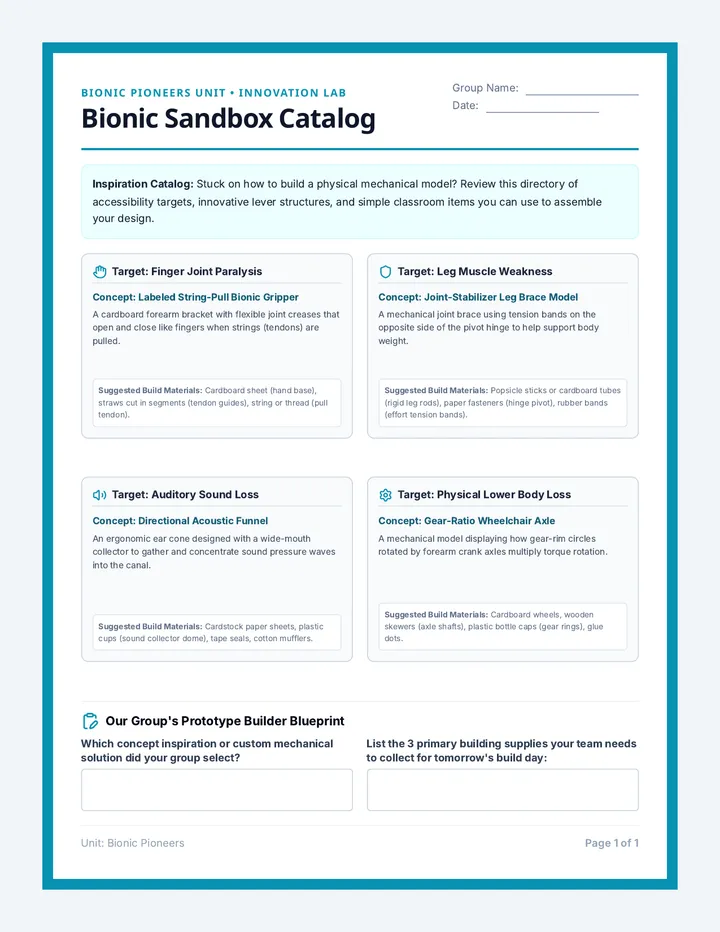

Sandbox Bionic Catalog Bionic Pioneers Unit • Innovation Lab
Bionic Sandbox Catalog
Group Name:
Date:
Inspiration Catalog: Stuck on how to build a physical mechanical model? Review this directory of accessibility targets, innovative lever structures, and simple classroom items you can use to assemble your design.
Target: Finger Joint Paralysis
Concept: Labeled String-Pull Bionic Gripper
A cardboard forearm bracket with flexible joint creases that open and close like fingers when strings (tendons) are pulled.
Suggested Build Materials: Cardboard sheet (hand base), straws cut in segments (tendon guides), string or thread (pull tendon).
Target: Leg Muscle Weakness
Concept: Joint-Stabilizer Leg Brace Model
A mechanical joint brace using tension bands on the opposite side of the pivot hinge to help support body weight.
Suggested Build Materials: Popsicle sticks or cardboard tubes (rigid leg rods), paper fasteners (hinge pivot), rubber bands (effort tension bands).
Target: Auditory Sound Loss
Concept: Directional Acoustic Funnel
An ergonomic ear cone designed with a wide-mouth collector to gather and concentrate sound pressure waves into the canal.
Suggested Build Materials: Cardstock paper sheets, plastic cups (sound collector dome), tape seals, cotton mufflers.
Target: Physical Lower Body Loss
Concept: Gear-Ratio Wheelchair Axle
A mechanical model displaying how gear-rim circles rotated by forearm crank axles multiply torque rotation.
Suggested Build Materials: Cardboard wheels, wooden skewers (axle shafts), plastic bottle caps (gear rings), glue dots.
Our Group's Prototype Builder Blueprint
Which concept inspiration or custom mechanical solution did your group select?
List the 3 primary building supplies your team needs to collect for tomorrow's build day:
Unit: Bionic Pioneers Page 1 of 1
