PVC Cutter Safety Worksheet
Science of Technology • Fabrication Lab Module 02: PVC Assembly
Part 1 of 2
PVC Tool Match & Identification
Match each authentic tool, fitting, or consumable (1–9) to its product photo (A–I). Draw a line and write the matching letter.
Student Name:
Lab Team / Station:
Date:
Component / Tool Specification Match Code
1

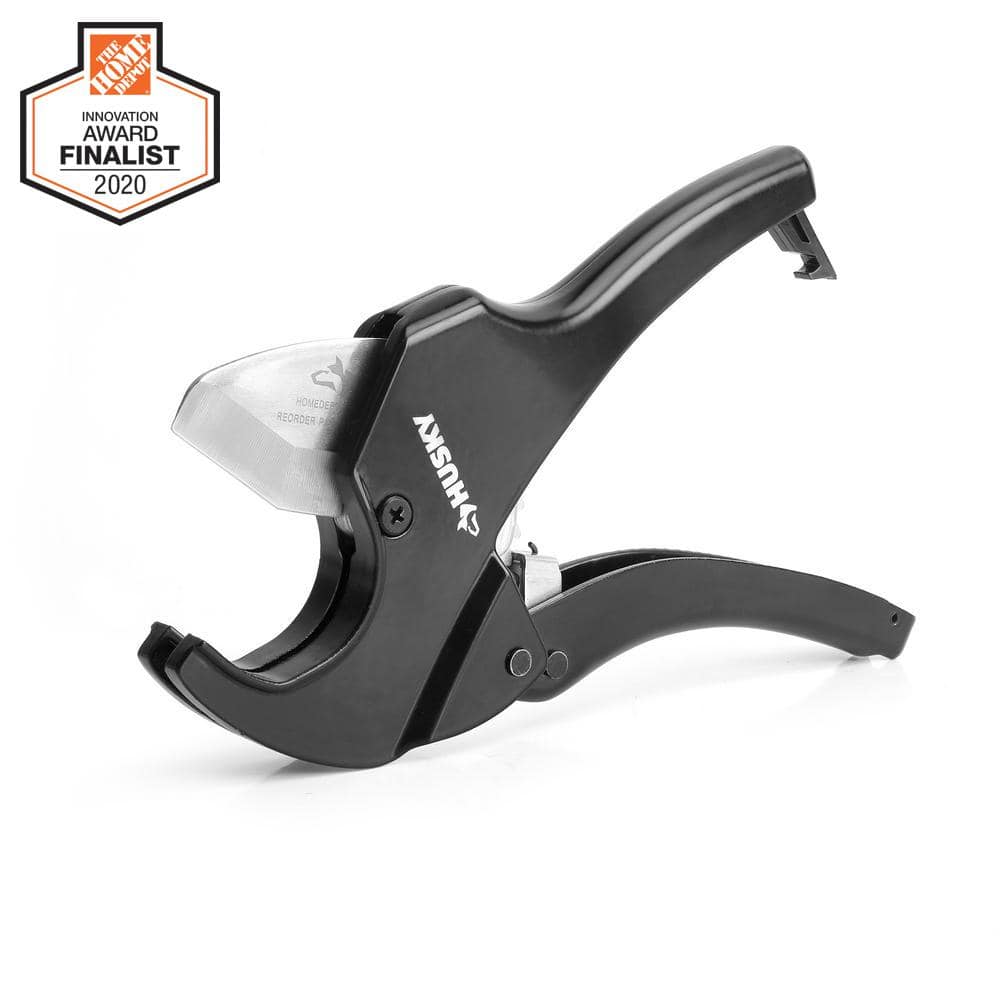

Husky Ratcheting PVC Cutter
Guillotine blade with quick ratchet
2

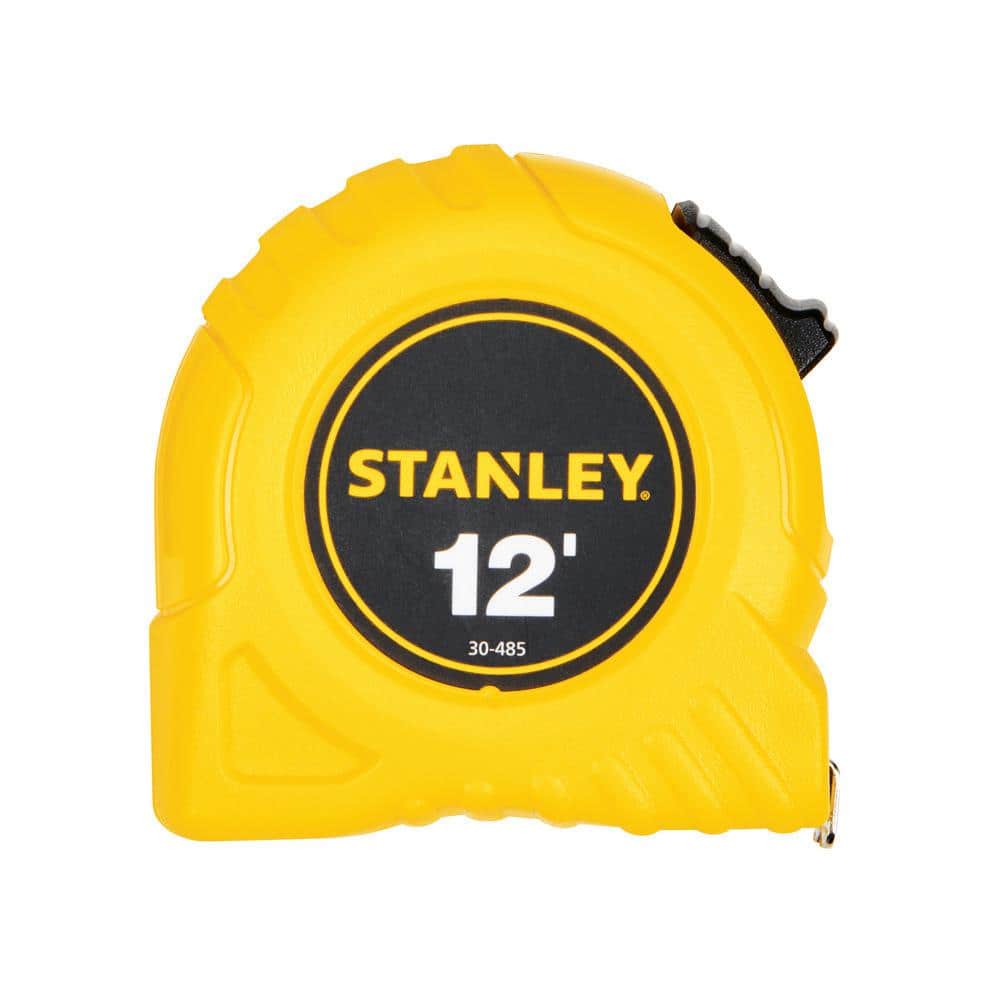

Stanley 12 ft. Tape Measure
12 ft. compact tape with positive thumb lock
3
1-1/4" Schedule 40 PVC Pipe
Rigid white structural pressure pipe
4
1-1/4" 90-Degree PVC Elbow
Schedule 40 pressure slip-socket corner
5
1-1/4" PVC Socket Tee
3-way junction fitting for base stabilization
6
FORMUFIT External End Caps
Furniture grade beveled ground finish caps
7

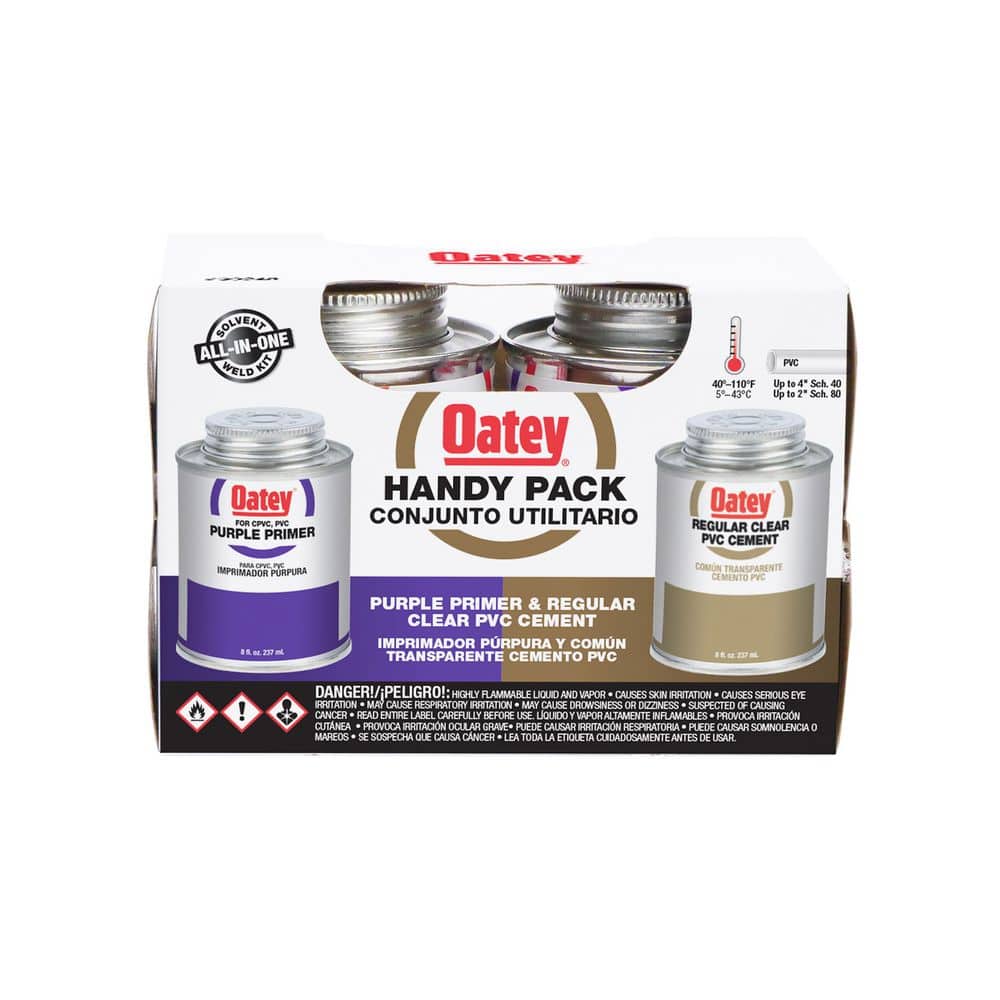

Oatey Primer & Cement Pack
Purple etching primer + clear PVC cement
8

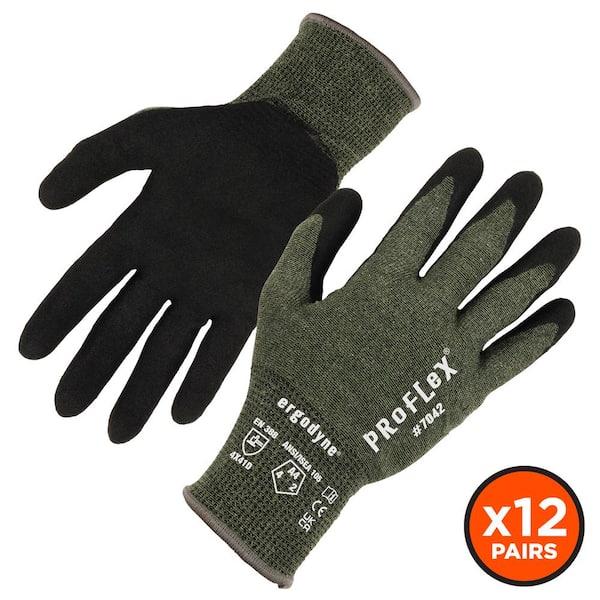

Ergodyne Work Gloves
Cut-resistant grip gloves for tool safety
9

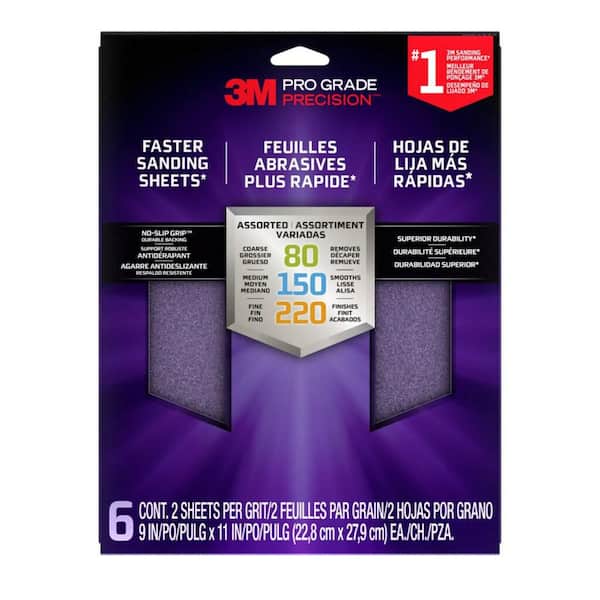

3M Assorted Sandpaper
Abrasive sheets for end deburring & fit
Verified Source Photo Gallery (Shuffled) Official Catalog Items
A
SKU #203812127
B
SKU #332468340
C
SKU #304217581
D
SKU #313637698
E
SKU #205749564
F
SKU #302244871
G
SKU #100151579
H
SKU #100348481
I
SKU #203812201
Verified Educational Build Reference: FORMUFIT Push-Up Handles Tutorial (assets.formufit.com/plans/pdfs/FORMUFIT_Push-Up_Handles.pdf) Grade 9-12 Science of Technology
Home Depot Sources: homedepot.com/p/304217581 (Husky Cutter) • homedepot.com/p/302244871 (Stanley Tape) • homedepot.com/p/100348481 (PVC Pipe) • homedepot.com/p/203812127 (90° Elbow) • homedepot.com/p/203812201 (Tee) • homedepot.com/p/205749564 (End Caps) • homedepot.com/p/100151579 (Oatey Combo) • homedepot.com/p/332468340 (Ergodyne Gloves) • homedepot.com/p/313637698 (3M Sandpaper)
Official Safety Credential Tool Qualification Card
Part 2 of 2
PVC Cutter Safety Licence
Tool used: Husky Ratcheting PVC Cutter (Home Depot Model #304217581) • Formufit Fabrication Spec.
Candidate Name:
Licence ID #:
Date:
Husky Ratchet Jaw
HOMEDEPOT #304217581
MANDATORY WORKSHOP REGULATION RACS lab rules
Students do not change blades or use damaged, cracked, or dull tools under any circumstances. If a tool sticks, binds, or exhibits blade wobble, immediately tag it "OUT OF SERVICE" and report to the instructor.
1. Before Cutting
- Goggles on: School safety goggles seated tightly.
- Glove fit checked: Ergodyne gloves snug on working hand.
- Inspect blade & lock: Blade sharp, unchipped; lock works.
- Clear the table: Flat, stable bench surface with no debris.
- Confirm PVC only: Never cut conduit, metal, wood, or wire.
- Measure & mark: Full square circumference line marked.
- Partner checks mark: Peer verifies length before jaw seats.
2. Under Cutting
- Place pipe fully in jaw: Seat pipe flush against curved cradle.
- Keep fingers outside path: Hands well clear of cutting path.
- Pipe supported & level: Prevent bending, torque, or sag.
- Point blade away: Tool oriented away from peers and body.
- Squeeze ratchet slowly: Gradual clicks; do not force blade.
- Stop if pipe shifts/cracks: Stop immediately if tool jams.
- Never force or throw: Two hands max; set tool down gently.
3. After Cutting
- Lock cutter closed: Engage mechanical safety latch right away.
- Deburr & inspect ends: Scuff with 3M sandpaper to remove sharp burrs.
- Label the part: Write length, team ID, and orientation in pencil.
- Return cutter & scraps: Return tool to shadow board; scrap to bin.
Quality Metric: Cuts must be 90° square within 1/16" to ensure secure solvent welding into fittings.
Instructor Practical Demonstration Assessment (All 4 Required) 100% Mastery Required for Sign-off
Demo 1: Identifies Danger Zone
Points out blade line of fire, crush hazard, and safe hand zones.
Demo 2: Makes One Controlled Square Cut
Executes progressive ratchet stroke with level pipe and 90° face.
Demo 3: Locks & Returns Tool
Engages blade safety lock prior to setting down; stores in rack.
Demo 4: Leaves Station Clean
Removes shavings, sands burrs, bins scrap, and wipes bench surface.
Candidate Safety Pledge
"I pledge to strictly adhere to all PVC fabrication protocols, wear eye and hand PPE at all times, never alter cutter blades, and protect everyone in the shop. I understand my tool privileges will be revoked immediately if safety rules are breached."
Student Signature:
Date:
Official Licence Status Teacher approval required
Pending demonstration: Candidate must pass all 4 practical competencies.
Teacher Approval:
Certification Date:
Husky Ratcheting PVC Cutter Official Home Depot Source: homedepot.com/p/304217581 FORMUFIT Fabrication Standards: assets.formufit.com/plans/pdfs/FORMUFIT_Push-Up_Handles.pdf
