Sig Fig Slides Precision Laboratory Series
Lesson 1.1
Significant Figures &
Measurement Certainty
Why every scientific measurement carries a promise of precision, and how to preserve honest data in calculations.
Reading Instruments
The 4 Zero Rules
Calculation Protocols
The Anatomy of a Measurement
Known Digits + One Estimated Digit
Laboratory Ruler Example
Measuring a metal rod between 4.5 cm and 4.6 cm:
4 . 5 7 cm
Certain Digits (Ruler Marks) Estimated Digit
Scientific Integrity
Significant figures communicate the precision of the physical tool used.
Calculator Deception
Calculators display infinite decimals, but your answer cannot be more precise than your measurements!
Rule: Record all markings plus one visual estimation between marks.
Identification Rules
Which Zeros Actually Count?
1. Non-Zero Digits ALWAYS
Digits 1 through 9 are always significant.
48.2 g → 3 sig figs
2. Captive Zeros ALWAYS
Zeros trapped between non-zero digits.
5,008 mL → 4 sig figs
3. Leading Zeros NEVER
Zeros ahead of non-zero digits are placeholders.
0.0074 kg → 2 sig figs
4. Trailing Zeros DECIMAL ONLY
Only count if number contains a decimal point.
120.0 m (4 sig figs) vs 120 m (2)
Key Test: If you shift it to scientific notation, leading zeros vanish, but trailing zeros with decimals stay!
Real-World Scientific Contexts
Apparatus Dictates Certainty
Classroom Beaker
Graduated markings every 10 mL.
140 mL
2 Significant Figures
Graduated Cylinder
Graduated markings every 1 mL.
142.5 mL
4 Significant Figures
Analytical Buret
Graduated markings every 0.1 mL.
142.52 mL
5 Significant Figures
Scientific Takeaway: More expensive tools do not change the physical amount of liquid; they narrow the band of uncertainty.
Calculations: Protocol A
Addition & Subtraction
The Decimal Places Rule
The final result cannot have more decimal places than the measurement with the fewest decimal places .
Do not count total significant figures when adding or subtracting! Only count the position relative to the decimal point.
125.17 g (2 decimal places)
+ 0.8 g (1 decimal place ← LIMIT)
Raw Sum: 125.97 g
Reported Final Answer:
126.0 g
Notice: 125.97 rounds up to 126.0 (preserving that single tenths decimal place).
Calculations: Protocol B
Multiplication & Division
The Total Sig Figs Rule
The final result must be rounded to match the measurement with the fewest total significant figures .
Ignore decimal places! Count total significant figures in each factor to determine the limiting factor.
Mass = 45.2 g (3 sig figs)
Volume = 1.4 mL (2 sig figs ← LIMIT)
Calculator: 32.285714... g/mL
Reported Final Answer:
32 g/mL
Exact numbers (like 12 eggs or conversions like 100 cm = 1 m) have infinite sig figs.
Error Analysis Clinic
Three Costly Mistakes to Avoid
Trap 1: The Calculator Dump
Writing every digit the screen produces.
✗ 4.876295 g/cm³
✓ Round to the weakest measured input (e.g., 4.9 g/cm³).
Trap 2: Dropping Trailing Zeros
Assuming ending zeros after decimals don't matter.
✗ Writing 5 instead of 5.00
✓ "5.00" proves precision to hundredths; "5" is imprecise!
Trap 3: Mixing Operations Rules
Applying multiplication rules to addition.
✗ Counting total digits in 12.1 + 3.25
✓ Addition = decimal places; Multiplication = total sig figs.
Remember: Science communicates honesty. Never claim precision you did not physically measure!
Active Recall Challenge
Rapid-Fire Practice
How Many Sig Figs?
A) 0.04020 kg 4 sig figs
B) 35,000 mL 2 sig figs
C) 100.0 °C 4 sig figs
Solve & Round Correctly
4.20 m × 3.1 m = ? 13 m² (2 sf)
18.42 g − 2.1 g = ? 16.3 g (1 dec)
8.00 g / 2.0 mL = ? 4.0 g/mL (2 sf)
Now open your Sig Fig Practice Worksheet for hands-on mastery. End of Slide Deck

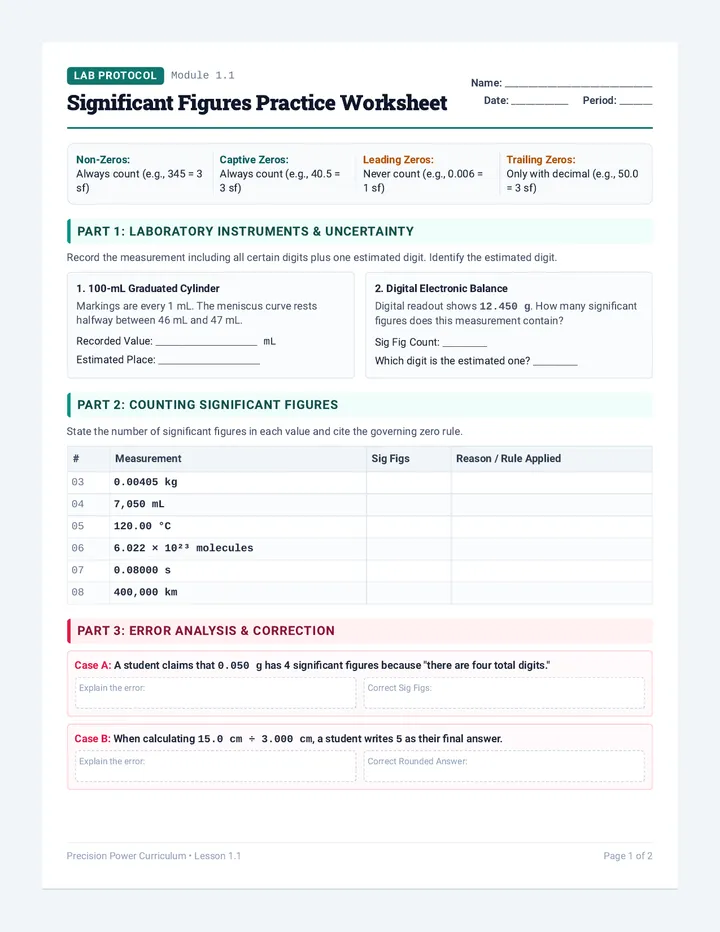

Sig Fig Practice Worksheet Lab Protocol Module 1.1
Significant Figures Practice Worksheet
Name: _______________________________
Date: ____________ Period: _______
Non-Zeros: Always count (e.g., 345 = 3 sf)
Captive Zeros: Always count (e.g., 40.5 = 3 sf)
Leading Zeros: Never count (e.g., 0.006 = 1 sf)
Trailing Zeros: Only with decimal (e.g., 50.0 = 3 sf)
Part 1: Laboratory Instruments & Uncertainty
Record the measurement including all certain digits plus one estimated digit. Identify the estimated digit.
1. 100-mL Graduated Cylinder
Markings are every 1 mL. The meniscus curve rests halfway between 46 mL and 47 mL.
Recorded Value: ________________ mL
Estimated Place: ________________
2. Digital Electronic Balance
Digital readout shows 12.450 g. How many significant figures does this measurement contain?
Sig Fig Count: _______
Which digit is the estimated one? _______
Part 2: Counting Significant Figures
State the number of significant figures in each value and cite the governing zero rule.
# Measurement Sig Figs Reason / Rule Applied 03 0.00405 kg 04 7,050 mL 05 120.00 °C 06 6.022 × 10²³ molecules 07 0.08000 s 08 400,000 km
Part 3: Error Analysis & Correction
Case A: A student claims that 0.050 g has 4 significant figures because "there are four total digits."
Explain the error:
Correct Sig Figs:
Case B: When calculating 15.0 cm ÷ 3.000 cm, a student writes 5 as their final answer.
Explain the error:
Correct Rounded Answer:
Precision Power Curriculum • Lesson 1.1 Page 1 of 2
Module 1.1 • Continued
Calculation Operations & Real Applications
Name: _______________________
Part 4: Operations & Rounding Protocols
Perform the calculation, write the unrounded raw calculator output, and report the properly rounded final answer with units.
Addition & Subtraction (Fewest Decimals)

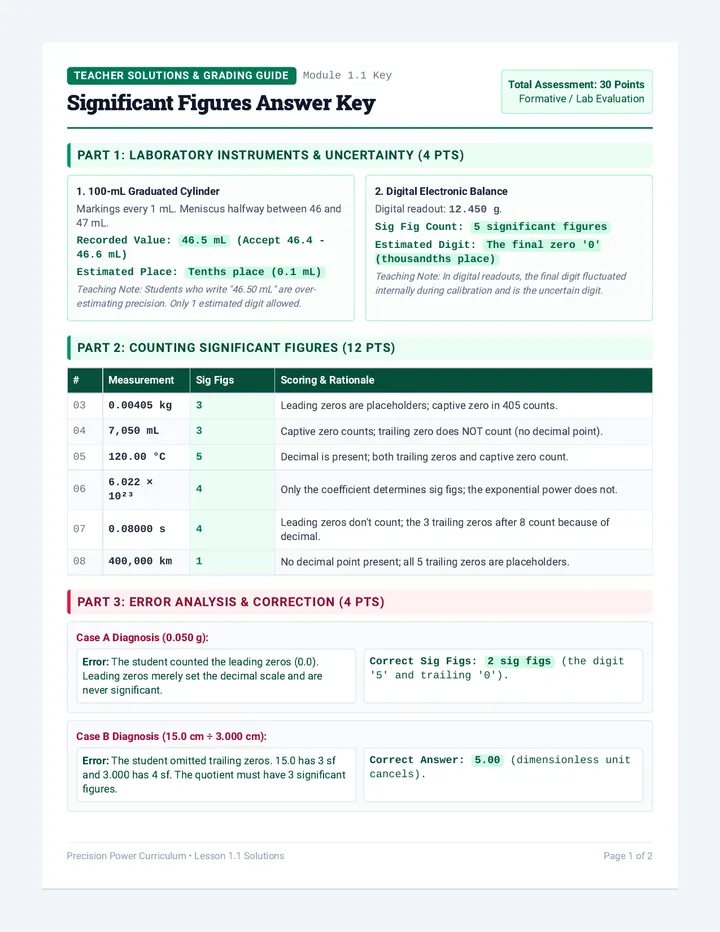

Sig Fig Solutions Key Teacher Solutions & Grading Guide Module 1.1 Key
Significant Figures Answer Key
Total Assessment: 30 Points
Formative / Lab Evaluation
Part 1: Laboratory Instruments & Uncertainty (4 pts)
1. 100-mL Graduated Cylinder
Markings every 1 mL. Meniscus halfway between 46 and 47 mL.
Recorded Value: 46.5 mL (Accept 46.4 - 46.6 mL)
Estimated Place: Tenths place (0.1 mL)
Teaching Note: Students who write "46.50 mL" are over-estimating precision. Only 1 estimated digit allowed.
2. Digital Electronic Balance
Digital readout: 12.450 g.
Sig Fig Count: 5 significant figures
Estimated Digit: The final zero '0' (thousandths place)
Teaching Note: In digital readouts, the final digit fluctuated internally during calibration and is the uncertain digit.
Part 2: Counting Significant Figures (12 pts)
# Measurement Sig Figs Scoring & Rationale 03 0.00405 kg 3 Leading zeros are placeholders; captive zero in 405 counts. 04 7,050 mL 3 Captive zero counts; trailing zero does NOT count (no decimal point). 05 120.00 °C 5 Decimal is present; both trailing zeros and captive zero count. 06 6.022 × 10²³ 4 Only the coefficient determines sig figs; the exponential power does not. 07 0.08000 s 4 Leading zeros don't count; the 3 trailing zeros after 8 count because of decimal. 08 400,000 km 1 No decimal point present; all 5 trailing zeros are placeholders.
Part 3: Error Analysis & Correction (4 pts)
Case A Diagnosis (0.050 g):
Error: The student counted the leading zeros (0.0). Leading zeros merely set the decimal scale and are never significant.
Correct Sig Figs: 2 sig figs (the digit '5' and trailing '0').
Case B Diagnosis (15.0 cm ÷ 3.000 cm):
Error: The student omitted trailing zeros. 15.0 has 3 sf and 3.000 has 4 sf. The quotient must have 3 significant figures.
Correct Answer: 5.00 (dimensionless unit cancels).
Scientific Notation Slides Precision Laboratory Series
Lesson 1.2
Scientific Notation &
Orders of Magnitude
Taming the unfathomably huge and the vanishingly tiny using powers of ten and exponential rules.
Anatomy of \(M \times 10^n\)
Cosmic vs. Atomic Scales
Multiplication & Exponents
The Standard Structure
The Anatomy of Scientific Notation
3.84 × 108 m
Distance from Earth to the Moon
1. The Coefficient (\(M\))
Must be greater than or equal to 1, and strictly less than 10 (\(1 \le |M| < 10\)). Exactly one non-zero digit before the decimal!
2. The Base & Exponent (\(10^n\))
Base is always 10. The exponent (\(n\)) is an integer indicating how many places the decimal shifted.
Golden Rule: Significant figures from the original measurement are preserved in the coefficient.
Conversion Mechanics
Large vs. Small: Exponent Signs
Numbers > 10 + Exponent
Move decimal point LEFT until one digit precedes it.
Standard: 93,000,000 miles
9.3 × 10&sup7; miles
Shifted 7 places left → exponent is +7.
Numbers < 1 − Exponent
Move decimal point RIGHT until after the first non-zero digit.
Standard: 0.00000028 m
2.8 × 10&supmin;&sup7; m
Shifted 7 places right → exponent is −7.
Intuition Check: Huge cosmic quantities have positive powers; tiny subatomic quantities have negative powers!
Universal Perspectives
Real-World Scientific Scales
Astrophysics
Speed of Light
300,000,000 meters per second through a vacuum.
3.00 × 10&sup8; m/s
Biochemistry
Diameter of DNA
0.000000002 meters across the double helix.
2.0 × 10&supmin;&sup9; m
Chemistry
Avogadro's Number
Particles in one mole of any pure chemical substance.
6.022 × 10²³
Without scientific notation, writing Avogadro's number requires 24 tedious digits prone to transcription errors!
Computation Protocol 1
Multiplying & Dividing Powers of 10
Multiplication: ADD Exponents
Multiply coefficients (\(M_1 \times M_2\)), then add exponents (\(10^{a+b}\)).
(3.0 × 10&sup4;) × (2.0 × 10&sup5;)

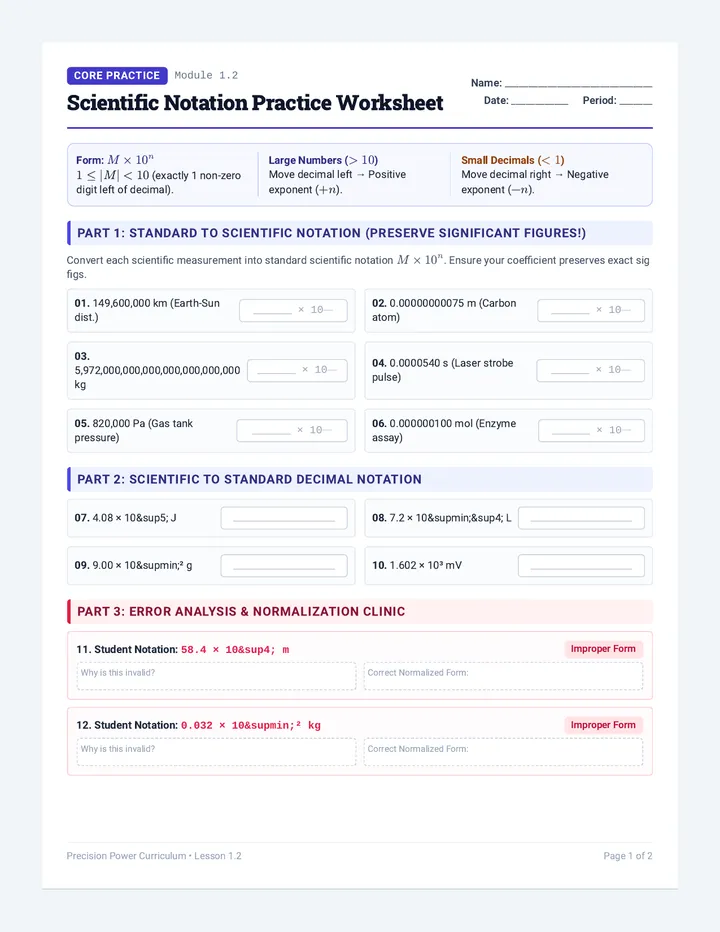

Scientific Notation Practice Worksheet Core Practice Module 1.2
Scientific Notation Practice Worksheet
Name: _______________________________
Date: ____________ Period: _______
Form: \(M \times 10^n\) \(1 \le |M| < 10\) (exactly 1 non-zero digit left of decimal).
Large Numbers (\(> 10\)) Move decimal left → Positive exponent (\(+n\)).
Small Decimals (\(< 1\)) Move decimal right → Negative exponent (\(-n\)).
Part 1: Standard to Scientific Notation (Preserve Significant Figures!)
Convert each scientific measurement into standard scientific notation \(M \times 10^n\). Ensure your coefficient preserves exact sig figs.
01. 149,600,000 km (Earth-Sun dist.) ______ × 10__
02. 0.00000000075 m (Carbon atom) ______ × 10__
03. 5,972,000,000,000,000,000,000,000 kg ______ × 10__
04. 0.0000540 s (Laser strobe pulse) ______ × 10__
05. 820,000 Pa (Gas tank pressure) ______ × 10__
06. 0.000000100 mol (Enzyme assay) ______ × 10__
Part 2: Scientific to Standard Decimal Notation
07. 4.08 × 10&sup5; J ________________
08. 7.2 × 10&supmin;&sup4; L ________________
09. 9.00 × 10&supmin;² g ________________
10. 1.602 × 10³ mV ________________
Part 3: Error Analysis & Normalization Clinic
11. Student Notation: 58.4 × 10&sup4; m Improper Form
Why is this invalid?
Correct Normalized Form:
12. Student Notation: 0.032 × 10&supmin;² kg Improper Form
Why is this invalid?
Correct Normalized Form:
Precision Power Curriculum • Lesson 1.2 Page 1 of 2
Module 1.2 • Continued
Operations, Scales & Scientific Applications
Name: _______________________
Part 4: Mathematical Operations with Powers of Ten
Show intermediate coefficient and exponent steps. Report answers in correct scientific notation with proper sig figs.
Multiplication & Division
13. (2.5 × 10&sup4;) × (3.0 × 10&sup6;)
14. (6.8 × 10&supmin;³) × (4.0 × 10&sup5;)
15. (9.6 × 10&sup8;) ÷ (3.2 × 10&supmin;²)
Addition & Subtraction (Match Exponents!)
16. (4.50 × 10&sup5;) + (3.2 × 10&sup4;)
17. (8.15 × 10&supmin;³) − (6.0 × 10&supmin;&sup4;)
18. (7.0 × 10&sup6;) + (8.5 × 10&sup6;)

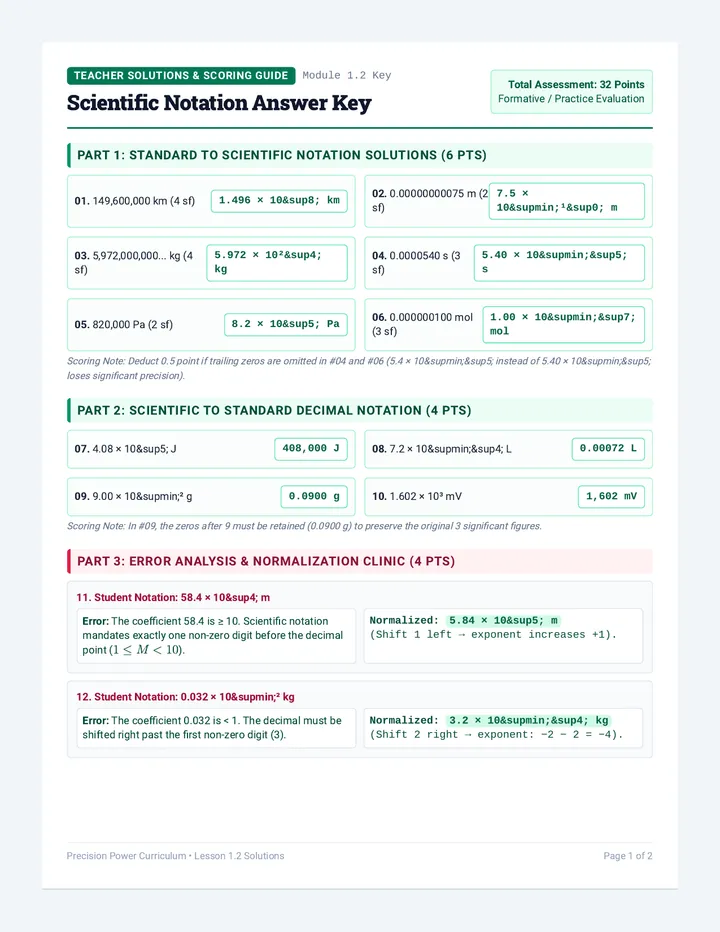

Scientific Notation Solutions Key Teacher Solutions & Scoring Guide Module 1.2 Key
Scientific Notation Answer Key
Total Assessment: 32 Points
Formative / Practice Evaluation
Part 1: Standard to Scientific Notation Solutions (6 pts)
01. 149,600,000 km (4 sf) 1.496 × 10&sup8; km
02. 0.00000000075 m (2 sf) 7.5 × 10&supmin;¹&sup0; m
03. 5,972,000,000... kg (4 sf) 5.972 × 10²&sup4; kg
04. 0.0000540 s (3 sf) 5.40 × 10&supmin;&sup5; s
05. 820,000 Pa (2 sf) 8.2 × 10&sup5; Pa
06. 0.000000100 mol (3 sf) 1.00 × 10&supmin;&sup7; mol
Scoring Note: Deduct 0.5 point if trailing zeros are omitted in #04 and #06 (5.4 × 10&supmin;&sup5; instead of 5.40 × 10&supmin;&sup5; loses significant precision).
Part 2: Scientific to Standard Decimal Notation (4 pts)
07. 4.08 × 10&sup5; J 408,000 J
08. 7.2 × 10&supmin;&sup4; L 0.00072 L
09. 9.00 × 10&supmin;² g 0.0900 g
10. 1.602 × 10³ mV 1,602 mV
Scoring Note: In #09, the zeros after 9 must be retained (0.0900 g) to preserve the original 3 significant figures.
Part 3: Error Analysis & Normalization Clinic (4 pts)
11. Student Notation: 58.4 × 10&sup4; m
Error: The coefficient 58.4 is ≥ 10. Scientific notation mandates exactly one non-zero digit before the decimal point (\(1 \le M < 10\)).
Normalized: 5.84 × 10&sup5; m
12. Student Notation: 0.032 × 10&supmin;² kg
Error: The coefficient 0.032 is < 1. The decimal must be shifted right past the first non-zero digit (3).
Normalized: 3.2 × 10&supmin;&sup4; kg
Precision Power Curriculum • Lesson 1.2 Solutions Page 1 of 2
Module 1.2 Key • Calculations & Context
Exponential Operations & Science Solutions
Grading Rubric Key
Part 4: Mathematical Operations Solutions (6 pts)
Multiplication & Division
13. (2.5 × 10&sup4;) × (3.0 × 10&sup6;)
(2.5 × 3.0) × 104+6 = 7.5 × 10¹&sup0;Final: 7.5 × 10¹&sup0; (2 sf)
14. (6.8 × 10&supmin;³) × (4.0 × 10&sup5;)
(6.8 × 4.0) × 10−3+5 = 27.2 × 10²
