Experimental limits and engineering revisions.
| Lists trivial errors (e.g., "human error"); proposes no meaningful procedural revisions. | Identifies a plausible experimental limitation; proposed revision is generic without explaining how it improves validity. | Pinpoints a specific methodological confounding variable; provides actionable redesign steps to increase reliability. | Evaluates systematic vs. random uncertainty; proposes rigorous technological or methodological controls; articulates broader biological implications. |
Strengths observed and specific competency growth targets:
Check the competency level you believe your team attained:
[ ] Dim 1: Planning (_____/4)
[ ] Dim 2: Data (_____/4)
[ ] Dim 3: CER (_____/4)
[ ] Dim 4: Iteration (_____/4)
One key takeaway:

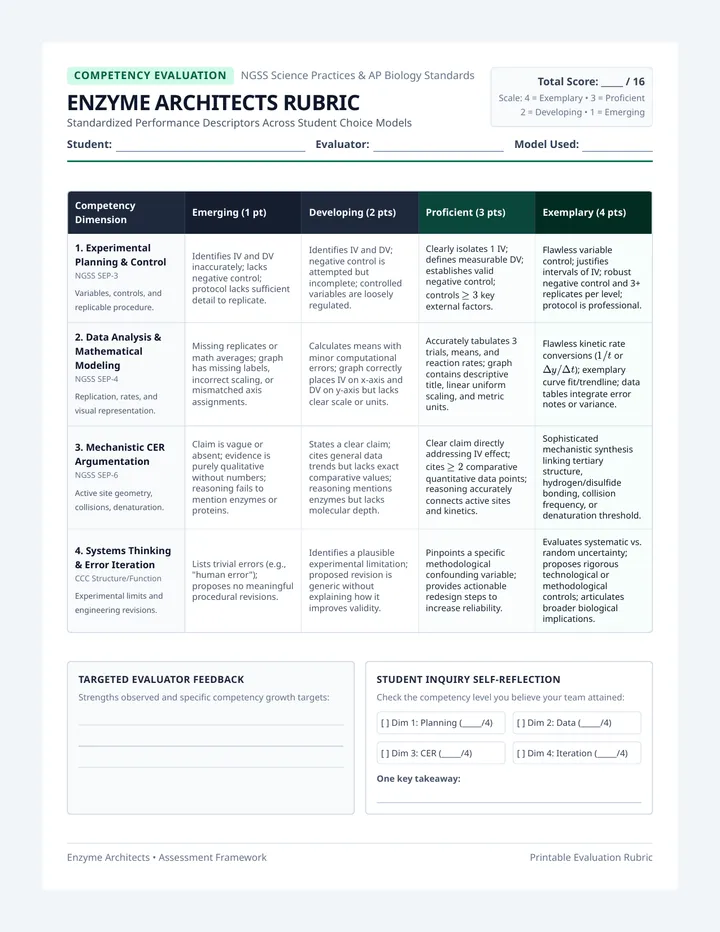

Enzyme Architects • Assessment Framework Printable Evaluation Rubric
Teams complete Page 1 of Lab Handout. Teacher conducts rapid "Protocol Checkpoint" approving controls and test intervals before reagent release.
Phase 3: Execute (35m)
Perform baseline run and 4 experimental levels in triplicate (\(n=3\)). Record qualitative notes and tabulate raw quantitative values on Page 2.
Phase 4: Synthesis (20m)
Graph reaction rates, draft mechanistic CER on Page 3, and complete student competency self-assessment using the rubric.
Fresh Pineapple Protease: Bromelain hydrolyzes animal protein and can cause stinging on cuts or eyes. Wear goggles; rinse skin immediately if splashed. No eating lab fruit!
Hydrogen Peroxide Safety: Use fresh 3% consumer \(\text{H}_2\text{O}_2\). Mild skin oxidizer; rinse spills with water. Store away from direct sunlight to prevent premature decomposition.
Biological Waste Disposal: Milk curds, separated whey, gelatin slurries, and spent yeast are non-toxic food-grade waste. Flush liquids down the drain; solid curds go in solid trash.

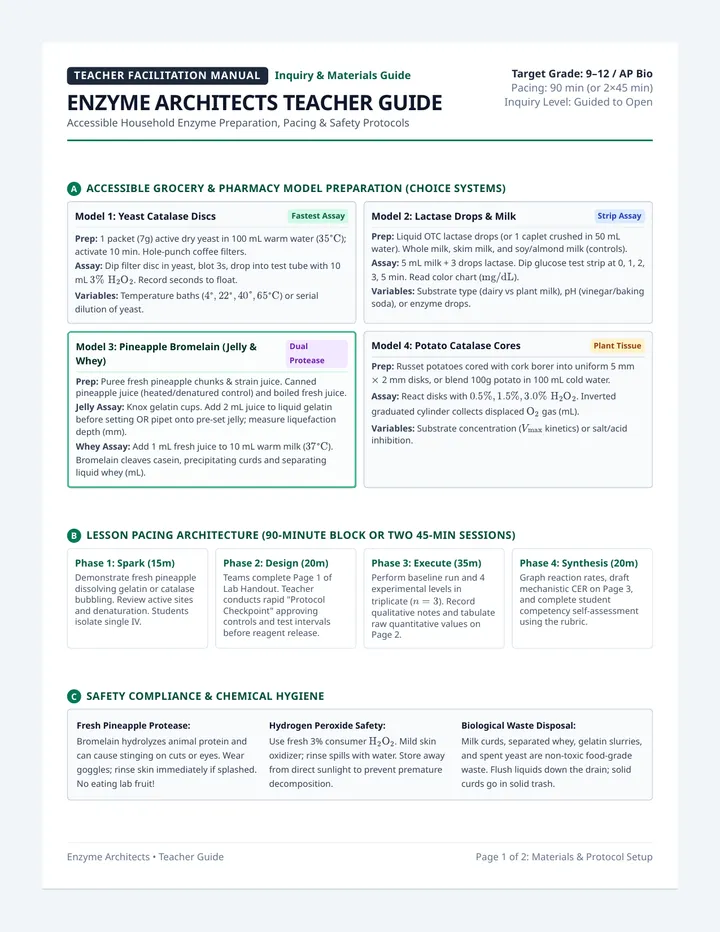

Enzyme Architects • Teacher Guide Page 1 of 2: Materials & Protocol Setup
Questioning Stems, Rapid Troubleshooting & Tiered Accessibility
Competency Coaching
SEP-3: Planning & Controls
"Why is canned pineapple juice the ideal negative control for the gelatin test? What industrial process happened to its bromelain enzymes during canning?"
SEP-4: Rate Metrics
"In the milk curdling assay, how do we quantify reaction rate? Is measuring milliliters of clear whey separated or seconds until curdling more valid?"
SEP-6: Molecular Reasoning
"What specific chemical bond is bromelain cleaving in gelatin's collagen triple-helix? Why does breaking this peptide backbone destroy jelly solidification?"
| Observed Issue | Root Biological / Physical Cause | Immediate Teacher Fix |
|---|---|---|
| Gelatin sets anyway with fresh pineapple | Pineapple juice was added to boiling gelatin broth (>75°C), denaturing the bromelain. | Cool gelatin mixture to warm bath temperature (\(\approx 38^\circ\text{C}\)) before adding fresh pineapple juice, or test on pre-set jelly wells. |
| Milk does not curdle / separate whey | Milk was cold from the refrigerator, drastically suppressing molecular collision kinetic rate. | Pre-warm milk tubes in a \(37^\circ\text{C}\) water bath for 5 minutes prior to adding pineapple juice. Curdling will occur within 60–120 seconds. |
| Filter discs float instantly (<2s) | Enzyme concentration too high or disc saturated with excess yeast paste. | Dilute yeast suspension 1:2 with water; insist students blot disc for 3 seconds on paper towel. |
| Discs stick to test tube walls | Electrostatic attraction or surface tension along glass edge. | Nudge gently with a plastic pipet tip; ensure tubes are rinsed cleanly without soapy residue. |
Scaffolding (IEP / ELL / Developing)
Extension & Challenge (AP / Honors)
Enzyme Architects • Teacher Guide Page 2 of 2: Pedagogy & Differentiation
Independent Variable: Milk Type • Glucose Strips
| Substrate Type (5 mL) | 0 min | 1 min | 3 min | 5 min | Hydrolysis Rate |
|---|---|---|---|---|---|
| Whole Cow's Milk (100% Lactose) | 0 mg/dL | 250 mg/dL | 750 mg/dL | 1000 mg/dL | 200 \(\text{mg/dL}\cdot\text{min}^{-1}\) |
| Soy Milk (Sucrose / Plant Sugars) | 0 mg/dL | 0 mg/dL | 0 mg/dL | 0 mg/dL | 0.0 (Stereospecificity confirmed) |

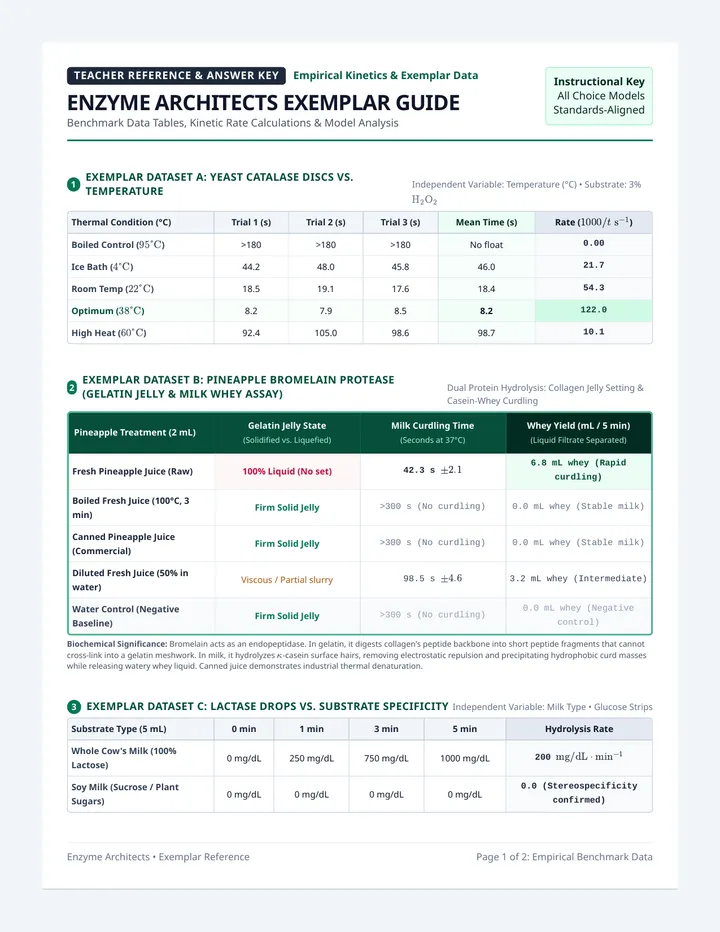

Enzyme Architects • Exemplar Reference Page 1 of 2: Empirical Benchmark Data
Comparative Scientific Writing Samples & Conceptual Correction Guide
Scoring Calibration
16 / 16 Points
Claim
Fresh raw pineapple contains active bromelain protease that catalytically hydrolyzes structural protein matrices—preventing gelatin jelly from setting and curdling milk to yield separated liquid whey—whereas high-heat industrial canning or boiling permanently denatures the enzyme, abolishing proteolysis.
Evidence
Gelatin treated with \(2\ \text{mL}\) fresh pineapple juice remained entirely liquefied (0 mm solid gel), and in milk it induced rapid curdling within \(42.3\ \text{s}\), yielding \(6.8\ \text{mL}\) of separated clear whey within 5 minutes. In contrast, both boiled fresh juice (\(100^\circ\text{C}\)) and commercial canned pineapple juice produced identical results to the water negative control: 100% firm solidified gelatin jelly and zero milk curdling (\(>300\ \text{s}\), \(0.0\ \text{mL}\) whey separated). Diluted fresh juice (50%) exhibited intermediate kinetics, curdling milk in \(98.5\ \text{s}\) with \(3.2\ \text{mL}\) whey yield.
Reasoning
These results illustrate enzyme catalytic function and thermal protein denaturation. Gelatin sets because collagen molecules fold into an interconnected triple-helix meshwork that traps water. Active bromelain in fresh juice cleaves internal peptide bonds along collagen backbones, fragmenting chains so they cannot assemble. Similarly, in milk, bromelain cleaves the hydrophilic outer stabilizing region of \(\kappa\)-casein micelles, causing hydrophobic casein cores to coagulate into solid curds and expel aqueous whey. However, heating juice to \(100^\circ\text{C}\) or industrial steam-retort canning provides kinetic energy exceeding the activation threshold to break stabilizing hydrogen, ionic, and disulfide bonds, permanently altering the tertiary geometry of bromelain's active site so it cannot bind substrate.
8 / 16 Points (Needs Revision)
"The fresh pineapple destroyed the jelly and made the milk form chunky curds and whey because pineapple has chemicals that dissolve protein. The canned pineapple didn't do this because the canning process killed the chemicals inside the juice so the jelly set hard like normal."
Teacher Feedback Coaching: Identifies gross outcome but cites zero numerical data (missing curdling time 42.3s, whey volume 6.8 mL, or control comparison); uses unscientific terminology ("chemicals dissolved protein", "canning killed chemicals" instead of enzyme active sites and thermal denaturation of protein tertiary structure).
| Common Student Misconception | Biochemical Correction & Probing Question |
|---|---|
| "Canning adds preservatives that stop the pineapple from breaking down jelly." | Canned pineapple contains no chemical enzyme inhibitors; canning uses intense steam heat pasteurization (\(>115^\circ\text{C}\)), which unfolds the enzyme protein. Ask: "Why does boiling fresh juice in a beaker produce the exact same outcome as canned juice?" |
| "The acid in pineapple is what curdles the milk and ruins the jelly." | Pineapple is mildly acidic (pH \(\approx 3.5\)), but boiled pineapple has the exact same pH and does not hydrolyze gelatin or rapidly separate whey. The mechanism is proteolytic enzyme cleavage, not simple acid precipitation. |
| "Cold temperatures denature or kill the enzyme." | Enzymes are non-living proteins; cold reduces molecular velocity and collision kinetic rates without disrupting tertiary non-covalent bonding. Re-warming restores full catalytic activity. |
Enzyme Architects • Exemplar Reference Page 2 of 2: CER Scoring & Misconception Diagnostics
