A hands-on fourth-grade physical science investigation where student pairs explore sound wave transmission through solids, liquids, and gases using string communicators, acoustic wave modeling, and decoded audio vibration patterns.
Walk backward gently until the line is completely pulled tight (TAUT). Do NOT let the string sag or touch chairs!
3
Transmit & Receive
Partner A speaks directly into their cup cone. Partner B seals their ear over their cup cone. Take turns!
Golden Rule: Only whisper! If your partner can hear you through the open air, you are whispering too loud.
Team Challenge
The Secret Pattern Decoder
Trial 1
The Slack Test
Let the string droop loosely. Can you decode Partner A's secret tap rhythm?
Hypothesis: Lost energy?
Trial 2
The Taut Test
Pull the string tight like a guitar string. Transmit the 3-beat rhythm code.
Hypothesis: Clear signal!
Trial 3
The Finger Trap
Gently pinch the middle of the string while speaking. What happens to the wave?
Hypothesis: Wave absorbed!

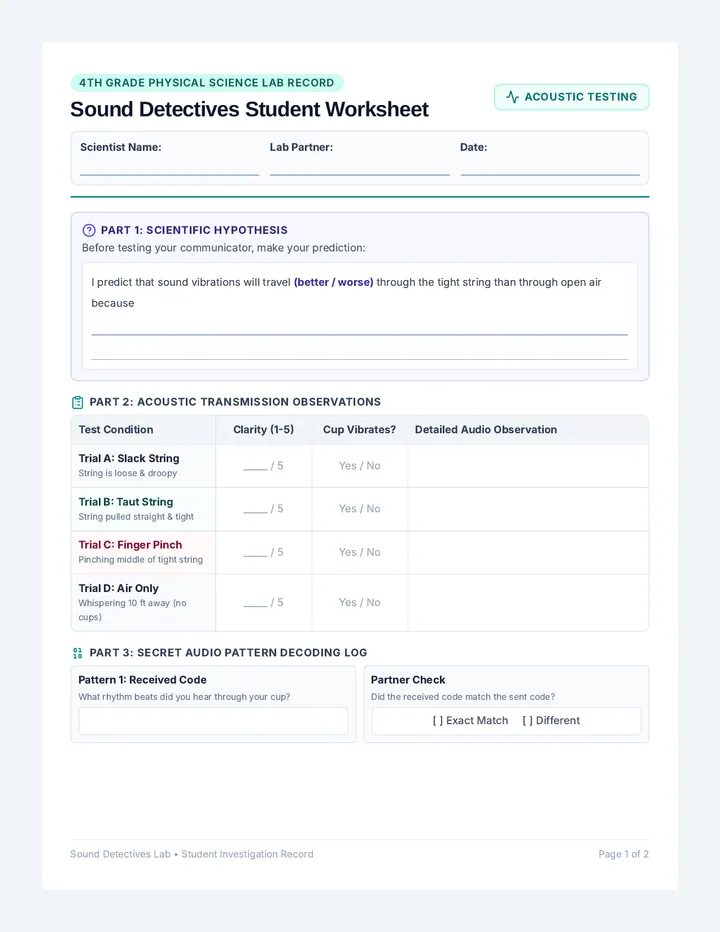

Record each trial's clarity rating and decoded message on your Lab Worksheet!
Scientific Conclusion
What Did the Waves Prove?
Claim
Solids Win
Sound waves travel clearer and maintain more energy through tightly pulled solid strings than through open air.
Evidence
Data Observed
The whisper was inaudible through air at 10 feet, but easily decoded when the string was pulled taut.
Reasoning
Particle Physics
Solid particles are packed closely together, passing mechanical vibrations instantly with minimal energy loss.
Fourth-Grade Acoustic Engineers Complete Your Lab Reflection Sheet
C Trial 3: The Finger Dampener Test Vibration Interruption
Keep the line taut. Have a third scientist (or use your free finger) gently pinch the string in the center. Whisper through the cup. What happens when physical vibrations are blocked?
Secret Audio Code Challenges (Morse Taps)
Use a pencil eraser to tap gently on the bottom of Cup A while the line is taut. Engineer 2 must keep eyes closed and identify the pattern:
Pattern Alpha: The Pulse
TAP • TAP • (Pause) • TAP
Two quick beats, one rest, one final beat.
Pattern Beta: The Echo
TAP • (Pause) • TAP • TAP • TAP
One starting beat, one rest, three rapid beats.
Pattern Gamma: The Wave
SCRATCH ~ ~ • TAP • TAP
Gently scratch cup base, then two sharp taps.
Pattern Delta: Partner Secret
[Invent Your Own 4-Beat Code]
Write your custom pattern secretly on worksheet.
Sound Doctor: Quick Troubleshooting
Problem: Can't hear anything?
Check if the line is touching a chair edge or clothing. Make the string tighter!
Problem: String pulled out?
Thread string back through base and tie two extra knots on the paperclip.
Whispering Waves • Sonic Strings Lab Guide Page 2 of 2
