Solar Engine Guided Worksheet Solar Dynamics & The Water Engine
Guided Edition
Reading Informational Text & Earth Systems • Grade 5
Name:
Date:
Reading Strategy: Track how solar heat causes phase changes as you read each paragraph.
Standards: RI.5.1, RI.5.2, 5-ESS2-1
Scientific Passage Tip: Numbered brackets [¶] show paragraph numbers for citations
[¶1] The sun is the primary thermal engine driving Earth's weather and water cycle. Without the continuous influx of solar radiation, our planet would exist as a frozen, static sphere. Solar energy does not heat the globe uniformly; equatorial regions absorb significantly more concentrated radiation than polar latitudes. This fundamental temperature imbalance initiates continuous movements of thermal energy across global atmospheres and oceans.
[¶2] When solar radiation strikes oceans, lakes, and soils, liquid water absorbs thermal energy, increasing its molecular movement until it undergoes evaporation —transforming from liquid into invisible water vapor. Simultaneously, vegetation releases moisture through transpiration . As warm, moisture-laden air becomes less dense than the cooler air surrounding it, it ascends into the troposphere.
[¶3] As rising water vapor ascends into regions of lower atmospheric pressure, it expands and cools. When temperatures reach the dew point, the vapor undergoes condensation , adhering to microscopic airborne particles known as cloud condensation nuclei (such as sea salt, dust, or smoke). Trillions of these minuscule water droplets aggregate to form visible cloud masses.
[¶4] When droplet coalescence causes clouds to become saturated and heavy, gravity compels moisture back toward the surface as precipitation (rain, snow, sleet, or hail). This transfer of moisture and heat simultaneously fuels atmospheric pressure differentials, generating winds and storm fronts before runoff returns to reservoirs, renewing the perpetual planetary cycle.
Part 1: Guided Vocabulary in Context (RI.5.4)
Clue Strategy: Use paragraph clues in brackets
1. Solar Radiation [¶1 clue] Box: ___
Word Clue: "Solar" relates to the sun; "radiate" means energy traveling outward.
Definition: Radiant heat energy sent from the sun to warm Earth's systems.
2. Transpiration [¶2 clue] Box: ___
Word Clue: Similar to "respiration" (breathing); occurs in living plants.
Definition: Evaporation of water into the atmosphere from plant leaves.
3. Condensation [¶3 clue] Box: ___
Word Clue: "Dense" means packed together; water molecules huddle into drops.
Definition: Gas cools and changes into liquid droplets around airborne particles.
4. Coalescence [¶4 clue] Box: ___
Word Clue: Root "co-" means together; droplets merge into bigger drops.
Definition: Tiny cloud droplets collide and unite to form heavy precipitation.
Flip over for guided question prompts & sentence frames Page 1 of 2
2
Guided Text Analysis & Systems Modeling
Student: Grade 5 Scaffolding
Part 2: Two Central Ideas & Summary (RI.5.2)
Select TWO
Scaffolding Hint: One main idea explains what powers air and heat movement; the second explains how water changes states through energy transfer.
A. Uneven solar heating across Earth initiates the atmospheric circulation of heat and air currents.
B. Airborne sea salt and smoke dust particles permanently stop the water cycle from working.
C. Phase changes driven by solar thermal energy continually cycle water between the surface and atmosphere.
D. Equatorial regions stay freezing cold because they receive no direct solar radiation.
Complete the text summary using key details:
The sun acts as Earth's thermal engine because uneven heating drives , while thermal energy causes water to continually and form weather.
Part 3: Citing Text Evidence with Frames (RI.5.1)
Sentence Starters Provided
1. Quote accurately from Paragraph 2 : Why does warm, moist air ascend into the sky? Use Quotation Marks
Sentence Starter: According to Paragraph 2, warm air ascends because "...
2. Draw an inference from Paragraph 1 : What would happen to weather if solar radiation ceased? Support with text words
Sentence Starter: If solar radiation stopped, weather would cease because the author describes Earth without the sun as a "...
Part 4: Earth Systems Interaction Model (5-ESS2-1)
Word Bank: [ Evaporation | Transpiration | Precipitation ]
Complete each sphere interaction stem using terms from the word bank and details from the text:
Hydrosphere → Atmosphere
Sentence Stem: When surface water absorbs solar heat, it enters the sky through
Biosphere → Atmosphere
Sentence Stem: Plant leaves in the biosphere add moisture to the air through
Atmosphere → Geosphere
Sentence Stem: Saturated clouds return moisture to land surfaces as
Supported Practice • High Rigor & Accessibility Page 2 of 2

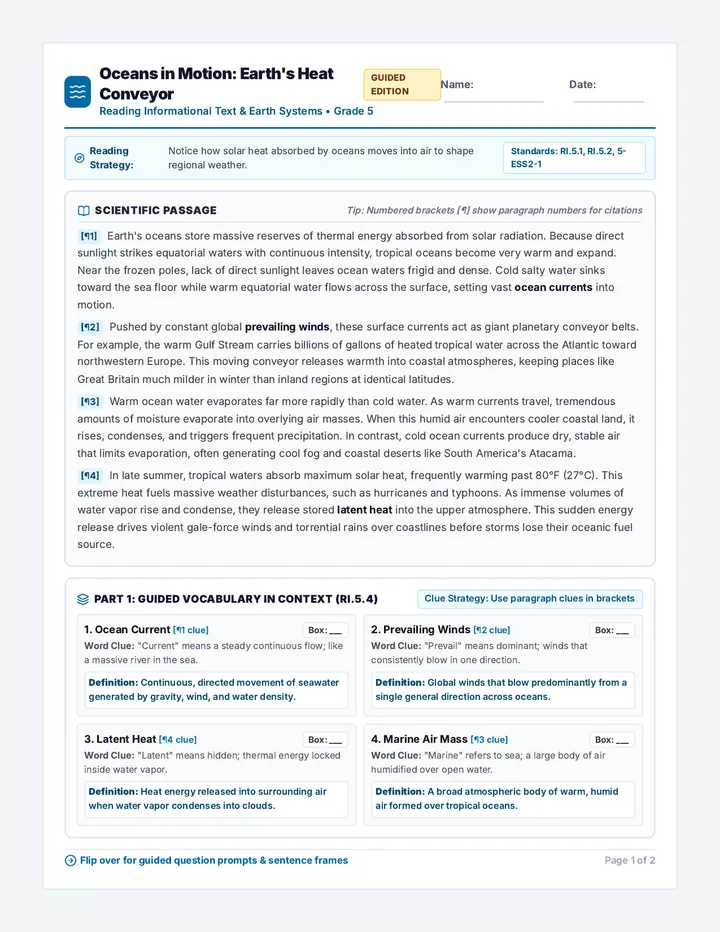

Ocean Currents Guided Worksheet Oceans in Motion: Earth's Heat Conveyor
Guided Edition
Reading Informational Text & Earth Systems • Grade 5
Name:
Date:
Reading Strategy: Notice how solar heat absorbed by oceans moves into air to shape regional weather.
Standards: RI.5.1, RI.5.2, 5-ESS2-1
Scientific Passage Tip: Numbered brackets [¶] show paragraph numbers for citations
[¶1] Earth's oceans store massive reserves of thermal energy absorbed from solar radiation. Because direct sunlight strikes equatorial waters with continuous intensity, tropical oceans become very warm and expand. Near the frozen poles, lack of direct sunlight leaves ocean waters frigid and dense. Cold salty water sinks toward the sea floor while warm equatorial water flows across the surface, setting vast ocean currents into motion.
[¶2] Pushed by constant global prevailing winds , these surface currents act as giant planetary conveyor belts. For example, the warm Gulf Stream carries billions of gallons of heated tropical water across the Atlantic toward northwestern Europe. This moving conveyor releases warmth into coastal atmospheres, keeping places like Great Britain much milder in winter than inland regions at identical latitudes.
[¶3] Warm ocean water evaporates far more rapidly than cold water. As warm currents travel, tremendous amounts of moisture evaporate into overlying air masses. When this humid air encounters cooler coastal land, it rises, condenses, and triggers frequent precipitation. In contrast, cold ocean currents produce dry, stable air that limits evaporation, often generating cool fog and coastal deserts like South America's Atacama.
[¶4] In late summer, tropical waters absorb maximum solar heat, frequently warming past 80°F (27°C). This extreme heat fuels massive weather disturbances, such as hurricanes and typhoons. As immense volumes of water vapor rise and condense, they release stored latent heat into the upper atmosphere. This sudden energy release drives violent gale-force winds and torrential rains over coastlines before storms lose their oceanic fuel source.
Part 1: Guided Vocabulary in Context (RI.5.4)
Clue Strategy: Use paragraph clues in brackets
1. Ocean Current [¶1 clue] Box: ___
Word Clue: "Current" means a steady continuous flow; like a massive river in the sea.
Definition: Continuous, directed movement of seawater generated by gravity, wind, and water density.
2. Prevailing Winds [¶2 clue] Box: ___
Word Clue: "Prevail" means dominant; winds that consistently blow in one direction.

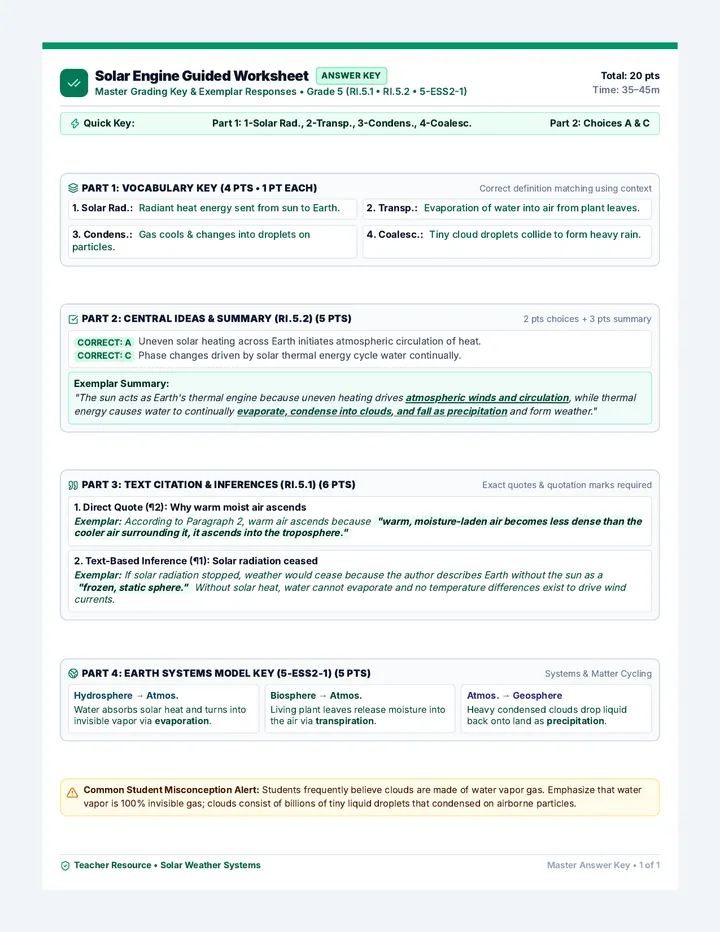

Solar Engine Answer Key Solar Engine Guided Worksheet
Answer Key
Master Grading Key & Exemplar Responses • Grade 5 (RI.5.1 • RI.5.2 • 5-ESS2-1)
Total: 20 pts Time: 35–45m
Quick Key: Part 1: 1-Solar Rad., 2-Transp., 3-Condens., 4-Coalesc. Part 2: Choices A & C
Part 1: Vocabulary Key (4 pts • 1 pt each)
Correct definition matching using context
1. Solar Rad.: Radiant heat energy sent from sun to Earth.
2. Transp.: Evaporation of water into air from plant leaves.
3. Condens.: Gas cools & changes into droplets on particles.
4. Coalesc.: Tiny cloud droplets collide to form heavy rain.
Part 2: Central Ideas & Summary (RI.5.2) (5 pts)
2 pts choices + 3 pts summary
CORRECT: A Uneven solar heating across Earth initiates atmospheric circulation of heat.
CORRECT: C Phase changes driven by solar thermal energy cycle water continually.
Exemplar Summary:
"The sun acts as Earth's thermal engine because uneven heating drives atmospheric winds and circulation , while thermal energy causes water to continually evaporate, condense into clouds, and fall as precipitation and form weather."
Part 3: Text Citation & Inferences (RI.5.1) (6 pts)
Exact quotes & quotation marks required
1. Direct Quote (¶2): Why warm moist air ascends
Exemplar: According to Paragraph 2, warm air ascends because "warm, moisture-laden air becomes less dense than the cooler air surrounding it, it ascends into the troposphere."
2. Text-Based Inference (¶1): Solar radiation ceased
Exemplar: If solar radiation stopped, weather would cease because the author describes Earth without the sun as a "frozen, static sphere." Without solar heat, water cannot evaporate and no temperature differences exist to drive wind currents.
Part 4: Earth Systems Model Key (5-ESS2-1) (5 pts)
Systems & Matter Cycling
Hydrosphere → Atmos.
Water absorbs solar heat and turns into invisible vapor via evaporation .
Biosphere → Atmos.
Living plant leaves release moisture into the air via transpiration .
Atmos. → Geosphere
Heavy condensed clouds drop liquid back onto land as precipitation .
Common Student Misconception Alert: Students frequently believe clouds are made of water vapor gas. Emphasize that water vapor is 100% invisible gas; clouds consist of billions of tiny liquid droplets that condensed on airborne particles.

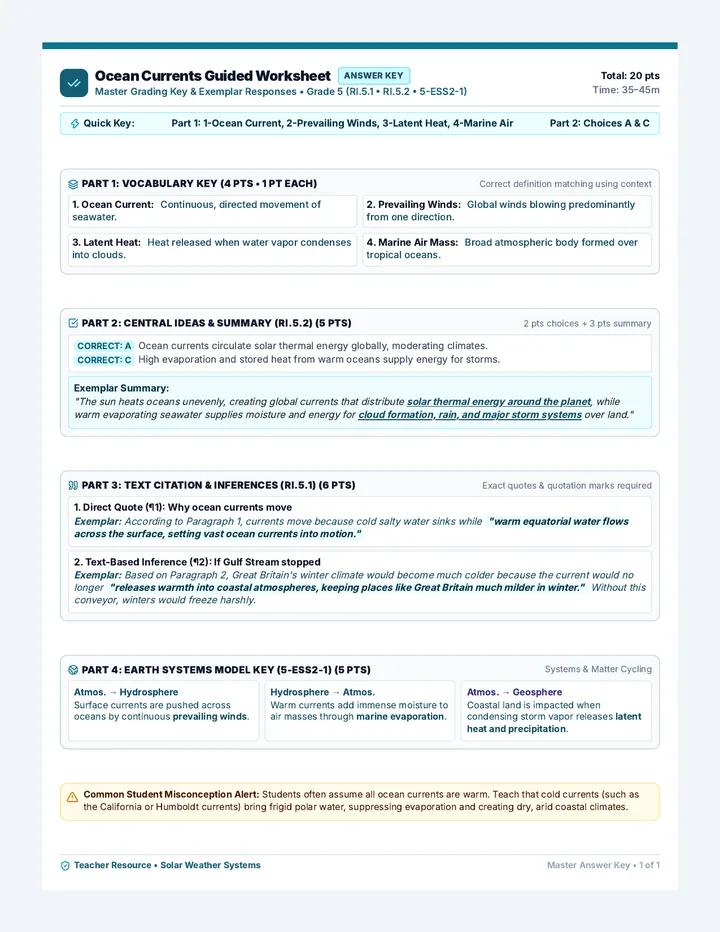

Ocean Currents Answer Key Ocean Currents Guided Worksheet
Answer Key
Master Grading Key & Exemplar Responses • Grade 5 (RI.5.1 • RI.5.2 • 5-ESS2-1)
Total: 20 pts Time: 35–45m
Quick Key: Part 1: 1-Ocean Current, 2-Prevailing Winds, 3-Latent Heat, 4-Marine Air Part 2: Choices A & C
Part 1: Vocabulary Key (4 pts • 1 pt each)
Correct definition matching using context
1. Ocean Current: Continuous, directed movement of seawater.
2. Prevailing Winds: Global winds blowing predominantly from one direction.
3. Latent Heat: Heat released when water vapor condenses into clouds.
4. Marine Air Mass: Broad atmospheric body formed over tropical oceans.
Part 2: Central Ideas & Summary (RI.5.2) (5 pts)
2 pts choices + 3 pts summary
CORRECT: A Ocean currents circulate solar thermal energy globally, moderating climates.
CORRECT: C High evaporation and stored heat from warm oceans supply energy for storms.
Exemplar Summary:
"The sun heats oceans unevenly, creating global currents that distribute solar thermal energy around the planet , while warm evaporating seawater supplies moisture and energy for cloud formation, rain, and major storm systems over land."
Part 3: Text Citation & Inferences (RI.5.1) (6 pts)
Exact quotes & quotation marks required
1. Direct Quote (¶1): Why ocean currents move
Exemplar: According to Paragraph 1, currents move because cold salty water sinks while "warm equatorial water flows across the surface, setting vast ocean currents into motion."
2. Text-Based Inference (¶2): If Gulf Stream stopped
Exemplar: Based on Paragraph 2, Great Britain's winter climate would become much colder because the current would no longer "releases warmth into coastal atmospheres, keeping places like Great Britain much milder in winter." Without this conveyor, winters would freeze harshly.
Part 4: Earth Systems Model Key (5-ESS2-1) (5 pts)
Systems & Matter Cycling
Atmos. → Hydrosphere
Surface currents are pushed across oceans by continuous prevailing winds .
Hydrosphere → Atmos.
Warm currents add immense moisture to air masses through marine evaporation .
Atmos. → Geosphere
Coastal land is impacted when condensing storm vapor releases latent heat and precipitation .
Common Student Misconception Alert: Students often assume all ocean currents are warm. Teach that cold currents (such as the California or Humboldt currents) bring frigid polar water, suppressing evaporation and creating dry, arid coastal climates.
