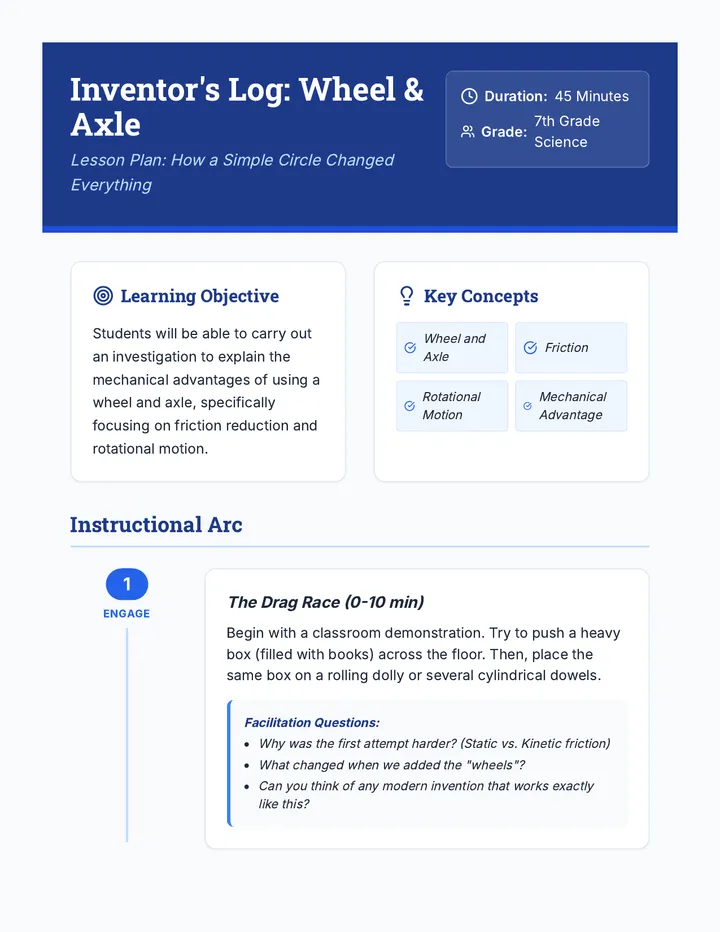

Inventor Sketchbook Lesson PlanInventor's Log: Wheel & Axle Lesson Plan: How a Simple Circle Changed Everything Duration: 45 Minutes Grade: 7th Grade Science Learning Objective Students will be able to carry out an investigation to explain the mechanical advantages of using a wheel and axle, specifically focusing on friction reduction and rotational motion. Key Concepts Wheel and Axle Friction Rotational Motion Mechanical Advantage Instructional Arc 1 Engage The Drag Race (0-10 min) Begin with a classroom demonstration. Try to push a heavy box (filled with books) across the floor. Then, place the same box on a rolling dolly or several cylindrical dowels. Facilitation Questions: Why was the first attempt harder? (Static vs. Kinetic friction) What changed when we added the "wheels"? Can you think of any modern invention that works exactly like this? 2 Explore Rolling Racers Challenge (10-25 min) Students work in groups to design a basic vehicle using CDs (wheels), a wooden skewer (axle), and a cardboard chassis. They will investigate how wheel size and axle thickness impact distance traveled. Materials Needed: CDs or Plastic Lids Wooden Skewers Masking Tape Cardboard scraps Straws (as bearings) Rubber bands 3 Explain The Mechanics of the Circle (25-35 min) Use the provided slides to define the Wheel and Axle. Explain how rotational motion translates force. Introduce the formula for Ideal Mechanical Advantage (IMA): IMA = Radius of Wheel / Radius of Axle Discuss: Why does a larger wheel make it easier to lift heavy loads, but require more rotation? 4 Apply Real-World Analysis (35-45 min) Students identify five wheel-and-axle systems in everyday life (e.g., screwdrivers, doorknobs, steering wheels) and explain whether the force is applied to the wheel or the axle. Exit Ticket Suggestion "If you had to pull a wagon over gravel versus smooth pavement, why does the wheel design matter?" Differentiation Provide pre-cut axle holes for students with fine motor challenges. Offer complex IMA calculations for advanced learners.
How the World Rolls SlidesPhysics in Motion How the World Rolls The Science and History of the Wheel & Axle Lesson Module 01 The Heavy Box Problem The Challenge Moving a 200kg crate across a rough stone floor. The Physics Static Friction resists the start of movement. Sliding creates heat and energy loss. Force Required: HIGH Meet the Simple Machine Axle Wheel The Wheel The larger outer circular frame. It travels a longer distance but requires less force. The Axle The central shaft. It travels a shorter distance but transmits high rotational force. Why does it help? 1 Rolling vs. Sliding Instead of grinding against the floor, only a small point of the wheel touches the ground at any time. 2 Distance Multiplier One small turn of the axle creates a large movement of the wheel's rim. Contact Point Mechanical Advantage Equation Ideal Mechanical Advantage (IMA) \( \frac{R_{wheel}}{R_{axle}} \) If the wheel radius is 10cm and the axle radius is 1cm, you get 10x more force (but you have to turn the wheel 10x further!) Where do we see it? Screwdriver The handle is the wheel; the shaft is the axle. It multiplies your hand's torque. Doorknob A large knob makes it easy to turn a small, high-friction internal latch. Steering Wheel Allows a driver to steer a heavy vehicle with minimal physical effort. Rolling Racers Challenge! Your Mission Build a vehicle using only provided materials. Optimize for maximum distance. Experiment with wheel size and axle friction. The Supplies CDs Straws Cardboard Skewers Tape Rubber Bands

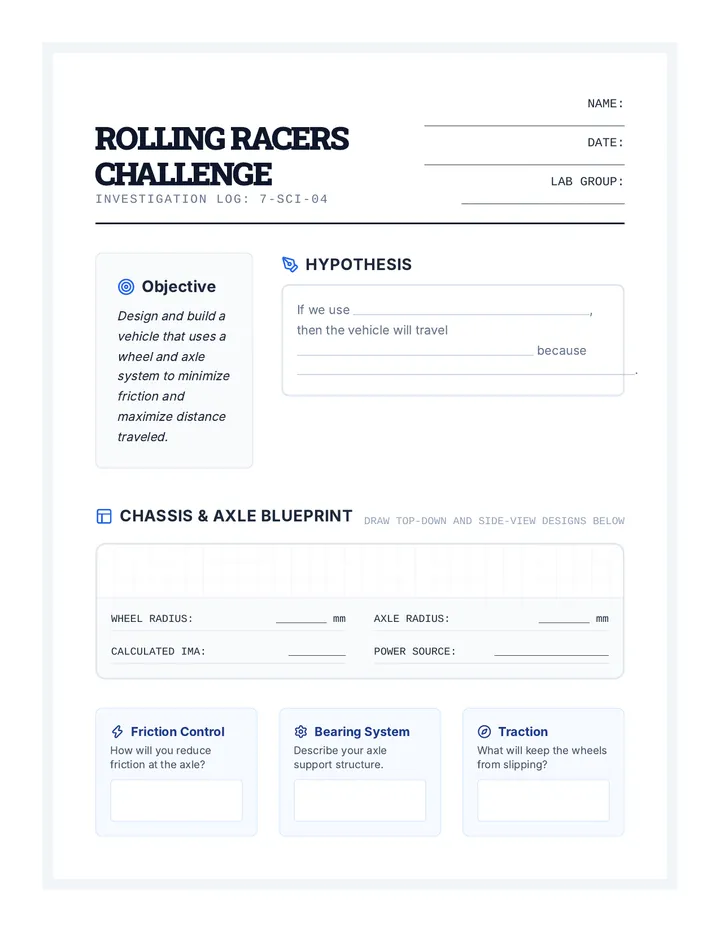

Rolling Racers Challenge ActivityRolling Racers Challenge Investigation Log: 7-SCI-04 NAME: ___________________________ DATE: ___________________________ LAB GROUP: ______________________ Objective Design and build a vehicle that uses a wheel and axle system to minimize friction and maximize distance traveled. Hypothesis If we use __________________________________________, then the vehicle will travel __________________________________________ because ____________________________________________________________. Chassis & Axle Blueprint DRAW TOP-DOWN AND SIDE-VIEW DESIGNS BELOW WHEEL RADIUS: ________ mm AXLE RADIUS: ________ mm CALCULATED IMA: _________ POWER SOURCE: __________________ Friction Control How will you reduce friction at the axle? Bearing System Describe your axle support structure. Traction What will keep the wheels from slipping? Testing & Results TrialModification / Variable TestedDistance (cm)Observations123 1. Friction Analysis Identify two specific points on your vehicle where friction occurred. How did this friction affect the total distance traveled? 2. Mechanical Advantage If you used a wheel twice as large but kept the axle the same, how would the distance traveled per axle rotation change? Explain using your IMA calculation. 3. Inventor's Improvement Based on your trials, what is the single most important modification you would make to increase performance? Use evidence from your data. Accuracy: ___/5 Design: ___/5 Analysis: ___/10 TOTAL SCORE: ______

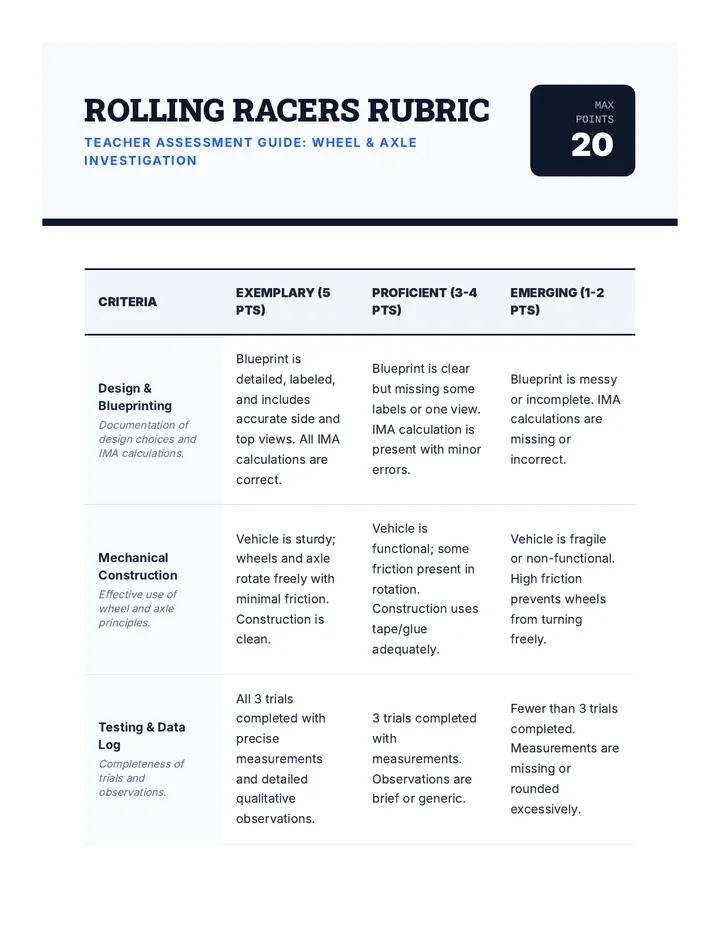

Rolling Racers RubricRolling Racers Rubric Teacher Assessment Guide: Wheel & Axle Investigation Max Points 20 CriteriaExemplary (5 pts)Proficient (3-4 pts)Emerging (1-2 pts)Design & BlueprintingDocumentation of design choices and IMA calculations. | Blueprint is detailed, labeled, and includes accurate side and top views. All IMA calculations are correct. | Blueprint is clear but missing some labels or one view. IMA calculation is present with minor errors. | Blueprint is messy or incomplete. IMA calculations are missing or incorrect. | | Mechanical Construction Effective use of wheel and axle principles. | Vehicle is sturdy; wheels and axle rotate freely with minimal friction. Construction is clean. | Vehicle is functional; some friction present in rotation. Construction uses tape/glue adequately. | Vehicle is fragile or non-functional. High friction prevents wheels from turning freely. | | Testing & Data Log Completeness of trials and observations. | All 3 trials completed with precise measurements and detailed qualitative observations. | 3 trials completed with measurements. Observations are brief or generic. | Fewer than 3 trials completed. Measurements are missing or rounded excessively. | | Scientific Analysis Connection to key physics concepts. | Analysis questions demonstrate deep understanding of friction, IMA, and rotational motion. | Analysis questions are answered correctly but lack specific detail or scientific vocabulary. | Analysis questions are incomplete or show significant misconceptions about the concepts. | Feedback & Observations Strengths Areas for Growth 18-20 pts Mastery (A) 14-17 pts Proficient (B) 10-13 pts Developing (C) < 10 pts Novice (D/F)

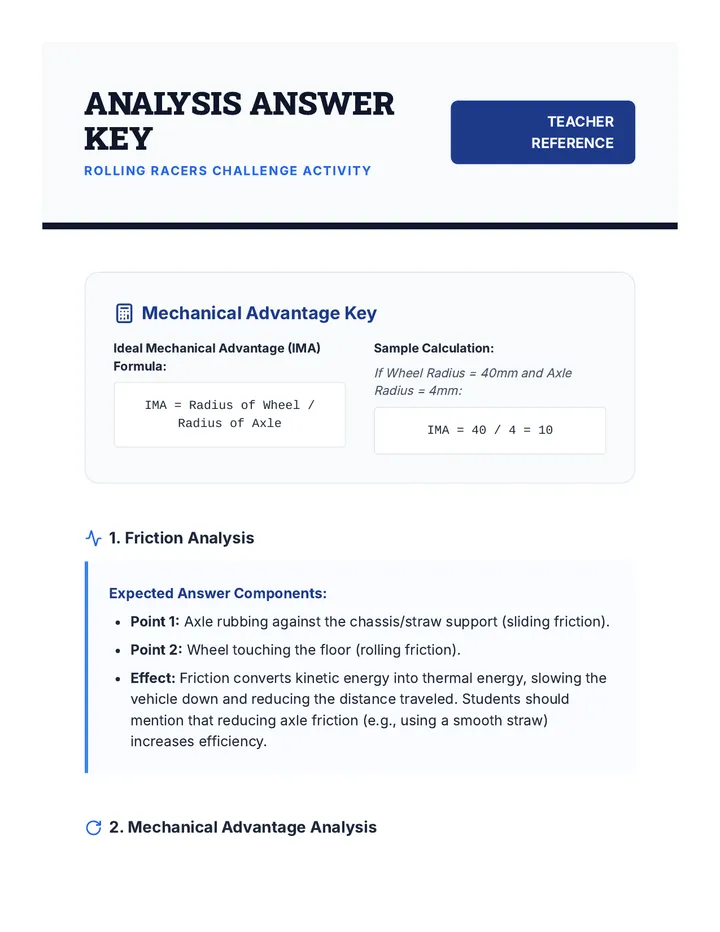

Rolling Racers Answer KeyAnalysis Answer Key Rolling Racers Challenge Activity TEACHER REFERENCE Mechanical Advantage Key Ideal Mechanical Advantage (IMA) Formula: IMA = Radius of Wheel / Radius of Axle Sample Calculation: If Wheel Radius = 40mm and Axle Radius = 4mm: IMA = 40 / 4 = 10 1. Friction Analysis Expected Answer Components: Point 1: Axle rubbing against the chassis/straw support (sliding friction). Point 2: Wheel touching the floor (rolling friction). Effect: Friction converts kinetic energy into thermal energy, slowing the vehicle down and reducing the distance traveled. Students should mention that reducing axle friction (e.g., using a smooth straw) increases efficiency. 2. Mechanical Advantage Analysis Expected Answer Components: Change: The distance traveled per axle rotation would double because the circumference of the wheel doubled. IMA Impact: The IMA would also double (since IMA = R_wheel / R_axle). Advantage: The vehicle covers more ground with less effort from the axle's perspective. Disadvantage: It might require more initial torque to start the rotation (overcoming static friction) or be more prone to wobbling. 3. Inventor's Improvement Grading Criteria: Student identifies a specific variable (e.g., axle alignment, wheel traction, rubber band tension). Student cites specific data from their trials (e.g., "In Trial 2, when we added tape to the wheels, the car traveled 15cm further"). Reasoning is scientifically sound (e.g., "Adding tape increased traction, preventing energy loss from wheel spinning"). Common Student Misconceptions Misconception: "A larger wheel always makes the car go faster." Reality: While it covers more ground per turn, a larger wheel can increase mass and air resistance, and requires more force to overcome initial friction. Misconception: "The axle doesn't need to be centered." Reality: An off-center axle changes the radius constantly during rotation, causing vibration and significantly increasing friction and energy loss.
