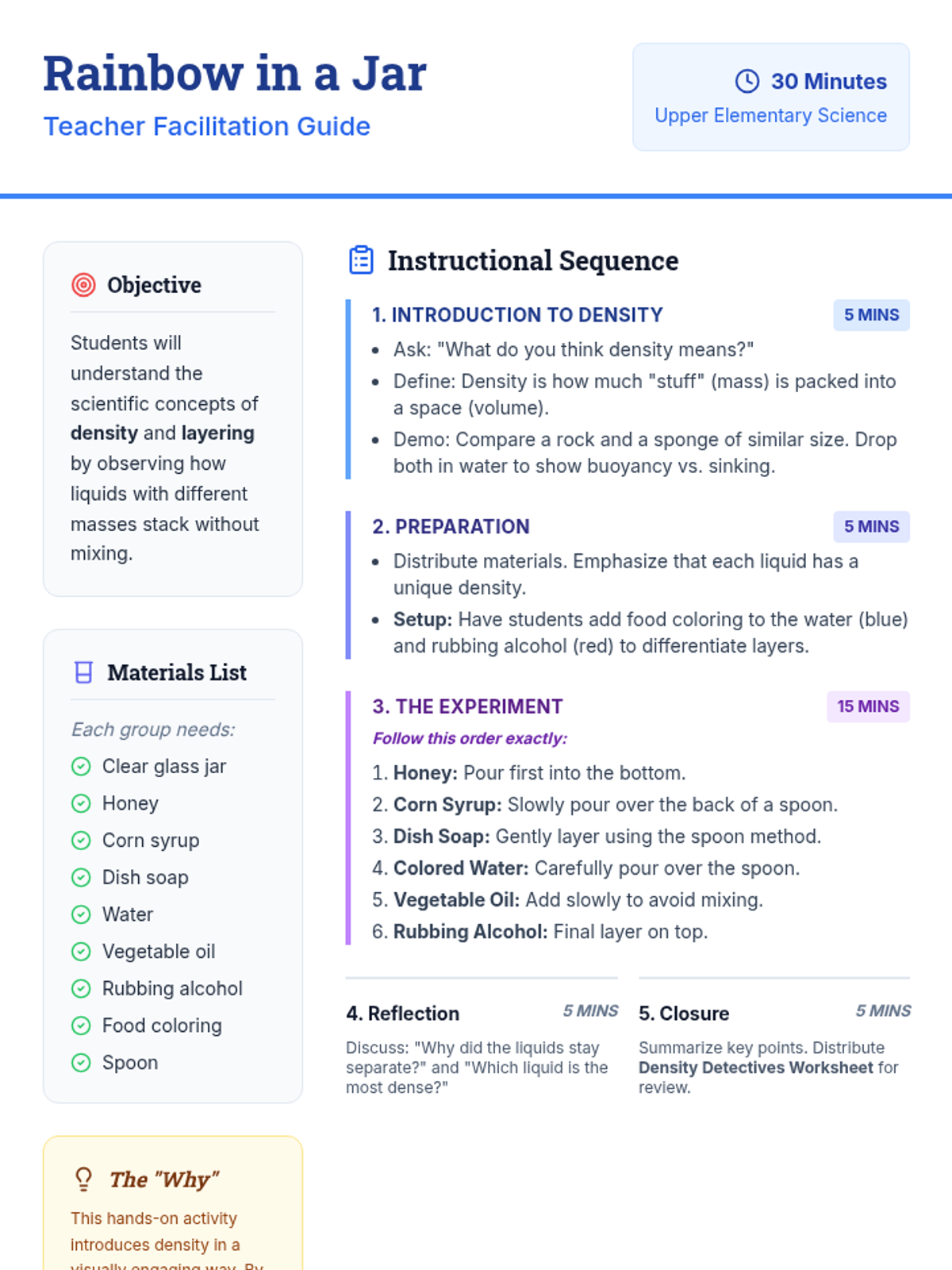

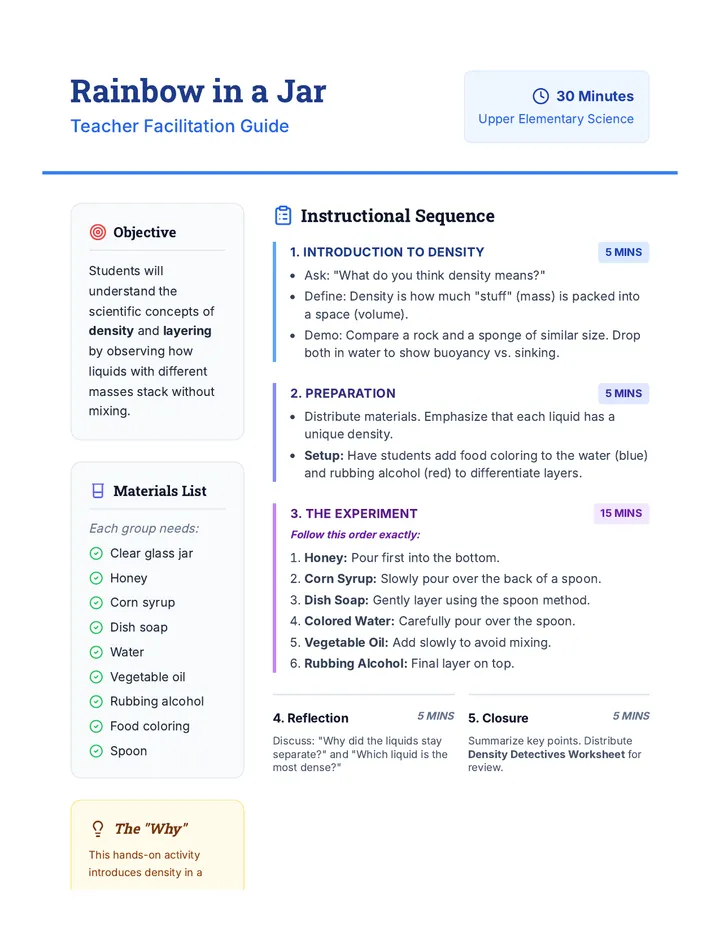

Rainbow Jar Lesson Plan Rainbow in a Jar
Teacher Facilitation Guide
30 Minutes
Upper Elementary Science
Objective
Students will understand the scientific concepts of density and layering by observing how liquids with different masses stack without mixing.
Materials List
Each group needs:
Clear glass jar
Honey
Corn syrup
Dish soap
Water
Vegetable oil
Rubbing alcohol
Food coloring
Spoon
The "Why"
This hands-on activity introduces density in a visually engaging way. By observing layers, students gain a deeper understanding of how the internal structure of substances affects their behavior in the physical world.
Instructional Sequence
1. Introduction to Density
5 MINS
Ask: "What do you think density means?"
Define: Density is how much "stuff" (mass) is packed into a space (volume).
Demo: Compare a rock and a sponge of similar size. Drop both in water to show buoyancy vs. sinking.
2. Preparation
5 MINS
Distribute materials. Emphasize that each liquid has a unique density.
Setup: Have students add food coloring to the water (blue) and rubbing alcohol (red) to differentiate layers.
3. The Experiment
15 MINS
Follow this order exactly:
Honey: Pour first into the bottom.Corn Syrup: Slowly pour over the back of a spoon.Dish Soap: Gently layer using the spoon method.Colored Water: Carefully pour over the spoon.Vegetable Oil: Add slowly to avoid mixing.Rubbing Alcohol: Final layer on top.
4. Reflection 5 MINS
Discuss: "Why did the liquids stay separate?" and "Which liquid is the most dense?"
5. Closure 5 MINS
Summarize key points. Distribute Density Detectives Worksheet for review.
Pro Tip for Success:
Pouring against the back of the spoon is crucial! It slows down the liquid and prevents it from breaking the surface tension of the layer below, keeping the "rainbow" crisp.

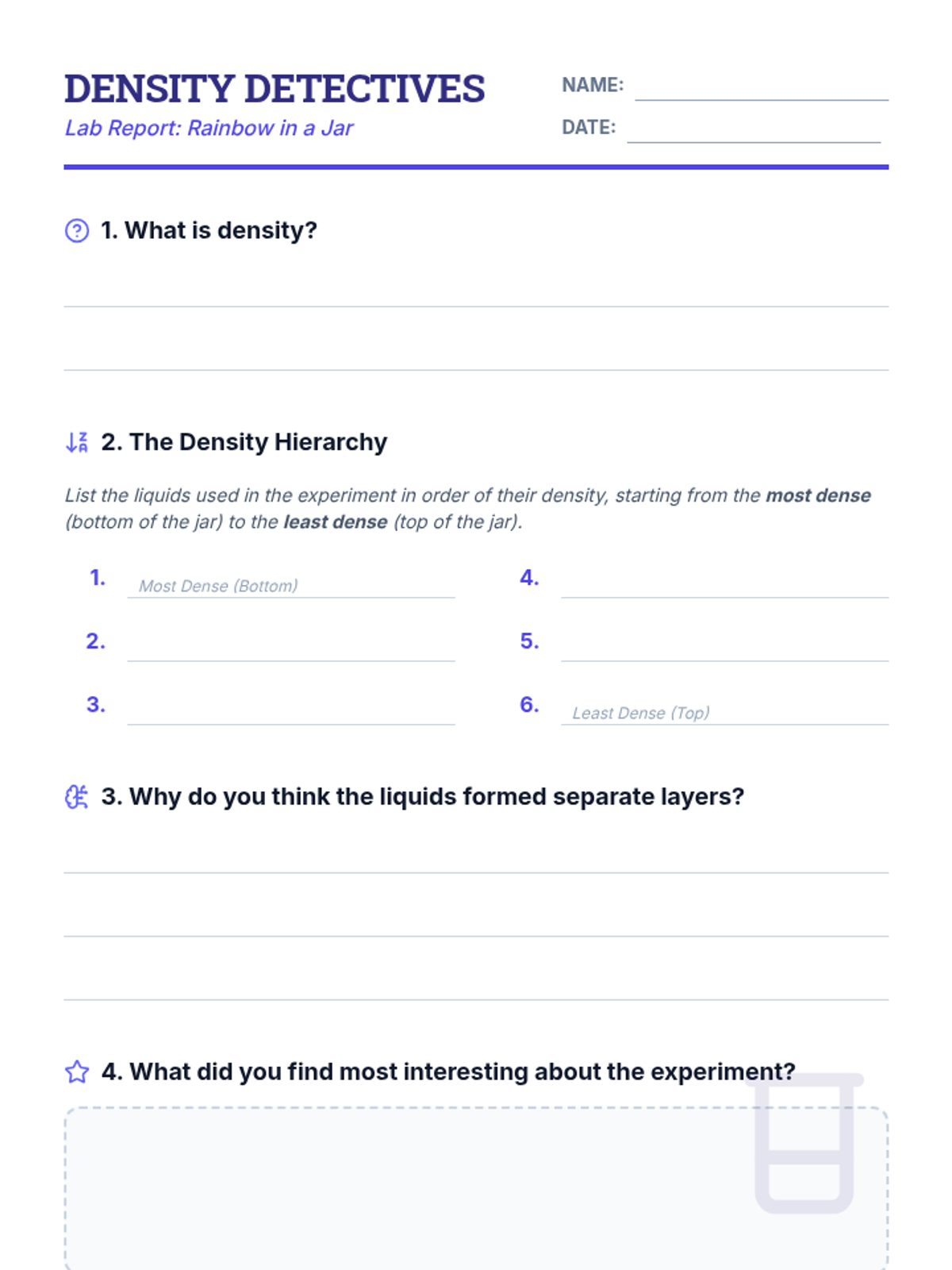

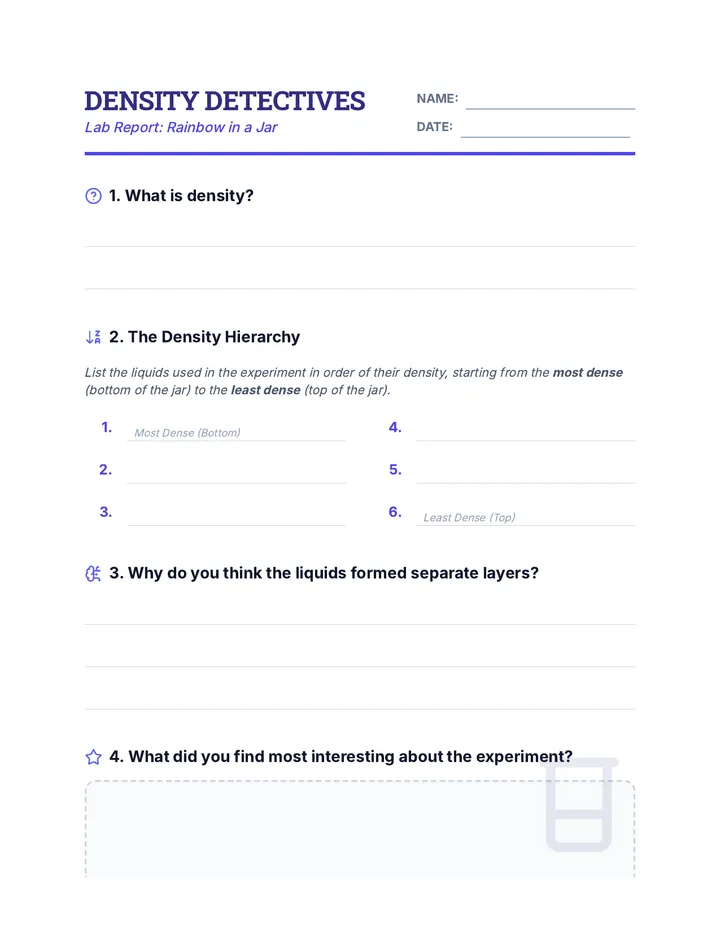

Density Detectives Worksheet Density Detectives
Lab Report: Rainbow in a Jar
Name:
Date:
1. What is density?
2. The Density Hierarchy
List the liquids used in the experiment in order of their density, starting from the most dense (bottom of the jar) to the least dense (top of the jar).
Most Dense (Bottom)
Least Dense (Top)
3. Why do you think the liquids formed separate layers?
4. What did you find most interesting about the experiment? Rainbow Jar Slides Rainbow in a Jar
Exploring Liquid Density
What is Density?
Density is a measure of how much "stuff" (mass) is packed into a certain space (volume) .
Think of it as how "crowded" the molecules are!
A
High Density
Tightly packed together
B
Low Density
Spread far apart
The Liquid Lineup
🍯
Honey
Extra Thick & Heavy
🧼
Dish Soap
Sticky & Medium
🌻
Vegetable Oil
Light & Slippery
🌽
Corn Syrup
Sweet & Dense
💧
Water
The Standard
🧪
Alcohol
Super Light
The Secret Technique
To keep the layers from mixing, we use the "Back of the Spoon" method.
Tilt the jar slightly.
Pour slowly against the spoon.
Let the liquid "crawl" down the side.
Phase 1: The Base
Step 1 & 2
1. Honey
Pour straight into the center. Make sure it covers the whole bottom!
🍯
2. Corn Syrup
Use the spoon! Pour it gently on top of the honey layer.
🌽
Phase 2: The Colors
Step 3 & 4
3. Dish Soap
Slow and steady! This is your middle boundary layer.
🧼
4. Colored Water
Be very careful here. Water likes to mix if you pour too fast!
💧
Phase 3: The Top
Step 5 & 6
5. Vegetable Oil
Oil is lighter than water. Watch it float right to the top!
🌻
6. Rubbing Alcohol
The final layer! This is your least dense liquid.
🧪
The Big Reveal
Why don't they mix?
Denser liquids have more mass per volume, so gravity pulls them to the bottom .
Immiscibility
Some liquids (like oil and water) also have different chemical properties that stop them from blending.
Time to Reflect

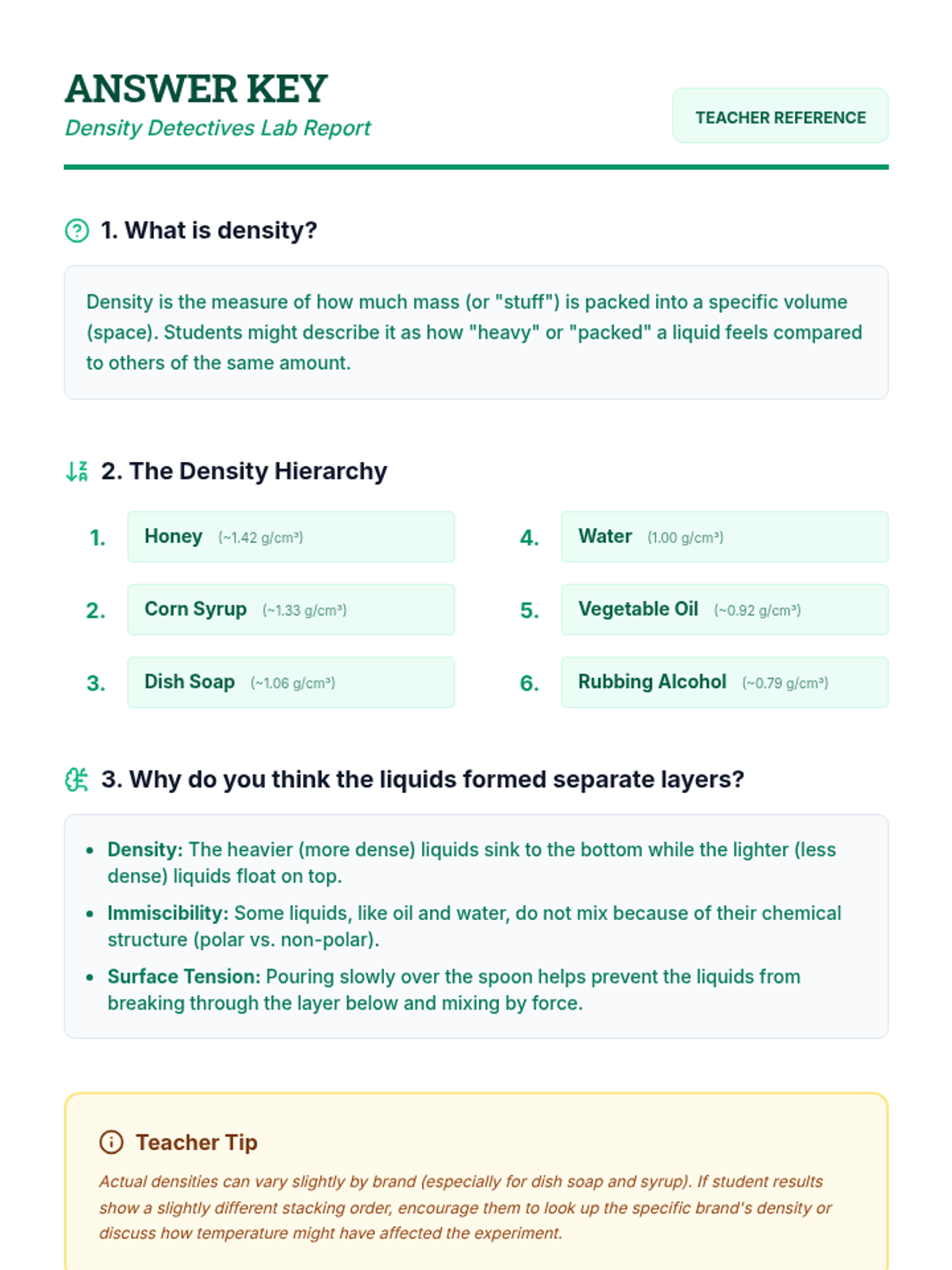

Density Detectives Answer Key Answer Key
Density Detectives Lab Report
Teacher Reference
1. What is density?
Density is the measure of how much mass (or "stuff") is packed into a specific volume (space). Students might describe it as how "heavy" or "packed" a liquid feels compared to others of the same amount.
2. The Density Hierarchy
Honey (~1.42 g/cm³)
Water (1.00 g/cm³)
Corn Syrup (~1.33 g/cm³)
Vegetable Oil (~0.92 g/cm³)
Dish Soap (~1.06 g/cm³)
Rubbing Alcohol (~0.79 g/cm³)
3. Why do you think the liquids formed separate layers?
Density: The heavier (more dense) liquids sink to the bottom while the lighter (less dense) liquids float on top.Immiscibility: Some liquids, like oil and water, do not mix because of their chemical structure (polar vs. non-polar).Surface Tension: Pouring slowly over the spoon helps prevent the liquids from breaking through the layer below and mixing by force.
Teacher Tip
Actual densities can vary slightly by brand (especially for dish soap and syrup). If student results show a slightly different stacking order, encourage them to look up the specific brand's density or discuss how temperature might have affected the experiment.
