Watershed Detectives Lesson Plan Educator Instructional Guide
Ozark Watershed Detectives
Grades 4–5 • 75 Min
Earth & Space Sciences (ESS2)
Students investigate how high-elevation ridges, porous limestone, and gravity guide water movement across the Ozark Plateau, transforming rainfall into scenic creeks, cavernous springs, and vital town water supplies.
NGSS Standards Alignment
4-ESS2-1: Water, ice, wind, and vegetation shape the land.4-ESS2-2: Map patterns of Earth's features (drainage basins & ridges).5-ESS2-1: Earth's systems interact (geosphere, hydrosphere, biosphere).5-ESS2-2: Describe and graph distribution of fresh water.
Learning Objectives
• Identify ridgelines (drainage divides) that define watershed boundaries.
• Model how gravity pulls surface runoff into tributaries and trunk rivers.
• Contrast surface runoff with karst infiltration (sinkholes & springs).
• Predict how upstream runoff patterns impact downstream communities.
Essential Inquiry Questions
1. Why does rain falling just one foot apart end up in completely different rivers?
Key Vocabulary
Watershed: Land channeling water to one outlet.Ridgeline (Divide): High ground splitting flow.Karst: Dissolved limestone with caves/springs.
Investigation Materials (Per Team of 3–4)
Modeling Station: • 1 plastic tray or baking pan
Mapping Tools: • Washable markers (blue, red, green)
Student Printouts: • 1 Ridge Runoff Investigation Sheet
Educator Prep & Tips (15 Min Before Class)
Ensure spray bottles produce a fine mist rather than a heavy jet to simulate light rain without shredding paper models. For the Stream Table Extension, prepare trays with sand, gravel, and incline blocks to model bluff carving and riparian vegetation defense.
Ozark Watershed Detectives • Educator Guide Page 1 of 2
Instructional Framework
5E Phase-by-Phase Facilitation
Total Duration: 75 Minutes
ENGAGE
10 Mins
The Split Drop Mystery: Show photo of Buffalo National River bluffs and Springfield Plateau ridgeline. Ask: "If a bird drops one rain droplet on top of this mountain ridge, which lake will it end up in?" Record student hypotheses on the board. Introduce the term drainage divide .
EXPLORE
25 Mins
3D Watershed Model Lab: Student teams crumple paper over bases to form peaks and valleys inside trays. Students trace ridges in red and valleys in blue. They gently mist the model to observe runoff paths, tributary convergence, and accumulation points. They add "town" tokens in valleys and observe pooling.
EXPLAIN
15 Mins
Ozark Karst & Topographic Maps: Review slide deck diagrams showing how water carves limestone bedrock beneath the surface. Discuss sinkholes, disappearing streams, and giant freshwater springs (Big Spring, Roaring River). Connect 2D contour lines to 3D ridge elevations.
ELABORATE
15 Mins
Pollution Sleuth Scenario: Introduce non-point source pollution: agricultural fertilizer or road gravel runoff. Students test what happens when food coloring placed high on a ridge travels into downstream fishing holes and drinking wells.
EVALUATE
10 Mins
Field Journal Claim-Evidence-Reasoning: Students complete their synthesis entry in their Field Journal, answering how Ozark topography dictates community water quality and why everyone lives downstream.
Common Misconceptions
• "Water always flows south." -> Fact: Water always flows downhill (high elevation to low), regardless of compass direction!
• "Watersheds are only bodies of water." -> Fact: A watershed is all the land area that drains into that water.
Differentiation & Extension
• Scaffold: Provide pre-drawn contour templates; assign paired modeling roles (Mister, Marker, Cartographer).
• Extension: Deploy the Stream Table Extension Lab to test slope incline angles, cut bank erosion, and riparian buffer engineering.
Mastery Evidence Rubric
Developing Names watershed as a lake/river; identifies flow downward but struggles to pinpoint ridgeline divides.
Proficient Correctly traces ridgelines; explains how gravity guides runoff to tributaries; identifies Ozark spring features.
Advanced Constructs complete CER linking elevation, surface runoff, karst sinkhole infiltration, and civic water stewardship.
Ozark Watershed Detectives • Educator Guide Page 2 of 2

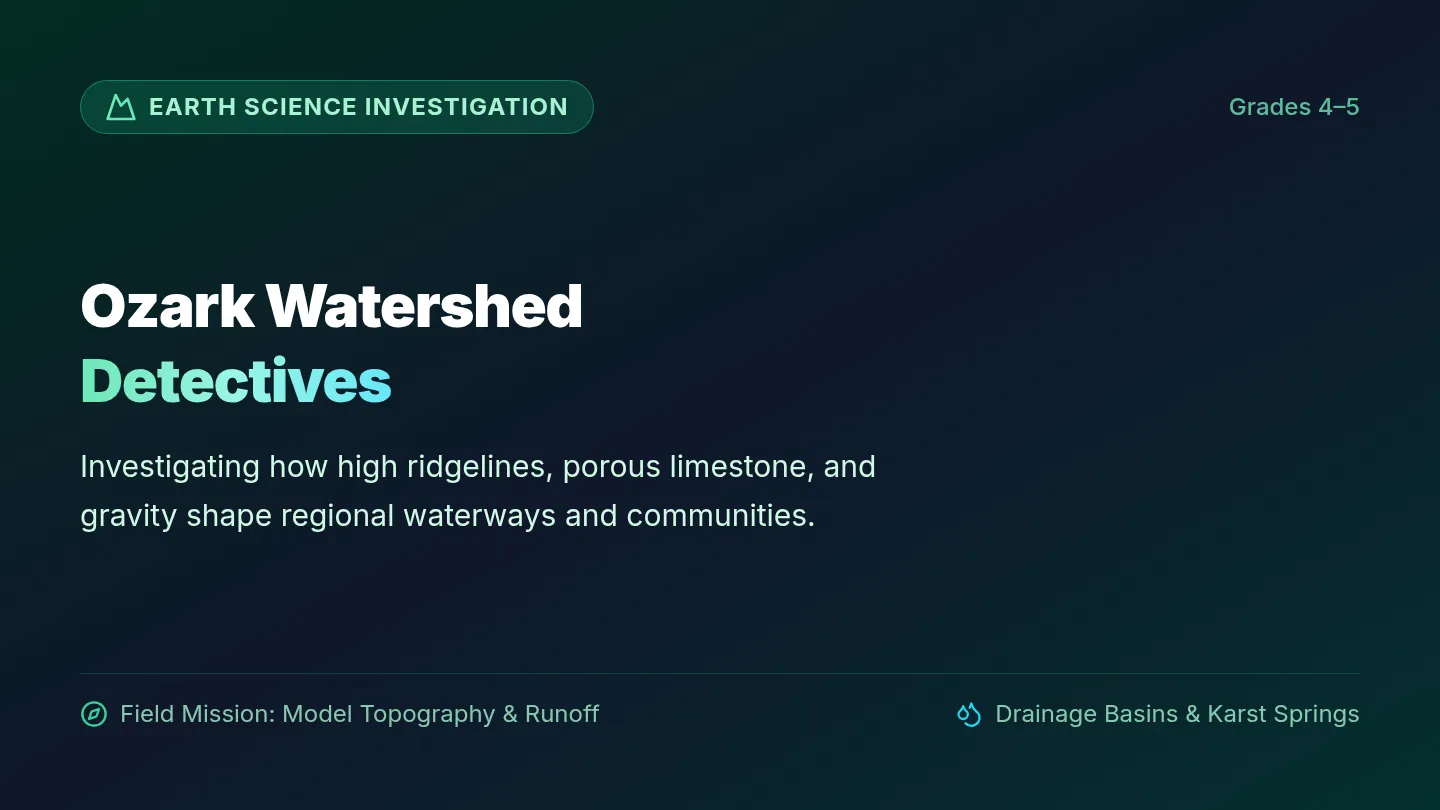

Watershed Detectives Slides Earth Science Investigation
Grades 4–5
Ozark Watershed
Detectives
Investigating how high ridgelines, porous limestone, and gravity shape regional waterways and communities.
Field Mission: Model Topography & Runoff
Drainage Basins & Karst Springs
The Split Drop Mystery
Mission Briefing
Two Falling Drops
Imagine two raindrops fall from the exact same storm cloud over the Ozarks, landing just six inches apart on a mountain crest.
One drop flows north into the Missouri River, while the other flows south into the Arkansas River!
Our Detective Questions
• What invisible line determines water’s path?
• What natural force pulls every single drop downhill?
• Where do these drops meet and form rivers?
Detective Clue: Look to the highest peaks and ridges!
Anatomy of a Watershed
Key Science Concepts
1. Ridgeline (Divide)
The highest points of land that separate one drainage basin from another. It acts like the ridge of a house roof.
High Ground Boundary
2. Tributaries
Small creeks and rivulets that gather rain runoff from slopes and flow downhill to join larger waterways.
Branching Water Paths
3. Main River & Basin
The central river at the valley bottom collecting all runoff from the entire land area before flowing to lakes or oceans.
The Collector Channel
Definition: A watershed is all the land area that channels rainfall and snowmelt to a common creek, river, or lake.
Ozark Karst: Land of Hidden Rivers
Regional Geology
Underground Passageways
The Ozarks are made of soluble limestone and dolomite. Over millions of years, rainwater naturally dissolves rock fissures.
• Sinkholes: Funnels that swallow surface runoff.
• Losing Streams: Creeks that suddenly vanish into gravel beds.
• Cave Networks: Underground rivers running in pitch dark.
Giant Freshwater Springs
When underground water reaches an impermeable rock layer, it surges back out of hillsides as ice-cold, crystal-clear springs!
Springs like Missouri’s Big Spring pump over 280 million gallons of water every single day directly into regional rivers.
In the Ozarks, water travels above AND below ground!

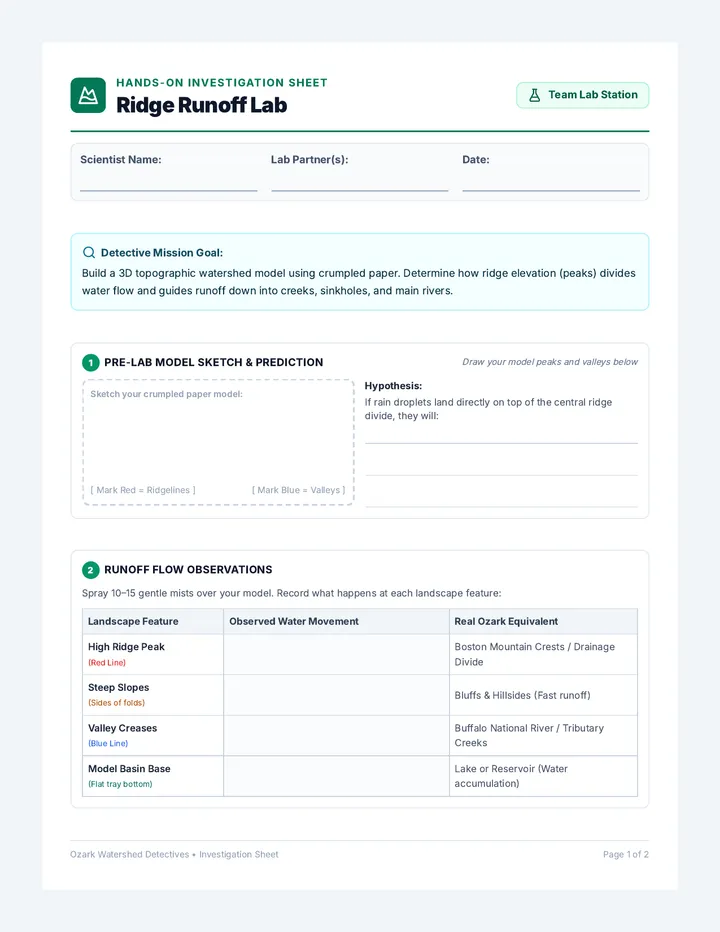

Ridge Runoff Investigation Sheet Hands-On Investigation Sheet
Ridge Runoff Lab
Team Lab Station
Scientist Name:
Lab Partner(s):
Date:
Detective Mission Goal: Build a 3D topographic watershed model using crumpled paper. Determine how ridge elevation (peaks) divides water flow and guides runoff down into creeks, sinkholes, and main rivers.
1 Pre-Lab Model Sketch & Prediction
Draw your model peaks and valleys below
Sketch your crumpled paper model:
[ Mark Red = Ridgelines ] [ Mark Blue = Valleys ]
Hypothesis:
If rain droplets land directly on top of the central ridge divide, they will:
2 Runoff Flow Observations
Spray 10–15 gentle mists over your model. Record what happens at each landscape feature:
Landscape Feature Observed Water Movement Real Ozark Equivalent High Ridge Peak (Red Line) Boston Mountain Crests / Drainage Divide Steep Slopes (Sides of folds) Bluffs & Hillsides (Fast runoff) Valley Creases (Blue Line) Buffalo National River / Tributary Creeks Model Basin Base (Flat tray bottom) Lake or Reservoir (Water accumulation)
Ozark Watershed Detectives • Investigation Sheet Page 1 of 2
Hands-On Investigation Sheet
Runoff Tracking & Topographic Analysis
Scientist: _______________
3
Pollution Sleuth Test: Upstream vs. Downstream
Place a small dot of green or red washable marker on a high hillside to represent fertilizer or motor oil from a hilltop farm. Spray 3 gentle mists over that slope and observe where the color travels.
A. Where did the colored pollution travel? Did it stay in one spot or spread?
B. If a town was built at the bottom of that valley, how would this runoff affect their creek?
4
Reading Ozark Topography Maps
Contour Line Rulebook:
• Lines close together: Very steep terrain (tall bluffs & cliffs).
• Lines far apart: Gentle slope or flat river valley.

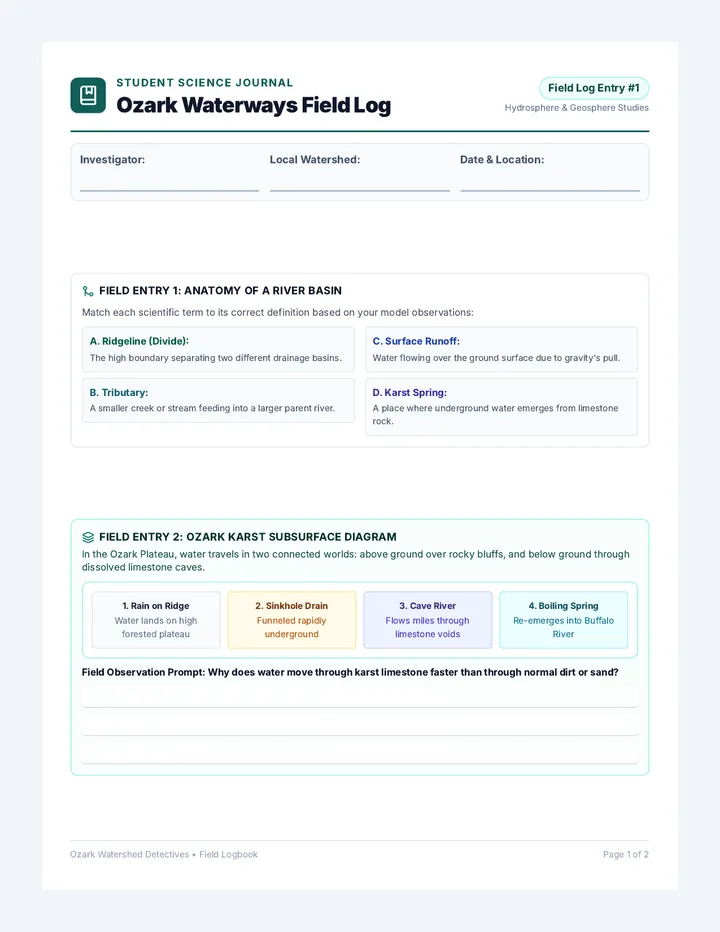

Ozark Waterways Field Journal Student Science Journal
Ozark Waterways Field Log
Field Log Entry #1
Hydrosphere & Geosphere Studies
Investigator:
Local Watershed:
Date & Location:
Field Entry 1: Anatomy of a River Basin
Match each scientific term to its correct definition based on your model observations:
A. Ridgeline (Divide):
The high boundary separating two different drainage basins.
B. Tributary:
A smaller creek or stream feeding into a larger parent river.
C. Surface Runoff:
Water flowing over the ground surface due to gravity's pull.
D. Karst Spring:
A place where underground water emerges from limestone rock.
Field Entry 2: Ozark Karst Subsurface Diagram
In the Ozark Plateau, water travels in two connected worlds: above ground over rocky bluffs, and below ground through dissolved limestone caves.
1. Rain on Ridge Water lands on high forested plateau
2. Sinkhole Drain Funneled rapidly underground
3. Cave River Flows miles through limestone voids
4. Boiling Spring Re-emerges into Buffalo River
Field Observation Prompt: Why does water move through karst limestone faster than through normal dirt or sand?
Ozark Watershed Detectives • Field Logbook Page 1 of 2
Student Science Journal
Scientific Argument & Water Stewardship
Field Log Entry #2
3
Case File Inquiry: The Hilltop Gas Station Mystery
The Scenario: A developer proposes building a gas station on top of a rocky Ozark ridge near a known sinkhole. The valley town council 5 miles away worries this could contaminate their spring-fed drinking water.
1. Scientific Claim (Should the council approve this location? State your clear scientific answer):
2. Field Evidence (What did you observe in your 3D watershed runoff lab when pollutants were added to a ridge?):
3. Scientific Reasoning (Explain using elevation, gravity, and porous karst limestone how pollutants travel downhill):
Field Entry 4: Ozark Watershed Guardian Action Pledge
Because "We All Live Downstream," write two actions your school or family can take to protect our local waterways from harmful runoff:
Action 1:
Action 2:
Scientist Signature:
Badge Earned: Certified Hydrologist

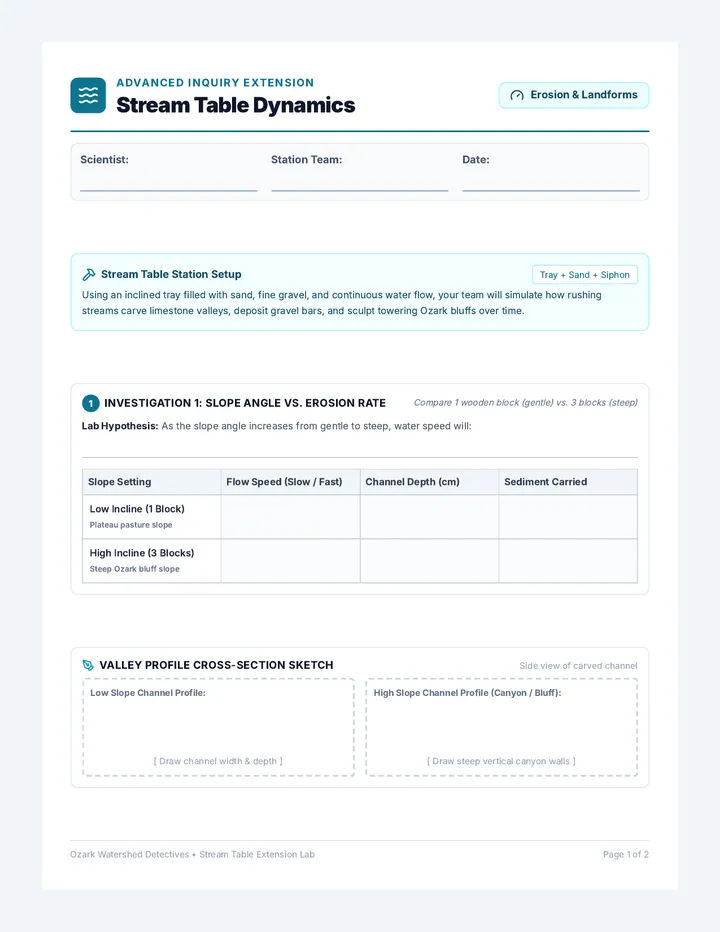

Stream Table Extension Lab Advanced Inquiry Extension
Stream Table Dynamics
Erosion & Landforms
Scientist:
Station Team:
Date:
Stream Table Station Setup Tray + Sand + Siphon
Using an inclined tray filled with sand, fine gravel, and continuous water flow, your team will simulate how rushing streams carve limestone valleys, deposit gravel bars, and sculpt towering Ozark bluffs over time.
1 Investigation 1: Slope Angle vs. Erosion Rate
Compare 1 wooden block (gentle) vs. 3 blocks (steep)
Lab Hypothesis: As the slope angle increases from gentle to steep, water speed will:
Slope Setting Flow Speed (Slow / Fast) Channel Depth (cm) Sediment Carried Low Incline (1 Block) Plateau pasture slope High Incline (3 Blocks) Steep Ozark bluff slope
Valley Profile Cross-Section Sketch
Side view of carved channel
Low Slope Channel Profile:
[ Draw channel width & depth ]
High Slope Channel Profile (Canyon / Bluff):
[ Draw steep vertical canyon walls ]
Ozark Watershed Detectives • Stream Table Extension Lab Page 1 of 2
Advanced Inquiry Extension
Meander Mechanics & Riparian Defense
Scientist: _______________
2
Investigation 2: How Ozark River Meanders Sculpt Bluffs
Bend the water flow slightly to create an S-curve (meander) in your sand bed. Run the water for 2 minutes and closely inspect where sand is removed and where it settles.
A. Outside of the Curve (Cut Bank):
What happened to the bank where fast water struck the outer wall?
B. Inside of the Curve (Point Bar):
What settled out on the inside where water slowed down?
3
Engineering Test: The Riparian Buffer Shield
Place miniature "riparian plants" (strips of craft sponge, moss, or gravel) along one vulnerable riverbank. Re-run high flow water.
Comparative Evidence: How did plant roots/sponges change the amount of erosion compared to the bare sand bank?
Real-World Application: Why do conservationists plant willows and sycamores along Ozark rivers like the Buffalo and Current?
