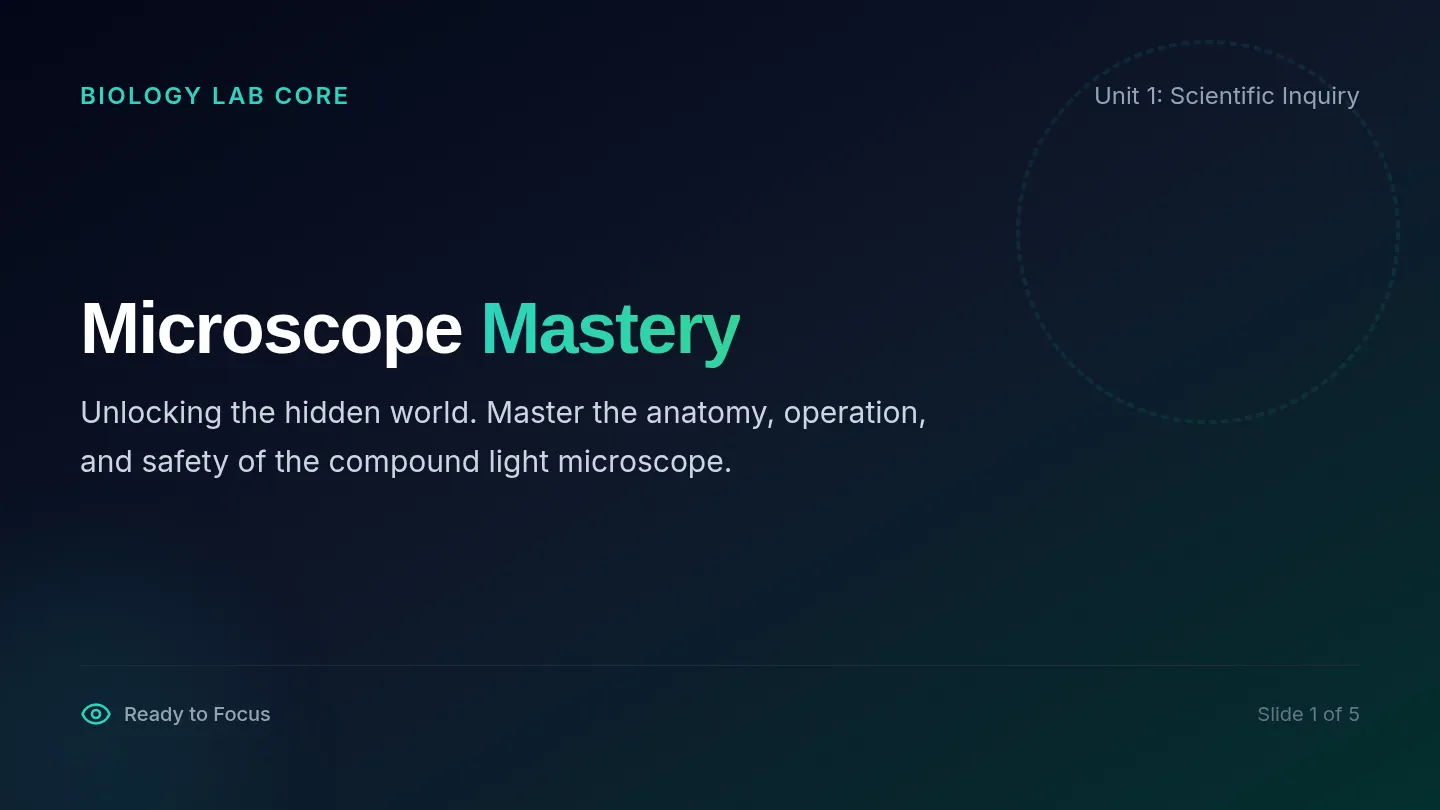

Microscope Mastery
Unlocking the hidden world. Master the anatomy, operation, and safety of the compound light microscope.
Ready to Focus
Slide 1 of 5
Anatomy of the Microscope
Interactive Overview
1
Ocular Lens (Eyepiece)
The lens you look through. Usually magnifies exactly 10x.
2
Objective Lenses
Scanning (4x), Low (10x), and High (40x) power on a rotating nosepiece.
Eyepiece
Nosepiece
Stage & Slide
Base & Light Source
Compound Light Path
3
Coarse Adjustment
Moves stage rapidly for initial focus. Use ONLY with 4x objective!
4
Fine Adjustment
Moves stage micro-distances. Safe for high power focusing.
Pro Tip: Total Magnification = Ocular (10x) × Objective Power Slide 2 of 5
Safe Handling & Operation
Strict Laboratory Protocol
Carrying the Microscope
- ✓ Always use two hands: one firmly holding the arm, and the other supporting the flat base.
- ✓ Keep the cord bundled neatly and sit the microscope away from the desk edge.
- ✓ Clean lenses only with specialized lens paper. Paper towels will scratch the delicate glass!
The Golden Rule
NEVER use the Coarse Adjustment Knob when the microscope is on High Power (40x).
The working distance is extremely small. Using the coarse knob can force the lens directly into the glass slide, shattering both the specimen and damaging the objective lens!
Start on scanning power (4x), center your specimen, focus, and only then rotate to higher power.
Protect the lenses, protect the science. Slide 3 of 5
The Inversion Phenomenon
What to Expect Today
How Optics Play Tricks
When light passes through a series of convex lenses in a compound microscope, the image is flipped both horizontally and vertically.
This means:
- An upright letter "e" will appear upside down and backwards: "ë".
- Moving the slide to the left makes the image move to the right.
- Moving the slide up makes the image move down.
Actual Slide
e
Through Eyepiece
e
Try moving the slide during your lab rotation and note down your observations!
Challenge: Try to center the letter "e" on high power! Slide 4 of 5
Lab Station Rotations
Rotation Guidelines
Basics
Station A: The Letter 'e'
Examine orientation and behavior under magnification. Test moving the slide in four directions and sketch what you see.
Drawing requirement: 4x, 10x, 40x
Discovery
Station B: Prepared Slides
Examine biological specimens (cork cells, onion root tip, or amoeba). Compare biological structure differences under low vs high power.
Observe cell walls & nuclei
Check-out
Station C: Safety Quiz
Complete the post-lab analysis questions in your packet. Double check that your scope is clean, set to scanning power, and turned off.
Clean station before moving!
Rotation Time: 10 Minutes Per Station
Slide 5 of 5

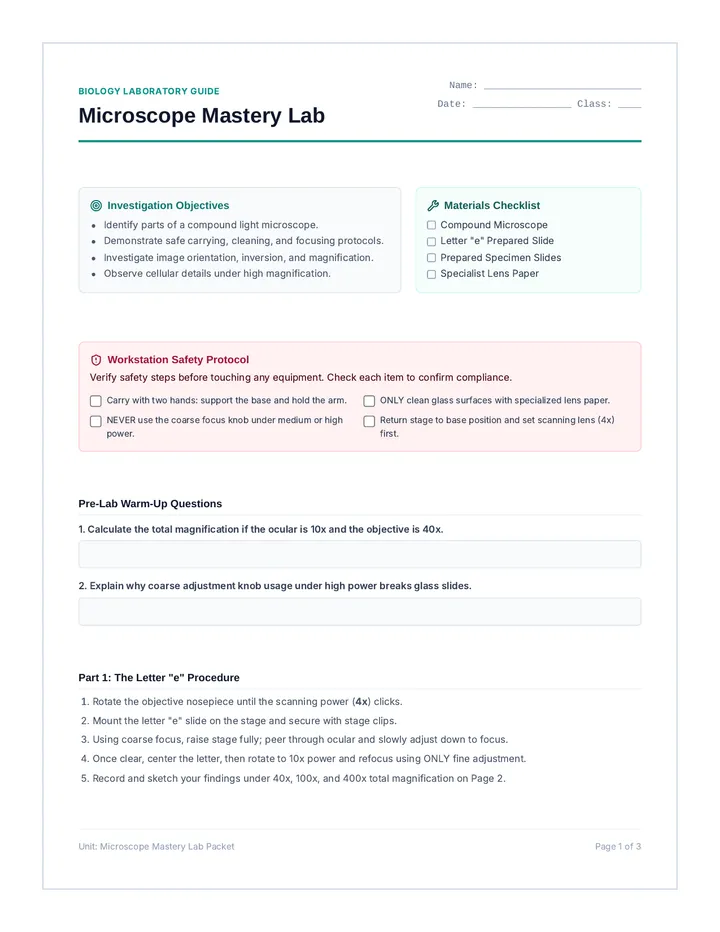

Microscope Mastery Student Packet
Biology Laboratory Guide
Microscope Mastery Lab
Name: ___________________________
Date: _________________ Class: ____
Investigation Objectives
- Identify parts of a compound light microscope.
- Demonstrate safe carrying, cleaning, and focusing protocols.
- Investigate image orientation, inversion, and magnification.
- Observe cellular details under high magnification.
Materials Checklist
- Compound Microscope
- Letter "e" Prepared Slide
- Prepared Specimen Slides
- Specialist Lens Paper
Workstation Safety Protocol
Verify safety steps before touching any equipment. Check each item to confirm compliance.
Carry with two hands: support the base and hold the arm. ONLY clean glass surfaces with specialized lens paper. NEVER use the coarse focus knob under medium or high power. Return stage to base position and set scanning lens (4x) first.
Pre-Lab Warm-Up Questions
1. Calculate the total magnification if the ocular is 10x and the objective is 40x.
2. Explain why coarse adjustment knob usage under high power breaks glass slides.
Part 1: The Letter "e" Procedure
- Rotate the objective nosepiece until the scanning power (4x) clicks.
- Mount the letter "e" slide on the stage and secure with stage clips.
- Using coarse focus, raise stage fully; peer through ocular and slowly adjust down to focus.
- Once clear, center the letter, then rotate to 10x power and refocus using ONLY fine adjustment.
- Record and sketch your findings under 40x, 100x, and 400x total magnification on Page 2.
Unit: Microscope Mastery Lab Packet Page 1 of 3
Data Collection & Observations
Part 1: The Letter "e" Investigations
Name: ___________________________
Scientific Specimen Sketches
Scanning (40x Total)
Sketch exact orientation
Low Power (100x Total)
Sketch exact orientation
High Power (400x Total)
Sketch exact orientation
Dynamic Orientation Investigation
Look through the ocular while slowly nudging the physical slide. Record the direction the image travels.
Move Slide: LEFT
Image appears to move:
Move Slide: RIGHT
Image appears to move:
Move Slide: UP
Image appears to move:
