Variables and Control Rigor Slides Scientific Inquiry Masterclass • Unit 1
Variables and
Control Rigor
Designing bulletproof biological and chemical assays by mastering confounding variables, positive/negative controls, and testable hypotheses.
Advanced Biology & Chemistry Series
Slide 1 / 6
Isolating the Signal
Advanced Variables
Independent Variable (IV)
The factor you deliberately manipulate. Must be restricted to a single variable at a time to determine direct causal relationships.
Dependent Variable (DV)
The quantifiable biological response or rate measured. Must have defined, standard SI units of measurement (e.g., \( \text{mol/L/s} \)).
The Confounding Threat
An uncontrolled factor that covaries with the IV, making it impossible to determine if changes in the DV are truly caused by the IV.
Example: Temperature fluctuations in a kinetic enzyme assay mimicking a change in pH catalytic efficiency.
Establish clear cause-and-effect relationships
Slide 2 / 6
Neutralizing Noise
Experimental Constants
Physical Factors
Environmental variables like ambient temperature, light wavelength, atmospheric pressure, and experimental volume.
ENVIRONMENTAL
Chemical Integrity
Buffer pH, ionic strength, solvent purity, solute concentrations, and age of reagent biological solutions.
CHEMICAL
Biological Origin
Organism genotype, developmental stage, culture density, tissue type, and metabolic baseline state.
BIOLOGICAL
If you cannot control a variable, you must monitor and account for it
Slide 3 / 6
The Dual-Control Standard
Rigorous Controls
Negative Controls
Setups lacking the independent variable. Expecting no reaction or baseline response.
Purpose: Detects false positives, reagents contamination, background interference, or spontaneous reaction.
Positive Controls
Setups containing a known treatment guaranteed to produce a positive response .
Purpose: Validates experimental setup sensitivity and reagents functionality. Proves the test is capable of detecting responses.
A negative control guards against false positives; a positive control guards against false negatives
Slide 4 / 6
Testable Hypotheses
Drafting Mechanics
The Rigorous Template
"If [IV changed in specific way], then [DV will change in specific quantifiable way], because [underlying mechanism of action]."
Weak Hypothesis
"If we add plant fertilizer, plants will grow bigger because nutrients are healthy."
Rigorous Hypothesis
"If concentration of urea fertilizer is increased up to 15g/L, then average shoot mass will increase proportionally, because excess nitrogen facilitates rapid amino acid synthesis."
Avoid lazy correlations. Predict specific, mechanistic outcomes.
Slide 5 / 6
Laboratory Case Study
Active Practice
The Scenario: Microbial Inhibition
A researcher tests whether a newly discovered marine algae compound (Compound X ) acts as an antibiotic against pathogenic E. coli. They dissolve Compound X in DMSO (solvent) and apply it to bacterial cultures.
Goal: Build a flawless experiment setup containing an IV, DV, two control groups, and an isolated physical environment.
Team Debrief Prompts
What is the Negative Control? (Is it just water?)
What is the Positive Control?
Identify one major Confounding Threat in this design.
Note: Propose your designs in your guided notes.
Discuss with your lab group before committing to ink.
Slide 6 / 6

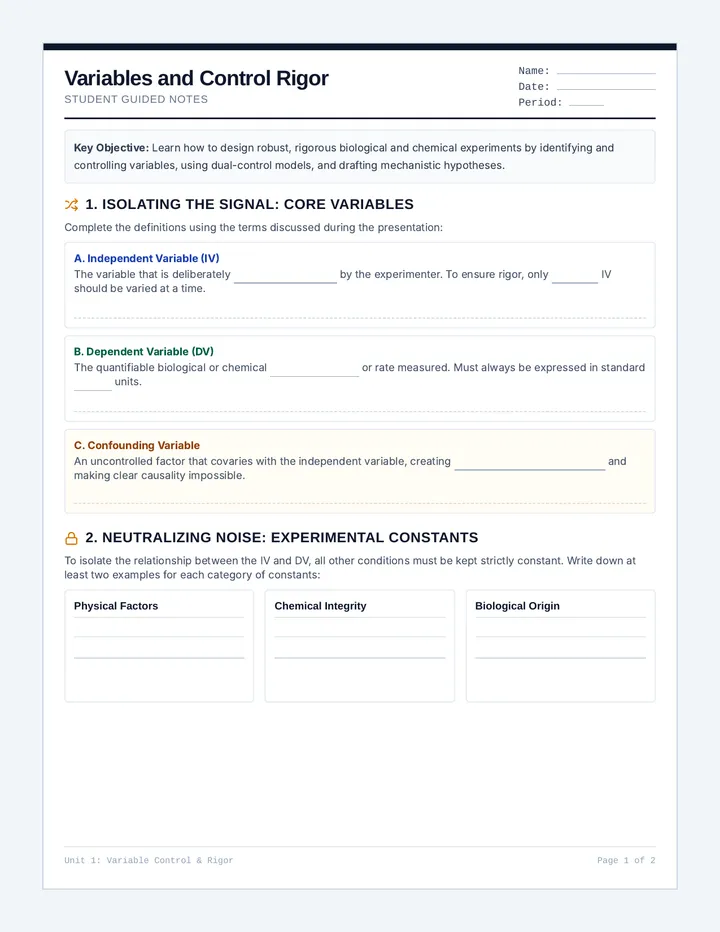

Variables and Control Rigor Guided Notes Variables and Control Rigor
Student Guided Notes
Name:
Date:
Period:
Key Objective: Learn how to design robust, rigorous biological and chemical experiments by identifying and controlling variables, using dual-control models, and drafting mechanistic hypotheses.
1. Isolating the Signal: Core Variables
Complete the definitions using the terms discussed during the presentation:
A. Independent Variable (IV)
The variable that is deliberately manipulated by the experimenter. To ensure rigor, only one IV should be varied at a time.
B. Dependent Variable (DV)
The quantifiable biological or chemical response or rate measured. Must always be expressed in standard SI units.
C. Confounding Variable
An uncontrolled factor that covaries with the independent variable, creating experimental noise and making clear causality impossible.
2. Neutralizing Noise: Experimental Constants
To isolate the relationship between the IV and DV, all other conditions must be kept strictly constant. Write down at least two examples for each category of constants:
Physical Factors
Chemical Integrity
Biological Origin
Unit 1: Variable Control & Rigor Page 1 of 2
3. The Dual-Control Standard
Differentiate between positive and negative controls by completing the analytical framework:
Negative Control
Setup lacking the IV. Proves that without treatment, there is no response.
Guards Against:
Example:
Positive Control
Setup treated with a known compound. Proves the test setup is capable of producing a known response.
Guards Against:
Example:
4. Drafting Mechanics
Fill in the missing structural components of a mechanistic hypothesis:
"If independent variable change, then quantifiable DV response, because biological or chemical mechanism."
Rewrite a weak hypothesis ("If you heat water, yeast will die") into a rigorous mechanistic hypothesis:
Your Draft:
Active Practice: Case Study Compound X
Recall the Algae Compound X antibiotic test dissolved in DMSO. Write down the precise details of your proposed design:
Negative Control Treatment:
Why not plain water?
Positive Control Treatment:
What is a good standard antibiotic?

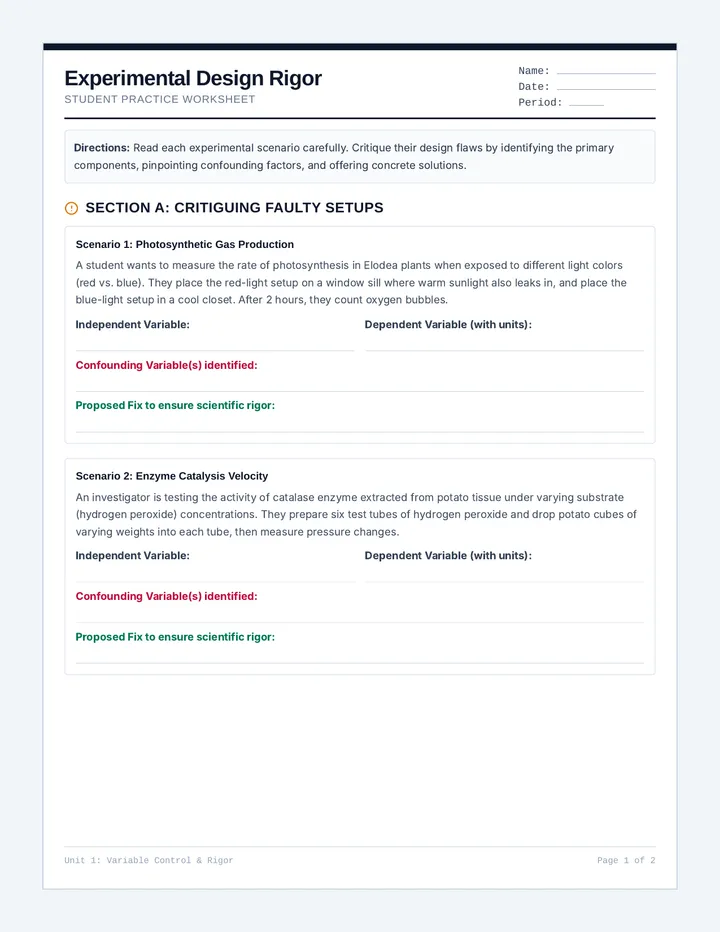

Variables and Control Rigor Practice Worksheet Experimental Design Rigor
Student Practice Worksheet
Name:
Date:
Period:
Directions: Read each experimental scenario carefully. Critique their design flaws by identifying the primary components, pinpointing confounding factors, and offering concrete solutions.
Section A: Critiguing Faulty Setups
Scenario 1: Photosynthetic Gas Production
A student wants to measure the rate of photosynthesis in Elodea plants when exposed to different light colors (red vs. blue). They place the red-light setup on a window sill where warm sunlight also leaks in, and place the blue-light setup in a cool closet. After 2 hours, they count oxygen bubbles.
Independent Variable:
Dependent Variable (with units):
Confounding Variable(s) identified:
Proposed Fix to ensure scientific rigor:
Scenario 2: Enzyme Catalysis Velocity
An investigator is testing the activity of catalase enzyme extracted from potato tissue under varying substrate (hydrogen peroxide) concentrations. They prepare six test tubes of hydrogen peroxide and drop potato cubes of varying weights into each tube, then measure pressure changes.
Independent Variable:
Dependent Variable (with units):
Confounding Variable(s) identified:
Proposed Fix to ensure scientific rigor:
Unit 1: Variable Control & Rigor Page 1 of 2
Section B: Protocol Design Challenge
Challenge Prompt:
Many cellular proteins only function within narrow pH thresholds. Design a highly rigorous experiment to test the buffer capacity of a new biochemical buffer solution, Buffer Z , compared to standard deionized water when acid (0.1M HCl) is added drop-wise.
1. Independent Variable:
2. Dependent Variable (including units):
3. Constants (List at least three):
4. Mechanistic Hypothesis (If, Then, Because structure):
5. Negative Control Setup
Describe the setup that serves as the negative baseline:
6. Positive Control Setup
Describe the setup that serves as the positive baseline:
7. Recommended Data Collection Table (Draft headers and layout):
Treatment Group Initial pH Drops of Acid Added Final pH Buffer Z 0 to 20 drops Negative Control
Data Statistics and Error Slides Scientific Inquiry Masterclass • Unit 2
Data Statistics and
Error Analysis
Quantifying experimental uncertainty, understanding statistical significance, and distinguishing random noise from systematic bias.
Advanced Biology & Chemistry Series
Slide 1 / 6
Describing the Spread
Descriptive Statistics
Sample Mean (\(\bar{x}\))
The arithmetic average of your data points. Represents the central tendency of your biological or chemical samples.
Formula: \(\bar{x} = \frac{\sum x_i}{n}\)
Standard Deviation (\(s\))
Measures the amount of variation or dispersion of data points around the mean. Tells you how consistent your repeats are.
Formula: \(s = \sqrt{\frac{\sum (x_i - \bar{x})^2}{n - 1}}\)
Mean shows the center; Standard Deviation shows the natural biological spread
Slide 2 / 6
Precision of the Estimate
Standard Error
Standard Error of the Mean (SEM)
Quantifies how close your sample mean is likely to be to the true population mean. It accounts for both spread and sample size .
Formula: \(SE_{\bar{x}} = \frac{s}{\sqrt{n}}\) As \(n\) increases, SEM shrinks!
Error Bars Rule
If error bars (specifically \(\pm 2 \times \text{SEM}\)) do not overlap between two treatment groups, the difference is likely statistically significant (p < 0.05).
Standard Deviation describes sample variability; Standard Error describes mean accuracy
Slide 3 / 6
Defining Experimental Flaws
Errors vs. Mistakes
Random Error
Unpredictable fluctuations in measurement. Affects precision (reproducibility) but cancels out over many trials.
Sources: Air drafts on scales, human timing reaction speed, biological cell-to-cell variations.
Systematic Error
Consistent, directional bias in measurement. Affects accuracy (truth) and cannot be removed by simply repeating the test.
Sources: Uncalibrated pH meters, scale not zeroed (tared), reading meniscus from bad angle.
Random error makes data fuzzy; systematic error pushes data away from the truth
Slide 4 / 6
The Statistical Blueprint
Mathematical Mechanics
1. Calculate Mean
\[\bar{x} = \frac{10 + 12 + 14}{3} = 12\]
Sum divided by replicates

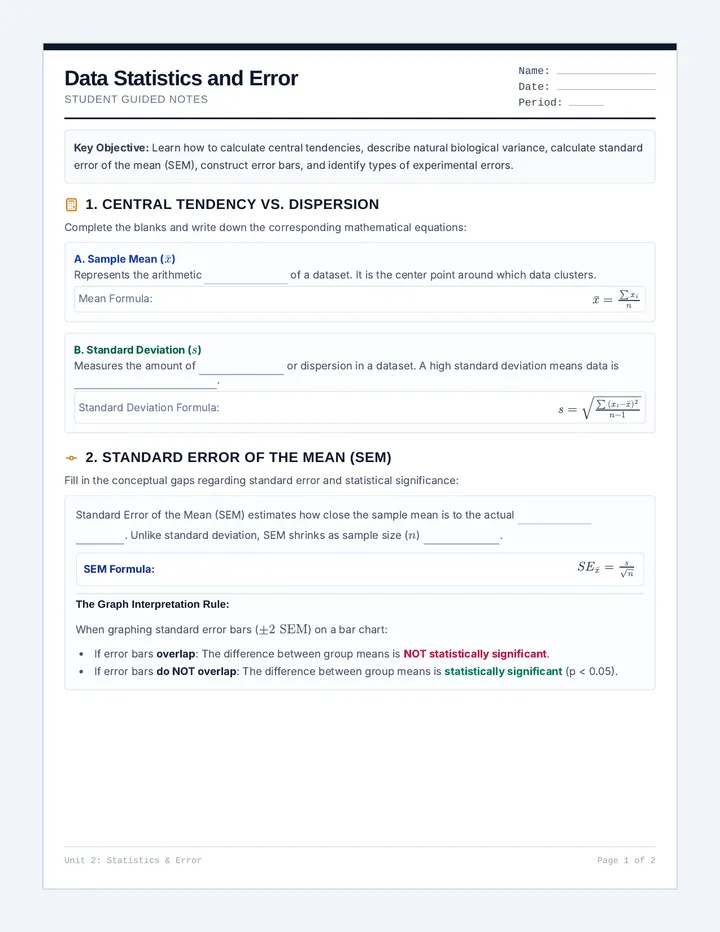

Data Statistics and Error Guided Notes Data Statistics and Error
Student Guided Notes
Name:
Date:
Period:
Key Objective: Learn how to calculate central tendencies, describe natural biological variance, calculate standard error of the mean (SEM), construct error bars, and identify types of experimental errors.
1. Central Tendency vs. Dispersion
Complete the blanks and write down the corresponding mathematical equations:
A. Sample Mean (\(\bar{x}\))
Represents the arithmetic average of a dataset. It is the center point around which data clusters.
Mean Formula: \(\bar{x} = \frac{\sum x_i}{n}\)
B. Standard Deviation (\(s\))
Measures the amount of variation or dispersion in a dataset. A high standard deviation means data is highly spread out.
Standard Deviation Formula: \(s = \sqrt{\frac{\sum (x_i - \bar{x})^2}{n - 1}}\)
2. Standard Error of the Mean (SEM)
Fill in the conceptual gaps regarding standard error and statistical significance:
Standard Error of the Mean (SEM) estimates how close the sample mean is to the actual population mean. Unlike standard deviation, SEM shrinks as sample size (\(n\)) increases.
SEM Formula: \(SE_{\bar{x}} = \frac{s}{\sqrt{n}}\)
The Graph Interpretation Rule:
When graphing standard error bars (\(\pm 2 \text{ SEM}\)) on a bar chart:
If error bars overlap: The difference between group means is NOT statistically significant .
If error bars do NOT overlap: The difference between group means is statistically significant (p < 0.05).
Unit 2: Statistics & Error Page 1 of 2
3. Systematic vs. Random Error
Complete the comparative table identifying the differences between the two primary error types:
Characteristic Random Error Systematic Error Impact on Data Affects precision (spread) Affects accuracy (bias) Direction of Flaw Fluctuates in both directions Pushes data in one direction Biological / Chemical Example
|
| How to Reduce It | Increase the number of trials / repeats | Calibrate the equipment and correct methods |
Statistical Active Practice: Slide 6 Data
Refer to the enzyme kinetics reaction rate dataset presented on the slides. Write your calculations below:

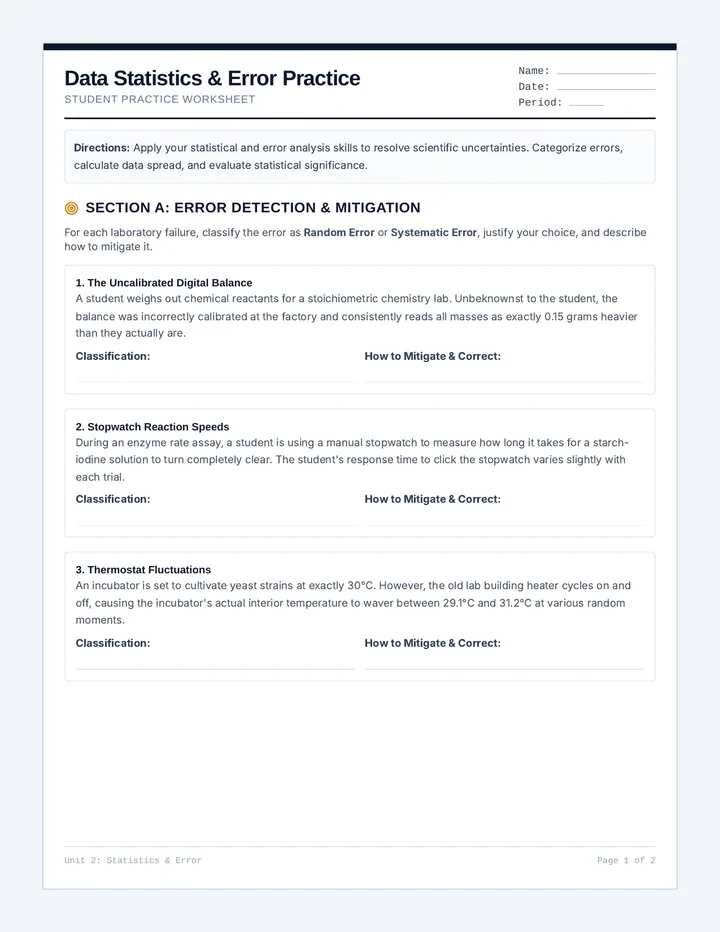

Data Statistics and Error Practice Worksheet Data Statistics & Error Practice
Student Practice Worksheet
Name:
Date:
Period:
Directions: Apply your statistical and error analysis skills to resolve scientific uncertainties. Categorize errors, calculate data spread, and evaluate statistical significance.
Section A: Error Detection & Mitigation
For each laboratory failure, classify the error as Random Error or Systematic Error , justify your choice, and describe how to mitigate it.
1. The Uncalibrated Digital Balance
A student weighs out chemical reactants for a stoichiometric chemistry lab. Unbeknownst to the student, the balance was incorrectly calibrated at the factory and consistently reads all masses as exactly 0.15 grams heavier than they actually are.
Classification:
Systematic Error
How to Mitigate & Correct:
2. Stopwatch Reaction Speeds
During an enzyme rate assay, a student is using a manual stopwatch to measure how long it takes for a starch-iodine solution to turn completely clear. The student's response time to click the stopwatch varies slightly with each trial.
Classification:
Random Error
How to Mitigate & Correct:
3. Thermostat Fluctuations
An incubator is set to cultivate yeast strains at exactly 30°C. However, the old lab building heater cycles on and off, causing the incubator's actual interior temperature to waver between 29.1°C and 31.2°C at various random moments.
Classification:
Random Error
How to Mitigate & Correct:
Unit 2: Statistics & Error Page 1 of 2
Section B: Statistical Calculation Master
A molecular biologist measures cellular respiration rate (\(\text{nmol } \text{O}_2\text{/min/mg cellular protein}\)) of mammalian cells incubated under two temperatures: a physiological baseline of 37°C and an elevated stress state of 42°C .
Treatment Group Trial 1 Trial 2 Trial 3 Trial 4 Mean (\(\bar{x}\)) SD (\(s\)) 37°C Group 8.2 8.9 8.4 8.5 Calculate... 0.30 42°C Group 9.5 10.7 9.9 10.3 Calculate...
Formal Scientific Writing and CER Slides Scientific Inquiry Masterclass • Unit 3
Formal Scientific
Writing and CER
Translating raw statistics and experimental design into a compelling, authoritative, and structured scientific argument.
Advanced Biology & Chemistry Series
Slide 1 / 6
The Anatomy of an Argument
The CER Framework
Claim
A precise, single-sentence statement that directly answers the scientific research question.
No fluff. No "I think". Just the direct answer.
Evidence
Scientific data supporting the claim. Must integrate specific numbers, mean averages, and statistical ranges (\(\pm \text{ SEM}\)).
Never refer to feelings; cite the quantified trends.
Reasoning
A comprehensive mechanistic explanation linking evidence to the claim. Incorporates biological or chemical principles.
Why does the chemistry/biology dictate this?
A complete scientific argument requires all three components working as a system
Slide 2 / 6
The Academic Tone Guidelines
Scientific Voice
The Banished List
Personal pronouns ("I", "We", "My", "Our")
Conversational or emotional descriptors ("Amazing", "Terrible", "Shocking")
Unsupported assertions and guesses
Lazy verbs ("The data proved", "The reaction did things")
The Professional Standard
Objective, third-person perspective ("The results indicate...", "It was observed that...")
Precise, mechanistic verbs ("Catalyzes", "Inhibits", "Correlates")
Hedged claims that match error boundaries ("Suggests", "Indicates", "Implies")
Science is objective. Let the data and the organisms speak, not your personal feelings.
Slide 3 / 6
Integrating Visual Data
Data Integration
Never Let Figures Stand Alone
Every figure, table, or graph in a professional lab report must be directly referenced and analyzed in the body paragraphs.
"As shown in Figure 1, the reaction rate declined by 42%..."
Statistical Integration
Do not just write "the values changed". State the start, end, percent difference, and standard error range explicitly.
Standard: "The mean photosynthetic velocity of the 400nm light treatment (\(14.2 \pm 0.3 \text{ mL/h}\)) was statistically higher..."
If you don't describe it in your text, it doesn't exist to your reader

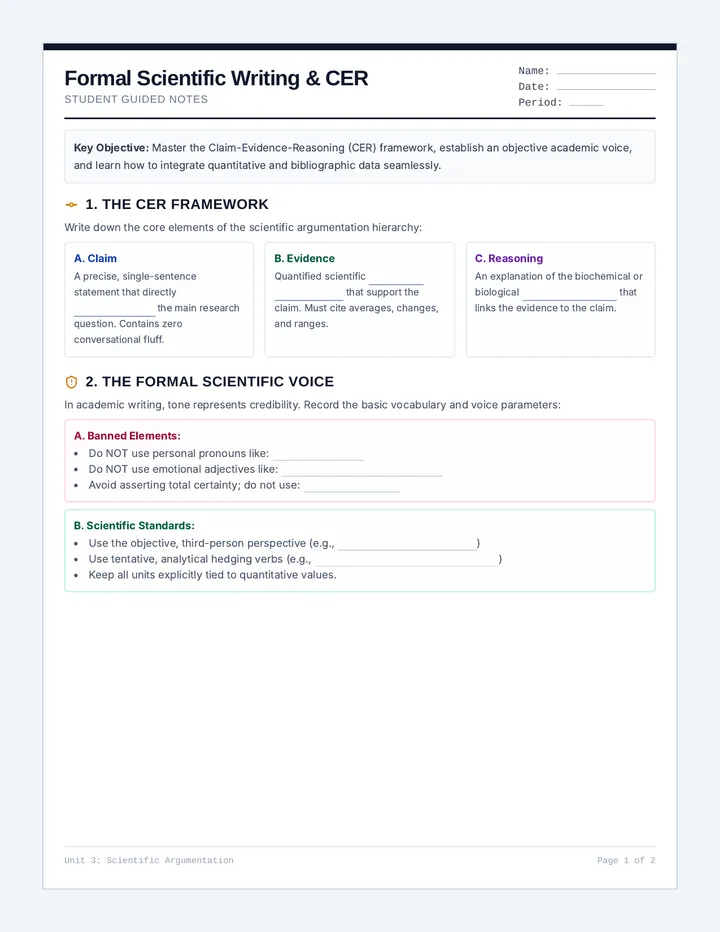

Formal Scientific Writing and CER Guided Notes Formal Scientific Writing & CER
Student Guided Notes
Name:
Date:
Period:
Key Objective: Master the Claim-Evidence-Reasoning (CER) framework, establish an objective academic voice, and learn how to integrate quantitative and bibliographic data seamlessly.
1. The CER Framework
Write down the core elements of the scientific argumentation hierarchy:
A. Claim
A precise, single-sentence statement that directly answers the main research question. Contains zero conversational fluff.
B. Evidence
Quantified scientific data / statistics that support the claim. Must cite averages, changes, and ranges.
C. Reasoning
An explanation of the biochemical or biological mechanism that links the evidence to the claim.
2. The Formal Scientific Voice
In academic writing, tone represents credibility. Record the basic vocabulary and voice parameters:
A. Banned Elements:
Do NOT use personal pronouns like: I, We, My, Our
Do NOT use emotional adjectives like: Amazing, Shocking, Terrible
Avoid asserting total certainty; do not use: Proved, Proves
B. Scientific Standards:
Use the objective, third-person perspective (e.g., It was observed that...)
Use tentative, analytical hedging verbs (e.g., Suggests, Indicates, Correlates)
Keep all units explicitly tied to quantitative values.
Unit 3: Scientific Argumentation Page 1 of 2
3. Integrating Visual & Statistical Data
A common mistake is inserting a graph without explaining it. Summarize the integration guidelines:
Guideline 1: Directly reference the illustration index number:
Example: "As depicted in Figure 1, the buffer capacity..."
Guideline 2: Avoid vague descriptions. Quantify changes:
Write "The mean rates rose from 12.0 to 14.0 nmol/s, a 16.7% increase..."
4. Academic Integrity & Citations
Explain why in-text citations are essential in scientific reports:
Write down why it protects scientific credibility:
Provide the correct parenthetical citation format used in modern academic chemistry and biology:
Format: "...as found in previous yeast assays (Author LastName, Year)."
Peer Review Workshop (Slide 6 Analysis)
Contrast the two drafts displayed on Slide 6. List the key scientific writing characteristics demonstrated by each:
Critique: Flawed Draft

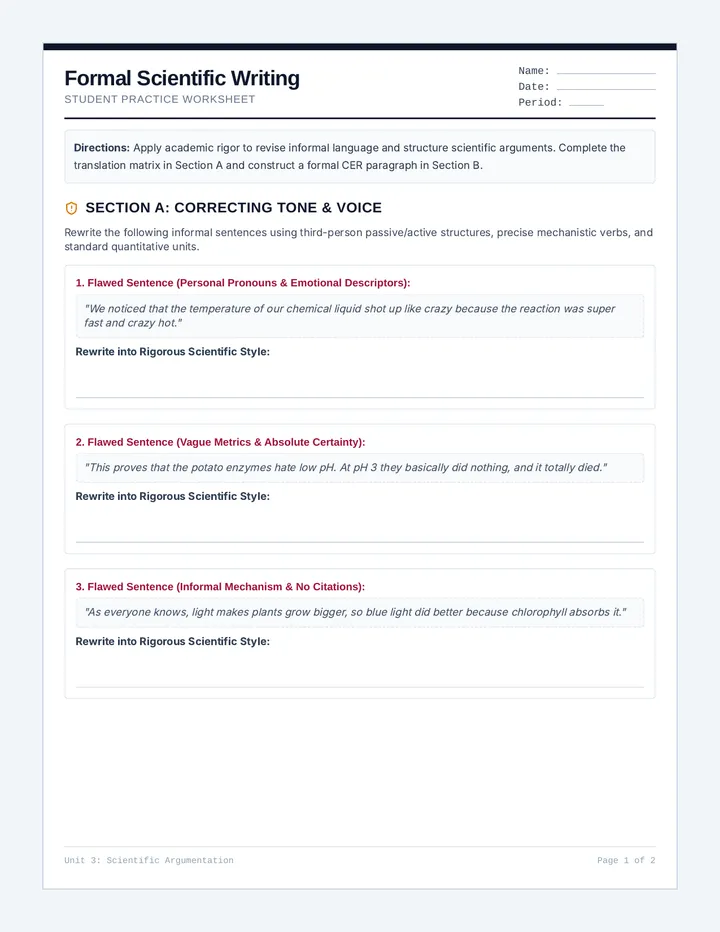

Formal Scientific Writing Practice Worksheet Formal Scientific Writing
Student Practice Worksheet
Name:
Date:
Period:
Directions: Apply academic rigor to revise informal language and structure scientific arguments. Complete the translation matrix in Section A and construct a formal CER paragraph in Section B.
Section A: Correcting Tone & Voice
Rewrite the following informal sentences using third-person passive/active structures, precise mechanistic verbs, and standard quantitative units.
1. Flawed Sentence (Personal Pronouns & Emotional Descriptors):
"We noticed that the temperature of our chemical liquid shot up like crazy because the reaction was super fast and crazy hot."
Rewrite into Rigorous Scientific Style:
2. Flawed Sentence (Vague Metrics & Absolute Certainty):
"This proves that the potato enzymes hate low pH. At pH 3 they basically did nothing, and it totally died."
Rewrite into Rigorous Scientific Style:
3. Flawed Sentence (Informal Mechanism & No Citations):
"As everyone knows, light makes plants grow bigger, so blue light did better because chlorophyll absorbs it."
Rewrite into Rigorous Scientific Style:
Unit 3: Scientific Argumentation Page 1 of 2
Section B: Formal CER Drafting Challenge
The Scenario & Dataset: pH and Catalase Activity
A high school biology lab measures the catalytic decomposition velocity of hydrogen peroxide by potato catalase at different pH intervals. Replicate rates (\(\text{mL } \text{O}_2\text{/min}\), mean \(\bar{x} \pm 2\text{ SEM}\)) are recorded:
Treatment pH Decomposition Rate (\(\bar{x} \pm 2\text{ SEM}\)) Statistical Overlap with pH 7? pH 5.0 \(3.2 \pm 0.4 \text{ mL/min}\) No Overlap (Significant) pH 7.0 (Baseline) \(8.5 \pm 0.3 \text{ mL/min}\) Self-baseline pH 9.0 \(4.1 \pm 0.5 \text{ mL/min}\) No Overlap (Significant)
Construct a cohesive scientific argument answering: "How does varying pH affect potatoes' catalase enzyme activity?" Write your sections below:
1. Claim (Single-sentence precise answer):
2. Evidence (Cite raw values, statistical boundaries, and overlaps):
3. Reasoning (Mechanistically explain why pH alters active site structure):
Unit 3: Scientific Argumentation Page 2 of 2
