Shaping Commonwealth Lesson Plan Massachusetts Earth Science • Grade 4
Shaping Commonwealth Lesson Plan
Duration: 85 Minutes
Unit: Earth Systems & Landforms
Essential Question
"How do water and wind forces reshape Earth's surface over time, and what geological evidence remains across Massachusetts today?"
Standards
NGSS 4-ESS2-1: Weathering & erosion effects.MA STE 4-ESS2-2: Topographic features & mapping.
Learning Targets (SWBAT)
• Differentiate between physical weathering (breaking), erosion (moving), and deposition (dropping).
• Model sediment transport using variable stream-table slopes and flow rates.
• Connect model dynamics to the Connecticut River Valley and Cape Cod barrier dunes.
Academic Vocabulary
Weathering Rock breakdown in place.
Erosion Movement of sediments.
Deposition Settling of earth materials.
Delta / Spit Depositional landforms.
Materials & Station Setup (Per Group of 4)
1 Stream Table Tray (24"×12")
2 cups coarse sand & fine silt
1 cup small pea gravel
Water beaker with pour spout (500mL)
Elevation wood blocks (2" and 4")
Catch bucket & sponge for drainage
Lesson Pacing & Phasing Guide
Hook (10m)
Mystery Aerials of Massachusetts: Project CT River oxbow and Cape Cod sandy hook. Ask: "What natural architect carved these shapes?"
Direct (15m)
The Power of Water & Wind: Present interactive slides breaking down weathering vs erosion vs deposition. Demonstrate stream table protocol safely.
Lab (30m)
Stream-Table Simulation Trials: Students test gentle slope vs steep slope runoff, logging sediment transport and channel formation on lab sheets.
Synthesize (20m)
Geology Debrief: Map student lab observations to New England landforms (valleys, gorges, coastal sand dunes).
Close (10m)
Individual Cool Down: Students complete regional geology scenario assessment ticket.
Shaping the Commonwealth • Grade 4 Earth Science Page 1 of 2: Curriculum Architecture
Facilitation Guide & Pedagogical Supports
Instructional Scripts & Scaffolding
Teacher Resource
Teacher Script: Launching the Investigation
"Geologists, look at this Massachusetts map. The Pioneer Valley in Western Massachusetts has deep, rich soil framed by steep cliffs, while Cape Cod is almost pure shifting sand jutting into the Atlantic. Did someone truck that sand there? Did humans dig out the river valley? Today, our stream tables will act as time machines, compressing millions of years of Massachusetts geological history into forty minutes."
Key Guiding Questions During Simulation
During Flow: "Which sediment grains moved first when the water started flowing—the tiny silt grains or the heavy pea gravel?"At High Slope: "Look at the canyon walls. What is happening to the sides of your stream channel as the water accelerates?"At The Basin: "Where does the sand end up once the water reaches the flat end? What does this triangular mound resemble in real life?"
Anticipated Student Misconceptions
Common Misconception Scientific Reality & Clarifying Strategy "Weathering and erosion are the exact same thing." Weathering breaks it; erosion takes it. Use hand gestures: snap fingers for weathering (break), swoop arms for erosion (carry away)."Canyons and river valleys only form during sudden giant floods." While flash floods accelerate erosion, constant slow water flow over vast spans of geological time cuts deep valleys like the Connecticut River Basin. "Wind doesn't move rocks or earth, only water can." Wind constantly saltates fine sand grains, building towering dunes in Provincetown and shifting coastal barrier beaches annually.
Differentiation Strategies
Support / ELL: Provide visual word bank with photo cards of weathering, erosion, deposition. Assign specific group roles (Pourer, Scribe, Measurer, Safety Officer).
Enrichment: Challenge students to build a natural mitigation structure (e.g., small pebble seawall or twig root system) to prevent channel collapse.
Clean-up & Safety Protocol
Never pour sand or gravel down classroom sinks; use catch-strainers.
Keep floor towels under each stream table catch basin to prevent slip hazards.
Sponge out remaining water before returning sand to the drying bins.
Hands must be washed immediately after handling sediment.
Shaping the Commonwealth • Grade 4 Earth Science Page 2 of 2: Instruction & Differentiation
Shaping Commonwealth Slide Deck Commonwealth Geological Survey
Grade 4 Earth Science Expedition
Lab Mission 04
Shaping the Commonwealth
Investigating how running water and coastal winds sculpt Massachusetts landforms through hands-on stream-table simulations.
Water & Wind Forces
Sediment Transport
Massachusetts Landforms
Geological Mystery
Exhibit A & B
Two Landscapes. One State. What Sculpted Them?
Pioneer Valley (Western MA)
Carved deep into bedrock with rich fertile bottomland soil, flanked by dramatic basalt ridge cliffs.
Carved over thousands of years by moving river water.
Cape Cod & The Islands
A curving arm of pure sand dunes, barrier beaches, and tidal marshes that change with every storm.
Shaped continuously by ocean waves and coastal wind.
Key Question: What natural forces have the power to move mountains and build islands?
Core Earth Science Concepts
The 3-Step Cycle
The Big Three: How Earth Materials Move
1. Weathering "BREAK IT"
Water, ice, plant roots, and wind crack and break solid rock into smaller sediment.
2. Erosion "TAKE IT"
Flowing water, waves, gravity, or wind carry loosened sediment away from its source.
3. Deposition "DROP IT"
Moving water or wind slows down and drops sediments in a new location, forming new land.
Remember the Geologist Chant: Break it! Take it! Drop it!
Regional Case Study 01
Western Massachusetts
Water in Motion
The Mighty Connecticut River Valley
• Over 410 miles long, the Connecticut River is New England's largest river ecosystem.
• Flowing water carved through softer sandstones, creating a broad, deep agricultural valley framed by rugged mountain ridges.
• As the river rounds sharp bends, it erodes the outer bank and deposits rich silt on the inner bank, creating dramatic oxbows.
Look For in Lab:
How flowing water cuts winding canyons into packed sand.
Where eroded sediment travels along the river bed.
Field Connection: Hadley & Northampton, MA Process: Running Water Erosion
Regional Case Study 02
Coastal Massachusetts
Wind & Ocean Currents
Cape Cod National Seashore
• Cape Cod began as glacial debris 15,000 years ago. Ever since, Atlantic ocean waves have battered its eastern cliffs.

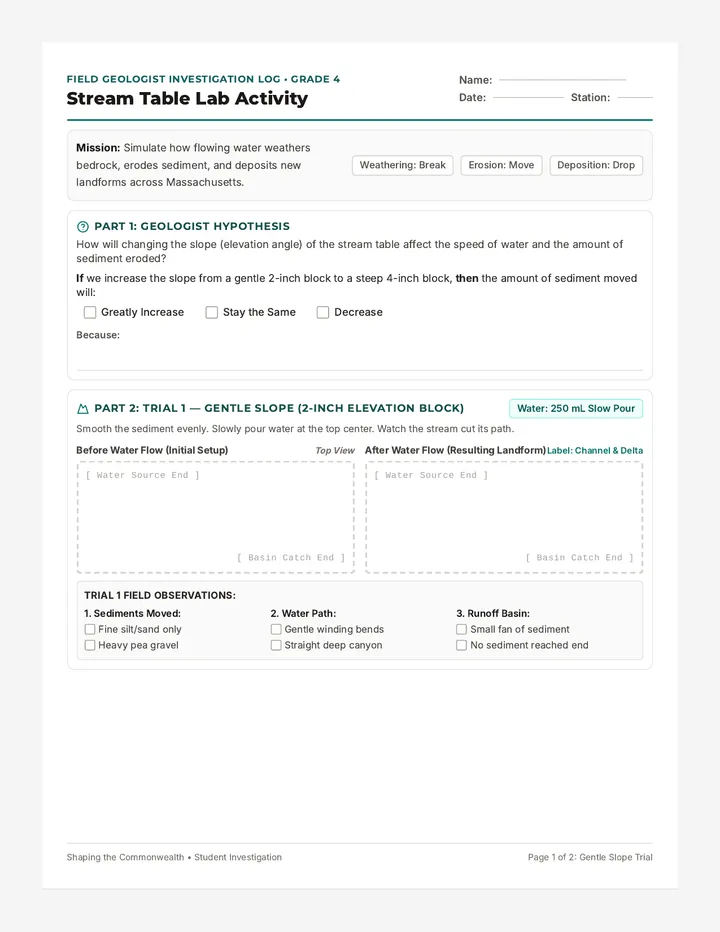

Stream Table Lab Activity Field Geologist Investigation Log • Grade 4
Stream Table Lab Activity
Name:
Date: Station:
Mission: Simulate how flowing water weathers bedrock, erodes sediment, and deposits new landforms across Massachusetts.
Weathering: Break Erosion: Move Deposition: Drop
Part 1: Geologist Hypothesis
How will changing the slope (elevation angle) of the stream table affect the speed of water and the amount of sediment eroded?
If we increase the slope from a gentle 2-inch block to a steep 4-inch block, then the amount of sediment moved will:
Greatly Increase Stay the Same Decrease
Because:
Part 2: Trial 1 — Gentle Slope (2-Inch Elevation Block)
Water: 250 mL Slow Pour
Smooth the sediment evenly. Slowly pour water at the top center. Watch the stream cut its path.
Before Water Flow (Initial Setup) Top View
[ Water Source End ] [ Basin Catch End ]
After Water Flow (Resulting Landform) Label: Channel & Delta
[ Water Source End ] [ Basin Catch End ]
Trial 1 Field Observations:
1. Sediments Moved:
Fine silt/sand only Heavy pea gravel
2. Water Path:
Gentle winding bends Straight deep canyon
3. Runoff Basin:
Small fan of sediment No sediment reached end
Shaping the Commonwealth • Student Investigation Page 1 of 2: Gentle Slope Trial
Part 3: Comparative Trial & Regional Synthesis
Trial 2 — Steep Slope (4-Inch Block)
High Energy Flow
Trial 2 Resulting Landform Sketch Label: Canyon & Delta
[ High Source End ] [ Low Catch Basin ]
Comparative Metrics Table
Observation Trial 1 (2") Trial 2 (4") Water Speed Slow trickle Fast rushing Channel Depth Shallow Deep groove Gravel Moved? No Yes, tumbled Delta Deposit Small mound Large spread
Part 4: Massachusetts Landform Connections
Match each real-world Massachusetts landform to the geological simulation process that created it:
A. Connecticut River Oxbow Meandering water erodes outside bends and deposits inside bars.

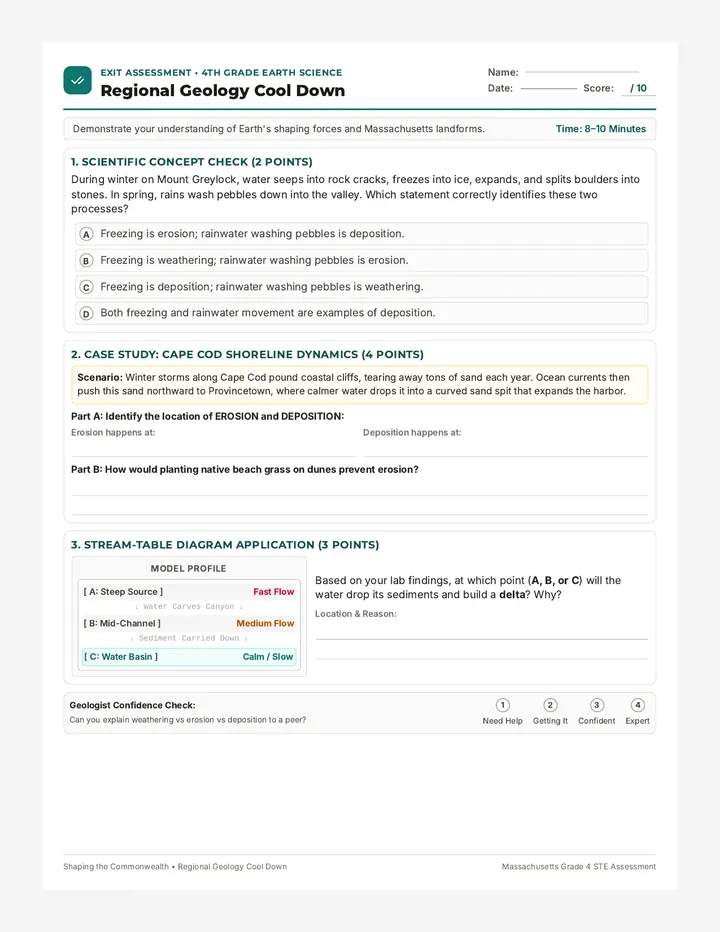

Regional Geology Cool Down Exit Assessment • 4th Grade Earth Science
Regional Geology Cool Down
Name:
Date: Score: / 10
Demonstrate your understanding of Earth's shaping forces and Massachusetts landforms. Time: 8–10 Minutes
1. Scientific Concept Check (2 Points)
During winter on Mount Greylock, water seeps into rock cracks, freezes into ice, expands, and splits boulders into stones. In spring, rains wash pebbles down into the valley. Which statement correctly identifies these two processes?
A Freezing is erosion; rainwater washing pebbles is deposition.
B Freezing is weathering; rainwater washing pebbles is erosion.
C Freezing is deposition; rainwater washing pebbles is weathering.
D Both freezing and rainwater movement are examples of deposition.
2. Case Study: Cape Cod Shoreline Dynamics (4 Points)
Scenario: Winter storms along Cape Cod pound coastal cliffs, tearing away tons of sand each year. Ocean currents then push this sand northward to Provincetown, where calmer water drops it into a curved sand spit that expands the harbor.
Part A: Identify the location of EROSION and DEPOSITION:
Erosion happens at:
Deposition happens at:
Part B: How would planting native beach grass on dunes prevent erosion?
3. Stream-Table Diagram Application (3 Points)
Model Profile
[ A: Steep Source ] Fast Flow
↓ Water Carves Canyon ↓
[ B: Mid-Channel ] Medium Flow
↓ Sediment Carried Down ↓
[ C: Water Basin ] Calm / Slow
Based on your lab findings, at which point (A, B, or C ) will the water drop its sediments and build a delta ? Why?
Location & Reason:
Geologist Confidence Check: Can you explain weathering vs erosion vs deposition to a peer?
1 Need Help
2 Getting It
3 Confident
4 Expert
Shaping the Commonwealth • Regional Geology Cool Down Massachusetts Grade 4 STE Assessment
