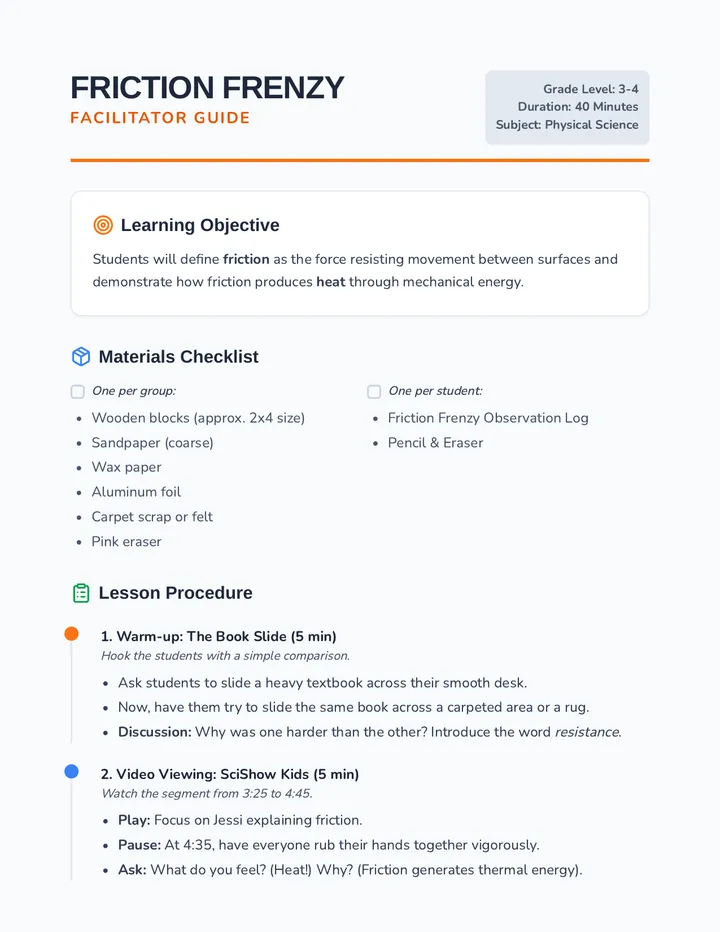

Friction Frenzy Facilitator Guide Friction Frenzy
Facilitator Guide
Grade Level: 3-4
Duration: 40 Minutes
Subject: Physical Science
Learning Objective
Students will define friction as the force resisting movement between surfaces and demonstrate how friction produces heat through mechanical energy.
Materials Checklist
One per group:
Wooden blocks (approx. 2x4 size)
Sandpaper (coarse)
Wax paper
Aluminum foil
Carpet scrap or felt
Pink eraser
One per student:
Friction Frenzy Observation Log
Pencil & Eraser
Lesson Procedure
1. Warm-up: The Book Slide (5 min)
Hook the students with a simple comparison.
Ask students to slide a heavy textbook across their smooth desk.
Now, have them try to slide the same book across a carpeted area or a rug.
Discussion: Why was one harder than the other? Introduce the word resistance .
2. Video Viewing: SciShow Kids (5 min)
Watch the segment from 3:25 to 4:45.
Play: Focus on Jessi explaining friction.Pause: At 4:35, have everyone rub their hands together vigorously.Ask: What do you feel? (Heat!) Why? (Friction generates thermal energy).
3. Experiment: Friction Detectives (20 min)
Hands-on testing and data collection.
Testing: Students slide the wooden block across the four surfaces (sandpaper, wax, foil, carpet).Recording: Use the Observation Log to rank resistance from Low to High.Heat Check: Rub a pink eraser vigorously on the desk for 15 seconds. Immediately touch the eraser and the spot on the desk.
4. Reflection: Ice Skating Mystery (10 min)
Synthesize the learning.
Challenge students to explain why ice skates glide so well.
Key Concept: Friction creates heat → heat melts a tiny layer of ice → water acts as a "lubricant" (slippery helper).
Vocabulary
Force: A push or pull acting on an object.
Friction: The resistance encountered when surfaces rub together.
Pressure: Force applied over a specific area.
Misconception Alert
Students often think ice is slippery because it is smooth. Remind them that the heat from friction actually creates a thin layer of liquid water, which is what truly makes it glide!
Friction Frenzy Slides Friction Frenzy
The Science of Slide & Heat
Physics
Thermal Energy
Warm Up: The Book Slide
On Your Desk
How easily does your book slide? Describe the feeling.
On the Carpet
Try sliding it on the rug. What changed? Why is it harder?
What is Friction?
"Friction is the resistance that one surface or object encounters when moving over another."
Rough Surfaces
Create MORE friction (harder to slide).
Smooth Surfaces
Create LESS friction (easier to slide).
The Science of Ice Skating
Watch: 3:25 - 4:45
Embedded media
Look for: Why does rubbing hands create heat?
Friction Detectives
Sandpaper
Rough
Wax Paper
Waxy
Foil
Metallic
Carpet
Fuzzy
Mission: Test each surface and rank the friction!
The "Slippery" Secret
Friction → Heat
When the metal blade of a skate rubs the ice, it creates heat.
Heat → Melting
That heat melts a tiny layer of ice into liquid water.
The thin layer of water acts like grease, making you glide!

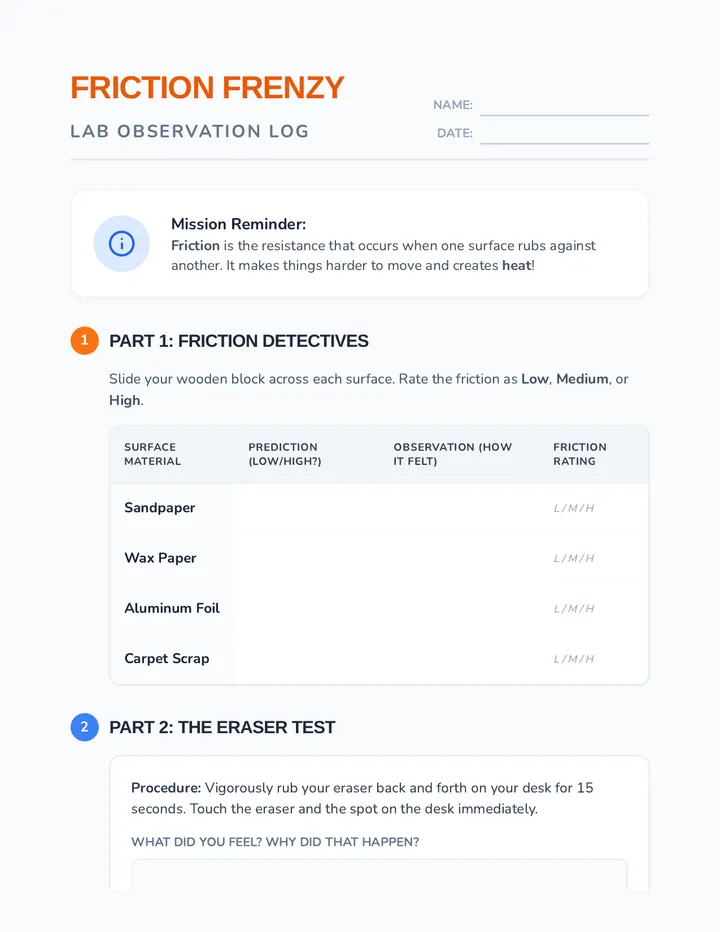

Friction Frenzy Lab Log Friction Frenzy
Lab Observation Log
Name:
Date:
Mission Reminder:
Friction is the resistance that occurs when one surface rubs against another. It makes things harder to move and creates heat !
1
Part 1: Friction Detectives
Slide your wooden block across each surface. Rate the friction as Low , Medium , or High .
Surface Material Prediction (Low/High?) Observation (How it felt) Friction Rating Sandpaper L / M / H Wax Paper L / M / H Aluminum Foil L / M / H Carpet Scrap L / M / H
2
Part 2: The Eraser Test
Procedure: Vigorously rub your eraser back and forth on your desk for 15 seconds. Touch the eraser and the spot on the desk immediately.
What did you feel? Why did that happen?
3
Part 3: The Ice Skater Mystery
Explain why ice skates glide so smoothly across a frozen pond. Use the words friction, heat, and water in your answer.

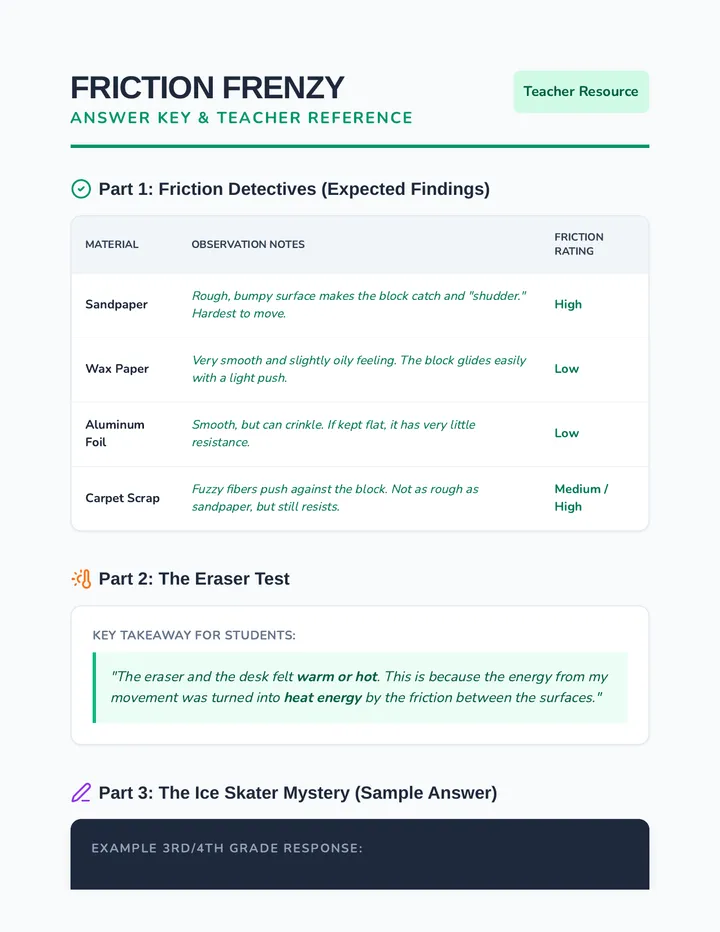

Friction Frenzy Answer Key Friction Frenzy
Answer Key & Teacher Reference
Teacher Resource
Part 1: Friction Detectives (Expected Findings)
Material Observation Notes Friction Rating Sandpaper Rough, bumpy surface makes the block catch and "shudder." Hardest to move. High Wax Paper Very smooth and slightly oily feeling. The block glides easily with a light push. Low Aluminum Foil Smooth, but can crinkle. If kept flat, it has very little resistance. Low Carpet Scrap Fuzzy fibers push against the block. Not as rough as sandpaper, but still resists. Medium / High
Part 2: The Eraser Test
Key takeaway for students:
"The eraser and the desk felt warm or hot . This is because the energy from my movement was turned into heat energy by the friction between the surfaces."
Part 3: The Ice Skater Mystery (Sample Answer)
Example 3rd/4th Grade Response:
"Ice skates glide because the thin metal blade creates friction as it moves over the ice. This friction makes enough heat to melt a tiny bit of the ice into liquid water . That thin layer of water is very slippery and lets the skater slide easily across the pond."
Includes 'Friction'
Includes 'Heat'
Includes 'Water'
Extension Tip
If students finish early, ask them to brainstorm how we reduce friction in real life (e.g., oil in engines, wheels on suitcases) or where we want more friction (e.g., sneakers on a basketball court, car tires in snow).
