Paired cylindrical structures formed from microtubule triplets that organize spindle fibers to pull duplicate sister chromatids apart in mitosis.
6. [ ____ ] Single Locomotion Whip
Long, undulating solitary appendage powered by motor proteins that drives directional motility in human sperm cells.
Structure-Function Compare: Contrast the physical structure and motion of cilia versus flagella in human biology.

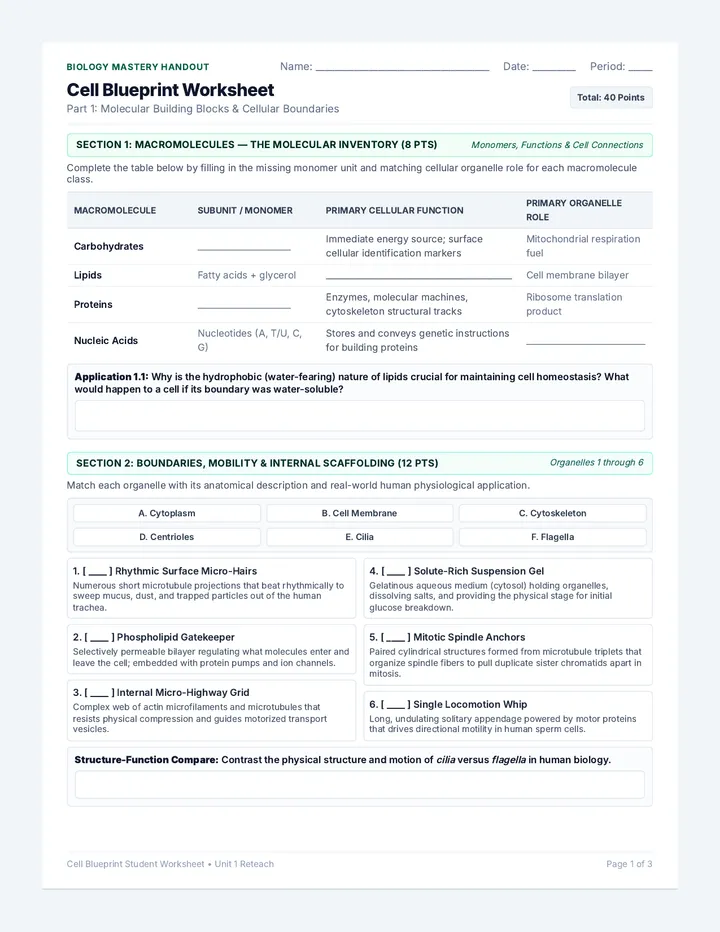

Cell Blueprint Student Worksheet • Unit 1 Reteach Page 1 of 3
Biology Mastery Handout Name: ____________________________________
Organelles 7 through 14: Information, Synthesis, Processing, Waste & Respiration
Section 3: Information & The Protein Pipeline (10 Pts) Trace the Pathway from Blueprint to Export
When a human cell manufactures and exports an essential enzyme (such as digestive amylase), four organelles must collaborate in strict sequence. Number the steps 1 through 4 and identify each organelle.
Step [ ____ ]
Organelle: ______________________________
The genetic gene sequence on DNA is transcribed into mRNA inside this double-membraned nuclear vault, then exported through pores.
Step [ ____ ]
Organelle: ______________________________
Non-membranous complexes translate the mRNA sequence into an amino acid polymer, docking along the folded membrane system.
Step [ ____ ]
Organelle: ______________________________
Newly synthesized polypeptide chains enter this ribosome-studded chamber, fold into 3D shapes, and bud off into transport vesicles.
Step [ ____ ]
Organelle: ______________________________
Vesicles fuse with flattened cisternae where carbohydrate tags are modified, sorted, and routed to the outer membrane for export.
Smooth ER Specialty: The Smooth ER lacks ribosomes. State two distinct biochemical duties carried out by the Smooth ER in human liver and endocrine cells.
Section 4: Energy, Recycling & Waste Disposal (10 Pts) Mitochondria, Lysosomes & Vacuoles
Mitochondria (Powerhouse) Aerobic ATP
Why is the inner membrane of the mitochondrion folded into elaborate cristae instead of being a simple flat sphere?
Lysosomes (Recycling) Acid Hydrolases
What would happen to a white blood cell if its lysosomes could not maintain an acidic internal pH? What danger would result?
Clinical Scenario 4.1: A patient suffers from extreme chronic fatigue, muscle weakness, and exercise intolerance. A biopsy reveals normal glycogen storage in vacuoles and normal ribosomes, but cellular ATP yields are less than 10% of normal. Which organelle is malfunctioning, and what metabolic process is impaired?
Cell Blueprint Student Worksheet • Unit 1 Reteach Page 2 of 3
Biology Mastery Handout Name: ____________________________________
Connecting Chromosomes to Organisms and Deciphering Specialized Cells
Section 5: Levels of Biological Organization (10 Pts) Hierarchy: Chromosome to Organism
Arrange the seven tiers of biological organization in order from smallest / most fundamental (1) to largest / most complex (7). Then, provide the matching example from the human respiratory system.
| Rank | Biological Level | Biological Definition | Human Example |
|---|---|---|---|
| 1 | Chromosome | DNA molecule coiled tightly around histone proteins | Chromosome 7 (CFTR gene) |
| 2 | _____________________ | Subcellular membrane structure executing specific work | Cilia on epithelial cell |
| 3 | Cell | ________________________________________________ | Ciliated epithelial cell |
| 4 | Tissue | Group of interconnected cells cooperating on one task | ___________________________ |
| 5 | _____________________ | Two or more tissues working collectively in one structure | Human Lung / Trachea |
| 6 | Organ System | Multiple organs coordinating a major physiological process | ___________________________ |
| 7 | Organism | The complete, independent living human individual | Individual Human Being |
Section 6: Cell Differentiation & Gene Regulation (10 Pts) Structure Matches Function
Examine the three specialized human cells below. Each possesses distinct organelle proportions tailored to its unique physiological duty.
A. Red Blood Cell
Ejects nucleus & mitochondria during maturation; biconcave disk packed with hemoglobin.
Why no mitochondria? To prevent consuming the very oxygen it transports!
B. Skeletal Muscle Cell
Elongated, multinucleated fibers packed with thousands of mitochondria & actin-myosin filaments.
Why so many mitochondria? Continuous ATP needed for repeated mechanical contraction.
C. Pancreatic Beta Cell
Packed with extensive Rough ER and prominent Golgi apparatus cisternae.
Why expanded ER/Golgi? Continuous synthesis and secretion of insulin protein hormone.
The Differentiation Synthesis Question: Do red blood cells, muscle cells, and pancreatic cells have different DNA, or the same DNA? Explain clearly how cells differentiate into such distinct shapes and jobs. Use the term gene expression in your answer.
Self-Confidence Rating: How confident are you on cell organelles and hierarchies?
[ ] 1 - Need Help [ ] 2 - Getting There [ ] 3 - Solid [ ] 4 - Mastered
Cell Blueprint Student Worksheet • Unit 1 Reteach Page 3 of 3
Organelle Link: Synthesized by ribosomes and folded in rough ER.
Master Code
Monomer: Nucleotides (A, T/U, C, G)
Cellular Role: Stores genetic code (DNA) and transfers assembly instructions (mRNA).
Organelle Link: Protected safely inside the nucleus.
The Central Dogma Connection: Nucleic acids (DNA/RNA) provide the blueprint; ribosomes assemble amino acids into proteins!
Organelles: Domain 1 Boundaries & Internal Structure
The physical enclosure and internal architecture holding the cell together.
Phospholipid Bilayer
Selectively permeable barrier controlling what enters and exits the cell.
Analogy: The Security Gate
Aqueous Gel Medium
Semifluid cytosol suspending organelles and hosting basic metabolic reactions.
Analogy: The Factory Floor
Protein Network
Microfilaments and microtubules maintaining shape and guiding vesicle transit.
Analogy: Steel Support Beams
Check: Without the cytoskeleton, vesicles couldn't move, and animal cells would collapse into formless puddles!
Organelles: Domain 1 Cont. Motility & Spindle Mechanics
Microtubule-powered structures for movement, fluid sweeping, and cell division.
Short Surface Hairs
Coordinated waving sweeps fluid, mucus, and debris across respiratory surfaces.
Example: Windpipe Lining
Long Whip Tail
Propels the entire cell forward through liquid via rotary whipping motion.
Example: Human Sperm Cell
Microtubule Barrels
Organizes mitotic spindle fibers that pull duplicated chromosomes apart.
Analogy: The Division Winches
Contrast: Cilia move fluids over a stationary cell; Flagella move the entire cell through fluid!
Organelles: Domain 2 Information & Translation
The command center that stores instructions and the machines that translate them.
Command Center
Enclosed by a double nuclear envelope with pores. Holds genomic DNA safely away from damaging cytosolic enzymes and directs RNA transcription.
Analogy: The locked architectural vault holding the master blueprints.
Protein Builders
Non-membranous complexes of rRNA and proteins. Reads mRNA code codons and links amino acids into long polypeptide chains.
Analogy: The 3D printers that physically construct proteins from raw beads.
Key Rule: DNA never leaves the nucleus! It sends disposable mRNA copies out to ribosomes for translation.
Organelles: Domain 2 Cont. The Endoplasmic Reticulum
Two interconnected membrane networks with completely different duties.
Studded
Covered in bound ribosomes. Folds nascent proteins into 3D shapes, adds carbohydrate tags, and packages them into transport vesicles.
Specialty: Proteins destined for export or insertion into membranes.
Ribosome-Free
Lacks ribosomes. Synthesizes lipids and steroid hormones, metabolizes carbohydrates, and detoxifies drugs and chemical poisons.
Specialty: Abundant in liver cells (detox) and endocrine glands (steroids).
Memory Tip: "Rough" = covered in ribosome sandpaper; "Smooth" = slippery like lipids and oils!
Organelles: Domain 3 Sorting & Recycling
Finishing protein shipments and recycling worn-out cellular parts.
Shipping Hub
Stacks of flattened cisternae that receive vesicles from Rough ER, further modifies proteins, attaches address tags, and dispatches them.
Analogy: The cell's post office stamping shipping barcodes on packages.
Waste Disposal
Acidic sacs filled with hydrolytic enzymes. Digests engulfed bacteria, breaks down damaged organelles, and reclaims raw amino acids.
Analogy: The cellular recycling plant and incinerator.
Fail-Safe Design: Lysosome enzymes only function at low pH (~4.8). If a lysosome ruptures, the neutral cytoplasm protects the cell!
Organelles: Domain 3 Cont. Storage & Cellular Respiration
Safeguarding reserves and fueling every energy-demanding cellular process.
Holding Vaults
Membrane-bound storage vesicles. Animal cells contain multiple small vacuoles storing water, nutrients, glycogen, and metabolic waste.
Analogy: Storage lockers and warehouse reserve bins.
Powerhouse
Double-membraned organelle with folded inner cristae. Performs aerobic cellular respiration, converting glucose energy into ATP.
Analogy: The electrical power plant energizing the entire factory.
Structure-Function: Highly active cells (heart muscle, liver) contain thousands of mitochondria to meet enormous ATP demands!
Synthesis in Action Organelle Teamwork
How organelles cooperate to build and export a hormone like insulin.
Step 1: Nucleus
Insulin gene on DNA is transcribed into mRNA, then exits nuclear pore.
Step 2: Ribosome
Ribosome docks on Rough ER and translates mRNA into an amino acid chain.
Step 3: Rough ER
Chain folds into 3D insulin, then buds off in a transport vesicle.
Step 4: Golgi
Vesicle fuses with Golgi; insulin is sorted and tagged for export.
Step 5: Exocytosis
Secretory vesicle fuses with cell membrane, releasing insulin to blood.
Takeaway: Organelles do not work in isolation. They function as a synchronized assembly line!
Hierarchical Scale From Chromosome to Human
Every step up adds new emergent properties that the parts alone cannot achieve.
1. Chromosome
DNA + histones
2. Organelle
Mitochondria
3. Cell
Cardiac myocyte
4. Tissue
Cardiac muscle
5. Organ
Human heart
6. System
Cardiovascular
7. Organism
Living Human
Emergent Property: A heart can pump blood, but an isolated cardiac muscle cell or mitochondrion cannot!
Specialization Gene Regulation Mechanics
Every somatic cell contains identical DNA. Differentiation occurs when specific genes are turned ON or OFF.
Oxygen Transporter
Ejects nucleus and mitochondria to pack maximum hemoglobin protein into a biconcave disc.
Adaptation: Streamlined Carrier
Force Generator
Packed with actin-myosin protein cables and thousands of ATP-producing mitochondria.
Adaptation: High Power Output
Signal Conductor
Meter-long axon with specialized membrane ion channels and neurotransmitter vesicles.
Adaptation: Long-Distance Relay
The Cookbook Analogy: Every cell has the entire cookbook, but each cell only bakes the recipes it needs for its job!
Lesson Wrap-Up Ready for Practice
1
Macromolecules build organelles; organelles execute the work of the living cell.
2
Structure dictates function: organelle shape, membrane folds, and enzymes match their job.
3
Differentiation uses selective gene expression to customize organelles for specialized roles.
Next Step: Complete the Cell Blueprint Worksheet & Exit Ticket
