Cell Blueprint Slides Cell Blueprint
Cell Organelles and Their Specialized Functions
Learning Blueprints
Identify
Locate and describe the function of key organelles in eukaryotic cells.
Compare
Differentiate between plant and animal cells based on their structural components.
Relate
Explain how the structure of an organelle relates directly to its biological function.
Standard
NCSCOS 8.L.1 (Foundation)
The Biological Machine
Cells are not just "bags of soup." They are highly organized factories where every part has a specific job.
Organelles: "Little Organs" with specialized tasks.
Eukaryotic: Cells with a nucleus (Plant & Animal).
Think of a cell as a city or a factory...
The Command Center
Ref: Nucleus
Function: Control
The nucleus directs all cell activities and holds the master blueprints (DNA).
Key Components:
• Nuclear Envelope (Protection)
• Nucleolus (Ribosome Maker)
• Chromatin (Genetic Code)
Energy Infrastructure
Mitochondria
The Power Plant
Converts sugar into energy (ATP) through cellular respiration.
Found in: Animal & Plant
Chloroplast
The Solar Array
Converts sunlight into sugar through photosynthesis.
Found in: Plant Only
Security & Structure
1
Cell Membrane
"The Gatekeeper"
Controls what enters and leaves. Flexible and thin. (All cells!)
2
Cell Wall
"The Exterior Armor"
Provides rigid support and protection. (Plants only!)
Key Logic:
Plants don't have skeletons, so they need cell walls for height and strength!
Logistics & Waste
Vacuole
Storage tank for water, food, or waste.
Pro Tip:
Plants have one large central vacuole to maintain water pressure!
Lysosome
The recycling center. Uses enzymes to break down old parts or waste.
Mostly common in animal cells.
Plant vs. Animal Specs
Organelle Animal Cell Plant Cell Nucleus / Mitochondria Chloroplast ABSENT PRESENT Cell Wall ABSENT PRESENT Vacuole Many Small 1 Large Central
Structure Defines Function
"The shape and build of a cell organelle tells you exactly what it does."
The Filter
The Cell Membrane is thin and semi-permeable so it can act like a filter for chemicals.
The Wall
The Cell Wall is made of tough cellulose to stand up against gravity without a skeleton.
The Storage
The Large Vacuole acts like a balloon, pushing against the walls to keep the plant upright (Turgor Pressure).
Cell Systems in Action
Teacher: Please provide a YouTube URL for a cell organelle animation or simulation.
Observe how the organelles work together as a single system. Which organelle is most important?
The Model Challenge
You are a Biological Architect. Your task is to design a 3D model that clearly shows the differences between Plant and Animal cell "blueprints."
Labeled Parts
Unique Shapes
Correct Keys

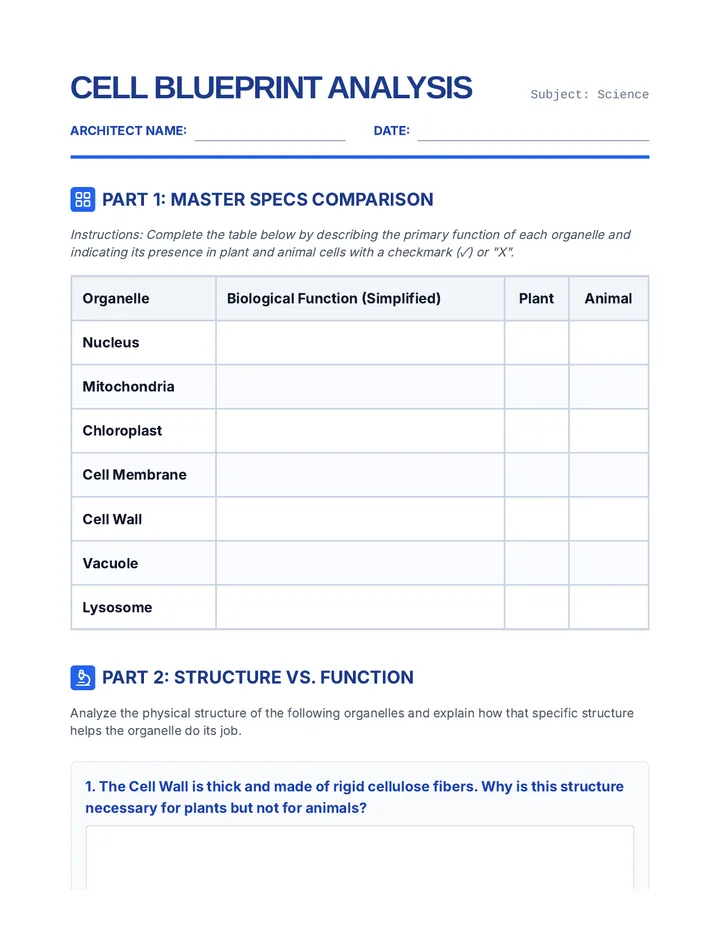

Cell Blueprint Worksheet Cell Blueprint Analysis
Subject: Science
Architect Name:
Date:
Part 1: Master Specs Comparison
Instructions: Complete the table below by describing the primary function of each organelle and indicating its presence in plant and animal cells with a checkmark (✓) or "X".
Organelle Biological Function (Simplified) Plant Animal Nucleus Mitochondria Chloroplast Cell Membrane Cell Wall Vacuole Lysosome
Part 2: Structure vs. Function
Analyze the physical structure of the following organelles and explain how that specific structure helps the organelle do its job.
1. The Cell Wall is thick and made of rigid cellulose fibers. Why is this structure necessary for plants but not for animals?
2. The Mitochondria has many internal folds (cristae). How does this folded structure help the cell produce more energy?
3. A plant cell has a single large central vacuole, while animal cells have many tiny ones. What would happen to a plant if its central vacuole shrank due to lack of water?
Part 3: The Sketch Challenge
Draw a diagram of a Plant Cell. Be sure to include and label: Nucleus, Mitochondria, Chloroplast, Cell Wall, and the Large Central Vacuole.
Blueprint Sketch Area

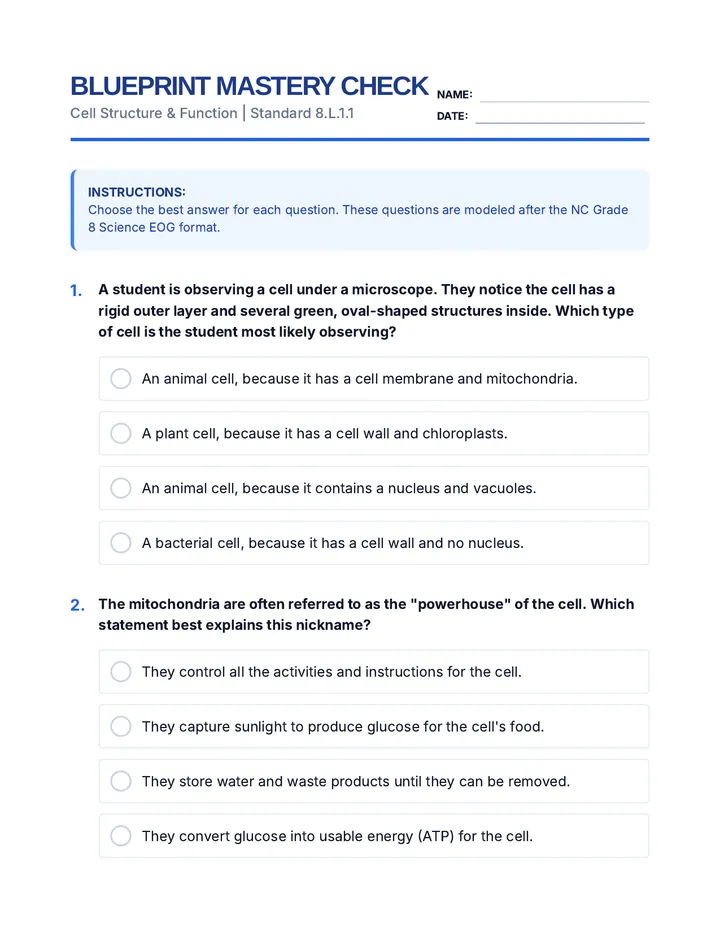

Cell Blueprint Mastery Check Blueprint Mastery Check
Cell Structure & Function | Standard 8.L.1.1
Name:
Date:
Instructions:
Choose the best answer for each question. These questions are modeled after the NC Grade 8 Science EOG format.
A student is observing a cell under a microscope. They notice the cell has a rigid outer layer and several green, oval-shaped structures inside. Which type of cell is the student most likely observing?
An animal cell, because it has a cell membrane and mitochondria.
A plant cell, because it has a cell wall and chloroplasts.
An animal cell, because it contains a nucleus and vacuoles.
A bacterial cell, because it has a cell wall and no nucleus.
The mitochondria are often referred to as the "powerhouse" of the cell. Which statement best explains this nickname?
They control all the activities and instructions for the cell.
They capture sunlight to produce glucose for the cell's food.
They store water and waste products until they can be removed.
They convert glucose into usable energy (ATP) for the cell.
How does the function of the cell wall differ from the function of the cell membrane?
The cell wall provides rigid support, while the cell membrane regulates what enters the cell.
The cell wall controls chemical reactions, while the cell membrane stores genetic data.
The cell wall produces energy, while the cell membrane provides structure to the cell.
The cell wall is found in all eukaryotic cells, while the cell membrane is only in plant cells.
Which organelle is responsible for storing water, nutrients, and waste, and is significantly larger in plant cells than in animal cells?
Nucleus
Lysosome
Vacuole
Ribosome
If the nucleus were removed from a cell, what would be the most immediate effect on the cell's ability to function?
The cell would immediately stop producing energy from sunlight.
The cell would be unable to store water and would shrink.
The cell would lose its genetic instructions and fail to regulate its activities.
The cell wall would break down, causing the cell to lose its shape.
Which of the following describes a structure-function relationship found only in plant cells?
A semi-permeable membrane that controls the movement of salts and water.

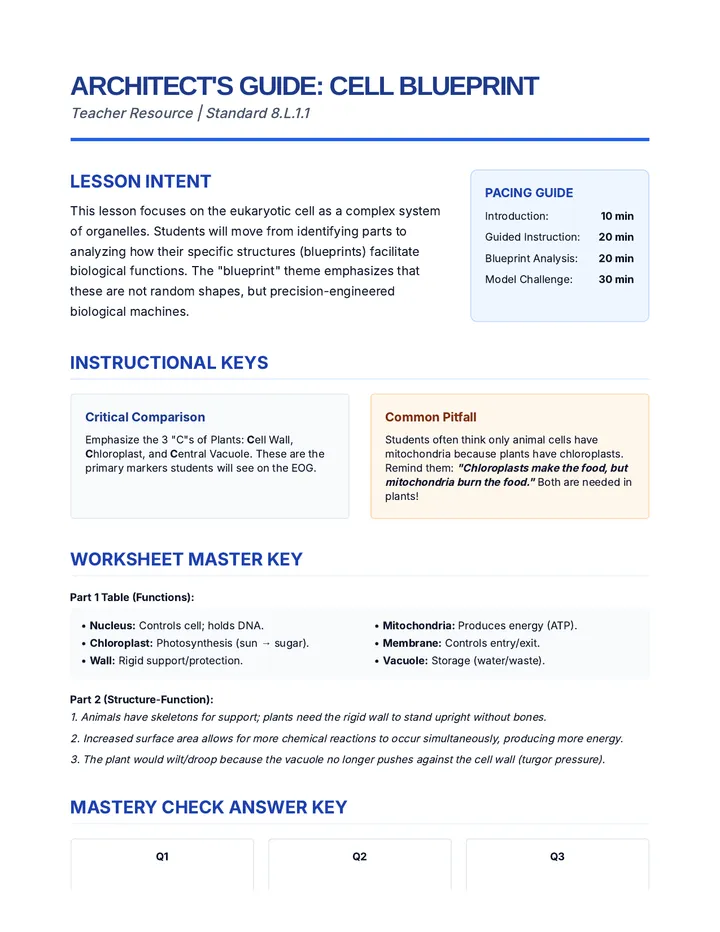

Cell Blueprint Teacher Guide Architect's Guide: Cell Blueprint
Teacher Resource | Standard 8.L.1.1
Lesson Intent
This lesson focuses on the eukaryotic cell as a complex system of organelles. Students will move from identifying parts to analyzing how their specific structures (blueprints) facilitate biological functions. The "blueprint" theme emphasizes that these are not random shapes, but precision-engineered biological machines.
Pacing Guide
Introduction: 10 min
Guided Instruction: 20 min
Blueprint Analysis: 20 min
Model Challenge: 30 min
Instructional Keys
Critical Comparison
Emphasize the 3 "C"s of Plants: Cell Wall, Chloroplast, and Central Vacuole. These are the primary markers students will see on the EOG.
Common Pitfall
Students often think only animal cells have mitochondria because plants have chloroplasts. Remind them: "Chloroplasts make the food, but mitochondria burn the food." Both are needed in plants!
Worksheet Master Key
Part 1 Table (Functions):
• Nucleus: Controls cell; holds DNA.
• Mitochondria: Produces energy (ATP).
• Chloroplast: Photosynthesis (sun → sugar).
• Membrane: Controls entry/exit.
• Wall: Rigid support/protection.
• Vacuole: Storage (water/waste).
Part 2 (Structure-Function):
1. Animals have skeletons for support; plants need the rigid wall to stand upright without bones.
2. Increased surface area allows for more chemical reactions to occur simultaneously, producing more energy.
3. The plant would wilt/droop because the vacuole no longer pushes against the cell wall (turgor pressure).
Mastery Check Answer Key
Q1 B
Q2 D
Q3 A
Q4 C
Q5 C
Q6 B
Model Challenge Facilitation
If students are building 3D models (using clay, recyclables, or digital tools), encourage "Functional Design":
Ask: "What material could represent the rigid cell wall? Why not use plastic wrap?"
Challenge: "How will you show that the plant vacuole is much larger than the animal one?"
Differentiate: Allow advanced students to create a "Factory Map" version where they label organelles as factory departments.
