Stability Slides Stability Shapes
PROPERTIES OF STABILITY IN ENGINEERING
REF: ENG-G5-S1
Tower Challenge
Can you build the tallest tower using only 20 marshmallows and 30 toothpicks?
Rules of Engagement
Must stand on its own
No other materials allowed
Time limit: 10 minutes
What is Stability?
Structural Rigidity
The ability of a shape to resist deformation (changing shape) when a force is applied.
Load
The weight or force that is placed on a structure.
The Battle of the Polygons
4
The Square
Squares are common in buildings, but are they stable? When pushed from the side, they "shear" or turn into rhombuses.
3
The Triangle
The strongest shape in nature. Triangles cannot be deformed without changing the length of their sides.
The Physics of Three
1
A triangle has fixed angles if the lengths of the three sides are fixed.
2
Forces are distributed equally along all three sides.
3
In a square, the corners (vertices) can pivot, allowing it to collapse.
// EXPERIMENT PREVIEW
Today, we will build 2D frames of both shapes and apply pressure.
Shape Strength Lab Worksheet Shape Strength Lab
EXPERIMENT NO: 101-G5
Engineer:
Date:
Objective
Investigate how different geometric shapes respond to lateral (side) pressure and identify which shapes are best for structural stability.
Supplies
• 20 Toothpicks
• 15 Mini-Marshmallows
• 1 Metric Ruler
• Engineering Log
Step 1: Prediction
Which shape will be harder to "squish" or deform? Why?
Step 2: Rigidity Test
Build a square and a triangle. Place them flat on your desk and gently push one corner while holding the opposite side.
Shape Name Vertices & Edges Observations (What happened when pushed?) SQUARE
|
V: ____
E: ____
| |
|
TRIANGLE
|
V: ____
E: ____
| |
Step 3: The "Fix-It" Challenge
How can you make the square as strong as the triangle without removing any toothpicks? Draw your solution and explain it.
DRAFTING AREA
EXPLANATION:
Conclusion
Based on your tests, why do you think engineers often use triangles in bridges?
SCALE: 1:1 SHEET: 01 / 05 GEO-STRUCTURAL DEPT.
Stability Teacher Guide Teacher Facilitation Guide
LESSON 01: STABILITY SHAPES
Duration 60 MIN
Lesson Intent
Students will discover that triangles are inherently rigid, while quadrilaterals are not. By the end of this lesson, students should be able to explain why triangles are the fundamental building blocks of structural engineering.
Materials List
Marshmallow Tower: 20 mini-marshmallows & 30 toothpicks per group.Lab Supplies: Additional marshmallows/toothpicks, rulers, lab sheets.Visuals: Stability Slides deck.
Key Vocabulary
Rigidity The ability of a shape to hold its form under pressure.
Shear Force A force that causes a shape to slide or tilt sideways.
Vertices The points where edges meet (marshmallows).
Instructional Pacing
10 MIN
HOOK: Marshmallow Challenge
Students attempt to build the tallest tower. Do not give hints yet! Let them fail/struggle with square bases to create a "need to know."
15 MIN
DIRECT INSTRUCTION: Stability Slides
Walk through slides 1-5. Focus on the concept of "Fixed Angles" in triangles vs "Pivoting Corners" in squares.
25 MIN
GUIDED EXPLORATION: Lab Worksheet
Students build 2D frames. Circulate and ask: "Why does the square turn into a rhombus, but the triangle stays a triangle?"
10 MIN
DEBRIEF: The Fix-It Solution
Show how adding a diagonal toothpick to the square creates two triangles. This is "triangulation."
Common Pitfalls
Students may think the triangle is stronger because of the material, rather than the geometry. Remind them materials are identical.
Ensure marshmallows are fresh; stale ones are too hard to pierce easily.
Differentiation
Support: Provide pre-cut templates of triangles and squares for students with motor skill challenges.Extension: Challenge students to build a 3D shape (tetrahedron vs cube) and test vertical load capacity. Bridge Geometry Slides Bridge Components
GEOMETRY IN ACTION
02
G5
From Theory to Steel
Yesterday we learned that triangles are rigid.
Today, we look at how engineers use that knowledge to build structures that span miles and hold thousands of tons.
Virtual Tour: Golden Gate
Look for the geometric shapes hidden in the suspension towers and support trusses.
01 The Truss Bridge
Structure: Connected Triangles
By connecting many triangles, engineers create a strong "web" that spreads out weight across the whole bridge.
Strength
High rigidity, lightweight, can span long distances.
Geometry
Equilateral or Isosceles triangles are most common.
02 The Arch Bridge
An arch works by compression. It pushes the weight of the bridge outward towards its supports (abutments).
Semicircle shape
Weight pushes down and out
Needs strong side walls
Mission: Bridge Detective
Your task is to analyze photographs of famous bridges and identify the "Primary Stabilizing Shape."
Identify
Label
Explain
Bridge Detective Worksheet Bridge Detective
Case File: Structural Analysis // Unit 02
OFFICER:
____________________
STATION:
____________________
Case Briefing
Engineers select shapes based on the forces acting on a bridge. Look at the bridge diagrams below. Your mission is to identify the primary geometric shape used for stability and explain why it was chosen.
FIG. A: TYPICAL TRUSS BRIDGE
Primary Geometric Shape:
Evidence (Why use this shape?):
FIG. B: STONE ARCH BRIDGE
Primary Geometric Shape:
Evidence (How does it handle force?):
FIG. C: SUSPENSION TOWER
Identify the 2D shapes inside the tower:
Structural Analysis:
Explain how the triangles help the tall towers stay upright.
Summary Conclusion
If an engineer had to build a bridge across a very long, windy canyon, which shape would you recommend they use most? Justify your choice with geometric evidence.
STRUCTURAL ANALYSIS LAB // V. 2.0 CONFIDENTIAL ENGINEERING RECORD

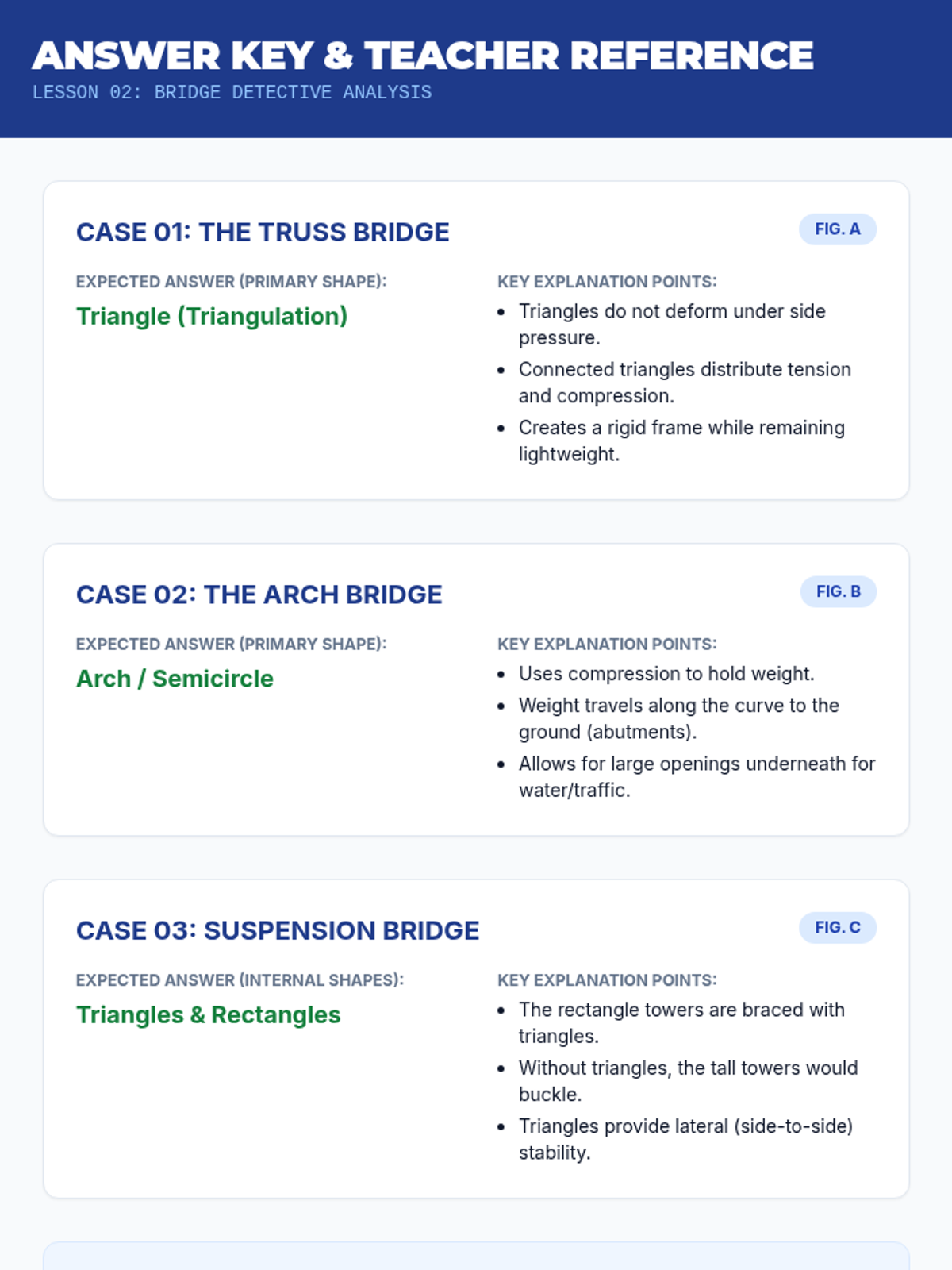

Bridge Gallery Key Answer Key & Teacher Reference
Lesson 02: Bridge Detective Analysis
Case 01: The Truss Bridge
FIG. A
Expected Answer (Primary Shape):
Triangle (Triangulation)
Key Explanation Points:
Triangles do not deform under side pressure.
Connected triangles distribute tension and compression.
Creates a rigid frame while remaining lightweight.
Case 02: The Arch Bridge
FIG. B
Expected Answer (Primary Shape):
Arch / Semicircle
Key Explanation Points:
Uses compression to hold weight.
Weight travels along the curve to the ground (abutments).
Allows for large openings underneath for water/traffic.
Case 03: Suspension Bridge
FIG. C
Expected Answer (Internal Shapes):
Triangles & Rectangles
Key Explanation Points:
The rectangle towers are braced with triangles.
Without triangles, the tall towers would buckle.
Triangles provide lateral (side-to-side) stability.
Critical Thinking Conclusion
"If an engineer had to build a bridge across a long, windy canyon..."
Mastery Response:
I would recommend a Truss Bridge . The many connected triangles provide extreme rigidity, which is important in high winds where the bridge might twist. The truss is also lightweight for long spans and doesn't require the solid ground supports that an arch bridge needs in a deep canyon.
Discussion Follow-up
The "Why" Question:
Ask: "If triangles are so good, why do we use any other shapes?" (A: Cost, aesthetic, space constraints, material availability).
Real-World Tie-in:
Mention the Eiffel Tower or bicycle frames as other non-bridge examples of triangulation.
Blueprint Design Slides Blueprint Design
Designing with Geometric Constraints
PROJECT CODE: GEO-300
LEVEL: 05
The Client's Request
Engineers don't just build whatever they want. They have to work within constraints.
Constraint (n.)
A limitation or restriction on a design (like cost, time, or specific shapes).
"I need a storage structure for my garden tools. It must be stable, but I only have enough wood for a specific set of geometric shapes!"
Your Constraint Checklist
4 Triangles
Must be used for stability (bracing).
1 Rectangle/Square
Must serve as the main frame.
1 Arch or Curve
Optional: For the roof or entrance.
Design Rules
Must be a 3D representation.
Must use proper geometry terms.
Must show where force is applied.
Architectural Drafting 101
Precision
Use a ruler! Engineering is about exact measurements.
Labels
Point out your vertices, edges, and shape types.
Scale
Ensure your shapes look proportional to each other.
Get to Work!
Open your Architect Blueprint Worksheet. You have 25 minutes to draft your final design.
1
2
3

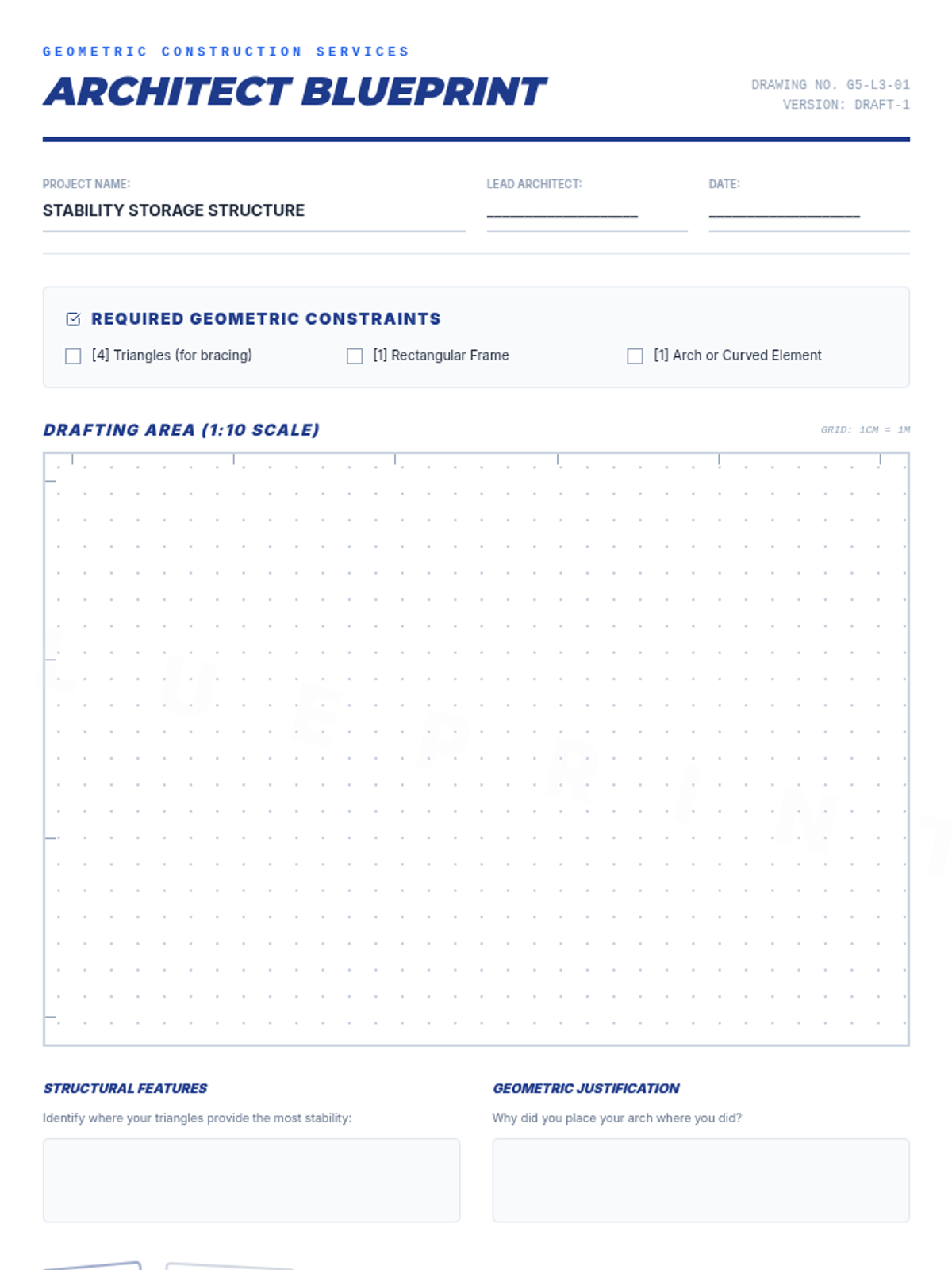

Architect Blueprint Worksheet Geometric Construction Services
Architect Blueprint
DRAWING NO. G5-L3-01
VERSION: DRAFT-1
Project Name:
STABILITY STORAGE STRUCTURE
Lead Architect:
____________________
Date:
____________________
Required Geometric Constraints
[4] Triangles (for bracing)
[1] Rectangular Frame
[1] Arch or Curved Element
Drafting Area (1:10 Scale)
Grid: 1cm = 1m
Blueprint
Structural Features
Identify where your triangles provide the most stability:
Geometric Justification
Why did you place your arch where you did?
Approved
Phase 1 Draft
© GEOMETRIC DYNAMICS INC.

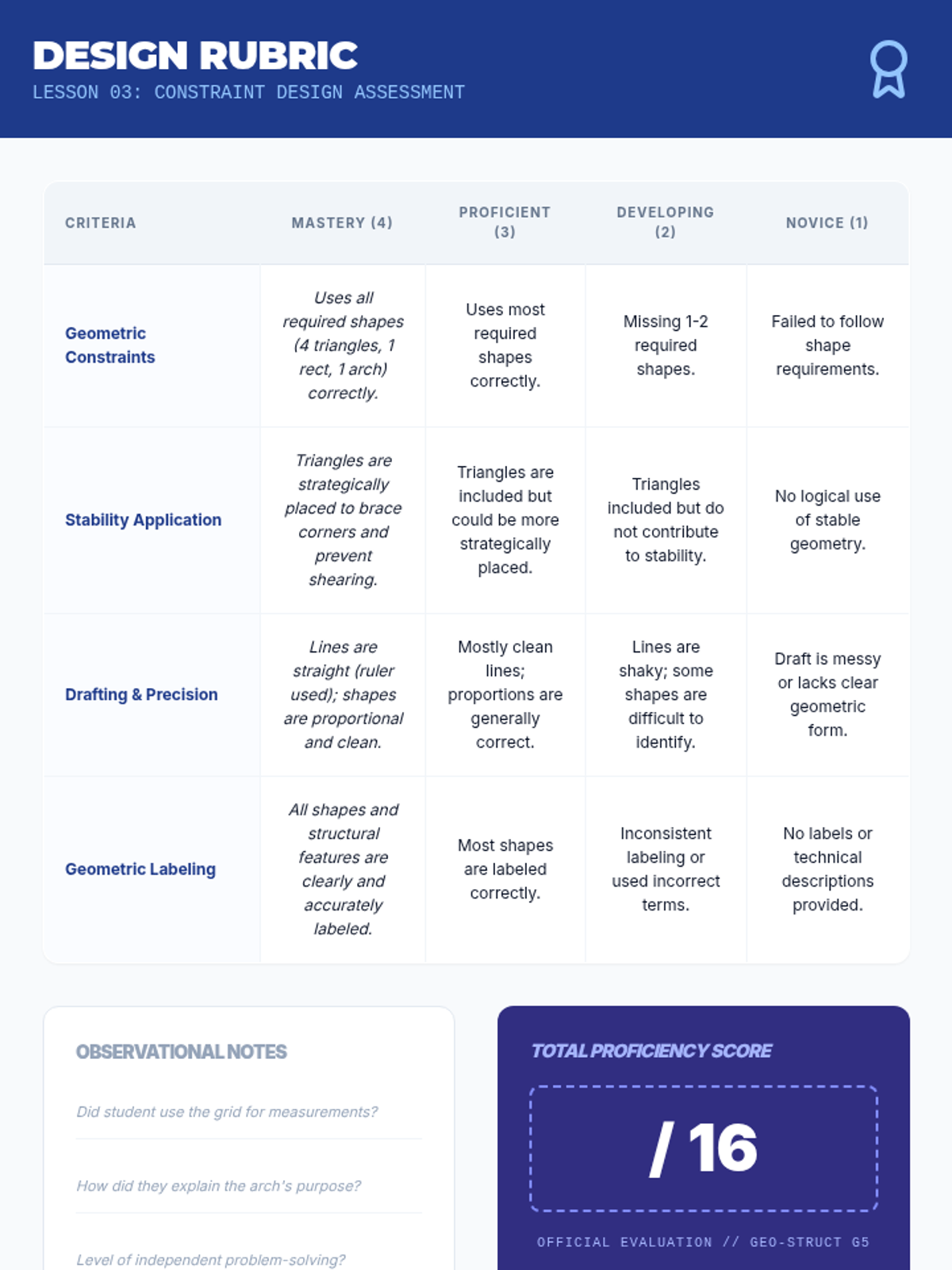

Design Rubric Teacher Resource Design Rubric
LESSON 03: CONSTRAINT DESIGN ASSESSMENT
Criteria Mastery (4) Proficient (3) Developing (2) Novice (1) Geometric Constraints Uses all required shapes (4 triangles, 1 rect, 1 arch) correctly. Uses most required shapes correctly. Missing 1-2 required shapes. Failed to follow shape requirements. Stability Application Triangles are strategically placed to brace corners and prevent shearing. Triangles are included but could be more strategically placed. Triangles included but do not contribute to stability. No logical use of stable geometry. Drafting & Precision Lines are straight (ruler used); shapes are proportional and clean. Mostly clean lines; proportions are generally correct. Lines are shaky; some shapes are difficult to identify. Draft is messy or lacks clear geometric form. Geometric Labeling All shapes and structural features are clearly and accurately labeled. Most shapes are labeled correctly. Inconsistent labeling or used incorrect terms. No labels or technical descriptions provided.
Observational Notes
Did student use the grid for measurements?
How did they explain the arch's purpose?
Level of independent problem-solving?
Total Proficiency Score
/ 16
Official Evaluation // Geo-Struct G5
Column Strength Slides Load Bearing Lab
Testing the Strength of 3D Columns
TESTING FACILITY // B-104
Why do shapes matter in 3D?
In a bridge, weight doesn't just go across—it goes down.
Engineers use columns to support massive amounts of vertical weight. But which shape of column is strongest?
Prism
Cylinder
?
The Lab Variables
C
Cylinder
No corners. Does the lack of vertices make it stronger or weaker?
S
Square Prism
Four 90° angles. Will the corners buckle under the weight?
T
Triangular Prism
The triangle is rigid in 2D. Does that strength transfer to 3D?
How we test strength
1
Fold three sheets of identical paper into your test shapes.
2
Place a cardboard platform on top of the column.
3
Slowly add "units of mass" (books or weights) until it collapses.
Safety Warning
Keep your fingers away from the base! When a column fails, it happens quickly.
Start the Experiment!
Record all data in your Load Bearing Lab Report .
Expected Variable: Mass held (in units)

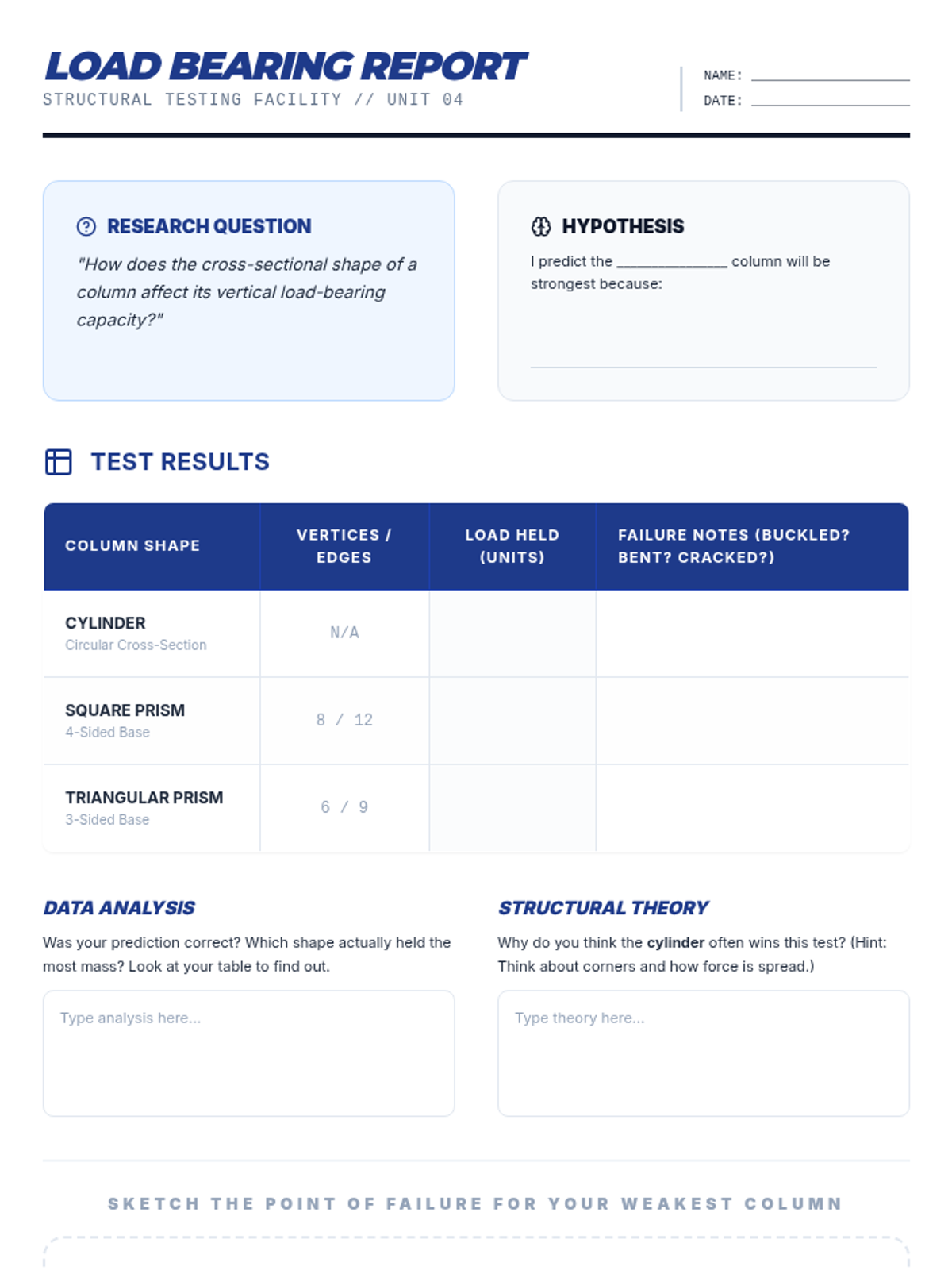

Load Bearing Lab Report Worksheet Load Bearing Report
Structural Testing Facility // Unit 04
NAME: ____________________
DATE: ____________________
Research Question
"How does the cross-sectional shape of a column affect its vertical load-bearing capacity?"
Hypothesis
I predict the ________________ column will be strongest because:
Test Results
Column Shape Vertices / Edges Load Held (Units) Failure Notes (Buckled? Bent? Cracked?) CYLINDER
Circular Cross-Section
| N/A | | |
|
SQUARE PRISM
4-Sided Base
| 8 / 12 | | |
|
TRIANGULAR PRISM
3-Sided Base
| 6 / 9 | | |
Data Analysis
Was your prediction correct? Which shape actually held the most mass? Look at your table to find out.
Type analysis here...
Structural Theory
Why do you think the cylinder often wins this test? (Hint: Think about corners and how force is spread.)
Type theory here...
Sketch the point of failure for your weakest column
© STRUCTURAL INTEGRITY LABS // TEST-G5-4 SENSITIVE DATA // FOR ARCHITECT EYES ONLY

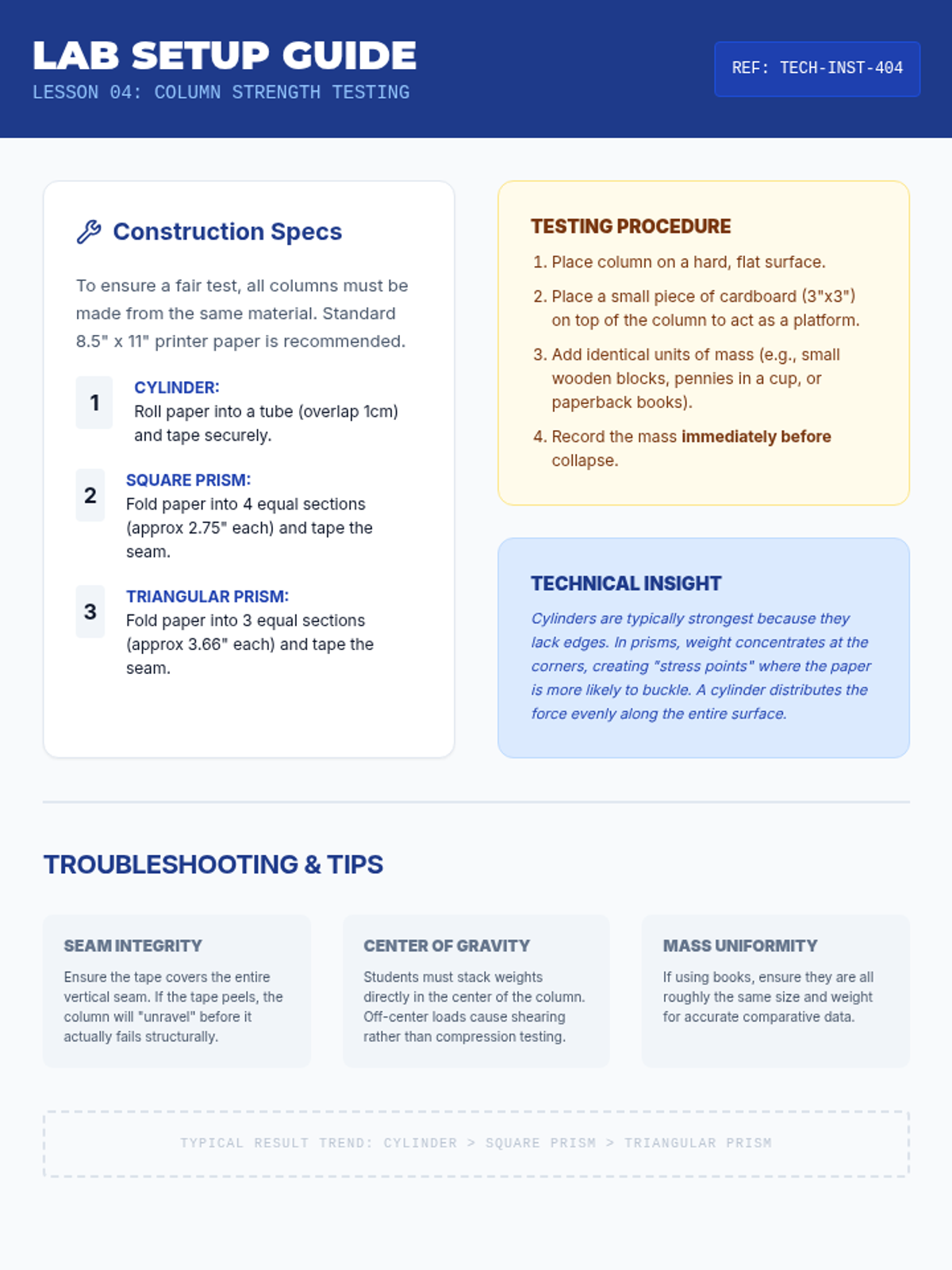

Lab Setup Guide Teacher Resource Lab Setup Guide
Lesson 04: Column Strength Testing
REF: TECH-INST-404
Construction Specs
To ensure a fair test, all columns must be made from the same material. Standard 8.5" x 11" printer paper is recommended.
1
Cylinder: Roll paper into a tube (overlap 1cm) and tape securely.
2
Square Prism: Fold paper into 4 equal sections (approx 2.75" each) and tape the seam.
3
Triangular Prism: Fold paper into 3 equal sections (approx 3.66" each) and tape the seam.
Testing Procedure
Place column on a hard, flat surface.
Place a small piece of cardboard (3"x3") on top of the column to act as a platform.
Add identical units of mass (e.g., small wooden blocks, pennies in a cup, or paperback books).
Record the mass immediately before collapse.
Technical Insight
Cylinders are typically strongest because they lack edges. In prisms, weight concentrates at the corners, creating "stress points" where the paper is more likely to buckle. A cylinder distributes the force evenly along the entire surface.
Troubleshooting & Tips
Seam Integrity
Ensure the tape covers the entire vertical seam. If the tape peels, the column will "unravel" before it actually fails structurally.
Center of Gravity
Students must stack weights directly in the center of the column. Off-center loads cause shearing rather than compression testing.
Mass Uniformity
If using books, ensure they are all roughly the same size and weight for accurate comparative data.
Typical Result Trend: Cylinder > Square Prism > Triangular Prism
Structural Review Slides Architecture Review
Mastering Structural Geometry
FINAL PHASE // ARCH-500
Reviewing the Blueprints
This week, we have explored the intersection of Geometry and Physics.
2D
Stability
3D
Support
// RECAP_LIST
Triangles = Rigid
Arches = Compression
Cylinders = Vertical Strength
Constraints = Design Rules
Critical Failure

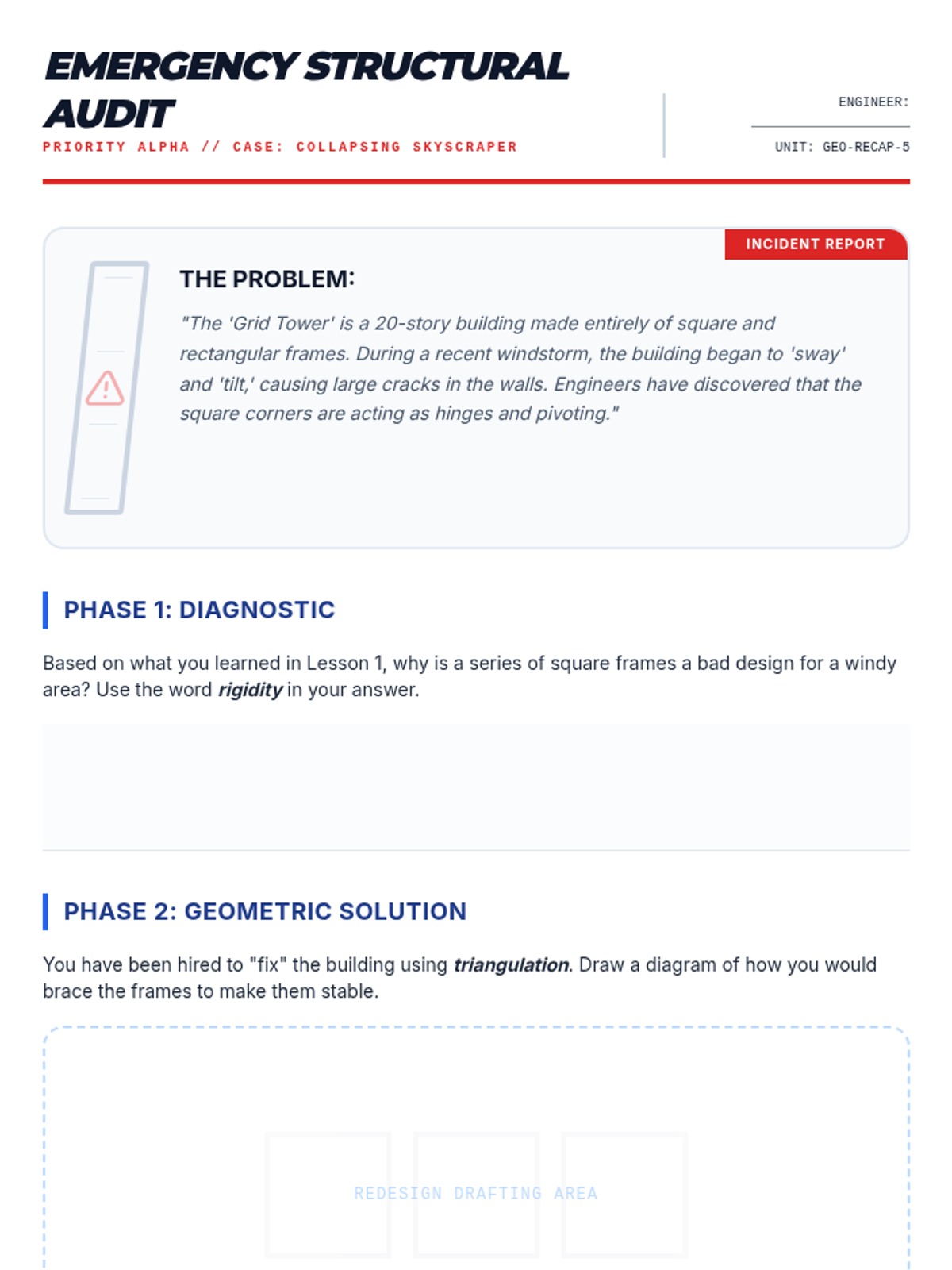

Emergency Structural Audit
"A nearby skyscraper's glass panels are popping out because the frame is shifting too much in the wind. The structure is a series of rectangles."
How do we save it?
The Architect's Circle
Constructive Critique
When looking at your peer's design, use the "I wonder..." and "I like..." method.
"I like how you used triangles to brace the corners of your storage unit."
"I wonder if a cylinder column would hold more weight than your square one."
Licensed Junior Engineers
GEOMETRIC PRINCIPLES APPLIED
Structure Fixer Worksheet Emergency Structural Audit
Priority Alpha // Case: Collapsing Skyscraper
ENGINEER: ____________________
UNIT: GEO-RECAP-5
Incident Report
The Problem:
"The 'Grid Tower' is a 20-story building made entirely of square and rectangular frames. During a recent windstorm, the building began to 'sway' and 'tilt,' causing large cracks in the walls. Engineers have discovered that the square corners are acting as hinges and pivoting."
Phase 1: Diagnostic
Based on what you learned in Lesson 1, why is a series of square frames a bad design for a windy area? Use the word rigidity in your answer.
Phase 2: Geometric Solution
You have been hired to "fix" the building using triangulation. Draw a diagram of how you would brace the frames to make them stable.
Redesign Drafting Area
Phase 3: 3D Support
If you were adding three massive support columns to the base of the building, which 3D shape would you choose (Cylinder, Square Prism, or Triangular Prism)? Justify your answer using data from the Load-Bearing Lab.
Case Study // Final Review Student Assessment
Geometric Integrity Certified

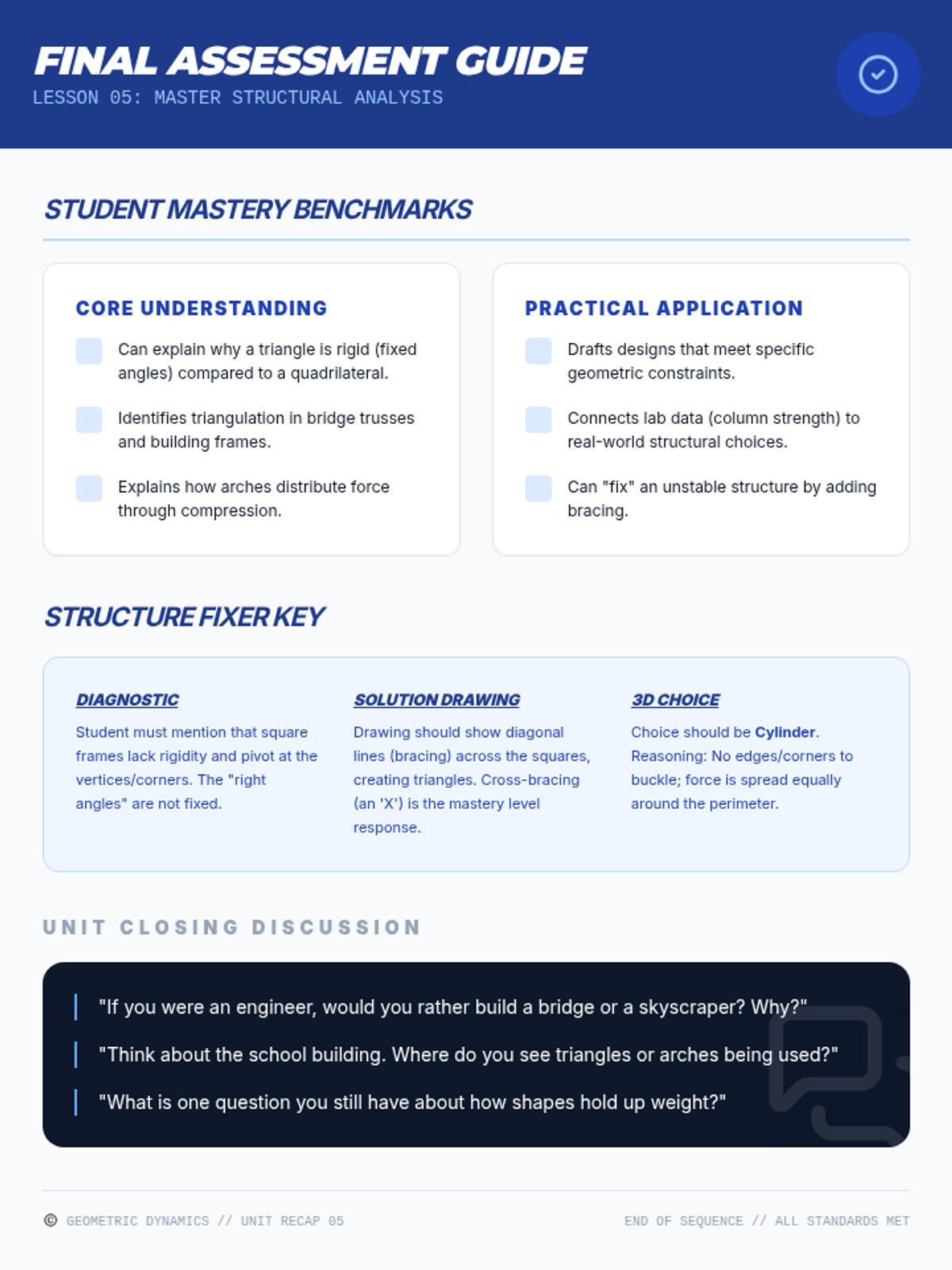

Final Assessment Guide Teacher Resource Final Assessment Guide
Lesson 05: Master Structural Analysis
Student Mastery Benchmarks
Core Understanding
Can explain why a triangle is rigid (fixed angles) compared to a quadrilateral.
Identifies triangulation in bridge trusses and building frames.
Explains how arches distribute force through compression.
Practical Application
Drafts designs that meet specific geometric constraints.
Connects lab data (column strength) to real-world structural choices.
Can "fix" an unstable structure by adding bracing.
Structure Fixer Key
Diagnostic
Student must mention that square frames lack rigidity and pivot at the vertices/corners. The "right angles" are not fixed.
Solution Drawing
Drawing should show diagonal lines (bracing) across the squares, creating triangles. Cross-bracing (an 'X') is the mastery level response.
3D Choice
Choice should be Cylinder . Reasoning: No edges/corners to buckle; force is spread equally around the perimeter.
Unit Closing Discussion
"If you were an engineer, would you rather build a bridge or a skyscraper? Why?"
"Think about the school building. Where do you see triangles or arches being used?"
"What is one question you still have about how shapes hold up weight?"
© GEOMETRIC DYNAMICS // UNIT RECAP 05 END OF SEQUENCE // ALL STANDARDS MET
