Acoustic Archives Manual Sound Wave Specialists Unit
Acoustic Archives
Teacher Manual
A 4-Day Guide to Pitch, Wavelength, and the Physics of Sound for Grade 4.
Required Materials Checklist
Sound Wave Specialists Slides
Acoustic Specialist Briefing (Missions)
Acoustic Research Journal (Article)
Sound Wave Lab Notes (Worksheet)
Wave Specialist Quiz (Assessment)
Subject Area
Physical Science: Waves & Energy
Target Grade
Grade 4 (Ages 9-10)
Instructional Roadmap
Detailed Scripts
Day 1: The Pitch Pulse (Hook & Intro)
SLIDE 2
Goal: Contrast Pitch with Amplitude
Teacher Script:
"Scientists, welcome to the Acoustic Archives. Last week, we mastered amplitude—the power of the wave that determines volume. But listen to this whistle [blow whistle] and then this low hum [hum low]. Did you notice that? I didn't change how loud I was, but the 'feeling' of the sound changed. We call this pitch . Today, we start our briefing. Look at Mission 1 on your Specialist Briefing guide. In your notebooks, explain why sound travels through walls."
Day 2: Wavelength Logic
SLIDE 3
Goal: Connect frequency to physical shape
Teacher Script:
"Yesterday we heard pitch; today we see it. Sound moves in waves. When an object vibrates very fast, it creates a 'crowded' wave. The peaks are close together. We call this a short wavelength . Notice on Slide 3 how the high-pitch wave looks squeezed! Open your Specialist Briefing and find Mission 2 . I want you to draw these differences in your science notebooks."
Advanced Exploration
Detailed Scripts
Day 3: The Ruler Resonance Demo
Lab Day
Goal: Real-world observation of Frequency
Teacher Script:
"Watch this ruler. When I leave 10 inches hanging off and flick it, it moves slow. That's a low frequency, and a low pitch. When I slide it to 4 inches... [Flick ruler]. It's a blur! Use your Sound Wave Lab Notes to record exactly what you see and hear. Then, finish Mission 3 in your Briefing guide about singers and vocal cords."
Day 4: Research Deep Dive
Assessment
Goal: Literacy Synthesis & Final Quiz
Teacher Script:
"Scientists share findings in professional journals. Read the Acoustic Research Journal article. Scan the abstract and analyze the diagrams in Figure 1.1. Do their findings match our ruler experiment? Finally, complete the Wave Specialist Quiz to earn your certification!"
Peer Review Packet Worksheet Peer Review Packet
Sound Wave Specialists • Official Reporting Document
Researcher:
Date:
01
The Acoustic Glossary
Match each term from the Research Journal to its correct definition by writing the letter in the circle.
1. Pitch
2. Wavelength
3. Frequency
4. Amplitude
A. The distance from one peak of a wave to the very next peak.
B. How high or low a sound is, determined by speed of vibration.
C. How loud or quiet a sound is (how tall the wave is).
D. A measurement of how many vibrations happen every second.
02
Scientific Fact-Check
Are these statements true according to the journal? Circle Fact or Fiction.
"Every sound you hear starts with a vibration."
FACT FICTION
"The higher the frequency, the longer the wavelength."
FACT FICTION
"A short ruler vibrates faster than a long ruler."
FACT FICTION
03
Wave Illustration Desk
Based on Figure 1.1 in the journal, draw what a wave looks like for each sound type. Keep your amplitude (height) the same for both!
Low Pitch (Low Frequency)
Draw long wavelengths here
High Pitch (High Frequency)
Draw short wavelengths here
04
Lab Analysis Report
In the study, Dr. Elena Wave noticed that a 10-inch ruler moved slowly, while a 4-inch ruler moved with "incredible speed."
Which ruler produced the sound with the shortest wavelength ? Explain why using the word vibration.
Acoustic Research Review Dept. Verification Code: WAVE-4-2026 Ref: Journal Vol. 42
Acoustic Research Journal Acoustic Research Journal
A Global Publication for Sound & Physics • Vol. 42
PEER-REVIEWED SCIENTIFIC DATA
The Hidden Patterns of Sound: A Study of Pitch and Wavelength
Dr. Elena Wave & Professor Silas Sound, Acoustic Laboratory of Research
I. Abstract
This study looks at how the speed of vibrations changes the shape of sound waves. We focus on the difference between loudness (amplitude) and high or low sounds (pitch). Our tests show that when an object vibrates faster, the distance between the wave peaks (wavelength) gets shorter.
Test Steps: 1. Tape a ruler to a desk.
II. What is Sound?
Every sound you hear starts with a vibration. When an object moves back and forth, it pushes and pulls on the air particles around it. This movement travels through the air as a sound wave. While amplitude tells us how much energy is in the wave (how loud it is), pitch tells us how fast the wave is moving. We can all hear the difference between a high whistle and a low drum, but there is a secret pattern hidden inside every wave.
III. Wavelength and Speed
Scientists use frequency to count vibrations per second. Fast vibrations have a high frequency; slow vibrations have a low frequency. Wavelength is the distance from one peak of a wave to the very next peak. Our study shows a simple rule: the higher the frequency, the shorter the wavelength. High-pitched sounds create waves that are squeezed tightly together. Low-pitched sounds create waves that are spread far apart.
IV. How We Tested
To test these ideas, we used a simple ruler on a flat table. By changing how much hanging length we used, we changed how fast it could move. Making the ruler shorter makes it lighter and easier to move, which makes it vibrate much faster and create a higher sound. This test helps us see how the size of an object changes the sound it makes.
V. What We Saw
A long ruler (10 inches) moved slowly. This created a low-frequency wave with a long wavelength . A short ruler (4 inches) moved with incredible speed. The sound was a sharp, high pitch, and our sensors saw a very short, crowded wavelength. This proves that the shape of an object changes the pattern of the waves it sends through the air. Loudness (amplitude) stayed the same as long as we flicked the ruler with the same strength.
Scientific Glossary
PITCH: How high or low a sound is.
WAVELENGTH: The distance between wave peaks.

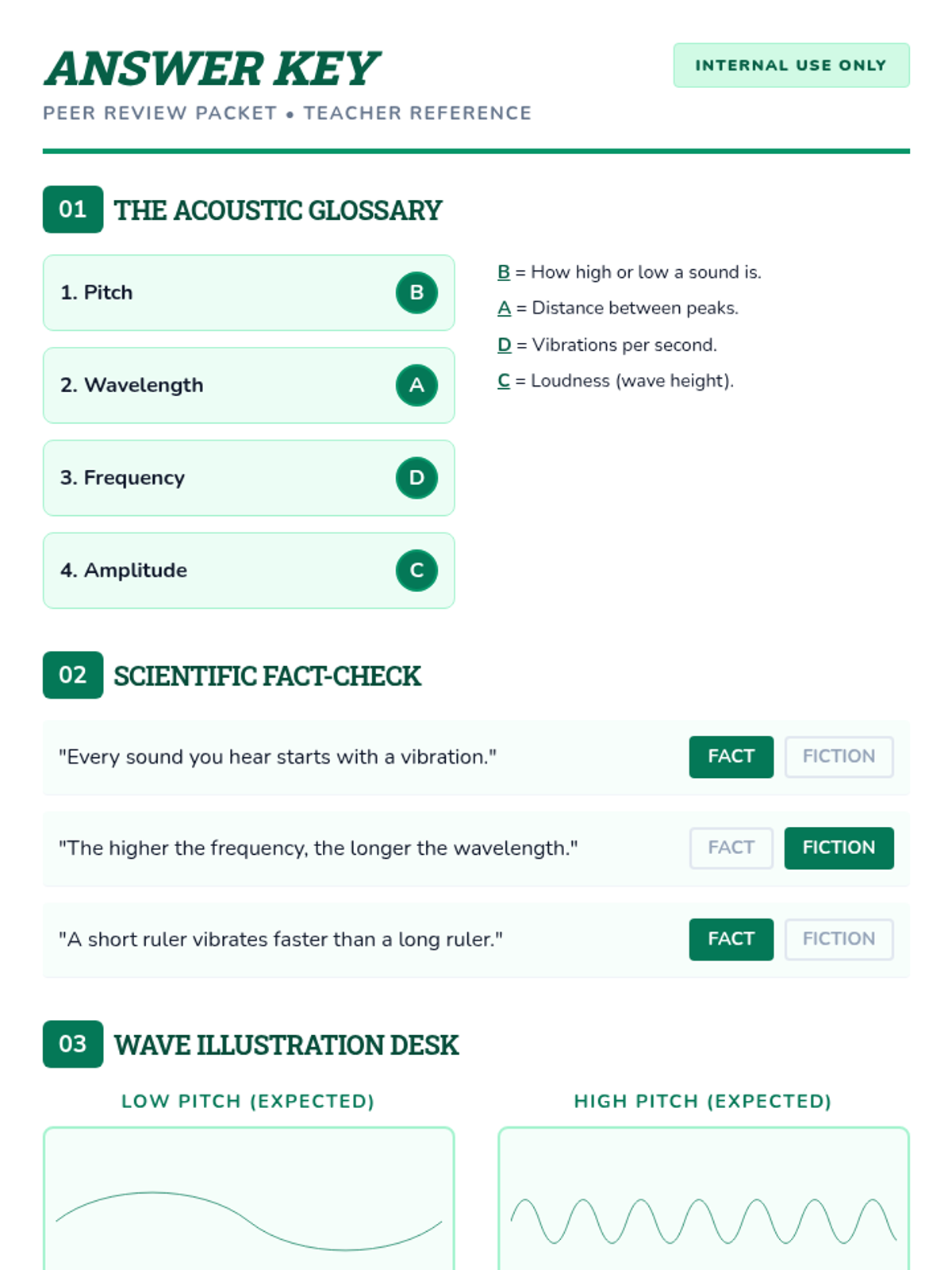

Peer Review Packet Key Answer Key
Peer Review Packet • Teacher Reference
Internal Use Only
01
The Acoustic Glossary
1. Pitch
B
2. Wavelength
A
3. Frequency
D
4. Amplitude
C
B = How high or low a sound is.
A = Distance between peaks.
D = Vibrations per second.
C = Loudness (wave height).
02
Scientific Fact-Check
"Every sound you hear starts with a vibration."
FACT FICTION
"The higher the frequency, the longer the wavelength."
FACT FICTION
"A short ruler vibrates faster than a long ruler."
FACT FICTION
03
Wave Illustration Desk
Low Pitch (Expected)
Spread out peaks (Long Wavelength)
High Pitch (Expected)
Tight, crowded peaks (Short Wavelength)
04
Lab Analysis Report
Exemplar Response:
The 4-inch ruler produced the shortest wavelength. This is because the short ruler is lighter and can move much faster. This fast vibration creates a high-frequency sound, which makes the waves squeeze closer together (shortening the wavelength).
Acoustic Research Review Dept. • Key WAVE-KEY-4-2026
Sound Wave Lab Notes Sound Specialist Lab Notes
Field Observation Log // Project Acoustic
Scientist:
Date:
1
The Ruler Resonance Test
Test A: Long Ruler (10 inches)
Vibration Speed:
Pitch (High or Low?):
Test B: Short Ruler (4 inches)
Vibration Speed:
Pitch (High or Low?):
2
Wave Shape Analysis
Draw a HIGH PITCH wave:
Short Wavelength (crowded peaks)
Draw a LOW PITCH wave:
Long Wavelength (spread-out peaks)
Expert Synthesis
A scientist wants to make a sound LOUDER . What part of the wave should they change?
A scientist wants to make the sound a HIGHER PITCH . What should they change?
Sound Wave Specialists Slides Project Acoustic
Sound Wave
Specialists
Day 1-4: Investigating the Secret Patterns of Sound.
DAY 1
Mystery Sound Audit
"If we don't change the volume, how can two sounds still feel different?"
Vocabulary Check:
PITCH
Is it High or Low?
Is it Loud or Soft?
DAY 2
Wavelength Logic
Case 01: Fast Vibration
High Pitch
Short Wavelength
Case 02: Slow Vibration
Low Pitch
Long Wavelength
LAB DAY
The Vibrating Ruler
We are testing how the length of the ruler changes the frequency of the vibration.
10 INCHES
Low Pitch?
4 INCHES
High Pitch?
DAY 4
Research Briefing
Today's Mission: Read the "Acoustic Research Journal"
Scan the Abstract
Analyze Figure 1.1
Contrast Pitch vs. Amplitude
DIAGRAM
Sound Wave Lab Notes Key Lab Notes Answer Key
Teacher Resource // Sound Wave Specialists
INTERNAL USE ONLY
Part 1: The Ruler Resonance Test
Test A: Long Ruler
Vibration Speed: Slow movement / Low Frequency
Pitch: LOW PITCH
Test B: Short Ruler
Vibration Speed: Fast movement / High Frequency
Pitch: HIGH PITCH
Part 2: Wave Shape Analysis
High Pitch Drawing:
Peaks are close together (short wavelength)
Low Pitch Drawing:
Peaks are far apart (long wavelength)
Synthesis Key
To make a sound LOUDER:
Change Amplitude (Wave Height)
To make sound HIGHER PITCH:
Change Frequency (Wavelength)
Teacher Tip: Amplitude = Volume. Pitch = Note. These can be adjusted separately!
Wave Specialist Quiz Specialist Certification
Acoustic Unit Final Assessment
Scientist:
Score:
1 Which word describes how high or low a sound is?
A) Amplitude
B) Volume
C) Pitch
D) Echo
2 If an object vibrates very quickly, what happens to the sound?
A) The sound becomes much louder.
B) The sound has a higher pitch.
C) The sound has a lower pitch.
D) The sound disappears completely.
3 Look at the waves below. Which has the LONGEST wavelength?
Wave A
Wave B
Longest Wavelength: __________________________
4 Explain the difference between Amplitude and Pitch.
Wave Specialist Exam // Certification Level I
Wave Specialist Quiz Key Quiz Answer Key
Teacher Resource // Sound Wave Specialists
Key
Question 1
Which word describes how high or low a sound is?
C) Pitch
Question 2
If an object vibrates very quickly, what happens to the sound?
B) The sound has a higher pitch.
Question 3
Which wave has the LONGEST wavelength?
Wave B (The waves are spread further apart).
Question 4 (Open Response)
Explain the difference between Amplitude and Pitch.
Exemplar Response: "Amplitude is how loud or soft a sound is, and it is shown by how tall a wave is. Pitch is how high or low a sound is, and it is shown by the wavelength (distance between peaks). Fast vibrations make a high pitch, while big vibrations make a loud sound."
Key Points to Look For:
Acoustic Specialist Briefing Specialist Briefing
Project Acoustic // Field Resource
Objective: 4.P.1.1
The Pulse of Sound
Sound is a physical wave that travels through the air around us. Every time an object vibrates—like a ruler flicking or a drum being struck—it pushes air molecules together and then pulls them apart. This movement creates a wave that moves in all directions. Without vibrations, there is no sound!
Anatomy of a Sound Wave
Peak
Wavelength
• •
Height
Pitch and Speed
Frequency is a scientific word for the number of vibrations in one second. Fast vibrations create a high frequency, while slow ones create a low frequency. The wavelength is the distance from one peak to the next. High-pitched sounds have very fast vibrations, which squeezes the peaks together to make a short wavelength.
Conclusion
By studying these wave patterns, we can understand why a whistle sounds different from a drum. Pitch is about the speed of the vibration, while amplitude is about its strength . As a Wave Specialist, you now know that the shape of a wave tells you exactly what kind of sound is being made!
Mission 1: Think
Why can we hear a sound even if there is a wall between us and the object vibrating?
Explain in Notebook
Mission 2: Draw
Sketch two waves. Label one as "LOW PITCH" (long wavelength) and the other as "HIGH PITCH" (short wavelength).
Draw in Notebook
Mission 3: Answer
If a singer wants to hit a higher note, do they need their vocal cords to vibrate faster or slower? Why?
Write in Notebook
Specialist Challenge
A sound wave gets taller (higher amplitude) and the peaks move closer together (higher frequency).
Predict: What does this sound like to your ears? Record in your notebook.
Property of the Acoustic Archives
