Hidden Reservoirs Teacher Guide Teacher Guide
Lesson: Hidden Reservoirs (Grade 4)
TEKS 4.11(C)
Sess. 2.1 & 2.2
Investigation Overview
In this mission, Grade 4 Agents investigate porosity —the physical property that allows rocks to act like sponges for water and oil. Students will quantify how much "hidden" space exists within different materials and then engineer a system to extract these resources from a simulated aquifer.
The Resource Crisis
A local town is running out of water, but a deep layer of sandstone holds a hidden reservoir. Agents must prove the rock can hold enough water and design a "well" that filters out debris while extracting the resource.
Supply List
🧪 Clear cups & Graduated cylinders
🏜️ Coarse sand, Gravel, & Pebbles
🥤 Clear straws (wide)
🕸️ Fine mesh or coffee filters
💧 Water (add food coloring for "oil")
📏 Tape measures / Rulers
1
Activity 1: Pore Space Mission (30 mins)
The Lab Process
Prediction: Students fill three cups to the 100mL line with sand, gravel, and pebbles. They predict which will hold the most water.Testing: Pour water into each cup until it just reaches the top of the material line.Measurement: Subtract the remaining water in the pitcher from the starting amount to find the pore volume .Analysis: Why did the larger pebbles hold more (or less) water than the fine sand?
Scientific Vocabulary
POROSITY:
The percentage of void space in a rock (the "holes").
PERMEABILITY:
The ability of a rock to let fluids flow through it.
AQUIFER:
An underground layer of rock that holds water.
2
Activity 2: The Extraction Rig (35 mins)
Engineering Mission
"Extract the resource without the sediment!"
Build: Students use a straw and mesh to create a "well casing." The mesh must be secured to the bottom of the straw to act as a filter.Insert: Push the "well" into a cup filled with saturated sand and gravel.Extract: Use a pipette or suction to draw water up the straw.Goal: The water collected should be clear (free of sand/debris).
Engineering Constraints
• Well must reach the bottom of the cup.
• No sand particles allowed in the extract.
• Extraction must be repeatable 3 times.
Success Metric
Clarity of water vs. Volume extracted
STAAR Connection
Common Concept: Questions often ask how water is stored in solid-looking rocks. Students must identify that small spaces (pores) exist between sediment grains.
Pro-Tip:
Use the word "Property" constantly. Is porosity a physical property? Yes! Just like color or hardness.
Hidden Reservoirs Slides Aquifer Intelligence Agency
HIDDEN
RESERVOIRS
Grade 4 Mission: Resource Extraction
THE WATER CRISIS
CRITICAL LEVEL
The town of Dry Gulch is running out of surface water.
Geologists say a Hidden Reservoir exists underground in the rock.
Mission Objective:
"Determine which rock layer holds the most water and engineer a way to get it out."
Property: Porosity
POROSITY
The percentage of EMPTY SPACE inside a rock specimen.
"Even if a rock looks solid, it has tiny holes!"
Pore Spaces
🧽
Mission Step 1
THE PORE SPACE LAB
1. FILL
3 cups with sand, gravel, and pebbles to the 100mL line.
2. POUR
Add water slowly until it reaches the top of the rocks.
3. CALCULATE
How much water "disappeared" into the rock layers?
2
ENGINEERING THE WELL
Knowing where the water is is only half the battle. Now you must EXTRACT it.
The Extraction Challenge:
No sand or dirt allowed in the water.
Well must be stable and reusable.
Subsurface Mission
MISSION ACHIEVED
MEASURE
Calculated porosity to find the best reservoir.
ENGINEER
Built a filtered well system for resource extraction.
Dry Gulch: Water Levels Stabilized

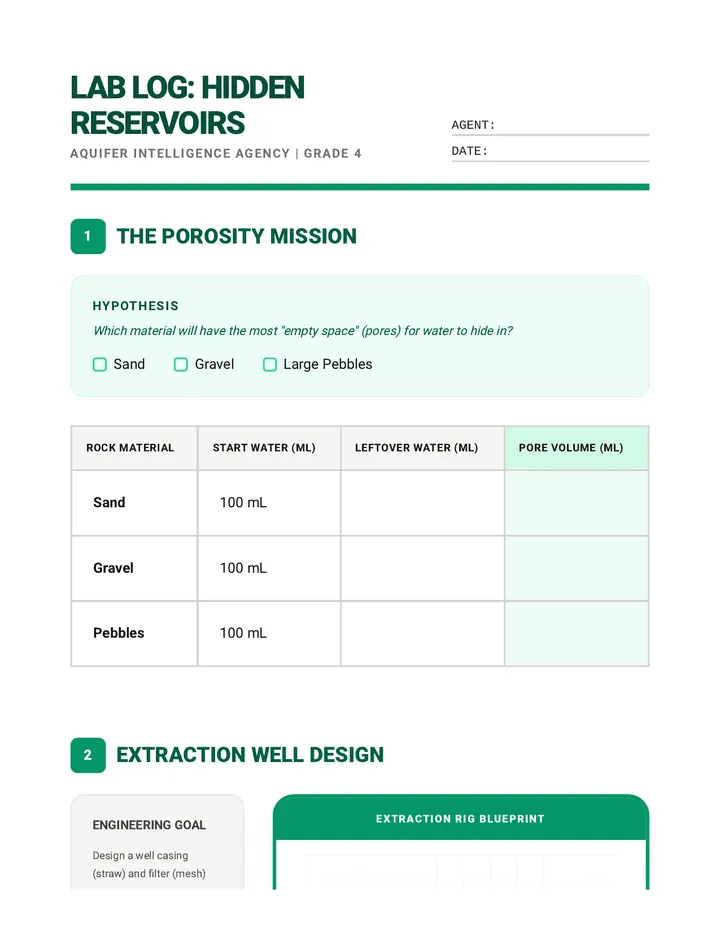

Hidden Reservoirs Lab Log Worksheet Lab Log: Hidden Reservoirs
Aquifer Intelligence Agency | Grade 4
AGENT:
DATE:
1
The Porosity Mission
HYPOTHESIS
Which material will have the most "empty space" (pores) for water to hide in?
Sand
Gravel
Large Pebbles
Rock Material Start Water (mL) Leftover Water (mL) Pore Volume (mL) Sand 100 mL Gravel 100 mL Pebbles 100 mL
2
Extraction Well Design
Engineering Goal
Design a well casing (straw) and filter (mesh) that allows water in but keeps the sediment out.
Success Checklist
Clear Water
No Sand in Cup
Straw stays upright
Final Volume
How much water did you successfully extract?
_______ mL
Extraction Rig Blueprint
Cross-Section View
Hidden Reservoirs Review Key STAAR Mission Check
Aquifer Review
Agent Name: ____________________
1. Which physical property of a rock allows it to hold natural resources like water or oil?
Color
Hardness
Porosity
Texture
2. A geologist finds a rock layer made of fine sand. Why might this layer be a better reservoir than a layer of solid granite?
The sand has more pore space between the grains to store water.
The sand is younger than the granite.
The granite is too heavy to hold water.
3. Look at your well design from Activity 2. Why was the mesh filter an important part of the engineering challenge?
Explain the problem you solved...
Mission Master Key: Grade 4
Item 1
TEKS 4.11(C)
Porosity
Standard identification of the physical property responsible for storage.
Item 2
Scientific Reasoning
The sand has more pore space between the grains to store water.
Requires students to apply the concept of "empty space" to real-world rock comparisons.
Item 3: Engineering Reflection
The mesh filter was necessary to separate the sediment (sand/dirt) from the resource (water). In real wells, this ensures the extracted resource is clean and doesn't damage pumping equipment.
Deep Time Press Teacher Guide Teacher Guide
Grade 5 Mission: Deep Time Press
TEKS 5.10(B)
Sess. 5.1 & 5.2
Mission Overview
Grade 5 Agents investigate the massive forces of Deep Time . They will model the million-year journey of sediment turning into rock (Lithification) and organic matter turning into fossil fuels. The mission requires students to simulate Compaction and Cementation through engineering.
The Time-Travel Challenge
Geologists need to find a way to replicate 50 million years of pressure in just 30 minutes! Agents must design a "Deep Time Press" that applies maximum force to turn loose sediment into a solid model.
Mission Supplies
Activity 1 (Modeling)
• Clear plastic cups or jars
• Sand, pebbles, potting soil
• Bread or Rice cereal (sediment)
• Gummy bears (organic matter)
Activity 2 (Engineering)
• Heavy books or Bricks
• Cardboard sheets (lever bases)
• Duct tape
• PVC pipes or dowels
1
Activity 1: The Sedimentary Sandwich (30 mins)
The Process
Deposition: Layer different sediments (sand, soil, cereal) into a clear container.Fossilization: Hide "organic matter" (gummy bears) in the middle layers.Wait: Add a small amount of water to act as the "ocean" and a "cementing agent" (diluted glue/sugar water).Analysis: Discuss how these layers represent millions of years of deposition.
Scientific Vocabulary
WEATHERING: Breaking down of rocks into sediment.
EROSION: Moving sediment from one place to another.
DEPOSITION: Dropping sediment in a new location.
COMPACTION: Smashing layers together under pressure.
2
Activity 2: The Deep Time Press (35 mins)
Engineering Mission
"Build a device to simulate million-year pressure!"
Students must engineer a lever system or a weighted press to compress their "Sedimentary Sandwich" model.
Blueprint: Design a system that uses mechanical advantage to apply downward force.
Deep Time Press Slides Lithification Agency
DEEP TIME
PRESS
Grade 5 Mission: Sedimentary Synthesis
THE TIME PROBLEM
50,000,000 YEARS
It takes millions of years of sediment pile-up to create rock and fossil fuels.
We don't have that much time. We need to simulate Intense Pressure today.
Mission Objective:
"Build a device that compresses loose sediment into a solid specimen in under 5 minutes."
The Geology Cycle
W
Weathering
Breaking
E
Erosion
Moving
D
Deposition
Dropping
C
Compaction
Squeezing
C
Cementation
Gluing
"Squeezing and Gluing turns dirt into STONE!"
THE OIL RECIPE
Organic Matter (Dead Stuff)
Millon Years of Sediment
Heat & Pressure
🛢️
FOSSIL FUELS
Crude Oil, Natural Gas, & Coal
MISSION LOGISTICS
Step 1: The Sandwich
Layer bread, cereal, and gummy bears in your "Deep Time" jar.
Add the "Cementing Liquid."
Step 2: The Press
Engineer a lever or a weighted press using your supplies.
Apply MAX force to your sandwich for 5 minutes.
THE SQUEEZE IS ON
1
Layer
2
Press
3
Observe
Lithification Process: ENGAGED
Deep Time Press Lab Log Worksheet Specimen Synthesis Log
Lithification Agency | Grade 5 Mission
AGENT ID:
TIMESTAMP:
1
Activity 1: The Sedimentary Sandwich
Sketch your layered model and label the types of "sediment" and "organic matter" you used.
Deep Time Cross-Section
Geology Process Map
Define how each part of your model represents a real Earth process:
Adding a new layer:
The "Cementing Agent" (Liquid):
Gummy Bears (Organic Matter):
2
Activity 2: Deep Time Press Blueprint
Mechanical Advantage Design Force Analysis View
Pressure Extraction Report
Compression Result:
How did the height of your sediment sandwich change after 5 minutes of pressure?
Lithification Status:
Is the specimen now a "solid"? Why or why not?
Fossil Fuel Indicator
Did the gummy bears change shape or "leak" oil?
Deep Time Press Review Key STAAR Mastery Check
Deep Time Review
Specimen Specialist ID: _______________
1. Which sequence of processes correctly describes the formation of sedimentary rock?
Deposition → Erosion → Weathering → Compaction → Cementation
Weathering → Erosion → Deposition → Compaction → Cementation
Cementation → Compaction → Deposition → Erosion → Weathering
2. Which ingredients are necessary for the formation of fossil fuels but NOT for sedimentary rock?
Sand & Water
Sediment & Pressure
Organic Matter, Heat, & Millions of Years
Pebbles & Cementation
3. Reflection: In your Deep Time Press challenge, how did the mechanical advantage of your machine simulate the force of real Earth layers?
Think about gravity and the weight of overlying layers...
Master Key: Grade 5
Item 1: Rock Formation Cycle
Weathering → Erosion → Deposition → Compaction → Cementation
Note: Remember the acronym WEDCC to help students memorize the sequence.
Item 2: Fossil Fuel Differentiation
Organic Matter, Heat, & Millions of Years
Essential Distinction: Sedimentary rock forms from inorganic sediment; fossil fuels require ancient organic matter plus extreme heat over long periods.
Item 3: Engineering Analysis
The press simulated the pressure created by hundreds of feet of overlying sediment and water layers. By using a lever or weights, we concentrated force onto a small area, just as gravity concentrates the weight of the Earth's crust on buried organic material.
Rock Raiders Teacher Guide Teacher Guide
Grade 1 Mission: Rock Raiders
TEKS 1.10(A)
Sess. 1.1
Mission Overview
Young "Rock Raiders" must restore order after a sudden "Sorting Storm" scatters the museum's collection. They will master physical properties—size, shape, color, and texture—to classify specimens and then engineer a stable rock bridge to help a mission vehicle cross a desert canyon.
The Wow Factor
Use a "Mystery Box" entry point where students feel rocks blindly to guess their properties before ever seeing them. The "Canyon Crossing" test uses real weight (toy cars) to prove their engineering works!
Mission Supplies
Activity 1
• Assorted rocks (smooth/rough/striped)
• Sorting Mats (Color, Size, Texture)
• Hand lenses
Activity 2
• Large pebbles & River stones
• Kinetic sand or Playdough (as "mortar")
• Cardboard strips (for bridge base)
• Toy vehicles (for testing)
1
Activity 1: The Sorting Storm (30 mins)
Step-by-Step Guide
The Crisis: Explain that the museum rocks got mixed up. Each team gets a "Chaos Bag."Tactile Test: Students close their eyes and pull out one rock. They must describe it using only touch (Texture/Size/Shape).The Mission: Use sorting mats to classify the rocks by Color , then re-sort by Size , and finally by Texture .Record: Students color-code their findings on the Raider Field Log .
Guiding Questions
How does a rock's shape help us tell it apart from others?
Can a rock be rough and round at the same time?
If you find a rock that looks like a rainbow, which color group does it belong in?
2
Activity 2: The Pebble Path Bridge (30 mins)
Engineering Mission
Agents must build a bridge across a 6-inch gap that can support the weight of a mission vehicle. They must choose rocks that fit together effectively.
Select: Teams choose 10 rocks from the "Construction Yard."Plan: Draw a bridge sketch on the log.Build: Use playdough or clay to secure the rocks onto a cardboard strip or directly over the gap (if advanced).
Rock Raiders Slides Mission: Rock Raiders
ROCK
RESCUE
Geology Agents: Grade 1 Briefing
Authorized Personnel Only
MUSEUM ALERT!
EMERGENCY
A giant SORTING STORM has blown through the Geology Museum!
Our rare specimens are scattered everywhere. We need Raiders to classify them immediately!
"Your mission: Sort them by their physical properties."
How do we identify them?
Color & Shape
Is it red, grey, or striped?
Is it round like a ball or sharp like a tooth?
Size & Texture
Is it giant or teeny-tiny?
Does it feel smooth like a slide or rough like sandpaper?
1
THE SORTING STORM
1. Reach into the Chaos Bag.
2. Describe your rock with your eyes CLOSED.
3. Place it on the correct Sorting Mat.
2
THE PEBBLE PATH
The Challenge:
Build a bridge across the "Desert Canyon" using only rocks and clay.
It must be strong enough for the Mission Vehicle to cross!
Testing Zone
MISSION COMPLETE
Observed
Classified
Built
Succeeded
Rock Raiders Field Log Worksheet Raider Field Log
Grade 1 Geology Mission
AGENT:
DATE:
TASK 1
The Sorting Storm
Draw your rock and check the boxes that describe its properties.
Sketch Specimen Here
Color(s):
Texture
Rough
Smooth
Size
Small
Large
Shape
Round
Sharp
Flat
TASK 2
Pebble Path Bridge
Plan your bridge. Which rocks will you use? Why?
Bridge Blueprint
Bridge Foundation
The best rocks for my bridge are:
Flat Rocks
Round Rocks
Think: Which ones stack better?
Raider Reflection
Did the Mission Vehicle cross safely?
____________________________
What would you change next time?
____________________________
Rock Raiders Review Key Raider Review
Mission: Grade 1 Exit Ticket
1. Circle the words that are physical properties of a rock:
Color
Price
Texture
Size
2. Which tool would you use to see tiny details on a rock?
Ruler
Hand Lens
Thermometer
3. If a rock is "bumpy," which property are you describing?
Shape
Texture
Color
"Great job, Agent! Return this log to base."
Answer Key: Raider Review (Grade 1)
1. Physical Properties:
Color, Texture, Size
2. Tool for tiny details:
Hand Lens (Magnifying Glass)
3. Bumpy Property:
Texture
Property Patrollers Teacher Guide Teacher Guide
Grade 2 Mission: Property Patrollers
TEKS 2.10(A)
Sess. 2.1
Mission Overview
Agents in Grade 2 dive deeper into physical properties by investigating hardness and durability . They will classify rocks not just by how they look, but by how they interact with other materials. The mission culminates in an engineering challenge to "reclaim" natural pigments and create functional tools.
The Wow Factor
Students will use "The Scratch Test" to discover which rocks are stronger than steel (paper clips) or pennies. In Activity 2, they will crush soft rocks (chalk/shale) to create "Natural Paint" and engineer a brush from found objects.
Patrol Supplies
Activity 1
• Pennies & Paper clips
• Rocks (Hard: Quartz; Soft: Chalk/Talc)
• Sandpaper squares
Activity 2
• Chalk or Soft bricks
• Mortar & pestle (or heavy stones)
• Small water cups
• Twigs, twine, sponge bits (for brush)
1
Activity 1: The Hardness Hunt (30 mins)
The Investigation
Identify: Give each team 4 different rocks labeled A-D.The Scratch Test: Students try to scratch each rock with their fingernail, then a penny, then a paper clip.Classify: Rank rocks from 1 (Softest) to 4 (Hardest) based on which tool actually left a mark.Discussion: Does color have anything to do with hardness? (Usually no—this is a key misconception fix).
Observation Notes
"Is it a scratch or just a powder streak?"
Fingernail: Hardness ~2.5
Penny: Hardness ~3.5
Steel Clip: Hardness ~5.5
2
Activity 2: Ancient Ink Lab (30 mins)
Engineering Mission
Agents must use their knowledge of properties to extract "pigment" (color) from soft rocks and then engineer a tool to apply that pigment to a "cave wall" (brown paper).
Extract: Students crush soft, colored rocks into a fine powder and mix with a tiny bit of water.Engineer: Use found objects (sticks, yarn, feathers, sponges) to build a "Precision Applicator" (brush).Task: Paint a symbol representing their agent team. The brush must hold enough liquid for 5 continuous strokes.
Property Patrollers Slides Property Patrollers
HARDNESS
HQ
Grade 2 Mission Briefing
MISSION 1: SCRATCH TEST
Not all rocks are created equal! Some are as soft as butter, others are harder than steel.
Patrol Goal:
Rank your specimens from softest to hardest!
Patrol Tools:
Fingernail
Penny
Paper Clip
MISSION 2: ANCIENT INK
Long ago, people used SOFT ROCKS to tell stories on cave walls.
🔨
1. CRUSH
💧
2. MIX
🖌️
3. ENGINEER
The Precision Applicator
"Don't just paint—BUILD!"
Your team must build a tool that can apply rock paint precisely .
Success Criteria:
✅ Holds paint without dripping
✅ Stays together for 10 strokes
✅ Uses 2 or more materials
Sticks
Sponges
Twine
Scraps
Property Patrollers Field Log Worksheet Patrol Log
Grade 2 Geology Property Mission
PATROLLER:
DATE:
MISSION 1
The Hardness Test
Can the tool scratch the rock? Mark a YES or NO in the table.
Specimen Fingernail Penny Paper Clip Hardness Rank (1-4) Rock A Rock B Rock C Rock D
*Rank 1 = Softest (easy to scratch), Rank 4 = Hardest (hard to scratch).
MISSION 2
Applicator Engineering
Problem Analysis
Which soft rock did you crush for your ink?
What material will hold the ink best?
Build Constraints
• No finger painting!
• Must have a handle.
• Materials must be tied or taped.
The precision applicator blueprint
(Label the handle and the bristles/tip)
Property Patrollers Review Key Patrol Check
Grade 2 Exit Assessment
1. A patroller tries to scratch a rock with a penny. The penny leaves a mark. What did the patroller learn about the rock?
The rock is harder than the penny.
The rock is softer than the penny.
The rock is the same hardness as the penny.
2. Match the rock texture to its description:
_____ Smooth
A. Feels like sandpaper.
_____ Rough
B. Looks like a mirror or feels like glass.
3. Why do engineers need to know how hard a rock is before they build a bridge with it?
Answer Key: Patrol Check (Grade 2)
1. Scratch Test Result:
The rock is softer than the penny (because the penny was able to scratch it).
2. Texture Matching:
Smooth = B
3. Engineering Connection:
Engineers need to know if the rock will break easily (soft) or if it can support a lot of weight and resist weather (hard).
Specimen Specialists Teacher Guide Teacher Guide
Grade 3 Mission: Specimen Specialists
TEKS 3.10(A)
Sess. 3.1
Mission Overview
Grade 3 Specialists advance their skills by incorporating mass into their classification protocols. They must accurately measure specimens and then use their knowledge of physical properties to solve a geotechnical engineering crisis: preventing a landslide from destroying a local village.
The Wow Factor
The "Landslide Simulator" involves a tilted tray of loose sediment. Students must engineer a wall that doesn't just look strong, but uses the mass and shape of rocks to interlock and resist force.
Specialist Supplies
Activity 1
• Pan balances / Digital scales
• Gram cube weights
• Rock specimens (A-E)
Activity 2
• Plastic bins or tilted trays
• Sand & loose gravel
• Selection of large/flat rocks
• Twigs or Popsicle sticks
1
Activity 1: Mass Measurement Mission (30 mins)
The Lab Process
Predict: Arrange 5 rocks from lightest to heaviest just by looking/feeling.Measure: Use the pan balance to find the exact mass in grams for each specimen.Recalibrate: Did the results surprise you? (Introduce density concepts—small rocks can be heavy!).Categorize: Group rocks into "Featherweight" (0-10g), "Middleweight" (11-50g), and "Heavyweight" (51g+).
Teacher Tip: Misconception Alert
Students often equate size with mass . Select a large pumice stone (light) and a small piece of hematite or lead ore (heavy) to create a "cognitive conflict" that forces them to rely on the measurement tools.
2
Activity 2: The Retention Wall Challenge (30 mins)
Engineering Mission
"Protect the village from the sliding slope!"
Scenario: A heavy rain is coming. The model village at the bottom of the tray is in danger.Analyze: Which rock physical properties (Shape/Texture/Mass) will make the best wall?Build: Construct a wall using rocks and limited "stabilizers" (sticks/twine).The Test: Pour 1 cup of dry sand/gravel at the top of the incline. If the village is untouched, the mission is a success.
Specimen Specialists Slides Specimen Specialists
MASS
MEASURES
Grade 3 Advanced Briefing
MISSION 1: THE LAB
True Specialists don't just "guess" how heavy a rock is. They use PRECISION.
Your first task is to measure the MASS of our priority specimens in grams.
"Mass is the amount of matter in an object!"
UNIT: GRAMS (g)
Warning: The Size Illusion!
🌑
SPECIMEN A
It's HUGE but full of air holes (Pumice). Light as a feather!
🔘
SPECIMEN B
It's TINY but made of solid metal (Lead). Heavy as a brick!
Trust the balance, not your eyes!
!
LANDSLIDE ALERT
A local village is at the bottom of a steep, loose hill. Heavy rain is starting to make the rocks slip!
Your Engineering Task:
"Build a Retention Wall that uses mass and interlocking shapes to stay put."
Geotechnical Requirements
Wall Constraints:
Use at least 3 high-mass rocks.
Rocks must overlap (no gaps).
No glue or tape allowed.
Slope Resistance
Interlocking Stability
Gravity Lock
STATUS: CERTIFIED
"You have proven that specialists don't just look—they measure. You have saved the village using the power of physical properties."
Measure
Engineer
Protect
Specimen Specialists Field Log Worksheet Specialist Log
Grade 3 Geotechnical Mission
SPECIALIST:
DATE:
MISSION 1
Precision Mass Lab
Rock Specimen Visual Prediction (Rank) Actual Mass (Grams) Physical Category Rock A Feather / Middle / Heavy Rock B Feather / Middle / Heavy Rock C Feather / Middle / Heavy Rock D Feather / Middle / Heavy
MISSION 2
Retention Wall Design
Engineering Blueprint
View: Cross-Section (Side View)
Foundation Level
Property Selection
Why did you pick your heaviest rocks for the bottom?
What rock shape interlocks the best?
Village Status
"Safe / Destroyed"
Height: _____ Rocks: _____
Specimen Specialists Review Key STAAR Specialist Check
Specimen Review
Specimen Specialist: _______________
1. A student has two rocks. Rock A is much larger than Rock B. Which statement is always true about the rocks?
Rock A will have more mass than Rock B.
Rock B will be harder than Rock A.
The mass of the rocks must be measured to be sure which is heavier.
2. Which tool is used to measure the mass of a rock specimen in grams?
Graduated Cylinder
Pan Balance
Challenge: Why did the landslide push the small pebbles further than the large rocks in your retention wall mission?
Explain using the property of MASS...
Teacher Answer Key (Grade 3)
Question 1
The mass of the rocks must be measured to be sure which is heavier.
Reasoning: Corrects the misconception that size = mass (e.g., Pumice is large but light).
Question 2
Pan Balance
Standard tool for measuring mass in Grades 3-5 STAAR prep.
Question 3 (Challenge)
The pebbles have less mass , so it takes less force for the landslide to move them. The large rocks have more mass and stay in place because of gravity.
