Sea Parts Vocabulary Worksheet Sea Parts Lexicon
Field Guide Series: Marine Biology 101
Researcher:
Date:
To understand how animals survive in the crushing depths and swirling currents of the ocean, we must first understand their anatomy—the physical structure of their bodies. Every fin, scale, and gill serves a specific purpose in the underwater world.
Part 1: The Anatomy Match-Up
Match the anatomical term to its primary function by writing the correct letter in the box.
1. Dorsal Fin
2. Caudal Fin
3. Gills
4. Lateral Line
5. Pectoral Fins
6. Operculum
7. Scales
A. Acts like a sensory organ to detect vibrations and movement in the water.
B. Hard, protective plates that cover the skin of most bony fish.
C. Organs that extract oxygen from the water so the fish can "breathe."
D. The "tail fin" used for forward propulsion and speed.
E. Located on the back; prevents the fish from rolling over and helps in turning.
F. Paired fins on the sides used for steering and balancing.
G. A bony flap that protects the gills.
Part 2: Adaptive Thinking
Many ocean animals have streamlined bodies. Based on what you know about the caudal fin, why is a streamlined shape important for a predator like a shark?
If a fish's lateral line was damaged, how might its ability to survive be affected? Think about how it finds food or avoids danger.
Deep Sea Fact
Did you know? Some deep-sea fish have transparent heads! This is an anatomical adaptation that helps them see prey floating above them in the dark.
Fish Blueprint Diagram Specimen Blueprint
Classification: Actinopterygii (Ray-finned Fish)
Student:
Date:
Analyze the anatomical structures of the generic fish specimen below. Correct identify each part using the Word Bank provided.
Reference Word Bank
Dorsal Fin
Caudal Fin
Pectoral Fin
Anal Fin
Pelvic Fin
Operculum
Lateral Line
Eye
SYSTEM: DEEP_SEA_ANALYSIS_v4.2 STATUS: SCANNING SPECIMEN... LOC: BENTHIC_ZONE_700m
Anatomy Expert Slide Deck Deep Sea Designs
Biological Foundations of Marine Life
Observe
Identify
Understand
What is Anatomy?
Anatomy is the study of the physical structure and parts of an organism.
Why it matters:
In the ocean, every body part is a tool designed for survival in high pressure and salt water.
The Power of Fins
Dorsal Fin
Acts like a boat's keel. It provides stability and prevents the fish from rolling over.
Stability
Caudal Fin
The "tail fin." It is the main engine, pushing the fish forward through the water.
Propulsion
Pectoral Fins
The side fins. They act like airplane wings for steering and braking.
Steering
Breathing Systems
The Gills
Gills are thin membranes that take oxygen out of the water and put it into the fish's blood.
"Fish don't hold their breath; they use their gills to filter the water as it passes through!"
"The operculum acts as a muscular pump to keep water flowing even when the fish isn't moving."
The Operculum
This bony flap covers and protects the delicate gills, working like a protective shield.
The Sixth Sense
The Lateral Line
Imagine being able to "feel" things moving near you without seeing them.
Detects water pressure changes
Helps fish swim in tight schools
Alerts fish to predators in the dark
"It's like having a built-in radar system for your body."
Quick Check
LAB_PHASE_01
1 Which fin acts like a rudder?
Think about stability and steering!
2 What protects the gills?
The bony flap on the side of the head.
Ready to label?
Grab your Specimen Blueprint and apply what you've learned about fish anatomy!
Ocean Anatomy Answer Key Teacher Answer Key
Unit: Deep Sea Designs
FACILITATOR RESOURCE
Sea Parts Lexicon Key
1. Dorsal Fin E. Located on the back; prevents rolling.
2. Caudal Fin D. The "tail fin" used for forward propulsion.
3. Gills C. Organs that extract oxygen from the water.
4. Lateral Line A. Sensory organ to detect vibrations.
5. Pectoral Fins F. Paired fins on the sides used for steering.
6. Operculum G. A bony flap that protects the gills.
7. Scales B. Hard, protective plates that cover the skin.
Sample Responses: Adaptive Thinking
Streamlined Shape Response:
A streamlined shape reduces drag and resistance in the water. Combined with a powerful caudal fin, this allows predators like sharks to reach high speeds quickly to catch prey.
Lateral Line Response:
Without a lateral line, a fish would struggle to navigate in dark or murky water. It might find it harder to detect predators approaching from behind or swim closely in a school, making it more vulnerable.
Specimen Blueprint Key
Refer to the diagram labels from top to bottom, left to right:
1 Eye (Far Top-Left)
2 Operculum (Top-Left)
3 Dorsal Fin (Top-Center)
4 Lateral Line (Top-Right)
5 Caudal Fin (Far-Right)
6 Pectoral Fin (Bottom-Left)
7 Pelvic Fin (Bottom-Center)
8 Anal Fin (Bottom-Right)
Grading Tips
Encourage students to look for the "ventral" or "anal" fin specifically near the tail on the bottom.
Check for correct spelling, though conceptual understanding of placement is the primary objective.
The Lateral Line is often the trickiest for students as it's not a fin; look for the dotted line indicator.
Unit Mastery Assessment Unit Mastery Assessment
Master Architect Examination
Subject: Comprehensive Marine Anatomy & Adaptation
Candidate Name:
Date:
Phase 01: Structural Foundations
Match the anatomical structure to its primary biological function.
1
Lateral Line
2
Ampullae of Lorenzini
3
Swim Bladder
4
Radula
5
Myoglobin
A) Detects electrical fields in the water (Sharks).
B) A gas-filled organ used for buoyancy in bony fish.
C) Detects pressure changes and vibrations in water.
D) Stores oxygen directly within the muscle tissue.
E) A raspy, tooth-like tongue used by mollusks for feeding.
Phase 02: Comparative Analysis
1. Which of the following is a characteristic ONLY found in cartilaginous fish (Chondrichthyes)?
A) An operculum (gill cover)
B) An oily liver for buoyancy
C) A gas-filled swim bladder
D) Scales that grow in rings
2. Marine mammals possess horizontal tail flukes, while fish possess vertical tails. This movement reflects what underlying anatomical structure?
A) The presence of a dorsal fin
B) The lack of a nervous system
C) Mammalian spinal flexibility
D) Resistance to salt water
3. What is the primary function of the "Melon" in a toothed whale or dolphin?
A) Storing extra calories for migration
B) Focusing sound waves for echolocation
C) Absorbing oxygen through the skin
D) Secreting salt from the body
Reference: EXAM-ARCHITECT-MASTER Page 01 / 02 Authority: Ocean Architects Org.
Phase 03: Architect's Portfolio
Provide detailed technical explanations for the following biological designs.
1. Thermal Bio-Engineering
Explain how Counter-Current Heat Exchange works in the flukes of a marine mammal. Why is this a superior adaptation to simply having thick blubber all over the entire body?
2. Deep Sea Specialized Systems
Compare the respiratory systems of a Blue Whale and a Great White Shark. How does each animal obtain oxygen, and what anatomical structures make this possible?
3. The Invertebrate Innovation
Describe the unique circulatory adaptation of an Octopus. How many hearts does it possess, and how does this support its highly active lifestyle in oxygen-poor environments?
Reference: EXAM-ARCHITECT-MASTER Page 02 / 02 Security Level 5: Final Review
Unit Mastery Answer Key Master Answer Key
Architect Exam Evaluation Guide
Subject: Marine Anatomy & Adaptation Final Assessment
Teacher Eyes Only
Phase 01: Structural Foundations
Lateral Line: C
Ampullae of Lorenzini: A
Swim Bladder: B
Radula: E
Myoglobin: D
Phase 02: Comparative Analysis
1. Answer: B (An oily liver for buoyancy)
2. Answer: C (Mammalian spinal flexibility)
3. Answer: B (Focusing sound waves for echolocation)
Phase 03: Analysis Rubric
1. Thermal Bio-Engineering (Counter-Current Exchange)
"Full credit requires explaining that warm blood from arteries transfers heat to cool blood in veins before it reaches the flipper. It is superior because it prevents the core from cooling down while still allowing the extremities to function without needing thick, bulky blubber that would hinder movement."
2. Deep Sea Specialized Systems (Blue Whale vs Great White)
"Blue Whale: Lungs (air-breathing), blowhole on top of head, high myoglobin in muscles. Great White: Gills (extracting O2 from water), gill slits on sides of head. Both have specialized structures but one relies on atmospheric air and storage while the other relies on continuous water flow."
3. The Invertebrate Innovation (Octopus Hearts)
"An octopus has three hearts: two branchial hearts to pump blood to the gills and one systemic heart to pump blood to the body. This supports an active lifestyle by ensuring high-pressure oxygenated blood reaches tissues efficiently, even when the animal is swimming or in low-oxygen environments."
Reference: KEY-MASTER-EXAM Authority: Ocean Architects Org. Confidential: Internal Evaluation Only
Skeleton Showdown Slides VS
Skeleton Showdown
BONY vs CARTILAGINOUS
The Biological Divide
EVOLUTIONARY_SPLIT
Osteichthyes
"Bony Fish"
95% of all fish species. From goldfish to tuna.
The Rigid Majority
Chondrichthyes
"Cartilaginous Fish"
Sharks, rays, and skates. Ancient survivors.
The Flexible Predators
What's Inside Matters
BONE
Calcium Carbonate
Heavy, rigid, and extremely strong. Requires a specific "bladder" to help with weight.
CARTILAGE
Elastic Protein
Lightweight and flexible (like your ears/nose). Allows for extreme agility and depth.
Battle of Buoyancy
The Swim Bladder
Bony fish have a gas-filled sac. They can hover perfectly still by adjusting the gas level.
"Hot Air Balloon Strategy"
Oil-Filled Liver
Sharks have no bladder. They use a giant, oily liver (oil is lighter than water) and forward motion.
"Keep Swimming Strategy"
Hovering vs Sinking
Most sharks will sink if they stop swimming!
Operculum vs Gill Slits
Bony Fish
A single bony flap (Operculum) covers the gills. It can pump water even while stationary.
"I can breathe while sleeping on the ocean floor!"
Cartilaginous Fish
5 to 7 visible gill slits on the side. No flap! Most must move to force water through.
"I need constant water flow to stay alive!"
The Verdict
Feature Bony Fish Cartilaginous Fish Skeleton Hard Bone Flexible Cartilage Buoyancy Swim Bladder (Air) Oily Liver Gills Protected by Operculum Exposed Gill Slits Movement Can hover in place Must swim to stay afloat

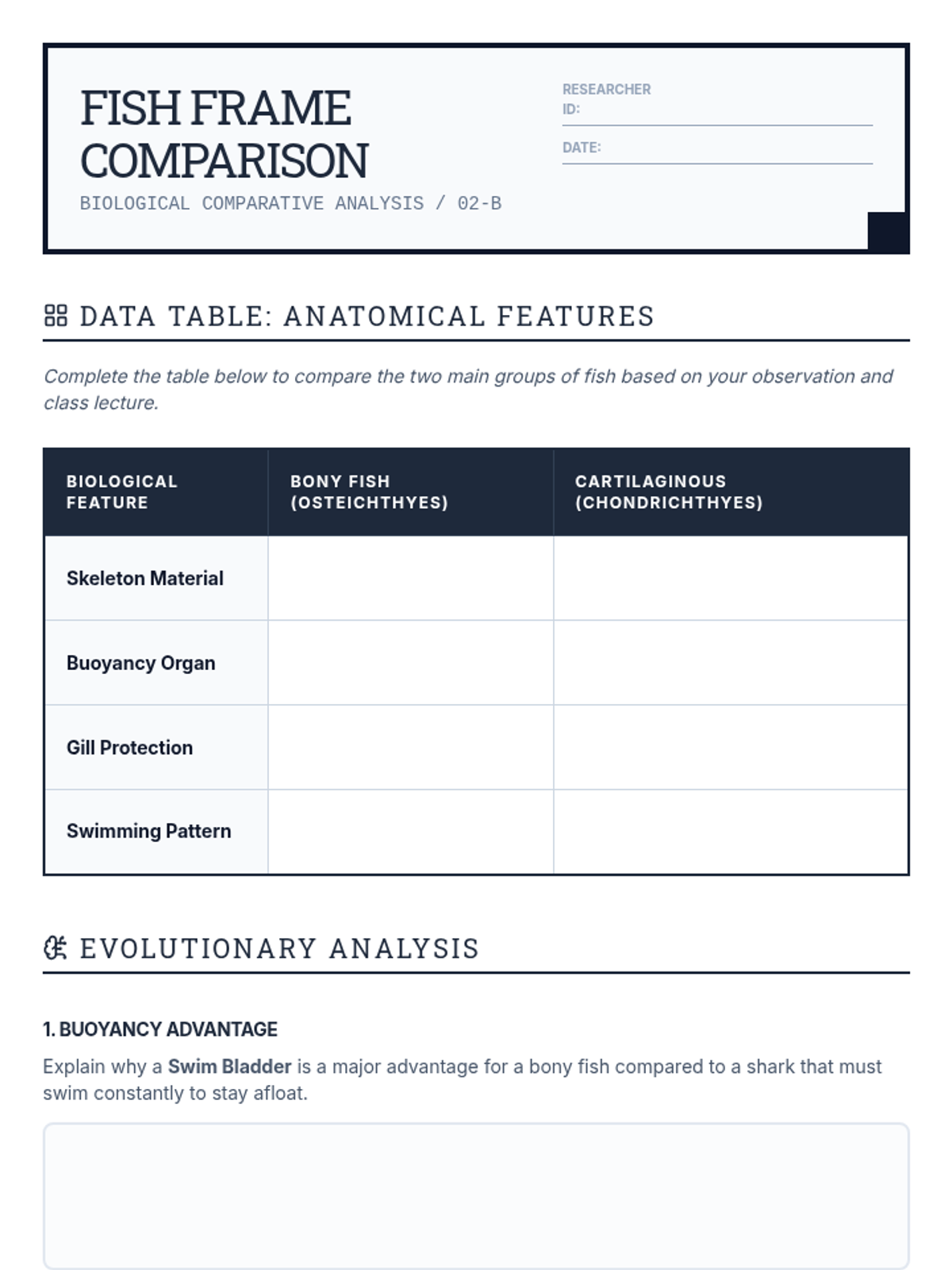

Fish Frame Comparison Worksheet Fish Frame Comparison
Biological Comparative Analysis / 02-B
Researcher ID:
Date:
Data Table: Anatomical Features
Complete the table below to compare the two main groups of fish based on your observation and class lecture.
Biological Feature Bony Fish (Osteichthyes) Cartilaginous (Chondrichthyes) Skeleton Material Buoyancy Organ Gill Protection Swimming Pattern
Evolutionary Analysis
1. Buoyancy Advantage
Explain why a Swim Bladder is a major advantage for a bony fish compared to a shark that must swim constantly to stay afloat.
2. Respiratory Efficiency
Bony fish have an Operculum (bony gill flap). How does this structure allow a fish to save energy while resting on the ocean floor?
3. Strategic Flexibility
Sharks are famous for their agility. Why is a cartilage skeleton more useful for a predator than a rigid bone skeleton?
Department of Marine Skeletal Analysis Project: Ocean Architects Form ID: skeletal-compare-v2

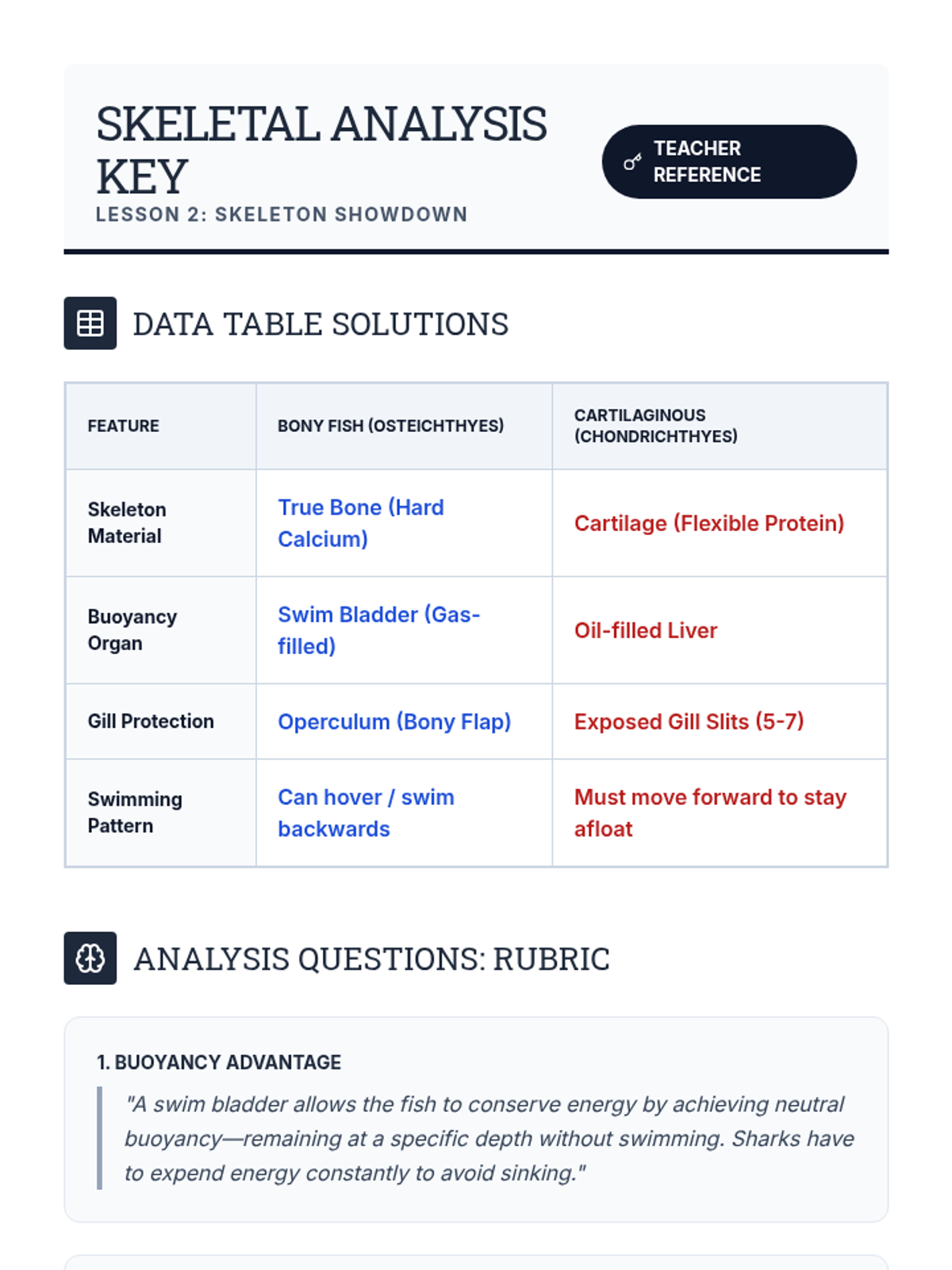

Skeletal Analysis Answer Key Skeletal Analysis Key
Lesson 2: Skeleton Showdown
TEACHER REFERENCE
Data Table Solutions
Feature Bony Fish (Osteichthyes) Cartilaginous (Chondrichthyes) Skeleton Material True Bone (Hard Calcium) Cartilage (Flexible Protein) Buoyancy Organ Swim Bladder (Gas-filled) Oil-filled Liver Gill Protection Operculum (Bony Flap) Exposed Gill Slits (5-7) Swimming Pattern Can hover / swim backwards Must move forward to stay afloat
Analysis Questions: Rubric
1. Buoyancy Advantage
"A swim bladder allows the fish to conserve energy by achieving neutral buoyancy—remaining at a specific depth without swimming. Sharks have to expend energy constantly to avoid sinking."
2. Respiratory Efficiency
"The operculum acts as a pump, forcing water over the gills even when the fish is stationary. This allows bony fish to hide or rest on the bottom while still breathing efficiently."
3. Strategic Flexibility
"Cartilage is lighter and more flexible than bone, allowing sharks to make sharper turns and be more agile in pursuit of prey. It also prevents the skeleton from shattering under extreme pressure at depth."
Misconception Alert
Students often think sharks "never sleep" because they must swim. Clarify that some cartilaginous fish can use "ram ventilation" or "buccal pumping" (like nurse sharks), but the general rule for pelagic sharks is constant motion.
Fish Frame Comparison Worksheet Fish Frame Comparison
Biological Comparative Analysis / 02-B
Researcher ID:
Date:
Data Table: Anatomical Features
Complete the table below to compare the two main groups of fish based on your observation and class lecture.
Biological Feature Bony Fish (Osteichthyes) Cartilaginous (Chondrichthyes) Skeleton Material Buoyancy Organ Gill Protection Swimming Pattern
Evolutionary Analysis
1. Buoyancy Advantage
Explain why a Swim Bladder is a major advantage for a bony fish compared to a shark that must swim constantly to stay afloat.
2. Respiratory Efficiency
Bony fish have an Operculum (bony gill flap). How does this structure allow a fish to save energy while resting on the ocean floor?
3. Strategic Flexibility
Sharks are famous for their agility. Why is a cartilage skeleton more useful for a predator than a rigid bone skeleton?
Department of Marine Skeletal Analysis Project: Ocean Architects Form ID: skeletal-compare-v2

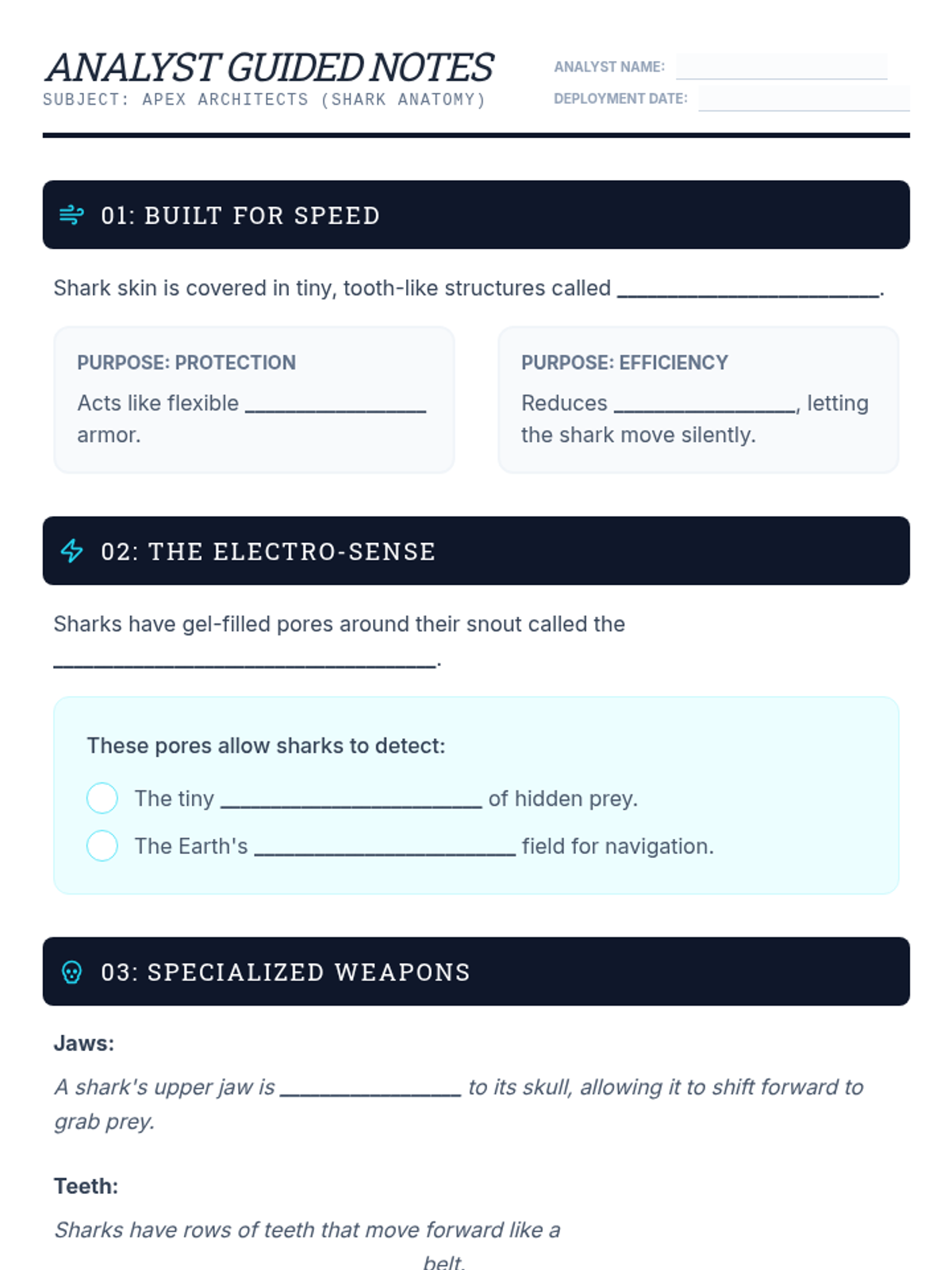

Apex Architects Slides Apex Architects
SHARK ANATOMY DOSSIER
Superpredator Analysis • Evolutionary Edge • Senses v2.0
Built for Speed
FEATURE: HYDRODYNAMICS
Dermal Denticles
Shark skin isn't covered in smooth scales. It's covered in "skin teeth."
Protection: Acts like flexible chainmail armor.
Efficiency: Reduces drag, letting the shark "slice" through water silently.
Microscopic View: Tooth-like Structures
The Electro-Sense
Ampullae of Lorenzini
Small, gel-filled pores around the shark's snout that detect electricity.
Detects heartbeats of hidden prey.
Works like a compass using Earth's magnetic field.
Hidden Radar
"A shark can find a fish buried under the sand just by feeling its heartbeat through the water."
Specialized Weapons
Protrusible Jaws
Unlike yours, a shark's upper jaw is not attached to its skull. It can shift forward to grab prey.
Tooth Conveyor
Sharks have rows of teeth. When one falls out, another moves forward like a conveyor belt.
Custom Tools
Teeth shapes change based on diet:

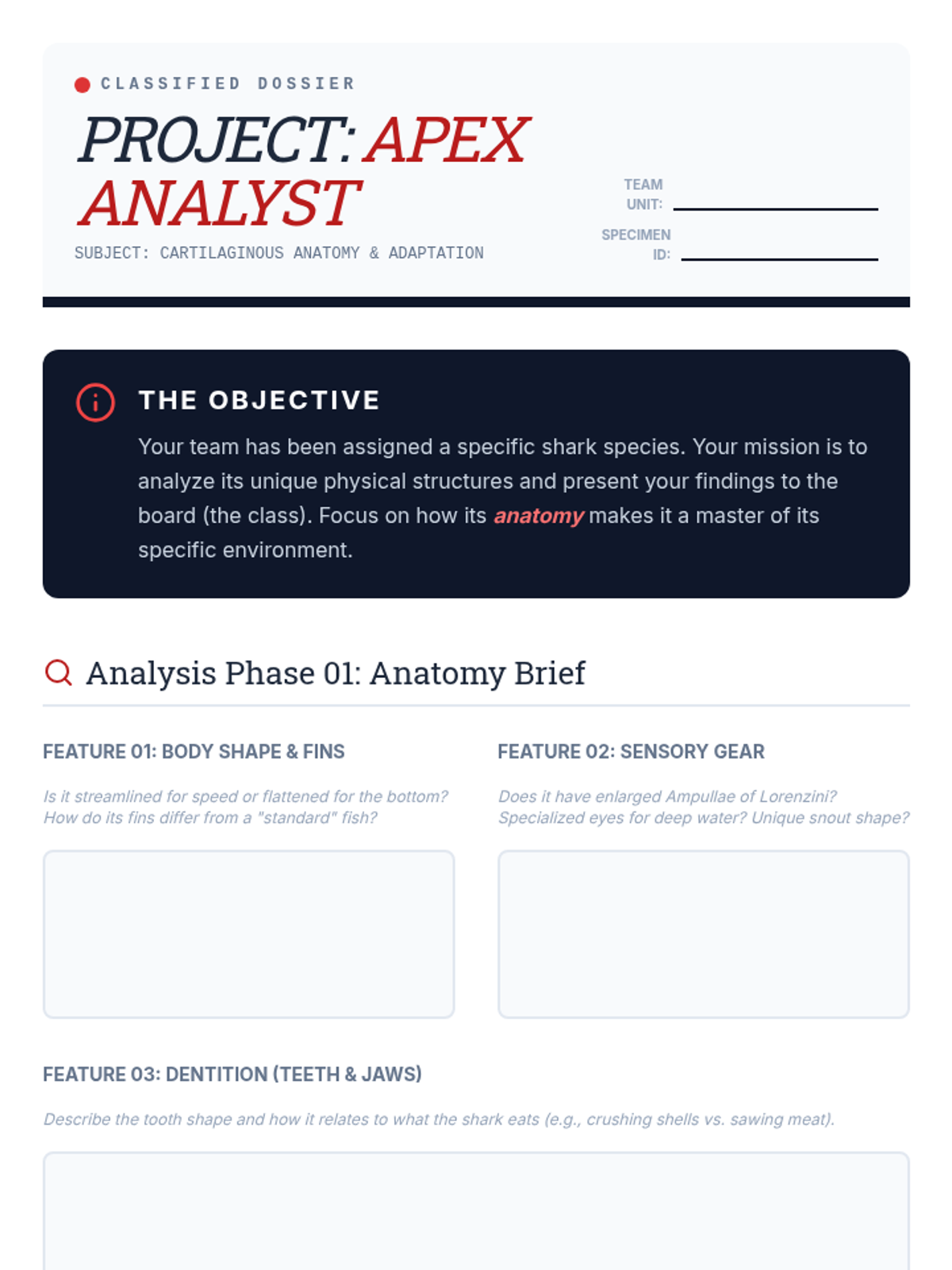

Mission: Apex Analyst
Classified Project
Your Objective
In groups of 3, research a specific shark species and create a 3-minute "Anatomy Briefing" for the class.
Requirement 1
Identify 3 unique anatomical adaptations.
Requirement 2
Explain how those parts help it hunt.
Specimen Options
Hammerhead Shark
Great White Shark
Thresher Shark
Whale Shark
Greenland Shark
ANALYST_PHASE_INITIATED
Apex Analyst Project Rubric Mission Evaluation
Apex Analyst Rubric
Subject: Shark Anatomical Assessment (30 Points Total)
Student/Team:
Date Evaluated:
Review Objective
Evaluating the depth of anatomical research, connection between structure and function, habitat accuracy, and professional presentation delivery.
Final Score
/ 30
Criterion Expert Proficient Developing Beginning Anatomy Description
Physical structures, fins, skin, and sensory organs. | 10 pts Highly detailed description of body shape, dentition, and at least 3 unique features. | 8 pts Accurate description of body shape and 2-3 anatomical features. | 6 pts Basic description provided, but missing specific detail or technical terms. | 4 pts Incomplete description; several key physical structures are missing. |
|
Adaptations
How structures help the shark survive and hunt. | 10 pts Sophisticated analysis of how every structure directly supports lifestyle and survival. | 8 pts Clear connections made between physical features and their survival advantages. | 6 pts Identifies adaptations but provides shallow explanation of their purpose. | 4 pts Fails to link physical structures to any survival or lifestyle advantages. |
|
Habitat & Range
Geographic location and depth preferences. | 5 pts Precise identification of depth zones, water temps, and global residency. | 4 pts Correctly identifies the primary region and environment where the shark lives. | 3 pts Vague or overly broad description of habitat (e.g., "The Ocean"). | 2 pts Habitat information is missing or significantly inaccurate. |
|
Presentation
3-5 minute briefing with visual aids. | 5 pts Professional delivery. Well-paced (3-5 mins). Excellent eye contact and visuals. | 4 pts Confident delivery within time range. Uses visuals to support speaking. | 3 pts Too short (< 3 mins) or read directly from notes. Visuals are hard to see. | 2 pts Minimal effort in delivery. Significantly outside the required time window. |
Teacher Debrief & Observations
Strengths in Analysis:
Required Structural Repairs:
Document: APEX-RUBRIC-30 Authority: Apex Architects Grading Board Confidential: Teacher Eyes Only
Apex Analyst Project Guide Classified Dossier
Project: Apex Analyst
Subject: Cartilaginous Anatomy & Adaptation
Team Unit:
Specimen ID:
The Objective
Your team has been assigned a specific shark species. Your mission is to analyze its unique physical structures and present your findings to the board (the class). Focus on how its anatomy makes it a master of its specific environment.
Analysis Phase 01: Anatomy Brief
Feature 01: Body Shape & Fins
Is it streamlined for speed or flattened for the bottom? How do its fins differ from a "standard" fish?
Feature 02: Sensory Gear
Does it have enlarged Ampullae of Lorenzini? Specialized eyes for deep water? Unique snout shape?
Feature 03: Dentition (Teeth & Jaws)
Describe the tooth shape and how it relates to what the shark eats (e.g., crushing shells vs. sawing meat).
Analysis Phase 02: Presentation Blueprint
Your 3-minute briefing must include these key components. Use the check-boxes to track your progress.
Component A: Visual Aid A diagram or model of your shark with at least 3 labeled anatomical adaptations.
Component B: Evolution Argument One sentence explaining WHY this shark has a different structure than a bony fish.
Component C: Habitat Connection Explanation of how its anatomy helps it survive in its specific part of the ocean.
Efficiency Metric (Grading Rubric)
Incomplete (1pt)
Missing labels or basic facts. Low effort visual.
Operational (3pts)
Covers all required parts clearly. Logical links.
Apex Status (5pts)
Deep analysis. Creative visual. Clear communication.
Report Generated: 2026.02.26 Security Level: Level 3 (Middle School) Authority: Ocean Architects Org.

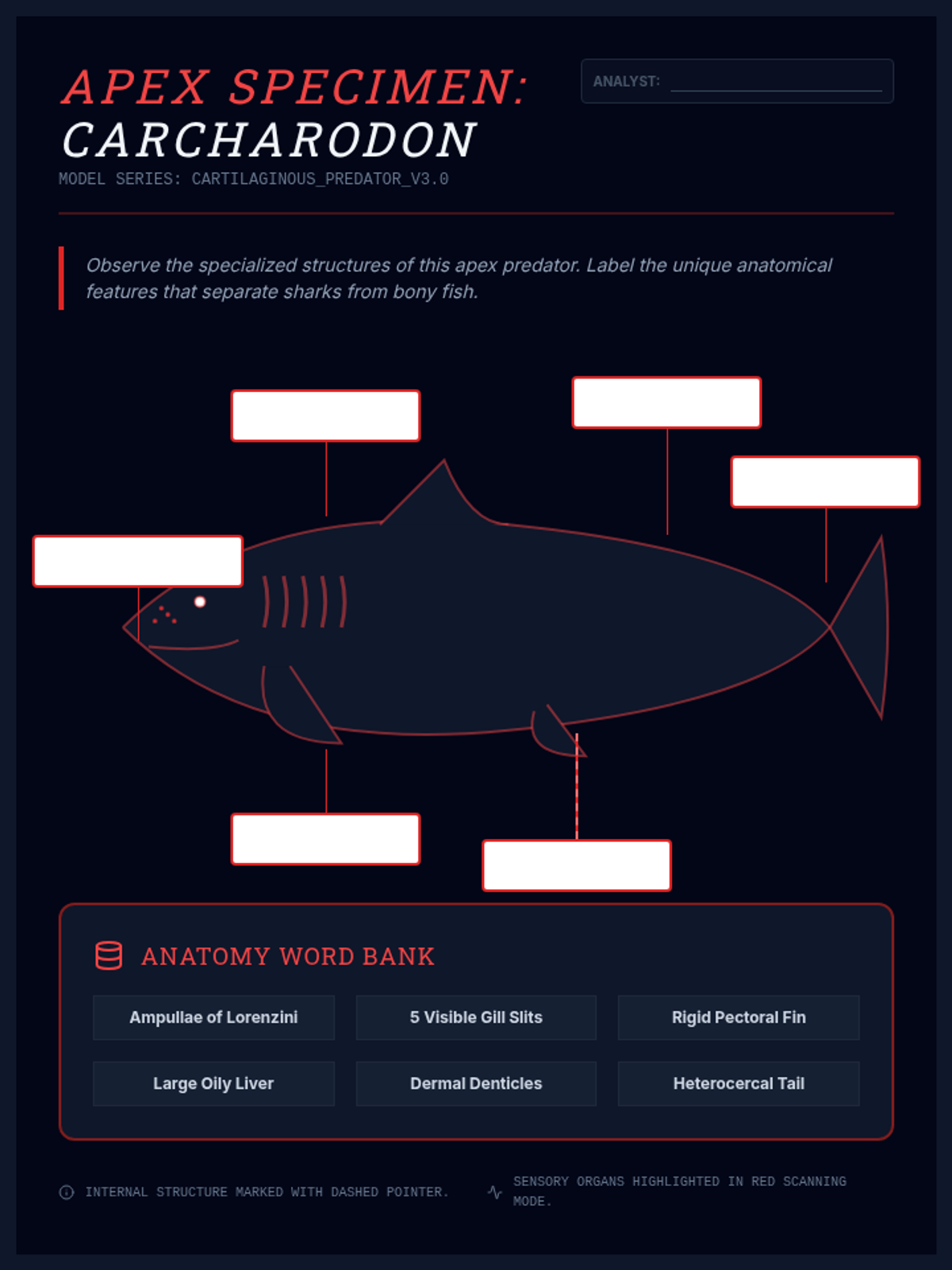

Shark Anatomy Diagram Apex Specimen: Carcharodon
Model Series: Cartilaginous_Predator_v3.0
Analyst:
Observe the specialized structures of this apex predator. Label the unique anatomical features that separate sharks from bony fish.
Anatomy Word Bank
Ampullae of Lorenzini
5 Visible Gill Slits
Rigid Pectoral Fin
Large Oily Liver
Dermal Denticles
Heterocercal Tail
Internal structure marked with dashed pointer.
Sensory organs highlighted in RED scanning mode.
Apex Analyst Guided Notes Analyst Guided Notes
Subject: Apex Architects (Shark Anatomy)
Analyst Name:
Deployment Date:
01: Built for Speed
Shark skin is covered in tiny, tooth-like structures called __________________________.
Purpose: Protection
Acts like flexible __________________ armor.
Purpose: Efficiency
Reduces __________________, letting the shark move silently.
02: The Electro-Sense
Sharks have gel-filled pores around their snout called the ______________________________________.
These pores allow sharks to detect:
The tiny __________________________ of hidden prey.
The Earth's __________________________ field for navigation.
03: Specialized Weapons
Jaws:
A shark's upper jaw is __________________ to its skull, allowing it to shift forward to grab prey.
Teeth:
Sharks have rows of teeth that move forward like a ____________________________________ belt.
Tooth Shape 1: Serrated
Used for __________________ meat.
Tooth Shape 2: Needle-like
Used for __________________ slippery fish.
Dossier v3.0 // ANALYST_NOTES CONFIDENTIAL RESEARCH MATERIAL

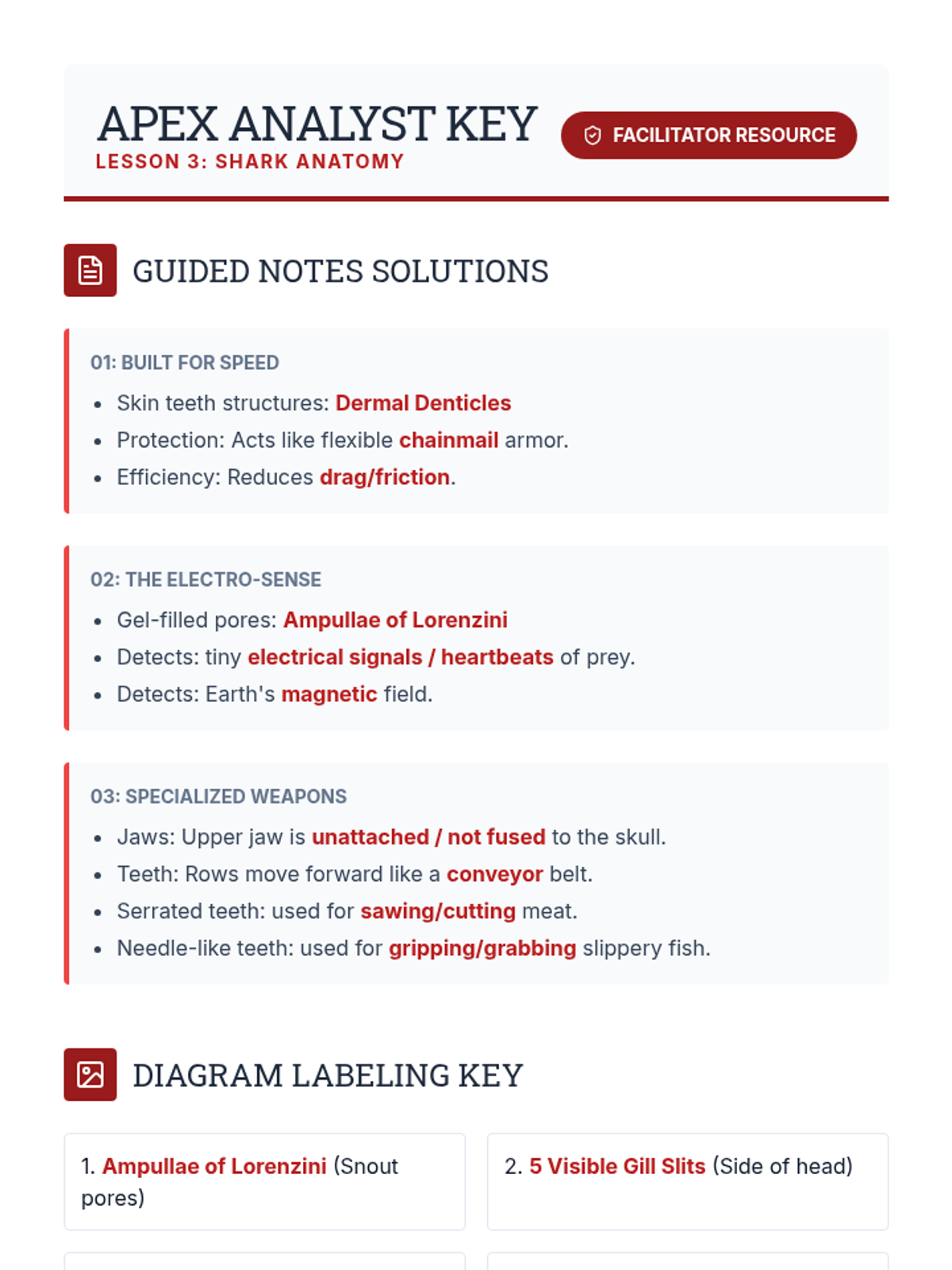

Apex Architects Answer Key Apex Analyst Key
Lesson 3: Shark Anatomy
FACILITATOR RESOURCE
Guided Notes Solutions
01: Built for Speed
Skin teeth structures: Dermal Denticles
Protection: Acts like flexible chainmail armor.
Efficiency: Reduces drag/friction.
02: The Electro-Sense
Gel-filled pores: Ampullae of Lorenzini
Detects: tiny electrical signals / heartbeats of prey.
Detects: Earth's magnetic field.
03: Specialized Weapons
Jaws: Upper jaw is unattached / not fused to the skull.
Teeth: Rows move forward like a conveyor belt.
Serrated teeth: used for sawing/cutting meat.
Needle-like teeth: used for gripping/grabbing slippery fish.
Diagram Labeling Key
1. Ampullae of Lorenzini (Snout pores)
2. 5 Visible Gill Slits (Side of head)
3. Rigid Pectoral Fin (Side fin)
4. Large Oily Liver (Internal indicator)
5. Heterocercal Tail (Uneven tail fin)
6. Dermal Denticles (Skin texture)
Teacher's Project Strategy
Student Misconceptions:
Students often think "cartilage" means weak. Emphasize that it is lightweight and flexible, allowing for the extreme speed of sharks like the Shortfin Mako.
Extension Idea:
Ask groups to debate which shark has the most "extreme" anatomical adaptation (e.g., Hammerhead eyes vs. Thresher tail).
Advanced Marine Mammal Slides Deep Dive Series
Warm-Blooded Waves
The Advanced Anatomy of Marine Mammals
The Mammal Blueprint
Slide 02 / 15
Despite living in the ocean, marine mammals are more closely related to us than to fish.
Lungs: Breathe atmospheric air.Endothermic: Produce internal heat.Milk: Mammary glands for nursing young.
Live Birth
Unlike most fish that lay thousands of eggs, marine mammals invest heavily in a single offspring.
Diverse Orders
Slide 03 / 15
Cetaceans
Whales, Dolphins, Porpoises. Entirely aquatic body plan.
Pinnipeds
Seals, Sea Lions, Walruses. "Fin-footed" semi-aquatic.
Sirenians
Manatees and Dugongs. Herbivorous "sea cows."
Fissipeds
Sea Otters and Polar Bears. Closest land relatives.
Heat Management
Slide 04 / 15
The Blubber Barrier
"Water pulls heat away from the body 25x faster than air."
Insulation: Traps core metabolic heat.Fuel: Energy source for migration.Buoyancy: Helps heavy mammals float.
Internal Temp
~37°C (98.6°F)
Identical to Humans
Bio-Engineering
Slide 05 / 15
Counter-Current Heat Exchange
Marine mammals lack blubber on their flippers and flukes to allow for movement. How do they not freeze?
"Warm blood heading to the flipper transfers its heat to the cold blood returning to the heart. The heat stays in the core!"
The "Radiator" System
Arteries (Warm) are surrounded by a web of veins (Cold). This creates a heat-recycling loop.
Knowledge Check
Review 01
Which anatomical adaptation allows a marine mammal to keep heat in its core while its flippers are exposed to freezing water?
A) Thick Blubber
B) Counter-Current Exchange
C) Nasal Drift
D) Myoglobin storage
Video Briefing
Slide 07 / 15
Embedded media
The Master Switch
Watch how the body automatically reconfigures itself for deep-water survival. Pay attention to how blood flow is redirected.
Mammal vs Fish Matchup Worksheet Advanced Mammal Matchup
Ocean Architects / Marine Mammal Anatomy Study
Scientist:
Date:
Part 1: The Four Major Orders
Match the description to the correct biological group: Cetaceans, Pinnipeds, Sirenians, Fissipeds.
A) Seals & Walruses:
B) Manatees & Dugongs:
C) Whales & Dolphins:
D) Otters & Polar Bears:
Part 2: Advanced Comparison
Biological System Oceanic Bony Fish Marine Mammal Main O2 Storage Dissolved in blood _________________________ (in muscle) Thermal Strategy Exothermic (External Heat) Endothermic (_______________________) Heat Recycling Not Present _____________________________________ Tail Orientation Vertical (Side-to-Side) __________________________ (Up-and-Down) Sound Reception Lateral Line / Ear bones Biosonar via the ___________________
Part 3: Deep Dive Analysis
1. The Radiator Loop
Explain how Counter-Current Heat Exchange allows a dolphin to swim in freezing water without losing its core body heat through its uninsulated flippers.
2. The "Black Meat" Mystery
Deep-diving whales have extremely dark, almost black muscle tissue. Identify the protein responsible for this and explain why it is essential for an architect of the deep ocean.
3. Seeing with Sound
Describe the pathway of sound in echolocation. How do the Melon and the Lower Jawbone work together to help a dolphin "see" in total darkness?
Department of Cetacean Biology Project: Warm-Blooded Waves Form ID: advanced-mammal-matchup-v2
Marine Mammal Answer Key Answer Key: Warm Blooded Waves
Advanced Marine Mammal Anatomy / Teacher Resource
Master Key
Part 1: Taxonomy & Table
A) Seals: PINNIPEDS
B) Manatees: SIRENIANS
C) Whales/Dolphins: CETACEANS
D) Otters: FISSIPEDS
Storage: Myoglobin (Muscle)
Thermal: Endothermic
Recycling: Counter-Current Heat Exchange
Tail: Horizontal Flukes
Sonar: Melon & Jawbone
Part 2: Orcinus Blueprint Forensic Key
1. Melon: (M) Mammal Only
2. Blowhole: (M) Mammal Only
3. Dorsal Fin: (S) Shared Function
4. Tail Flukes: (M) Mammal Only*
5. Conical Teeth: (S) Shared Function
6. Pectoral Flipper: (S) Shared Function
7. Blubber Layer: (M) Mammal Only
8. Mammary Glands: (M) Mammal Only
Evidence of Terrestrial Ancestry (Flippers):
"The internal bone structure (humerus, radius, ulna, and phalanges/fingers) is homologous to land mammal limbs, proving evolution from 4-legged ancestors."
Functional Convergence (Dorsal Fin):
"Independent evolution of the dorsal fin in both fish and mammals because it provides necessary hydro-dynamic stability for high-speed swimming."
Part 3: Analysis Guide
Melon & Echolocation:
"The Melon is a fatty organ that focuses sound waves created in the nasal passages into a beam, allowing the animal to perceive its environment via acoustics."
The "Black Meat" (Myoglobin):
"Myoglobin stores oxygen in muscle cells. Deep-diving whales use this to bypass lung capacity limitations during extended periods without surfacing."
Reference: MAMM-KEY-MASTER-V3 Authority: Ocean Architects Org. Lesson 5: Warm Blooded Waves

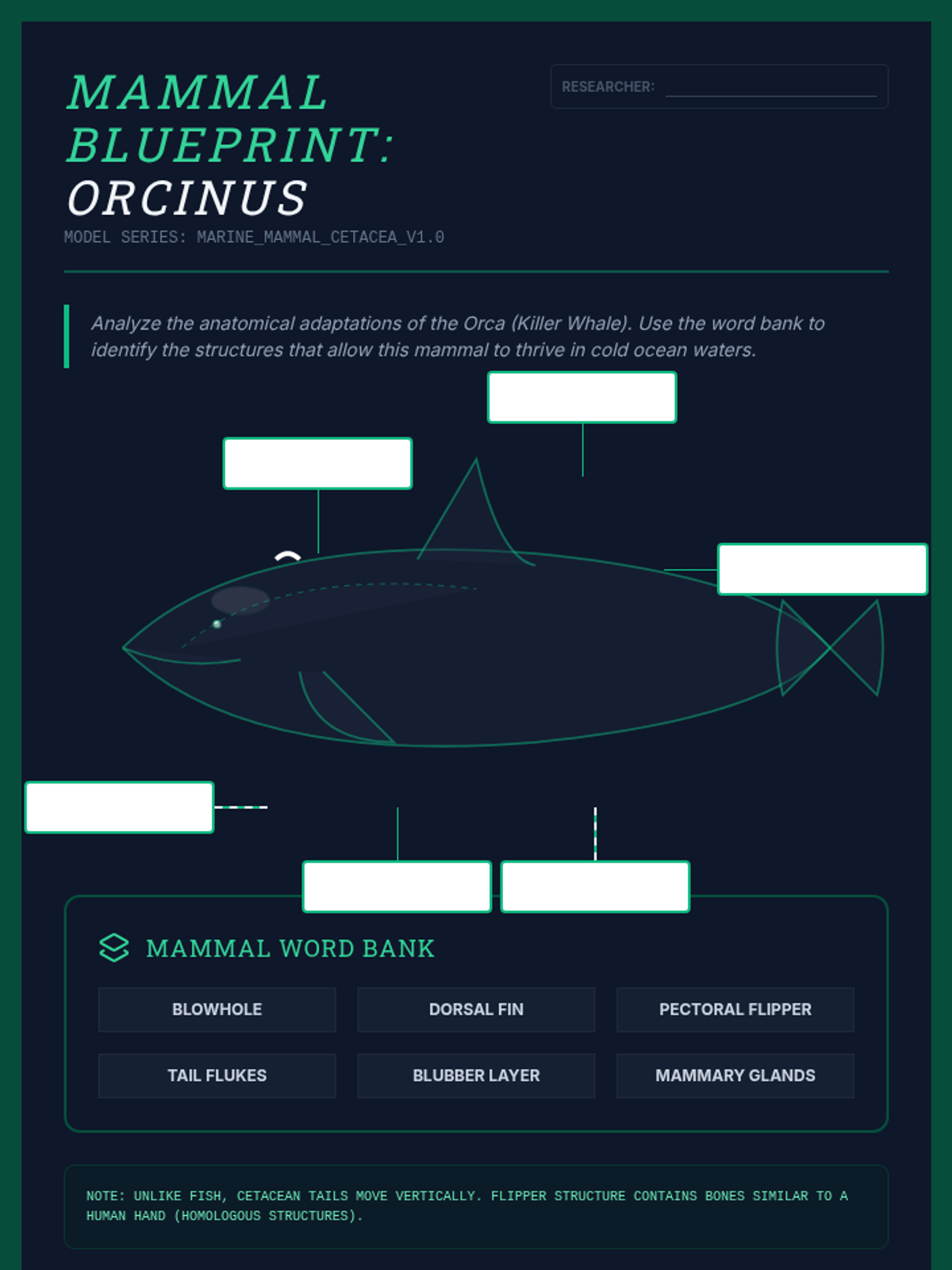

Orca Anatomy Diagram Project Structural Forensic Analysis
Orcinus Blueprint
Subject ID: Mammal_vs_Fish_Architect_05
Architect Name
The Orca's body is a masterpiece of convergent evolution. While it looks like a fish, its internal blueprint reveals its mammalian ancestry.Task: Label the 8 structures. For each, circle M if it is a Mammal trait or S if it is a Shared function with fish.
M
S
M
S
M
S
M
S
M
S
M
S
M
S
M
S
Flipper X-Ray Analysis
Evidence of Ancestry
Describe how internal bone structure (phalanges) proves land ancestry:
Word Bank
Blowhole
Dorsal Fin
Blubber
Mammary
Flukes
Flipper
Melon
Teeth
Forensic Summary
Evolutionary Origin of Flukes/Fins:
Function of the Melon (Acoustics):
Architectural Clearance: Level 5 Model Reference: ORC-ADV-BLU Authority: Ocean Architects Org
Invertebrate Marvels Slides Biological Study: 05
Invertebrate Marvels
The Architecture of the Squish
No Bones, No Problem
STATUS: SPINEL_NOT_FOUND
Invertebrates
Animals that lack a vertebral column (backbone).
The Advantage:
Without a rigid skeleton, these animals can squeeze through tiny gaps, change shape, and move with incredible flexibility.
Shape-Shifting Mastery
"If their beak fits, they can get through!"
The Octopus Blueprint
3
Triple Hearts
Two pump blood to the gills, one to the body. Their blood is BLUE because it uses copper to carry oxygen!
Distributed
9 Brains?
They have a central brain, but 2/3 of their neurons are in their ARMS. Each arm can think and act on its own!
Active
Chromatophores
Specialized pigment cells in the skin that expand or contract to change color and texture in milliseconds.
The Jellyfish Anatomy
The Bell
A jelly-like body that pulses to push water out, moving the jellyfish forward using jet propulsion.
Nematocysts
Microscopic stinging cells on the tentacles that fire like miniature harpoons when touched.
Simplicity by Design
"No brain. No heart. No lungs. No blood.
Nerve Net
A simple nervous system that detects light, smell, and touch.
Comparing the Squish
The Hunter
Active camouflaging
Complex problem solver
Suction-cup grip (arms)
Hard beak for crushing
The Drifter
Passive drifting / Pulse
Automatic stinging reflex
Simple nerve net
95% water composition
NEXT PHASE: SOFT BODY BLUEPRINT ANALYSIS

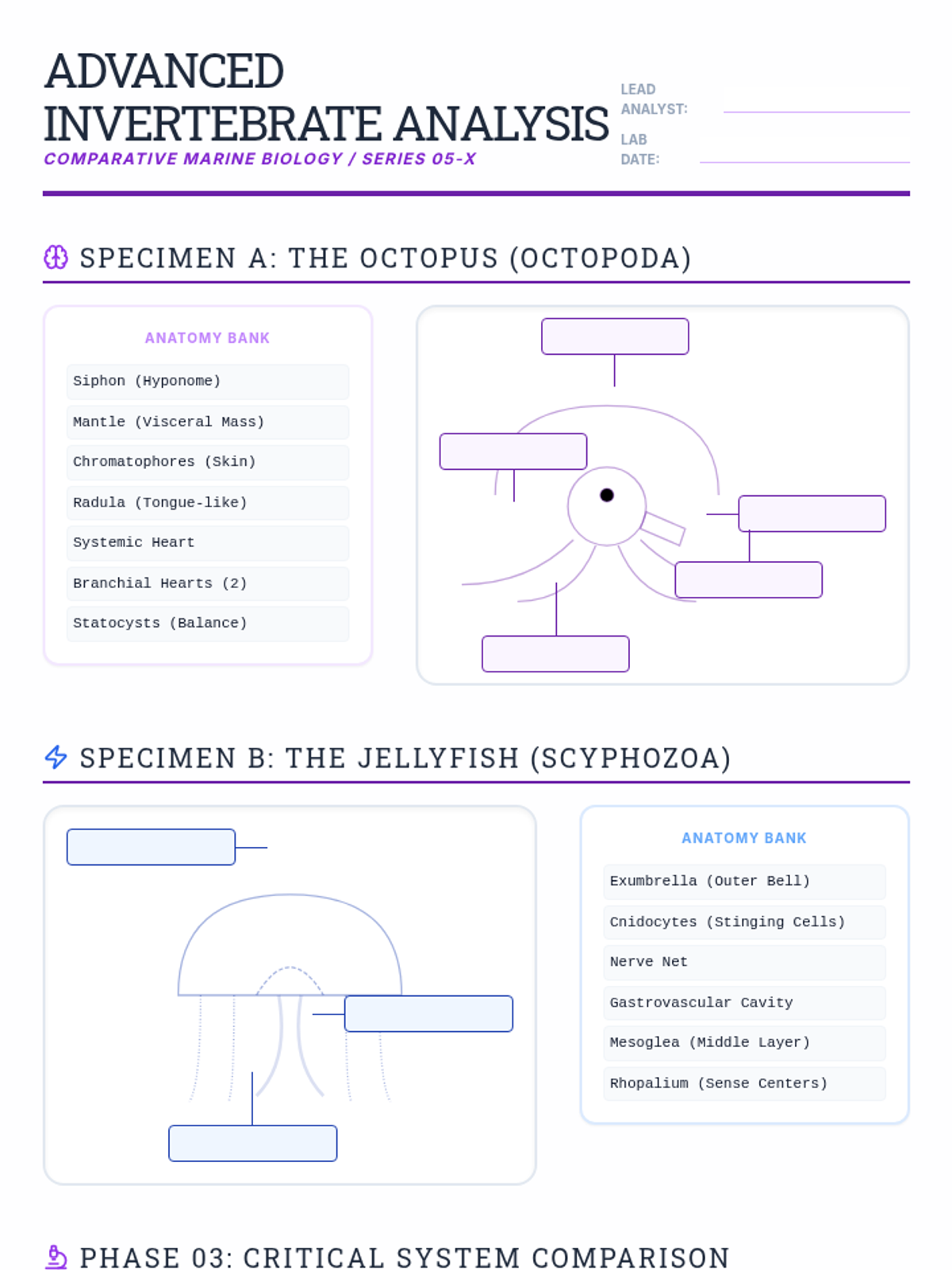

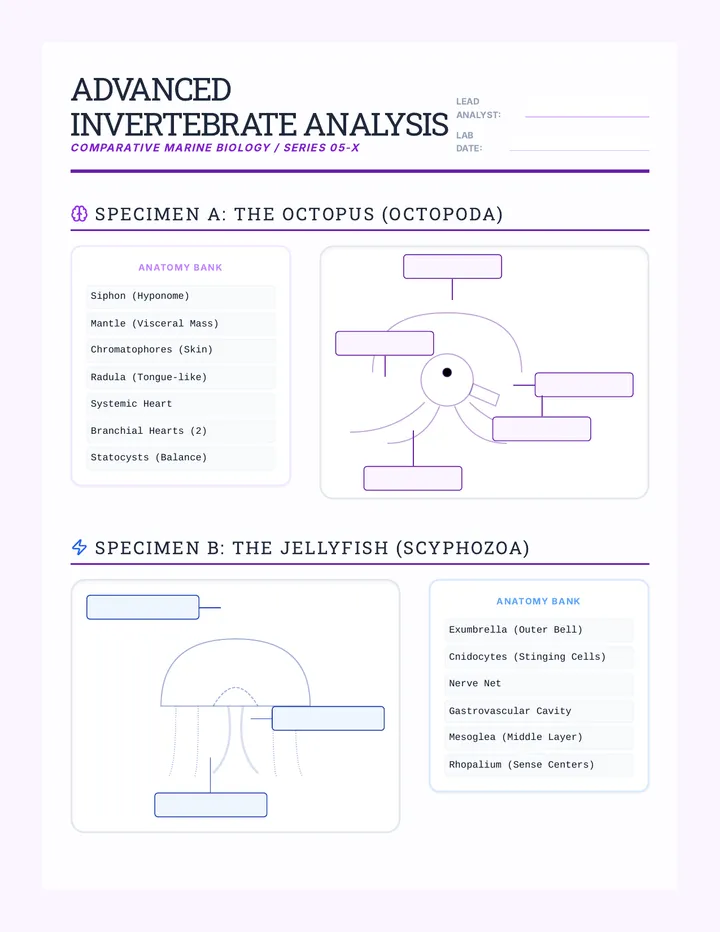

Invertebrate Anatomy Worksheet Advanced Invertebrate Analysis
Comparative Marine Biology / Series 05-X
Lead Analyst:
Lab Date:

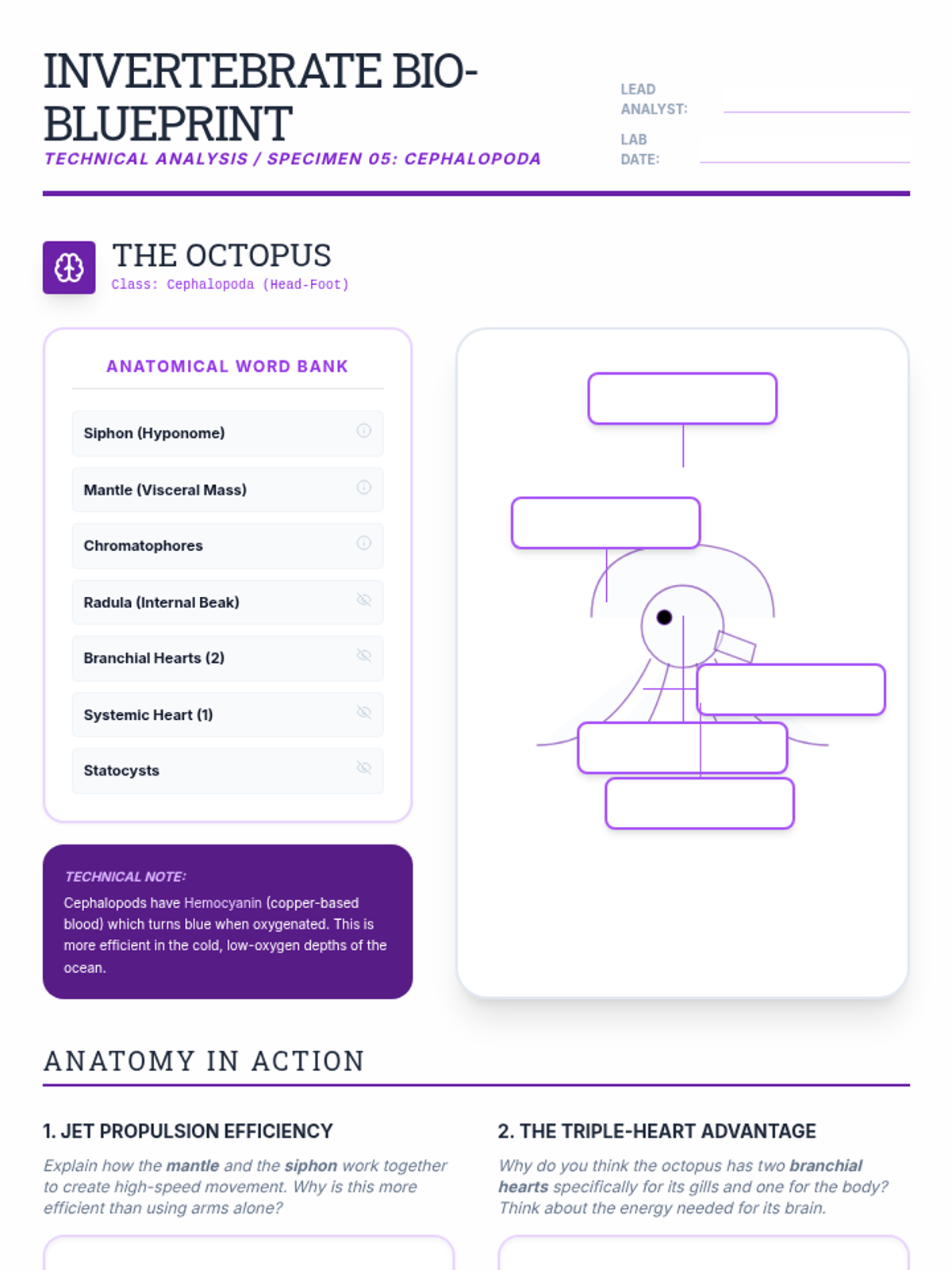

Specimen A: The Octopus (Octopoda)
Anatomy Bank
Siphon (Hyponome)
Mantle (Visceral Mass)
Chromatophores (Skin)
Radula (Tongue-like)
Systemic Heart
Branchial Hearts (2)
Statocysts (Balance)
Specimen B: The Jellyfish (Scyphozoa)
Anatomy Bank
Exumbrella (Outer Bell)
Cnidocytes (Stinging Cells)
Nerve Net
Gastrovascular Cavity
Mesoglea (Middle Layer)
Rhopalium (Sense Centers)
Phase 03: Critical System Comparison
1. Centralization vs. Decentralization
Contrast the octopus's centralized brain with the jellyfish's nerve net. How does this difference affect their ability to respond to complex stimuli or learn new behaviors?
2. Hydrostatic Support
Both animals lack bones. Describe the role of a hydrostatic skeleton (using fluid pressure) in helping these animals maintain their shape and move through the water.
3. Metabolic Efficiency Analysis
The octopus has 3 hearts and blue, copper-based blood (*hemocyanin*), while the jellyfish has no heart or blood at all. Which animal is a more efficient "low-energy" survivor, and which is an "active" athlete? Explain using their anatomy.
Advanced Marine Anatomy Lab Security Level: Tier 2 Analysis Form: INV-COMP-78-v3

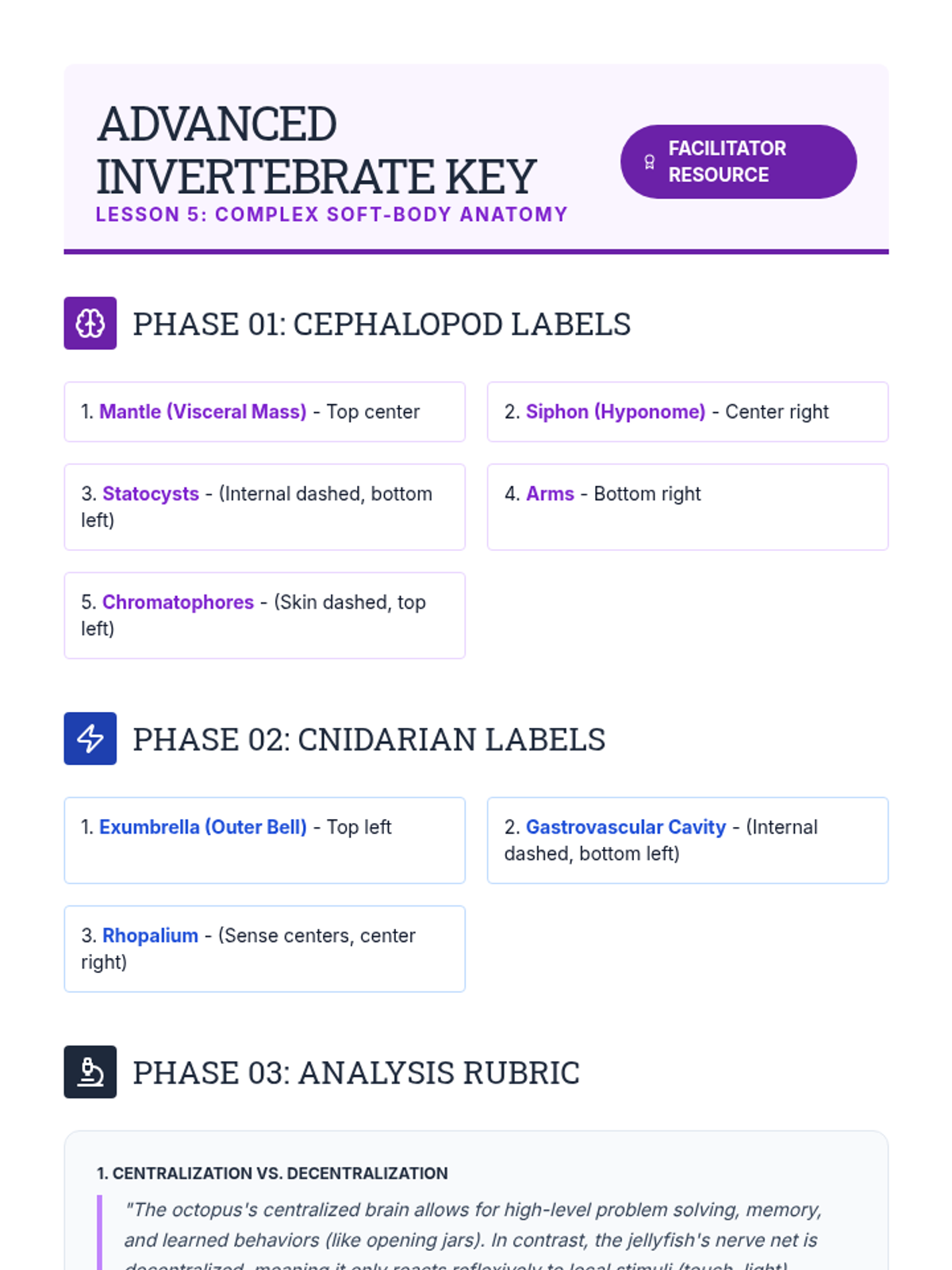

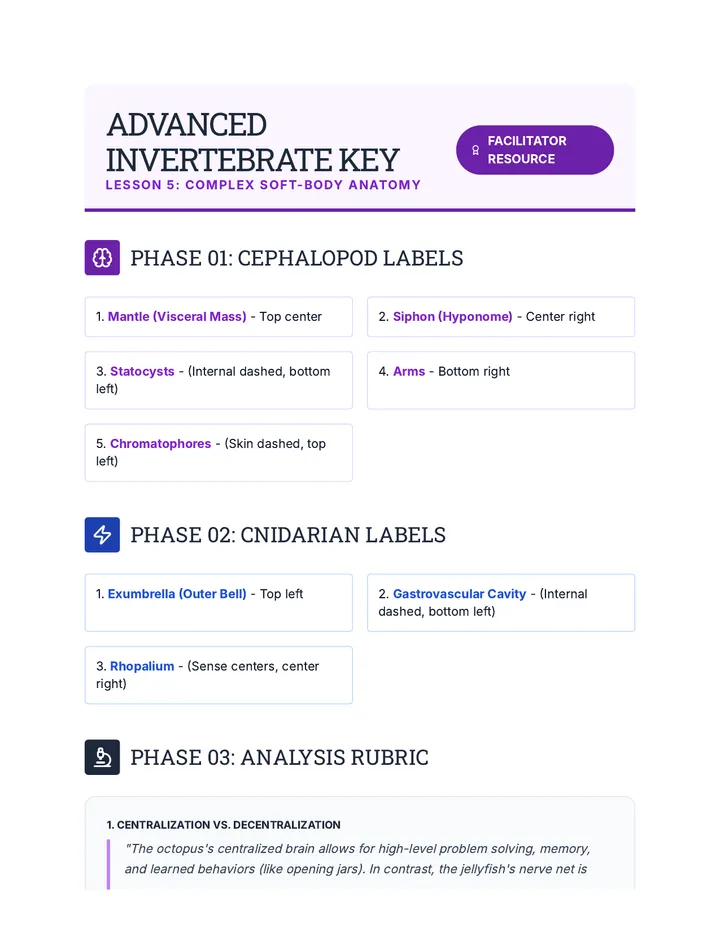

Invertebrate Marvels Answer Key Advanced Invertebrate Key
Lesson 5: Complex Soft-Body Anatomy
FACILITATOR RESOURCE
Phase 01: Cephalopod Labels
1. Mantle (Visceral Mass) - Top center
2. Siphon (Hyponome) - Center right
3. Statocysts - (Internal dashed, bottom left)
4. Arms - Bottom right
5. Chromatophores - (Skin dashed, top left)
Phase 02: Cnidarian Labels
1. Exumbrella (Outer Bell) - Top left
2. Gastrovascular Cavity - (Internal dashed, bottom left)
3. Rhopalium - (Sense centers, center right)
Phase 03: Analysis Rubric
1. Centralization vs. Decentralization
"The octopus's centralized brain allows for high-level problem solving, memory, and learned behaviors (like opening jars). In contrast, the jellyfish's nerve net is decentralized, meaning it only reacts reflexively to local stimuli (touch, light) without a coordinated 'will' or complex memory."
2. Hydrostatic Support
"A hydrostatic skeleton uses fluid held under pressure in a closed body compartment. By contracting muscles against this incompressible fluid, the animal can create rigid structures to move limbs (octopus arms) or pulse the body (jellyfish bell) without needing any solid bones."
3. Metabolic Efficiency Analysis
"The jellyfish is the efficient survivor; it drifts and uses passive stinging cells, requiring almost no energy (95% water). The octopus is the active athlete; its 3 hearts and hemocyanin blood support a high metabolic rate needed for hunting, rapid movement, and sustaining a large, complex brain."
Advanced Context
Students may struggle with the term Hemocyanin. Explain that while our blood uses iron (red), theirs uses copper (blue), which is more efficient for transporting oxygen in cold, low-oxygen environments—perfect for deep-sea or high-activity invertebrates.
Invertebrate Anatomy Worksheet Invertebrate Bio-Blueprint
Technical Analysis / Specimen 05: Cephalopoda
Lead Analyst:
Lab Date:
The Octopus
Class: Cephalopoda (Head-Foot)
Anatomical Word Bank
Siphon (Hyponome)
Mantle (Visceral Mass)
Chromatophores
Radula (Internal Beak)
Branchial Hearts (2)
Systemic Heart (1)
Statocysts
Technical Note:
Cephalopods have Hemocyanin (copper-based blood) which turns blue when oxygenated. This is more efficient in the cold, low-oxygen depths of the ocean.
Anatomy in Action
1. Jet Propulsion Efficiency
Explain how the mantle and the siphon work together to create high-speed movement. Why is this more efficient than using arms alone?
2. The Triple-Heart Advantage
Why do you think the octopus has two branchial hearts specifically for its gills and one for the body? Think about the energy needed for its brain.
Invertebrate Bio-Blueprint
Technical Analysis / Specimen 05: Scyphozoa
The Jellyfish
Class: Scyphozoa (Cup-Animal)
Anatomical Word Bank
Exumbrella (Outer Bell)
Subumbrella (Inner Bell)
Cnidocytes
Gastrovascular Cavity
Nerve Net
Mesoglea (Jelly)
Rhopalium
Technical Note:
Jellyfish are Diploblastic, meaning they only have two main tissue layers. They lack a brain, heart, and blood, relying on simple diffusion for survival.
Final Analysis: The Architecture of the Squish
1. Centralization vs. Decentralization
Contrast the octopus's complex brain system (1 central brain + 8 mini-brains) with the jellyfish's nerve net. Which system is better for survival in the open ocean? Defend your choice.
2. Evolutionary Efficiency
Both of these animals are "highly successful" survivors. Explain how the mesoglea (watery jelly) of a jellyfish allows it to reach massive sizes while using almost zero metabolic energy compared to a hard-working octopus.
Advanced Marine Anatomy Lab Unit: Invertebrate Marvels Form: INV-ADV-05-X
