Glow Guide Teacher Resource Glow Guide
TEACHER RESOURCE • DEEP SEA SPARK
Unit: Living Lights
Lesson: 1 of 3
Lesson Objective
Students will define bioluminescence and explain its necessity in the bathypelagic (midnight) zone of the ocean. By the end of the lesson, students will identify three specific deep-sea organisms and their light-producing adaptations.
Essential Questions
Why is light a survival tool in the deep ocean?
How does bioluminescence differ from other forms of light (like reflection)?
What environmental conditions lead to the evolution of glowing traits?
Pacing
10m
Hook: The Abyss Video & Discussion
20m
Direct Instruction: Deep Sea Spark Slides
20m
Activity: Midnight Zone Mapping
10m
Wrap-up: Lights Out Exit Ticket
Key Vocabulary
Bioluminescence
Light produced by a chemical reaction within a living organism.
Bathypelagic Zone
The "Midnight Zone," extending from 1,000 to 4,000 meters deep.
Photophore
A light-emitting organ found on many bioluminescent animals.
Symbiosis
A close relationship where some fish host glowing bacteria for light.
Pro-Tip: Remind students that 90% of creatures in the deep ocean are bioluminescent!
Facilitation Guide
1
The Hook: Life in the Dark
Before showing the slides, dim the classroom lights. Ask students: "Imagine you are 3,000 meters underwater. There is no sun. How do you find food? How do you find your friends?"
"We usually think of light as something that comes from the sun or a bulb. But down here, light is a living thing."
2
Slide Guidance: Notable Creatures
Anglerfish (The Lure)
Focus on the esca (the glowing lure). Explain that it's actually filled with millions of glowing bacteria. It's a partnership!
Dragonfish (The Sniper)
Most deep-sea fish can only see blue light. Dragonfish produce red light —which acts like a secret sniper scope only they can see.
Vampire Squid (The Defense)
They don't have ink like shallow-water squids (ink is useless in the dark). Instead, they shoot out a cloud of glowing mucus to blind predators.
3
Worksheet Answer Key
Ocean Zone Depth Range Light Level Epipelagic (Sunlight) 0 - 200m Full Sun Mesopelagic (Twilight) 200m - 1,000m Faint Glow Bathypelagic (Midnight) 1,000m - 4,000m Total Darkness
Deep Sea Spark Slides Deep Sea Spark
Living Lights • Lesson 1
The Midnight Zone
1,000 – 4,000 Meters
The depth of the Bathypelagic Zone where NO sunlight reaches.
Pitch black environment
Near freezing temperatures
"The largest habitat on Earth, yet the least explored."
What is Bioluminescence?
Definition
Light produced by a chemical reaction within a living organism.
Internal Chemistry
Cold Light
Self-Generated
The Anglerfish
The Lure
"It uses light to go fishing."
Uses a glowing Esca (lure)
Bacteria produce the light for the fish
Prey is attracted to the "star" in the dark
The Sniper
"It sees what others cannot."
Produces Red Light
Most deep-sea fish only see Blue/Green
Acts like invisible night-vision
Dragonfish
Vampire Squid
Defense Glow
"The ultimate smoke bomb."
Shoots glowing mucus to blind predators
Tips of tentacles have glowing photophores
Turns "inside out" to hide and surprise
Why Glow?
Attracting Prey
Defending Self
Mating Signals
Searching & Seeing
Midnight Zone Worksheet Midnight Zone Mapping
LIVING LIGHTS • STUDENT ACTIVITY
Name:
Date:
1
The Water Column
The ocean is divided into "layers" or zones based on how much sunlight reaches the water. Use the Word Bank below to label each zone in the diagram and fill in its depth.
Bathypelagic Epipelagic Mesopelagic
Zone Label
Depth
0m – 200m
Zone Label
Depth
200m – 1,000m
Zone Label
Depth
1,000m – 4,000m
Why do you think 90% of creatures in the Bathypelagic zone have the ability to glow?
2
Spot the Spark
Match each deep-sea organism with its unique bioluminescent adaptation. Write the letter of the correct description in the box provided.
1. Anglerfish
2. Vampire Squid
3. Dragonfish
A
Produces red light to see prey. Since other fish can't see red, it acts like a secret sniper scope.
B
Uses a glowing esca (lure) filled with bacteria to trick smaller fish into coming close to its mouth.
C
Releases a cloud of glowing mucus to confuse predators while it escapes into the dark.
Observation Challenge
Why is bioluminescence better for survival in the deep ocean than just having really big eyes?
Lights Out Exit Ticket Lights Out
EXIT TICKET • LESSON 1
Name:
1. In your own words, what is bioluminescence?
2. Describe one way a deep-sea creature uses light to survive.
How bright is your brain glowing?
Dim
Flickering
Brilliant
Lights Out
EXIT TICKET • LESSON 1
Name:
Duplicate Ticket
Chemical Fire Slides Chemical Fire
Living Lights • Lesson 2
The Core Recipe
Bioluminescence is a chemical reaction. It requires three main "ingredients" to create light:
Luciferin
The "Fuel" (The light-producing substance)
Luciferase
The "Match" (The enzyme that triggers the reaction)
Oxygen
The "Breath" (Needed to fuel the process)
The Glow Equation
Luciferin
Oxygen
Trigged by Luciferase
LIGHT!
"Luciferase is the speed-runner that makes the reaction happen instantly."
What is "Cold Light"?
Unlike a lightbulb or a fire, bioluminescence is 98% efficient.
Produces almost NO heat
Does not waste energy
Standard Bulb
90% HEAT WASTE
VS
Bioluminescence
~0% HEAT WASTE
The Oxygen Switch
Creatures can turn their light on and off by controlling how much Oxygen enters their photophores.
Off State
Oxygen is kept away from the Luciferin.
On State
Oxygen flows in, the match (Luciferase) is struck!

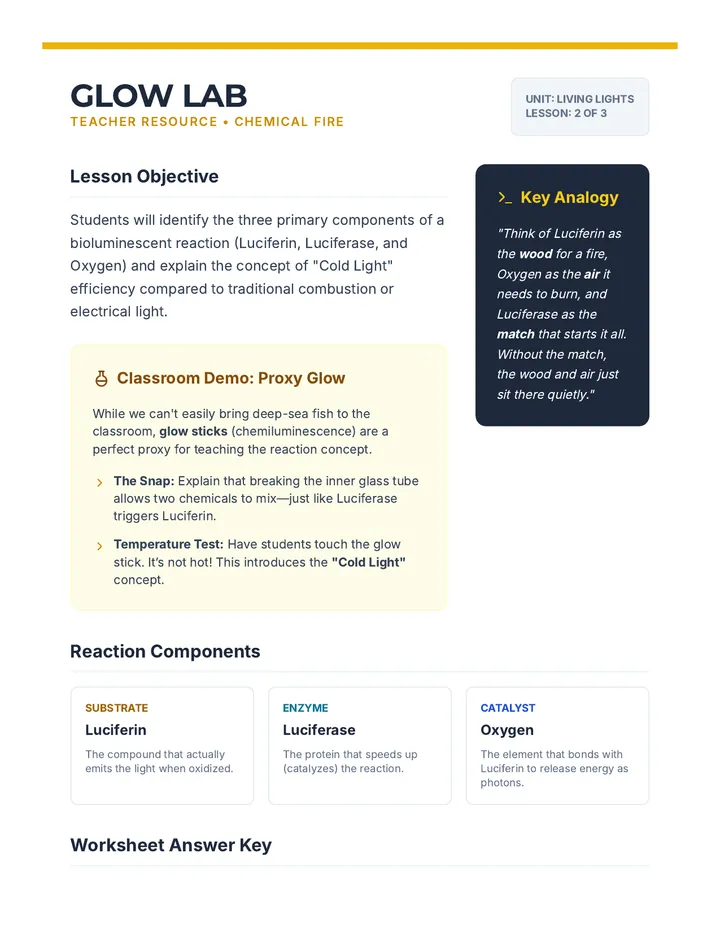

Glow Lab Teacher Resource Glow Lab
TEACHER RESOURCE • CHEMICAL FIRE
Unit: Living Lights
Lesson: 2 of 3
Lesson Objective
Students will identify the three primary components of a bioluminescent reaction (Luciferin, Luciferase, and Oxygen) and explain the concept of "Cold Light" efficiency compared to traditional combustion or electrical light.
Classroom Demo: Proxy Glow
While we can't easily bring deep-sea fish to the classroom, glow sticks (chemiluminescence) are a perfect proxy for teaching the reaction concept.
The Snap: Explain that breaking the inner glass tube allows two chemicals to mix—just like Luciferase triggers Luciferin.Temperature Test: Have students touch the glow stick. It’s not hot! This introduces the "Cold Light" concept.
Key Analogy
"Think of Luciferin as the wood for a fire, Oxygen as the air it needs to burn, and Luciferase as the match that starts it all. Without the match, the wood and air just sit there quietly."
Reaction Components
Substrate
Luciferin
The compound that actually emits the light when oxidized.
Enzyme
Luciferase
The protein that speeds up (catalyzes) the reaction.
Catalyst
Oxygen
The element that bonds with Luciferin to release energy as photons.
Worksheet Answer Key
"What happens if there is no Luciferase?" The light never starts (reaction too slow).
"What happens if we remove Oxygen?" The light goes out immediately.

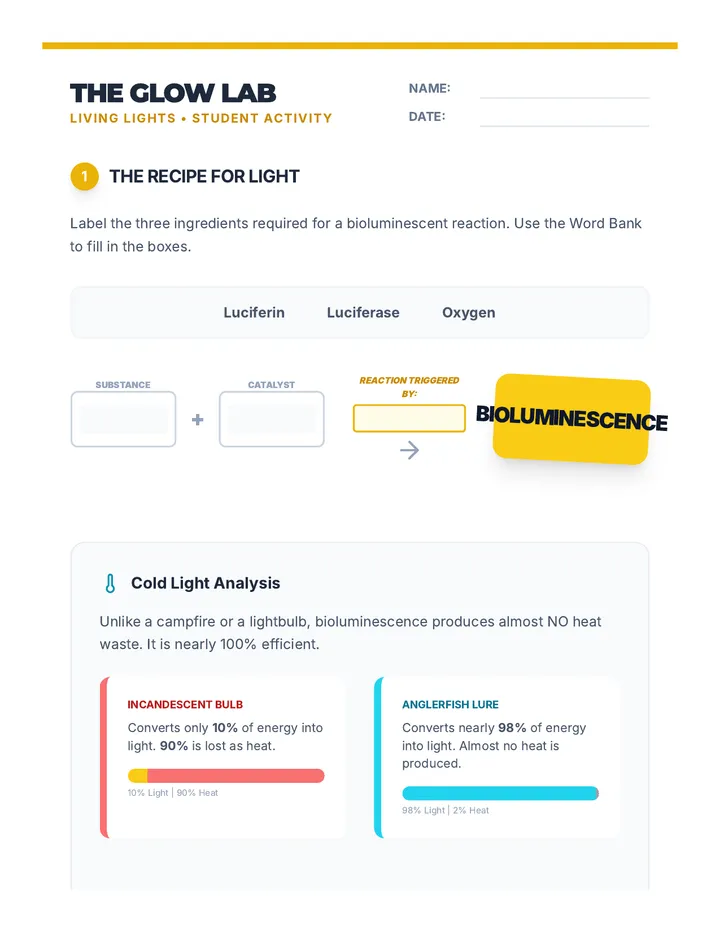

The Glow Lab Worksheet The Glow Lab
LIVING LIGHTS • STUDENT ACTIVITY
Name:
Date:
1
The Recipe for Light
Label the three ingredients required for a bioluminescent reaction. Use the Word Bank to fill in the boxes.
Luciferin Luciferase Oxygen
Substance
Catalyst
Reaction Triggered By:
BIOLUMINESCENCE
Cold Light Analysis
Unlike a campfire or a lightbulb, bioluminescence produces almost NO heat waste. It is nearly 100% efficient.
Incandescent Bulb
Converts only 10% of energy into light. 90% is lost as heat.
10% Light | 90% Heat
Anglerfish Lure
Converts nearly 98% of energy into light. Almost no heat is produced.
98% Light | 2% Heat
Why is "Cold Light" a huge advantage for a creature living in the deep, cold ocean?
2
Predict the Reaction
Imagine you are a scientist in a lab. Predict what would happen in each of the following scenarios:
Scenario A: No Luciferase
You have a tank full of Luciferin and Oxygen , but you forget to add the Luciferase enzyme. Will it glow?
Scenario B: Vacuum Tank
You have all the chemicals needed, but you pump out all the Oxygen from the tank. What happens to the light?
Scenario C: The "Glow Stick" Proxy
If a glow stick light comes from a chemical reaction, why does it eventually "die" or go out?
Lab Discovery
"Bioluminescence isn't magic—it's chemistry. Every flash of light is the result of trillions of molecules bonding together to release energy."

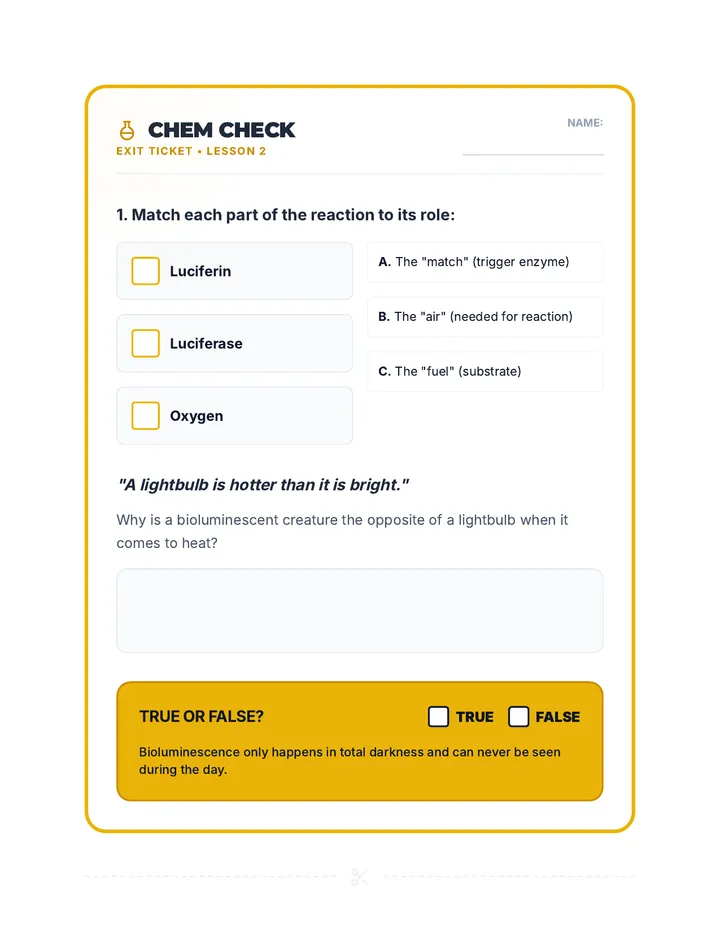

Chem Check Exit Ticket Chem Check
EXIT TICKET • LESSON 2
Name:
1. Match each part of the reaction to its role:
Luciferin
Luciferase
Oxygen
A. The "match" (trigger enzyme)
B. The "air" (needed for reaction)
C. The "fuel" (substrate)
"A lightbulb is hotter than it is bright."
Why is a bioluminescent creature the opposite of a lightbulb when it comes to heat?
True or False?
TRUE
FALSE
Bioluminescence only happens in total darkness and can never be seen during the day.
Chem Check Flash Talk Slides Flash Talk
Living Lights • Lesson 3
The Language of Light
In the deep ocean, sound doesn't travel far and vision is limited. Organisms use light as a Universal Code for:
Survival
Hiding and scaring off predators.
Social
Finding mates and signaling friends.
Hunting
Tricking prey and working in teams.
Counter-Illumination
"The Ultimate Invisibility Cloak."
Animals glow on their bellies to match the faint sunlight from above. This erases their shadow!
Predators looking UP see sunlight—not a silhouette.
Hiding in Plain Sight
Technique: Camouflage
Burglar Alarm
The Burglar Alarm
"If I'm being eaten, I'm calling for help."
Some jellyfish flash brightly when attacked. This light attracts a larger predator to eat the animal that is attacking the jellyfish!
"The enemy of my enemy is my friend."
Social Flashes
Like a Morse code of the deep, creatures use specific flash patterns to talk.
Fireflies
Each species has its own rhythm—long, short, double-pulse—to find a partner.
Lanternfish
Use light patterns along their bodies to recognize members of their own school.
Living Lights
"Light is more than just visibility in the dark. It is a weapon, a shield, and a language."
Signal Guide Teacher Resource Signal Guide
TEACHER RESOURCE • GLOWING COMMUNICATION
Unit: Living Lights
Lesson: 3 of 3
Lesson Objective
Students will categorize three distinct social uses of bioluminescence: camouflage (counter-illumination), defense (burglar alarm), and signaling (mating and schooling).
Key Concepts
Counter-Illumination
Active camouflage by matching light levels from above.
Flash Rhythms
Species-specific patterns used for identification and attraction.
Discussion Guide
Prompt 1
"If a burglar alarm calls a larger predator, why is that safe for the jellyfish?"
Prompt 2
"Could humans use light to talk? What would be the 'Morse Code' of the ocean?"
Facilitation Strategy: The Flash Game
During the Flash Talk Slides , have students use their desk lamps or phone lights to mimic rhythms. Assign different groups a 'rhythm' (e.g., Short-Short-Long). Have them try to find their group members in a dim room based only on the light flashes.
This helps internalize the concept of species-specific identification.
Extension Activity
Design Your Signal: Ask students to draw a new deep-sea creature. They must place photophores in a specific pattern and explain what that pattern "says" to other creatures in the deep.
Answer Key
Counter-Illumination: Hides silhouette from below.Burglar Alarm: "Calling for help" from a bigger fish.Fireflies: Signals for mating/finding a partner. Flash Talk Worksheet Flash Talk

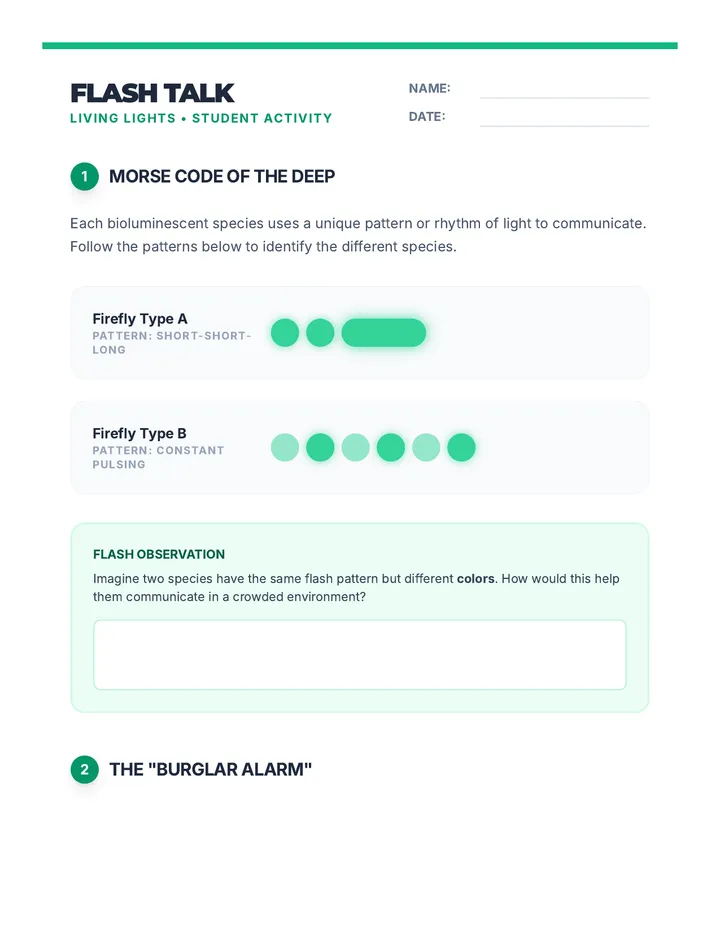

LIVING LIGHTS • STUDENT ACTIVITY
Name:
Date:
1
Morse Code of the Deep
Each bioluminescent species uses a unique pattern or rhythm of light to communicate. Follow the patterns below to identify the different species.
Firefly Type A
Pattern: Short-Short-Long
Firefly Type B
Pattern: Constant Pulsing
Flash Observation
Imagine two species have the same flash pattern but different colors . How would this help them communicate in a crowded environment?
2
The "Burglar Alarm"
Explain why a jellyfish would want to attract a larger predator while it is being attacked by a smaller one.
3
Strategy Spotlight
Read each scenario and identify which biological strategy is being used. Write the strategy name in the box.
Scenario 1
A hatchetfish glows on its underside to match the light coming from the ocean surface.
Scenario 2
A lanternfish has a row of glowing dots on its side that only other fish of its kind can recognize.
Scenario 3
A dinoflagellate flashes brightly when a shrimp tries to eat it, calling a bigger fish over.
Signal Designer
Draw a creature that uses three separate photophores (light organs) to signal "Danger!" Draw where they are and describe their flash rhythm.
Draw Here
Flash Rhythm Description:
Intended Audience:

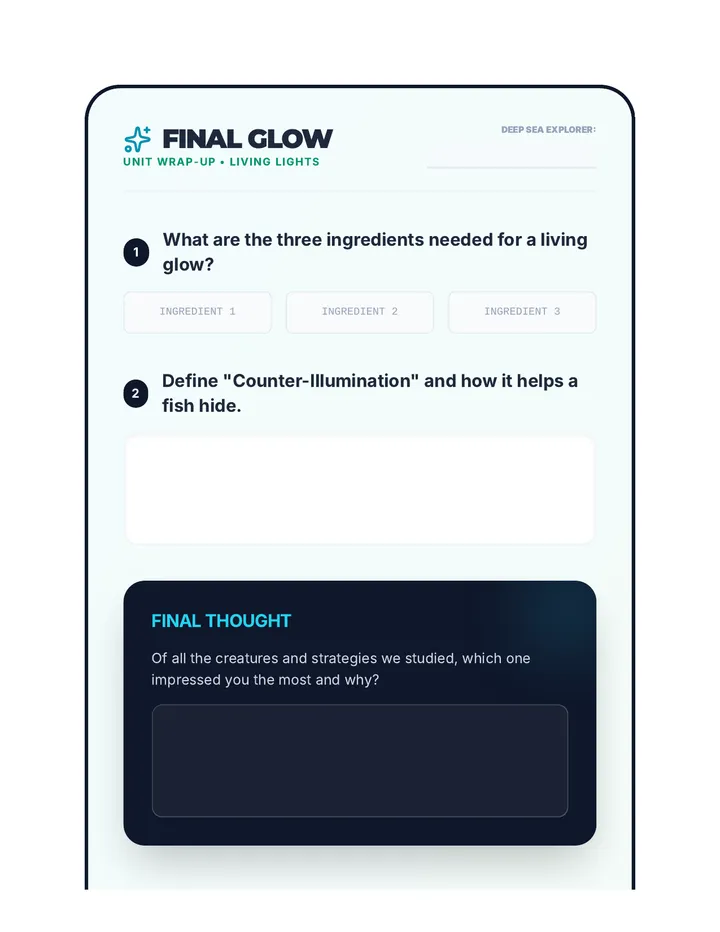

Final Glow Exit Ticket Final Glow
UNIT WRAP-UP • LIVING LIGHTS
Deep Sea Explorer:
1 What are the three ingredients needed for a living glow?
Ingredient 1
Ingredient 2
Ingredient 3
2 Define "Counter-Illumination" and how it helps a fish hide.
Final Thought
Of all the creatures and strategies we studied, which one impressed you the most and why?
Unit Complete
