Chloroplast Chronicles Slides Lab Session 01
Chlorotech Research
Chloroplast Chronicles
Decoding the molecular solar panels that power planet Earth.
INVESTIGATION: ANATOMY & PIGMENTS
BIOLOGY LAB UNIT
01 The Molecular Solar Panel
CHLOROPLAST OVERVIEW
Plants are the ultimate energy harvesters. Inside plant leaves, tiny green power stations called chloroplasts convert sunlight into stable chemical energy.
Key Evolutionary Fact:
Chloroplasts were once free-living bacteria! Through endosymbiosis , they became permanent cellular partners with plants.
SYS: STAINED SECTION
Solar Capturer Captures photons to excite electrons
STROMA Gel Fluid
Greenhouse Lab Investigations Slide 2 of 5
02 Membrane Architecture
STRUCTURAL COMPONENT
Double Membranes
The Outer Membrane acts as a protective barrier, while the Inner Membrane regulates traffic into the chloroplast.
Boundary Protection
Thylakoid Sacs
Flat, coin-like discs where light reactions occur. Stacked together like pancakes to form a Granum . This maximizes the surface area for light absorption.
Light Reactor
The Stroma Fluid
The thick, gel-like fluid filling the inner space surrounding thylakoids. It is rich in enzymes where sugar synthesis (the Calvin Cycle ) takes place.
Chemical Assembler
Greenhouse Lab Investigations Slide 3 of 5
03 Pigments: The Light Antennae
ENERGY ABSORPTION
Chlorophyll a & b
The main pigment molecules embedded inside the thylakoid membranes are chlorophylls . They absorb red and blue light but fail to absorb green light.
Because green light cannot be absorbed, it reflects off the leaf surface back into our eyes, making plants look green!
Accessory pigments like carotenoids absorb extra orange/yellow wavelengths to protect the thylakoid!
Absorption Spectrum (Simplified)
Blue
90% HIGH
Green
10% LOW
Red
80% HIGH
High absorption = Peak chemical power extraction!
Greenhouse Lab Investigations Slide 4 of 5
M Mission Briefing
CHLOROPLAST DETECTIVES
Your Lab Challenge: Chloroplast Chronicles
Complete the corresponding physical worksheet.
Part 1: Structural Labeling
Identify and sketch the outer/inner membranes, stroma, thylakoid, and a granum stack. Explain how surface area helps!
Part 2: Pigment Analyzer
Graph wavelength absorption and explain why leaves look green. Predict what happens under purely green light!
Prepare your Lab Handouts and pencils. Slide 5 of 5

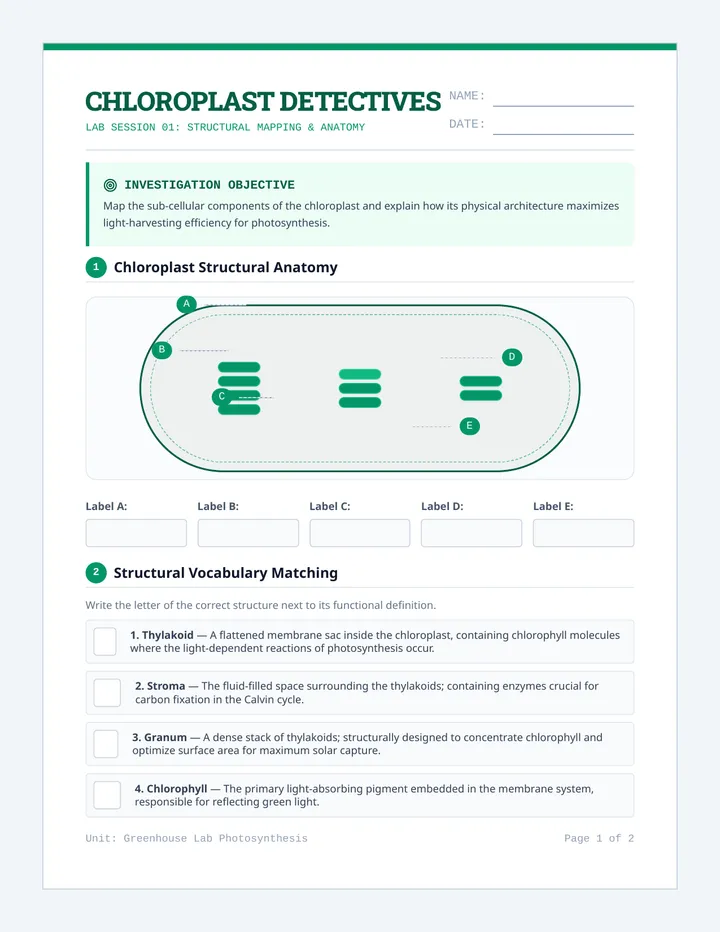

Chloroplast Chronicles Worksheet CHLOROPLAST DETECTIVES
Lab Session 01: Structural Mapping & Anatomy
NAME:
DATE:
Investigation Objective
Map the sub-cellular components of the chloroplast and explain how its physical architecture maximizes light-harvesting efficiency for photosynthesis.
1 Chloroplast Structural Anatomy
A
B
C
D
E
Label A:
Label B:
Label C:
Label D:
Label E:
2 Structural Vocabulary Matching
Write the letter of the correct structure next to its functional definition.
1. Thylakoid — A flattened membrane sac inside the chloroplast, containing chlorophyll molecules where the light-dependent reactions of photosynthesis occur.
2. Stroma — The fluid-filled space surrounding the thylakoids; containing enzymes crucial for carbon fixation in the Calvin cycle.
3. Granum — A dense stack of thylakoids; structurally designed to concentrate chlorophyll and optimize surface area for maximum solar capture.
4. Chlorophyll — The primary light-absorbing pigment embedded in the membrane system, responsible for reflecting green light.
Unit: Greenhouse Lab Photosynthesis Page 1 of 2
Part II: Pigment Spectral Investigation Lab Session 01
3 Pigment Light Absorption Spectrum
Review the simplified absorption table of light wavelengths by chlorophyll below. Standard plant light absorption is highly selective. Use the table to complete the prompt and answer the analysis questions.
Light Wavelength (Color) Wavelength Range (nm) Chlorophyll Absorption Rate Reflected / Transmitted Violet-Blue 400 - 480 nm High (~90%) Fully Absorbed Green-Yellow 500 - 560 nm Low (~10%) Reflected back (Visible) Orange-Red 600 - 700 nm High (~80%) Fully Absorbed
Q1: Based on this spectral data, explain why a leaf looks green to the human eye. Be specific about absorption and reflection.
Q2: Imagine a researcher shines ONLY green light (520 nm) onto a spinach plant in a closed chamber. Predict how this would affect the rate of photosynthesis, and explain why.

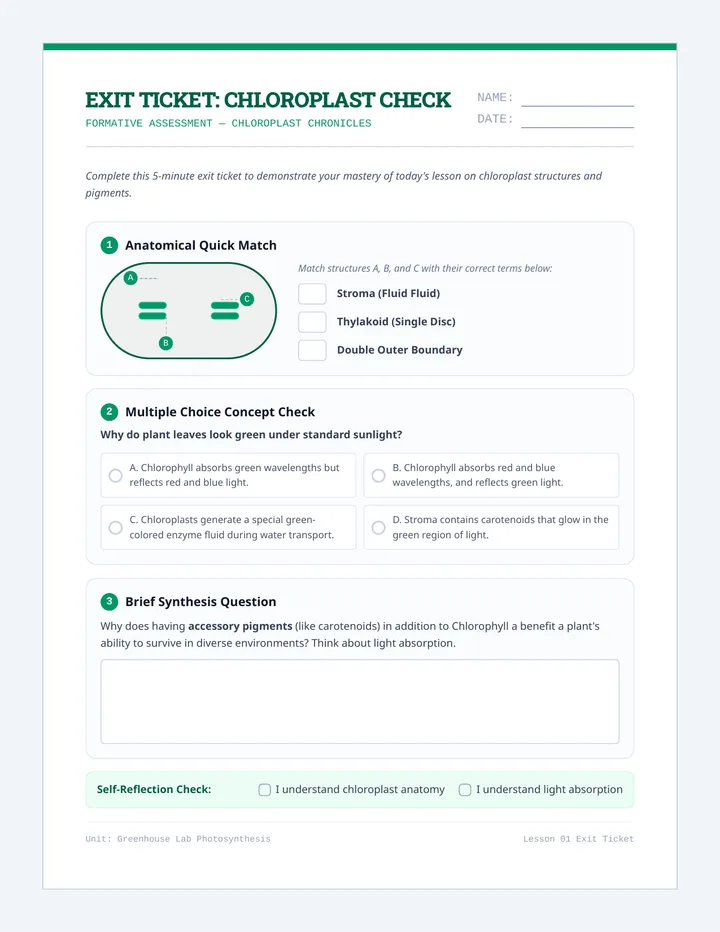

Chloroplast Exit Ticket EXIT TICKET: CHLOROPLAST CHECK
Formative Assessment — Chloroplast Chronicles
NAME:
DATE:
Complete this 5-minute exit ticket to demonstrate your mastery of today's lesson on chloroplast structures and pigments.
1 Anatomical Quick Match
A
B
C
Match structures A, B, and C with their correct terms below:
Stroma (Fluid Fluid)
Thylakoid (Single Disc)
Double Outer Boundary
2 Multiple Choice Concept Check
Why do plant leaves look green under standard sunlight?
A. Chlorophyll absorbs green wavelengths but reflects red and blue light.
B. Chlorophyll absorbs red and blue wavelengths, and reflects green light.
C. Chloroplasts generate a special green-colored enzyme fluid during water transport.
D. Stroma contains carotenoids that glow in the green region of light.
3 Brief Synthesis Question
Why does having accessory pigments (like carotenoids) in addition to Chlorophyll a benefit a plant's ability to survive in diverse environments? Think about light absorption.
Self-Reflection Check:
I understand chloroplast anatomy
I understand light absorption
Unit: Greenhouse Lab Photosynthesis Lesson 01 Exit Ticket
Light Reactions Slides Lab Session 02
Light Reactions
Light Powerhouse
Tracking the flow of energy through the thylakoid membrane to charge the plant's molecular batteries.
ENERGY HARVESTING PROCESS
BIOLOGY LAB UNIT
01 Overview: Charging the Batteries
STAGE 1 PHOTOSYNTHESIS
The Light-Dependent Reactions convert solar energy into usable chemical energy inside the thylakoid membranes.
This stage does not make sugars yet. Instead, it creates two major loaded battery molecules: ATP and NADPH .
Chemical Input & Output Balance
INPUTS:
Sunlight Water (H₂O)
OUTPUTS:
Oxygen (O₂) ATP NADPH
Oxygen is released as a "waste product" through the stomata of the leaf.
Greenhouse Lab Investigations Slide 2 of 5
02 Water-Splitting & Photolysis
ELECTRON REPLACEMENT
Why does a plant need water?
When sunlight strikes Chlorophyll, it excites electrons so much that they leave the molecule and enter the Electron Transport Chain.
To replace these lost electrons, a special enzyme splits water molecules in a process called photolysis .
Photolysis Equation
2 H₂O Water Input
4 H⁺ Protons (H+ ions)
4 e⁻ Replaced Electrons
O₂ Oxygen Gas (Leaves)
Without water, the light reactions grind to a complete halt!
Greenhouse Lab Investigations Slide 3 of 5
03 The Electron Transport Chain
THE ENERGY HIGHWAY
STEP 1
Sunlight Energizes
Photons of sunlight hit Photosystems in the thylakoid membrane, shooting electrons to a high-energy state.
Photon Excitation
STEP 2
Proton Pumping
As excited electrons jump down membrane proteins, their energy is used to pump hydrogen ions (H⁺) inside the thylakoid.
Ion Concentration Gradient
STEP 3
Making NADPH
At the end of the chain, the electrons are transferred to NADP⁺, charging it into high-energy NADPH .
Electron Carrier Loaded
Greenhouse Lab Investigations Slide 4 of 5
04 The Turbine: ATP Synthase
STAGE COMPLETE
Spinning the Turbine
The heavy buildup of H⁺ ions inside the thylakoid wants to escape. There is only one exit: a specialized protein channel called

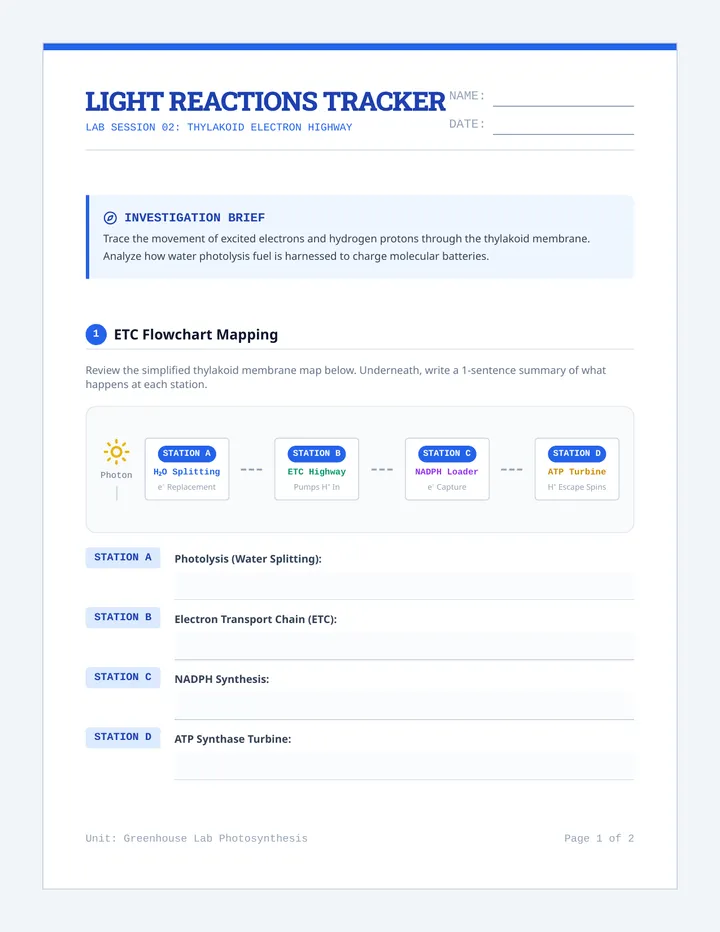

Light Reactions Flowchart Worksheet LIGHT REACTIONS TRACKER
Lab Session 02: Thylakoid Electron Highway
NAME:
DATE:
Investigation Brief
Trace the movement of excited electrons and hydrogen protons through the thylakoid membrane. Analyze how water photolysis fuel is harnessed to charge molecular batteries.
1 ETC Flowchart Mapping
Review the simplified thylakoid membrane map below. Underneath, write a 1-sentence summary of what happens at each station.
Photon
STATION A H₂O Splitting e⁻ Replacement
STATION B ETC Highway Pumps H⁺ In
STATION C NADPH Loader e⁻ Capture
STATION D ATP Turbine H⁺ Escape Spins
STATION A
Photolysis (Water Splitting):
STATION B
Electron Transport Chain (ETC):
STATION C
NADPH Synthesis:
STATION D
ATP Synthase Turbine:
Unit: Greenhouse Lab Photosynthesis Page 1 of 2
Part II: Chemical Battery Dynamics Lab Session 02
2 Input/Output Mass Ledger
Photosynthetic machinery must balance every chemical input and output. Complete the chart below by checking whether the molecule is an Input or an Output of the Light-Dependent Reactions, and record its specific cellular destination or role.
Molecule Input? Output? Primary Cellular Role or Destination Water (H₂O) [ ] [ ] Provides electrons; releases protons into thylakoid. Oxygen Gas (O₂) [ ] [ ] Exits through leaf stomata as waste gas. ADP + Pi [ ] [ ] Uncharged battery; waiting for ATP Synthase turbine. NADPH [ ] [ ] Charged battery; heads directly to Stroma fluid.
3 Critical Thinking: Pumping Protons
The concentration gradient of hydrogen ions (H⁺) is critical for driving the turbine that creates ATP. Let's analyze how this gradient functions.
Q1: Explain how the movement of electrons down the Electron Transport Chain leads to a high concentration of H⁺ ions INSIDE the thylakoid space compared to the stroma.
Q2: If a plant is treated with a chemical that makes the thylakoid membrane "leaky" to H⁺ ions, H⁺ leaks freely into the stroma without going through ATP Synthase. Predict what would happen to ATP production, and explain why.

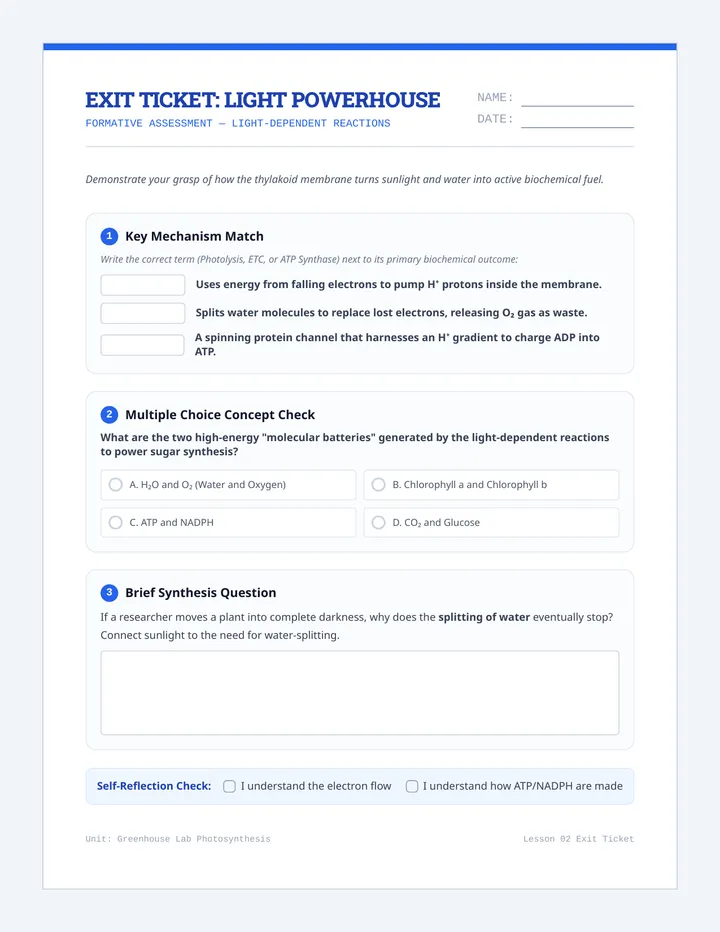

Light Reactions Exit Ticket EXIT TICKET: LIGHT POWERHOUSE
Formative Assessment — Light-Dependent Reactions
NAME:
DATE:
Demonstrate your grasp of how the thylakoid membrane turns sunlight and water into active biochemical fuel.
1 Key Mechanism Match
Write the correct term (Photolysis, ETC, or ATP Synthase) next to its primary biochemical outcome:
Uses energy from falling electrons to pump H⁺ protons inside the membrane.
Splits water molecules to replace lost electrons, releasing O₂ gas as waste.
A spinning protein channel that harnesses an H⁺ gradient to charge ADP into ATP.
2 Multiple Choice Concept Check
What are the two high-energy "molecular batteries" generated by the light-dependent reactions to power sugar synthesis?
A. H₂O and O₂ (Water and Oxygen)
B. Chlorophyll a and Chlorophyll b
C. ATP and NADPH
D. CO₂ and Glucose
3 Brief Synthesis Question
If a researcher moves a plant into complete darkness, why does the splitting of water eventually stop? Connect sunlight to the need for water-splitting.
Self-Reflection Check:
I understand the electron flow
I understand how ATP/NADPH are made
Unit: Greenhouse Lab Photosynthesis Lesson 02 Exit Ticket
Calvin Cycle Slides Lab Session 03
Sugar Factory
Sugar Factory
Synthesizing carbon dioxide, ATP, and NADPH to assemble organic sugar molecules in the chloroplast stroma.
CARBON FIXATION & REACTION CYCLE
BIOLOGY LAB UNIT
01 Overview: The Sugar Factory
STAGE 2 PHOTOSYNTHESIS
The Calvin Cycle (also called the Light-Independent Reactions) takes place in the fluid stroma of the chloroplast.
It uses the carbon from carbon dioxide gas in the air, plus the power from the thylakoid's ATP and NADPH batteries, to build sugar molecules.
Chemical Input & Output Balance
INPUTS:
CO₂ Gas ATP NADPH
OUTPUTS:
G3P / Glucose ADP NADP⁺
The depleted ADP and NADP⁺ batteries go back to the thylakoid to be recharged!
Greenhouse Lab Investigations Slide 2 of 5
02 Three Phases of Sugar Assembly
THE CHEMICAL CYCLE
PHASE 1
Carbon Fixation
CO₂ molecules from the air are captured and attached to a 5-carbon sugar using an enzyme called RuBisCO . This traps carbon in an organic form.
RuBisCO Capture
PHASE 2
Energy Investment
ATP and NADPH donate their energy and high-speed electrons. This charges and reshapes the carbon chains into G3P , a highly reactive sugar.
Reduction Stage
PHASE 3
Regeneration
While some G3P exits to make glucose, most of it is recycled. More ATP is invested to reform the starting carbon molecules so the cycle can capture more CO₂.
Closing the Loop
Greenhouse Lab Investigations Slide 3 of 5
03 The Sweet Harvest: Glucose
THE FINAL PRODUCT
Assembling the Brick
The immediate product of the Calvin cycle is a 3-carbon sugar called G3P (Glyceraldehyde-3-phosphate).
When the plant leaves the cycle with 2 G3P molecules , it fuses them together in the cytoplasm to form a single 6-carbon molecule of Glucose (C₆H₁₂O₆) .
Chemical Building Block
C₆H₁₂O₆ Glucose Molecule
Starch Storage Stored chemical food
Cellulose Walls Structural wood & fiber
Greenhouse Lab Investigations Slide 4 of 5

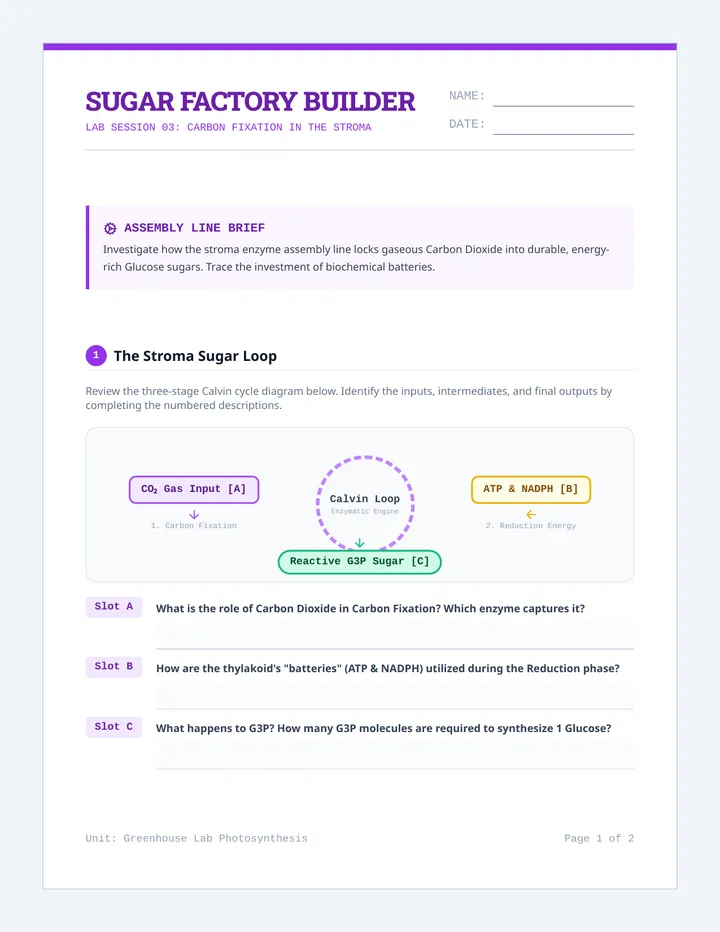

Calvin Cycle Builder Worksheet SUGAR FACTORY BUILDER
Lab Session 03: Carbon Fixation in the Stroma
NAME:
DATE:
Assembly Line Brief
Investigate how the stroma enzyme assembly line locks gaseous Carbon Dioxide into durable, energy-rich Glucose sugars. Trace the investment of biochemical batteries.
1 The Stroma Sugar Loop
Review the three-stage Calvin cycle diagram below. Identify the inputs, intermediates, and final outputs by completing the numbered descriptions.
CO₂ Gas Input [A]
1. Carbon Fixation
Calvin Loop Enzymatic Engine
ATP & NADPH [B]
2. Reduction Energy
Reactive G3P Sugar [C]
Slot A
What is the role of Carbon Dioxide in Carbon Fixation? Which enzyme captures it?
Slot B
How are the thylakoid's "batteries" (ATP & NADPH) utilized during the Reduction phase?
Slot C
What happens to G3P? How many G3P molecules are required to synthesize 1 Glucose?
Unit: Greenhouse Lab Photosynthesis Page 1 of 2
Part II: Carbon Math & Unit Synthesis Lab Session 03
2 Carbon Accounting Math
Let's balance the carbon counts of sugar manufacturing. Photosynthetic cells must account for every atom of carbon. Fill in the missing counts in the ledger table below.
Compound Name Chemical Formula Number of Carbons per Molecule Role in Sugar Manufacturing Carbon Dioxide CO₂ 1 Carbon Gas input captured from outer air. G3P Sugar Intermediate C₃H₇O₆P [ ] Carbons Reactive compound; output of Calvin Cycle. Glucose (Final Storage) C₆H₁₂O₆ [ ] Carbons Formed by joining two G3P sugars in the cytoplasm.
3 Global Unit Synthesis: Stroma & Thylakoid Symbiosis
The thylakoid (light reactions) and the stroma (Calvin cycle) cannot operate independently; they are connected in a continuous metabolic loop.
Q1: If the stroma runs completely out of Carbon Dioxide gas, explain why the light reactions in the thylakoid will eventually slow down and stop as well. (Hint: Think about recycled batteries).
Q2: Summarize the complete photosynthetic chemical equation. Label which components are reactants/products of the Light Reactions versus the Calvin Cycle.
Q3: How does the chloroplast represent a highly coordinated thermodynamic system? Detail the transformation of energy from electromagnetic wave to covalent bond.

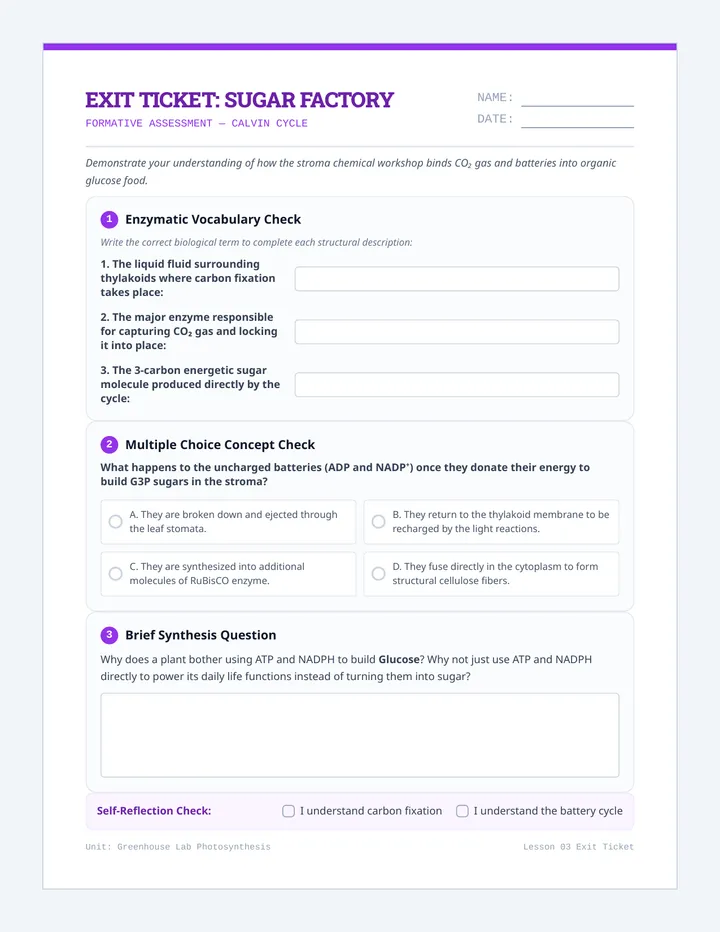

Calvin Cycle Exit Ticket EXIT TICKET: SUGAR FACTORY
Formative Assessment — Calvin Cycle
NAME:
DATE:
Demonstrate your understanding of how the stroma chemical workshop binds CO₂ gas and batteries into organic glucose food.
1 Enzymatic Vocabulary Check
Write the correct biological term to complete each structural description:
1. The liquid fluid surrounding thylakoids where carbon fixation takes place:
2. The major enzyme responsible for capturing CO₂ gas and locking it into place:
3. The 3-carbon energetic sugar molecule produced directly by the cycle:
2 Multiple Choice Concept Check
What happens to the uncharged batteries (ADP and NADP⁺) once they donate their energy to build G3P sugars in the stroma?
A. They are broken down and ejected through the leaf stomata.
B. They return to the thylakoid membrane to be recharged by the light reactions.
C. They are synthesized into additional molecules of RuBisCO enzyme.
D. They fuse directly in the cytoplasm to form structural cellulose fibers.
3 Brief Synthesis Question
Why does a plant bother using ATP and NADPH to build Glucose ? Why not just use ATP and NADPH directly to power its daily life functions instead of turning them into sugar?
Self-Reflection Check:
I understand carbon fixation
I understand the battery cycle
Unit: Greenhouse Lab Photosynthesis Lesson 03 Exit Ticket
