Seed Flight Teacher Guide Grade 3 STEM 60-75 Minutes Physical Science & Life Science
Teacher Guide
Seed Flight Engineering Lab
Investigating Plant Survival Adaptations through Aerodynamic Modeling & Testing
Investigation Focus & Objectives
Students explore how wind-dispersed seeds use wing surface area, symmetry, and weight distribution to travel away from parent plants, reducing resource competition and increasing survival odds.
Design & Test: Build and test at least 2 distinct paper helicopter/glider seed models.
Measure & Record: Collect quantitative flight time (seconds) and distance (feet/meters).
Synthesize: Connect aerodynamic modifications directly to natural plant survival benefits.
NGSS Alignment
3-LS4-2: Use evidence to explain how variations in characteristics provide survival advantages.3-5-ETS1-1: Define a design problem with specified criteria for success and constraints.3-5-ETS1-3: Plan and carry out fair tests with controlled variables to optimize design.
Materials Per Team (Pair of 2)
Paper seed cutouts (light copy paper, cardstock)
4 standard paperclips (weight/ballast)
Child-safe scissors & 1 roll tape
1 measuring tape or meter stick (shared per station)
1 stopwatch or digital tablet timer
1 Seed Flight Lab Sheet per student
Testing Zone Setup & Safety
Establish 3-4 marked "Drop Zones" around the perimeter. Mark a consistent drop height of 6 feet (approx. 1.8 meters) on classroom walls using painter's tape.
Safety Note: Keep drop areas clear of walking paths. If standing on chairs, only have teachers execute drops, or have students release from standing height with arms raised high.
Suggested Instructional Pacing (60 Minutes)
00-10 min Hook & Problem Phenomenon Intro
10-25 min Build Prototype Model A (Helicopter)
25-40 min Test & Measure 3 Controlled Trials
40-52 min Iterate Design Model B & Comparison
52-60 min Debrief & Synthesis Ecology Connection
Seed Flight Lab • Teacher Facilitation Guide Page 1 of 2
Part 2: Instruction & Differentiation
Facilitation Notes & Student Support
1
Hook & Phenomenon (10 Mins)
Show real or picture examples of maple samaras (whirlybirds) and dandelion parachutes. Ask: "What happens if all seeds fall straight beneath the mother tree?" Guide answers toward overcrowding, light competition, and soil nutrient depletion.
2
Guided Prototype Construction (15 Mins)
Demonstrate cutting the solid lines and folding dashed lines for the helicopter rotor blades. Emphasize folding one blade forward and the other backward so air pushes opposite surfaces, inducing spin and generating lift. Add one paperclip to the base stem as the "seed payload."
3
Fair Testing & Iteration Protocol (25 Mins)
Roles: Student A is the Flight Engineer (dropper); Student B is the Flight Scientist (timer/measurer). Rotate roles each trial. Remind students to hold the seed flat by the stem and release without throwing. For Model B, teams may alter only one variable : wing length, wing width, or payload weight (paperclips).
Common Misconceptions
"Heavier seeds fall faster, so they go further": Extra mass reduces hang time; aerodynamic drag is what keeps seeds aloft for horizontal air currents to carry them."Throwing counts as flight": Seeds must be passively released to accurately represent natural wind dispersal.
Key Debrief Questions
"Which modification increased hang time the most? Why?" "How does a longer hang time allow a real seed to travel farther on a breezy day?" "Why don't plants just make huge wings with zero seed weight?" (Need nutrients to sprout!)
Differentiation & Adaptations
Support / Scaffolding: Provide pre-cut templates with dotted fold guides and color-coded rotor blades. Pair with a structured peer mentor for timer operation.
English Learners: Use visual vocabulary cards (payload, rotor, drag, drift, dispersal). Model release gesture and pointing system for timers.
Advanced Extension: Introduce an artificial breeze using a low-speed box fan. Challenge students to calculate average flight speed (Distance ÷ Time).
Seed Flight Lab • Teacher Facilitation Guide Page 2 of 2

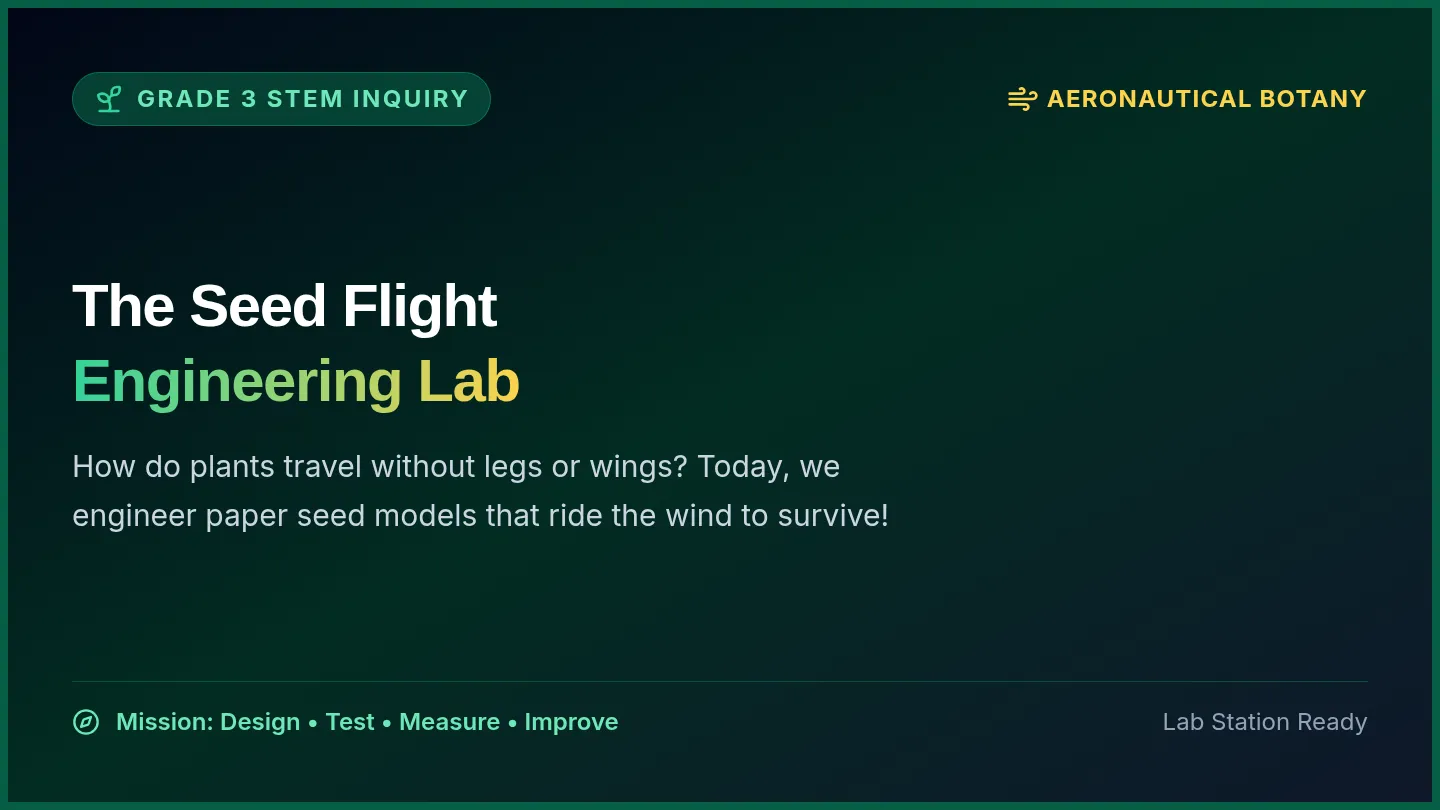

Seed Flight Lab Slides Grade 3 STEM Inquiry
Aeronautical Botany
The Seed Flight
Engineering Lab
How do plants travel without legs or wings? Today, we engineer paper seed models that ride the wind to survive!
Mission: Design • Test • Measure • Improve
Lab Station Ready
The Big Plant Mystery
Phenomenon
The Problem
Under The Mother Tree
If all seeds simply drop straight down, hundreds of seedlings sprout in the exact same spot!
• No sunlight reaching the ground
• Not enough water or soil nutrients
• Overcrowding harms survival
The Solution
Seed Dispersal
Plants evolved amazing natural flying machines to spread their offspring far across the meadow or forest!
• Catch gentle air currents
• Delay falling (Hang Time)
• Travel to sunny, open ground
"Survival depends on escaping the shade of the parent plant!"
Nature's Air Fleet: Wind Flyers
Adaptations
The Helicopter
Maple Samara
Curved wings create aerodynamic lift, spinning like helicopter blades to slow descent.
Key: Fast spinning rotation
The Parachute
Dandelion Pappus
Hundreds of fine silky hairs trap air beneath them to float on tiny thermal updrafts.
Key: Maximum air resistance
The Glider
Javan Cucumber
Paper-thin, ultra-wide wings sail horizontally through rain forest canopies like miniature planes.
Key: Wide surface area
Today's lab focuses on mastering the mechanics of Helicopter Seeds !
Your Engineering Challenge
Criteria & Constraints
Success Criteria
• Maximize Hang Time: Keep the seed airborne as long as possible.
• Stable Spin: Rotate smoothly without tumbling violently.
• Measure Precisely: Log 3 timed drop tests accurately.
Engineering Constraints
• Paper & Clips Only: No motors, glue guns, or extra weight.
• Fixed Drop Height: Exactly 6 feet (marked line) for all tests.
• One Change At A Time: Modify only 1 variable for Model B!
Engineers test multiple trials to make sure their results are trustworthy!

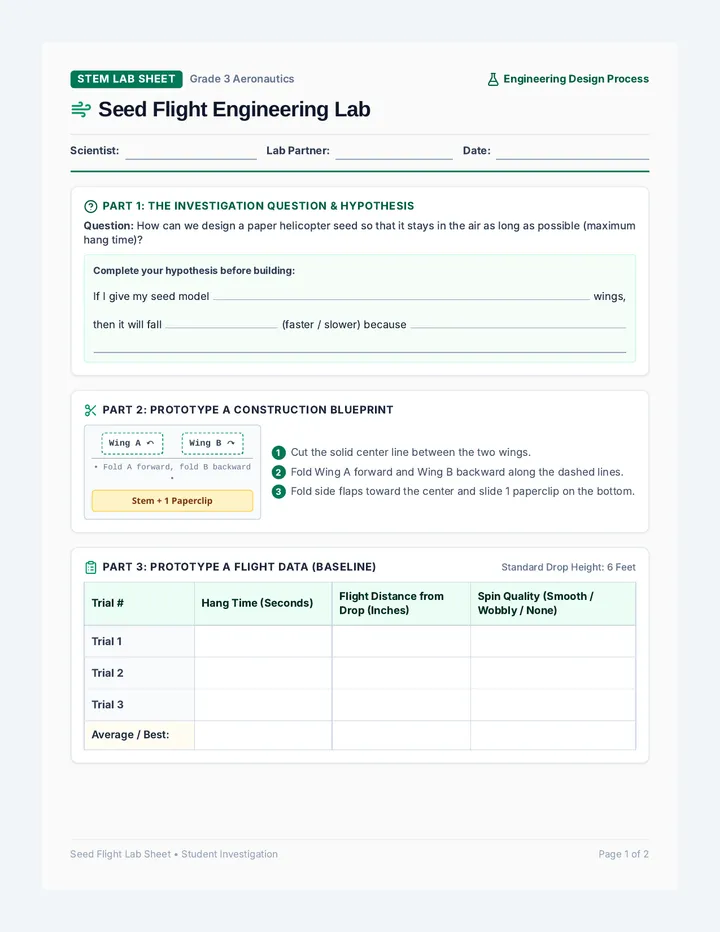

Seed Flight Lab Sheet STEM Lab Sheet Grade 3 Aeronautics
Engineering Design Process
Seed Flight Engineering Lab
Scientist:
Lab Partner:
Date:
Part 1: The Investigation Question & Hypothesis
Question: How can we design a paper helicopter seed so that it stays in the air as long as possible (maximum hang time)?
Complete your hypothesis before building:
If I give my seed model wings,
then it will fall (faster / slower) because
Part 2: Prototype A Construction Blueprint
Wing A ↶ Wing B ↷
• Fold A forward, fold B backward •
Stem + 1 Paperclip
1 Cut the solid center line between the two wings.
2 Fold Wing A forward and Wing B backward along the dashed lines.
3 Fold side flaps toward the center and slide 1 paperclip on the bottom.
Part 3: Prototype A Flight Data (Baseline)
Standard Drop Height: 6 Feet
Trial # Hang Time (Seconds) Flight Distance from Drop (Inches) Spin Quality (Smooth / Wobbly / None) Trial 1 Trial 2 Trial 3 Average / Best:
Seed Flight Lab Sheet • Student Investigation Page 1 of 2
Engineering Cycle: Redesign & Conclude
Prototype B: Iteration & Plant Science
Iteration Phase
Part 4: Choose ONE Variable to Change for Prototype B
Engineers only change one feature at a time so they know what caused the difference. Check the box you choose:
Longer Wings
Shorter Wings
2 Paperclips
Heavier Paper
Sketch your new Prototype B design (label your change):
Part 5: Prototype B Flight Data
Trial # Hang Time (Seconds) Flight Distance from Drop (Inches) Spin Quality (Smooth / Wobbly / None) Trial 1 Trial 2 Trial 3 Average / Best:

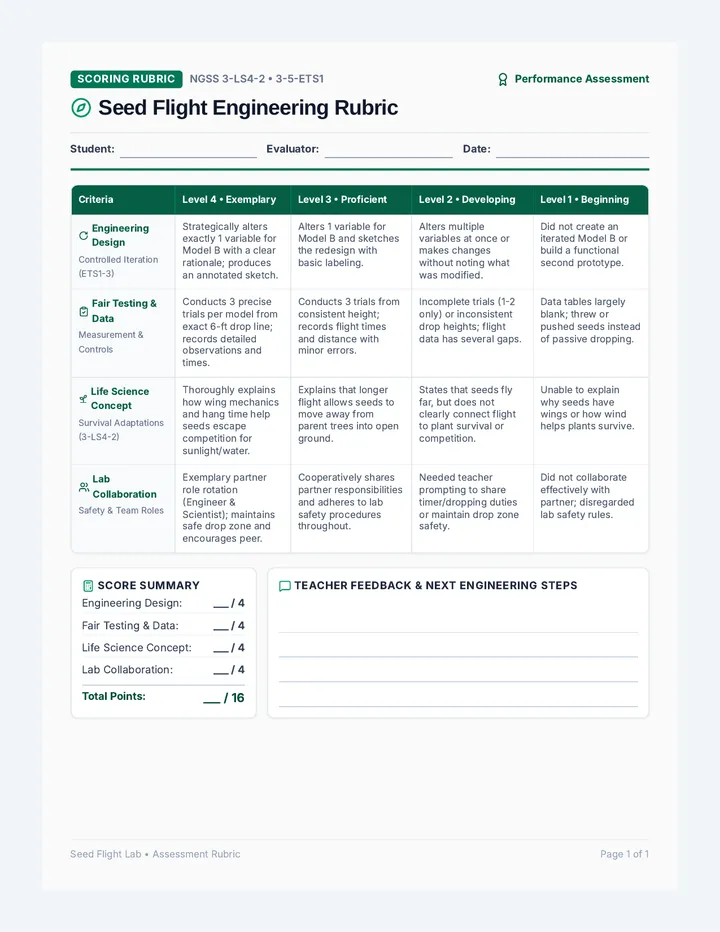

Seed Flight Engineering Rubric Scoring Rubric NGSS 3-LS4-2 • 3-5-ETS1
Performance Assessment
Seed Flight Engineering Rubric
Student:
Evaluator:
Date:
Criteria Level 4 • Exemplary Level 3 • Proficient Level 2 • Developing Level 1 • Beginning Engineering Design
Controlled Iteration (ETS1-3) | Strategically alters exactly 1 variable for Model B with a clear rationale; produces an annotated sketch. | Alters 1 variable for Model B and sketches the redesign with basic labeling. | Alters multiple variables at once or makes changes without noting what was modified. | Did not create an iterated Model B or build a functional second prototype. |
|
Fair Testing & Data
Measurement & Controls | Conducts 3 precise trials per model from exact 6-ft drop line; records detailed observations and times. | Conducts 3 trials from consistent height; records flight times and distance with minor errors. | Incomplete trials (1-2 only) or inconsistent drop heights; flight data has several gaps. | Data tables largely blank; threw or pushed seeds instead of passive dropping. |
|
Life Science Concept
Survival Adaptations (3-LS4-2) | Thoroughly explains how wing mechanics and hang time help seeds escape competition for sunlight/water. | Explains that longer flight allows seeds to move away from parent trees into open ground. | States that seeds fly far, but does not clearly connect flight to plant survival or competition. | Unable to explain why seeds have wings or how wind helps plants survive. |
|
Lab Collaboration
Safety & Team Roles | Exemplary partner role rotation (Engineer & Scientist); maintains safe drop zone and encourages peer. | Cooperatively shares partner responsibilities and adheres to lab safety procedures throughout. | Needed teacher prompting to share timer/dropping duties or maintain drop zone safety. | Did not collaborate effectively with partner; disregarded lab safety rules. |
Score Summary
Engineering Design: ___ / 4
Fair Testing & Data: ___ / 4
Life Science Concept: ___ / 4
Lab Collaboration: ___ / 4
Total Points: ___ / 16
Teacher Feedback & Next Engineering Steps
Seed Flight Lab • Assessment Rubric Page 1 of 1

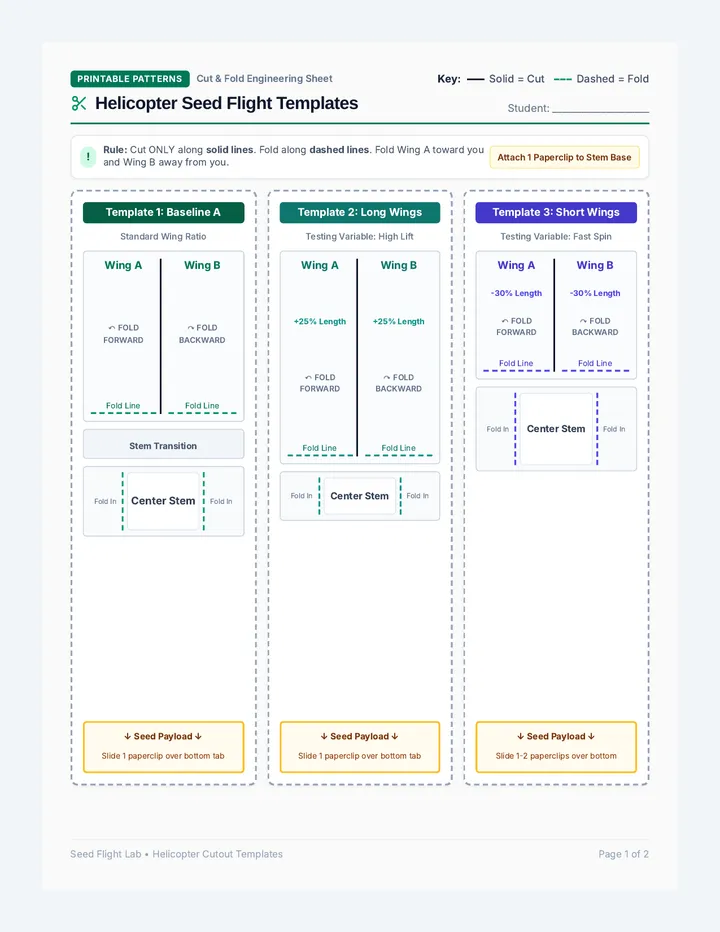

Seed Flight Cutout Templates Printable Patterns Cut & Fold Engineering Sheet
Key: Solid = Cut Dashed = Fold
Helicopter Seed Flight Templates
Student: ____________________
!
Rule: Cut ONLY along solid lines . Fold along dashed lines . Fold Wing A toward you and Wing B away from you.
Attach 1 Paperclip to Stem Base
Template 1: Baseline A
Standard Wing Ratio
Wing A
↶ Fold Forward
Fold Line
Wing B
↷ Fold Backward
Fold Line
Stem Transition
Fold In
Center Stem
Fold In
↓ Seed Payload ↓ Slide 1 paperclip over bottom tab
Template 2: Long Wings
Testing Variable: High Lift
Wing A +25% Length
↶ Fold Forward
Fold Line
Wing B +25% Length
↷ Fold Backward
Fold Line
Fold In
Center Stem
Fold In
↓ Seed Payload ↓ Slide 1 paperclip over bottom tab
Template 3: Short Wings
Testing Variable: Fast Spin
Wing A -30% Length
↶ Fold Forward
Fold Line
Wing B -30% Length
↷ Fold Backward
Fold Line
Fold In
Center Stem
Fold In
↓ Seed Payload ↓ Slide 1-2 paperclips over bottom
Seed Flight Lab • Helicopter Cutout Templates Page 1 of 2
Advanced STEM Iteration Biomimicry Adaptations
Legend: Solid = Cut Dashed = Fold
Natural Seed Adaptation Cutouts
Extension & Redesign
Biomimicry Challenge: Trees don't only use dual-wing helicopters! Test an asymmetric single-wing maple seed, an ultra-wide glider, or a dandelion cone parachute.
Template 4: Single-Wing Maple Samara
Asymmetric Center of Gravity (Spins like real tree seeds)
Aerodynamic Wing Blade Cut Outer Curve
Slight Upward Crease (Dihedral Angle)
Crease slightly along dashed line to create natural air curvature.
Trailing Edge (Thin Paper)
Heavy Seed Pod Base
Fold this section over 3 times to concentrate mass tightly in the corner node.
Place 2 Paperclips HERE ↓
Flight Note: The heavy corner makes the entire wing whip in a tight, fast circle!
