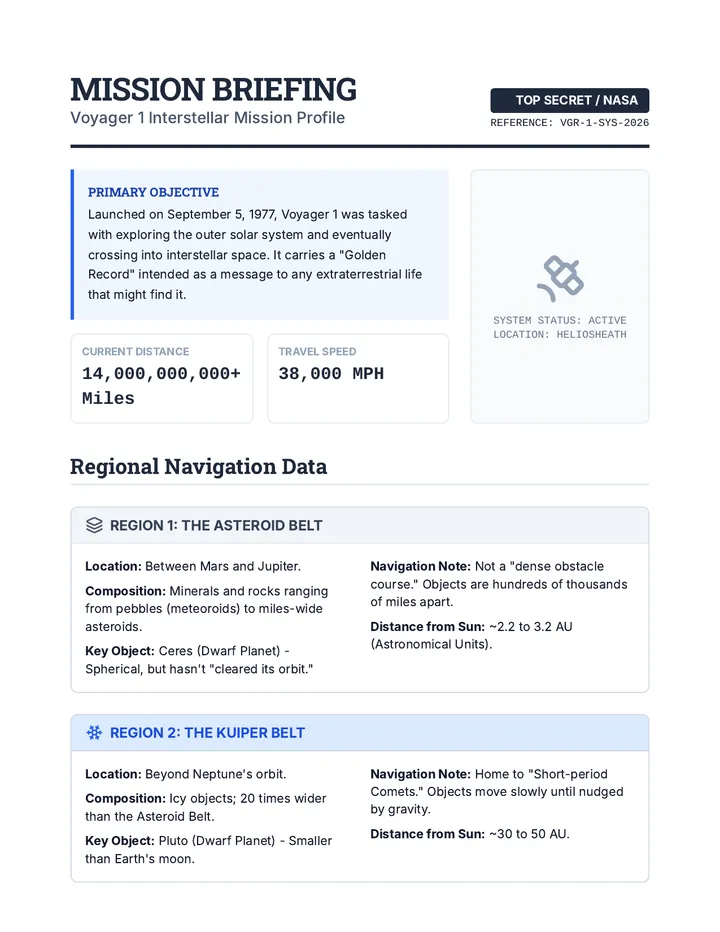

Voyager Mission Briefing Fact Sheet Mission Briefing
Voyager 1 Interstellar Mission Profile
TOP SECRET / NASA
Reference: VGR-1-SYS-2026
Primary Objective
Launched on September 5, 1977, Voyager 1 was tasked with exploring the outer solar system and eventually crossing into interstellar space. It carries a "Golden Record" intended as a message to any extraterrestrial life that might find it.
Current Distance 14,000,000,000+ Miles
Travel Speed 38,000 MPH
System Status: Active
Regional Navigation Data
Region 1: The Asteroid Belt
Location: Between Mars and Jupiter.
Composition: Minerals and rocks ranging from pebbles (meteoroids) to miles-wide asteroids.
Key Object: Ceres (Dwarf Planet) - Spherical, but hasn't "cleared its orbit."
Navigation Note: Not a "dense obstacle course." Objects are hundreds of thousands of miles apart.
Distance from Sun: ~2.2 to 3.2 AU (Astronomical Units).
Region 2: The Kuiper Belt
Location: Beyond Neptune's orbit.
Composition: Icy objects; 20 times wider than the Asteroid Belt.
Key Object: Pluto (Dwarf Planet) - Smaller than Earth's moon.
Navigation Note: Home to "Short-period Comets." Objects move slowly until nudged by gravity.
Distance from Sun: ~30 to 50 AU.
Region 3: The Oort Cloud
Location: Outer boundary of the Sun's gravity.
Composition: A massive sphere of icy chunks encasing the entire solar system.
Key Object: Long-period comets.
Navigation Note: Voyager will take 300 years to reach it and 30,000 years to pass through.
Distance from Sun: ~2,000 to 100,000 AU.
Technical Glossary
Celestial Body: Any natural object outside Earth's atmosphere.
Dwarf Planet: Spherical body orbiting the sun that hasn't cleared its orbit of other debris.
Interstellar: The region of space between stars, beyond the influence of the sun.
Clear the Orbit: When a planet is large enough to remove other objects from its orbital path.
AU (Astronomical Unit): Average distance from Earth to Sun (approx. 93 million miles).
Sublimation: When ice turns directly into gas (how comets get their tails near the sun).
Voyage Into the Void Slides Voyager 1 Mission Status
Voyage Into
the Void
Exploring the outer reaches and small bodies of our solar system.
Launch Date: 09.05.1977
The Golden Record
Voyager 1 carries a copper, gold-plated record. It contains sounds and images selected to portray the diversity of life and culture on Earth.
Listening Task
As you listen to the sample, imagine you are an alien civilization. What would you think of the species that made these sounds?
Earth's Message in a Bottle
Mission Intelligence: Small Bodies
Embedded media
1
Map the timeline
2
Define Dwarf Planets
3
Identify the Belts
Interactive Mission Pause
The Pluto Debate
Why was Pluto reclassified as a "Dwarf Planet" instead of a regular planet?
Size
Smaller than Earth's moon.
Orbit
Couldn't "clear its orbit" of debris.
Cosmic Correspondence
Write a postcard from the edge of space!
Time Remaining
25:00
Your Task:
Choose one location: Asteroid Belt, Kuiper Belt, or Oort Cloud .
Write as if you are Voyager 1 sending a message back to Earth.
Include: Temperature, surrounding objects, distance, and ETA.
Pro-Tip
Use the Voyager Fact Sheet for technical details! Remember, as a space probe, your "voice" might be logical but curious about what you're seeing.
Final Transmission
Reflection
Voyager 1 is billions of miles away. How does it feel to think about a machine traveling alone through the void for 48+ years?
Scale of Space
If it takes 30,000 years to cross the Oort Cloud, how big is our solar system really?

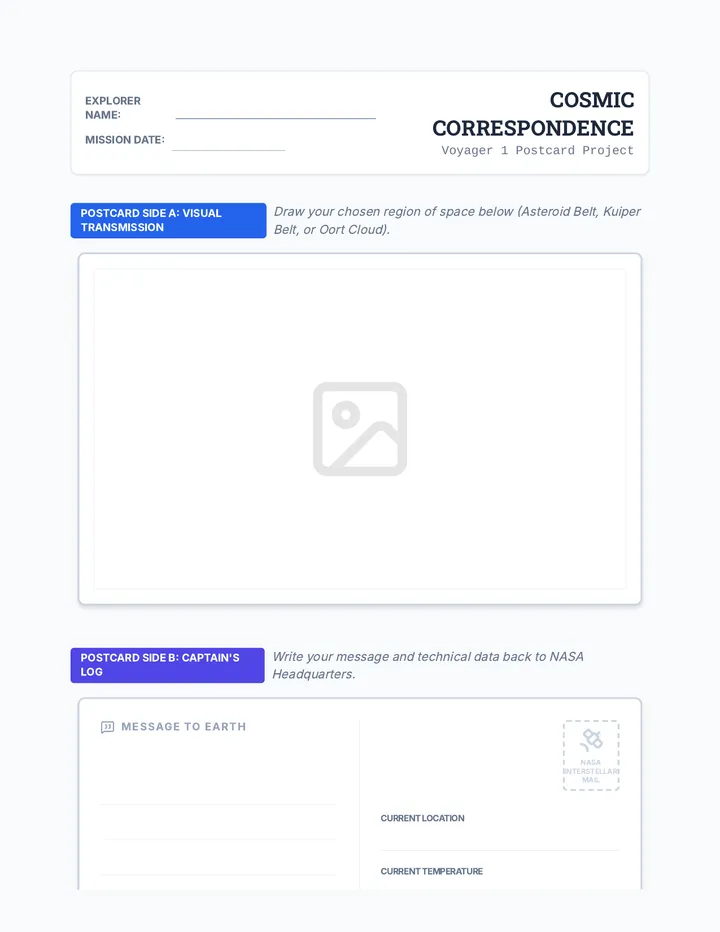

Cosmic Correspondence Postcards Explorer Name:
Mission Date:
Cosmic Correspondence
Voyager 1 Postcard Project
Postcard Side A: Visual Transmission
Draw your chosen region of space below (Asteroid Belt, Kuiper Belt, or Oort Cloud).
Postcard Side B: Captain's Log
Write your message and technical data back to NASA Headquarters.
Message to Earth
NASA INTERSTELLAR MAIL
Current Location
Current Temperature
Distance from Sun (AU)
ETA to Next Region
Voyager 1 / VGR-77

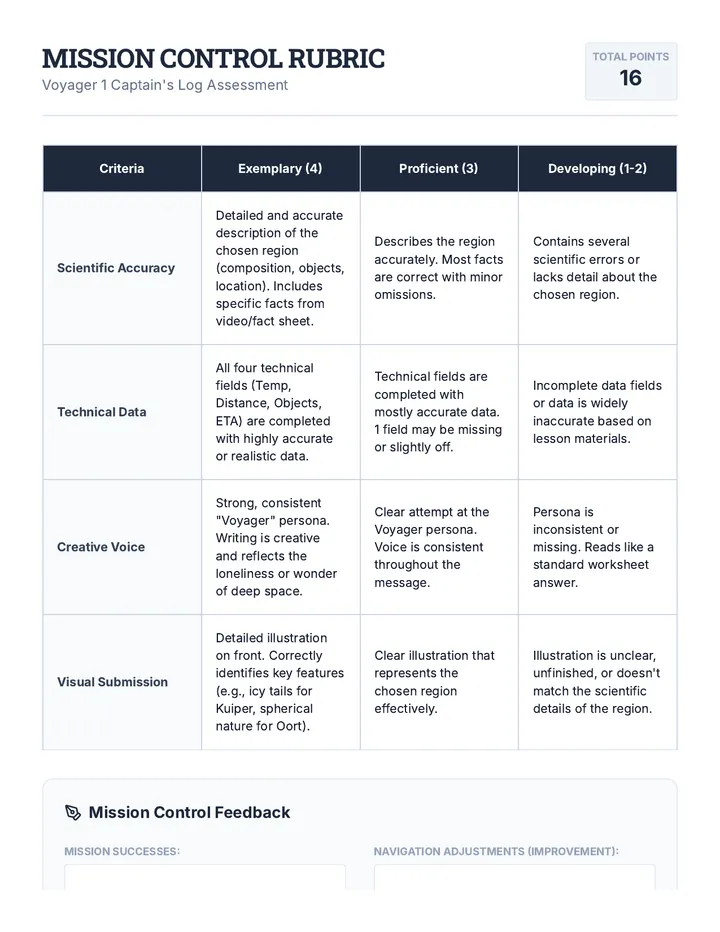

Captain's Log Success Rubric Mission Control Rubric
Voyager 1 Captain's Log Assessment
Total Points 16
Criteria Exemplary (4) Proficient (3) Developing (1-2) Scientific Accuracy Detailed and accurate description of the chosen region (composition, objects, location). Includes specific facts from video/fact sheet. Describes the region accurately. Most facts are correct with minor omissions. Contains several scientific errors or lacks detail about the chosen region. Technical Data All four technical fields (Temp, Distance, Objects, ETA) are completed with highly accurate or realistic data. Technical fields are completed with mostly accurate data. 1 field may be missing or slightly off. Incomplete data fields or data is widely inaccurate based on lesson materials. Creative Voice Strong, consistent "Voyager" persona. Writing is creative and reflects the loneliness or wonder of deep space. Clear attempt at the Voyager persona. Voice is consistent throughout the message. Persona is inconsistent or missing. Reads like a standard worksheet answer. Visual Submission Detailed illustration on front. Correctly identifies key features (e.g., icy tails for Kuiper, spherical nature for Oort). Clear illustration that represents the chosen region effectively. Illustration is unclear, unfinished, or doesn't match the scientific details of the region.
Mission Control Feedback
Mission Successes:
Navigation Adjustments (Improvement):
Final Transmission Grade:
/
16

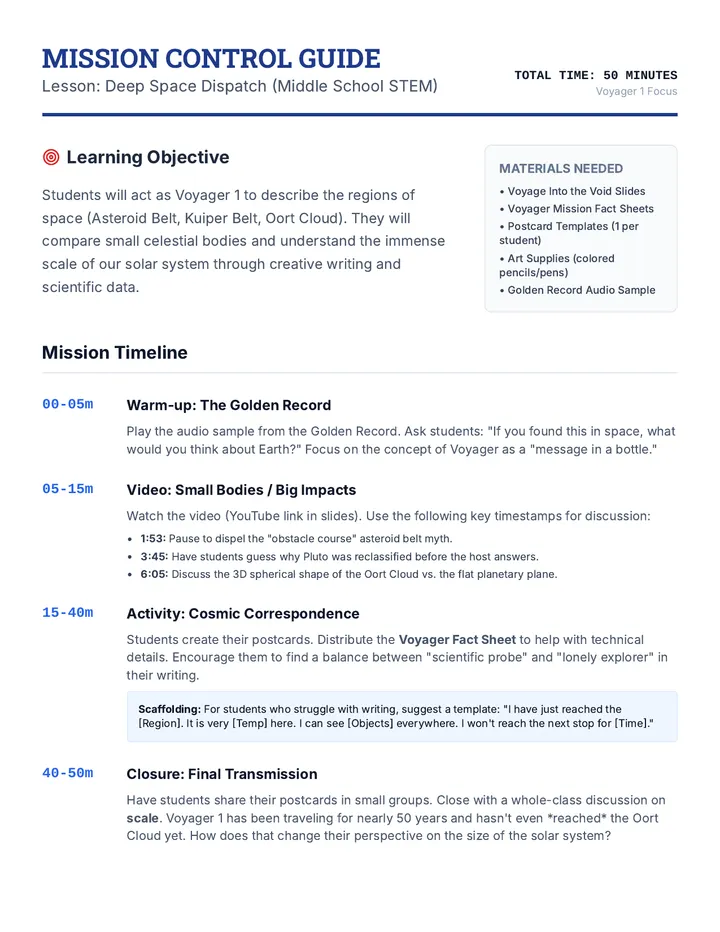

Mission Control Facilitator Guide Mission Control Guide
Lesson: Deep Space Dispatch (Middle School STEM)
Total Time: 50 Minutes
Voyager 1 Focus
Learning Objective
Students will act as Voyager 1 to describe the regions of space (Asteroid Belt, Kuiper Belt, Oort Cloud). They will compare small celestial bodies and understand the immense scale of our solar system through creative writing and scientific data.
Materials Needed
• Voyage Into the Void Slides
• Voyager Mission Fact Sheets
• Postcard Templates (1 per student)
• Art Supplies (colored pencils/pens)
• Golden Record Audio Sample
Mission Timeline
00-05m
Warm-up: The Golden Record
Play the audio sample from the Golden Record. Ask students: "If you found this in space, what would you think about Earth?" Focus on the concept of Voyager as a "message in a bottle."
05-15m
Video: Small Bodies / Big Impacts
Watch the video (YouTube link in slides). Use the following key timestamps for discussion:
1:53: Pause to dispel the "obstacle course" asteroid belt myth.3:45: Have students guess why Pluto was reclassified before the host answers.6:05: Discuss the 3D spherical shape of the Oort Cloud vs. the flat planetary plane.
15-40m
Activity: Cosmic Correspondence
Students create their postcards. Distribute the Voyager Fact Sheet to help with technical details. Encourage them to find a balance between "scientific probe" and "lonely explorer" in their writing.
Scaffolding: For students who struggle with writing, suggest a template: "I have just reached the [Region]. It is very [Temp] here. I can see [Objects] everywhere. I won't reach the next stop for [Time]."
40-50m
Closure: Final Transmission
Have students share their postcards in small groups. Close with a whole-class discussion on scale . Voyager 1 has been traveling for nearly 50 years and hasn't even *reached* the Oort Cloud yet. How does that change their perspective on the size of the solar system?
Instructional Vocabulary
Dwarf Planet Criteria:
1. Orbits Sun, 2. Spherical, 3. BUT too small to "clear its orbit" of debris.
Comet Tail Formation:
Formed by "sublimation" (melting gas/dust) but ONLY visible near the heat of the Sun.
