Cardboard Architects Lesson Plan Cardboard Architects
Educator Facilitation Plan & Safety Protocol
Duration: 60–75 Min
Grades 5–10 | Maker & 3D Design
Essential Question
How do geometric joint designs and adhesive physics transform flat cardboard into rigid 3D structures?
Target Standards
VA:Cr1.1 (Investigate), VA:Cr2.1 (Craftsmanship & Safe Tool Care), NGSS:ETS1.B (Engineering Solutions)
Primary Outcomes
Sketch 4 structural joints accurately, execute clean bonds with zero burns, and engineer a freestanding 3D specimen.
Studio Materials & Station Setup
Per Student Station
• 1 Sketchbook or student planning worksheet
• 8–10 pre-cut corrugated cardboard strips (approx. 2" × 4")
• 1 square cardboard base piece (approx. 5" × 5")
• 1 wooden craft stick or scrap tab (for pressing hot glue)
• Pencil, ruler, and safety scissors
Glue Stations (1 per pair)
• 1 Low-temp or dual-temp hot glue gun on heat-safe silicone tile
• 4 mini glue sticks per pair
• 1 bowl of cool water with paper towels (burn defense)
• 1 pair silicone finger guards (recommended for beginners)
• Masking tape taped to bench to anchor electrical cords
Non-Negotiable Safety Protocols (Review Prior to Powering On)
1. The Nozzle is Off-Limits
Metal tip reaches 250°F–380°F. Never touch the nozzle tip or freshly extruded liquid bead with bare skin.
2. Tool-Assisted Pressure
Use a wooden craft stick or scrap cardboard spacer to firmly press joints together—never compress hot glue with bare fingertips.
3. First Aid Immediate Action
If hot glue touches skin: plunge directly into the station water bowl immediately. Do NOT peel glue off hot skin; submerge first.
Instructional Procedure (Part 1)
1 Phase 1: Direct Demo & Adhesive Physics (15 min) Live Modeling
Demonstrate the difference between weak "surface sitting" glue and strong "compressed mechanical bonding." Model the 15-Second Hold Rule : hot glue achieves 80% strength only as it cools from clear liquid to cloudy solid while held steady. Demonstrate the 4 primary joint geometries (Edge-to-Edge, L, T, Cross). Show how cardboard corrugation flutes behave under tension and shear.
2 Phase 2: Sketchbook Blueprinting (15 min) 2D Technical Drawing
Students open their sketchbooks and divide a page into 4 quadrantal cells. They illustrate Edge-to-Edge, L-Connection, T-Connection, and Cross Connection using 3D isometric or perspective sketches. Students must annotate: (a) where the glue fillet goes, (b) the grain/flute direction of each piece, and (c) the primary mechanical weakness of each joint.
Cardboard Architects • Instructional Guide Page 1 of 2
Classroom Facilitation, Troubleshooting & Assessment
Phase 3 & Assessment
Instructional Procedure (Part 2)
3 Phase 3: The 3D Specimen Build Challenge (25–30 min) Hands-on Lab
Students construct a compact freestanding sculpture on a 5"×5" base that successfully integrates at least one of each of the four connections . Circulate to check adhesive volume (avoid huge pools of glue) and joint compression. Encourage gussets, flanges, or interlocking slots for cross joints. Enforce workstation clean lines: no hanging glue cobwebs.
4 Phase 4: Stress-Test Gallery & Reflection (10 min) Peer Review
Students conduct the "Gentle Shake & Flick Test" to verify bond permanence. Students label each joint on their actual structure with small paper tags or marker numbers, then complete their self-reflection rubric.
Teacher Troubleshooting Matrix
Observed Issue Root Cause Instructional Intervention Joint snaps off cleanly with hardened glue intact Cold-bonding: glue chilled before cardboard was pressed firmly into the bead. Coach student to bring parts together within 3 seconds of extruding glue; hold firmly for 15 full seconds. Cardboard surface paper peels off with glue Excessive shear force or low-grade corrugated liner paper. Introduce a cardboard gusset/bracket to redistribute stress across a wider surface area. Messy "cobweb" glue strings everywhere Withdrawing nozzle directly backward while molten glue is still anchored. Teach the "Swirl & Wipe" motion: twist the nozzle in a tight circle against the cardboard before lifting. Edge-to-edge joint wobbles and bends Extremely narrow bonding surface (flute edge is only ~3mm wide). Instruct student to create a backing tab or score-and-fold hinge to triple contact surface.
Assessment Rubric (4-Point Scale)
1. Blueprint Quality
All 4 connections clearly drawn, labeled with glue bead location, and analyzed for structural weakness.
2. Joint Execution
Structure incorporates all 4 joints; pieces hold tight under tension without premature joint separation.
3. Craftsmanship
Minimal glue overflow, zero hanging strings, clean 90° angles, and self-supporting 3D composition.
4. Safety & Cleanliness
Follows all gun handling protocols, uses craft sticks for pressure, and returns clean station.
Cardboard Architects • Instructional Guide Page 2 of 2

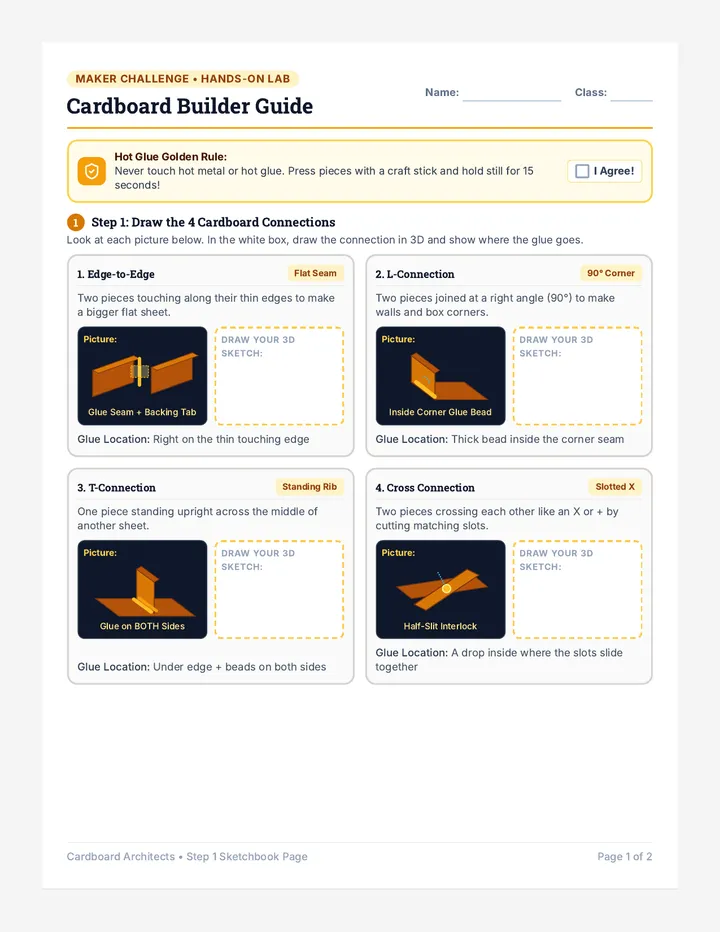

Cardboard Joinery Guide Maker Challenge • Hands-On Lab
Cardboard Builder Guide
Name:
Class:
Hot Glue Golden Rule:
Never touch hot metal or hot glue. Press pieces with a craft stick and hold still for 15 seconds!
I Agree!
1 Step 1: Draw the 4 Cardboard Connections
Look at each picture below. In the white box, draw the connection in 3D and show where the glue goes.
1. Edge-to-Edge Flat Seam
Two pieces touching along their thin edges to make a bigger flat sheet.
Picture: Glue Seam + Backing Tab
Draw Your 3D Sketch:
Glue Location: Right on the thin touching edge
2. L-Connection 90° Corner
Two pieces joined at a right angle (90°) to make walls and box corners.
Picture: Inside Corner Glue Bead
Draw Your 3D Sketch:
Glue Location: Thick bead inside the corner seam
3. T-Connection Standing Rib
One piece standing upright across the middle of another sheet.
Picture: Glue on BOTH Sides
Draw Your 3D Sketch:
Glue Location: Under edge + beads on both sides
4. Cross Connection Slotted X
Two pieces crossing each other like an X or + by cutting matching slots.
Picture: Half-Slit Interlock
Draw Your 3D Sketch:
Glue Location: A drop inside where the slots slide together
Cardboard Architects • Step 1 Sketchbook Page Page 1 of 2
Maker Challenge • Hands-On Lab
Step 2: The 3D Build Challenge
Base: 5" × 5" Cardboard
Your Building Mission:
Build a freestanding 3D sculpture on your cardboard base. Your sculpture must include all 4 connection types (Edge-to-Edge, L-Corner, T-Joint, and Cross). Make it sturdy enough to pass the shake test without wobbling!
Hold for 15 Sec
Press with a stick until the glue turns cloudy.
Swirl & Wipe
Circle nozzle tip to stop messy glue cobwebs.
Cut Half-Slots
Slit both pieces halfway so they lock together.
My 3D Sculpture Inspection Checklist
Connection Where is it on your structure? Shake & Flick Test Neatness 1. Edge-to-Edge Where did you use it? Held tight! Clean
Cardboard Architects Slides Maker Studio
Cardboard Architecture & 3D Design
Cardboard Architects
Learn how to safely use hot glue and connect cardboard four different ways to make strong 3D creations.
1. Safe Tool Habits
2. Sketch the 4 Joints
3. Build Your 3D Model
Safety First
Three Golden Rules of Hot Glue
1. Never Touch the Tip
The metal nozzle tip gets super hot (nearly 400°F). Keep your fingers away from the tip and wet glue!
2. Press with a Stick
Never use your bare fingers to squeeze hot glue joints. Always press down using a wooden craft stick.
3. Cold Water Bowl
If hot glue touches your skin, dip your hand straight into the cool water bowl right away. Do not pull it off!
Glue Gun Rest: Always park the gun standing up on its kickstand over the tile. Never lay it flat on the table!
How Glue Works
The 15-Second Freeze Rule
Count to 15!
Hot glue doesn't dry by air—it freezes solid as it cools. If you let go too soon, the joint will snap off!
1 Put glue on and push the pieces together right away.
2 Hold totally still with your stick for 15 slow seconds.
3 Look for cloudy: It's ready when the glue turns cloudy!
Stop the Messy Cobwebs!
Stop glue strings from trailing all over your project using the Swirl & Wipe move:
1. Let go of the glue trigger.
2. Draw a tiny circle with the tip against cardboard.
3. Wipe the tip along the edge as you lift away.
Clean, neat joints with zero strings!
Remember: Wiggling a piece while it cools ruins the bond!
Step 1: Planning
The 4 Cardboard Connections
In your guide or sketchbook, divide your page into 4 boxes. You will draw and label these four joints:
1
Edge-to-Edge
Two flat pieces touching along their thin edges.
2
L-Connection
Two pieces meeting at a 90° angle to make corners.
3
T-Connection
One piece standing upright across another sheet.
4
Cross Connection
Two pieces intersecting like an X or + using slots.
Your Goal: Draw each connection in 3D and show where the hot glue goes!
