Black Box Teacher Guide Teacher Lesson Plan
Black Box Mystery
Investigating the Unseen: Inquiry, Observation, and Modeling
Target Audience Grade 9 • Science Inquiry
Duration 60 Minutes
Group Size 3-4 Students
Subject Nature of Science
Key Concept Indirect Evidence
Learning Objectives
Differentiate: Distinguish between direct observations (sensory data) and inferences (logical deductions).Hypothesize & Model: Construct a conceptual, physical, or diagrammatic model of an unobservable interior mechanism.Revise with Evidence: Dynamically update hypotheses and scientific drawings when presented with new physical data.Analyze Scale: Compare container exploration to historical scientific challenges (e.g., probing atomic structures, deep space).
Material Setup Checklist
Per Student Group (3-4 students):
Inside the Sealed Box (Suggested Mix):
Step-by-Step Pacing (Part 1)
PHASE 1: ENGAGE (10 Minutes) Introductory Hook
Begin by showing a sealed box. Shake it once. Ask: "How can we prove exactly what is inside this container without ever breaking its seal?" Guide discussion toward indirect evidence. Introduce the concept of a "Black Box" in science: a system whose interior structure is invisible, forcing scientists to rely entirely on input and output cues (e.g., Earth's core, atomic nuclei, deep space celestial objects).
PHASE 2: EXPLORE (20 Minutes) Active Student Inquiry
Distribute sealed containers and investigator toolkits. Explain that the containers MUST NOT be opened, torn, or damaged . Students work through:
Physical Dynamics: Shake, tilt, and slide to test rolling vs. sliding items.Magnetic Fields: Move the magnet across all exterior surfaces to locate ferrous metal objects.Spatial Probing: Estimate internal dimensions, compartments, and barriers using motion pathways.
THE BLACK BOX MYSTERY • TEACHER FACILITATION GUIDE PAGE 1 OF 2
Facilitation & Scientific Connections Section 2 of 2
Step-by-Step Pacing (Part 2)
PHASE 3: EXPLAIN (15 Minutes) Modeling & Consensus
Direct student groups to draft their final internal design on the student worksheet. They must create a blueprint detailing internal components, dividers, and items. Have two groups pair up to share blueprints and defend their conclusions using quantitative and qualitative data (e.g., "The magnet held an object 4 cm from the left edge; therefore, there is steel located at coordinates...").
PHASE 4: ELABORATE (10 Minutes) Real-World Scientific Parallels
Connect students' experience directly to core milestones of the scientific method:
Rutherford's Gold Foil (1911)
Probed the unobservable atom by firing alpha particles. Deflections proved a dense, positive nucleus, similar to sliding the magnet or moving objects in the box.
Exoplanet Detection
Scientists identify distant planets by monitoring star wobble (radial velocity) and transit dimming, observing indirect interactions just as students used noise and weight.
PHASE 5: EVALUATE (5 Minutes) Synthesis Assessment
Distribute the Detective Log Worksheet for evaluation. Key grading milestones include the progression of hypothesis revision, the distinction between objective observation and subjective interpretation, and logical alignment of final blueprints with collected data. Do not reveal box contents; leaving the container sealed preserves the authentic nature of scientific inquiry.
Inquiry Questioning Cheat Sheet
If students get stuck:
"Close your eyes and tilt the container slowly. Where does the sliding sensation stop? Does it feel like a hard stop or a soft stop? What does that tell you about internal barriers?"
To push deep critical thinking:
"You observed a magnetic pull, but also a rolling noise. Is there a single magnetic object that rolls, or are there two distinct objects interacting inside?"
Anticipating Misconceptions
"Scientists must open everything to know for sure."
Clarify that no human has ever seen an individual electron or the interior of Earth's mantle; modeling unobservable phenomena is normal science, not a temporary step.
Observation vs. Inference.
Students often write: "Observation: There is a heavy wooden block inside." Correct them: "Observation: A low-pitched sliding thud is heard. Inference: A heavy wood block is sliding."
THE BLACK BOX MYSTERY • TEACHER FACILITATION GUIDE PAGE 2 OF 2

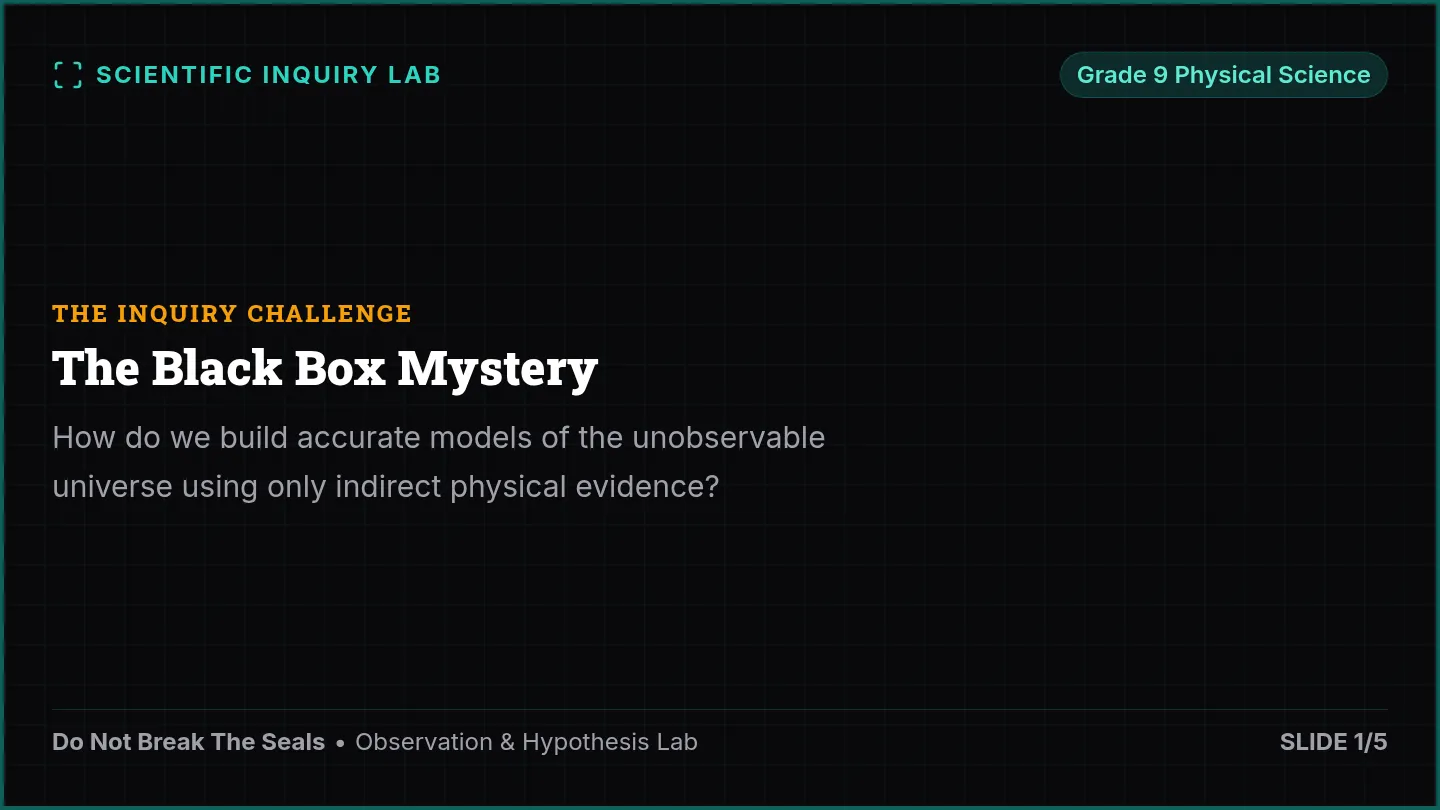

Mystery Vessel Slides Scientific Inquiry Lab
Grade 9 Physical Science
The Inquiry Challenge
The Black Box Mystery
How do we build accurate models of the unobservable universe using only indirect physical evidence?
Do Not Break The Seals • Observation & Hypothesis Lab
SLIDE 1/5
Rules of Engagement
Active Protocols
1. Absolute Lock
The container seals must remain fully intact. Breaking, slicing, or peeking inside results in immediate disqualification.
Mimicking reality: Scientists cannot split open Earth's core.
2. Non-Destructive Probing
Use your senses and investigative toolkits to collect data: shake, tilt, slide, weigh, and test with your magnetic probe.
Utilize physical and magnetic forces to explore depths.
PROTCOL MANUAL • SYSTEM PROCEDURES
SLIDE 2/5
Data Quality Standard
Scientific Rigor
Observation
Direct sensory data collected through touch, sound, weight, or tools. No guessing allowed.
Example Logs:
• "Object slips with heavy thud when tilted."
Inference
A logical deduction, interpretation, or hypothesis based on your observations.
Example Logs:
• "There is a rectangular wood block inside."
NEVER CONFUSE DATA WITH ASSUMPTIONS
SLIDE 3/5
Unseen Frontiers of Science
Real-World Connections
1. Atomic Structure
Rutherford fired charged alpha particles through gold foil. Deflections proved a dense nuclear atom without ever "seeing" one.
2. Earth's Mantle
We have only drilled 12 km down, yet we know the Earth has a solid core by mapping seismic waves transiting through the planet.
3. Deep Space Stars
How do we find exoplanets light years away? We observe the tiny star dimming (transit) when planets pass in front of them.
MAPPING UNSEEN PHENOMENA ACROSS THE UNIVERSE
SLIDE 4/5
Investigation Deliverables
Mission Target
Success Criteria for Your Team:
STEP 1
Run Physical Testing: Collect acoustic, magnetic, and spatial data. Log them on your worksheet.
STEP 2
Draft Initial Hypothesis: Sketch your group's early ideas of the unseen layout.

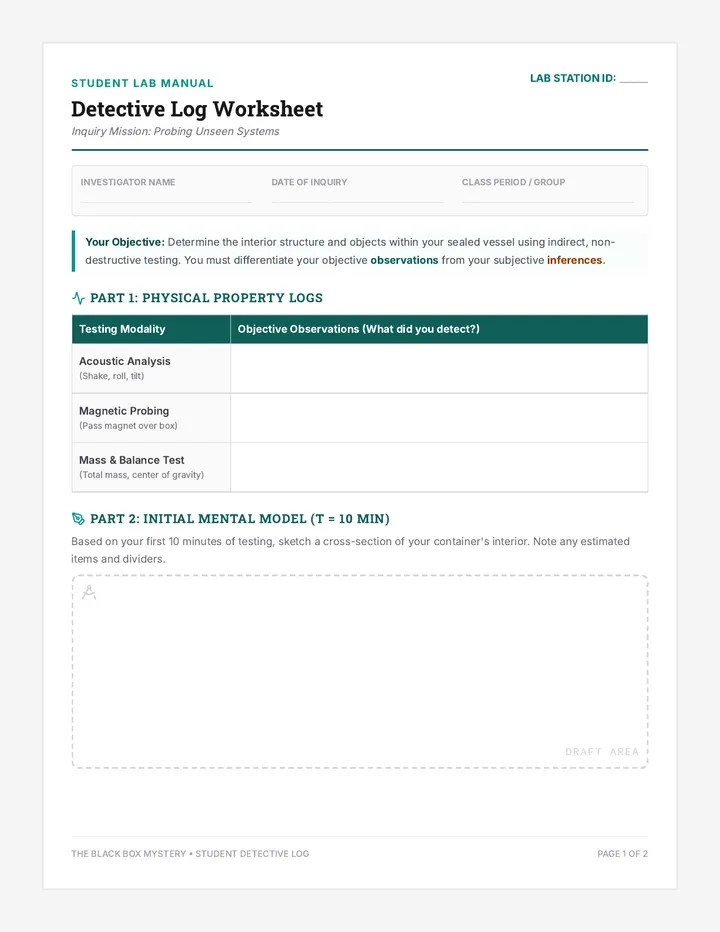

Detective Log Worksheet Student Lab Manual
Detective Log Worksheet
Inquiry Mission: Probing Unseen Systems
LAB STATION ID: ______
Investigator Name
___________________________
Date of Inquiry
___________________________
Class Period / Group
___________________________
Your Objective: Determine the interior structure and objects within your sealed vessel using indirect, non-destructive testing. You must differentiate your objective observations from your subjective inferences.
Part 1: Physical Property Logs
Testing Modality Objective Observations (What did you detect?) Acoustic Analysis (Shake, roll, tilt) Magnetic Probing (Pass magnet over box) Mass & Balance Test (Total mass, center of gravity)
Part 2: Initial Mental Model (T = 10 Min)
Based on your first 10 minutes of testing, sketch a cross-section of your container's interior. Note any estimated items and dividers.
DRAFT AREA
THE BLACK BOX MYSTERY • STUDENT DETECTIVE LOG PAGE 1 OF 2
Model Construction & Synthesis Section 2 of 2
Part 3: Coordinates Blueprint
Create a final model layout. Shade grid coordinate blocks to map solid interior partitions, and draw markers representing internal items (e.g., M = Marble, W = Washer, B = Wood Block).

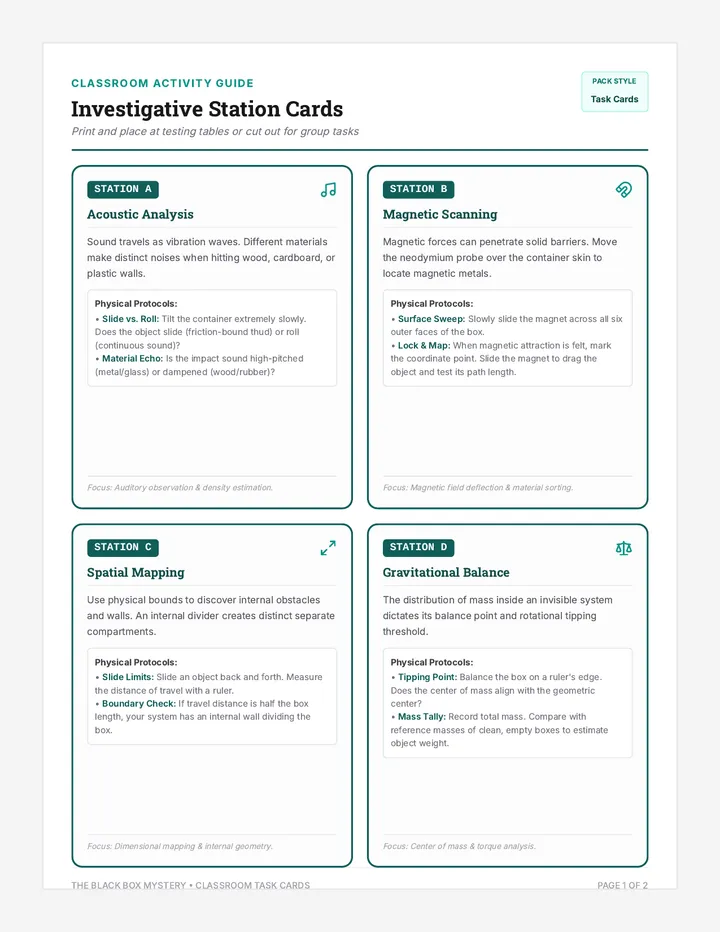

Inquiry Lab Cards Classroom Activity Guide
Investigative Station Cards
Print and place at testing tables or cut out for group tasks
Pack Style Task Cards
STATION A
Acoustic Analysis
Sound travels as vibration waves. Different materials make distinct noises when hitting wood, cardboard, or plastic walls.
Physical Protocols: • Slide vs. Roll: Tilt the container extremely slowly. Does the object slide (friction-bound thud) or roll (continuous sound)?
Focus: Auditory observation & density estimation.
STATION B
Magnetic Scanning
Magnetic forces can penetrate solid barriers. Move the neodymium probe over the container skin to locate magnetic metals.
Physical Protocols: • Surface Sweep: Slowly slide the magnet across all six outer faces of the box.
Focus: Magnetic field deflection & material sorting.
STATION C
Spatial Mapping
Use physical bounds to discover internal obstacles and walls. An internal divider creates distinct separate compartments.
Physical Protocols: • Slide Limits: Slide an object back and forth. Measure the distance of travel with a ruler.
Focus: Dimensional mapping & internal geometry.
STATION D
Gravitational Balance
The distribution of mass inside an invisible system dictates its balance point and rotational tipping threshold.
Physical Protocols: • Tipping Point: Balance the box on a ruler's edge. Does the center of mass align with the geometric center?
Focus: Center of mass & torque analysis.
THE BLACK BOX MYSTERY • CLASSROOM TASK CARDS PAGE 1 OF 2
Scientific Integration Portfolio
Historical Connection Cards
Distribute to groups during the ELABORATE phase of the lesson
Pack Style Spotlight Cards
HISTORICAL SPOTLIGHT
Ernest Rutherford (1911)
How do you model an atom when it's too small to ever see? Ernest Rutherford fired energetic alpha particles at thin gold leaf.
