Scaling Math Slides Unit: Scaling Laws
Size Matters
Exploring the mathematical foundations of the Square-Cube Law.
PHYSICS 12: SHAPES & PROPERTIES
The Giant Ant Problem
Imagine we scale an ant up by a factor of 100x.
"If we scaled an ant up to the size of an elephant, why would its legs instantly snap?"
Most people assume that if you double the size, you double the strength. Geometry says otherwise.
Strength vs. Mass: A Geometric Conflict
The Linear Scale Factor
Linear (L)
Length, width, height, or radius.
k
Area (A)
Surface area or cross-sectional area.
k2
Volume (V)
Space occupied or mass (if density is constant).
k3
The Core Principle
The Square-Cube Law
"As an object grows in size, its volume grows much faster than its surface area."
Double the size (k=2):
Area increases by 4x
Volume increases by 8x
Triple the size (k=3):
Area increases by 9x
Volume increases by 27x
Visualizing the Divergence
On a graph, we can see why this scaling is so problematic for large organisms and structures.
Area = k2 (Quadratic Growth)
Volume = k3 (Cubic Growth)
Key Takeaway
The gap between the two curves represents the physical "stress" or "inefficiency" that comes with larger sizes.
Small (k=1) Large (k=10)
Growth Factor (k)
Quick Challenge
A cube has a side length of 2 cm. Its surface area is 24 cm2 and its volume is 8 cm3.
If we scale the side length to 10 cm (k=5):
New Area
24 × 52 = 600 cm2
New Volume
8 × 53 = 1,000 cm3
Notice how the volume jumped by 125x while area only jumped by 25x.
Scaling Growth Worksheet Scaling Growth Worksheet
Physics 12: Scaling Laws & Geometry — Lesson 1
Name:
Date:
1
The Power of \( k \)
Consider a cube with a side length \( s \). If we scale every linear dimension by a factor of \( k \), we can predict the new Surface Area (\( SA \)) and Volume (\( V \)) using the original values.
Scale Factor (\( k \)) Linear (\( k \)) Area (\( k^2 \)) Volume (\( k^3 \)) 1 1x 1x 1x 2 2x 4x 8x 3 5 10
2
Visualizing the Shift
Using the data from the table above, sketch a rough graph showing the relationship between the Scale Factor (\( k \)) and the growth of Area and Volume. Label both axes and both curves.
SCALE FACTOR (k)
GROWTH MAGNITUDE
Analysis Questions:
1. At what scale factor does the numerical value of Volume begin to exceed the numerical value of Area (assuming both start at 1)?
2. Why does the "Surface Area to Volume Ratio" (\( SA/V \)) decrease as \( k \) increases? Use algebra to prove your point.
3
The Biological Limit
"The strength of a bone is proportional to its cross-sectional area (Square Law), but the weight it must support is proportional to its volume (Cube Law)."
Problem 1: The Human Giant
A typical human is 1.75 meters tall and weighs 70 kg. Suppose we scale a human up by a factor of \( k = 10 \) to create a 17.5-meter giant.
A) What is the giant's new mass?
B) By what factor has the strength of their leg bones increased?
Explain why this giant would likely suffer from immediate bone failure:
Problem 2: The Ant Hook
An ant can lift 50 times its own body weight. If you scale that ant up 1,000x in every dimension (\( k = 1,000 \)), would it still be able to lift 50 times its new body weight? Explain your reasoning using the scaling laws.
Square-Cube Law Foundations Workshop Material #L1-W1
Scaling Growth Answer Key Answer Key: Scaling Growth
Teacher Resource — Lesson 1
1. The Power of \( k \) Table
k Linear (\( k \)) Area (\( k^2 \)) Volume (\( k^3 \)) 1 1x 1x 1x 2 2x 4x 8x 3 3x 9x 27x 5 5x 25x 125x 10 10x 100x 1000x
2. Visualizing the Shift
2.1 Intersection point: Strictly speaking, they intersect at \( k=1 \) (where both are 1). After \( k=1 \), Volume immediately begins to exceed Area.
2.2 \( SA/V \) Proof: \( \frac{SA}{V} = \frac{k^2 \cdot SA_0}{k^3 \cdot V_0} = \frac{1}{k} \cdot \frac{SA_0}{V_0} \). As \( k \) increases, the ratio decreases proportionally to \( 1/k \).
3. The Biological Limit
Problem 1: The Human Giant (\( k=10 \))
A) New Mass: \( 70 \text{ kg} \times 10^3 = \mathbf{70,000 \text{ kg}} \).B) Strength Factor: \( 10^2 = \mathbf{100x} \) stronger bones.Failure Explanation: The giant is 1000x heavier but only 100x stronger. The "Stress" (\( \text{Weight/Strength} \)) has increased by 10x. The bones would be crushed under the massive increase in weight.
Problem 2: The Ant Hook (\( k=1,000 \))
No. Strength scales by \( 1,000^2 \) (1 million times), but mass scales by \( 1,000^3 \) (1 billion times). The ant is now 1,000x less strong relative to its own body weight. If it could lift 50x its weight before, it can now only lift \( 50/1,000 = 0.05x \) its weight—meaning it can't even stand up, let alone lift anything.
Monster Mechanics Slides Lesson 2: Biomechanics
Monster Mechanics
Why nature doesn't just "scale up" small animals.
PHYSICS & BIOLOGY
The King Kong Fallacy
King Kong is depicted as a giant gorilla, roughly 10x the height of a silverback.
The Math of a Monster:
Height (k): 10x
Bone Strength (k2): 100x stronger bones
Body Weight (k3): 1,000x heavier body
The Verdict?
His bones would support 1,000x the weight with only 100x the strength. He would collapse under his own gravity.
The Physics of Bone
Strength
The ability of a bone to resist snapping is determined by its Cross-Sectional Area.
Strength ∝ r2
Load
The weight a bone must carry is determined by the animal's Total Volume.
Weight ∝ r3
Stress = Weight / Strength = k3 / k2 = k
Stress on the bones increases linearly with size!
Nature's Solution
Allometric Scaling
Isometry
"Geometric Similarity." Scaling where proportions stay exactly the same. (A small elephant looks exactly like a big one).
Allometry
Scaling where proportions change to compensate for physical laws. (Big animals have thicker legs relative to their bodies).
Gazelle vs. Elephant
The Gazelle (Small)
Thin, spindle-like legs. Low mass means bones can be long and slender without reaching failure stress.
The Elephant (Large)
Pillar-like legs. Must be vertically aligned and extremely thick to handle the k3 weight increase.
"If an elephant had the proportions of a gazelle, its legs would buckle under its own weight while standing still."
GAZELLE
ELEPHANT
Galileo's Insight (1638)
Galileo was the first to realize that a giant animal would need disproportionately thicker bones. He famously illustrated that a bone scaled up 3x in length must be scaled up much more in thickness to remain functional.
Galileo's Rule
"Nature cannot produce a horse as large as twenty horses."
Monster Proportions Lab Monster Proportions Lab
Physics 12: Biomechanics — Lesson 2
Name:
Date:
Objective
In this activity, you will mathematically model the physical constraints of scaling a silverback gorilla into "King Kong" proportions. You will determine if isometric scaling (staying the same shape) is viable, and calculate the allometric adjustments needed for survival.
1 Baseline: The Standard Silverback
A typical large male silverback gorilla has the following physical properties:
Height (\( h \))
1.8 m
Mass (\( m \))
180 kg
Femur Radius (\( r \))
2.5 cm
1.1 Calculate the cross-sectional area of the baseline gorilla's femur (\( A = \pi r^2 \)):
2 Scaling to Kong Proportions (\( k = 15 \))
We want to scale this gorilla up by a linear factor of k = 15. Calculate the new properties assuming the shape stays exactly the same (Isometric).
Property Scaling Law Calculation New Value New Mass \( m \times k^3 \) \( 180 \times 15^3 \) New Bone Area \( A \times k^2 \) \( A_{base} \times 15^2 \) New Bone Radius \( r \times k \) \( 2.5 \times 15 \)
Physical Failure Check:
Calculate the Bone Stress Factor (\( S \)). For the baseline gorilla, \( S = 1 \). For the giant gorilla, \( S = \frac{\text{Mass Factor}}{\text{Area Factor}} = \frac{k^3}{k^2} = k \).
2.1 Based on your calculation, how many times more "stress" are the giant gorilla's bones under compared to the silverback?
3 Designing a Functional Monster
To survive, Kong's bone strength must increase at the same rate as his mass. This means his bone area must scale by \( k^3 \), not \( k^2 \). This is Allometric Scaling .
3.1 Calculate the required bone radius for a functional Kong:
Hint: We need New Bone Area to equal \( A_{base} \times 15^3 \). Use \( r_{new} = \sqrt{\frac{A_{required}}{\pi}} \).
3.2 Visual Analysis:
Compare the isometric radius (from Step 2) to the allometric radius (from Step 3.1). Describe how this change would affect the giant gorilla's appearance.
The Critical Thinking Challenge
If you scaled a gorilla up to be 100 times taller (\( k=100 \)), the bone radius required to support its weight would eventually become so large that the bones would literally touch each other, leaving no room for muscles, organs, or skin.

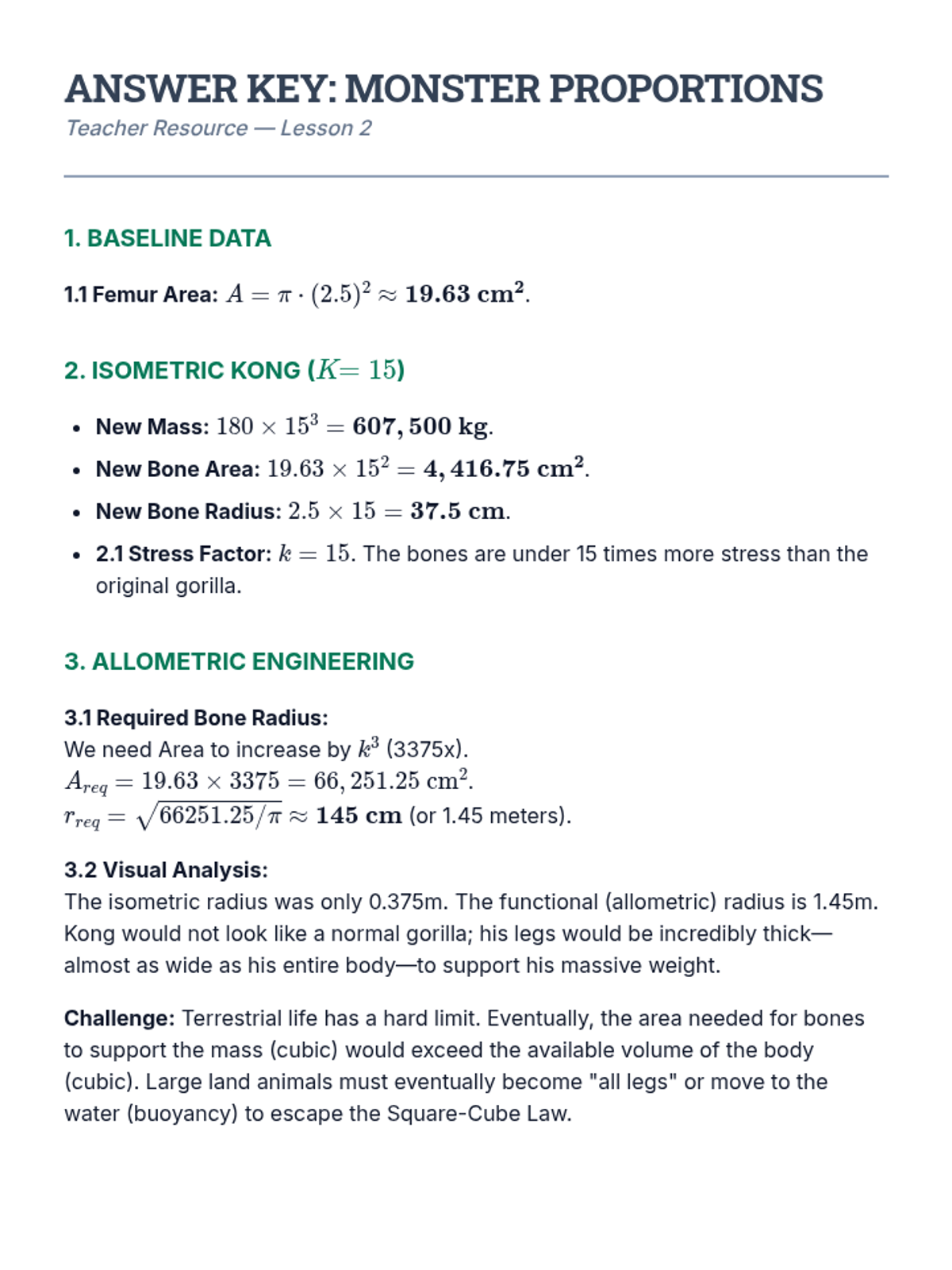

Monster Proportions Answer Key Answer Key: Monster Proportions
Teacher Resource — Lesson 2
1. Baseline Data
1.1 Femur Area: \( A = \pi \cdot (2.5)^2 \approx \mathbf{19.63 \text{ cm}^2} \).
2. Isometric Kong (\( k=15 \))
New Mass: \( 180 \times 15^3 = \mathbf{607,500 \text{ kg}} \).New Bone Area: \( 19.63 \times 15^2 = \mathbf{4,416.75 \text{ cm}^2} \).New Bone Radius: \( 2.5 \times 15 = \mathbf{37.5 \text{ cm}} \).2.1 Stress Factor: \( k = 15 \). The bones are under 15 times more stress than the original gorilla.
3. Allometric Engineering
3.1 Required Bone Radius:
3.2 Visual Analysis:
Challenge: Terrestrial life has a hard limit. Eventually, the area needed for bones to support the mass (cubic) would exceed the available volume of the body (cubic). Large land animals must eventually become "all legs" or move to the water (buoyancy) to escape the Square-Cube Law.
Heat Leak Slides Lesson 3: Thermal Dynamics
Heat Leaks
Why size dictates temperature: The physics of cooling down.
THERMAL SCALING EFFICIENCY
The Baby Problem
"Why do babies get cold so much faster than adults?"
A baby is roughly 1/4 the height of an adult.
Heat Generation (Volume) 1/64x
Heat Loss (Surface Area) 1/16x
4x More Leakage
Relative to their mass, babies have 4 times as much surface area for heat to escape.
The SA:V Ratio
The Rule
Heat is generated internally (Volume) but lost externally (Surface Area).
Ratio = SA / V
As an object gets bigger, the ratio gets smaller.
Scaling a Cube
Side = 1 cm
SA: 6 | V: 1 | Ratio: 6.0
Side = 2 cm
SA: 24 | V: 8 | Ratio: 3.0
Side = 10 cm
SA: 600 | V: 1000 | Ratio: 0.6
Bigger = Better Insulation
Geometric Optimization
Which shape stays warm the longest?
The Sphere
Minimum possible surface area for a given volume.
MAX EFFICIENCY
The Cube
Moderate surface area. Efficient for packing, less for heat.
MID-RANGE
The Radiator
Maximum surface area. Perfect for cooling down fast.
MIN EFFICIENCY
Bergmann's Rule
"Within a species, populations in colder climates tend to have larger body sizes than those in warmer climates."
Polar Bear
Massive (Low SA:V)
Sun Bear
Small (High SA:V)
Cold Environment
Minimize SA:V to keep heat in.
Designing for Heat Loss
Cooling Fins
Computer heat sinks use thin metal "fins" to dramatically increase surface area without adding much volume.
Liquid Cooling
Small tubes provide high surface area contact with a moving fluid, whisking heat away from the core faster than static air could.
High SA:V = Rapid Cooling

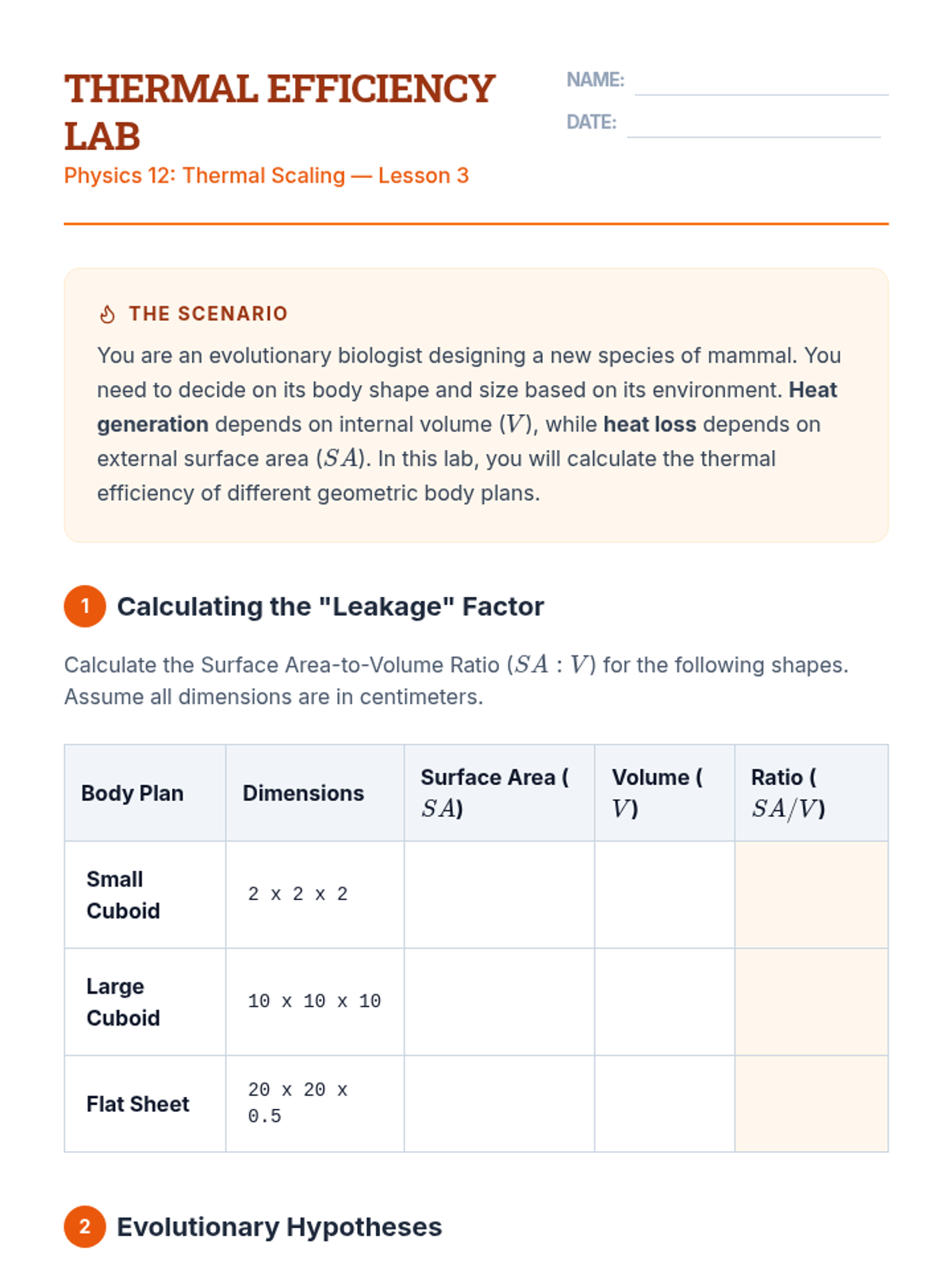

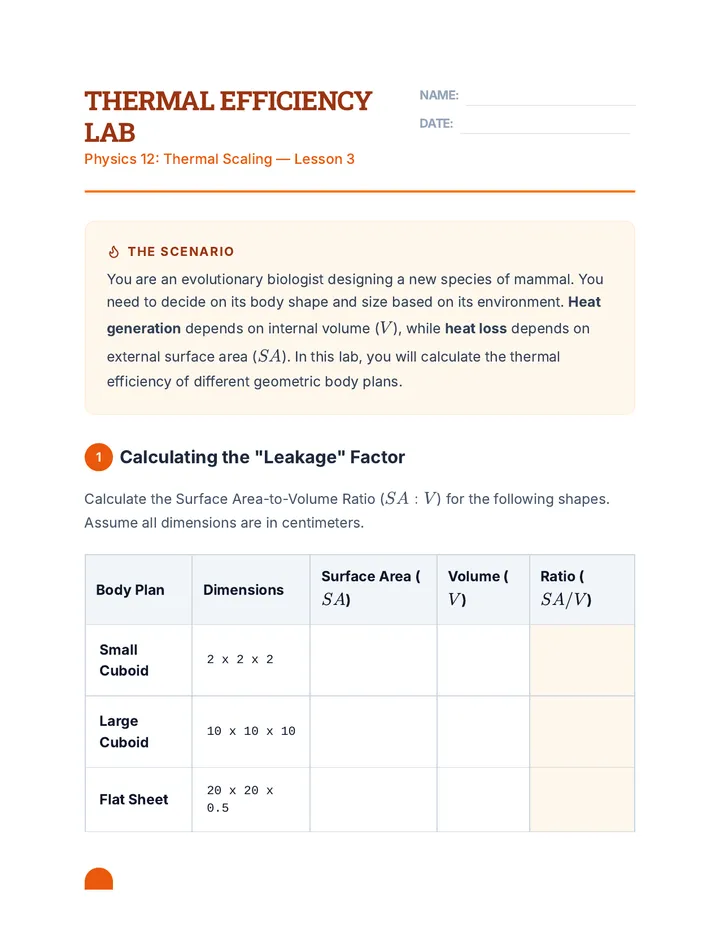

Thermal Shape Lab Thermal Efficiency Lab
Physics 12: Thermal Scaling — Lesson 3
Name:
Date:
The Scenario
You are an evolutionary biologist designing a new species of mammal. You need to decide on its body shape and size based on its environment. Heat generation depends on internal volume (\( V \)), while heat loss depends on external surface area (\( SA \)). In this lab, you will calculate the thermal efficiency of different geometric body plans.
1 Calculating the "Leakage" Factor
Calculate the Surface Area-to-Volume Ratio (\( SA:V \)) for the following shapes. Assume all dimensions are in centimeters.
Body Plan Dimensions Surface Area (\( SA \)) Volume (\( V \)) Ratio (\( SA/V \)) Small Cuboid 2 x 2 x 2 Large Cuboid 10 x 10 x 10 Flat Sheet 20 x 20 x 0.5
2 Evolutionary Hypotheses
2.1 If these three shapes were filled with 100°C water, which one would reach room temperature (20°C) the fastest? Justify your answer using your ratios from Part 1.
2.2 Consider an Arctic Fox (round, compact body) versus a Fennec Fox (huge ears, thin body). Which geometric plan from the table best models each animal?
Arctic Fox Model
Fennec Fox Model
3 Synthesis: Bergmann's and Allen's Rules
Physics Fact Check
Bergmann’s Rule: Bodies get larger in cold climates to decrease \( SA:V \).Allen’s Rule: Appendages (ears, tails, legs) get shorter in cold climates for the same reason.
Application Challenge:
A whale is much larger than a dolphin. Both are mammals living in the ocean. Using the principles of scaling and thermal efficiency, explain why whales are able to migrate through the freezing waters of the Antarctic while dolphins generally stick to temperate or tropical waters.
Design Question:
If you were designing a "Space Suit" for an astronaut that needed to shed excess heat from life-support systems as quickly as possible without using heavy pumps, what geometric features would you add to the external surface?
Thermal Geometry Lab Physics 12 — Lesson 3

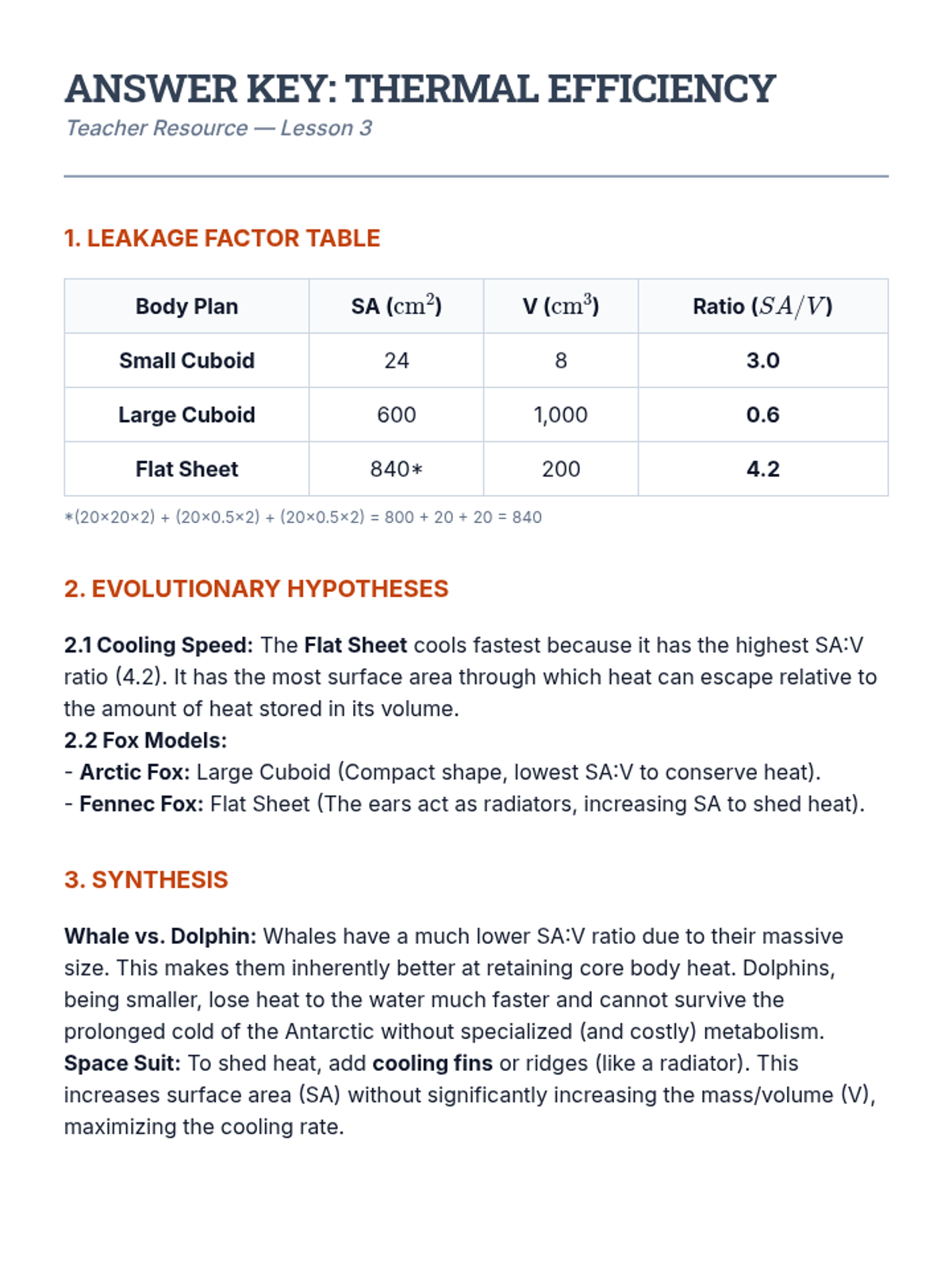

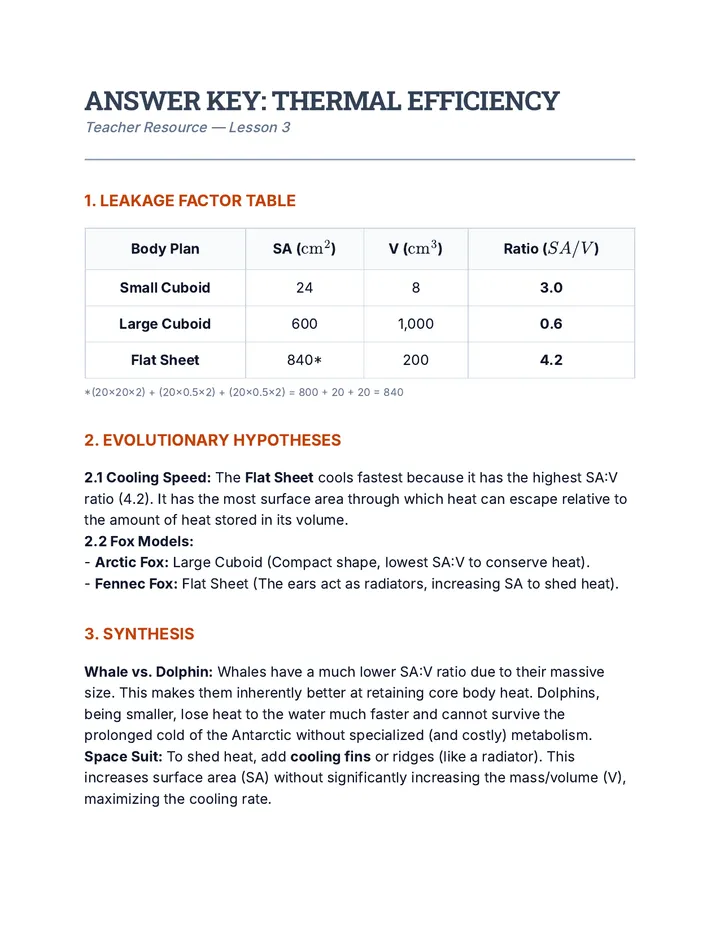

Thermal Shape Answer Key Answer Key: Thermal Efficiency
Teacher Resource — Lesson 3
1. Leakage Factor Table
Body Plan SA (\( \text{cm}^2 \)) V (\( \text{cm}^3 \)) Ratio (\( SA/V \)) Small Cuboid 24 8 3.0 Large Cuboid 600 1,000 0.6 Flat Sheet 840* 200 4.2
*(20x20x2) + (20x0.5x2) + (20x0.5x2) = 800 + 20 + 20 = 840
2. Evolutionary Hypotheses
2.1 Cooling Speed: The Flat Sheet cools fastest because it has the highest SA:V ratio (4.2). It has the most surface area through which heat can escape relative to the amount of heat stored in its volume.
2.2 Fox Models: Arctic Fox: Large Cuboid (Compact shape, lowest SA:V to conserve heat).Fennec Fox: Flat Sheet (The ears act as radiators, increasing SA to shed heat).
3. Synthesis
Whale vs. Dolphin: Whales have a much lower SA:V ratio due to their massive size. This makes them inherently better at retaining core body heat. Dolphins, being smaller, lose heat to the water much faster and cannot survive the prolonged cold of the Antarctic without specialized (and costly) metabolism.
Space Suit: To shed heat, add cooling fins or ridges (like a radiator). This increases surface area (SA) without significantly increasing the mass/volume (V), maximizing the cooling rate.
Terminal Velocity Slides Lesson 4: Fluid Dynamics
The Great Fall
Scaling gravity and drag: Why size determines the speed of impact.
TERMINAL VELOCITY & GEOMETRY
The Skyscraper Test
"A mouse falls from a skyscraper and walks away. A human falls and breaks. An elephant falls and splashes."
Why does a mouse survive a fall that is fatal to anything larger?
Mouse
13 m/s
Terminal Velocity
Human
54 m/s
Terminal Velocity
Forces of the Fall
Force 1: Gravity
The pull downward depends on the Mass of the object.
\( F_g \propto \text{Volume} \propto L^3 \)
Force 2: Drag
The push upward depends on the Frontal Area.
\( F_d \propto \text{Area} \propto L^2 \)
Terminal velocity is reached when \( F_g = F_d \)
The Math of the Drop
Velocity Scaling
At terminal velocity (\( v_t \)):
\( L^3 \propto L^2 \cdot v_t^2 \)
\( v_t \propto \sqrt{L} \)
Terminal velocity increases with the square root of the linear size factor \( L \).
The Impact Physics
When size increases, speed increases. When speed increases, impact energy skyrockets.
Total Energy Scaling
\( KE \propto L^4 \)
If you are 10x bigger, your impact energy is 10,000x greater.
Scaling Fluid Forces
Property Scale Factor Physical Implication Mass / Weight \( L^3 \) The "engine" pulling you down. Air Resistance (Drag) \( L^2 \) The "parachute" slowing you down. Terminal Velocity \( \sqrt{L} \) Bigger things fall faster in atmosphere.

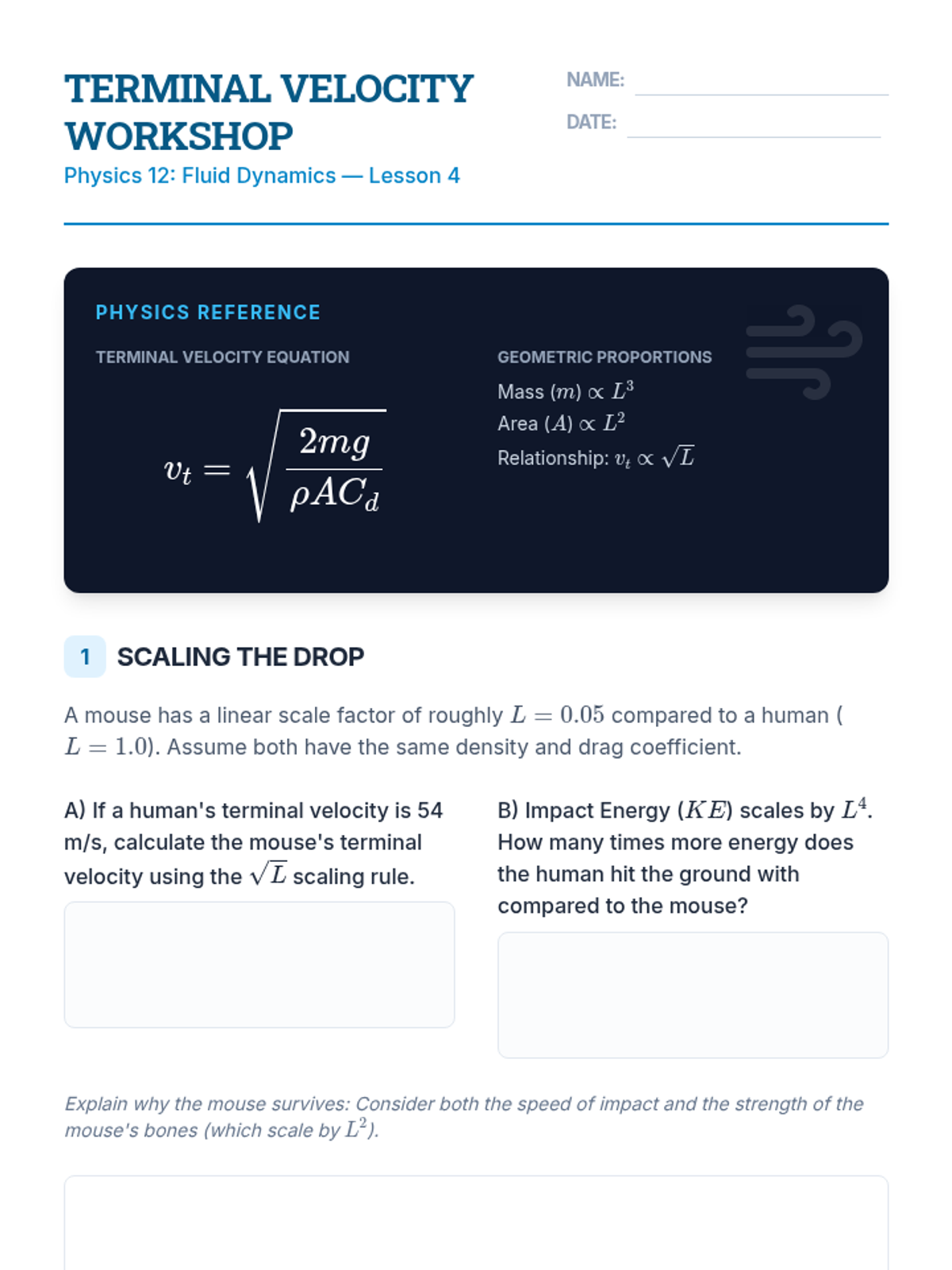

Terminal Velocity Workshop Terminal Velocity Workshop
Physics 12: Fluid Dynamics — Lesson 4
Name:
Date:
Physics Reference
Terminal Velocity Equation
\[ v_t = \sqrt{\frac{2mg}{\rho A C_d}} \]
Geometric Proportions
Mass (\( m \)) \(\propto L^3\)
Area (\( A \)) \(\propto L^2\)
Relationship: \( v_t \propto \sqrt{L} \)
1
Scaling the Drop
A mouse has a linear scale factor of roughly \( L = 0.05 \) compared to a human (\( L = 1.0 \)). Assume both have the same density and drag coefficient.
A) If a human's terminal velocity is 54 m/s, calculate the mouse's terminal velocity using the \( \sqrt{L} \) scaling rule.
B) Impact Energy (\( KE \)) scales by \( L^4 \). How many times more energy does the human hit the ground with compared to the mouse?
Explain why the mouse survives: Consider both the speed of impact and the strength of the mouse's bones (which scale by \( L^2 \)).
2
Parachute Optimization
To safely land a 200 kg supply crate, you need a terminal velocity of 5 m/s. You are using a circular parachute.
2.1 If you need to drop a crate that is 8 times heavier (1600 kg) but want to maintain the same landing speed (5 m/s), by what factor must you increase the diameter of the parachute?
Show your derivation:
Synthesize: Many insects have tiny hairs or wings that dramatically increase their surface area. Based on what you've learned, how does this "allometric" increase in area help them survive falls from any height?
Fluid Scaling & Terminal Velocity Physics 12 — Lesson 4 Activity

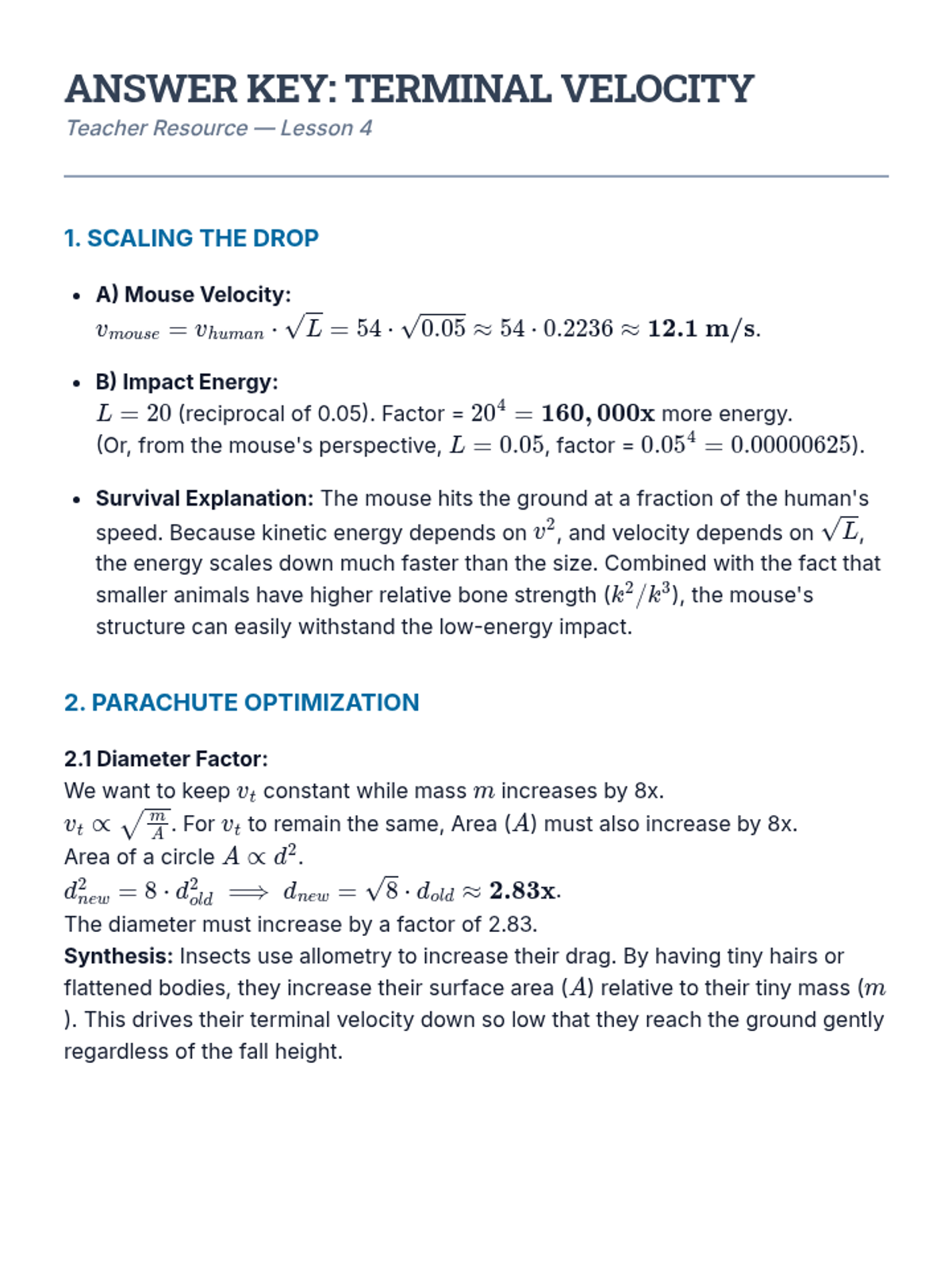

Terminal Velocity Answer Key Answer Key: Terminal Velocity
Teacher Resource — Lesson 4
1. Scaling the Drop
A) Mouse Velocity: B) Impact Energy: Survival Explanation: The mouse hits the ground at a fraction of the human's speed. Because kinetic energy depends on \( v^2 \), and velocity depends on \( \sqrt{L} \), the energy scales down much faster than the size. Combined with the fact that smaller animals have higher relative bone strength (\( k^2 / k^3 \)), the mouse's structure can easily withstand the low-energy impact.
2. Parachute Optimization
2.1 Diameter Factor:
Synthesis: Insects use allometry to increase their drag. By having tiny hairs or flattened bodies, they increase their surface area (\( A \)) relative to their tiny mass (\( m \)). This drives their terminal velocity down so low that they reach the ground gently regardless of the fall height.
Engineering Scaling Slides Lesson 5: Structural Engineering
Breaking Point
Why we can't just build it "twice as big": The engineering limits of scaling.
ENGINEERING SCALING LIMITS
The Double-Size Trap
Most people think: "If I want a bridge to carry 2x the weight, I just make it 2x the size."
The Mathematical Reality:
Making it 2x bigger (k=2) makes the structure 8x heavier.
But the beams only get 4x stronger.
The Strength Deficit
The structure is now failing under its own weight before you even add a single car or truck.
Compressive Stress
The Physics
Stress is Force / Area.
\( \sigma = \frac{Weight}{Area} = \frac{k^3}{k^2} = k \)
Conclusion: Stress on building materials increases linearly with the size of the building.
10m
Safe Stress Level
20m
2x the Stress on Materials
The Ceiling of Success
Brick & Stone
High compression, low tension. Limited to medium-height structures like the Pyramids or Cathedrals.
~150m Limit
Steel Alloys
High tension and compression. Allowed for the Skyscraper era. Still limited by its own density.
~1,000m Limit
Carbon Nanotubes
Extreme strength-to-weight ratio. The theoretical key to a Space Elevator.
35,000km+ Limit
Lessons from the Past
"The Tower of Babel Problem"
As you build taller, the bottom layers must support the weight of everything above them. To handle the k3 weight, the bottom must get allometrically wider.
The Quebec Bridge (1907)
Failed because engineers underestimated the "dead load" (the bridge's own weight) as it was scaled up to a record-breaking span.
The Ziggurat/Pyramid Shape
The only way to scale up stone structures is allometric broadening at the base.
The Unified Law of Size
Math
V scales faster than SA.
Biology
Bones must thicken allometrically.
Heat
Big things cool down slowly.
Physics
Big things fall much faster.
Geometry isn't just about shapes. It's the invisible architect of the universe.

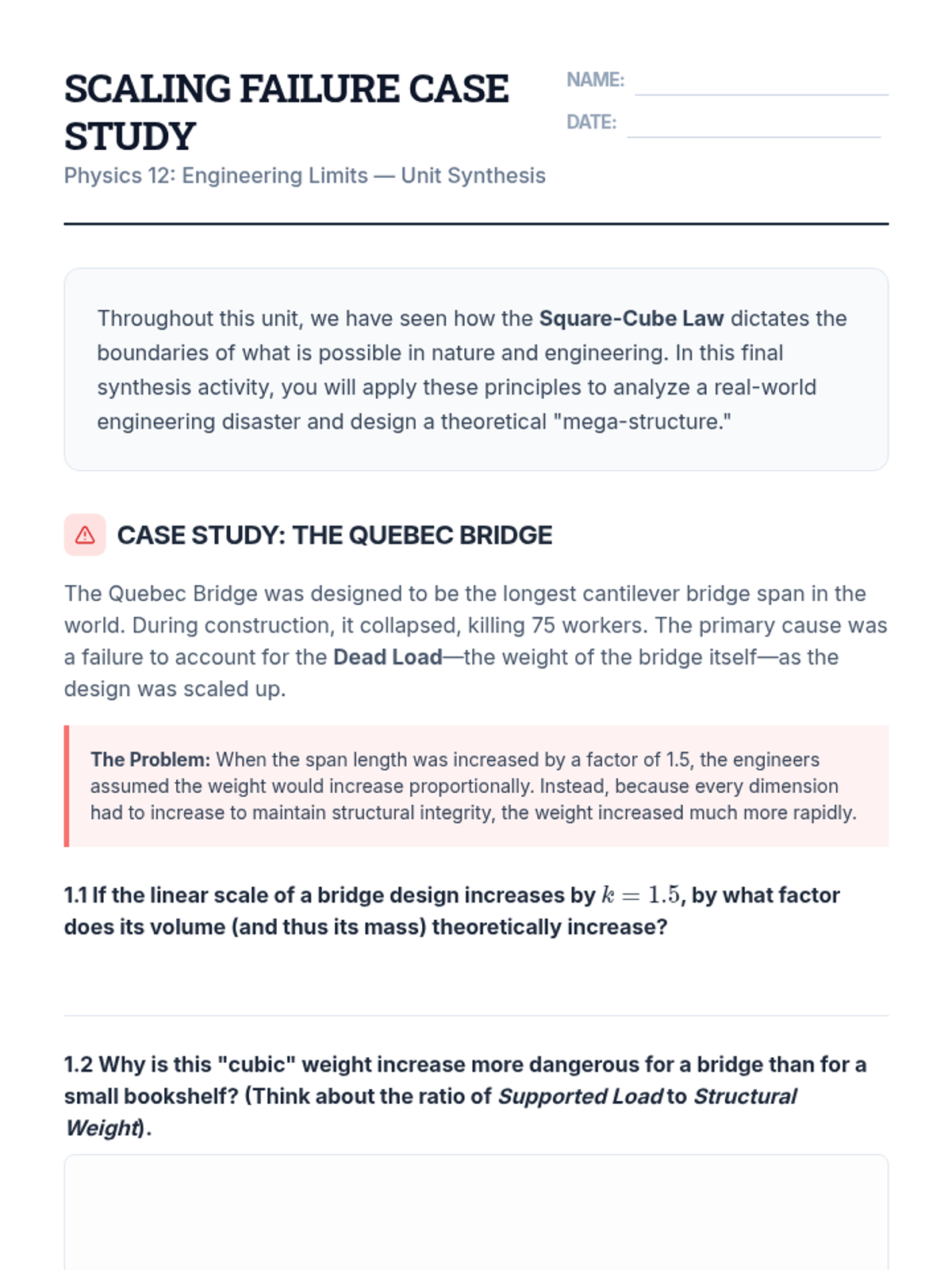

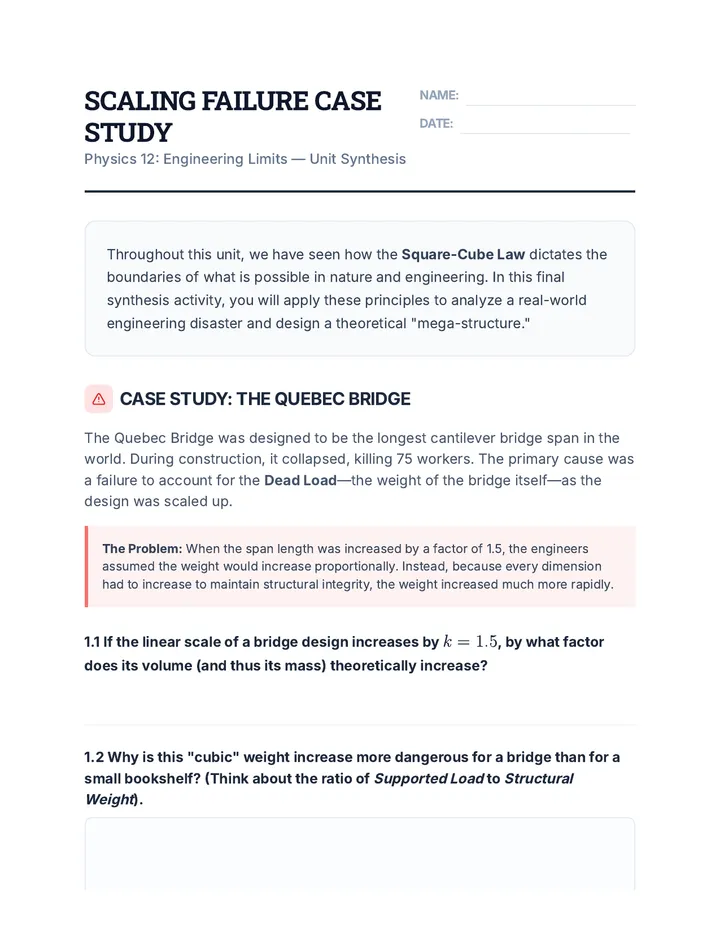

Scaling Failure Case Study Scaling Failure Case Study
Physics 12: Engineering Limits — Unit Synthesis
Name:
Date:
Throughout this unit, we have seen how the Square-Cube Law dictates the boundaries of what is possible in nature and engineering. In this final synthesis activity, you will apply these principles to analyze a real-world engineering disaster and design a theoretical "mega-structure."
Case Study: The Quebec Bridge
The Quebec Bridge was designed to be the longest cantilever bridge span in the world. During construction, it collapsed, killing 75 workers. The primary cause was a failure to account for the Dead Load —the weight of the bridge itself—as the design was scaled up.
The Problem: When the span length was increased by a factor of 1.5, the engineers assumed the weight would increase proportionally. Instead, because every dimension had to increase to maintain structural integrity, the weight increased much more rapidly.
1.1 If the linear scale of a bridge design increases by \( k = 1.5 \), by what factor does its volume (and thus its mass) theoretically increase?
1.2 Why is this "cubic" weight increase more dangerous for a bridge than for a small bookshelf? (Think about the ratio of Supported Load to Structural Weight ).
Theoretical Design: The Space Elevator
A space elevator is a cable extending from Earth's surface to geostationary orbit (35,786 km). A major obstacle is that no known material can support its own weight over that distance without snapping at the top.
A) Tapering Strategy
To solve the scaling problem, engineers propose tapering the cable: making it very thick at the top (where tension is highest) and thin at the bottom.
Explain why this is an Allometric solution:
B) Material Strength
Carbon nanotubes have a specific strength 100x greater than steel. If we switch from steel to nanotubes, how does this change the maximum possible height of a structure?
Justify using the Stress equation (\( \sigma = \rho gh \)):
Synthesis Reflection
Final Prompt
Select ONE of the "hooks" we studied this unit (The Giant Ant, King Kong, The Cooling Baby, or The Falling Mouse). Use your knowledge of scaling laws to provide a complete physical explanation of why that specific scenario behaves the way it does.
Scaling Failure Case Study Physics 12 — Unit Synthesis

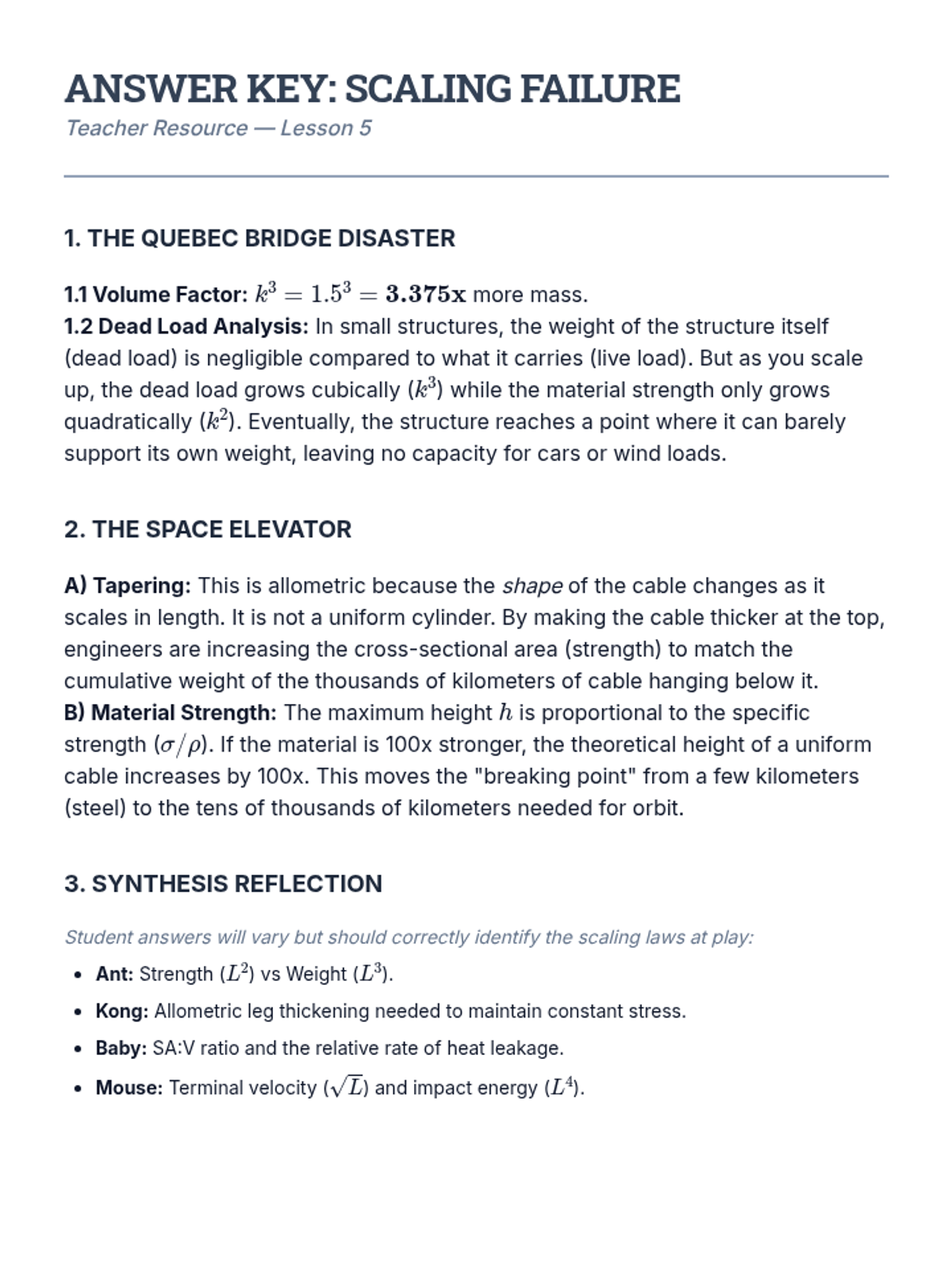

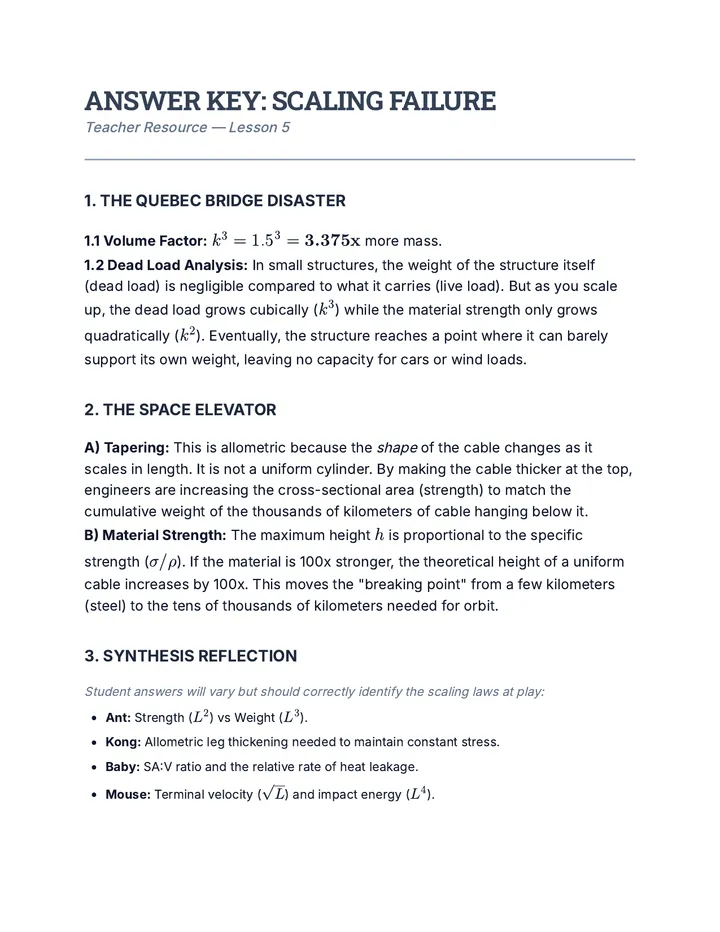

Scaling Failure Answer Key Answer Key: Scaling Failure
Teacher Resource — Lesson 5
1. The Quebec Bridge Disaster
1.1 Volume Factor: \( k^3 = 1.5^3 = \mathbf{3.375x} \) more mass.
1.2 Dead Load Analysis: In small structures, the weight of the structure itself (dead load) is negligible compared to what it carries (live load). But as you scale up, the dead load grows cubically (\( k^3 \)) while the material strength only grows quadratically (\( k^2 \)). Eventually, the structure reaches a point where it can barely support its own weight, leaving no capacity for cars or wind loads.
2. The Space Elevator
A) Tapering: This is allometric because the shape of the cable changes as it scales in length. It is not a uniform cylinder. By making the cable thicker at the top, engineers are increasing the cross-sectional area (strength) to match the cumulative weight of the thousands of kilometers of cable hanging below it.
B) Material Strength: The maximum height \( h \) is proportional to the specific strength (\( \sigma / \rho \)). If the material is 100x stronger, the theoretical height of a uniform cable increases by 100x. This moves the "breaking point" from a few kilometers (steel) to the tens of thousands of kilometers needed for orbit.
3. Synthesis Reflection
Student answers will vary but should correctly identify the scaling laws at play:
Ant: Strength (\( L^2 \)) vs Weight (\( L^3 \)).Kong: Allometric leg thickening needed to maintain constant stress.Baby: SA:V ratio and the relative rate of heat leakage.Mouse: Terminal velocity (\( \sqrt{L} \)) and impact energy (\( L^4 \)).
