Propulsion Basics Slides Propulsion Physics
ACTION AND
REACTION
Exploring momentum exchange as the fundamental mechanism of space flight.
The Frozen Lake Problem
"You are stranded in the center of a frictionless, frozen lake. You have no way to get grip on the ice. In your hand is a heavy, frozen boot."
The Challenge:
How do you reach the shore? Explain the physics of your movement in terms of momentum conservation.
Initial System: P = 0
The Physics of Recoil
\[ \vec{p}_{initial} = \vec{p}_{final} \]
In a closed system, the total momentum remains constant. If you throw a mass in one direction, you must move in the other.
Action
The boot gains momentum: \( p = m_{boot} \cdot v_{boot} \)
Reaction
You gain equal and opposite momentum: \( p = m_{you} \cdot v_{you} \)
Vector Sum
-mv
+mv
Net momentum of the system remains zero.
Propulsion as Mass Expulsion
A rocket doesn't "push" against the ground or the atmosphere. In space, there is nothing to push against. Instead, it pushes against its own exhaust.
Mass Source
The fuel and oxidizer stored on board.
Energy Source
Chemical combustion to accelerate that mass.
Exhaust Velocity
The speed at which mass is expelled (ve).
Thrust: The Force of Momentum
\[ F_{thrust} = \frac{\Delta m}{\Delta t} \cdot v_{e} \]
\[ \frac{\Delta m}{\Delta t} \]
Mass Flow Rate: How many kg of mass are you throwing out every second?
\[ v_{e} \]
Exhaust Velocity: How fast is that mass leaving the nozzle?
Force = Rate of change of momentum
Propulsion Playground Worksheet Propulsion Playground
Momentum Exchange & Mass Expulsion Analysis
UNIT: MOMENTUM
LESSON: 01
Student Name
Date
Period
01
The Heavy Object Recoil
A 70 kg student stands on a stationary, frictionless 5 kg skateboard. The student is holding a 10 kg bowling ball. The student throws the ball horizontally at a velocity of 8 m/s relative to the ground.
A) Calculate the total mass of the system before the throw.
B) What is the total momentum of the system before the throw? Explain why.
C) Calculate the recoil velocity of the student-skateboard system after the throw. Show your work starting from \( \sum p_i = \sum p_f \).
02
The Fire Extinguisher Rocket
Imagine an astronaut in deep space using a CO2 fire extinguisher for propulsion. The extinguisher expels gas at a rate of 0.5 kg/s with an exhaust velocity of 150 m/s . The combined mass of the astronaut and equipment is 120 kg .
A) Calculate the thrust force (N) generated by the extinguisher.
B) Calculate the initial acceleration of the astronaut.
C) If the astronaut fires the extinguisher for a 4-second burst, what is their change in momentum (\( \Delta p \))?
D) Conceptual Check: As the extinguisher is used, the total mass of the astronaut system decreases. How does this affect the acceleration if the thrust remains constant? Justify your answer.
Free Body Diagram / Vector Sketch Area
Sketch the momentum vectors for Problem 2 here
Propulsion Teacher Guide Notes Teacher Guide
Unit: Rocketry & Variable Mass Propulsion
Educator Resource
Sequence Overview
This sequence bridges the gap between basic momentum (\( p = mv \)) and the complexities of aerospace engineering. By the end of 12th grade, students are ready to handle systems where mass is not a constant—a key conceptual hurdle for understanding how anything moves in space.
Core Misconception Alert:
Many students believe rockets "push" off the air or the ground. Constantly redirect them to the idea that the rocket pushes off its own exhaust . The exhaust is the other half of the momentum exchange.
Key Equations
Thrust:
Impulse:
Rocket Eq:
Photon Momentum:
Instructional Strategies
1
Action/Reaction
The Lake Scenario Discussion
Encourage students to debate. If they throw the boot, they move. If they hold onto the boot and swing it, they oscillate but stay in place. Why? Internal forces cannot change the center-of-mass momentum. This is the crucial distinction for propulsion.
2
Variable Mass
The "Tyranny" Conceptualization
Students often struggle with natural logs. Frame the rocket equation as a "tax": to add 1 m/s of speed, you have to pay in fuel, but the cost of that speed increases because you have to pay to move the fuel itself. Visual: Stack of bricks. Moving the top brick requires moving all bricks below it.
3
Simulation
Orbital Impulse Timing
The most common mistake in sims is burning exactly at the node. Teach the "50/50" rule: split the burn duration equally before and after the maneuver point. This approximates an "instantaneous impulse," which the math assumes.
Scaffolding for Calculus
For students not in Calculus, focus on the Mass Ratio as a scaling factor. For AP/Calculus students, show the derivation:
Visual Aids & Demos
Balloon Rocket: Simple but effective for demonstrating mass flow rate (\(\Delta m / \Delta t\)).Water Rockets: Best for discussing exhaust velocity—compare air-only vs. water-filled launches.
Rocket Equation Slides Variable Mass Systems
The Tyranny of
The Rocket Equation
Why getting to orbit is 90% fuel and 100% hard work.
The Constant Mass Fallacy
Standard Physics
In most physics problems, objects have constant mass. A car stays 1500 kg from start to finish.
Rocket Reality
A rocket is essentially a flying fuel tank. As it burns fuel to create thrust, its total mass decreases significantly.
Mass (Initial) >> Mass (Dry)
Konstantin Tsiolkovsky's Legacy
\[ \Delta v = v_e \ln \left( \frac{m_0}{m_f} \right) \]
\[ \Delta v \]
Change in Velocity
\[ v_e \]
Exhaust Velocity
\[ \frac{m_0}{m_f} \]
Mass Ratio
The "Tyranny" Explained
Because of the natural log (ln) , increasing your fuel doesn't give you a linear increase in velocity.
"To go twice as fast, you don't need twice the fuel. You need an exponentially larger amount, because you have to carry the fuel you haven't burned yet!"
Diminishing Returns
More fuel = More mass to accelerate
Saturn V: By the Numbers
Total Mass
2,900
Metric Tons
Payload Mass
48
Metric Tons (to Moon)
Fuel Percentage
~90%
Total Weight
Key Takeaway: The rocket is mostly just moving its own fuel.

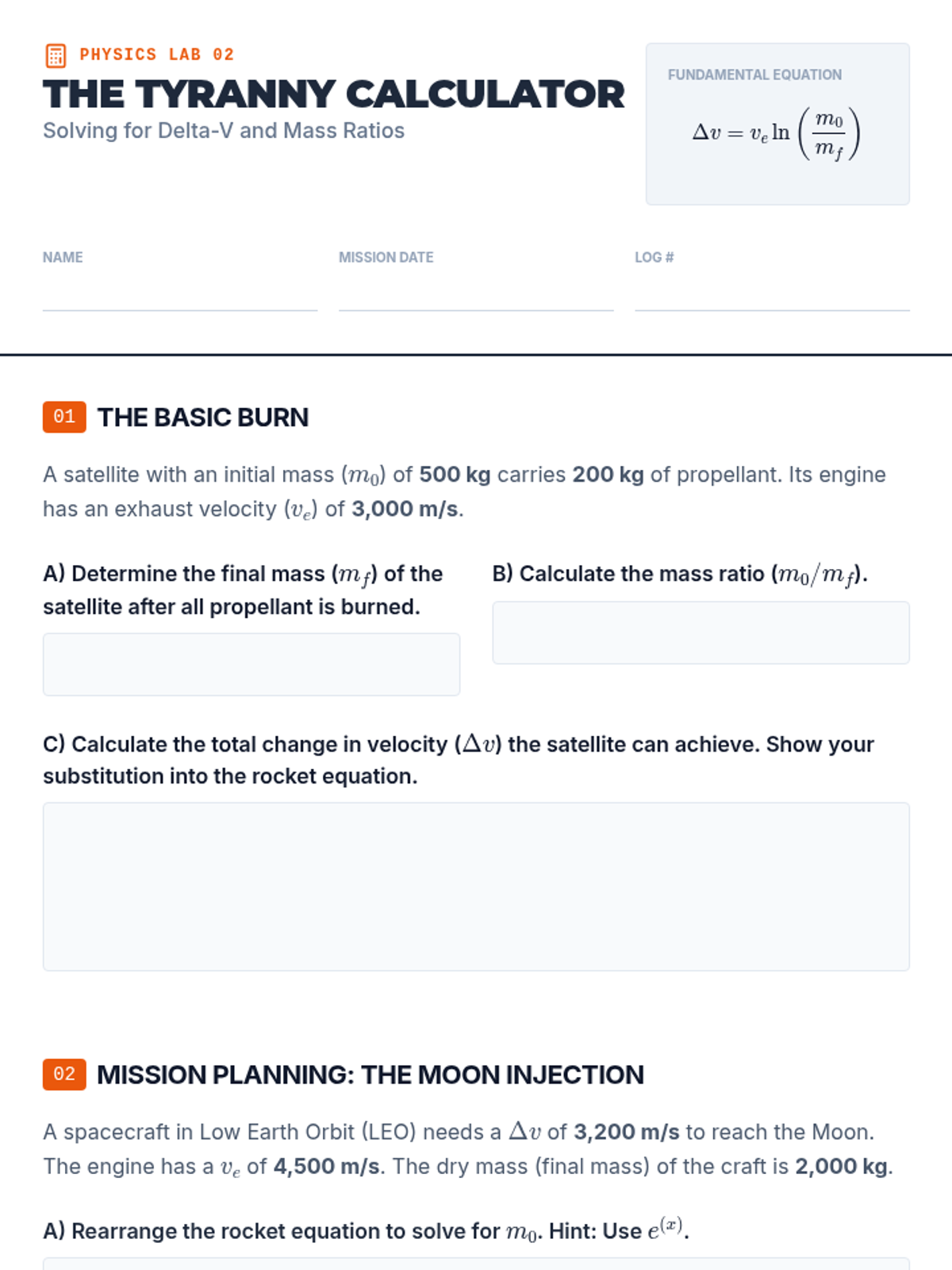

Rocket Equation Lab Worksheet Physics Lab 02
The Tyranny Calculator
Solving for Delta-V and Mass Ratios
Fundamental Equation
\[ \Delta v = v_e \ln \left( \frac{m_0}{m_f} \right) \]
Name
Mission Date
Log #
01
The Basic Burn
A satellite with an initial mass (\( m_0 \)) of 500 kg carries 200 kg of propellant. Its engine has an exhaust velocity (\( v_e \)) of 3,000 m/s .
A) Determine the final mass (\( m_f \)) of the satellite after all propellant is burned.
B) Calculate the mass ratio (\( m_0 / m_f \)).
C) Calculate the total change in velocity (\( \Delta v \)) the satellite can achieve. Show your substitution into the rocket equation.
02
Mission Planning: The Moon Injection
A spacecraft in Low Earth Orbit (LEO) needs a \( \Delta v \) of 3,200 m/s to reach the Moon. The engine has a \( v_e \) of 4,500 m/s . The dry mass (final mass) of the craft is 2,000 kg .
A) Rearrange the rocket equation to solve for \( m_0 \). Hint: Use \( e^{(x)} \).
B) Calculate the required initial mass (\( m_0 \)) of the spacecraft to perform this maneuver.
C) How much of that initial mass is propellant? If fuel costs $5,000 per kg to launch into orbit, what is the fuel cost for this maneuver alone?
03
Efficiency Comparison
Engine Type Exhaust Velocity (\( v_e \)) Initial Mass (\( m_0 \)) Final Mass (\( m_f \)) Resulting \( \Delta v \) Solid Rocket 2,500 m/s 1000 kg 200 kg Liquid Hydrogen 4,400 m/s 1000 kg 200 kg Ion Thruster 30,000 m/s 1000 kg 900 kg
Analysis Question:
Compare the Ion Thruster to the Liquid Hydrogen engine. The Ion Thruster used only 10% of its mass as fuel, while the LH2 engine used 80% . Which one achieved the higher \( \Delta v \)? Why is exhaust velocity so much more powerful than simply adding more fuel?
Orbital Maneuvers Slides MISSION: ORBITAL BURN
Using Impulse to Navigate the Vacuum
Delta-V: The Currency of Space
In space, "distance" is meaningless for fuel planning. We measure travel in Delta-V (\( \Delta v \)) .
The "Impulse" connection:
\[ J = \Delta p = m \Delta v \]
To change your velocity, you must apply an Impulse (\( F \Delta t \)).
~9,500 m/s LEO (Low Earth Orbit)
~3,200 m/s Trans-Lunar Injection
~800 m/s Docking Maneuvers
The Navigator's Math
Solving for Burn Duration
\[ \Delta t = \frac{m \cdot \Delta v}{F} \]
\( \Delta t \): Time the engine is ON (s)
\( m \): Current mass of ship (kg)
\( F \): Engine thrust force (N)
Example Scenario
Your craft (10,000 kg) needs a 100 m/s change in velocity. Your engine produces 50,000 N of thrust. How long do you burn?
\( \Delta t = (10,000 \cdot 100) / 50,000 = 20 \text{ seconds} \)
Flight Rules for Simulation
1. Prograde Burn
Point in direction of travel. Adds velocity. Raises the opposite side of the orbit.
2. Retrograde Burn
Point opposite to travel. Subtracts velocity. Lowers the opposite side of the orbit.
3. Precision Timing
Split the burn! If a burn is 20s long, start 10s before the maneuver node.
Ready for Launch
Open your Flight Log. Calculate your burns. Don't overshoot.
Manual Calc
Sim Execute

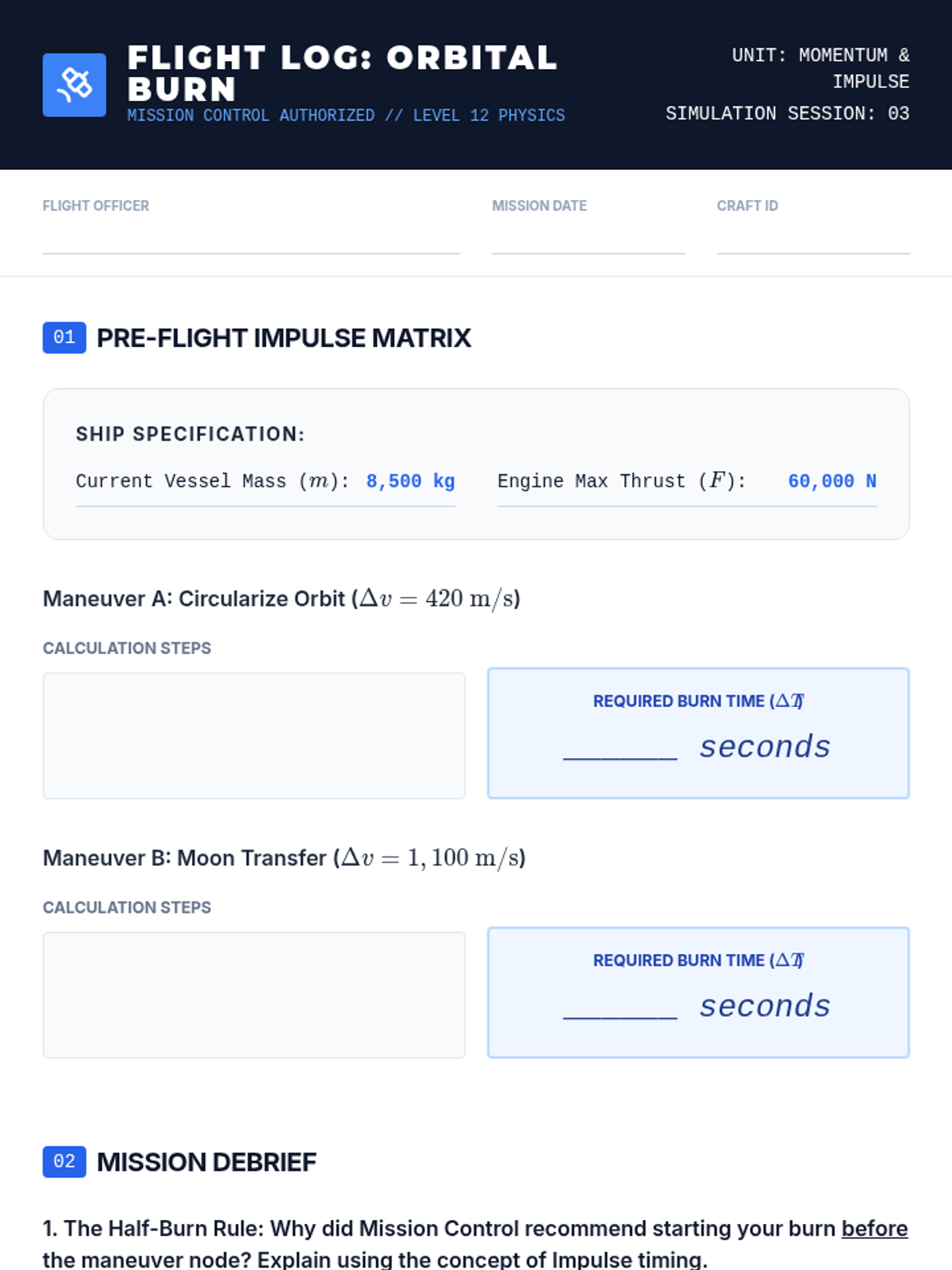

Orbital Maneuvers Flight Log Flight Log: Orbital Burn
MISSION CONTROL AUTHORIZED // LEVEL 12 PHYSICS
UNIT: MOMENTUM & IMPULSE
SIMULATION SESSION: 03
Flight Officer
Mission Date
Craft ID
01
Pre-Flight Impulse Matrix
Ship Specification:
Current Vessel Mass (\( m \)): 8,500 kg
Engine Max Thrust (\( F \)): 60,000 N
Maneuver A: Circularize Orbit (\( \Delta v = 420 \text{ m/s} \))
Calculation Steps
Required Burn Time (\( \Delta t \))
______ seconds
Maneuver B: Moon Transfer (\( \Delta v = 1,100 \text{ m/s} \))
Calculation Steps
Required Burn Time (\( \Delta t \))
______ seconds
02
Mission Debrief
1. The Half-Burn Rule: Why did Mission Control recommend starting your burn before the maneuver node? Explain using the concept of Impulse timing.
2. Mass Change Effect: If you burn 1,000 kg of fuel during a maneuver, how does your actual acceleration at the end of the burn compare to the start of the burn? Why?
3. Mission Sketch: Draw your orbital transition. Label the burn point, the burn direction (Prograde/Retrograde), and the resulting change in the orbit shape.
Draw orbital schematic here
REF: J = FΔt PHYS-12-RP-S03 APPROVED FOR FLIGHT
Logic of Staging Slides The Logic of
Staging
Why we leave pieces behind to get ahead.
The "Dead Weight" Problem
Once a fuel tank is empty, it's just heavy metal. Accelerating that empty tank requires force that could be used for the payload.
Momentum Perspective:
"The impulse from your fuel shouldn't be wasted on moving empty boxes."
Empty Tank
Engine
Discarding Mass (m)
Serial Staging
Cumulative Delta-V
\[ \Delta v_{total} = \Delta v_1 + \Delta v_2 + \Delta v_3 \]
Each stage acts as a "new" rocket. By dropping the mass of the previous stage, the next stage starts with a much higher Mass Ratio .
Stage 1: Lifting
Fights atmospheric drag and gravity. Heavy engines, massive tanks.
Stage 2: Speeding
Vacuum optimized engines. Reaches orbital velocity (\( \sim 7.8 \text{ km/s} \)).
Stage 3: Navigating
Small, precise burns for interplanetary transfer.
Case Study: Saturn V
The Drop
The first stage (S-IC) dropped away just 2.5 minutes into flight. It weighed 2,300,000 kg when full, but only 130,000 kg when empty.
"Dropping that 130,000 kg of 'dead weight' allowed the second stage to double the rocket's velocity with far less thrust."
Payload (CM/LM)
Stage 3
Stage 2
Stage 1
The Rocket Paradox
The more stages you have, the more efficient you are at reaching high velocities...
Engineering is about finding the "Sweet Spot"

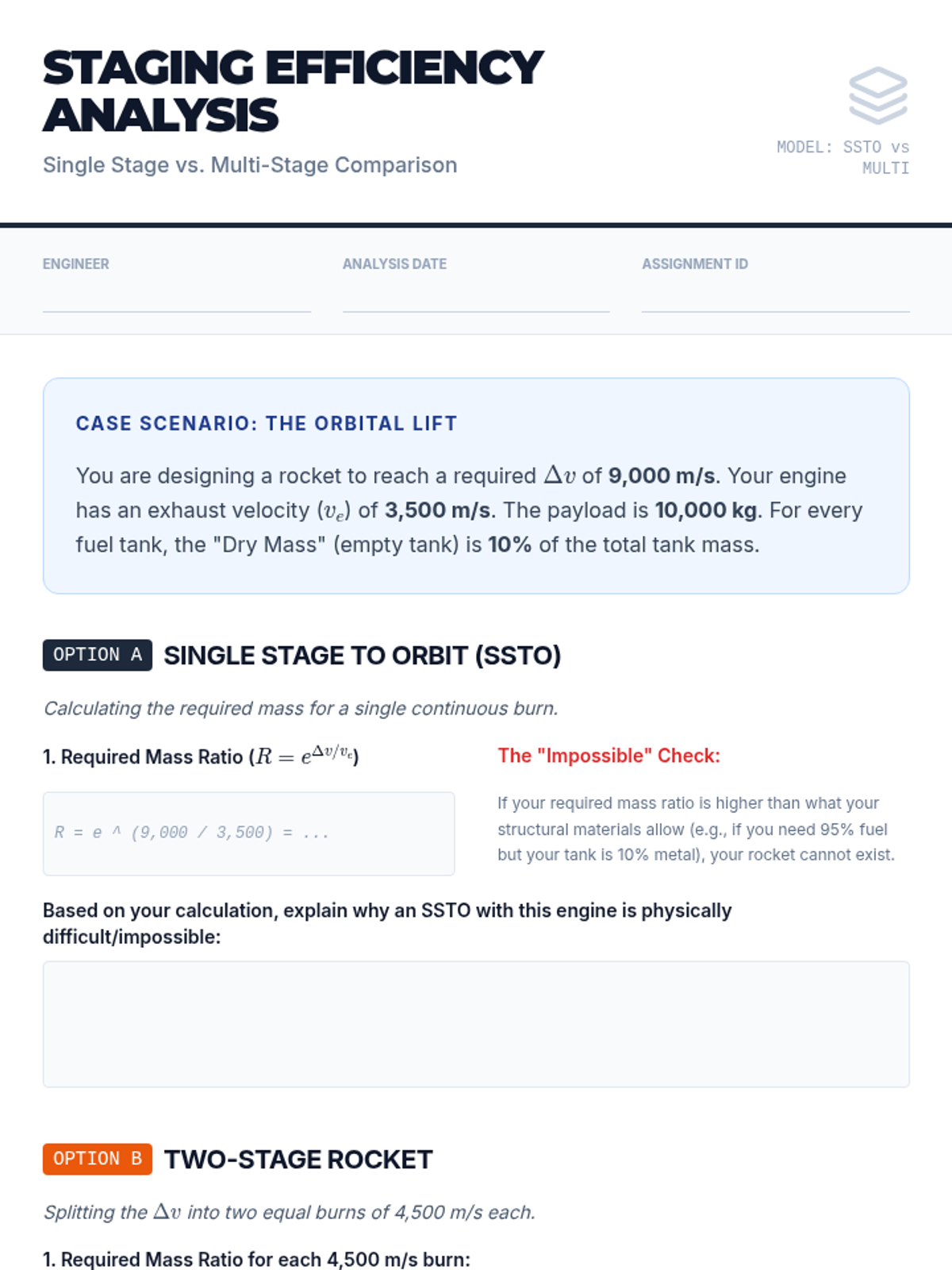

Staging Efficiency Worksheet Staging Efficiency Analysis
Single Stage vs. Multi-Stage Comparison
MODEL: SSTO vs MULTI
Engineer
Analysis Date
Assignment ID
Case Scenario: The Orbital Lift
You are designing a rocket to reach a required \( \Delta v \) of 9,000 m/s . Your engine has an exhaust velocity (\( v_e \)) of 3,500 m/s . The payload is 10,000 kg . For every fuel tank, the "Dry Mass" (empty tank) is 10% of the total tank mass.
Option A
Single Stage to Orbit (SSTO)
Calculating the required mass for a single continuous burn.
1. Required Mass Ratio (\( R = e^{\Delta v / v_e} \))
R = e ^ (9,000 / 3,500) = ...
The "Impossible" Check:
If your required mass ratio is higher than what your structural materials allow (e.g., if you need 95% fuel but your tank is 10% metal), your rocket cannot exist.
Based on your calculation, explain why an SSTO with this engine is physically difficult/impossible:
Option B
Two-Stage Rocket
Splitting the \( \Delta v \) into two equal burns of 4,500 m/s each.
1. Required Mass Ratio for each 4,500 m/s burn:
2. Conceptual Analysis: After Stage 1 burns out, the rocket "drops" the empty Stage 1 tank. How does this benefit Stage 2 in terms of the initial mass (\( m_0 \)) it has to push?
Comparative Reflection
Summarize the momentum exchange during a staging event. What happens to the momentum of the dropped stage versus the remaining rocket?
Design Challenge:
If adding stages makes a rocket more efficient, why don't we build rockets with 50 stages?
Instructor Note:
Staging is essentially a discrete way of managing variable mass. Instead of continuously losing mass (fuel), we also lose structure (tanks) to reset our mass ratio advantage.
Future Propulsion Slides Next Generation Propulsion
Sailing on
Light & Ions
Escaping the chemical limit with low-thrust, long-duration momentum.
High Thrust vs. High Efficiency
Chemical Rockets
Huge force for a short time. Great for escaping gravity, but "fuel hungry."
Exhaust Velocity (\( v_e \))
~4,500 m/s
Ion Drives
Tiny force for a long time. Useless for launch, but incredible for deep space.
Exhaust Velocity (\( v_e \))
~30,000 m/s
Accelerating Atoms
Instead of burning fuel, we use electricity (from solar panels) to strip electrons from Xenon atoms and accelerate them using electric fields.
Result: Low mass flow rate (\( \Delta m / \Delta t \)) but extreme exhaust velocity (\( v_e \)).
Electrostatic Acceleration
Sailing on Photons
Photons have no mass, but they have momentum :
\[ p = \frac{E}{c} \]
When light reflects off a sail, it transfers that momentum. No fuel required on board!
The Catch?
The force is incredibly tiny—about the weight of a paperclip spread over a football field. But in space, it never stops pushing.
Choosing Your Engine
Mission: Launch
Chemical
Mission: Mars Cargo
Ion Drive
Mission: Interstellar
Solar Sail
Different tools for different momentum exchanges.

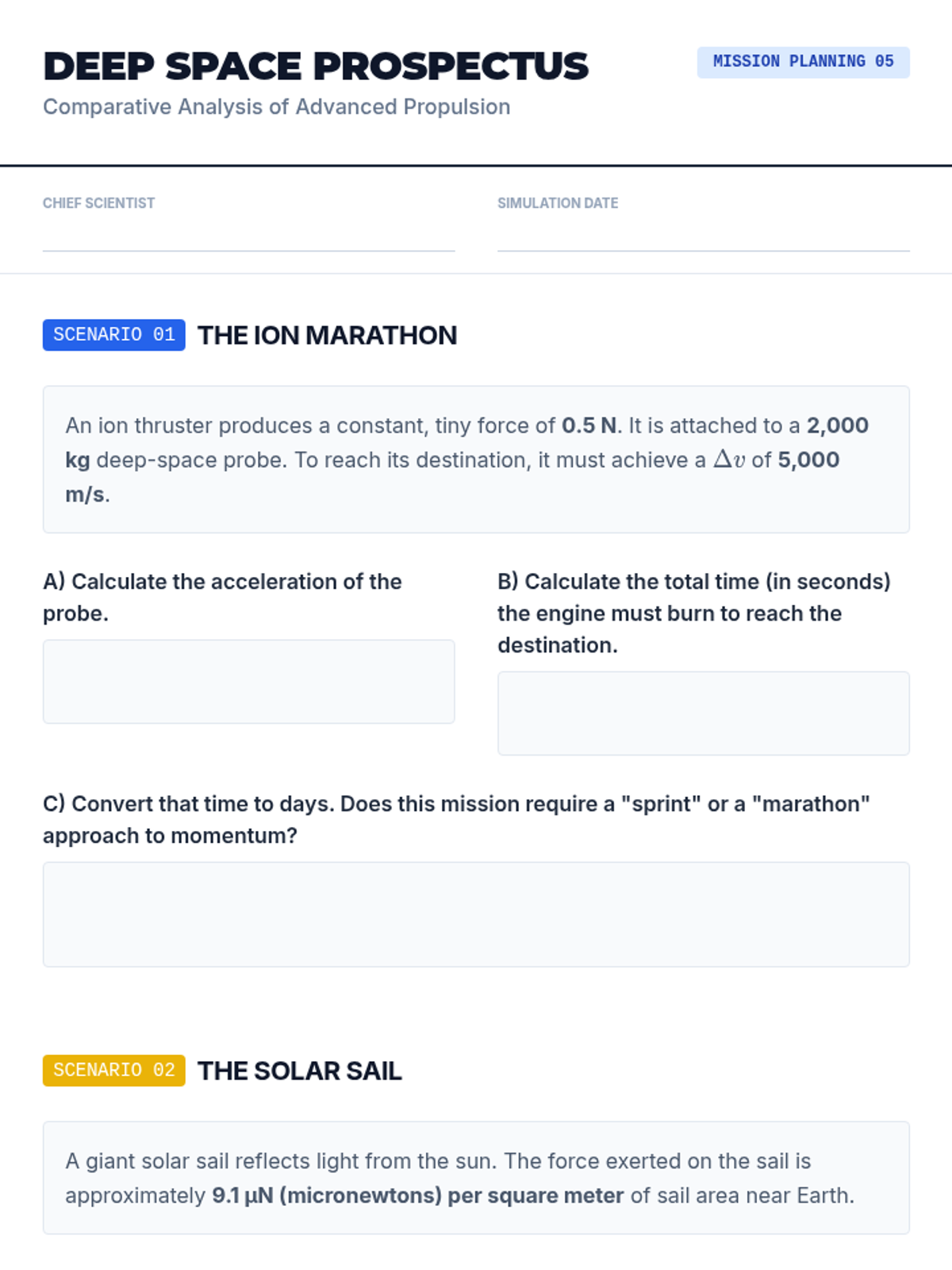

Future Tech Analysis Worksheet Deep Space Prospectus
Comparative Analysis of Advanced Propulsion
Mission Planning 05
Chief Scientist
Simulation Date
Scenario 01
The Ion Marathon
An ion thruster produces a constant, tiny force of 0.5 N . It is attached to a 2,000 kg deep-space probe. To reach its destination, it must achieve a \( \Delta v \) of 5,000 m/s .
A) Calculate the acceleration of the probe.
B) Calculate the total time (in seconds) the engine must burn to reach the destination.
C) Convert that time to days. Does this mission require a "sprint" or a "marathon" approach to momentum?
Scenario 02
The Solar Sail
A giant solar sail reflects light from the sun. The force exerted on the sail is approximately 9.1 μN (micronewtons) per square meter of sail area near Earth.
A) If your spacecraft has a mass of 500 kg and a sail area of 10,000 m², calculate the total force exerted by light.
B) Explain why a solar sail mission can achieve near-infinite total Impulse, even though the Force is almost zero.
Final Mission Design
Choose one: A fast human mission to Mars or a slow robot mission to the stars.
Choice & Justification
Describe your propulsion choice and why its momentum profile fits the mission...
Physics Principle
Which specific variable (\( F, \Delta t, \Delta m, v_e \)) are you optimizing? Explain.
